RXi2 –UP Industrial PC
QUICK START GUIDE

i RXi2 - UP Industrial PC Quick Start Guide GFK-3221A
Caution Notes as Used in this Publication
WARNING
Warning notices are used in this publication to emphasize that
hazardous voltages, currents, temperatures, or other conditions
that could cause personal injury exist in this equipment or may be
associated with its use.
In situations where inattention could cause either personal injury
or damage to equipment, a Warning notice is used.
CAUTION
Caution notices are used where equipment might be damaged if
care is not taken.
Note: Notes merely call attention to information that is especially
significant to understanding and operating the equipment.

ii RXi2 - UP Industrial PC Quick Start Guide GFK-3221A
These instructions do not purport to cover all details or variations in
equipment, nor to provide for every possible contingency to be met
during installation, operation, and maintenance. The information is
supplied for informational purposes only, and Emerson makes no
warranty as to the accuracy of the information included herein.
Changes, modifications, and/or improvements to equipment and
specifications are made periodically and these changes may or may not
be reflected herein. It is understood that Emerson may make changes,
modifications, or improvements to the equipment referenced herein or
to the document itself at any time. This document is intended for
trained personnel familiar with the Emerson products referenced
herein.
Emerson may have patents or pending patent applications covering the
subject matter in this document. The furnishing of this document does
not provide any license whatsoever to any of these patents.
Emerson provides the following document and the information
included therein as-is and without warranty of any kind, expressed or
implied, including but not limited to any implied statutory warranty of
merchantability or fitness for a particular purpose.

iii RXi2 - UP Industrial PC Quick Start Guide GFK-3221A
Table of Contents
Unpackand Inspect ..........................................1
Handling........................................................................................... 4
Physical Connection Overview and Startup ......5
Status LEDs ..................................................................................... 6
Power Button.................................................................................... 7
Ethernet Ports (Eth1, Eth2, Eth3, Eth4, Eth5) ................................... 8
DisplayPort....................................................................................... 8
USB 3.0 Connectors ........................................................................ 9
Power Connectors..........................................................................10
Initial Startup.................................................11
RXi2-UP Pre-Installed Software Options .........13
Movicon.NExT Startup ...................................14
Movicon.NexT Demo Mode ...............................................15
Checking Activated Licenses ......................................................... 15
Movicon.NExT License File Recovery in Windows 10 ..................16
Additional Reference Topics ...........................17
General Contact Information..........................18

1 RXi2 - UP Industrial PC Quick Start Guide GFK-3221A
Unpack and Inspect
WARNING
Before installing or removing any board or module, ensure that the
system power and external supplies have been turned off.
WARNING
Do not apply power to the board if it has visible damage. Doing so
may cause further, possibly irreparable damage, as well as introduce a
fire or shock hazard.
ATTENTION
Retain all packing material in case of future need.

2 RXi2 - UP Industrial PC Quick Start Guide GFK-3221A
Before unpacking the board or module, or fitting the device into your
system, read the manual carefully (GFK-3047, RXi2-UP Hardware
Reference Manual). Also adhere to the following guidelines:
•Observe all precautions for electrostatic sensitive modules.
•If the product contains batteries, do not place it on conductive
surfaces, anti-static plastic, or a sponge, which can cause
shocks and lead to battery or board trace damage.
•Do not exceed the specified operational temperatures outlined
in the hardware reference manual. Batteries and storage
devices might also have temperature restrictions.
•Keep all original packaging material for future storage or
warranty shipments of the board.
After unpacking the component, inspect it for visible damage that may
have occurred during shipping or unpacking. Although the product is
carefully packaged to protect it against the rigors of shipping, it is still
possible that shipping damages may occur. Careful inspection of the
shipping carton should reveal some information about how the
package was handled by the shipping service.
If evidence of damage or rough handling is found (usually in the form of
bent component leads or loose socketed components), notify the
shipping service as soon as possible and contact Emerson for additional
instructions. Depending on the severity of the damage, it may be
necessary to return the product to the factory for repair.

3 RXi2 - UP Industrial PC Quick Start Guide GFK-3221A

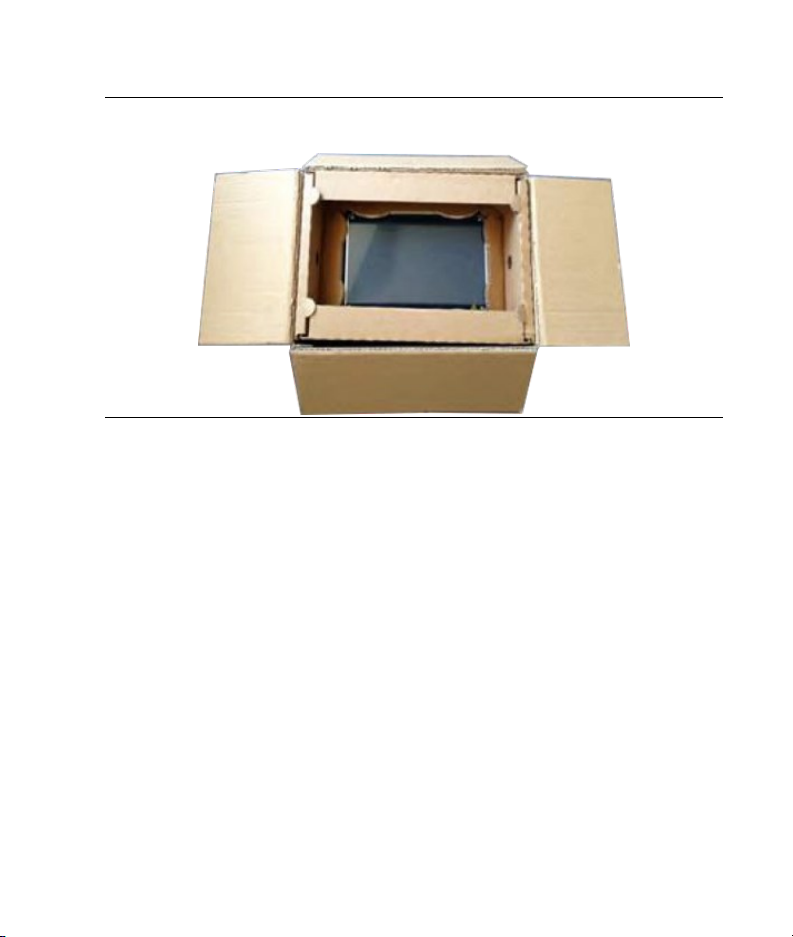

Figure 1:RXi2-UP IPC Packaging

4 RXi2 - UP Industrial PC Quick Start Guide GFK-3221A
Handling
WARNING
If the RXi2-UP IPC operates with an enhanced ambient temperature
up to 65°C (149 ° F), the surface of the enclosure, especially the heat
sink, can reach a temperature of 85°C (185 °F) and above. Be careful
and do not touch the RXi2-UP IPC with bare fingers.
CAUTION
Install the RXi2-UP IPC only in rooms with restricted access.
CAUTION
Hot surfaces are possible, depending on factors such as CPU load,
ambient temperature, and so forth. Be careful and do not touch the
RXi2-UP with bare fingers!

5 RXi2 - UP Industrial PC Quick Start Guide GFK-3221A
Physical Connection Overview and
Startup
Depending on the model of your RXi2-UP IPC, the arrangement or
quantity of the hardware connectors may differ from the images in this
Quick Start Guide. The following information is for reference only.

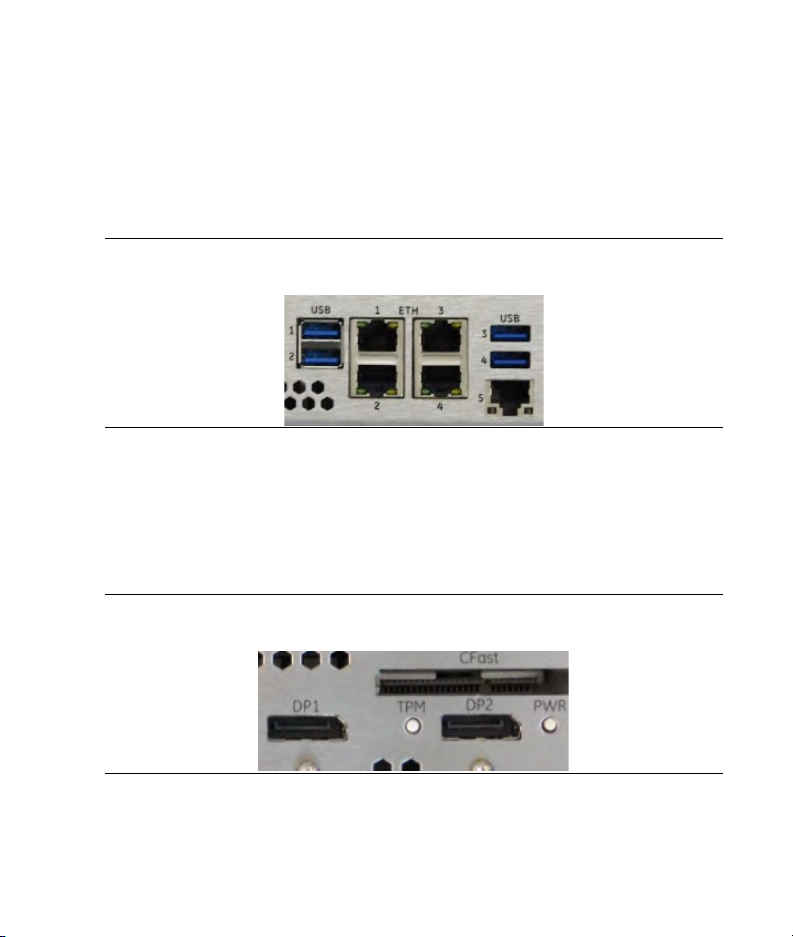

Figure 2: Rear Panel Arrangements

6 RXi2 - UP Industrial PC Quick Start Guide GFK-3221A
Status LEDs
The RXi2-UP IPC contains a set of status LEDs to indicate various functions.
The CEC09 provides LEDs on the front panel, in a location near the power
connector and power button.
Figure 3: Status LEDs
Table 1: Status LEDs
LED Name
Color
LED Status Indication
PWR (Power)
Red
Standby power available, but no power good
signal active (error condition)
Yellow
Standby power valid (S3, S4, S5)
Green
All power available and valid (S0)
SATA
Green
SATA access in progress (SATA, CFAST, M.2)
THRM
(Port Expander:
P0: Green; P1: Red)
Green
Thermal OK
Yellow
THot reached (available also in S5 after
Shutdown)
Red
TCrit reached (available also in S5 after
Shutdown)
USER (GPO0)
Green
Switchable from User
TPM
(Port Expander:
P2: Green and Red)
Yellow
Flashes when TPM button is pressed for a defined
amount of time

7 RXi2 - UP Industrial PC Quick Start Guide GFK-3221A
Power Button
The Power button powers on the RXi2-UP IPC. It is located on the front
panel.

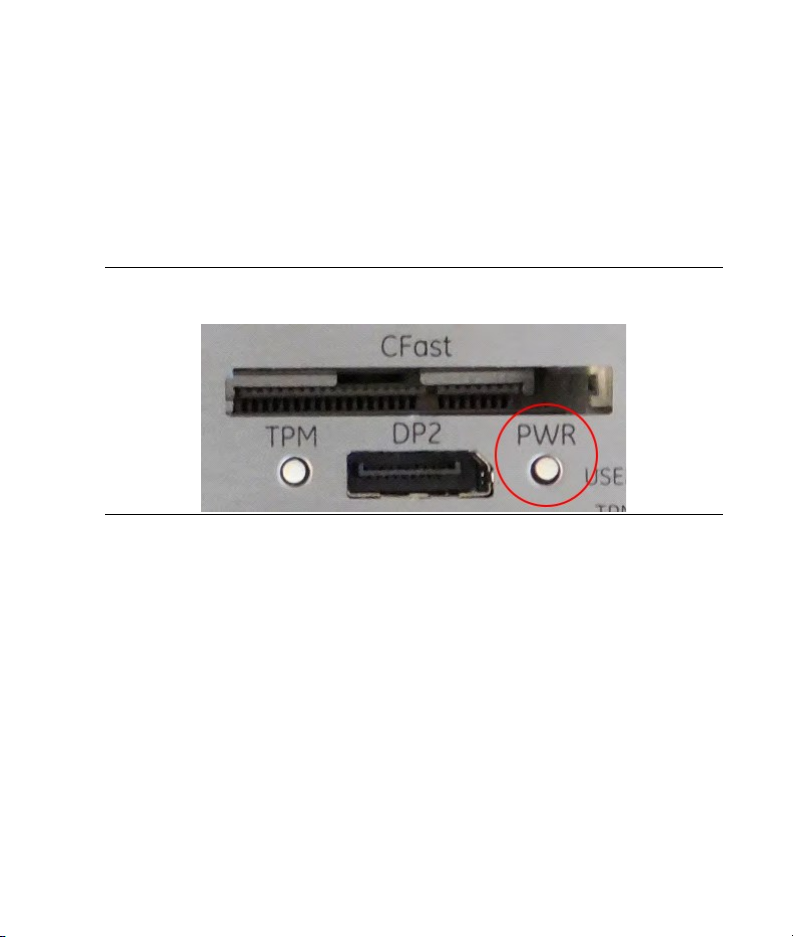

Figure 4: Power Button
Note: Use an appropriate tool for operation as needed.
Pressing (short push) the power button triggers the operating system
to shut down (Power State S5). If the operating system does not
immediately shut down, press and hold the Power button for more than
5 seconds to force the RXi2-UP IPC to shut down immediately without
support from the operating system.
State S5 (Soft-off mode) switches off the CPU core power and resets the
RXi2-UP IPC. The State S5 is indicated with an Amber Power LED. At this
state, it is possible to reactivate the RXi2-UP IPC by pressing (short
push) the Power button. This action switches on the CPU core voltage
and the boards restart.

8 RXi2 - UP Industrial PC Quick Start Guide GFK-3221A

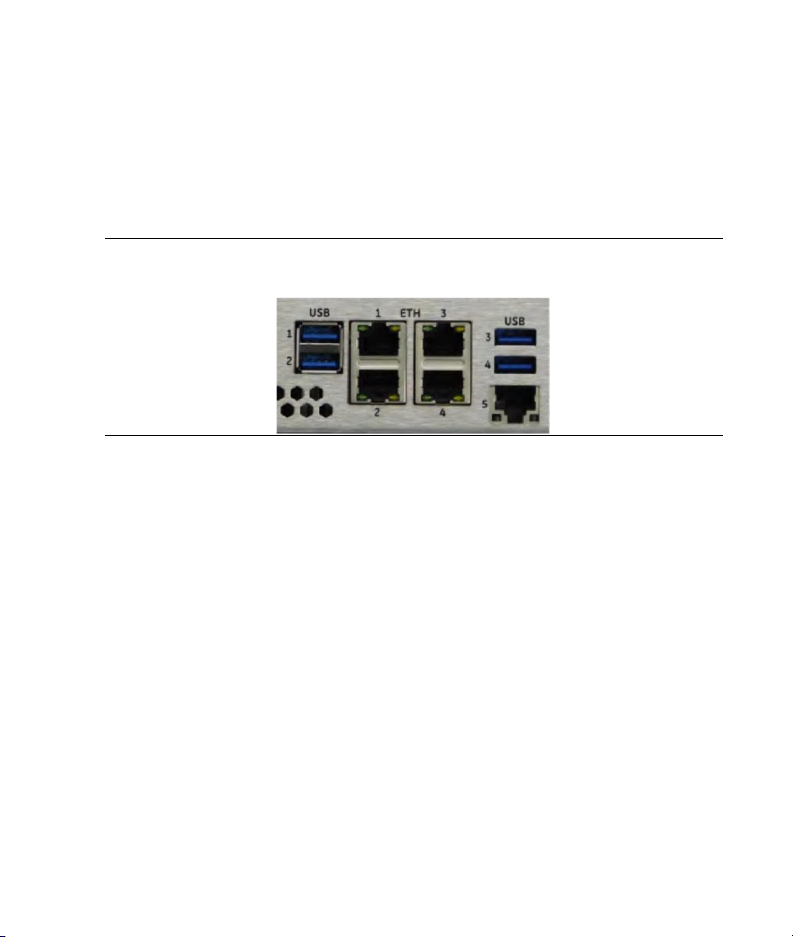

Ethernet Ports (Eth1, Eth2, Eth3, Eth4, Eth5)
Five Ethernet interface ports are available on the RXi2-UP IPC. They are
located on the front panel. Ethernet interface requires the use of a CAT
5 cable for proper operation with 100/1000Base-T.
Figure 5: Ethernet Interface
DisplayPort
DisplayPort connectors (DP1 and DP2) provide signals for connecting
either a suitable monitor or an adaptor to several other display
standards.
Figure 6: DisplayPort Connectors

9 RXi2 - UP Industrial PC Quick Start Guide GFK-3221A
USB 3.0 Connectors
Four USB channels are available at standard USB Type A connectors.
Each pair of them is fused with 2 A, but for normal operation do not
exceed 0.9 A per connector.
Figure 7: USB 3.0 Connectors

10 RXi2 - UP Industrial PC Quick Start Guide GFK-3221A
Power Connectors
The power inlet into the RXi2-UP IPC is a Phoenix contact Base strip -
MSTB 2.5/ 3-GF - 1776702 connector. The corresponding plug is a type
FKCN 2.5/ 3-STF - 1732975 from a Phoenix contact.

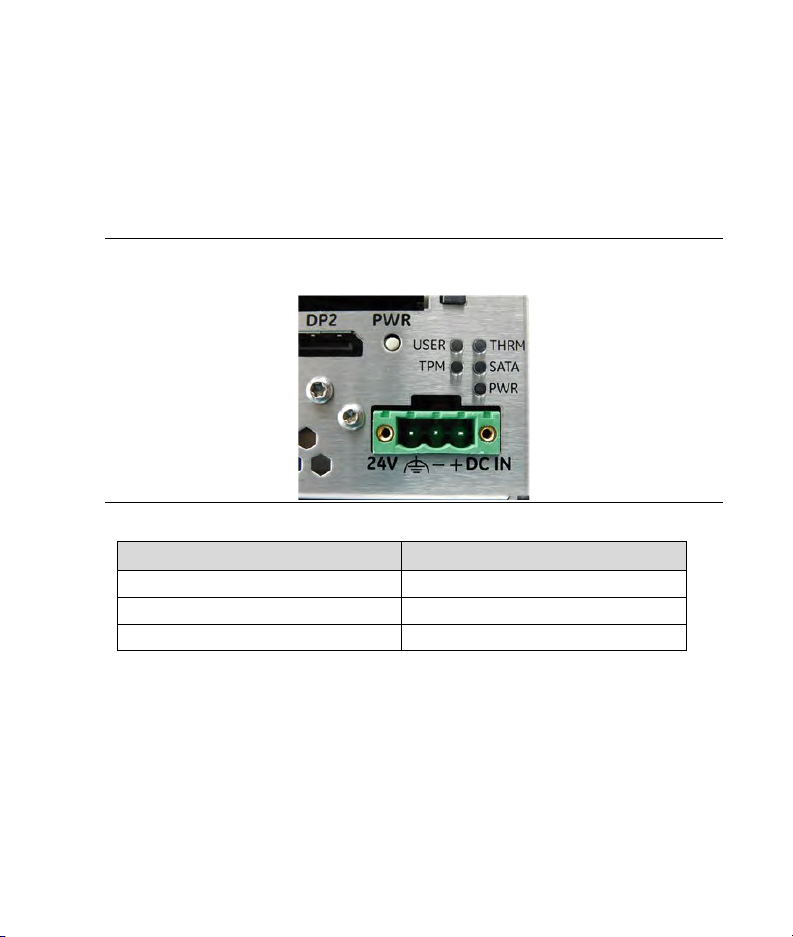

Figure 8: Power Connector
Table 2: Power Connectors
Signal Name
Pin (Left to Right)
Frame GND
1
Power -
2
Power +
3
The power input is filtered internally on the RXi2-UP IPC. Directly after
the power connector Frame GND and Power –are hard connected.
When using a power supply with a supply reference to PE ground,
connect the +24 V to power plus and the GND to power minus.

11 RXi2 - UP Industrial PC Quick Start Guide GFK-3221A
ATTENTION
Never use a power supply generating a -24 V output if the
positive supply is related to PE ground. It will be shortened if
any external device is connected to the RXi2-UP IPC.
ATTENTION
The power input is secured with one 10 A blow fuse. If the input
power exceeds the limits, the fuse will be blown to protect all
circuitry within the RXi2-UP IPC. Contact Emerson for a suitable
replacement.
Initial Startup
For the first startup, it is advisable to connect a monitor,
keyboard, and mouse so that boot progress can be observed. For
headless operation after the first startup, a directly attached
monitor is not required.
After making the connections, the IPC will power on
automatically. A few seconds after powering up, the RXi2-UP IPC
system UEFI Firmware banner and Emerson logo will display on
the screen. If the user does not see any error messages up to this

12 RXi2 - UP Industrial PC Quick Start Guide GFK-3221A
point, the RXi2-UP IPC is running properly and ready to be
configured for an application.
For more information on UEFI Setup, please see the RXi2-UP
Hardware Reference Manual (GFK-3047).
If the RXi2-UP came with pre-installed software, the boot process
will continue to load the operating system and application
software.
Note: If the RXi2-UP IPC does not perform as described above, some
damage may have occurred during shipment, or the IPC is not configured
properly. Please contact Emerson for technical support. (Please see the
contact information provided at the end of this document.)

13 RXi2 - UP Industrial PC Quick Start Guide GFK-3221A
RXi2-UP Pre-Installed Software
Options
Software
Options
Descriptions
RXI2-UP (No
Pre-Installed
Operating
System or
Software)
The user is responsible for installing an operating system
and application software. Please connect the power cable,
monitor, USB keyboard, and mouse before powering-up
the system. Please consult the RXi2-UP Hardware
Reference User Manual (GFK-3187) for details on how to
change the UEFI boot order and to install the operating
system.
RXi2-UP
Windows 10
The unit comes with a Windows 10 IoT operating system
pre-installed. Please connect the power cable, monitor,
USB keyboard, and mouse before powering-up the system.
Follow the on-screen instructions for configuring Windows
OS. Please consult Section Movicon.NExT License File
Recovery in Windows 10.
RXi2-UP
Movicon.NExT
The unit comes with Movicon.NExT software is pre-
installed. Please connect the power cable, monitor, USB
keyboard, and mouse before powering up the system.
Please consult Section Movicon.NExT Startup.

14 RXi2 - UP Industrial PC Quick Start Guide GFK-3221A
Movicon.NExT Startup
RXi2-BP with pre-installed Movicon.NExT runtime software, when first
powered up will start with Windows 10 self-guiding dialogues and
configuration options, allowing the user to configure username,
password, geographical location, keyboard layout, etc.
Once the Windows operating system has been personalized as desired,
the user will reach the Windows desktop. At this stage, the user will be
able to upload a previously developed project to the Industrial PC. This
can either be done via a USB key, or by using the deployment function
in the Movicon.NExT editor tool running on a connected device.
Note:
•For more information on how to deploy a project, please visit:
http://www.movicon.info/HelpNExT4.1/326/en/PlatformNext.ht
m#t=WebServer%2FDeploy_WebServer.htm&rhsearch=deploy&r
hhlterm=deploy&rhsyns=%20
•Industrial PC is only pre-installed with runtime license. If you
require an editor license to develop or edit a project, please
contact Emerson sales to make a purchase.
To start the runtime of a deployed Movicon.NExT project, please go to
Start->Movicon.NExT->”project name” or double-click on the project
icon on the desktop if a desktop icon has been created during
deployment. This will start the runtime of the project.
