RXi2 –LP Industrial PC
HARDWARE REFERENCE MANUAL

RXi2-LP IPC Hardware Reference Manual Contents
GFK-3068B Aug 2021
Contents i
Contents
Section 1: Getting Started ......................................................1
1.1 Revisions to this Manual ...................................................................................... 1
1.2 Features .............................................................................................................. 1
1.3 Specifications ...................................................................................................... 1
1.4 RXi2 –LP Industrial PC ......................................................................................... 4
Section 2: Hardware ..............................................................5
2.1 Key Features........................................................................................................ 5
2.2 Motherboard Specifications................................................................................. 5
2.2.1 Specifications............................................................................................ 5
2.2.2 I/O and Connectors ................................................................................... 6
2.2.3 Battery .................................................................................................... 11
2.3 LED Indicators ................................................................................................... 11
2.3.1 Ethernet Port Operation LEDs.................................................................. 11
Section 3: BIOS Setup ...........................................................12
3.1 BIOS Setup ........................................................................................................ 12
3.1.1 Submenu ................................................................................................ 12
3.2 AMI BIOS Setup Utility ....................................................................................... 13
3.2.1 Accessing the BIOS.................................................................................. 13
3.2.2 Main Menu .............................................................................................. 13
3.2.3 System Language .................................................................................... 14
3.2.4 Advanced................................................................................................ 14
3.2.5 ACPI Settings........................................................................................... 15
3.2.6 Trusted Computing ................................................................................. 16
3.2.7 Wakeup Configuration ............................................................................ 17
3.2.8 CPU Configuration .................................................................................. 18
3.2.9 IDE Configuration.................................................................................... 19
3.2.10USB Configuration................................................................................... 20
3.2.11NCT61120 Super IO Configuration .......................................................... 21
3.2.12NCT 6112D HW Monitor.......................................................................... 22
3.2.13NCT 6112D Super IO Features ................................................................. 23

RXi2-LP IPC Hardware Reference Manual Contents
GFK-3068B Aug 2021
Contents ii
3.2.14Network Stack Configuration .................................................................. 24
3.3 Chipset.............................................................................................................. 25
3.3.1 Boot Configuration.................................................................................. 26
3.4 Security ............................................................................................................. 28
3.4.1 Key Management .................................................................................... 29
3.5 Save & Exit......................................................................................................... 30
3.5.1 Menu Options ......................................................................................... 30
3.5.2 Updating the BIOS................................................................................... 30
Section 4: Installation of Drivers...........................................31
4.1 Drivers Installation Instruction ........................................................................... 31
Section 5: Mounting Information .........................................34
5.1 Wall Mount Dimensions (using included mounting bracket) .............................. 34
5.2 DIN Rail Mounting Dimensions (Includes Mounting Bracket).............................. 35
5.3 DIN Rail Mounting Installation ........................................................................... 36
5.4 Minimum Clearances for DIN Rail Mounting....................................................... 37
General Contact Information ....................................................................................... 38
Technical Support........................................................................................................ 38

RXi2-LP IPC Hardware Reference Manual Warnings and Cautions
GFK-3068B Aug 2021
Contents iii
Warnings and Caution Notes as Used in this Publication
WARNING
Warning notices are used in this publication to emphasize that hazardous voltages, currents, temperatures, or other
conditions that could cause personal injury exist in this equipment or may be associated with its use.
In situations where inattention could cause either personal injury or damage to equipment, a Warning notice is used.
CAUTION
Caution notices are used where equipment might be damaged if care is not taken.
Note: Notes merely call attention to information that is especially significant to understanding and operating
the equipment.
These instructions do not purport to cover all details or variations in equipment, nor to provide for every possible
contingency to be met during installation, operation, and maintenance. The information is supplied for informational
purposes only, and Emerson makes no warranty as to the accuracy of the information included herein. Changes,
modifications, and/or improvements to equipment and specifications are made periodically and these changes may or
may not be reflected herein. It is understood that Emerson may make changes, modifications, or improvements to the
equipment referenced herein or to the document itself at any time. This document is intended for trained personnel
familiar with the Emerson products referenced herein.
Emerson may have patents or pending patent applications covering subject matter in this document. The furnishing of
this document does not provide any license whatsoever to any of these patents.
Emerson provides the following document and the information included therein as-is and without warranty of any kind,
expressed or implied, including but not limited to any implied statutory warranty of merchantability or fitness for
particular purpose.

RXi2-LP IPC Hardware Reference Manual Section 1
GFK-3068B Aug 2021
Getting Started 1
Section 1: Getting Started
1.1 Revisions to this Manual
Revision
Date
Description
B
Aug 2021
Adds support for PACEdge 2.1
A
Aug 2019
Initial Release
1.2 Features
Primary technical features:
AMD Embedded G-Series SOC Processor
Onboard DDR3L, up to 8GB (Soldered with ECC)
1 x SSD Slot
Fanless Design
24V DC Wide Range Power Input
1.3 Specifications
Item
Form Factor
Small (Dual Core)
Large (Quad Core)
Processor
Chipset
AMD Embedded
G-Series SOC
Processor
GX-210HL
GX-412GC
# of cores/TDP
2/7W
4/15W
CPU frequency/L2
Cache
1.0Ghz/1MB
1.2Ghz/2MB
GPU frequency
267Mhz
300Mhz
Memory
Capacity
4GB or 8GB DDR3L
(Soldered with ECC, -40°C ~ 85°C)
Storage
Internal
32 / 64 / 128GB MLC SSD
(SATA Slim, -40°C ~ 85°C)
64 / 128GB MLC SSD
(SATA Slim, -40°C ~
85°C)
External Slot
1 x External Micro SD/ SDHC Card Slot (up to 32GB)
Watchdog
Timer
Timer Levels
255 timer levels, set up by software
Status
Indicators
On-board Buzzer
Yes (85dB sound level with 80mA mean current)

RXi2-LP IPC Hardware Reference Manual Section 1
GFK-3068B Aug 2021
Getting Started 2
Item
Form Factor
Small (Dual Core)
Large (Quad Core)
Power-Supply
Voltage [V]
+24 VDC ±20%
(19.2 V to 28.8 V, 3-Pin Connector, Isolated)
Protection-
Class
Computing Unit
IP20
Interfaces
Port 1
2 x 10/100/1000
Base T Ethernet RJ45
4 x 10/100/1000
Base T Ethernet RJ45
Port 2
1 x RS-232 COM Port (5-Pin Connector, Isolated)
1 x RS-485 COM Port (5-Pin Connector, Isolated)
Port 3
2 x USB 3.0 (Type-A)
2 x USB 3.0 (Type-A)
2 x USB 2.0 (Type-A)
Port 4
1 x DisplayPort
Port 5
1 x Mic In (Mono) (3.5mm Jack)
Port 6
1 x Line Out (Stereo) (3.5mm Jack)
Operating
System
Installed Standard
Windows 10 IOT Enterprise LTSC
Software Tools
Tool 1
Secure & Trusted Boot Capability
Tool 2
DHCP-Client, Web Browser (IE or FireFox), Java JRE
Capability
Secure &
Trusted Boot
Item 1
On-Board TPM2.0
Design
Housing
Aluminum Die Casting (Front)
Construction Type
Modular
(Detachable Modules; Computer, Monitor, Touch
Display, DIO)
Cooling
Natural Convection (Fanless Passive Cooling)
Environment
Operating
Temperature
-20°C to +65°C
Storage Temperature
-30°C to +70°C
Operating Humidity
85% RH (non- condensing) @ 30°C
Operating Altitude
10000 ft. (3.000 m)
Vibration
1Grms / 5 ~ 500Hz (Random) / Operation IEC 60068-
2-64
10G peak acceleration (11 msec. duration)/operation
IEC 60068-2-27
Protection/Installation
IP20/Open Type product for mounting in an ultimate
enclosure Pollution Degree 2 environment
Compliance
Certifications
UL and cUL 61010
CE (EN 61000-6-4, 61000-6-2)
FCC Part15 Class A
RoHS

RXi2-LP IPC Hardware Reference Manual Section 1
GFK-3068B Aug 2021
Getting Started 3
Item
Form Factor
Small (Dual Core)
Large (Quad Core)
Certifications Coming
Marine: DNV, ABS, BV
Physical
Specification
Mounting Hole
Dimensions (mm)
199.5 (L) x 70 (W)
313.8 (L) x 88 (W)
Net Weight (kg)
1.7
2.4
Dimensions (mm)
(bracket included)
214 (L) x 119 (W) x 36.7
(H)
328.3 (L) x 160 (W) x
33.7 (H)

RXi2-LP IPC Hardware Reference Manual Section 1
GFK-3068B Aug 2021
Getting Started 4
1.4 RXi2 –LP Industrial PC
The RXi2 –LP Industrial PC comes with a Dual Core 1.0 GHz processor or a Quad Core
1.2GHz Processor with 4GB or 8GB of available DDR3 RAM with Windows 10 IOT
Enterprise LTSC OS installed, or without an operating system. The RXi2 –LP Industrial
PC can run up to two displays simultaneously through the following options:
(1) Two external displays (such as RXi –Industrial Monitor) through included Display
Port
(2) One external display (RXi –Industrial Monitor) through included Display Port & one
native display (screen) through included display connector baseplate
See Section 5.2: Baseplate Exchange for more details
The operating temperature rating ranges as high as 65°C and as low as -20°C. With
Marine and ATEX/IECEX, the RXi2 –LP Industrial PC is a solution that is designed to go
where you need it to.
Figure 1: Rear View of Small Box (Dual Core)
Figure 2: Rear View of Large Box (Quad Core)

RXi2-LP IPC Hardware Reference Manual Section 2
GFK-3068B Aug 2021
Hardware 5
Section 2: Hardware
2.1 Key Features
•Watchdog Timer
•DDR3
•Graphics
•Serial ATA
•Gigabit LAN
•Power Failure Recovery
•USB
•Wake-On-LAN
•Wake-On-USB
•ACPI-STR
•RTC Timer
2.2 Motherboard Specifications
2.2.1 Specifications
Item
Specification
Board Size
170mm x 113mm
CPU Support
AMD® Embedded G-Series
AMD® GX-210HL, Dual Core, 1M Cache, 1.0GHz, 7W
AMD® GX-412GC, Quad Core, 2M Cache, 1.2GHz, 15W
Memory Support
On board 4GB/8GB DDR3L Memory with ECC
Supports Single Channel DDR3 1066/1333MHz
Graphics
AMD RadeonTM R3E GPU
DirectX® 11.2, OpenGL 4.3, OpenCLTM 1.2 graphics support
1 x DP++
1 x LVDS
DP++: resolution up to 4096x2160 @ 30Hz
LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz
BIOS
AMI SPI 64Mbit
Storage
1 x Micro SD
1 x SATA 3.0 (7+15 pin)
Ethernet
2 x Intel® I210IT, -40 to 105°C PCIe (10/100/1000Mbps)
Outside I/O
2 x USB 3.0
1 x RS-232
1 x RS-485
1 x Mic-in
2 x GbE (RJ-45)
1 x DP++

RXi2-LP IPC Hardware Reference Manual Section 2
GFK-3068B Aug 2021
Hardware 6
Item
Specification
1 x Line-out
1 x Power Button
Internal I/O
1 x LVDS LCD Panel Connector
1 x AIO/DIO 1x30pin Connector (JAE TX24-30R-10ST-H1E)
Battery

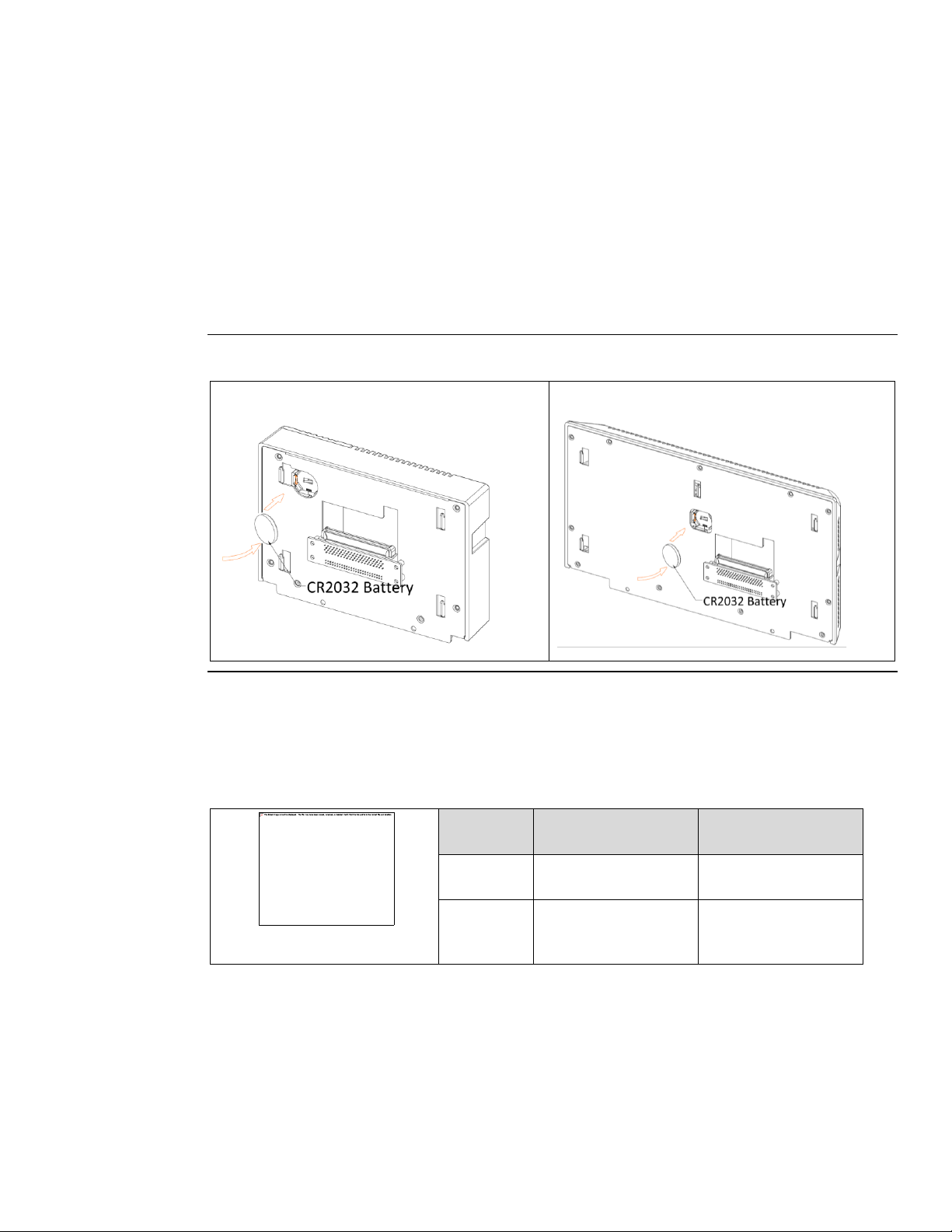

CR2032 Coin Cell
Audio
Codec:92HD73C
Expansion
1 x Mini PCIe (PCIe/USB 2.0)
1 x M.2 E key 2230 (PCIe/USB 2.0)
Security
TPM2.0
Watchdog Timer
System Reset
Programmable via Software from 1 to 255 Seconds/Minutes
Temperature
Operating: -30 to 85°C
Storage: -30 to 85°C
Humidity
Operating: 10 to 90% RH
Storage: 10 to 90% RH
OS Support
Windows 10 IoT Enterprise (64-bit)
2.2.2 I/O and Connectors
Outside I/O
The rear panel I/O port arrangement consists of the following:
•1 power button
•1 24V DC-in 3-pin power connector
•1 DP++
•2 USB 3.0 ports
•2 RJ45 LAN ports
•1 UART terminal-block
•1 Line-out jack
•1 Mic-in jack

RXi2-LP IPC Hardware Reference Manual Section 2
GFK-3068B Aug 2021
Hardware 7
Figure 3: Rear Panel Arrangement
Connecting Input Power (24V DC-in)
To connect to power, follow these steps:
1. Verify that the power cable is not energized.
2. Loosen the screw clamps on the mating power
connector.
3. Strip the insulation from the power cables.
4. Secure the power cable to the mating connector,
noting polarity, and tighten the screw clamps. Th e
torque for the attaching screws is 0.3 Nm (2.26 in-lb).
5. Apply dc power to the unit. During normal startup and operation, the LED status
indicator displays as follows:
•Solid amber while the RXi - Industrial Display unit is starting up
•Solid green during normal operation
6. Once power is applied, the unit begins initializing. The first thing to display is the
splash screen.
Be sure to connect a DC power cord to this 3-pin power connector. Using a voltage out of the range may
fail to boot the system or cause damage to the system board.

RXi2-LP IPC Hardware Reference Manual Section 2
GFK-3068B Aug 2021
Hardware 8
Graphics Interface
The display port consists of the following:
DP++ Port
The DP++ is a digital display interface used to connect a display device such as a
computer monitor. It is used to transmit audio and video simultaneously. The
interface, which is developed by VESA, delivers higher performance features than any
other digital interface.
BIOS Setting
Configure the display device in the Chipset menu (“DISPLAY control” submenu) of the
BIOS. Refer to chapter 3 for more information.
RJ45 LAN Ports
Features
2 Intel® I210IT PCI Express Gigabit Ethernet controllers (4 on larger box module)
The LAN ports allow the system board to connect to a local area network through a
network hub or router.
BIOS Setting
Configure the onboard LAN in the Advanced menu (“Wakeup Configuration”
submenu) of the BIOS.
USB Ports
The USB ports allow for data exchange between your computer and a wide range of
simultaneously accessible external Plug and Play peripherals. The RXi –Panel PC is
equipped with 2 onboard USB 3.0 ports (USB 0-1) in the small configuration with an
additional 2 USB 2.0 ports (USB 4-5) in the large box configuration.
BIOS Setting
Configure the onboard USB in the Advanced menu (“Wakeup Configuration”
submenu) of the BIOS. Refer to chapter 3 for more information.

RXi2-LP IPC Hardware Reference Manual Section 2
GFK-3068B Aug 2021
Hardware 9
Wake-On-USB Keyboard/Mouse
The Wake-On-USB Keyboard/Mouse function allows you to use a USB keyboard or USB
mouse to wake up a system from the S3 (STR - Suspend To RAM) state.
Serial Ports (UART)
Serial Connection
Pin
Function
RS232
1
TXD
2
RXD
3
RTS
4
CTS
5
GND
RS485
6
TX+
7
TX-
8
RX+
9
RX-
10
GND
Audio
Rear Audio
The system board is equipped with 2 audio jacks (Line-out and Mic-in). A jack is a one-
hole connecting interface for inserting a plug.
•Line-out Jack (Lime)
This jack is used to connect a headphone or external speakers.
•Mic-in Jack (Pink)
This jack is used to connect an external microphone.
BIOS Setting
Configure the onboard Audio device in the Chipset menu (“SB HD Azalia
Configuration” submenu) of the BIOS.

RXi2-LP IPC Hardware Reference Manual Section 2
GFK-3068B Aug 2021
Hardware 10
I/O Connectors
Serial ATA (SATA) Connector
Features
•1 Serial ATA 3.0 port with data transfer rate up to 6Gb/s
•Integrated Advanced Host Controller Interface (AHCI) controller
The Serial ATA connector is used to connect the Serial ATA device. Connect one end of
the Serial ATA data connector to a SATA connector on the other end to your Serial ATA
device.
BIOS Setting
Configure the Serial ATA drive in the Chipset menu (“SB SATA Configuration” submenu) of the BIOS.
Refer to chapter 3 for more information.
Expansion Slots
Micro SD Socket
The micro SD socket allows you to install a micro SD card for the expansion of available storage.
LVDS LCD Panel Connector
The system board allows you to connect an LCD Display Panel with the LVDS LCD panel connector. This
connector transmits video signals and power from the system board to the LCD Display Panel.
Refer to the right side for the pin functions of the LVDS connector.
BIOS Setting
Configure the LCD panel in the Chipset menu (“DISPLAY control” submenu) of the BIOS. Refer to
Chapter 3 for more information.
AIO/DIO Connector
AIO/DIO connector provides functionality to external devices that are connected to the connector.
(FOR FUTURE USE)

RXi2-LP IPC Hardware Reference Manual Section 2
GFK-3068B Aug 2021
Hardware 11
2.2.3 Battery
The lithium-ion battery powers the real-time clock and CMOS memory. It is an auxiliary source of power
when the main power is shut off or disconnected. It is a standard CR2032 battery and is accessible on
the bottom of the computing module when separated from the screen (as shown below)
Safety Measures
•Danger of explosion if battery incorrectly replaced.
•Replace only with the same or equivalent type recommended by the manufacturer.
•Dispose of used batteries according to local ordinances.
Figure 4: C2032 Battery
7 to 10 Inch
12 to 24 Inch
2.3 LED Indicators
2.3.1 Ethernet Port Operation LEDs
LED
LED State
Operating State
Speed
Yellow, ON
10/100/1000
Link
Activity
Green, ON
Link Status

RXi2-LP IPC Hardware Reference Manual Section 3
GFK-3068B Aug 2021
BIOS Setup 12
Section 3: BIOS Setup
3.1 BIOS Setup
The BIOS is a program that handles of the basic levels of communication between the CPU and
peripherals. It contains codes for various advanced features found in this system board. The BIOS allows
you to configure the system and save the configuration in a battery-backed CMOS so that the data is
retained even when the power is off. In general, the information stored in the CMOS RAM of the EEPROM
will stay unchanged unless a configuration change has been made, such as a replacement of a hard drive,
or addition of a device.
It is possible for the CMOS battery to fail over time, causing CMOS data loss. If this happens, you need to
install a new CMOS battery and reconfigure the BIOS settings.
Keys
Function
Right and Left arrows
Moves the highlight left or right to select a menu.
Up and Down arrows
Moves the highlight up or down between submenu or fields.
<Enter>
Press <Enter> to enter the highlighted submenu or item.
+ (plus key)
Scrolls forward through the values or options of the highlighted field.
- (minus key)
Scrolls backward through the values or options of the highlighted field.
<F1>
Displays general help
<F2>
Pervious values
<F3>
Load Optimized Defaults
<F4>
Saves and resets the setup program.
<Esc>
Exit to the BIOS Setup Utility.
3.1.1 Submenu
When “ ” appears on the left of a particular field, it indicates that a submenu which contains additional
options is available for that field. To display the submenu, move the highlight to that field and press
<Enter>.

RXi2-LP IPC Hardware Reference Manual Section 3
GFK-3068B Aug 2021
BIOS Setup 13
3.2 AMI BIOS Setup Utility
3.2.1 Accessing the BIOS
To access the BIOS, you must attach a USB keyboard to the computing unit and
repeatedly press F2 during the startup sequence until it brings you to the Main Menu
3.2.2 Main Menu
The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.
Figure 5: Main Menu
BIOS Parameter
Description
System
Language
Choose the system default language.
System Date
The date format is <day>, <month>, <date>, <year>. Day displays a day, from
Sunday to Saturday. Month displays the month, from 01 to 12. Date displays the
date, from 01 to 31. Year displays the year, from 1980 to 2099.
Time
The time format is <hour>, <minute>, <second>. The time is based on the 24-hour
military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00
to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to
59.

RXi2-LP IPC Hardware Reference Manual Section 3
GFK-3068B Aug 2021
BIOS Setup 14
3.2.3 System Language
The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock.
For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to
23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.
3.2.4 Advanced
The Advanced menu allows you to configure your system for basic operation. Some entries are defaults
required by the system board, while others, if enabled, will improve the performance of your system or
allow the user to set some features according to their preference.
Figure 6: Advanced Menu

RXi2-LP IPC Hardware Reference Manual Section 3
GFK-3068B Aug 2021
BIOS Setup 15
3.2.5 ACPI Settings
This section configures system ACPI parameters.
Figure 7: ACPI Settings
BIOS Parameter
Description
ACPI Auto
Configuration
This field is used to enable or disable BIOS ACPI auto configuration.
Enable Hibernation
This field is used to enable or disable the system’s ability to hibernate (OS/S4
Sleep State). This option may not be functional with all operating systems.
ACPI Sleep State
This field is used to select ACPI sleep state the system will enter when the
SUSPEND button is pressed.

RXi2-LP IPC Hardware Reference Manual Section 3
GFK-3068B Aug 2021
BIOS Setup 16
3.2.6 Trusted Computing
This section is used to configure the Trusted Computing settings.
Figure 8: Trusted Computing Settings
BIOS Parameter
Description
Security Device Support
Enable or disable BIOS support for a security device. The
Operating System will not show a security device. TCG EFI
protocol and INT1A interface will not be available.
Pending Operation
Schedule an operation for the security device. Your computer will
reboot during restart to change the state of the security device.
