Emerson RXi2 User manual

Quick Start Guide
GFK-3196E
May 2023
RXi2 –BP Industrial PC
QUICK START GUIDE

i RXi2 - BP Industrial PC Quick Start Guide GFK-3196E
Caution Notes as Used in this Publication
WARNING
Warning notices are used in this publication to emphasize that
hazardous voltages, currents, temperatures, or other conditions that
could cause personal injury exist in this equipment or may be
associated with its use.
In situations where inattention could cause either personal injury or
damage to equipment, a Warning notice is used.
CAUTION
Caution notices are used where equipment might be damaged if
care is not taken.
Note: Notes merely call attention to information that is
especially significant to understanding and operating the
equipment.

ii RXi2 - BP Industrial PC Quick Start Guide GFK-3196E
These instructions do not purport to cover all details or
variations in equipment, nor to provide for every possible
contingency to be met during installation, operation, and
maintenance. The information is supplied for informational
purposes only, and Emerson makes no warranty as to the
accuracy of the information included herein. Changes,
modifications, and/or improvements to equipment and
specifications are made periodically and these changes may or
may not be reflected herein. It is understood that Emerson may
make changes, modifications, or improvements to the
equipment referenced herein or to the document itself at any
time. This document is intended for trained personnel familiar
with the Emerson products referenced herein.
Emerson may have patents or pending patent applications
covering the subject matter in this document. The furnishing of
this document does not provide any license whatsoever to any of
these patents.
Emerson provides the following document and the information
included therein as-is and without warranty of any kind,
expressed or implied, including but not limited to any implied
statutory warranty of merchantability or fitness for a particular
purpose.

iii RXi2 - BP Industrial PC Quick Start Guide GFK-3196E
Contents
Physical Connection Overview and Startup.............1
Status LEDs .........................................................................................1
Power Input ........................................................................................2
Ethernet Ports.....................................................................................3
DisplayPort..........................................................................................4
USB Ports.............................................................................................4
Initial Startup......................................................................................5
RXi2-BP Pre-Installed Software Options...................6
Windows 10 Startup.....................................................7
Movicon.NExT Startup.................................................7
Movicon.NExT Demo Mode..............................................................9
Checking Activated Licenses ............................................................9
Movicon.NExT License File Recovery in Windows 10..................10
PACEdge Startup ........................................................10
PACEdge Usage Model....................................................................10
Initial Login.................................................................14
Mounting Information ..............................................18
General Contact Information...................................19

1 RXi2 - BP Industrial PC Quick Start Guide GFK-3196E
Physical Connection Overview
and Startup
Status LEDs
The RXi2-BP provides a set of different status-LEDs on the front
panel to indicate various functions.
LED Name
Color
LED status indication
Power
(also a
button)
Green
All power rails available are good and unit is powered
up (S0).
Yellow
Unit is in standby mode (S3/S4/S5).
Red
Error condition, contact Emerson support for help.
SATA
Green
Disc SATA access in progress (M.2).
USER
Green
Reserved for future use.
TEMP
Green
Temperatures below Thot and Tcrit.
Yellow
Temperatures above Thot and below Tcrit.
If supported by OS, a safe shutdown is initiated.
Red
Temperatures above Thot and Tcrit.
An immediate shutdown has occurred to protect the
system.
TPM
(also a
button)
Yellow
If physical presence is activated, this LED shows the
current status of the physical presence state.

2 RXi2 - BP Industrial PC Quick Start Guide GFK-3196E
Power Input
The RXi2-BP can be powered with a DC power supply capable of
24 V (±25%) and delivering at least 1.8 A.
The corresponding plug is a Phoenix Contact, part number
1748367. The user must use the same connector type or
equivalent.
Figure 1: Power Connector
Signal Name
Pin (left to right)
Power + (24V DC)
1
Power - (24V DC)
2
FGND
3

3 RXi2 - BP Industrial PC Quick Start Guide GFK-3196E
Ethernet Ports
The RXi2-BP provides four Ethernet ports, three RJ45 on the front
panel, and one at the bottom of the IPC.
All four Ethernet ports support 10/100/1000 Base-T.
ETH 0 port also supports AMD remote management DASH
functionality. For details about DASH functionality consult GFK-
3817, RXi2-BP Hardware Reference Manual.
For a proper 100/1000 Mbps connection, Emerson recommends
a CAT5 cable or better.
Figure 2: Ethernet Ports

4 RXi2 - BP Industrial PC Quick Start Guide GFK-3196E
DisplayPort
The RXi2-BP provides one DisplayPort (DP) output that can be
used to directly connect monitors with a DP input. It can also use
a standard off-the-shelf adapter to convert DP signals to HDMI
or VGA.
Figure 3: DisplayPort
USB Ports
The RXi2-BP provides four USB ports. USB1 and USB2 support
both USB 3.1 and USB 2.0 specifications, while USB3 and USB4
support only USB 2.0 specifications.
Figure 4: USB Ports

5 RXi2 - BP Industrial PC Quick Start Guide GFK-3196E
Initial Startup
For the first startup, it is advisable to connect a monitor,
keyboard, and mouse so that boot progress can be observed.
For headless operation after the first start up, a directly attached
monitor is not required.
After making the power connections, the IPC will power on
automatically. A few seconds after powering up, the RXi2-BP IPC
system UEFI Firmware banner and Emerson logo will display on
the screen. If the user does not see any error messages up to
this point, the RXi2-BP IPC is running properly and ready to be
configured for an application.
For more information on remote management DASH
functionality and UEFI Setup, see GFK-3187, RXi2-BP Hardware
Reference Manual.
If the RXi2-BP came with pre-installed software, the boot process
will continue to load the operating system and application
software.
Note: If the RXi2-BP IPC does not perform as described above, some
damage may have occurred during shipment or the IPC is not
configured properly. Please contact Emerson for technical support.
(contact information is provided at the end of this document.)

6 RXi2 - BP Industrial PC Quick Start Guide GFK-3196E
RXi2-BP Pre-Installed Software
Options
Software Options
Descriptions
RXI2-BP (No Pre-
Installed Operating
System or Software)
The user is responsible for installing an operating
system and application software. Connect the power
cable, monitor, USB keyboard, and mouse before
powering-up the system. Consult GK-3187, RXi2-BP
Hardware Reference User Manual for details on how to
change the UEFI boot order and to install the operating
system.
RXi2-BP Windows 10
The unit comes with a Windows 10 IoT operating
system pre-installed. Connect the power cable,
monitor, USB keyboard, and mouse before powering-
up the system. Follow the on-screen instructions for
configuring Windows OS. Consult the Windows 10
Startup section for more details.
RXi2-BP
Movicon.NExT
The unit comes with Movicon.NExT software pre-
installed. Connect the power cable, monitor, USB
keyboard, and mouse before powering-up the system.
Consult the Movicon.NExT Startup section for details.
RXi2-BP PACEdge
The unit comes with PACEdge software pre-installed.
Consult the PACEdge Startup section for details.

7 RXi2 - BP Industrial PC Quick Start Guide GFK-3196E
Windows 10 Startup
RXi2-BP comes with Windows 10 Operating System pre-installed.
When powered up for the first time, it will start with standard
self-guiding Windows screens and dialogues, allowing the user
to configure username, password, geographical location,
keyboard layout, etc.
Movicon.NExT Startup
RXi2-BP comes with Movicon.NExT runtime software pre-
installed. When powered up for the first time, it will start with
Windows 10 self-guiding dialogues and configuration options,
allowing the user to configure username, password,
geographical location, keyboard layout, etc.
Once the Windows operating system has been personalized as
desired, the user will reach the Windows desktop. At this stage,
the user will be able to upload a previously developed project to
the IPC. This can either be done via a USB key, or by using the
deployment function in the Movicon.NExT editor tool running on
a connected device.

8 RXi2 - BP Industrial PC Quick Start Guide GFK-3196E
Note:
•For more information on how to deploy a project, please
visit:
https://www.movicon.info/HelpNExT4.2/355/en/PlatformNext.htm#
t=WebServer%2FDeploy_WebServer.htm&rhsearch=deploy&rhhlter
m=deploy&rhsyns=%20
•IPC only comes with pre-installed a runtime license. If you
require an editor license to develop or edit a project, please
contact Emerson sales to make a purchase.
To start the runtime of a deployed Movicon.NExT project, go to
Start->Movicon.NExT->”project name” or double-click on the
project icon on the desktop if a desktop icon has been created
during deployment. This will start the project’s runtime.

9 RXi2 - BP Industrial PC Quick Start Guide GFK-3196E
Movicon.NExT Demo Mode
Movicon.NExT software can be used to design data flows,
alarms, and HMI screens (Editor mode) as well as execute
already designed projects (Runtime mode). Industrial PCs with
pre-installed Movicon.NExT software are licensed for runtime
operation only and not for editor/development mode. When
launching a project on this IPC, the user is expected to launch
the runtime only (i.e., launch project directly instead of opening
it from the Movicon editor tool). If the user opens the editor tool,
they will see a pop-up stating that it is running in Demo Mode.
This message is referencing the editor functionality only and is
expected. If you need an editor license, please contact your
Emerson sales representative to make your purchase.
Checking Activated Licenses
The RXi2-BP with pre-installed Movicon.NExT software also has a
pre-installed and ready-to-go software license. To check which
features are licensed open the editor tool by going to:
Start->Movicon.NExT->Movicon.NExT 4.2->Options->License->
Check License.
Note: This path opens the editor tool which is not licensed on this
product. Expect to see “demo mode” pop up as detailed in the
Movicon.NExT Demo Mode section above.

10 RXi2 - BP Industrial PC Quick Start Guide GFK-3196E
Movicon.NExT License File Recovery in
Windows 10
An IPC pre-installed with Windows 10 and a Movicon.NExT
software package ships with the license files already activated
and ready to use. In the case of a major software crash, the IPC
will require a re-image of the Windows’s license files, which will
have to be manually re-installed. Emerson Customer Care should
assist with this re-installation. Refer to GFK-3187, RXi2-BP User
Manual for detailed instructions on obtaining and reinstalling the
license files.
PACEdge Startup
This section applies to the units pre-installed with the PACEdge
software. For more details, refer to GFK-3178,PACEdge User
Manual.
PACEdge Usage Model
PACEdge software has two usage models:
1. Direct Use Model: Running on the IPC, which has a directly
attached Monitor, keyboard, and mouse.

11 RXi2 - BP Industrial PC Quick Start Guide GFK-3196E
2. Headless Use Model: Running on the IPC, which is operated
remotely by the user via Ethernet using a web interface.

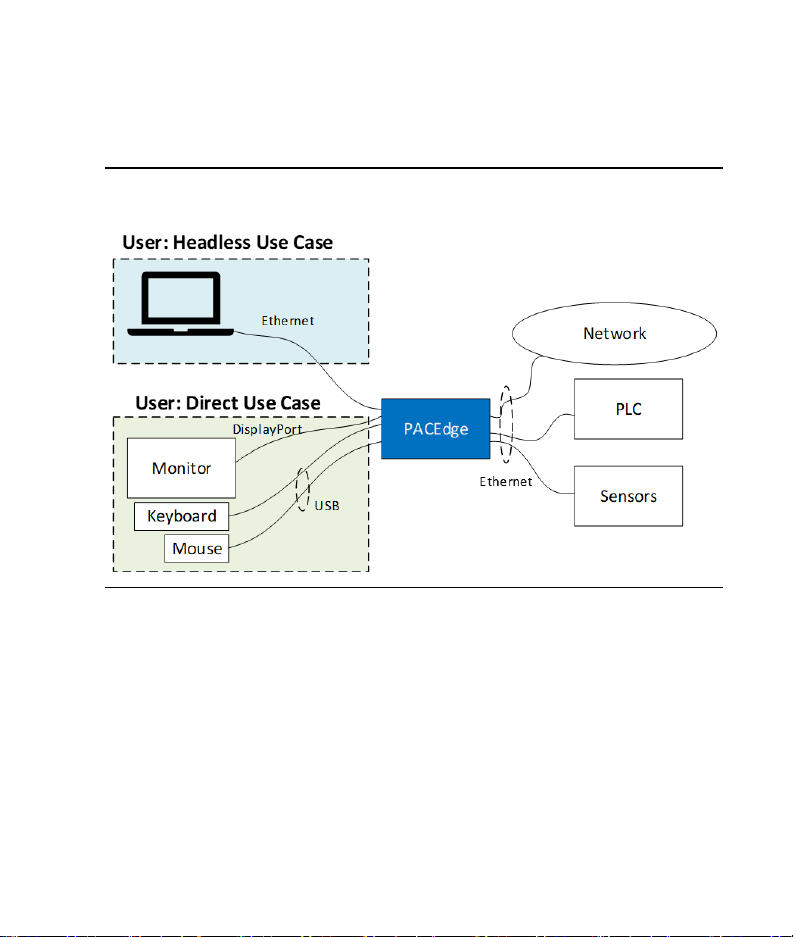

Figure 5: Use Case Models

12 RXi2 - BP Industrial PC Quick Start Guide GFK-3196E
PACEdge in a Direct-Use Configuration
In a Direct-Use case, the user interfaces with the PACEdge
system via the monitor, keyboard, and mouse.
Getting Started
1. Connect the monitor to the RXi2-BP device with a DisplayPort
cable.
Note: If the monitor of choice has an HDMI or VGA input, use a
standard off-the-shelf DP-HDMI or DP-VGA adapter.
2. Connect a keyboard and mouse to any of the four USB ports
3. Power up the PACEdge unit (see the Initial Login section for
details) and wait until it boots.
4. The boot process will pause and ask for login details. Login as
admin with the password edgestack.
Note: The user will be asked to change the default password to a
unique password on the first login.
5. Most interactions with PACEdge are done via a browser-based
interface. To get started, click on Activities->Show
Applications and start the Firefox browser.
6. Within the Firefox browser, go to https://localhost
7. Proceed to the Initial Login section.

13 RXi2 - BP Industrial PC Quick Start Guide GFK-3196E
PACEdge in Headless Configuration
In a Remote Headless configuration, the user interfaces with
PACEdge via Ethernet using a separate device’s web browser.
Getting Started
1. Connect the Ethernet cable to the RXi2-BP Ethernet port labeled
ETH0 next to the 24 V power connector.
2. Setup the User PC Ethernet port IP address to be statically
assigned:
a. Pv4 Static IP: 192.168.3.10
(or similar in the same subnet)
b. Netmask: 255.255.255.0
3. Power up the PACEdge unit (consult the Initial Login section for
details) and wait until it boots.
4. Open the browser of your choice and type in 192.168.3.100 in
the address bar.
Note: All Ethernet ports are also configured to get IP addresses
assigned by the DHCP server. This dynamically assigned IP address
can also be used to access PACEdge.
5. Proceed to the Initial Login section.

14 RXi2 - BP Industrial PC Quick Start Guide GFK-3196E
Initial Login
When the user connects to PACEdge for the first time (using the
instructions outlined in PACEdge in a Direct-Use Configuration or
PACEdge in Headless Configuration), a warning message will
display due to the self-signed certificate on the unit. The
message will state that the identity of the device could not be
confirmed. Click on Advanced and Accept to proceed.
Please read and accept the Emerson End User License
Agreement (EULA).
Once EULA has been accepted you will be redirected to the
Password Management screen. PACEdge software consists of
multiple software tools and applications, each having its user
management and password settings. To simplify this task,
PACEdge comes with pre-configured users: admin, developer,
service and operators, each having its own password. Use the
Password Management screen to change passwords in two
steps: 1) for all PACEdge Applications, 2) for Cockpit/Linux.
(Figure 6). When changing the passwords, follow instructions on
the screen and consult help information accessible via question
mark button in the upper right corner.
Note: For both, cybersecurity reasons, and for proper user account
setup, the user must change the default passwords on the first login.

15 RXi2 - BP Industrial PC Quick Start Guide GFK-3196E
Important: Consult the PACEdge Secure Deployment Guide (GFK-
3197) for recommended password changes and other cybersecurity-
relevant settings.
Figure 6: Password Management Screen (Top: PACEdge
Applications, Bottom: Cockpit/Linux)

16 RXi2 - BP Industrial PC Quick Start Guide GFK-3196E
Once the passwords have been changed, click on the Emerson
logo in the upper-left corner. The logo is a shortcut to the
PACEdge Landing Page, which has further shortcuts to Node-
RED, Grafana, Cockpit, Portainer, and other applications. The
user can return to the Password Management screen from the
PACEdge landing page by clicking Password Management in
the Settings drop-down list on the right side.
Figure 7: PACEdge Landing Page
