Rosemount™ 6888C In-Situ Combustion
Oxygen Analyzer
For use in Hazardous Areas

NOTICE
This guide provides basic guidelines for Rosemount 6888 In-Situ Oxygen Analyzers. It does not provide
instructions for configuration, diagnostics, maintenance, service, troubleshooting, or flame-proof
installations. Refer to the Rosemount 6888C Manual for more instruction.
Essential instructions
Read this page before proceeding!
Emerson™ designs, manufactures, and tests its products to meet many national and international
standards. Because these instruments are sophisticated technical products, you must properly install,
use, and maintain them to ensure they continue to operate within their normal specifications. The
following instructions must be adhered to and integrated into your safety program when installing,
using, and maintaining Emerson products. Failure to follow the proper instructions may cause any one
of the following situations to occur: loss of life, personal injury, property damage, damage to this
instrument, and warranty invalidation.
•Read all instructions prior to installing, operating, and servicing the product.
•If you do not understand any of the instructions, contact your Emerson representative for
clarification.
•Follow all warnings, cautions, and instructions marked on and supplied with the product.
•Inform and educate your personnel in the proper installation, operation, and maintenance of the
product.
•Install equipment as specified in the installation instructions of the appropriate instruction manual
and per applicable local and national codes. Connect all products to the proper electrical and
pressure sources.
•To ensure proper performance, use qualified personnel to install, operate, update, program, and
maintain the product.
•Use only factory documented components for repair. Tampering and unauthorized substitution
and parts can affect product performance and cause unsafe operation of your process.
NOTICE
The Field Communicator must be upgraded to System Software 2.0 with graphic license for operation
with the Rosemount™ 6888C O2 Transmitter. The AMS software must be upgraded to AMS 8.0 or
above. Contact Emerson's Global Service Center (GSC) at [phone] to upgrade the Field
Communicator software to System Software 2.0 with graphic license.
Symbols
Earth (ground) terminal
Protective conductor terminal
Risk of electrical shock
Refer to reference manual.
Quick Start Guide October 2019
2 Emerson.com/Rosemount

The following definitions apply to Warnings, Cautions, and Notices found throughout this publication.
WARNING
Highlights an operation or maintenance procedure, practice, condition, statement, etc., which if not
strictly observed, could result in injury, death, or long-term health hazards of personnel.
CAUTION
Highlights an operation or maintenance procedure, practice, condition, statement, etc., which if not
strictly observed, could result in damage to or destruction of equipment or loss of effectiveness.
NOTICE
Highlights an essential operating procedure, condition, or statement.
WARNING
EXPLOSION
Do not open when an explosive atmosphere may be present.
WARNING
ELECTRIC SHOCK
Do not open while energized.
CAUTION
EQUIPMENT DAMAGE
For the standard housing probe and direct replacement probe, only use supply cables & certified cable
glands rated > 105 °C (221 °F).
CAUTION
EQUIPMENT DAMAGE
For the autocal housing, only use supply cables and certified cable glands rated > 85 °C (185 °F).
Contents
Install........................................................................................................................................... 5
Configuration, startup, and operation........................................................................................ 26
Rosemount™ 6888 product certifications................................................................................... 31
Declaration of Conformity..........................................................................................................35
October 2019 Quick Start Guide
Quick Start Guide 3

China RoHS Table....................................................................................................................... 37
Quick Start Guide October 2019
4 Emerson.com/Rosemount

1 Install
WARNING
Failure to follow safety instructions could result in serious injury or death.
Before installing this equipment, read the Essential Instructions at the front
of this document.
WARNING
Electrical shock
Failure to install covers and ground leads could result in serious injury or
death.
Install all protective covers and ground leads after installation.
1.1 Mechanical installation
Most combustion processes run only slightly negative or positive in pressure,
so that the probe flange is for mechanical mounting only. The probe is not
rated for high pressures. If this is a new installation, a weld plate for welding
to the flue gas duct can be supplied.
WARNING
Electrical shock
Failure to install covers and ground leads could result in serious injury or
death.
Install all protective covers and ground leads after installation.
1.1.1 Probe installation
Complete the following steps to install the probe in the duct.
Prerequisites
Ensure all components are available to install the probe.
Procedure
1. If using the optional ceramic diffusion element, the vee-deflector
must be correctly oriented. Before inserting the Rosemount 6888C
probe, check the direction of gas flow in the duct. Orient the vee-
deflector so the apex points upstream towards the flow.
October 2019 Quick Start Guide
Quick Start Guide 5

2. If using the standard square weld plate or an optional flange
mounting plate, weld or bolt the plate onto the duct.
The through hole diameter in the stack or duct wall and refractory
material must be at least 2½ in. (63.5 mm).
3. Insert probe through the opening in the mounting flange and bolt
the unit to the flange.
Figure 1-1: Rosemount™ 6888C Probe with Standard
Terminations/Electronics Housing
Note
All dimensions are in inches with millimeters in parentheses.
Figure 1-2: 6888C Probe with Integral Autocal Housing
Table 1-1: Removal/Installation
Probe length DIM A insertion
depth
DIM B removal
envelope
standard
housing
DIM removal
envelope
accessory
housing
18 (457) probe 16.10 (409) 15.77 (401) 19.26 (490)
36 (910) probe 32.52 (826) 46.6 (1182) 50.1 (1271)
Quick Start Guide October 2019
6 Emerson.com/Rosemount

Table 1-1: Removal/Installation (continued)
Probe length DIM A insertion
depth
DIM B removal
envelope
standard
housing
DIM removal
envelope
accessory
housing
6 ft (1830) probe 68.52 (1740) 82.6 (2097) 86.1 (2186)
Figure 1-3: Probe Installation
Table 1-2: Mounting Flange
ANSI DIN
Flange diameter 8.25 (210)
Hold diameter .75 (20)
(4) holes eq sp on BC 6.00 (152) 6.70 (170)
October 2019 Quick Start Guide
Quick Start Guide 7

Table 1-3: Installation weld plate outline
ANSI DIN
A 7.75 (197) 8.5 (215)
B thread .625 (11) (M-16x2)
C dia 6.00 (152) 6.70 (170)
Figure 1-4: Drip Loop and Insulation Removal
A. Line voltage
B. Logic I/O, 4-20 mA signal
C. Stack or duct metal wall
D. Adapter plate
E. Insulation
F. Note
Replace insulation after installing Rosemount 6888C.
Note
Standard housing probe shown. Accessory housing is similar. Probe
may be vertical or horizontal.
Quick Start Guide October 2019
8 Emerson.com/Rosemount

1.2 Electrical installation
All wiring must conform to local and national codes. Multiple wiring
diagrams are shown in this section. Always refer to the diagrams that apply
to your transmitter configuration and disregard all other wiring diagrams.
WARNING
Electrical shock
Failure to install covers and ground leads could result in serious injury or
death.
Disconnect and lock out power before connecting the power supply.
Install all protective covers and ground leads after installation.
To meet the safety requirements of IEC 61010-1 (EC requirement) and
ensure safe operation of this equipment, connect the main electrical
power supply through a circuit breaker (min 10 A) which will disconnect
all current-carrying conductors during a fault situation.
This circuit breaker should also include a mechanically operated isolating
switch. If it does not, keep another external means of disconnecting the
power supply from the equipment located close by. Circuit breaks or
switches must complay with a recognized standard such as IEC 947.
To maintain proper earth grounding, ensure a positive connection exists
between the transmitter housing and earth. The connecting ground wire
must be 14 AWG minimum.
Line voltage, signal, and relay wiring should be rated for at least 221 °F
(105 °C).
1.2.1 Wire Rosemount™ 6888 Transmitter Probe only (no Rosemount 6888
Xi Electronics)
The Rosemount 6888 Transmitter Probe has built-in electronics that control
the heater temperature and amplify the raw O2 millivolt signal to a linear
4-20 mA.
You can run the 4-20 mA signal lines can be run directly to the control room
and also power the transmitter electronics. There is no O2 display or keypad
on the probe, so you must set up the transmitter through HART®
communications via a Field Communicator or Asset Management Solutions
(AMS).
Procedure
1. Remove the cover from the probe.
2. Connect the line (L1 wire) to the L1 terminal, the neutral (L2 wire) to
the L2/N terminal, and the ground wire to the ground lug.
October 2019 Quick Start Guide
Quick Start Guide 9

The Rosemount 6888C accepts line voltage at 120/240 Vac ±10%,
50/60 Hz. No setup is required.
3. Connect the 4-20 mA signal wires at the transmitter. Use a shielded
twisted wire pair. Do not allow bare shield wires to contact the circuit
boards. Insulate the shield wires prior to termination.
The transmitter electronics are loop-powered (i.e., the 4-20 mA
signal wires supply 24 Vdc from the DCS or an external power
supply).

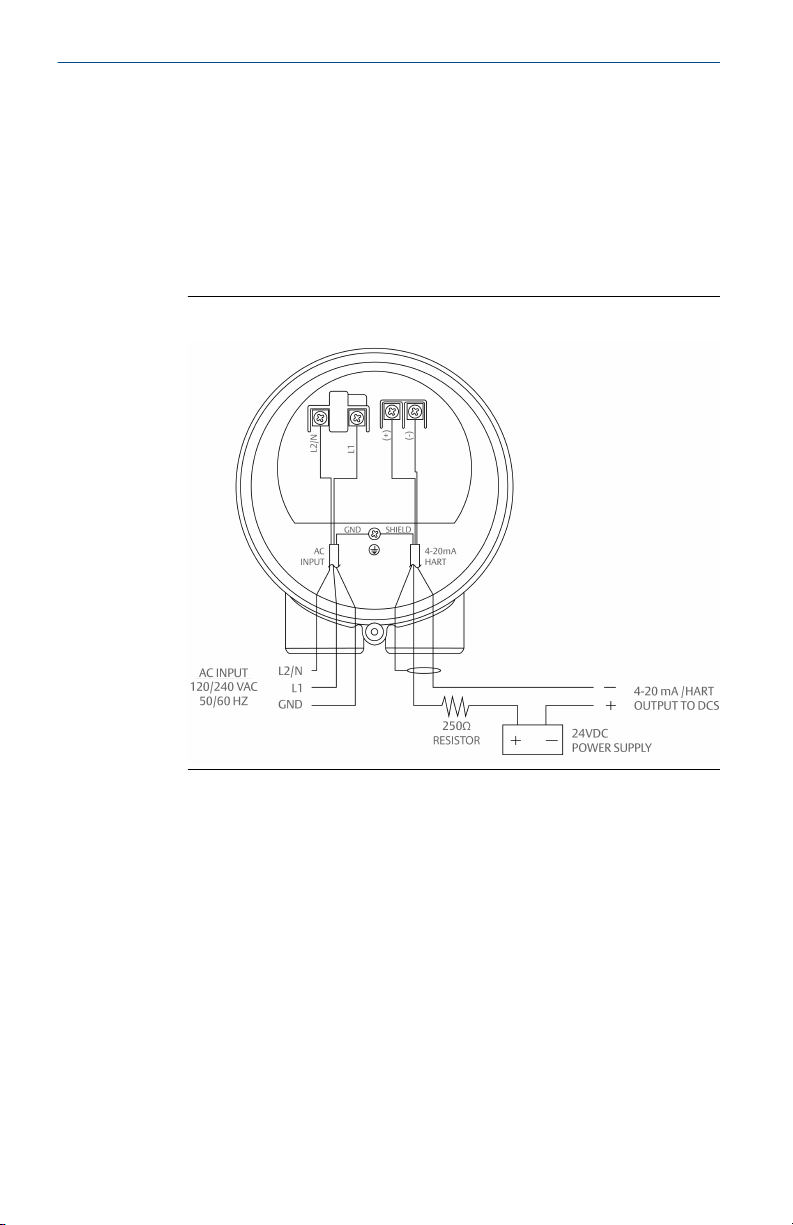

Figure 1-5: Rosemount 6888C Standard Probe Housing
4. Terminate the shield only at the transmitter electronics housing
unless using a Rosemount 6888 Xi. When using the Rosemount 6888
Xi Advanced Electronics, terminate the shield at both ends.
5. Reinstall cover on transmitter.
1.2.2 Wire standard housing transmitter probe with Rosemount™ 6888 Xi
Electronics
The Rosemount 6888 Xi Electronics serves as an operater interface unit with
a back-lit display and keypad. It is capable of two channels, serving up to two
Rosemount 6888 probes.
Procedure
1. Remove cover screws from the front cover of the Rosemount 6888
Xi. Swing down the front cover of the interface box.
Quick Start Guide October 2019
10 Emerson.com/Rosemount

2. Pull out the I/O board on the right side of the card rack inside the
Rosemount 6888 Xi.
If your system is configured to operate two transmitter probes, there
are two I/O interface boards.
3. Connect the 4-20 mA signal wires at J4 of the I/O board. Attach the
supplied ferrite clamp over the 4-20 mA OUT wires that extend past
the shield.
Note
Installation of the ferrite clamp over the 4-20 mA OUT wires is
required for compliance with the European EMC directive.
4. Terminate the shield of the 4-20 mA signal wires at the designated
ground terminal of the Rosemount 6888 Xi. Do not allow bare shield
wires to contact the circuit boards. Insulate the shield wires prior to
termination.
5. Connect the signal wires from the SPS or IMPS (if used) to the
applicable terminals of J3.
Refer to the SPS or IMPS reference manual for wiring details.
6. Reinstall the I/O board in the card rack of the Rosemount 6888 Xi.
7. If your system is configured for two channel operation, repeat Step 2
through Step 6 to connect the other probe's signal wires.
8. Remove the probe's connector from the power supply board located
on the left side of the card rack inside the Rosemount 6888 Xi.
9. Connect the line, or L1, wire to the L1 terminal and the neutral, or L2,
wire to the N terminal.
10. Reinstall the power supply connector to the power supply board.
October 2019 Quick Start Guide
Quick Start Guide 11

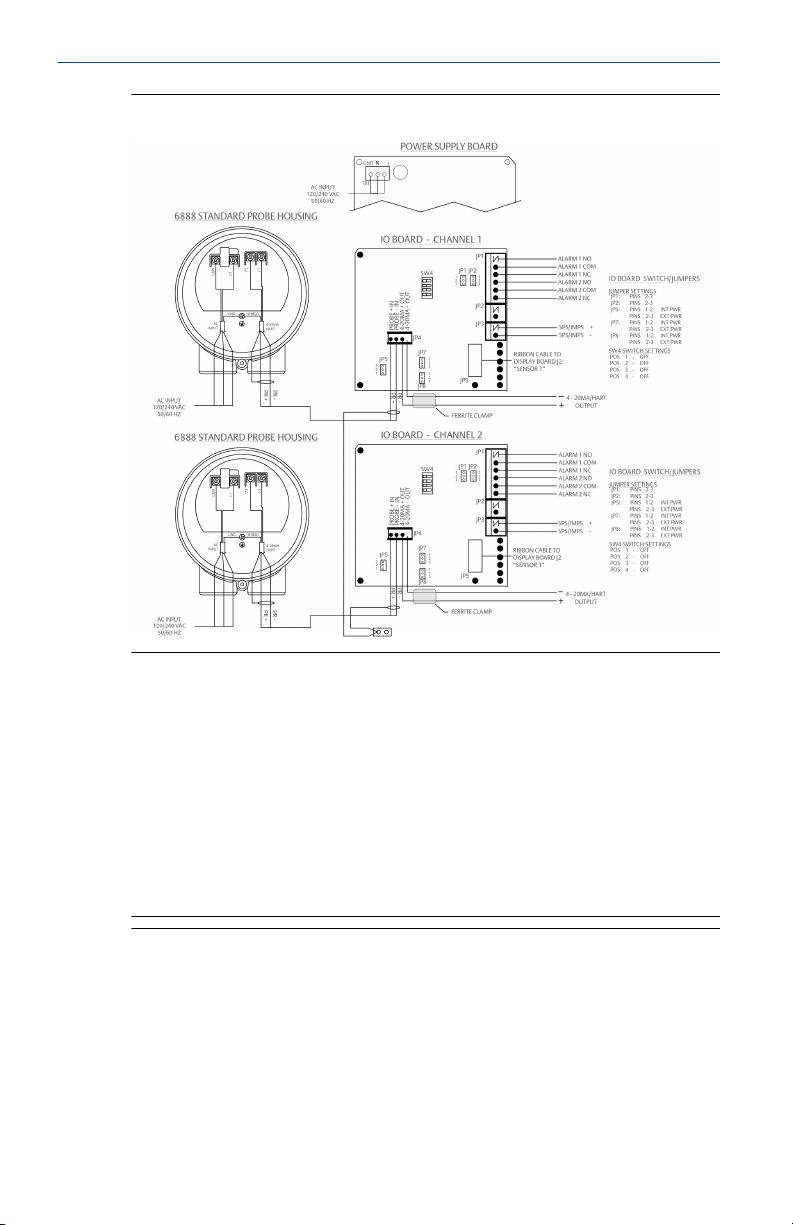

Figure 1-6: Wiring Diagrams - Single/Dual Channel Wiring Diagram
Note
A. Except for JP5, JP7, and JP8 on IO board, jumper and switch settings are
factory set and are shown for reference only.
B. IO board 4-20 mA loop power settings.
•JP5: Pins 1-2 internal power Rosemount 6888 Xi to Rosemount 6888
Transmitter.
Pins 2-3 external power Rosemount 6888 Xi to Rosemount 6888
Transmitter (requires 250 Ω resistor across J4, PR+ to PR-).
•JP7/JP8: Pins 1-2 internal power Rosemount 6888 Xi to DCS.
Pins 2-3 external power Rosemount 6888 Xi to DCS.
Quick Start Guide October 2019
12 Emerson.com/Rosemount

Figure 1-7: Wiring Diagrams - Single/Dual Channel Wiring Diagram
A. Power supply board
B. Channel #2 IO board
C. Shield ground
D. Channel #1 IO board
E. AC input to P/S
F. Plug
G. Channel #2 alarm relay SPS/IMPS
H. Channel #2 4-20 mA / HART output
I. Channel #1 alarm relay SPS/IMPS
J. Channel #1 4-20 mA/HART output
1.2.3 Connect the transmitter probe with integral autocal to HART®
communications
This probe contains gas-switching solenoids so that the Rosemount™ 6888 Xi
Electronics can control the introduction of calibration gases. Calibrations can
be initiated via a calibration recommended diagnostic, time since last
October 2019 Quick Start Guide
Quick Start Guide 13

calibration, manually via external dry contact, HART communications, or
from the Rosemount 6888 Xi local operator interface keypad. The integral
autocal feature can only be implemented when the probe is used with a
Rosemount 6888 Xi.
Procedure
1. Remove the two covers from the transmitter.
2. Connect the line (L1 wire) to the L1 terminal, the neutral (L2 wire) to
the L2/N terminal, and the ground wire to the ground lug.
The Rosemount 6888C accepts line voltage at 120/240 Vac ±10%,
50/60 Hz. No setup is required.
3. Connect the 4-20 mA signal wires from the Rosemount 6888 Xi to
the connections in the side chamber of the transmitter.
Do not connect the signal wires to the terminals in the main chamber
where the AC input wires are connected. Use a shielded twisted wire
pair. Do not allow bare shield wires to contact the circuit boards.
Insulate the shield wires prior to termination. The 24 Vdc loop power
is sourced from the Rosemount 6888 Xi.
4. Terminate the shield at both the probe and the Rosemount 6888 Xi
Advanced Electronics.
5. Reinstall both covers on transmitter.
Quick Start Guide October 2019
14 Emerson.com/Rosemount

Figure 1-8: Integral autocal and HART communications
A. Ferrite clamp
B. Signal
C. Test points
D. #8 pan htd scr (internal ground)
E. Power
F. Test point group
Note
A. Except for JP5, JP7, and JP8 on IO board, jumper and switch settings are factory set and are
shown for reference only.
B. IO board: 4-20 mA/HART loop power settings
•JP5
October 2019 Quick Start Guide
Quick Start Guide 15

—Pins 1-2: internal power Rosemount 6888 Xi to Rosemount 6888 transmitter
—Pins 2-5: external power Rosemount 6888 Xi to Rosemount 6888 transmitter
(requires 2,500 resistor across J4, PR+ to PR-)
•JP7/JP8
—Pins 1-2: internal power to DCS
—Pins 2-3: external power Rosemount 6888 Xi to DCS
Note
I/O board - Channel 2 is a duplicate of Channel 1.
1.2.4 Connect the transmitter probe with integral autocal to FOUNDATION™
Fieldbus communications
This probe contains gas-switching solenoids so that the Rosemount™ 6888 Xi
Electronics, Field Communicator, or AMS can control the introduction of
calibration gases. Calibrations can be initiated via a calibration
recommended diagnostic, time since last calibration, manually via external
dry contact, or from the Rosemount 6888 Xi local operator interface keypad.
The integral autocal feature can only be implemented when the probe is
used with a Rosemount 6888 Xi.
Procedure
1. Remove the two covers from the transmitter.
2. Connect the line (L1 wire) to the L1 terminal, the neutral (L2) wire to
the L2/N terminal, and the ground wire to the ground lug.
The Rosemount 6888C accepts line voltage at 120/240 Vac ±10%,
50/60 Hz. No setup is required.
3. Connect the FOUNDATION Fieldbus wires from the Rosemount 6888
side housing to the FF segment.
Note that the Rosemount 6888 probe is not rated as intrinsically safe
and will render any IS or FISCO segment it is wired to as non-IS. Use a
shielded twisted wire pair. Do not allow bare shield wires to contact
the circuit boards.
4. Terminate the shield at both the probe and the Rosemount 6888 Xi
Advanced Electronics.
Note
The FOUNDATION Fieldbus signal represents the O2 value and also
powers the probe-mounted electronics.
5. Reinstall both covers on transmitter.
Quick Start Guide October 2019
16 Emerson.com/Rosemount

Figure 1-9: Integral Autocal and FOUNDATION Fieldbus Communications
without Optional Rosemount 6888 Xi
A. Signal
B. Not used
C. #8 pan htr scr (internal ground)
D. Power
E. Probe test point group
October 2019 Quick Start Guide
Quick Start Guide 17

Figure 1-10: Integral autocal and FOUNDATION Fieldbus Communications
and Optional Rosemount 6888Xi
A. Ribbon cable to display board J2 Sensor 1
B. Signal
C. HART® connection (Used as a communication bus from probe
transmitter electronics to optional Rosemount 6888 Xi. Not accessible to
Field Communicator or AMS)
D. #8 pan htr scr (internal ground)
E. Power
F. Probe test point group
IO board switch/jumpers
Jumper settings
•JP1: Pins 2-3
Quick Start Guide October 2019
18 Emerson.com/Rosemount

•JP2: Pins 2-3
•JP5
—Pins 1-2 internal power
—Pins 2-3 external power
•JP7
—Pins 1-2 internal power
—Pins 2-3 external power
•JP8
—Pins 1-2 internal power
—Pins 2-3 external power
SW4 switch settings
•Position 1: Off
•Postion 2: Off
•Position 3: Off
•Position 4: Off
NOTICE
A. Except for JP5, JP7, and JP8 on IO board, jumper and switch settings are
factory set and are shown for reference only.
B. IO board 4-20 mA/HART loop power settings
JP5
•Pins 1-2 internal power Rosemount 6888 Xi to Rosemount 6888
Transmitter.
•Pins 2-3 external power Rosemount 6888 Xi to Rosemount 6888
Transmitter (requires 2,500 resistor across J4, PR+ to PR-).
JP7/JP8
•Pins 1-2 internal power Rosemount 6888Xi to DCS.
•Pins 2-3 external power Rosemount 6888Xi to DCS.
October 2019 Quick Start Guide
Quick Start Guide 19

Figure 1-11: Wiring Diagrams - Integral Autocal and FOUNDATION
Fieldbus, Communications with Rosemount 6888Xi
A. Power supply board
B. Channel #2 IO board
C. Shield ground
D. Channel #1 IO board
E. AC input to P/S
F. Plug
G. Channel #2 alarm relay, SPS/IMPS
H. Channel #2 4-20 mA/HART output
I. Channel #1 alarm relay, SPS/IMPS
J. Channel #1 4-20 mA/HART output
1.2.5 Connect traditional architecture system to the direct replacement
probe
Use a traditional architecture configuration to provide for remote location of
the transmitter electronics. All electronics are housed inside the
Quick Start Guide October 2019
20 Emerson.com/Rosemount
