Quick Installation Guide
00825-0100-4774, Rev DA
April 2010 Rosemount 3051
Step 1: Mount the Transmitter
Step 2: Tagging
Step 3: Consider Housing Rotation
Step 4: Connect the Wiring and Power Up
Step 5: Verify Configuration
Step 6: Trim the Transmitter
Product Certifications
Start
End
Rosemount 3051 Pressure Transmitter with
FOUNDATION™Fieldbus
Rosemount 3051CF Series Flowmeter Transmitter
with FOUNDATION™Fieldbus
4774RevDA.fm Page 1 Thursday, April 22, 2010 10:26 AM

Quick Installation Guide
00825-0100-4774, Rev DA
April 2010
Rosemount 3051
2
© 2010 Rosemount Inc. All rights reserved. All marks property of owner. Rosemount and the Rosemount logotype are
registered trademarks of Rosemount Inc.
Rosemount Inc.
8200 Market Boulevard
Chanhassen, MN USA 55317
T (US) [phone]
T (Intnl) [phone]
F [phone]
Emerson Process Management GmbH & Co. OHG
Argelsrieder Feld 3
82234 Wessling
Germany
T 49 (8153) 9390
F49 (8153) 939172
Emerson Process Management Asia Pacific
Private Limited
1 Pandan Crescent
Singapore 128461
T (65) 6777 8211
F (65) 6777 0947/65 6777 0743
Beijing Rosemount Far East Instrument Co.,
Limited
No. 6 North Street,
Hepingli, Dong Cheng District
Beijing 100013, China
T (86) (10) 6428 2233
F (86) (10) 6422 8586
IMPORTANT NOTICE
This installation guide provides basic guidelines for Rosemount 3051 transmitters. It does
not provide instructions for configuration, diagnostics, maintenance, service,
troubleshooting, Explosion-Proof, Flame-Proof, or intrinsically safe (I.S.) installations.
Refer to the 3051 reference manual (document number 00809-0100-4774) for more
instruction. This manual is also available electronically on
www.emersonprocess.com/rosemount.
WARNING
Explosions could result in death or serious injury:
Installation of this transmitter in an explosive environment must be in accordance with the
appropriate local, national, and international standards, codes, and practices. Please
review the approvals section of the 3051 reference manual for any restrictions associated
with a safe installation.
• In an Explosion-Proof/Flame-Proof installation, do not remove the transmitter covers
when power is applied to the unit.
Process leaks may cause harm or result in death.
• To avoid process leaks, only use the o-ring designed to seal with the corresponding
flange adapter.
Electrical shock can result in death or serious injury.
• Avoid contact with the leads and the terminals. High voltage that may be present on
leads can cause electrical shock.
4774RevDA.fm Page 2 Thursday, April 22, 2010 10:26 AM

Quick Installation Guide
00825-0100-4774, Rev DA
April 2010 Rosemount 3051
3
STEP 1: MOUNT THE TRANSMITTER
Liquid Flow Applications
1. Place taps to the side of the line.
2. Mount beside or below the taps.
3. Mount the transmitter so that the
drain/vent valves are oriented upward.
Gas Flow Applications
1. Place taps in the top or side of the line.
2. Mount beside or above the taps.
Steam Flow Applications
1. Place taps to the side of the line.
2. Mount beside or below the taps.
3. Fill impulse lines with water.
Flow
4774RevDA.fm Page 3 Thursday, April 22, 2010 10:26 AM

Quick Installation Guide
00825-0100-4774, Rev DA
April 2010
Rosemount 3051
4
STEP 1 CONTINUED...

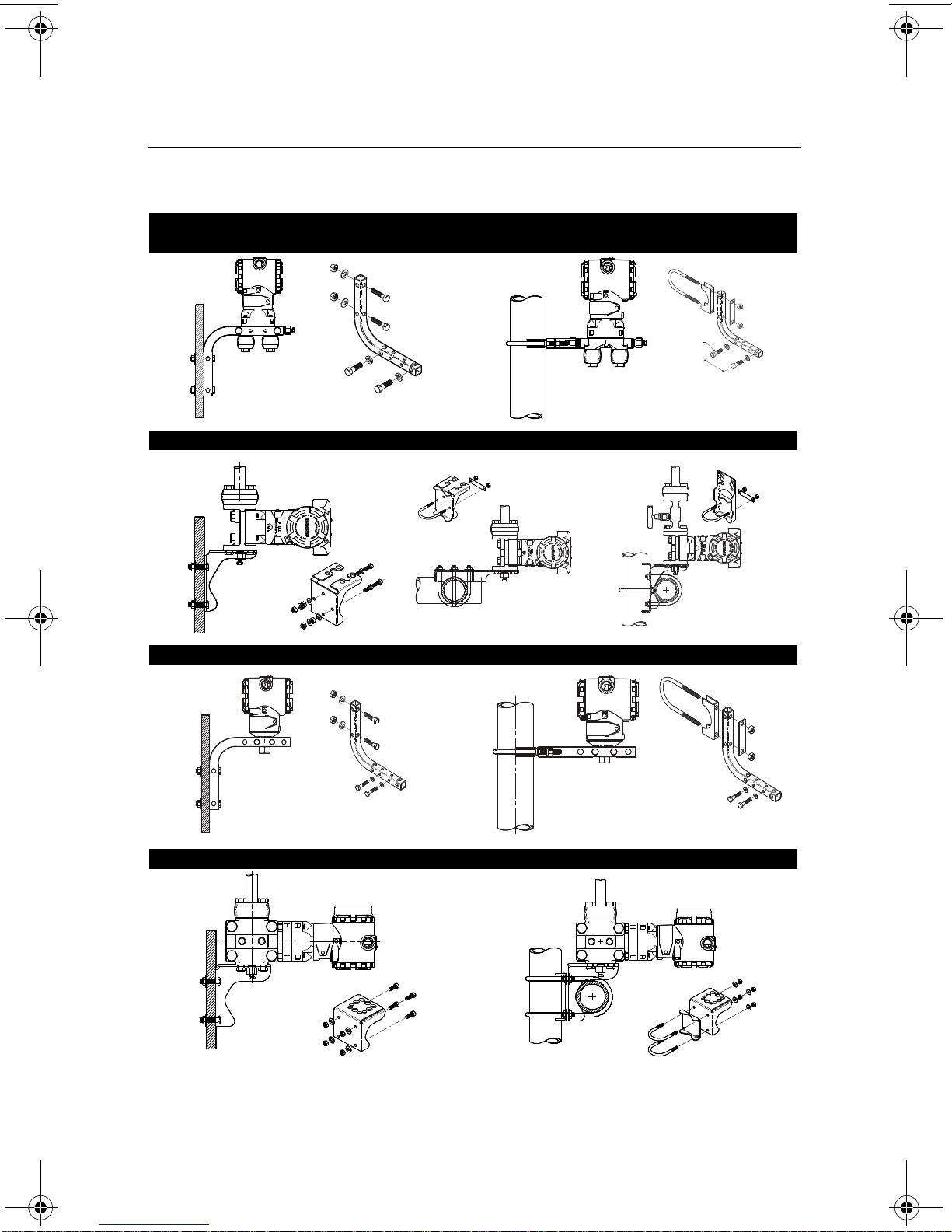

Panel Mount(1)
(1) Panel bolts are customer supplied.
Pipe Mount
Coplanar Flange
Traditional Flange
Rosemount 3051T
Rosemount 3051H
4774RevDA.fm Page 4 Thursday, April 22, 2010 10:26 AM

Quick Installation Guide
00825-0100-4774, Rev DA
April 2010 Rosemount 3051
5
STEP 1 CONTINUED...
Bolting Considerations
If the transmitter installation requires assembly of the process flanges, manifolds, or flange
adapters, follow these assembly guidelines to ensure a tight seal for optimal performance
characteristics of the transmitters. Use only bolts supplied with the transmitter or sold by
Emerson as spare parts. Figure 1 illustrates common transmitter assemblies with the bolt
length required for proper transmitter assembly.

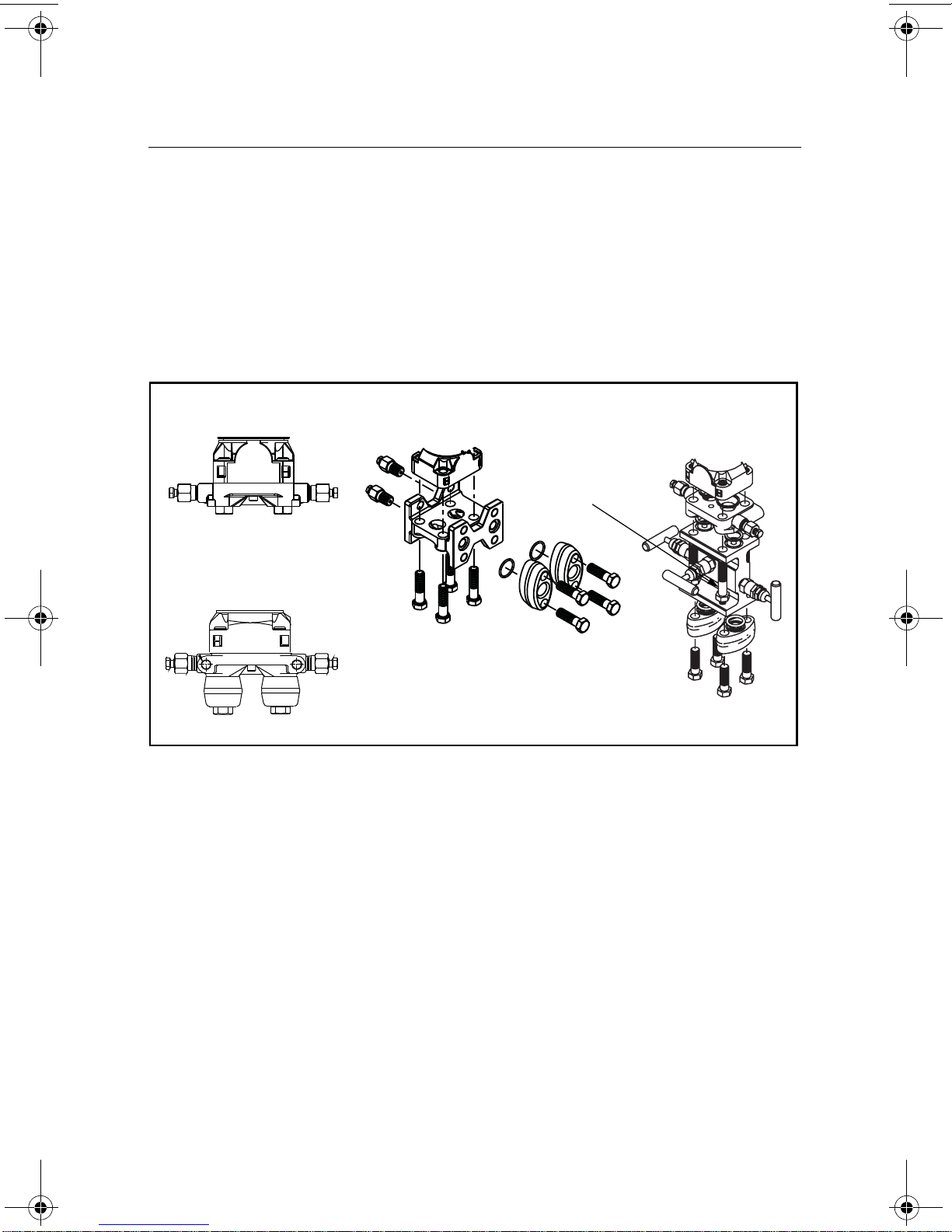

Figure 1. Common Transmitter Assemblies
Bolts are typically carbon steel or stainless steel. Confirm the material by viewing the
markings on the head of the bolt and referencing Figure 2. If bolt material is not shown in
Figure 2, contact the local Emerson Process Management representative for more
information.
Use the following bolt installation procedure:
1. Carbon steel bolts do not require lubrication and the stainless steel bolts are coated with
a lubricant to ease installation. However, no additional lubricant should be applied when
installing either type of bolt.
2. Finger-tighten the bolts.
3. Torque the bolts to the initialtorque value using a crossing pattern. See Figure 2 for initial
torque value.
4. Torque the bolts to the final torque value using the same crossing pattern. See Figure 2
for final torque value.
5. Verify that the flange bolts are protruding through the isolator plate before applying
pressure.
4 x 1.75-in. (44 mm)
4 x 2.88-in. (73 mm)
A. Transmitter with
Coplanar Flange
B. Transmitter with Coplanar
Flange and Optional
Flange Adapters
C. Transmitter with Traditional
Flange and Optional Flange
Adapters
D. Transmitter with
Coplanar Flange and
Optional Manifold and
Flange Adapters
4 x 1.75-in. (44 mm) 4 x 1.50-in. (38 mm)
4 x 1.75-in. (44 mm)
4 x 2.25-in. (57 mm)
4774RevDA.fm Page 5 Thursday, April 22, 2010 10:26 AM

Quick Installation Guide
00825-0100-4774, Rev DA
April 2010
Rosemount 3051
6
STEP 1 CONTINUED...
Figure 2. Torque values for the flange and flange adapter bolts

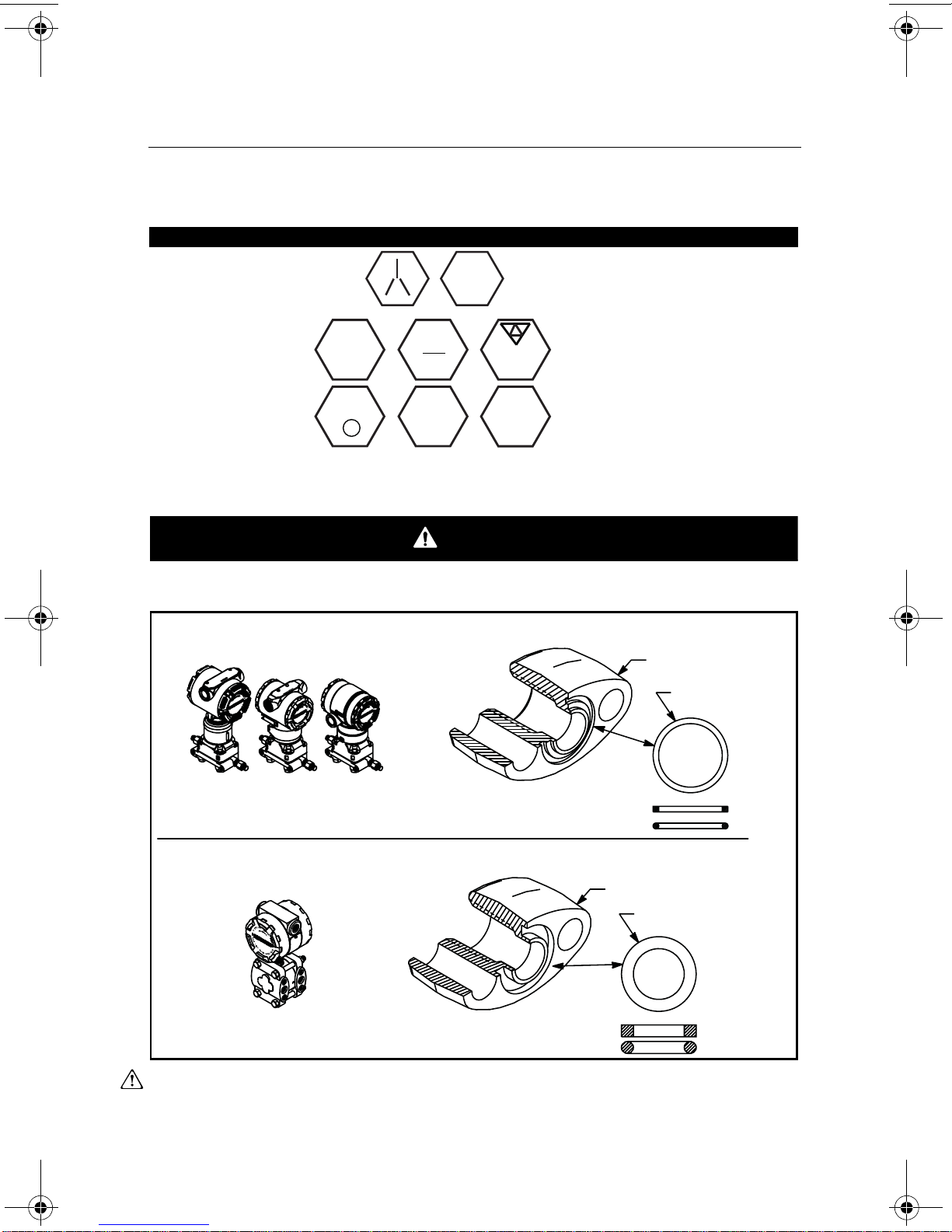

O-rings with Flange Adapters
WARNING
Whenever the flanges or adapters are removed, visually inspect the o-rings. Replace them if
there are any signs of damage, such as nicks or cuts. If you replace the o-rings, re-torque
the flange bolts and alignment screws after installation to compensate for seating of the
PTFE o-ring.
Bolt Material Head Markings Initial Torque Final Torque
Carbon Steel (CS) 300 in.-lbs. 650 in.-lbs.
Stainless Steel (SST) 150 in.-lbs. 300 in.-lbs.
Failure to install proper flange adapter O-rings may cause process leaks, which can result in death or
serious injury. The two flange adapters are distinguished by unique O-ring grooves. Only use the O-ring
that is designed for its specific flange adapter, as shown below.
B7M
316
316
316
SW
316
STM
316
R
B8M
Rosemount 3051S / 3051 / 2051 / 3001 / 3095
Rosemount 1151
Flange Adapter
O-ring
Flange Adapter
O-ring
PTFE Based
Elastomer
PTFE
Elastomer
4774RevDA.fm Page 6 Thursday, April 22, 2010 10:26 AM

Quick Installation Guide
00825-0100-4774, Rev DA
April 2010 Rosemount 3051
7
Inline Gage Transmitter Orientation
The low side pressure port (atmospheric reference) on the inline gage transmitter is located
in the neck of the transmitter, behind the housing. The vent path is 360° around the
transmitter between the housing and sensor. (See Figure 3.)
Keep the vent path free of any obstruction, including but not limited to paint, dust, and
lubrication by mounting the transmitter so that the process can drain away.
Figure 3. Inline Gage Low Side Pressure Port
STEP 2: TAGGING
Commissioning (Paper) Tag
To identify which device is at a particular location use
the removable tag provided with the transmitter. Ensure
that the physical device tag (PD Tag field) is properly
entered in both places on the removable
commissioning tag and tear off the bottom portion for
each transmitter.
NOTE
The device description loaded in the host system must
be at the same revision as this device. The device
description can be downloaded from
www.rosemount.com.
Low side pressure port
(atmospheric reference)
COMMISSIONING TAG
Device ID:
0011513051010001440-121698091725
PD Tag:
COMMISSIONING TAG
Device ID:
0011513051010001440-121698091725
PD Tag:
Tear Here
4774RevDA.fm Page 7 Thursday, April 22, 2010 10:26 AM

Quick Installation Guide
00825-0100-4774, Rev DA
April 2010
Rosemount 3051
8

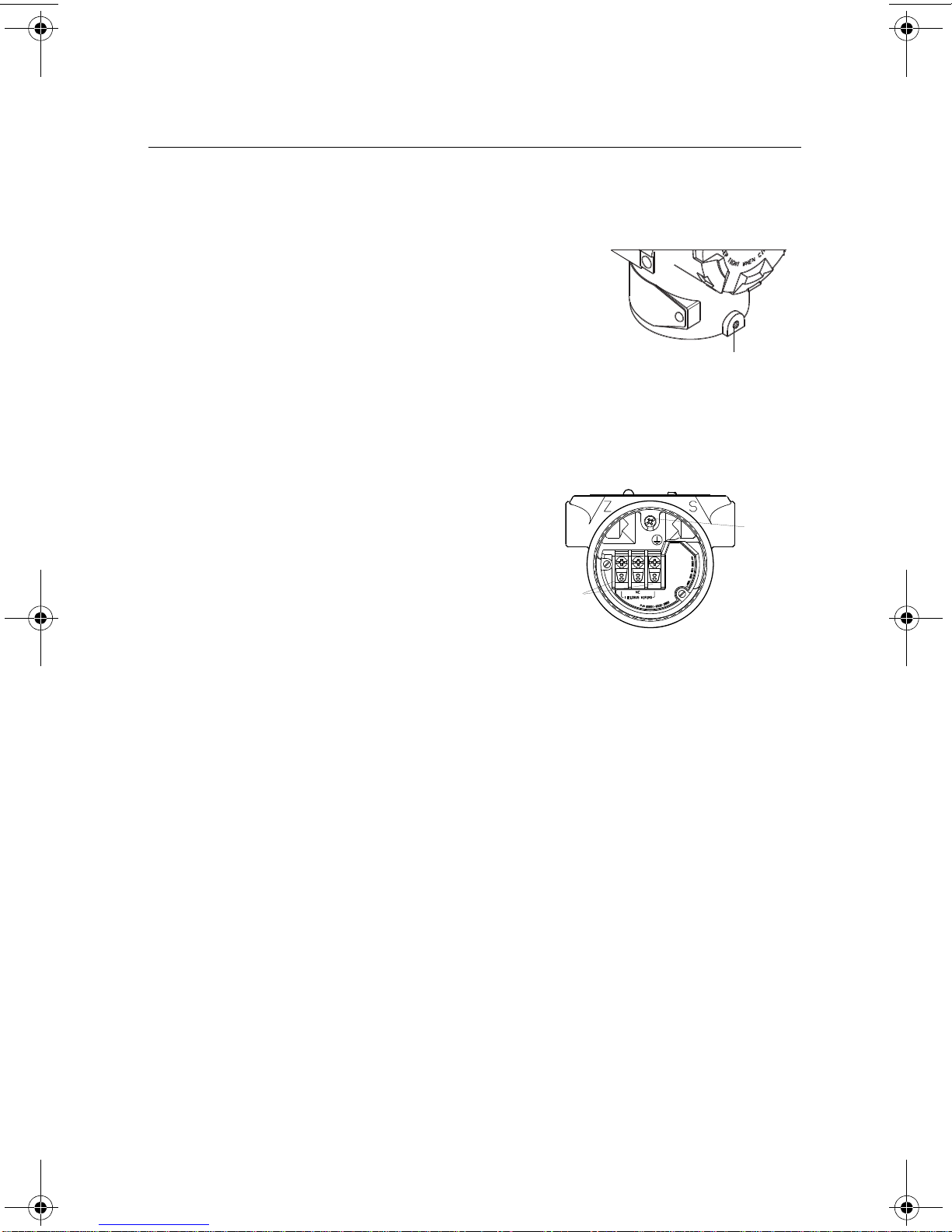

STEP 3: CONSIDER HOUSING ROTATION
To improve field access to wiring or to better view the optional LCD display:
STEP 4: CONNECT THE WIRING AND POWER UP
1. Loosen the housing rotation set screw.
2. First rotate the housing clockwise to the desired location. If
the desired location cannot be achieved due to thread limit,
rotate the housing counter clockwise to the desired location
(up to 360° from thread limit).
3. Retighten the housing rotation set screw.
Use of ordinary copper wire of sufficient size to
ensure that the voltage across the transmitter
power terminals does not drop below 9 vdc. To
power the transmitter, connect the power leads to
the terminals indicated on the terminal block label.
The power terminals are polarity insensitive, which
means the electrical polarity of the power leads
does not matter when connecting to the power
terminals. When wiring to the screw terminals, the
use of crimped legs is recommended. Tighten the
terminal screws to ensure adequate contact. No
additional power is needed.
Housing Rotation Set Screw
(5/64-inch)
Ground
Terminal
Power
Terminals
“NC” is a No Connect terminal (do not use)
4774RevDA.fm Page 8 Thursday, April 22, 2010 10:26 AM

Quick Installation Guide
00825-0100-4774, Rev DA
April 2010 Rosemount 3051
9
STEP 4 CONTINUED...
Signal Wiring Grounding
Do not run signal wiring in conduit or open trays with power wiring, or near heavy electrical
equipment. Grounding terminations are provided on the outside of the electronics housing
and inside the Terminal Compartment. These grounds are used when transient protect
terminal blocks are installed or to fulfill local regulations. See Step 2 below for more
information on how the cable shield should be grounded.
1. Remove the Field Terminals housing cover.
2. Connect the wiring pair and ground as indicated in Figure 4. The cable shield should:
a. Be trimmed close and insulated from touching the transmitter housing.
b. Continuously connect to the termination point.
c. Be connected to a good earth ground at the power supply end.
Figure 4. Wiring
3. Replace the housing cover. It is recommended that the cover be tightened until there is
no gap between the cover and the housing.
4. Plug and seal unused conduit connections.
DP
Trim shield and
insulate
Insulate
Shield
Connect Shield Back to the
Power Supply Ground
Ground for
Transient
Protection
Minimize
Distance
Minimize
Distance
4774RevDA.fm Page 9 Thursday, April 22, 2010 10:26 AM

Quick Installation Guide
00825-0100-4774, Rev DA
April 2010
Rosemount 3051
10
Power Supply
The transmitter requires between 9 and 32 V dc (9 and 15 V dc for FISCO) to operate and
provide complete functionality.
Power Conditioner
A fieldbus segment requires a power conditioner to isolate the power supply filter and
decouple the segment from other segments attached to the same power supply.
Grounding
Signal wiring of the fieldbus segment can not be grounded. Grounding out one of the signal
wires will shut down the entire fieldbus segment.
Shield Wire Ground
To protect the fieldbus segment from noise, grounding techniques for shield wire usually
require a single grounding point for shield wire to avoid creating a ground loop. The ground
point is typically at the power supply.
Signal Termination
For every fieldbus segment a terminator should be installed at the beginning and at the end
of each segment.
STEP 5: VERIFY CONFIGURATION
Each Foundation fieldbus host or configuration tool has a different way of displaying and
performing configurations. Some use Device Descriptions (DD) or DD methods for
configuration and to display data consistently across platforms. There is no requirement that
a host or configuration tool support these features. Use the following block examples to do
basic configuration to the transmitter. For more advanced configurations see the 3051
reference manual (document number 00809-0100-4774).
NOTE
DeltaV users should use DeltaV Explorer for the Resource and Transducer blocks and
Control Studio for the Function Blocks.
4774RevDA.fm Page 10 Thursday, April 22, 2010 10:26 AM

Quick Installation Guide
00825-0100-4774, Rev DA
April 2010 Rosemount 3051
11
To configure the AI Block
AI Block configuration parameters
Use the Pressure, DP Flow, and DP Level examples for guides.
Pressure example
DP Flow example
DP Level example
To display pressure on the LCD meter:
Parameters Enter Data
Channel 1 = Pressure or 2 = Sensor Temp
L_Type Direct, Indirect, or Square Root
XD_Scale Scale and Engineering Units
Note: Only select the units that are supported by the device.
Pa bar inH20 @ 68°F psi inHg @ 0°C
kPa mbar mmH20 @ 68°F g/cm2 mmHg @ 0°C
mPa atm ftH20 @ 68°F kg/cm2 mmH20 @ 4°C
torr inH20 @ 4°C
Out_Scale Scale and Engineering Units
Parameters Enter Data
Channel 1
L_Type Direct
XD_Scale See list of supported engineering units.
Note: Only select the units that are supported by the device.
Out_Scale Set values outside operating range.
Parameters Enter Data
Channel 1
L_Type Square Root
XD_Scale 0 - 100 inH20 @ 68°F
Note: Only select the units that are supported by the device.
Out_Scale 0 - 20 GPM
Parameters Enter Data
Channel 1
L_Type Indirect
XD_Scale 0 - 300 inH20 @ 68°F
Note: Only select the units that are supported by the device.
Out_Scale 0-25 ft.
Parameter Enter Data
Display Parameter 1
Block Type #1 Sensor Transducer Block
Block Tag TRANSDUCER
Param Index Primary Variable
Units Type Auto
4774RevDA.fm Page 11 Thursday, April 22, 2010 10:26 AM

Quick Installation Guide
00825-0100-4774, Rev DA
April 2010
Rosemount 3051
12
STEP 6: TRIM THE TRANSMITTER
NOTE
Transmitters are shipped fully calibrated per request or by the factory default of full scale
(span = upper range limit).
Zero Trim
A zero trim is a single-point adjustment used for compensating mounting position and line
pressure effects. When performing a zero trim, ensure that the equalizing valve is open and
all wet legs are filled to the correct level.
The transmitter will only allow 3-5% URL Zero error to be trimmed. For greater zero errors,
compensate for the offset by using the XD_Scaling, Out_Scaling and Indirect L_Type which
are part of the AI Block.
Using the host system
Perform a Zero Trim method if the host system supports methods associated with the
TRANSDUCER 1400 block. Otherwise, if the host system does not support methods see
the 3051 reference manual (document number 00809-0100-4774).
PRODUCT CERTIFICATIONS
Approved Manufacturing Locations
Emerson Process Management - Rosemount Inc. — Chanhassen, Minnesota, USA
Emerson Process Management GmbH & Co. OHG — Wessling, Germany
Emerson Process Management Asia Pacific Private Limited — Singapore
Beijing Rosemount Far East Instrument Col., Limited — Beijing, China
Emerson Process Management — Daman, India
European Directive Information

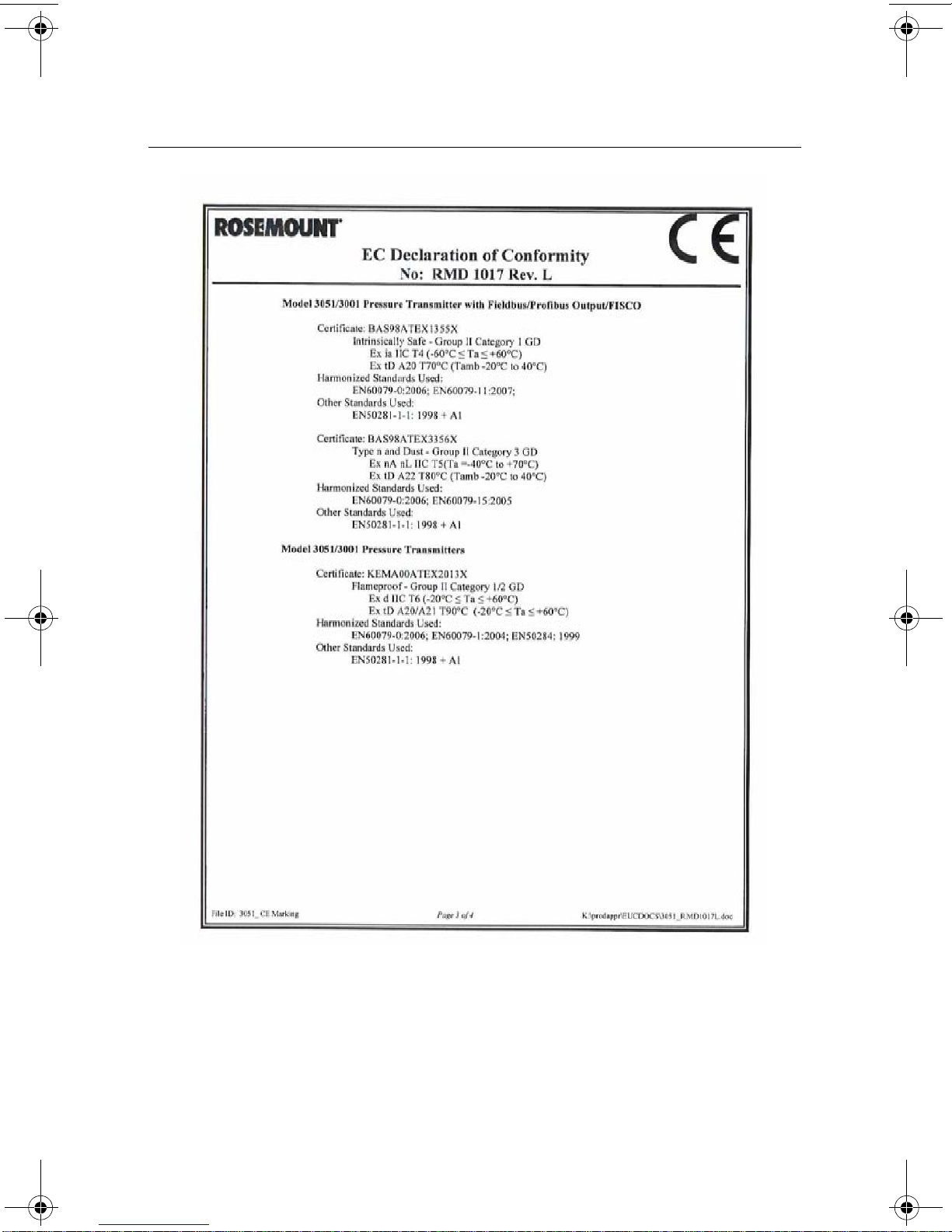

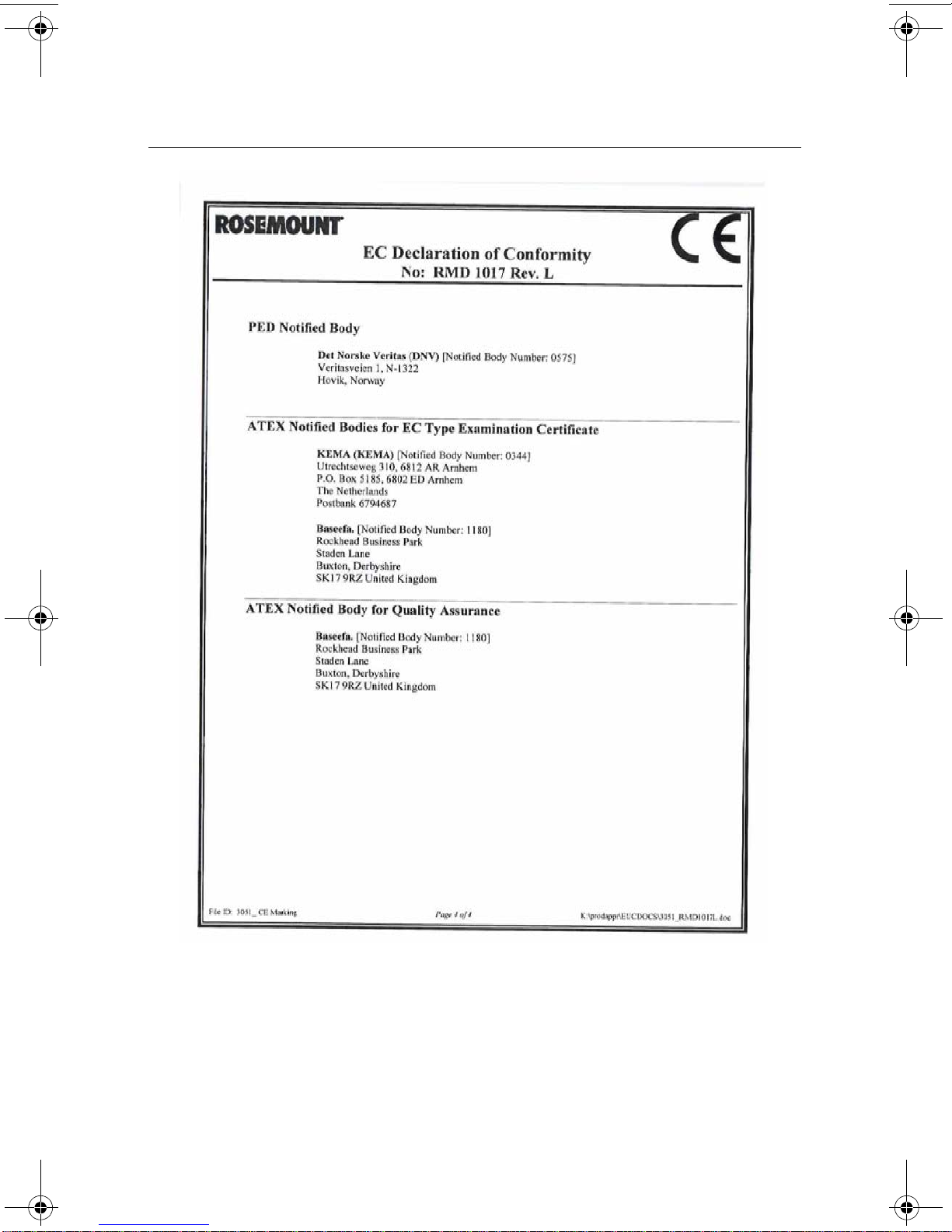

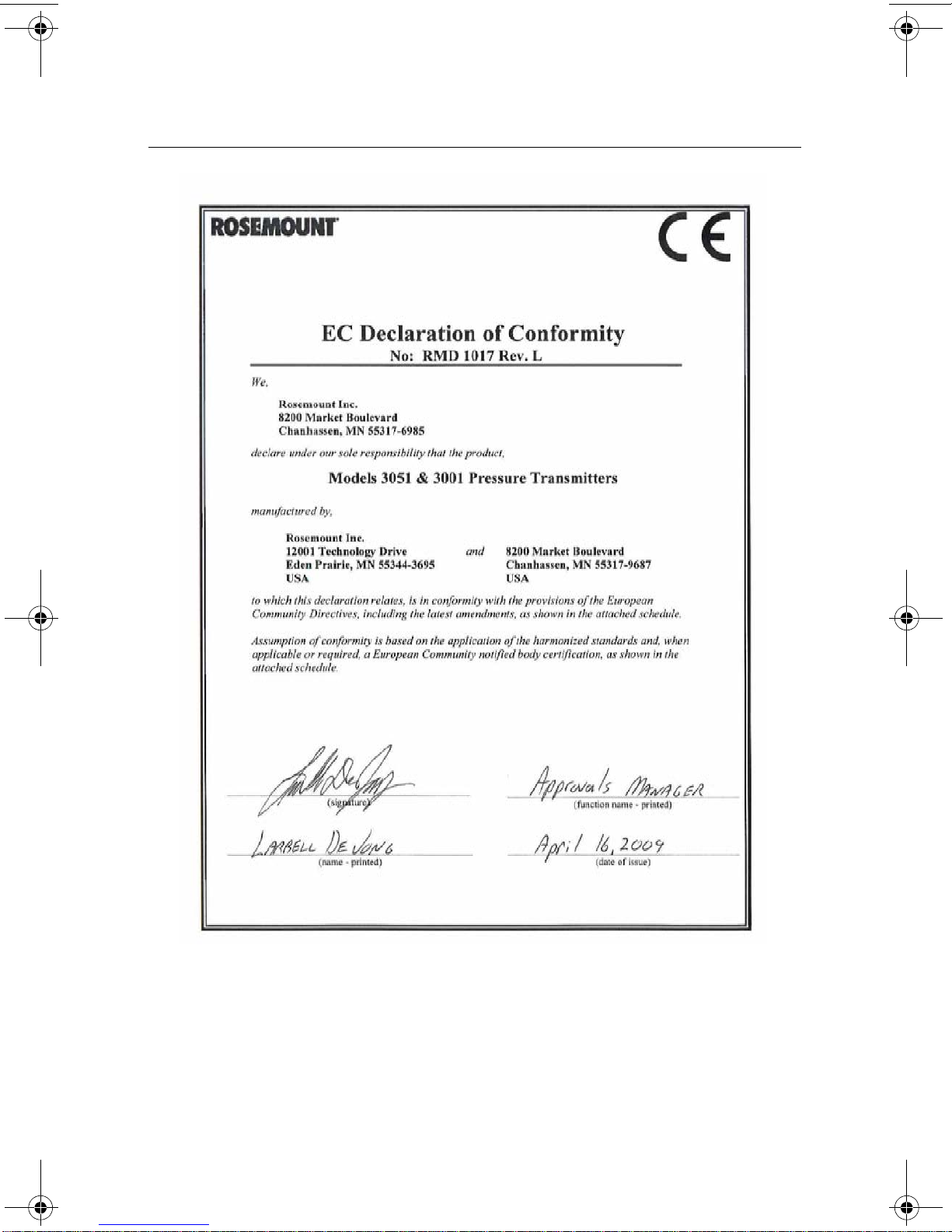

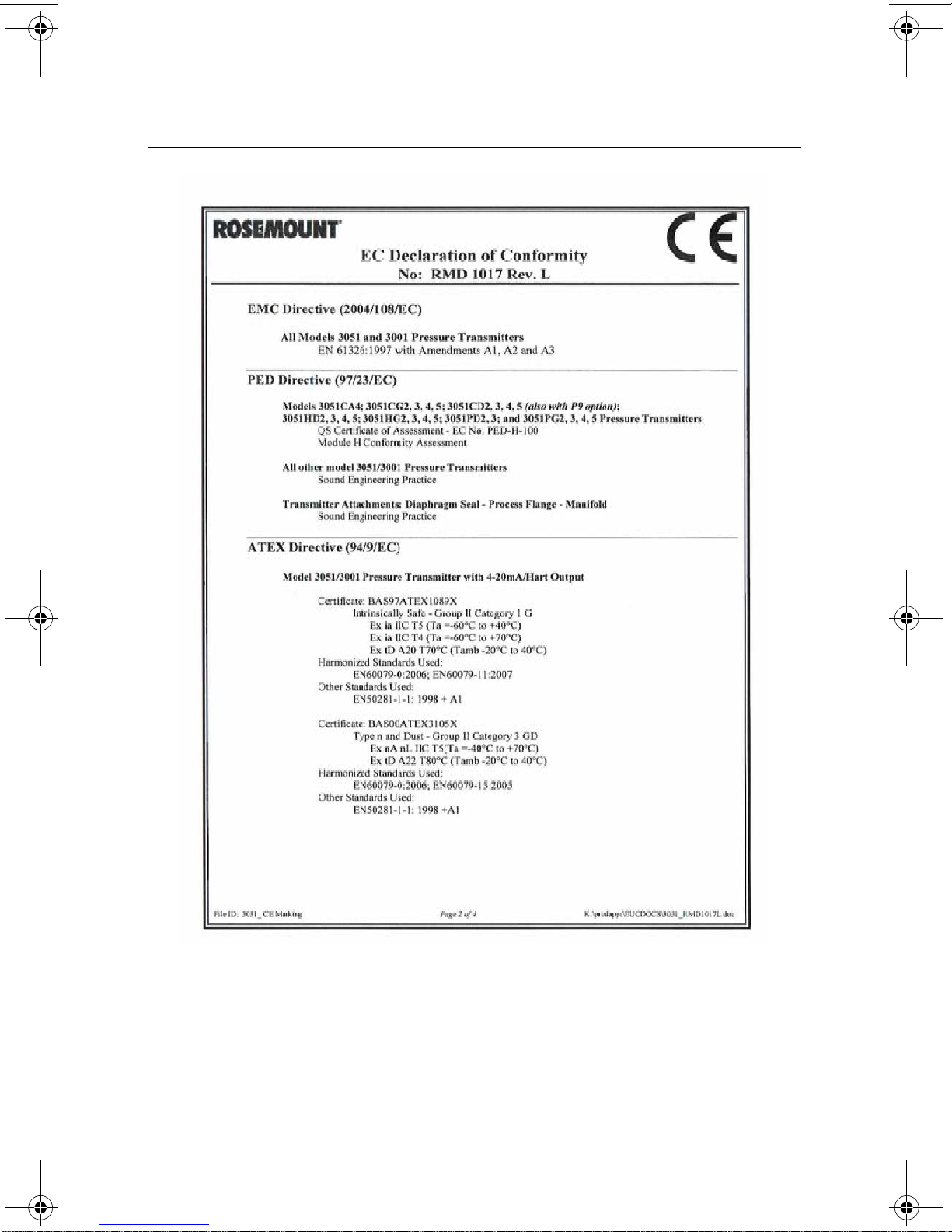

The EC declaration of conformity can be found on page 17. The most recent revision can be
found at www.emersonprocess.com.
Ordinary Location Certification for Factory Mutual
As standard, the transmitter has been examined and tested to determine that the design
meets basic electrical, mechanical, and fire protection requirements by FM, a nationally
recognized testing laboratory (NRTL) as accredited by the Federal Occupational Safety and
Health Administration (OSHA).
Hazardous Locations Certifications
North American Certifications
FM Approvals
E5 Explosion-Proof for Class I, Division 1, Groups B, C, and D. Dust-Ignition-Proof for
Class II, Division 1, Groups E, F, and G. Dust-Ignition-Proof for Class III, Division 1.
T5 (Ta = 85 °C), Factory Sealed, Enclosure Type 4X
I5 Intrinsically Safe for use in Class I, Division 1, Groups A, B, C, and D; Class II, Division
1, Groups E, F, and G; Class III, Division 1 when connected per Rosemount drawing
03031-1019; Non-incendive for Class I, Division 2, Groups A, B, C, and D.
Temperature Code: T4 (Ta = 60 °C)
Enclosure Type 4X
For input parameters see control drawing 03031-1019.
4774RevDA.fm Page 12 Thursday, April 22, 2010 10:26 AM

Quick Installation Guide
00825-0100-4774, Rev DA
April 2010 Rosemount 3051
13
Canadian Standards Association (CSA)
All CSA hazardous approved transmitters are certified per ANSI/ISA 12.27.02-2003.
E6 Explosion-Proof for Class I, Division 1, Groups B, C, and D. Dust-Ignition-Proof for
Class II and Class III, Division 1, Groups E, F, and G. Suitable for Class I, Division 2
Groups A, B, C, and D for indoor and outdoor hazardous locations. Enclosure type 4X,
factory sealed. Single Seal.
C6 Explosion-Proof and intrinsically safe approval. Intrinsically safe for Class I, Division 1,
Groups A, B, C, and D when connected in accordance with Rosemount drawings
03031-1024. Temperature Code T3C.
Explosion-Proof for Class I, Division 1, Groups B, C, and D. Dust-Ignition-Proof for
Class II and Class III, Division 1, Groups E, F, and G. Suitable for Class I, Division 2
Groups A, B, C, and D hazardous locations. Enclosure type 4X, factory sealed
For input parameters see control drawing 03031-1024. Single Seal.
European Certifications
I1 ATEX Intrinsic Safety and Dust
Certification No.: BAS 98ATEX1355X II 1 GD
Ex ia IIC T4 (Tamb = –60 to +60 °C)
Dust Rating: Ex tD A20 T70 °C (Tamb –20 to 40 °C) IP66
1180
Special Conditions for Safe Use (X):
When the optional transient protection terminal block is installed, the apparatus is not
capable of withstanding the 500V insulation test required by Clause 6.3.12 of
EN60079-11. This must be taken into account when installing the apparatus.
IA ATEX FISCO Intrinsic Safety
Certification No.: BAS 98ATEX1355X II 1 G
Ex ia IIC T4 (Tamb = –60 to +60 °C)
IP66
1180
Special Conditions for Safe Use (X):
The device is not capable of withstanding the 500V insulation test required by Clause
6.3.12 of EN60079-11. This must be taken into account when installing the apparatus.
Table 1. Input Parameters
Ui= 30V
Ii= 300 mA
Pi= 1.3 W
Ci= 0 µF
Table 2. Input Parameters
Ui= 17.5 V
Ii= 380 mA
Pi= 5.32 W
Ci= 5 µF
Li= 10 µH
4774RevDA.fm Page 13 Thursday, April 22, 2010 10:26 AM

Quick Installation Guide
00825-0100-4774, Rev DA
April 2010
Rosemount 3051
14
N1 ATEX Type n and Dust
Certification No.: BAS 98ATEX3356X II 3 GD
Ex nL IIC T4 (Tamb = –40 to +70 °C)
Ui= 40 Vdc max
Dust rating: Ex tD A22 T80 °C (Tamb = –20 to 40 °C) IP66
Special Conditions for Safe Use (X):
The device is not capable of withstanding the 500V insulation test required by Clause
6.8.1 of EN60079-15. This must be taken into account when installing the apparatus.
E8 ATEX Flame-Proof and Dust
Certification No.: KEMA 00ATEX2013X II 1/2 GD
Ex d IIC T6 (Tamb = –50 to 65 °C)
Ex d IIC T5 (Tamb = –50 to 80 °C)
Dust rating: Ex tD A20/A21 T90 °C, IP66
1180
Vmax = 55 V dc
Special Conditions for Safe Use (X):
This device contains a thin wall diaphragm. Installation, maintenance, and use shall
take into account the environmental conditions to which the diaphragm will be
subjected. The manufacturer’s instructions for installation and maintenance shall be
followed in detail to assure safety during its expected lifetime.
For more information on the dimensions of the flameproof joints, contact the
manufacturer.
Japanese Certifications
E4 TIIS Flame-Proof
Ex d IIC T6
Certificate Description
C15852 3051C/D/1 FOUNDATION fieldbus — no meter
C15853 3051C/D/1 FOUNDATION fieldbus — with meter
C15858 3051T/G/1 FOUNDATION fieldbus, SST, Silicon — no meter
C15859 3051T/G/1 FOUNDATION fieldbus, Alloy C-276, Silicon — no meter
C15860 3051T/G/1 FOUNDATION fieldbus, SST, Silicon — with meter
C15861 3051T/G/1 FOUNDATION fieldbus, Alloy C-276, Silicon — with meter
4774RevDA.fm Page 14 Thursday, April 22, 2010 10:26 AM

Quick Installation Guide
00825-0100-4774, Rev DA
April 2010 Rosemount 3051
15
Australian Certifications
I7 SAA Intrinsic Safety
Certification No.: AUS Ex 1249X
Ex ia IIC T4 (Tamb = 60 °C)
IP66
When connected per Rosemount drawing 03031-1026.
Special Conditions for Safe Use (X):
The apparatus may only be used with a passive current limited power source Intrinsic
Safety application. The power source must be such that Po (Uo * Io) / 4. Modules
using transient protection in the terminal assembly (T1 transient protection models) the
apparatus enclosure is to be electrically bonded to the protective earth. The conductor
used for the connection shall be equivalent to a copper conductor of 4 mm2 minimum
cross-sectional area.
E7 SAA Explosion-Proof (Flame-Proof)
Certification No.: AUS Ex 03.1347X
Ex d IIC T6 (Tamb = 40 °C)
Ex d IIC T5 (Tamb = 80 °C)
DIP A21 T6 (Tamb = 40 °C)
DIP A21 T5 (Tamb = 80 °C)
IP65
Special Conditions for Safe Use (X):
It is a condition of safe use for transmitter enclosures having cable entry thread other
than metric conduit thread that the equipment be utilized with an appropriate certified
thread adaptor.
N7 SAA Type n (Non-sparking)
Certification No.: AUS Ex 1249X
Ex n IIC T4 (Tamb = 70 °C)
IP66
Special Conditions for Safe Use (X):
Where the equipment is installed such that there is an unused conduit entry, it must be
sealed with a suitable blanking plug to maintain the IP40 degree of protection. Any
blanking plug used with the equipment shall be of a type which requires the use of a
tool to effect its removal. Voltage source shall not exceed 35 Vdc.
Inmetro Certifications
E2 Flameproof
Certificate number (manufactured in Chanhassen, MN): Ex-073/971
Certificate number (manufactured in Brazil): Ex-1383/07
BR-Ex d IIC T6/T5
Table 3. Input Parameters
Ui= 30 V
Ii= 300 mA
Pi= 1.3 W
Ci= 0 µF
Li= 0 µH
4774RevDA.fm Page 15 Thursday, April 22, 2010 10:26 AM

Quick Installation Guide
00825-0100-4774, Rev DA
April 2010
Rosemount 3051
16
I2 Intrinsic Safety
Certificate number (manufactured in Chanhassen, MN): Ex-072/971X
Certificate number (manufactured in Brazil): Ex-1412/07X
BR- Ex ia IIC T4
China (NEPSI) Certifications
E3 Flameproof
Certification No.: GYJ091065X
Ex d IIC T3~T5
DIP A21 TA T90C IP66
I3 Intrinsic Safety
Certification No.: GYJ091067X
Ex ia IIC T4
DIP A20 TA T70C IP66
Combinations of Certifications
Stainless steel certification tag is provided when optional approval is specified. Once a
device labeled with multiple approval types is installed, it should not be reinstalled using any
other approval types. Permanently mark the approval label to distinguish it from unused
approval types.
K5 E5 and I5 combination
KB K5 and C6 combination
KD K5, C6, I1, and E8 combination
K6 C6, I1, and E8 combination
K8 E8 and I1 combination
K7 E7, I7, and N7 combination
Table 4. Input Parameters
FOUNDATION fieldbus
Ui= 30V
Ii= 300 mA
Pi= 1.3W
Li= 0
Ci= 0
FISCO
Ui= 17.5 V
Ii= 380 mA
Pi= 5.32W
Li0 µH
Ci= 5 nF
4774RevDA.fm Page 16 Thursday, April 22, 2010 10:26 AM

Quick Installation Guide
00825-0100-4774, Rev DA
April 2010 Rosemount 3051
17
doc
4774RevDA.fm Page 17 Thursday, April 22, 2010 10:26 AM

Quick Installation Guide
00825-0100-4774, Rev DA
April 2010
Rosemount 3051
18
4774RevDA.fm Page 18 Thursday, April 22, 2010 10:26 AM

Quick Installation Guide
00825-0100-4774, Rev DA
April 2010 Rosemount 3051
19
4774RevDA.fm Page 19 Thursday, April 22, 2010 10:26 AM

Quick Installation Guide
00825-0100-4774, Rev DA
April 2010
Rosemount 3051
20
4774RevDA.fm Page 20 Thursday, April 22, 2010 10:26 AM
