Emerson Rosemount 3051 Series User manual

Quick Start Guide
00825-0100-4001, Rev JD
September 2016
with 4-20 mA HART®and 1-5 Vdc Low Power
Protocol
Rosemount™3051 Pressure Transmitter
and Rosemount 3051CF Series Flowmeter
00825-0100-4001_RevJD.fm Page 1 Thursday, September 8, 2016 3:40 AM

September 2016
2
Quick Start Guide
NOTICE
This guide provides basic guidelines for Rosemount 3051 Transmitters. It does not provide instructions for
configuration, diagnostics, maintenance, service, troubleshooting, Explosion-Proof, Flame-Proof, or
intrinsically safe (I.S.) installations. Refer to the Rosemount 3051 Reference Manual for more instruction.
This manual is also available electronically EmersonProcess.com/Rosemount.
Explosions could result in death or serious injury.
Installation of this transmitter in an explosive environment must be in accordance with the appropriate local,
national, and international standards, codes, and practices. Review the approvals section of the Rosemount
3051 Reference Manual for any restrictions associated with a safe installation.
Before connecting a HART-based communicator in an explosive atmosphere, make sure the instruments
in the loop are installed in accordance with intrinsically safe or non-incendive field wiring practices.
In an Explosion-Proof/Flame-Proof installation, do not remove the transmitter covers when power is
applied to the unit.
Process leaks may cause harm or result in death.
To avoid process leaks, only use the o-ring designed to seal with the corresponding flange adapter.
Electrical shock can result in death or serious injury.
Avoid contact with the leads and the terminals. High voltage that may be present on leads can cause
electrical shock.
Conduit/cable entries
Unless marked, the conduit/cable entries in the transmitter housing use a 1/2–14 NPT thread form. Entries
marked “M20” are M20 ⫻1.5 thread form. On devices with multiple conduit entries, all entries will have
the same thread form. Only use plugs, adapters, glands, or conduit with a compatible thread form when
closing these entries.
When installing in a hazardous location, use only appropriately listed or Ex certified plugs, adapters, or
glands in cable/conduit entries.
Contents
Mount the transmitter. . . . . . . . . . . . . . . . 3
Consider housing rotation . . . . . . . . . . . . 7
Set the jumpers. . . . . . . . . . . . . . . . . . . . . . 8
Connect the wiring and power up . . . . . . 8
Verify configuration . . . . . . . . . . . . . . . . . 11
Trim the transmitter . . . . . . . . . . . . . . . . 14
Safety Instrumented Systems (SIS) . . . . 15
Product Certifications . . . . . . . . . . . . . . . 18
00825-0100-4001_RevJD.fm Page 2 Thursday, September 8, 2016 3:40 AM

Quick Start Guide
3
September 2016
1.0 Mount the transmitter
1.1 Liquid flow applications
1. Place taps to the side of the line.
2. Mount beside or below the taps.
3. Mount the transmitter so the drain/vent
valves are oriented upward.
1.2 Gas flow applications
1. Place taps in the top or side of the line.
2. Mount beside or above the taps.
1.3 Steam flow applications
1. Place taps to the side of the line.
2. Mount beside or below the taps.
3. Fill impulse lines with water.
Flow
00825-0100-4001_RevJD.fm Page 3 Thursday, September 8, 2016 3:40 AM

September 2016
4
Quick Start Guide
Figure 1. Panel and Pipe Mount
Panel mount(1)
1. Panel bolts are customer supplied.
Pipe mount
Coplanar flange
Traditional flange
Rosemount 3051T
Rosemount 3051H
00825-0100-4001_RevJD.fm Page 4 Thursday, September 8, 2016 3:40 AM

Quick Start Guide
5
September 2016
1.4 Bolting considerations
If the transmitter installation requires assembly of the process flanges, manifolds,
or flange adapters, follow these assembly guidelines to ensure a tight seal for
optimal performance characteristics of the transmitters. Use only bolts supplied
with the transmitter or sold by Emerson™as spare parts. Figure 2 illustrates
common transmitter assemblies with the bolt length required for proper
transmitter assembly.
Figure 2. Common Transmitter Assemblies
A. Transmitter with coplanar flange
B. Transmitter with coplanar flange and optional flange adapters
C. Transmitter with traditional flange and optional flange adapters
D. Transmitter with coplanar flange and optional manifold and flange adapters
Bolts are typically carbon steel or stainless steel. Confirm the material by viewing
the markings on the head of the bolt and referencing Table 1. If bolt material is
not shown in Table 1, contact the local Emerson Process Management
representative for more information.
Use the following bolt installation procedure:
1. Carbon steel bolts do not require lubrication and the stainless steel bolts are
coated with a lubricant to ease installation. However, no additional lubricant
should be applied when installing either type of bolt.
2. Finger-tighten the bolts.
3. Torque the bolts to the initial torque value using a crossing pattern.
See Table 1 for initial torque value.
4. Torque the bolts to the final torque value using the same crossing pattern.
See Table 1 for final torque value.
5. Verify that the flange bolts are protruding through the isolator plate before
applying pressure.
A
4 × 1.75-in.
(44 mm)
D
4 × 1.75-in.
(44 mm)
4 × 2.25-in.
(57 mm)
C
4 ×1.75-in.
(44 mm) 4 ×1.50-in.
(38 mm)
B
4 × 2.88-in.
(73 mm)
00825-0100-4001_RevJD.fm Page 5 Thursday, September 8, 2016 3:40 AM

September 2016
6
Quick Start Guide

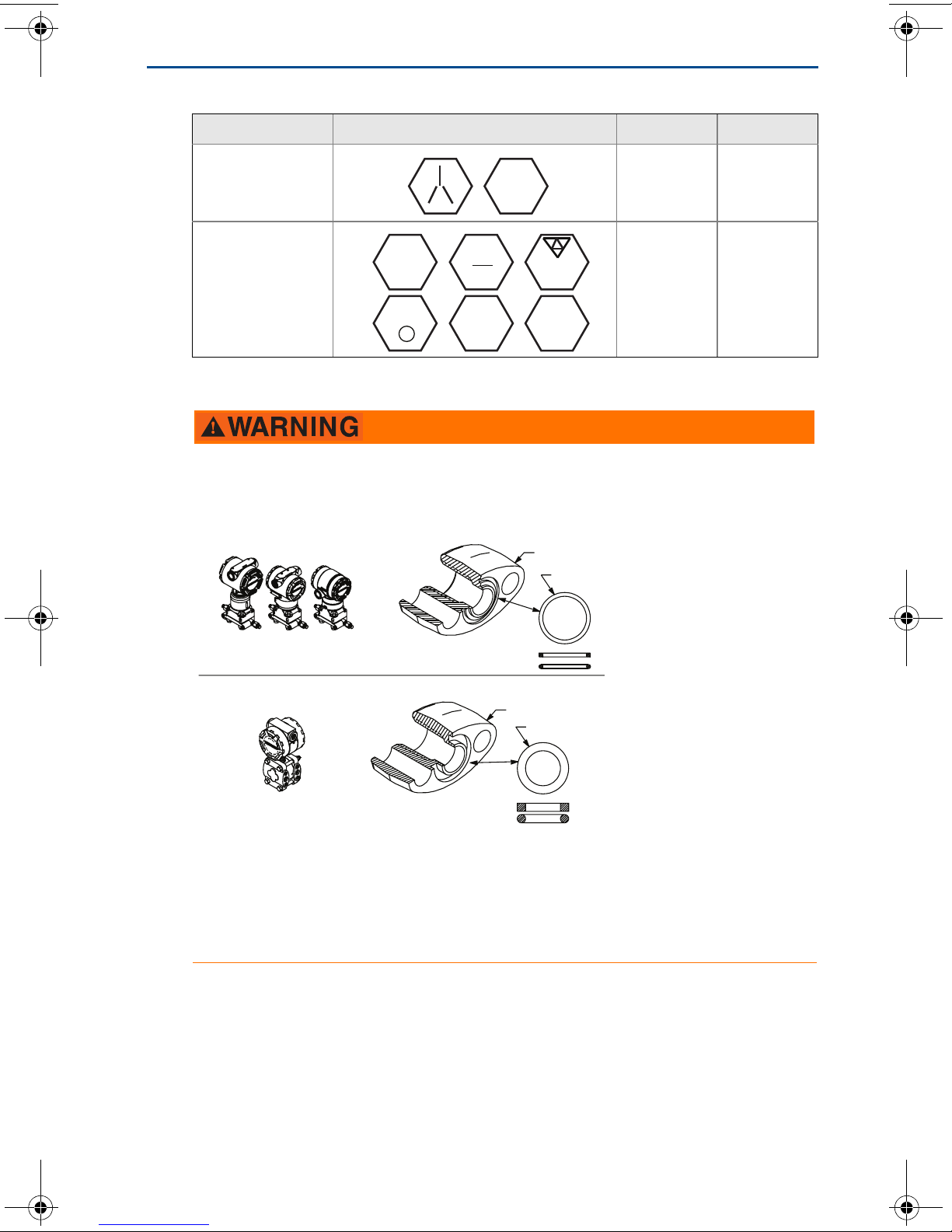

Table 1. Torque Values for the Flange and Flange Adapter Bolts
1.5 O-rings with flange adapters
1.6 Environmental seal for housing
Thread sealing (PTFE) tape or paste on male threads of conduit is required to
provide a water/dust tight conduit seal and meets requirements of NEMA®
Type 4X, IP66, and IP68. Consult factory if other Ingress Protection ratings are
required.
For M20 threads, install conduit plugs to full thread engagement or until
mechanical resistance is met.
Bolt material Head markings Initial torque Final torque
Carbon Steel (CS) 300 in-lb 650 in-lb
Stainless Steel (SST) 150 in-lb 300 in-lb
Failure to install proper flange adapter O-rings may cause process leaks, which can result in death or
serious injury. The two flange adapters are distinguished by unique O-ring grooves. Only use the
O-ring that is designed for its specific flange adapter, as shown below:
A. Flange adaptor
B. O-ring
C. PTFE based (profile is square)
D. Elastomer (profile is round)
Whenever the flanges or adapters are removed, visually inspect the O-rings. Replace them if there are
any signs of damage, such as nicks or cuts. If you replace the O-rings, re-torque the flange bolts and
alignment screws after installation to compensate for seating of the PTFE O-rings.
B7M
316
316
316
SW
316
STM
316
R
B8M
A
A
B
B
C
Rosemount 3051S/3051/2051/3095
Rosemount 1151
D
C
D
00825-0100-4001_RevJD.fm Page 6 Thursday, September 8, 2016 3:40 AM

Quick Start Guide
7
September 2016
1.7 In-line gage transmitter orientation
The low side pressure port (atmospheric reference) on the in-line gage
transmitter is located in the neck of the transmitter, behind the housing.
The vent path is 360° around the transmitter between the housing and sensor.
(See Figure 3.)
Keep the vent path free of any obstruction, including but not limited to paint,
dust, and lubrication by mounting the transmitter so that the process can drain
away.
Figure 3. In-line Gage Low Side Pressure Port
A. Low side pressure port (atmospheric reference)
2.0 Consider housing rotation
To improve field access to wiring or to better view the optional LCD display:
1. Loosen the housing rotation set screw.
2. First rotate the housing clockwise to the desired location. If the desired
location cannot be achieved due to thread limit, rotate the housing counter
clockwise to the desired location (up to 360° from thread limit).
3. Retighten the housing rotation set screw.
Figure 4. Housing Rotation Set Screw
A. Housing rotation set screw (5/64-in.)
A
A
00825-0100-4001_RevJD.fm Page 7 Thursday, September 8, 2016 3:40 AM

September 2016
8
Quick Start Guide
3.0 Set the jumpers
If alarm and security jumpers are not installed, the transmitter will operate
normally with the default alarm condition alarm high and the security off.
1. If the transmitter is installed, secure the loop, and remove power.
2. Remove the housing cover opposite the field terminal side. Do not remove the
instrument cover in explosive atmospheres when the circuit is live.
3. Reposition the jumper. Avoid contact with the leads and the terminals.
See Figure 5 for the location of the jumper and the ON and OFF positions.
4. Reattach the transmitter cover. The cover must be fully engaged to comply
with explosion-proof requirements.
Figure 5. Transmitter Electronics Board
A. Alarm
B. Security
4.0 Connect the wiring and power up
Use the following steps to wire the transmitter:
1. Remove the housing cover on the field terminals side.
2. Connect the positive lead to the “+” terminal (PWR/COMM) and the negative
lead to the “–” terminal.
3. Ensure full contact with terminal block screw and washer. When using a direct
wiring method, wrap wire clockwise to ensure it is in place when tightening
the terminal block screw.
Note
The use of a pin or a ferrule wire terminal is not recommended as the connection may be
more susceptible to loosening over time or under vibration.
4. Ensure proper grounding. It is important that the instrument cable shield:
Be trimmed close and insulated from touching the transmitter housing
Be connected to the next shield if cable is routed through a junction box
Be connected to a good earth ground at the power supply end
Without LCD display With LCD display
A
B
00825-0100-4001_RevJD.fm Page 8 Thursday, September 8, 2016 3:40 AM

Quick Start Guide
9
September 2016
Note
Do not connect the powered signal wiring to the test terminals. Power could damage the
test diode in the test connection. Shielded twisted pair cable should be used for best
results. Use 24 AWG or larger wire and do not exceed 5,000 feet (1500 meters).
5. Plug and seal unused conduit connections.
6. If applicable, install wiring with a drip loop. Arrange the drip loop
so the bottom is lower than the conduit connections and the
transmitter housing.
7. Replace the housing cover.
Figure 6 shows wiring connections necessary to power a Rosemount 3051 and
enable communications with a hand-held Field Communicator. For low-power
transmitters, refer to the Rosemount 3051 Reference Manual.
Figure 6. Transmitter Wiring Diagrams (4–20 mA)
A. Current meter
B. RL≥250Ω
C. 24 Vdc supply
Figure 7. Low Power Transmitter Wiring
A. Voltmeter
B. 6–12 Vdc supply
A
B
C
AB
00825-0100-4001_RevJD.fm Page 9 Thursday, September 8, 2016 3:40 AM

September 2016
10
Quick Start Guide
Note
Installation of the transient protection terminal block does not provide transient protection
unless the Rosemount 3051 case is properly grounded.
4.1 Signal wiring grounding
Do not run signal wiring in conduit or open trays with power wiring, or near heavy
electrical equipment. Grounding terminations are provided on the outside of the
electronics housing and inside the terminal compartment. These grounds are
used when transient protect terminal blocks are installed or to fulfill local
regulations. See Step 2 for more information on how the cable shield should be
grounded.
1. Remove the field terminals housing cover.
2. Connect the wiring pair and ground as indicated in Figure 8. The cable shield
should:
Be trimmed close and insulated from touching the transmitter housing
Continuously connect to the termination point
Be connected to a good earth ground at the power supply end

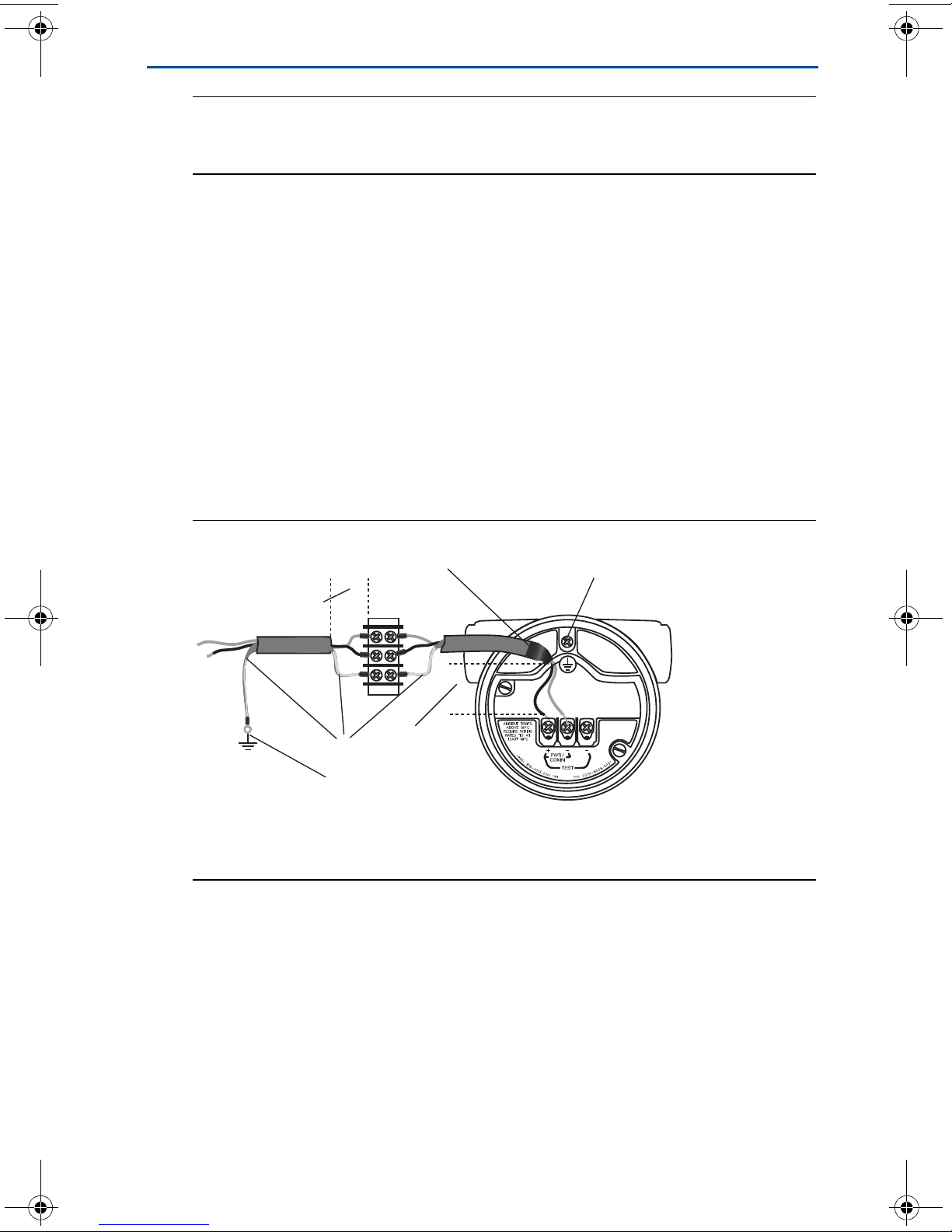

Figure 8. Wiring
3. Replace the housing cover. It is recommended that the cover be tightened
until there is no gap between the cover and the housing.
4. Plug and seal unused conduit connections.
4.2 Power supply for 4–20 mA HART
Transmitter operates on 10.5–42.4 Vdc. The dc power supply should provide
power with less than two percent ripple.
A. Insulate shield D. Trim shield and insulate
B. Minimize distance E. Safety ground
C. Connect shield back to the power supply ground
DP
C
AB
B
DE
00825-0100-4001_RevJD.fm Page 10 Thursday, September 8, 2016 3:40 AM

Quick Start Guide
11
September 2016

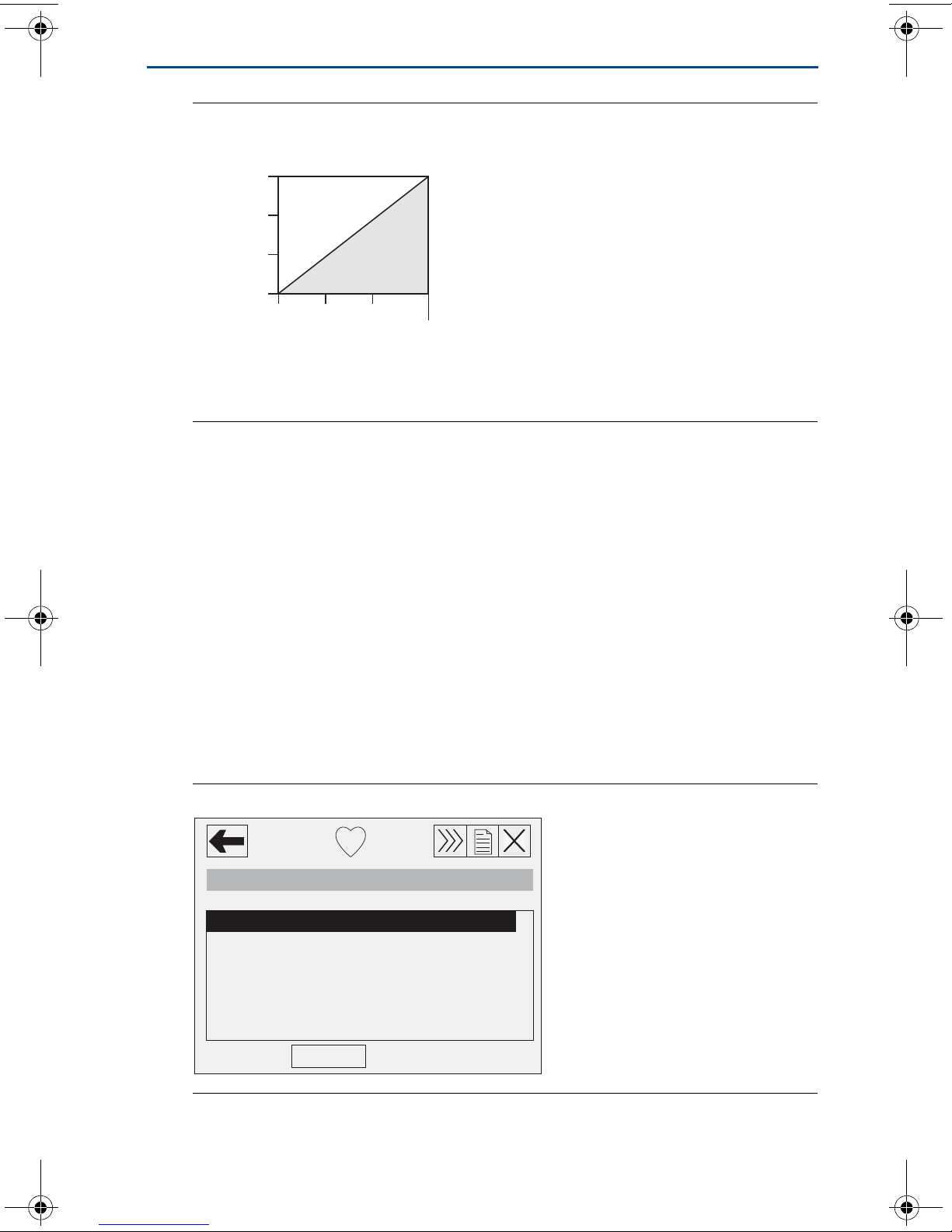

Figure 9. Load Limitation
The total resistance load is the sum of the resistance of the signal leads and the
load resistance of the controller, indicator, and related pieces. Note that the
resistance of intrinsic safety barriers, if used, must be included.
4.3 Power supply for 1–5 Vdc HART Low Power
Low power transmitters operate on 6–12 Vdc. The dc power supply should
provide power with less than two percent ripple. The Vout load should be 100 kW
or greater.
5.0 Verify configuration
5.1 Field Communicator user interface
The Traditional Interface - Device Revision 3 and DD Revision 2 Fast Key sequence
can be found on page 12.
Figure 10. Traditional Interface - Device Revision 3 and DD Revision 2
The Device Dashboard - Device Revision 3 and DD Revision 6 Fast Key sequence
can be found on page 12.
Max. Loop Resistance = 43.5 (Power Supply Voltage – 10.5)
Communication requires a minimumloop resistance of 250 ohms.
Load (Ωs)
1387
1000
500
0
10.5 20 30
42.4(1)
1. For CSA approval, power supply must not exceed 42.4 V.
Operating
Region
Voltage (Vdc)
SAVE
3051:PT 93207
Online
1 Device setup
2 PV 0.00 mbar
3 Analog Output 4.000 mA
4 PV LRV 0.00 mbar
5 PV URV 370.00 mbar
00825-0100-4001_RevJD.fm Page 11 Thursday, September 8, 2016 3:40 AM

September 2016
12
Quick Start Guide
Figure 11. Device Dashboard - Device Revision 3 and DD Revision 6
Note
A check () indicates the basic configuration parameters. At minimum, these parameters
should be verified as part of the configuration and startup procedure.
Table 2. Traditional Interface - Device Revision 3 and DD Revision 2
Fast Key Sequence
Function Fast Key sequence
Alarm and Saturation Levels 1, 4, 2, 7
Analog Output Alarm Type 1, 4, 3, 2, 4
Burst Mode Control 1, 4, 3, 3, 3
Burst Operation 1, 4, 3, 3, 3
Custom Meter Configuration 1, 3, 7, 2
Custom Meter Value 1, 4, 3, 4, 3
Damping 1, 3, 6
Date 1, 3, 4, 1
Descriptor 1, 3, 4, 2
Digital To Analog Trim (4–20 mA Output) 1, 2, 3, 2, 1
Disable Local Span/Zero Adjustment 1, 4, 4, 1, 7
Field Device Information 1, 4, 4, 1
Full Trim 1, 2, 3, 3
Keypad Input – Rerange 1, 2, 3, 1, 1
Local Zero and Span Control 1, 4, 4, 1, 7
Loop Test 1, 2, 2
Lower Sensor Trim 1, 2, 3, 3, 2
Message 1, 3, 4, 3
SAVE
3051:PT 93207
Online
1 Overview
2 Configure
3 Service Tools
00825-0100-4001_RevJD.fm Page 12 Thursday, September 8, 2016 3:40 AM

Quick Start Guide
13
September 2016
Meter Options 1, 4, 3, 4
Number of Requested Preambles 1, 4, 3, 3, 2
Poll Address 1, 4, 3, 3, 1
Poll a Multidropped Transmitter Left Arrow, 4, 1, 1
Range Values 1, 3, 3
Rerange 1, 2, 3, 1
Scaled D/A Trim (4–20 mA Output) 1, 2, 3, 2, 2
Self Test (Transmitter) 1, 2, 1, 1
Sensor Info 1, 4, 4, 2
Sensor Temperature 1, 1, 4
Sensor Trim Points 1, 2, 3, 3, 5
Status 1, 2, 1, 1
Tag 1, 3, 1
Transfer Function (Setting Output Type) 1, 3, 5
Transmitter Security (Write Protect) 1, 3, 4, 4
Trim Analog Output 1, 2, 3, 2
Units (Process Variable) 1, 3, 2
Upper Sensor Trim 1, 2, 3, 3, 3
Zero Trim 1, 2, 3, 3, 1
Table 3. Device Dashboard - Device Revision 3 and DD Revision 6
Fast Key Sequence
Function Fast Key sequence
Alarm and Saturation Levels 1, 7, 5
Burst Mode Control 2, 2, 4, 1
Burst Option 2, 2, 4, 2
Custom Display Configuration 2, 2, 3
Damping 2, 2, 1, 2
Date 2, 2, 6, 1, 4
Descriptor 2, 2, 6, 1, 5
Digital to Analog Trim (4–20 mA Output) 3, 4, 2, 1
Disable Zero & Span Adjustment 2, 2, 5, 2
Rerange with Keypad 2, 2, 2, 1
Loop Test 3, 5, 1
Table 2. Traditional Interface - Device Revision 3 and DD Revision 2
Fast Key Sequence
Function Fast Key sequence
00825-0100-4001_RevJD.fm Page 13 Thursday, September 8, 2016 3:40 AM

September 2016
14
Quick Start Guide
6.0 Trim the transmitter
Note
Transmitters are shipped fully calibrated per request or by the factory default of full scale
(span = upper range limit).
6.1 Zero trim
A zero trim is a single-point adjustment used for compensating mounting
position effects. When performing a zero trim, ensure the equalizing valve is open
and all wet legs are filled to the correct level.
There are two methods to compensate for mounting effects:
Field Communicator
Transmitter zero adjustment buttons
Select the appropriate method and follow instructions below:
Using the Field Communicator
If zero offset is within 3% of URL, follow the Using the Field Communicator
instructions below. This zero trim will affect the 4–20 mA value, the HART PV, and
the display value.
1. Equalize or vent the transmitter and connect Field Communicator.
2. At the menu, input the HART Fast Key sequence (refer to Table 2 or Table 3).
3. Follow the commands to perform a zero trim.
Using the transmitter zero adjustment buttons
Using the transmitter zero adjustment buttons, the lower range value (LRV) will
be set to the pressure applied to the transmitter. This adjustment will affect the
4–20 mA value only. Perform the following steps to perform a rerange using the
zero adjustment buttons.
Lower Sensor Trim 3, 4, 1,2
Message 2, 2, 6, 1, 6
Range Values 2, 2, 2
Scaled D/A Trim (4–20 mA Output) 3, 4, 2, 2
Sensor Temperature/Trend (Rosemount 3051S) 2, 2, 1, 6
Tag 2, 2, 6, 1,1
Transfer Function 2, 2, 1, 3
Transmitter Security (Write Protect) 2, 2, 5, 1
Units 2, 2, 1, 1
Upper Sensor Trim 3, 4, 1, 1
Zero Trim 3, 4, 1, 3
Table 3. Device Dashboard - Device Revision 3 and DD Revision 6
Fast Key Sequence
Function Fast Key sequence
00825-0100-4001_RevJD.fm Page 14 Thursday, September 8, 2016 3:40 AM

Quick Start Guide
15
September 2016
1. Loosen the certifications label screw and slide the label to expose the zero
adjustment buttons.
2. Set the 4 mA point by pressing the Zero button for two seconds. Verify the
output is 4 mA. The optional LCD display will show ZERO PASS.
Figure 12. Zero Adjustment Buttons
A. Zero adjustment buttons
7.0 Safety Instrumented Systems (SIS)
The following section applies to Rosemount 3051C Transmitters used in SIS
applications.
7.1 Installation
No special installation is required in addition to the standard installation practices
outlined in this document. Always ensure a proper seal by installing the
electronics housing cover(s) so that metal contacts metal.
The loop must be designed so the terminal voltage does not drop below 10.5 Vdc
when the transmitter output is 22.5 mA.
Position the security switch to the ON position to prevent accidental or deliberate
change of configuration data during normal operation.
7.2 Configuration
Use any HART-compliant master to communicate with and verify configuration of
the Rosemount 3051.
User-selected damping will affect the transmitters ability to respond to changes
in the applied process. The damping value + response time must not exceed the
loop requirements.
Note
1. Transmitter output is not safety-rated during the following: configuration changes,
multidrop, loop test. Alternative means should be used to ensure process safety during
transmitter configuration and maintenance activities.
2. DCS or safety logic solver must be configured to match transmitter configuration.
Figure 13 identifies the two alarm levels available and their operation values. Position
the alarm switch to the required HI or LO alarm position.
A
00825-0100-4001_RevJD.fm Page 15 Thursday, September 8, 2016 3:40 AM

September 2016
16
Quick Start Guide
Figure 13. Alarm Levels
Note
Some detected faults are indicated on the analog output at a level above high alarm
regardless of the alarm switch selection.
7.3 Operation and maintenance
Proof test and inspection
The following proof tests are recommended. Proof test results and corrective
actions taken must be documented at
EmersonProcess.com/Rosemount/Report-A-Failure in the event that an error is
found in the safety functionality.
Use the Fast Key sequences in Table 2 on page 12 or Table 3 on page 13 to
perform a loop test, analog output trim, or sensor trim. See the Rosemount 3051
Reference Manual for additional information.
Proof test 1(1)
This proof test will detect 59.6% of DU failures not detected by the Rosemount
3051 automatic diagnostics.
1. Execute the Master Reset command to initiate start-up diagnostics.
2. Enter the milliampere value representing a high alarm state
3. Check the reference meter to verify the mA output corresponds to the entered
value.
4. Enter the milliampere value representing a low alarm state
5. Check the reference meter to verify the mA output corresponds to the entered
value.
Rosemount alarm level
NAMUR alarm level
1. Transmitter failure, hardware alarm in LO position.
2. Transmitter failure, hardware alarm in HI position.
1. This test will detect approximately 59.6% of possible DU failures in the transmitter.
Normal Operation
4 mA 20 mA 20.8 mA
high saturation
21.75 mA(2)
3.9 mA
low saturation
3.75 mA(1)
Normal Operation
4 mA 20 mA
20.5 mA
high saturation
22.5 mA(2)
3.8 mA
low saturation
3.6 mA(1)
00825-0100-4001_RevJD.fm Page 16 Thursday, September 8, 2016 3:40 AM

Quick Start Guide
17
September 2016
Proof test 2(1)
This proof test, when combined with the five-year proof-test, will detect 94.6% of
DU failures not detected by the Rosemount 3051 automatic diagnostics.
1. Execute the Master Reset command to initiate start-up diagnostics.
2. Perform a minimum two point sensor calibration check using the 4–20 mA
range points as the calibration points.s
3. Check the reference mA meter to verify the mA output corresponds to the
pressure input value.
4. If necessary, use one of the “Trim” procedures available in the Rosemount 3051
Reference Manual to calibrate.
Note
The user determines the proof-test requirements for impulse piping.
Visual inspection
Not required.
Special tools
Not required.
Product repair
All failures detected by the transmitter diagnostics or by the proof-test must be
reported. Feedback can be submitted electronically at
EmersonProcess.com/Rosemount/Report-A-Failure.
The Rosemount 3051 is repairable by major component replacement. Follow the
instructions in the Rosemount 3051 Reference Manual for additional information.
7.4 Reference
Specifications
The Rosemount 3051 must be operated in accordance to the functional and
performance specifications provided in the Rosemount 3051 Reference Manual.
Failure rate data
The FMEDA report includes failure rates and common cause Beta factor estimates.
This report is available at EmersonProcess.com/Rosemount.
Rosemount 3051 safety failure values
Safety accuracy: 0.065%
Safety response time: 100 msec
Product life
50 years – based on worst case component wear-out mechanisms – not based on
wear-out process wetted materials
1. This test will detect approximately 94.6% of possible DU failures in the transmitter.
00825-0100-4001_RevJD.fm Page 17 Thursday, September 8, 2016 3:40 AM

September 2016
18
Quick Start Guide
8.0 Product Certifications
Rev 1.4
8.1 European Directive Information
A copy of the EU Declaration of Conformity can be found at the end of the Quick
Start Guide. The most recent revision of the EU Declaration of Conformity can be
found at EmersonProcess.com/Rosemount.
8.2 Ordinary Location Certification
As standard, the transmitter has been examined and tested to determine that the
design meets the basic electrical, mechanical, and fire protection requirements
by a nationally recognized test laboratory (NRTL) as accredited by the Federal
Occupational Safety and Health Administration (OSHA).
8.3 North America
E5 USA Explosionproof (XP) and Dust-Ignitionproof (DIP)
Certificate: 0T2H0.AE
Standards: FM Class 3600 – 2011, FM Class 3615 – 2006, FM Class 3810 – 2005,
ANSI/NEMA 250 – 2003
Markings: XP CL I, DIV 1, GP B, C, D; DIP CL II, DIV 1, GP E, F, G; CL III;
T5(–50 °C ≤Ta≤+85 °C); Factory Sealed; Type 4X
I5 USA Intrinsic Safety (IS) and Nonincendive (NI)
Certificate: FM16US0120X
Standards: FM Class 3600 – 2011, FM Class 3610 – 2010, FM Class 3611 – 2004,
FM Class 3810 – 2005, ANSI/NEMA 250 – 2008
Markings: IS CL I, DIV 1, GP A, B, C, D; CL II, DIV 1, GP E, F, G; Class III; DIV 1 when
connected per Rosemount drawing 03031-1019; NI CL 1, DIV 2, GP A, B, C,
D; T4(–50 °C ≤Ta≤+70 °C) [HART], T5(–50 °C ≤Ta≤+40 °C) [HART];
T4(–50 °C ≤Ta≤+60 °C) [Fieldbus/PROFIBUS®]; Type 4x
Special Conditions for Safe Use (X):
1. The Rosemount 3051 Transmitter housing contains aluminum and is considered a
potential risk of ignition by impact or friction. Care must be taken into account during
installation and use to prevent impact and friction.
2. The Rosemount 3051 Transmitter with the transient terminal block (Option code T1)
will not pass the 500 Vrms dielectric strength test and this must be taken into account
during installation.
IE USA FISCO
Certificate: FM16US0120X
Standards: FM Class 3600 – 2011, FM Class 3610 – 2010, FM Class 3611 – 2004,
FM Class 3810 – 2005
Markings: IS CL I, DIV 1, GP A, B, C, D when connected per Rosemount drawing
03031-1019 (–50 °C ≤Ta≤+60 °C); Type 4x
Special Conditions for Safe Use (X):
1. The Rosemount 3051 Transmitter housing contains aluminum and is considered a
potential risk of ignition by impact or friction. Care must be taken into account during
installation and use to prevent impact and friction.
2. The Rosemount 3051 Transmitter with the transient terminal block (Option code T1)
will not pass the 500 Vrms dielectric strength test and this must be taken into account
during installation.
00825-0100-4001_RevJD.fm Page 18 Thursday, September 8, 2016 3:40 AM

Quick Start Guide
19
September 2016
C6 Canada Explosionproof, Dust-Ignitionproof, Intrinsic Safety and Nonincendive
Certificate: 1053834
Standards: ANSI/ISA 12.27.01-2003, CSA Std. C22.2 No. 30-M1986,
CSA Std. C22.2 No.142-M1987, CSA Std. C22.2. No.157-92,
CSA Std. C22.2 No. 213-M1987
Markings: Explosionproof for Class I, Division 1, Groups B, C and D; Suitable for Class I,
Zone 1, Group IIB+H2, T5; Dust-Ignitionproof Class II, Division 1, Groups E, F,
G; Class III Division 1; Intrinsically Safe Class I, Division 1 Groups A, B, C, D
when connected in accordance with Rosemount drawing 03031-1024,
Temperature Code T3C; Suitable for Class I, Zone 0; Class I Division 2 Groups
A, B, C and D, T5; Suitable for Class I Zone 2, Group IIC; Type 4X; Factory
Sealed; Single Seal (See drawing 03031-1053)
E6 Canada Explosionproof, Dust-Ignitionproof and Division 2
Certificate: 1053834
Standards: ANSI/ISA 12.27.01-2003, CSA Std. C22.2 No. 30-M1986,
CSA Std. C22.2 No.142-M1987, CSA Std. C22.2 No. 213-M1987
Markings: Explosionproof Class I, Division 1, Groups B, C and D; Suitable for Class I,
Zone 1, Group IIB+H2, T5; Dust-Ignitionproof for Class II and Class III,
Division 1, Groups E, F and G; Class I, Division 2, Groups A, B, C and D;
Suitable for Class I Zone 2, Group IIC; Type 4X; Factory Sealed; Single Seal
(See drawing 03031-1053)
8.4 Europe
E8 ATEX Flameproof and Dust
Certificate: KEMA00ATEX2013X; Baseefa11ATEX0275X
Standards: EN60079-0:2012, EN60079-1:2007, EN60079-26:2007, EN60079-31:2009
Markings: II 1/2 G Ex d IIC T6/T5 Ga/Gb, T6(–50 °C ≤Ta≤+65 °C),
T5(–50 °C ≤Ta≤+80 °C);
II 1 D Ex ta IIIC T95 °C T500 105 °C Da (–20 °C ≤Ta≤+85 °C)
Special Conditions for Safe Use (X):
1. This device contains a thin wall diaphragm. Installation, maintenance and use shall take
into account the environmental conditions to which the diaphragm will be subjected.
The manufacturer's instructions for installation and maintenance shall be followed in
detail to assure safety during its expected lifetime.
2. For information on the dimensions of the flameproof joints the manufacturer shall be
contacted.
3. Some variants of the equipment have reduced markings on the nameplate. Refer to the
Certificate for full equipment marking.
Table 4. Process Temperature
Temperature class Process temperature
T6 –50 °C to +65 °C
T5 –50 °C to +80 °C
00825-0100-4001_RevJD.fm Page 19 Thursday, September 8, 2016 3:40 AM

September 2016
20
Quick Start Guide
I1 ATEX Intrinsic Safety and Dust
Certificate: BAS97ATEX1089X; Baseefa11ATEX0275X
Standards: EN60079-0:2012, EN60079-11:2012, EN60079-31:2009
Markings: HART: II 1 G Ex ia IIC T5/T4 Ga, T5(–60 °C ≤Ta≤+40 °C),
T4(–60 °C ≤Ta≤+70 °C)
Fieldbus/PROFIBUS: II 1 G Ex ia IIC Ga T4(–60 °C ≤Ta≤+60 °C)
DUST: II 1 D Ex ta IIIC T95 °C T500 105 °C Da (–20 °C ≤Ta≤+85 °C)
Special Conditions for Safe Use (X):
1. The apparatus is not capable of withstanding the 500 V insulation test required by
clause 6.3.12 of EN60079-11:2012. This must be taken into account when installing the
apparatus.
2. The enclosure may be made of aluminum alloy and given a protective polyurethane
paint finish; however care should be taken to protect it from impact or abrasion if
located in Zone 0.
3. Some variants of the equipment have reduced markings on the nameplate. Refer to the
Certificate for full equipment marking.
IA ATEX FISCO
Certificate: BAS97ATEX1089X
Standards: EN60079-0:2012, EN60079-11:2009
Markings: II 1 G Ex ia IIC T4 Ga (–60 °C ≤Ta≤+60 °C)
Special Conditions for Safe Use (X):
1. The apparatus is not capable of withstanding the 500 V insulation test required by
clause 6.3.12 of EN60079-11:2012. This must be taken into account when installing the
apparatus.
2. The enclosure may be made of aluminum alloy and given a protective polyurethane
paint finish; however care should be taken to protect it from impact or abrasion if
located in Zone 0.
Table 5. Input Parameters
Parameter HART Fieldbus/PROFIBUS
Voltage Ui30 V 30 V
Current Ii200 mA 300 mA
Power Pi0.9 W 1.3 W
Capacitance Ci0.012 μF0 μF
Inductance Li0 mH 0 mH
Table 6. Input Parameters
Parameter FISCO
Voltage Ui17.5 V
Current Ii380 mA
Power Pi5.32 W
Capacitance Ci<5 nF
Inductance Li<10 μH
00825-0100-4001_RevJD.fm Page 20 Thursday, September 8, 2016 3:40 AM
