INSTALLATION INSTRUCTIONS
AND OWNER’S MANUAL
EMPIRE
EMPIRE
Comfort Systems
WARNING: If the information in these instructions
are not followed exactly, a re or explosion may
result causing property damage, personal injury or
loss of life.
— Do not store or use gasoline or other ammable
vapors and liquids in the vicinity of this or any
other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the
re department.
— Installation and service must be performed by a
qualied installer, service agency or the gas sup-
plier.
FIAMMA SERIES DECORATIVE
BURNER
(REQUIRES VENTED DECORATIVE LOG SET)
FOR INSTALLATION IN
SOLID-FUEL BURNING FIREPLACES
MODELS
BX18MTN-1
BX24MTN-1
BX30MTN-1
BX36MTN-1
WARNING: This log set is to be installed only in
a solid-fuel burning replace with a working ue
constructed of non-combustible material. The vent
damper must also have a damper clamp attached to
it to keep the damper from accidentally closing dur-
ing operation.
WARNING: If not installed, operated and maintained
in accordance with the manufacturer’s instructions,
this product could expose you to substances in fuel
or from fuel combustion which can cause death or
serious illness.
WARNING: This appliance must be installed only in
a solid-fuel burning replace with a working ue and
construction of noncombustible materials. This unit
is NOT for use with solid fuel. Solid fuels shall NOT
be burned in a replace where a decorative appli-
ance is installed.
General Information: These instructions are intend-
ed as a general guide and do not supersede national
or local codes in any way. Authorities having juris-
diction should be consulted before installation.
Installation and provision for combustion and ven-
tilation air must conform to the National Fuel Gas
Code, ANSI Z223.1, or CAN/CGA-B149.1, Natural
Gas Installation Code, or CAN/CGA-B149.2, Propane
Installation Code.
IMPORTANT! Read these instructions carefully be-
fore installing or operating this gas appliance. These
instructions should be left with the homeowner for
future reference.

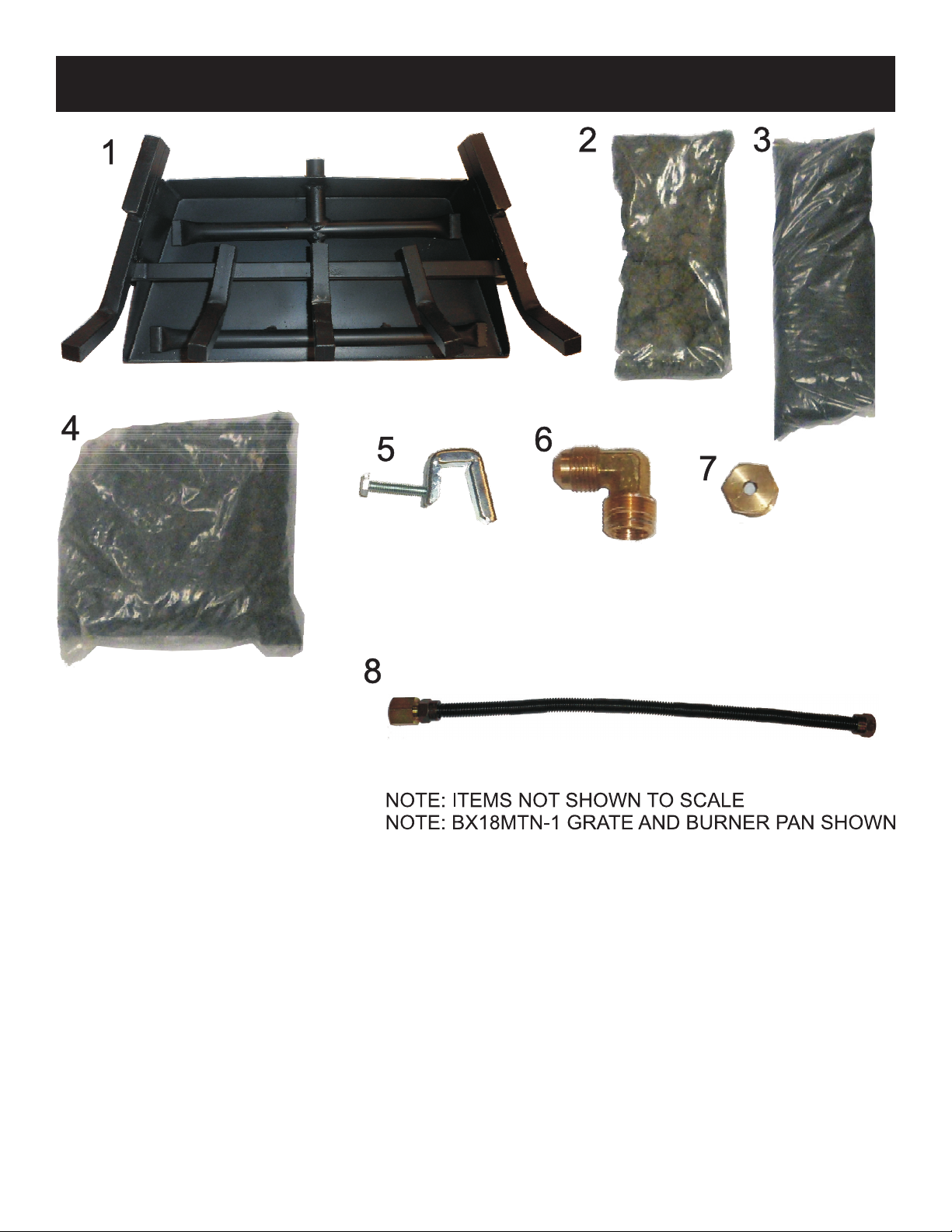

Carton Contents:
1 - Fiamma Series Burner Pan (NG match throw)
1 - Bag Sand
1 - Bag Glowing Embers
1 - Bag - Lava Rock (Cinders)
1 - Damper Clamp
1 - Stainless Steel Flex Gas Line with adapter
CONGRATULATIONS on the purchase of your new
DECORATIVE GAS BURNER! Your Decorative Gas
Burner is designed and intended for installation in an
approved, existing, fully vented, wood-burning replace,
with a gas hook-up. Match Throw units must be fu-
eled by Natural Gas only. Gas Control Valve units may
be fueled by either Natural or Liquid Propane (LP) gas.
Liquid Propane units must use an LP change kit.

FG10239-1-0214Page 2
TABLE OF CONTENTS
IMPORTANT SAFETY INFORMATION.................................................................3-4
SAFETY INFORMATION FOR USERS OF LP-GAS ...............................................5
INTRODUCTION......................................................................................................6
SPECIFICATIONS ...................................................................................................6
INSTALLATION ...................................................................................................7-11
FINAL SET UP .......................................................................................................12
LIGHTING INSTRUCTIONS - MATCH THROW UNITS ........................................13
LIGHTING INSTRUCTIONS - SAFETY PILOT UNITS..........................................14
OPERATION ..........................................................................................................15
MAINTENANCE & SERVICE.................................................................................16
TROUBLESHOOTING ...........................................................................................17
PARTS LIST...........................................................................................................18
PARTS VIEW .........................................................................................................19
MASTER PARTS DISTRIBUTOR LIST..................................................................20
HOW TO ORDER REPAIR PARTS........................................................................20
WARRANTY...........................................................................................................21
APPLIANCE SERVICE HISTORY ....................................................................22-23
SECTION PAGE

FG10239-1-0214 Page 3
IMPORTANT SAFETY INFORMATION
Installer: Please leave these instructions with the owner for
future reference.
For Installation In Solid Fuel Burning Fireplaces. Do not burn
wood or solid fuels in a replace where a decorative gas log
set is installed. This appliance is for installation only in a solid
fuel burning replace, masonry replace or manufactured
replace.
WARNING: Any modication to this gas log set or to controls
can be dangerous. Improper installation or use of the gas
log set can cause serious injury or death from re, burns,
explosion or carbon monoxide poisoning.
1. Please follow all local codes regarding installation, com-
bustion and ventilation air or in the absence of local codes
follow the National Fuel Gas Code ANSI Z223.1(U.S. in-
stallation), or CAN/CGA-B149, Installation Code (Canada
installation).
2. Proper installation, burner pan location and log placement
is important to achieve optimum look and performance
of your gas log set. The logs have been designed for
easy location and placement on the grate and must be
followed for proper operation.
3. Do not operate this log set with glass doors in the closed
position. A replace screen must be in place when the log
set is burning.Adequate combustion air must be provided
for proper venting. All ames should go up and out the
top of the rebox into the ue vent. If any ames oat or
curl forward into the room do not operate appliance.
Check for an open ue and adequate combustion air
into the room. A damper clamp must be installed on the
rebox damper to maintain an open ue vent condition.
4. Young children must be carefully supervised when they
are in the same room as the gas log while in operation.
Do not place stockings, clothing or any ammable mate-
rial above or near the replace.
5. Do not substitute or use materials other than those sup-
plied for use with the log set.
DO NOT OPERATE THIS GAS LOG SET WITH
GLASS DOORS CLOSED.
• Due to high temperatures the appliance should be
located out of trafc and away from furniture and
draperies.
• Children and adults should be alerted to the hazards
of high surface temperatures and should stay away
to avoid burns or clothing ignition.
• Young children should be carefully supervised when
they are in the same room as the appliance.
• Clothing or other ammable material should not be
placed on or near the appliance.
• Do not place trash or other articles on the log set
during operation.
• During manufacturing, fabricating and shipping,
various components of this appliance are treated
with certain oils, lms or bonding agents. These
bonding agents are not harmful but may produce
annoying smoke and smells as they are burned off
during initial operation of the appliance. This is a
normal temporary occurrence. A window should be
opened during the initial bake out period.
• Keep burner and control compartment clean.
• WARNING: Before installing in a solid fuel burning
replace, the chimney ue and rebox must be
cleaned of soot, creosote, ashes and loose paint by
a qualied chimney cleaner.
• WARNING: Do not allow fans to blow directly into
the replace. Avoid any drafts that alter burner ame
patterns.
• WARNING: Do not use a blower insert, heat exchanger
insert or other accessory not approved for use with
this appliance.
• Installation and repair should be done by a QUALIFIED
SERVICEPERSON.The appliance should be inspected
before use and at least annually by a qualied service
person. More frequent cleaning may be required due to
excessive lint from carpeting, bedding materials, etc.
It is imperative that control compartments, burners
and circulating air passageways of the appliance be
kept clean.
• DO NOT put anything around the replace that will
obstruct the ow of ventilation air.
• DO keep the appliance area clear and free from
combustible material, gasoline and other ammable
vapors and liquids.
• A yearly examination and cleaning of the venting
system of the solid-fuel burning replace must be
performed by a qualied agency.
• DO make a periodic visual check of pilot and burners.
Clean and replace damaged parts.
• DO NOT use this appliance if any part has been under
water. Immediately call a qualied service technician
to inspect the appliance and to replace any part of
the control system and any gas control which has
been under water.

FG10239-1-0214Page 4
IMPORTANT SAFETY INFORMATION
WARNING: Follow all gas leak check procedures in this manual,
prior to operation.
WARNING: Fuels used in gas or oil-red appliances, and the
products of combustion of such fuels, contain chemicals known to
the State of California to cause cancer, birth defects, and/or other
reproductive harm. This warning is issued pursuant to California
Health & Safety Code Sec. 25249.6.
While this appliance is not in use, the gas must be turned off at
the gas supply.
DO NOT ATTEMPT TO DISCONNECT THE GAS OR ANY GAS
FITTING WHILE THIS APPLIANCE IS IN OPERATION.
NEVER leave the decorative gas log set unattended while in
operation.
NEVER allow children to operate this decorative gas log set.
NEVER place hands or ngers on the front edge of this decora-
tive gas log set.
NEVER use liquid propane gas in a natural gas unit, or natural
gas in a liquid propane unit.
DO NOT use solid-fuel or lighter uid in any decorative gas log
set.
Any safety screen or guard removed for servicing an appliance
must be replaced prior to operating the appliance.
During manufacturing, fabrication, and shipping, various com-
ponents of this appliance are treated with certain oils, lms, or
bonding agents. These chemicals ARE NOT harmful, but may
produce annoying smoke and smells, as they are burned off,
during the initial operation of the appliance. This may possibly
cause headaches, and eye or lung irritation. This is a normal
and temporary occurrence. The initial break-in period should
last three to four hours. During this period, provide maximum
ventilation by opening a window or door, to allow odors to dis-
sipate. Any odor remaining after this initial break-in period, will
be slight and will disappear with continued use.
PROPER CLEARANCES FROM COMBUSTIBLE CON-
STRUCTION AND MATERIALS MUST BE MAINTAINED
FROM ALL SIDES, TOP, AND BOTTOM OF THIS APPLI-
ANCE.
THIS APPLIANCE SHOULD NEVER BE PLACED NEAR ANY
COMBUSTIBLE SURFACE.
THIS APPLIANCE SHOULD NEVER BE PLACED UNDER
ANY COMBUSTIBLE CONSTRUCTION OR MATERIALS.
NEVER PLACE ANY COMBUSTIBLE MATERIAL WITHIN
TWENTY-FOUR INCHES (24”)FROM THE FRONT OF THE
FIREPLACE ENCLOSURE.
WARNING

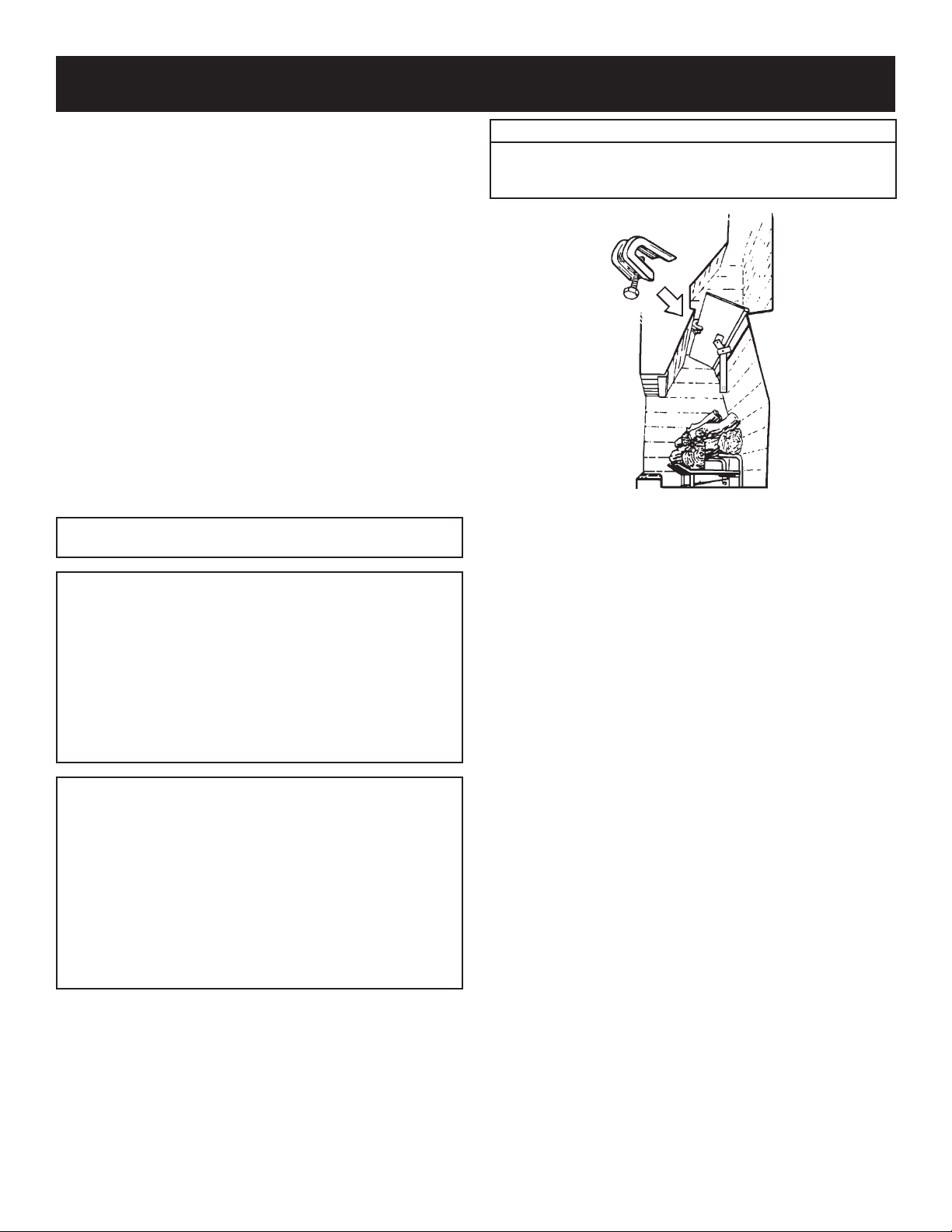

The damper clamp must be installed in a manner which will
maintain the minimum permanent damper vent opening at all
times. See Figure 1.
Figure 1
WARNING
The State of Massachusetts requires that the chimney ue
damper, when used with decorative gas log sets, be welded open
or completely removed. In the Commonwealth of Massachusetts,
this appliance must be installed by a licensed plumber or gast-
ter.
WARNING
Improper installation, adjustment, alteration, service or mainte-
nance, can cause property damage, personal injury or loss of life.
Refer to the owner’s information manual, provided with this ap-
pliance. Installation and service must be performed by a qualied
installer, service agency or the gas supplier.

FG10239-1-0214 Page 5
Propane (LP-Gas) is a ammable gas which can cause res
and explosions. In its natural state, propane is odorless and
colorless. You may not know all the following safety precautions
which can protect both you and your family from an accident.
Read them carefully now, then review them point by point with
the members of your household. Someday when there may not
be a minute to lose, everyone's safety will depend on knowing
exactly what to do. If, after reading the following information,
you feel you still need more information, please contact your
gas supplier.
LP-GAS WARNING ODOR
If a gas leak happens, you should be able to smell the gas
because of the odorant put in the LP-Gas.
That’s your signal to go into immediate action!
• Do not operate electric switches, light matches, use your phone.
Do not do anything that could ignite the gas.
• Get everyone out of the building, vehicle, trailer, or area. Do
that IMMEDIATELY.
• Close all gas tank or cylinder supply valves.
• LP-Gas is heavier than air and may settle in low areas such as
basements. When you have reason to suspect a gas leak, keep
out of basements and other low areas. Stay out until reghters
declare them to be safe.
• Use your neighbor’s phone and call a trained LP-Gas service
person and the re department. Even though you may not
continue to smell gas, do not turn on the gas again. Do not
re-enter the building, vehicle, trailer, or area.
• Finally, let the service man and reghters check for escaped
gas. Have them air out the area before you return. Properly
trained LP-Gas service people should repair the leak, then
check and relight the gas appliance for you.
NO ODOR DETECTED - ODOR FADE
Some people cannot smell well. Some people cannot smell
the odor of the chemical put into the gas. You must nd out if
you can smell the odorant in propane. Smoking can decrease
your ability to smell. Being around an odor for a time can affect your
sensitivity or ability to detect that odor. Sometimes other odors in
the area mask the gas odor. People may not smell the gas odor or
their minds are on something else. Thinking about smelling a gas
odor can make it easier to smell.
The odorant in LP-gas is colorless, and it can fade under some
circumstances. For example, if there is an underground leak, the
movement of the gas through soil can lter the odorant. Odorants in
LP-Gas also are subject to oxidation. This fading can occur if there
is rust inside the storage tank or in iron gas pipes.
The odorant in escaped gas can adsorb or absorb onto or into
walls, masonry and other materials and fabrics in a room. That will
take some of the odorant out of the gas, reducing its odor intensity.
LP-Gas may stratify in a closed area, and the odor intensity could
vary at different levels. Since it is heavier than air, there may be
more odor at lower levels. Always be sensitive to the slightest gas
odor. If you detect any odor, treat it as a serious leak. Immediately
go into action as instructed earlier.
SAFETY INFORMATION FOR USERS OF LP-GAS
SOME POINTS TO REMEMBER
• Learn to recognize the odor of LP-gas. Your local LP-Gas
Dealer can give you a “Scratch and Sniff” pamphlet. Use it to
nd out what the propane odor smells like. If you suspect that
your LP-Gas has a weak or abnormal odor, call your LP-Gas
Dealer.
• If you are not qualied, do not light pilot lights, perform service,
or make adjustments to appliances on the LP-Gas system. If
you are qualied, consciously think about the odor of LP-Gas
prior to and while lighting pilot lights or performing service or
making adjustments.
• Sometimes a basement or a closed-up house has a musty
smell that can cover up the LP-Gas odor. Do not try to light
pilot lights, perform service, or make adjustments in an area
where the conditions are such that you may not detect the odor
if there has been a leak of LP-Gas.
• Odor fade, due to oxidation by rust or adsorption on walls of
new cylinders and tanks, is possible. Therefore, people should
be particularly alert and careful when new tanks or cylinders
are placed in service. Odor fade can occur in new tanks, or
reinstalled old tanks, if they are lled and allowed to set too
long before relling. Cylinders and tanks which have been out
of service for a time may develop internal rust which will cause
odor fade. If such conditions are suspected to exist, a periodic
sniff test of the gas is advisable. If you have any question
about the gas odor, call your LP-GAS dealer. A periodic
sniff test of the LP-GAS is a good safety measure under
any condition.
• If, at any time, you do not smell the LP-Gas odorant and you
think you should, assume you have a leak. Then take the same
immediate action recommended above for the occasion when
you do detect the odorized LP-Gas.
• If you experience a complete “gas out,” (the container is under
no vapor pressure), turn the tank valve off immediately. If the
container valve is left on, the container may draw in some air
through openings such as pilot light orices. If this occurs, some
new internal rusting could occur. If the valve is left open, then
treat the container as a new tank. Always be sure your con-
tainer is under vapor pressure by turning it off at the container
before it goes completely empty or having it relled before it is
completely empty.

FG10239-1-0214Page 6
Introduction
Always consult your local Building Department regarding regula-
tions, codes or ordinances which apply to the installation of a
vented decorative gas log set in a solid-fuel burning replace.
This appliance is only for use with the type of gas indicated on
the rating plate.
Instructions to Installer
1. Installer must leave instruction manual with owner after
installation.
2. Installer must have owner ll out and mail warranty card
supplied with the replace.
3. Installer should show owner how to start and operate the
replace.
WARNING:
ANY CHANGE TO THIS APPLIANCE OR ITS CONTROLS
CAN BE DANGEROUS.
Improper installation or use of the appliance can cause se-
rious injury or death from re, burns, explosion or carbon
monoxide poisoning.
INTRODUCTION
General Information
Any alteration of the original design, installed other than as
shown in these instructions or use with a type of gas not
shown on the rating plate is the responsibility of the person
and company making the change.
Important
All correspondence should refer to complete Model No., Serial
No. and type of gas.
Notice: During initial use of the ceramic logs and branches you
will detect an odor as the ceramic logs and branches are cured.
SPECIFICATIONS
MINIMUM FIREPLACE DIMENSIONS
MASONRY BUILT FIREPLACES
Chimney Height Minimum of 6 Feet
LOG SET
SIZE
FRONT
WIDTH IN
INCHES*
DEPTH IN
INCHES
HEIGHT IN
INCHES
MINIMUM
VENT
IN SQ.
INCHES
18” 28 16 18 49
24” 30 16 18 71
30” 36 18 18 71
36” 42 18 18 71
MINIMUM FIREPLACE DIMENSIONS
FACTORY BUILT FIREPLACES
Chimney Height Minimum of 10 Feet
LOG SET
SIZE
FRONT
WIDTH IN
INCHES*
DEPTH IN
INCHES
HEIGHT IN
INCHES
MINIMUM
VENT
IN SQ.
INCHES
18” 28 16 18 49
24” 30 16 18 71
30” 36 18 18 71
36” 42 18 18 71
*Important: When adding a valve kit to the burner, 8” needs to
be added to the front width dimension.
Note: Natural gas match throw sets may be used in some areas.
Check your local codes for this conguration.
WARNING
DO NOT use sand in Liquid Propane Hearth Kits. Use the Ver-
miculite, provided with the Liquid Propane Change Kit.
HEARTH
KIT SIZE
RATED
PRESSURE
(W.C.)
MAX GAS
PRESSURE
(W.C.)
ORIFICE
SIZE
BTU/HR
INLET
18” 7.0 10.5” #23 75,000
24” 7.0 10.5” #13 90,000
30” 7.0 10.5” #13 90,000
36” 7.0 10.5” #13 90,000
HIGH ALTITUDE DE-RATE
In the U.S.A., input BTU shall be de-rated at 4% (1 orice size)
per 1000 feet for altitudes above 2000 feet. In Canada, input BTU
shall be de-rated 10% (2 orice sizes) at altitudes from 2000 feet
to 4500 feet.
ACCESSORIES
FGAFLMF Valve Kit
FGRCAFLMFV Motorized Hi/Lo Remote
FGRCAFLMF ON/OFF Remote
FGLMFWWS Wireless Wall Switch
FGAFVKSPMH/L IP Pilot HI/LO Remote
FGAFVKSP IP Pilot ON/OFF Remote
FGAFLFP18 Gas Conversion Kit - 18”
FGAFLFP24 Gas Conversion Kit - 24”
FGAFLFP30 Gas Conversion Kit - 30”

FG10239-1-0214 Page 7
INSTALLATION
Note: Installation can be made easier if two or more people coop-
erate in locating and installing the unit.
LOCATING THE UNIT
This appliance must be installed only in a solid-fuel burning
replace, which contains a working ue, and is constructed of
non-combustible materials.
IMPORTANT
Before installing this appliance, have the replace and chimney
professionally cleaned to remove any ashes, soot, creosote, or
other obstructions. Perform this cleaning annually after instal-
lation.
IMPORTANT
For units with valve applications, complete pilot placement and
gas train assembly before you place the unit into the replace.
IMPORTANT
Seal any fresh air vents or ash clean-out doors located on the
oor or wall of the replace. If this is not performed, drafting
may cause pilot outage or sooting. Use a heat-resistant seal-
ant. DO NOT seal the chimney ue damper.
WARNING
Gas supply system must be installed in accordance with the
U.S. National Fuel Gas Code.
This appliance and its individual shut off valve must be discon-
nected from the gas supply piping system during any system
pressure test in excess of 1/2 PSI (3.5 KPA).
Use a system manual shut off valve to shut off the gas supply
to this gas appliance before continuing with installation proce-
dures.
WARNING
WHEN INSTALLING THE APPLIANCE, DO NOT OBSTRUCT
THE FLOW OF COMBUSTION AND VENTILATION AIR.
Figure 2 - Fiamma Standard Burner Pan, Match Throw
Figure 3 - Fiamma Standard Burner Pan with Gas Control
Valve
SET UP AND ASSEMBLY
Your Fiamma Decorative Gas Log Hearth Kit comes ready for
gas assembly connection particular for use in your area.
IMPORTANT
BEFORE YOU BEGIN - Audit the gas pressure at the replace
stub to insure proper minimum gas pressure (see the specica-
tions beginning on page 6 of this manual).
IMPORTANT
BEFORE YOU BEGIN - Insure that the rebox meets the
minimum specications of the appliance (see the specications
beginning on page 6 of this manual).
IMPORTANT
This appliance when rst installed may produce unpleasant
odors; these will gradually diminish.
IMPORTANT
Decorative Gas Log Sets are shipped with the appropriate gas
connections for each type of gas (i.e. Natural Gas or Liquid
Propane). If you have purchased an inappropriate unit for your
application, contact your retailer, installer or the Customer
Service Center.
Tools Needed
2 Adjustable Wrench (at least one of which has a range of 3/4”
for gas ttings)
2 Adjustable Pipe Wrenches
1 3/8” Nut Driver or Socket (for damper clamp)
BEGINNING INSTALLATION
1. Remove all contents from the burner shipping container (Box
One).
2. Check the contents of the shipping container against the ship-
ping and packing list or the parts list in this manual. Report
any missing or damaged parts to your retailer.
3. Remove any and all protective wrapping from the appliance.
4. TURN OFF THE GAS SUPPLY SYSTEM.
5. Place the replace damper in the fully open position and
install the damper clamp over the lip of the damper (the
damper must be in a fully open position any time that
this appliance is in operation). Using a 3/8” nut driver
or socket and turning in a clockwise direction, tighten the
damper clamp bolt until the clamp is secure. The damper
clamp must be in place to maintain the minimum perma-
nent vent opening. See the chart “Minimum Fireplace Di-
mensions” on page 6 for correct venting.
Notice: The State of Massachusetts requires that the chim-
ney ue damper, when used with decorative gas log sets, be
welded open or completely removed.
6. Using two adjustable pipe wrenches (one wrench on the gas
stub, and one wrench on the tting), remove the existing cap
or gas jet assembly from the gas stub in the replace by turn-
ing the wrench on the gas cap in a counterclockwise direction.
7. Clean the pipe threads on the gas stub using either a wire
brush or steel wool. Apply Teon tape or pipe dope to the
steel ttings before making any connection.
Notice: All gas connections (except for brass to brass) require
Teon tape or pipe dope.

FG10239-1-0214Page 8
INSTALLATION
FOR MATCH THROW INSTALLATIONS
1. Place the Fiamma Burner Pan into the replace (unit is pack-
aged as a match-throw, dual burner assembly; valve,pilot and
gas train must be assembled). The unit should be centered
from both side to side and front to back in the replace. The
unit is shipped ready for rear gas connection only. See Figure
2.
2. Bend a 3/8” gas line with two 3/8” brass, female are ttings
(included on some models) to facilitate the gas connection
between the burner and the gas stub.
CAUTION: Gas lines are easily kinked if bent too sharply.
3. Using an adjustable wrench, and turning in a clockwise
direction, attach a 1/2” female are x 3/8” male are brass
reducer tting (included on some models) to the gas stub.
4. Using two adjustable wrenches, and turning in a clockwise
directions, attach one end of the gas line to the brass re-
ducer tting installed in the previous step (one wrench on the
brass gas line tting, and one wrench on the brass reducer
tting).
5. Using two adjustable wrenches, and turning in a clockwise
direction, attach the other end of the gas line to the brass
tting on the burner (one wrench on the gas line tting, and
one wrench on the brass tting on the burner).
CAUTION: Make sure all gas connections are snug but DO
NOT over tighten!
6. CHECK FOR LEAKS! Apply soapy water to each connection
and watch for bubbles. If bubbles are seen, turn off the gas
supply, retighten the connections and CHECK AGAIN. DO
NOT use a lighted match or other source of ignition to check
for leaks. Repeat this procedure until you are sure that there
are no leaks. Proceed to “FINAL SET UP on page 12.
FOR VALVE/PILOT INSTALLATIONS
It will be easier to assemble the burner/gas train outside of the
replace and then place the entire assembly into the replace
for nal gas hook-up. Follow the instructions that are included
with the valve/pilot kit and/or the instructions below.

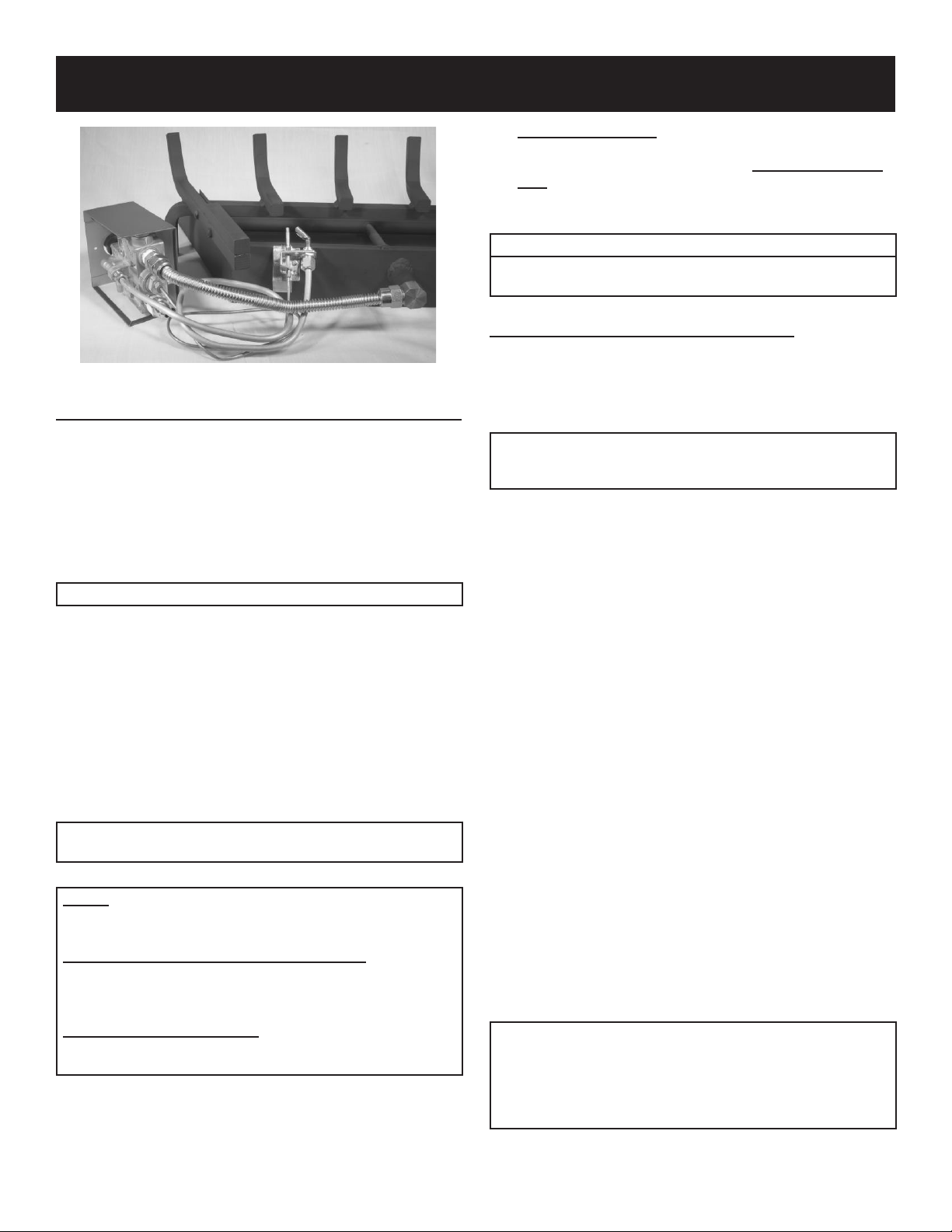

Figure 4 - Valve/Pilot Assembly Parts
Figure 5 - Rear View Standard Assembly
STANDARD PAN - VALVE/PILOT ASSEMBLY
1. Assemble the valve/pilot kit. See Figures 4 to 5.
2. Noting the distance between the grate tines, place the pilot
mounting bracket on the right, rear of the burner pan, 2-1/4”
from the right-hand side of the burner pan and 3/16” down
from the top edge. See Figure 6.
3. Mark the location of the pilot bracket mounting hole.
4. Drill a 1/8” hole at this location. Or secure the bracket with a
self-tapping sheet metal screw. See Figures 6 and 7.
5. Mount the pilot. See Figure 8.
6. Attach the 3/8” stainless steel ex line from the valve to the
burner. See Figure 8.
Figure 6
Figure 7

FG10239-1-0214 Page 9
INSTALLATION
Figure 8
INSTALLING THE APPLIANCE INTO A FIREPLACE
1. Place the Fiamma Burner Pan into the replace (unit is pack-
aged as a match-throw, dual burner assembly; valve,pilot and
gas train must be assembled). The unit should be centered
from both side to side and front to back in the replace. The
unit is shipped ready for rear gas connection only. See Figure
2.
2. Bend a 3/8” gas line with two 3/8” brass, female are ttings
(included on some models) to facilitate the gas connection
between the burner and the gas stub.
CAUTION: Gas lines are easily kinked if bent too sharply.
3. Using an adjustable wrench, and turning in a clockwise
direction, attach a 1/2” female are x 3/8” male are brass
reducer tting (included on some models) to the gas stub.
4. Using two adjustable wrenches, and turning in a clockwise
directions, attach one end of the gas line to the brass re-
ducer tting installed in the previous step (one wrench on the
brass gas line tting, and one wrench on the brass reducer
tting).
5. Using two adjustable wrenches, and turning in a clockwise
direction, attach the other end of the gas line to the brass
tting on the burner (one wrench on the gas line tting, and
one wrench on the brass tting on the burner).
CAUTION: Make sure all gas connections are snug but DO
NOT over tighten!
STOP! IT IS OUR RECOMMENDATION TO LIGHT THE PILOT
AND TEST THE IGNITION BEFORE ATTEMPTING TO SET
UP THE LOGS.
FOR UNITS WITH GAS CONTROL VALVES: SEE “UNITS
WITH REMOTE SYSTEMS” SECTION ON PAGE 9 AND
“LIGHTING INSTRUCTIONS WITH SAFETY PILOT ON PAGE
14 BEFORE CONTINUING ON WITH THE INSTRUCTIONS
FOR MATCH THROW UNITS: THIS IS NOT NECESSARY.
ONCE YOU HAVE COMPLETED THE STEPS IN THIS SEC-
TION, CONTINUE ON TO “FINAL SET UP” ON PAGE 12.
6. CHECK FOR LEAKS! Apply soapy water to each connection
and watch for bubbles. If bubbles are seen, turn off the gas
supply, retighten the connections and CHECK AGAIN. DO
NOT use a lighted match or other source of ignition to check
for leaks. Repeat this procedure until you are sure that there
are no leaks. Proceed to “FINAL SET UP on page 12.
WARNING
DO NOT use sand in Liquid Propane Hearth Kits. Use the
Vermiculite, provided with the Liquid Propane Change Kit.
FOR UNITS WITH REMOTE SYSTEMS
All burner systems are capable of operating with a latching sole-
noid remote control system. See the instructions packaged with
the remote system that you have purchased for detailed installa-
tion and operational characteristics. The following instructions are
a general guide for installation only.
Label all wires prior to disconnection when servicing controls.
Wiring errors can cause improper and dangerous operation.
Verify proper operation after servicing.
These Vented Burner Systems use:
The American Flame AF-1000 Series Valve (AF-1010 shown here
with remote solenoid shown separately in diagram). All systems
use a safety pilot with a thermocouple. See Figures 4-5 & 8.
CONNECTING THE RECEIVER TO THE VALVE
Notice: For extended, remote applications, extension wire (not
provided) will be necessary for your distance run.
1. The wire harness should already be installed to the terminal
bock on the rear of the remote receiver.
FOR HANDHELD TRANSMITTER REMOTE RECEIVERS, SEE
FIGURES 11 - 13.
FOR WALL SWITCH TRANSMITTER REMOTE RECEIVERS,
SEE FIGURES 14 - 16.
WIRING SCHEMES FOR THE TERMINAL BLOCKS AND OP-
ERATIONS CHARACTERISTICS VARY BETWEEN THE TWO
SYSTEMS.
2. Connect the BLACK 18 gauge wire with the 1/4” female ter-
minal from the receiver to the BLACK wire with the 1/4” male
terminal from the valve solenoid.
3. Connect the RED 18 gauge wire with the 1/4” female ter-
minal from the receiver to the RED wire with the 1/4” male
terminal from the valve solenoid.
4. After receiver wires are connected to the valve solenoid
wires, make sure the receiver shield is located over the
receiver and then locate the receiver in an area that will not
exceed 130°F (preferably outside the rebox, on the re-
place hearth).
IMPORTANT
Operation of these controls is dependent upon which wire is
attached to which terminal. If operation does not correspond to
operating buttons on the transmitter, reverse the wire installa-
tion at the receiver or at the transmitter. See Figures 12, 13, 15,
& 16.
Notice: Up to 6.3 VDC of power is provided at the receiver termi-
nal.

FG10239-1-0214Page 10
INSTALLATION
Figure 9
Figure 10
HAND HELD REMOTE RECEIVER
See the instructions packaged with the remote system for direc-
tions on programming the coding switches on both transmitter and
receiver.

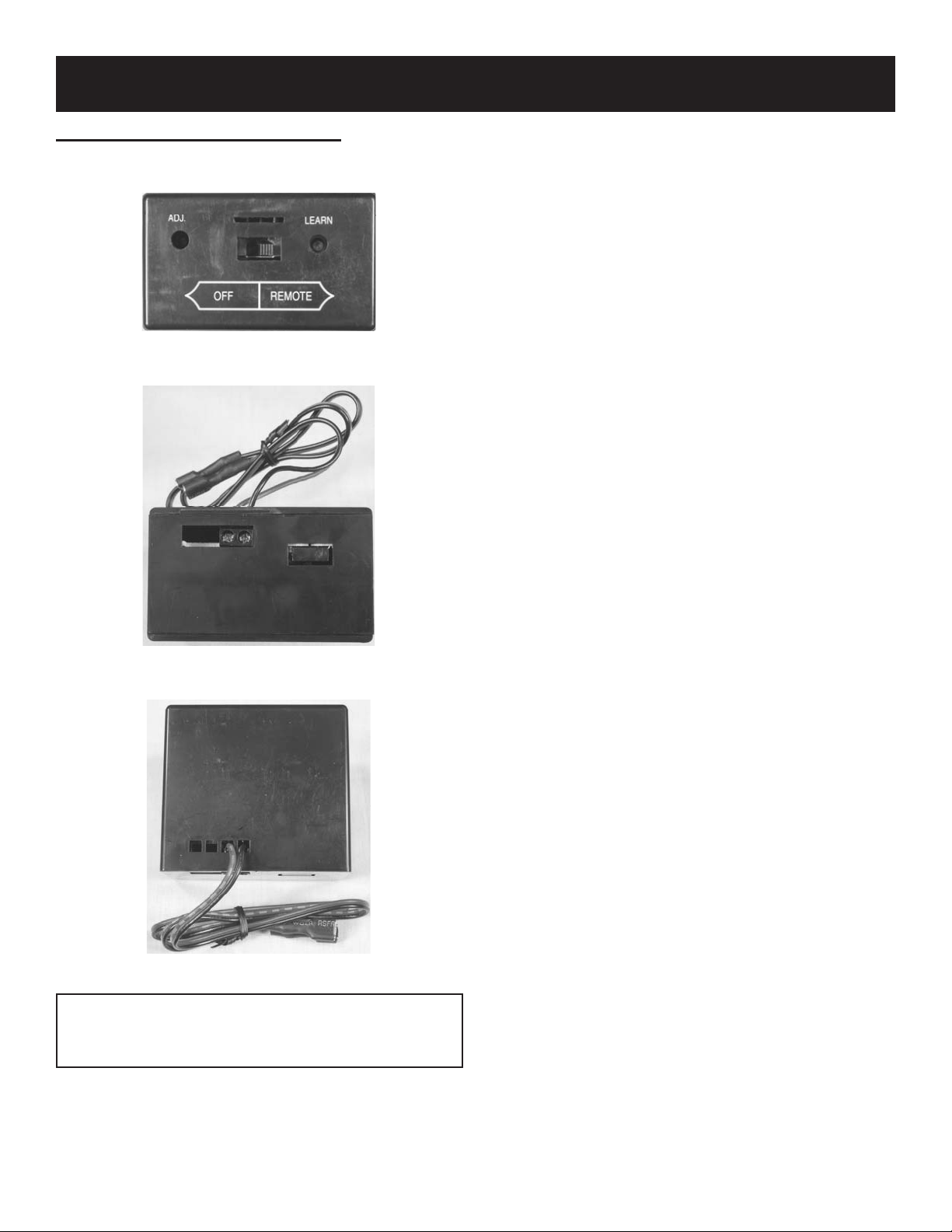

Figure 11 - Hand Held Remote Receiver, Front View
Figure 12 - Hand Held Remote Receiver, Rear View
Figure 13 - Hand Head Remote Receiver, Top View
IMPORTANT
TERMINAL BLOCK CONNECTIONS: FOR HAND HELD
TRANSMITTER REMOTE RECEIVERS, USE THE OUTSIDE
TERMINAL BLOCK RECEPTACLES. SEE FIGURES 12 & 13.

FG10239-1-0214 Page 11
INSTALLATION
WALL MOUNT REMOTE RECEIVER
See the instructions packaged with the remote system for direc-
tions on programming (“Learning”) both transmitter and receiver.
Figure 14 - Wall Mount & Variable Flame Remote Receiver,
Front View
Figure 15 - Wall Mount & Variable Flame Remote Receiver,
Rear View
Figure 16 - Wall Mount & Variable Flame Remote Receiver,
Top View
IMPORTANT
TERMINAL BLOCK CONNECTIONS: FOR HAND HELD
TRANSMITTER REMOTE RECEIVERS, USE THE INSIDE
TERMINAL BLOCK RECEPTACLES. SEE FIGURES 15 & 16.

FG10239-1-0214Page 12
FINAL SET UP
WARNING:
Failure to position the parts in accordance with all included
pictures, diagrams and drawings, or failure to use only parts
specically approved with this appliance may result in property
damage or personal injury.
IMPORTANT
Cover the pilot and valve assembly, and for Liquid Propane
units, the air mixer at the side of the burner to protect it before
installing sand and glowing embers.
1. Pour the provided sand (Note: use vermiculite for Liquid
Propane appliances) over the entire burner, lling the burner
pan. The sand (vermiculite) should follow the slope of the
burner pan, covering the burner completely. See Figure 17.

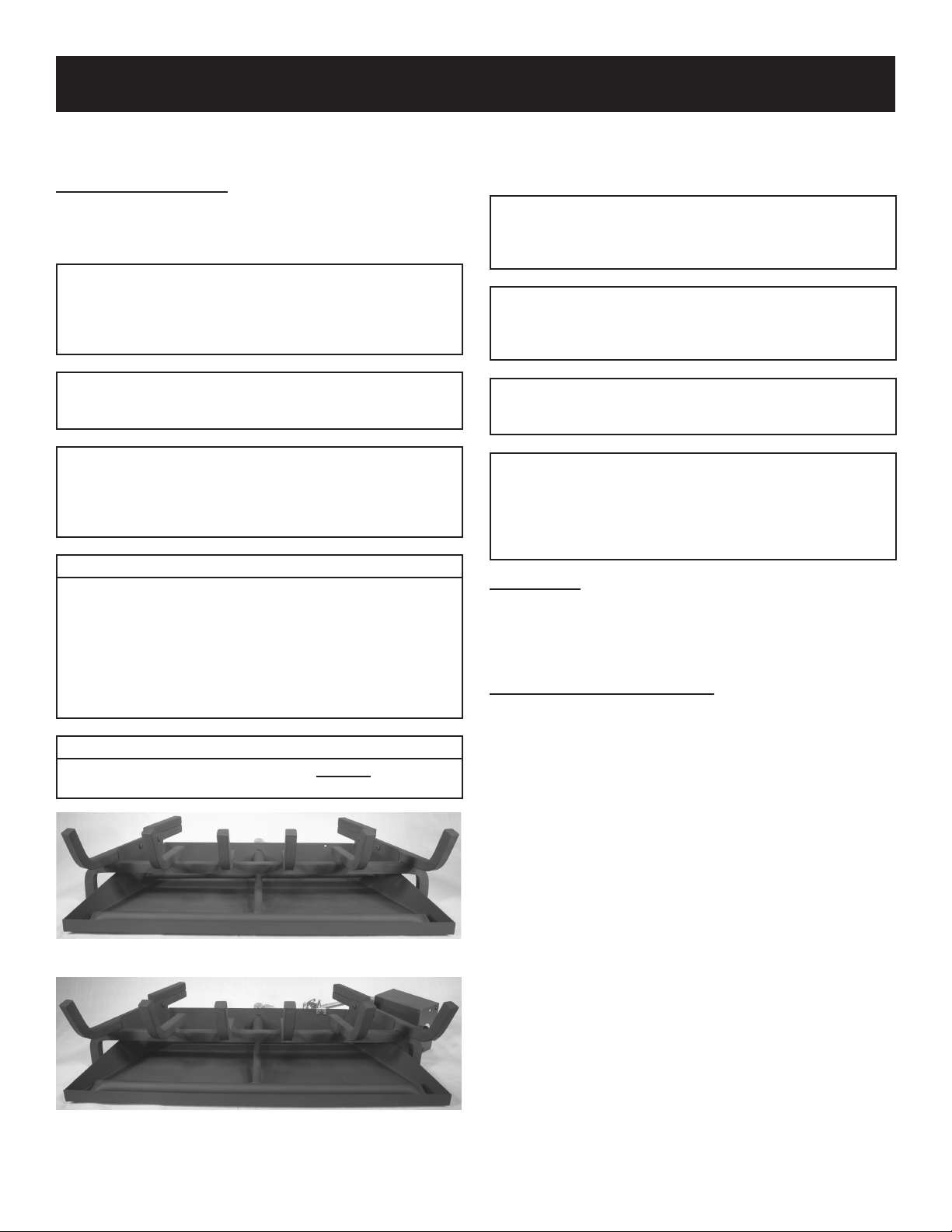

Figure 17
2. Spread the Glowing Embers over the bottom portion of the
burner. See Figure 18.
Figure 18
Figure 19
WARNING:
Apply loose material (embers and lava rock [cinders]) per
instruction manual. DO NOT apply extra material not supplied
with this appliance. All previously applied loose material (em-
bers) must be removed prior to reapplication.
CAUTION:
DO NOT place glowing embers, sand vermiculite or lava rock
(cinders) in the area of the safety pilot assembly.
STOP!
Refer to the log set up instructions packaged with your Decora-
tive Gas Logs (Box Two).
3. Remove all contents from the Decorative Gas Log shipping
container (Box Two).
4. Check the contents of the shipping container against the
shipping and packing list or the parts list in this manual.
Report any missing or damaged parts to your retailer.
5. Remove any and all protective wrapping from the gas logs.
6. Arrange the decorative gas logs on the grate.
7. Place the Lava Rock (cinders) around the Grate/Burner As-
sembly. See Figure 19.
8. DO NOT pack cinders around valve. The valve will overheat!
You must allow air ow around the valve.
9. When you have completed setting up the logs, proceed to
the operation section on page 10 for Match Throw Units, and
page 11 for units with gas control valves.

FG10239-1-0214 Page 13
LIGHTING INSTRUCTIONS - MATCH THROW UNITS
FOR YOUR SAFETY READ BEFORE LIGHTING
A. BEFORE LIGHTING smell all around the appliance area for
gas. Be sure to smell next to the oor because some gas is
heavier than air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone
in your building.
• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the re de-
partment.
B. Do not use this appliance if any part has been under water.
Immediately call a qualied service technician to inspect the
appliance.
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING
PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
LIGHTING INSTRUCTIONS
WARNING
• Any glass doors shall be opened when the appliance is in operation.
• A replace screen must be in place when the appliance is operating and, unless other provisions for combustion are
provided, the screen shall have an opening(s) for introduction of combustion air.
Natural Gas Match Throw Units can be lit by long hearth match,
hand re starter, or book match clip extender inserted near the
center of the burner system.
1. STOP! Read the safety information above.
2. Read all warnings and safety information in this manual.
WARNING
BE SURE THAT THE CHIMNEY DAMPER IS FULLY OPEN.
3. Make sure that the manual shut-off valve next to the re-
place is in the OFF position.
4. Wait ve minutes to clear out any gas. If you smell gas,
STOP! Follow the safety instructions “WHAT TO DO IF YOU
SMELL GAS” above. If you do not smell gas, continue with
the following instructions.
5. Place a burning long hearth match or hand re starter on top
of the sand near the center of the burner system.
6. Slowly turn on the gas at the manual shut-off valve beside
the replace in a counter-clockwise direction. The gas should
ignite within ve seconds. Adjust the burner ame by open-
ing or closing the manual gas shut-off valve.
WARNING
If ignition does not take place, TURN THE GAS OFF at the
manual valve and wait ve minutes before attempting to relight
the appliance. If after repeated attempts the appliance does
not ignite, contact your installer or the Empire Comfort Systems
Customer Service Center.
TO TURN OFF GAS TO APPLIANCE
1. Turn the gas at the manual shut-off valve beside the re-
place in a clockwise direction until the gas is off.

FG10239-1-0214Page 14
LIGHTING INSTRUCTIONS - SAFETY PILOT UNITS
FOR YOUR SAFETY READ BEFORE LIGHTING
A. This appliance has a pilot which must be lighted by hand.
When lighting the pilot, follow these instructions exactly.
B. BEFORE LIGHTING smell all around the appliance area for
gas. Be sure to smell next to the oor because some gas is
heavier than air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone
in your building.
• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the re de-
partment.
C. Use only your hand to push in or turn the gas control knob.
Never use tools. If the knob will not push in or turn by hand,
don’t try to repair it; call a qualied service technician. Force
or attempted repair may result in a re or explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualied service technician to inspect the
appliance and to replace any part of the control system and
any gas control which has been under water.
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING
PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
LIGHTING INSTRUCTIONS
WARNING
• Any glass doors shall be opened when the appliance is in operation.
• A replace screen must be in place when the appliance is operating and, unless other provisions for combustion are
provided, the screen shall have an opening(s) for introduction of combustion air.
1. STOP! Read the safety information above.
2. Read all warnings and safety information in this manual.
WARNING
BE SURE THAT THE CHIMNEY DAMPER IS FULLY OPEN.
3. Push in the gas control knob slightly and
turn it in a clockwise direction to the OFF
position. DO NOT FORCE! NEVER USE
ANY TOOL TO ROTATE THE GAS CON-
TROL KNOB! If gas control knob will not
rotate, contact your installer or the Empire
Comfort Systems Service Center.
4. Slowly turn on the gas at the manual shut-
off valve beside the replace.
5. STOP! WAIT FIVE MINUTES!
6. If you smell gas, STOP!
7. Turn off the gas at the manual shut-off valve
and recheck all gas connections for leaks.
Do not continue until all leaks are corrected.
Once you are assured that there are no leaks,
proceed with the following instructions.
8. Locate the pilot. For Standard units, the pilot is located at the
right, rear center of the unit. For See-Thru units, the pilot is
located on the bracket above the burner inlet.
9. While holding a burning long hearth match or hand re
starter near the pilot head, depress the gas control knob all
the way down and turn the knob in a counterclockwise direc-
tion to the pilot position. Continue to hold the gas control
knob down for approximately one minute after the pilot is lit.
10. Pilot should remain lit and control knob should pop back out
when released. If not, repeat the previous steps. If pilot igni-
tion does not take place, contact your installer or the Empire
Comfort Systems Customer Service Center.
11. To manually light the burner system, gently press and turn
the gas control knob in a counter-clockwise direction to the
“FULL ON” position. Gas should ignite within approximately
ve seconds. Adjust the burner ame by opening or closing
the manual gas shut-off valve.
TO TURN OFF GAS TO APPLIANCE
1. Gently press and turn the gas control knob in a clockwise
direction to the “FULL OFF” position.

FG10239-1-0214 Page 15
OPERATION
Units with a Gas Control Valve
FOR YOUR SAFETY READ BEFORE LIGHTING
Figure 20 - Fiamma Burner Review Standard Pan with Valve
WARNING
Do not use this appliance if any part has been under water.
Immediately call a qualied service technician to inspect the
appliance and replace any part of the control system and any
gas control that has been under water.
All units with gas control valves must be lit by a Safety Pilot. For
standard units, the pilot is located at the right, rear, center of the
unit.
Follow these instructions exactly when lighting the appliance.
BEFORE LIGHTING, smell around the appliance area for gas. Be
sure to smell next to the oor, as L.P. gas is heavier than air and
will settle to the oor. Use only your hand to rotate the gas control
knob. Never use tools. If the knob will not turn by hand, do not try
to repair it; call a qualied service technician or installer. Force or
attempted repair may result in a re or explosion.
WARNING
All gas burning appliances produce smoke and carbon mon-
oxide gas during operation. These fumes can be harmful if the
appliance is used in any other than a fully vented replace.
WARNING
A replace screen must be in place when this appliance is
in operation. Unless other provisions for combustion air are
provided, the screen shall have an opening(s) for introduction
of combustion air.
WARNING
When this decorative gas appliance is used in a replace
equipped with a combustion air kit and glass doors, the glass
doors should remain open during log set operation. This will
maximize the radiant heat provided to the surrounding area,
and minimize overheating of any valve installation. The glass
doors may be closed when the log set is not in use.
Figure 21 - Pilot Assembly, Standard Pan
Figure 22
Pilot Flame Adjustment
Figure 23
The pilot ame should be a soft blue in color and should surround
the last 1/2” of the thermocouple tip. The pilot adjustment screw
is located on the valve, just to the right of the control knob. See
Figure 22.
If the pilot ame must be adjusted, use a standard slotted screw-
driver to turn the screw clockwise to reduce the ame, or counter-
clockwise to increase the ame. See Figure 22.
Curing Refractory Gas Logs
IMPORTANT
The hard refractory gas logs provided with this decorative gas
log set require curing the rst time that they are put into opera-
tion. You must follow the instructions given for curing the logs
to avoid cracking the logs with continued use.
After the initial lighting of the burner system, let the log set cool
down. Then, relight and allow to burn for another 30 minutes.

FG10239-1-0214Page 16
MAINTENANCE & SERVICE
The Decorative Gas Log Set should be thoroughly inspected on a
regular basis at least once a year by a qualied installer.
At the beginning of each season, the system should be checked
as follows:
1. Check the chimney ue or vent pipe to make sure that the
ue is drawing properly, and that any vent pipe connections
are tight.
2. Check to see that there are no blockages at the chimney or
vent termination.
3. Check for creosote and soot build-up in chimney and/or
vents and clean if necessary.
4. Inspect the pilot and burners (if applicable).
The burner system has been adjusted for proper operation at the
factory. No adjustment is necessary, other than altitude de-rate or
pilot ame.
NEVER enlarge valve orices or burner ports.
Sooting
Some sooting of your log set is normal, adding to the appearance
of burned wood. If excessive sooting accumulates, clean the logs
using either of the following options::
A. While the logs are burning and hot, spray the logs with
clean water. The soot will lift off and burn off.
B. When the logs are cold, brush the soot off with a stiff
brush. Do not use water or soot cleaners at the same
time as a brush.

FG10239-1-0214 Page 17
TROUBLESHOOTING
PROBLEM OBSERVED POSSIBLE CAUSE CORRECTIVE MEASURE
Gas odor during setup Gas Leak See “What to do if you smell gas” Pages 4 - 5.
Check all gas connections
Gas odor before rst ignition Gas Leak See “What to do if you smell gas” Pages 4 - 5.
Check all gas connections
Pilot will not ignite, or will not stay lit
No gas to pilot Make sure gas is on, in pilot position
Thermocouple not hot Depress valve knob for at least 1 minute
Improper pilot ame adjustment See Pilot Characteristics - adjust ame
Loose connections on the thermocouple Check gas connections
Faulty pilot or thermocouple Replace Safety Pilot
Faulty valve Replace Valve
Delayed ignition
Low gas pressure Check gas supply pressure
Clogged or dirty burner ports Clean burner ports
Blocked orice Check orice opening
Faulty valve Replace valve
Burner does not light but pilot
remains on
Low gas pressure Check gas supply pressure
Clogged or dirty burner ports Clean burner ports
Blocked orice Check orice opening
Faulty pilot or thermocouple Replace safety pilot
Faulty valve Replace valve
Burner lights but does not stay lit
while pilot remains on
Low gas pressure Check gas supply pressure
Faulty valve Replace valve
Faulty pilot or thermocouple Replace Safety pilot
Clogged or dirty burner ports Clean burner ports
Burner & pilot light but will not stay
on
Low gas pressure Check gas supply pressure
Not enough fresh air for pilot Open door or window - ventilate
Faulty valve Replace valve
Faulty pilot or thermocouple Replace safety pilot
Clogged or dirty burner ports Clean burner ports
Remote control overheating Move away from ame
Remote control batteries failing Replace batteries
Incorrect burner ame
Incorrect gas supply or pressure Check gas supply pressure
Blocked orice Check orice opening
Clogged or dirty burner ports Clean burner ports
Faulty valve Replace valve
High altitude Adjust orice size for altitude
Backre of burner
Blocked orice Check orice opening
Clogged or dirty burner ports Clean burner ports
Low gas pressure Check gas supply pressure
Appliance produces unwanted
odors
Vapors from paint, hair spray, glues, etc. Ventilate room
Initial burn-off of manufacturing chemicals Ventilate room
Logs appear to smoke Vapors from manufacturing chemicals Ventilate room
Logs curing See “Curing of Refractory Logs”
Whistle noise from appliance
Air in gas line Bleed lines
Control knob not in fully open position Open control knob to full position
Spiral gas ex line Replace gas feed line

FG10239-1-0214Page 18
PARTS LIST
INDEX NO PART NO DESCRIPTION
BX18MTN BX24MTN BX30MTN BX36MTN
1 FG10084 FG10088 FG10090 FG10093 BURNER PAN WITH GRATE
2 FG10014 FG10014 FG10014 FG10014 EMBERS,ROCK WOOL, VERMICULITE MIX
3 FG10069 FG10069 FG10069 FG10069 SAND, BLACK, BAG
4 FG10086 FG10086 FG10086 FG10086 LAVA ROCK
5 FG10010 FG10010 FG10010 FG10010 DAMPER CLAMP
6 FG10020 FG10020 FG10020 FG10020 ORIFICE MT BRASS ELBOW
.375 M X .375 M .50 20 TAP
7 FG10400 FG10292 FG10292 FG10292 ORIFICE
8 FG10065 FG10065 - - STAINLESS STEEL FLEX GAS LINE
WITH CONNECTOR, 16”
8 - - FG10401 FG10401 STAINLESS STEEL FLEX GAS LINE
WITH CONNECTOR, 22”
N/S FG10025 FG10025 FG10025 FG10025 STUB FITTING BRASS ELBOW
.50 NPT F X .375 M FLARE
N/S FG10070 FG10070 FG10070 FG10070 .375 FLARE x .50 INCH FIP STEEL FITTING
N/S - NOT SHOWN

FG10239-1-0214 Page 19
PARTS VIEW

FG10239-1-0214Page 20
To Order Parts Under Warranty, please contact your local Empire dealer. See the dealer locator at www.empirecomfort.
com. To provide warranty service, your dealer will need your name and address, purchase date and serial number, and the
nature of the problem with the unit.
To Order Parts After the Warranty Period, please contact your dealer or one of the Master Parts Distributors listed below.
This list changes from time to time. For the current list, please click on the Master Parts button at www.empirecomfort.com.
Please note: Master Parts Distributors are independent businesses that stock the most commonly ordered Original
Equipment repair parts for Heaters, Grills, and Fireplaces manufactured by Empire Comfort Systems Inc.
MASTER PARTS DISTRIBUTOR LIST
Parts Not Under Warranty
Parts can be ordered through your Service Person, Dealer, or a Master Parts Distributor. See this page for the Master Parts Distribu-
tors list. For best results, the service person or dealer should order parts through the distributor. Parts can be shipped directly to the
service person/dealer.
Warranty Parts
Warranty parts will need a proof of purchase and can be ordered by your Service Person or Dealer. Proof of purchase is required for
warranty parts.
All parts listed in the Parts List have a Part Number. When ordering parts, rst obtain the Model Number and Serial Number from the
name plate on your equipment. Then determine the Part Number (not the Index Number) and the Description of each part from the fol-
lowing illustration and part list. Be sure to give all this information . . .
Appliance Model Number Part Description
Appliance Serial Number Part Number
Type of Gas (Propane or Natural)
Do not order bolts, screws, washers or nuts. They are standard hardware items and can be purchased at any local hardware store.
Shipments contingent upon strikes, res and all causes beyond our control.
HOW TO ORDER REPAIR PARTS
Dey Distributing
1401 Willow Lake Boulevard
Vadnais Heights, MN 55101
Phone: [phone]
Toll Free: 800-397-1339
Website: www.deydistributing.com
Parts: Heater, Hearth and Grills
Victor Division of F. W. Webb Company
200 Locust Street
Hartford, CT 06114
Phone: [phone]
Toll Free: 800-243-9360
Fax: [phone]
Toll Free Fax: [phone]
Websites: www.fwwebb.com & www.victormfg.com
Parts: Heater, Hearth and Grills
East Coast Energy Products
10 East Route 36
West Long Branch, NJ 07764
Phone: [phone]
Toll Free: 800-755-8809
Fax: [phone]
Website: www.eastcoastenergy.com
Parts: Heater, Hearth and Grills
Able Distributors
2501 North Central Avenue
Chicago, IL 60639
Phone: [phone]
Toll Free: 800-880-2253
Fax: [phone]
Website: www. abledistributors.com
Parts: Heater
