Empire Comfort Systems HMFA-1 User manual

42724-0-1120 Page 1Empire Comfort Systems Inc. • Belleville, IL
INSTALLATION INSTRUCTIONS
HEAT MANAGEMENT SYSTEMS KIT
WARNING
If not installed, operated and maintained
in accordance with the manufacturer’s
instructions, this product could expose you
tosubstancesinfuelorfromfuelcombustion
which can cause death or serious illness.
hearth products be
We suggest that our gas
installed and serviced by
certified in the U.S. by the
professionals who are
(NFI) as NFI Gas Specialist.
National Fireplace Institute®
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death or
property damage.
— Do not store or use gasoline or other
ammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch;
do not use any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier
from a neighbor’s phone. Follow
the gas supplier’s instructions.
• If you cannot reach your gas
supplier, call the re department.
— Installation and service must be
performed by a qualied installer,
service agency or the gas supplier.
HMFA-1 FORCED AIR
HEAT MANAGEMENT
SYSTEMS KIT
FOR USE WITH
DIRECT-VENT
FIREPLACE
MODELS:
DVLL(36,48,60,72)BP DVCT(36,40,50)CBP
DVL(36,46)BP DVCT40CSP
GAS-FIRED
UL FILE NO.
MH30033

42724-0-1120Page 2 Empire Comfort Systems Inc. • Belleville, IL
CAUTION
Due to sharp edges and the weight of the assembly,
please use proper eye protection and gloves to reduce
the potential for injuries.
TOOLS NEEDED:
• Phillips • Flathead • 5/16", 3/8" • Metal Snips
Screwdriver Screwdriver Nut Drivers • Utility Knife
Other miscellaneous tools commonly used for framing
and wiring.
INTRODUCTION
The Forced Air Heat Management system (HMFA) is designed
to be installed in conjunction with specic Empire Comfort
Systems Fireplaces, to reduce the amount of heat produced
during operation of the replace. This system includes a variable
speed controlled blower that will deliver a desired percentage of
the heat produced by the replace to the exterior of the building.
CONTENTS:
1. Blower w/Base Assembly (1 ea.)
2. Outer Termination Assembly (1 ea.)
3. 6" Diameter Collar w/Flange (2 ea.)
4. 6" X 6" X 6" “Y” Duct Connector (1 ea.)
5. 6" Diameter Adapter (“Y” to Flex Connection) (1 ea.)
6. Band Clamp (4 ea.)
7. Rheostat (Variable Speed Control) w/Knob (1 ea.)
8. Junction Box w/Cover (1 ea.)
9. Hardware Pack (1 ea.)
NOTE: Flex venting is not included with HMFA kit. Please
order the SD6DFA25 Flex Vent kit which includes 25' foot
of Flex Vent and (2) Band clamps to complete the system
MAKE-UP AIR REQUIREMENT
When in operation, the HMFA Forced Air Heat Management
System will deliver a percentage of heated air from the
replace to the exterior of the building. Because a certain
amount of air will be removed from the building, it must be
replaced with fresh make-up air, to prevent negative pressure
from building up inside the structure.
Some central furnaces include make-up air dampers. If
a make-up air damper is included with the furnace, check
the damper for proper function and operation. There are
variations in central furnace make-up dampers, therefore,
you must check to see if the existing system is compatible.
Some systems are designed to operate if a negative pressure
is detected inside the building.
Other systems are designed to operate only while the central
furnace blower is operating, and would therefore require an
additional make-up air damper system be installed.
Make-up Air Dampers are available at local HVAC supply
stores or contractors. The Make-up Air Damper shall be sized
based on the potential amount of cubic air to be expelled.
The HMFA system has the potential of expelling 150 CFM.
If installing a Make-up Air Damper, it is recommended that it
be installed at the opposite end of the building. In addition,
installation of the damper at a high level of a vaulted ceiling
will help dilute the incoming cold air with the warmer air
normally found near the ceiling.
LOCATING THE HEAT MANAGEMENT SYSTEM
1. Determine the location of the HMFA in relationship to the
replace. Placement of the HMFA blower system in
relationship to the replace is indicated with minimum framed
opening dimensions and vent length requirements as shown
in Figure 1-3.
Figure 1
HMFA Framed Opening Framing Locations
FRAMED OPENING
WHEN BELOW TOP
OF FIREPLACE
FRAMED OPENING
WHEN ABOVE THE
TOP OF FIREPLACE
6” FLEX VENT
4’ FOOT
MINIMUM
4” INCHES
MINIMUM
6" FLEX
VENT
FRAMED
OPENING
WHEN ABOVE
THE TOP OF
FIREPLACE
FRAMED OPENING
WHEN BELOW TOP
OF FIREPLACE
FRAMED OPENING
WHEN ABOVE THE
TOP OF FIREPLACE
6” FLEX VENT
4’ FOOT
MINIMUM
4” INCHES
MINIMUM
4' FOOT
MINIMUM
4" INCHES
MINIMUM
FRAMED OPENING
WHEN BELOW THE
TOP OF FIREPLACE

42724-0-1120 Page 3Empire Comfort Systems Inc. • Belleville, IL
Figure 2
Horizontal Vented Fireplace
NO MINIMUM
LENGTH REQUIRED
ALL APPLICATIONS
REQUIRE A MINIMUM
7' LENGTH OF FLEX
VENT FROM THE
"Y" CONNECTOR
TO THE BLOWER
NO MINIMUM
LENGTH REQUIRED
NOTE: Flex venting from kit SD6DFA25.
CAUTION
Due to sharp edges and the weight of the assembly,
please use proper eye protection and gloves to reduce
the potential for injuries.

42724-0-1120Page 4 Empire Comfort Systems Inc. • Belleville, IL

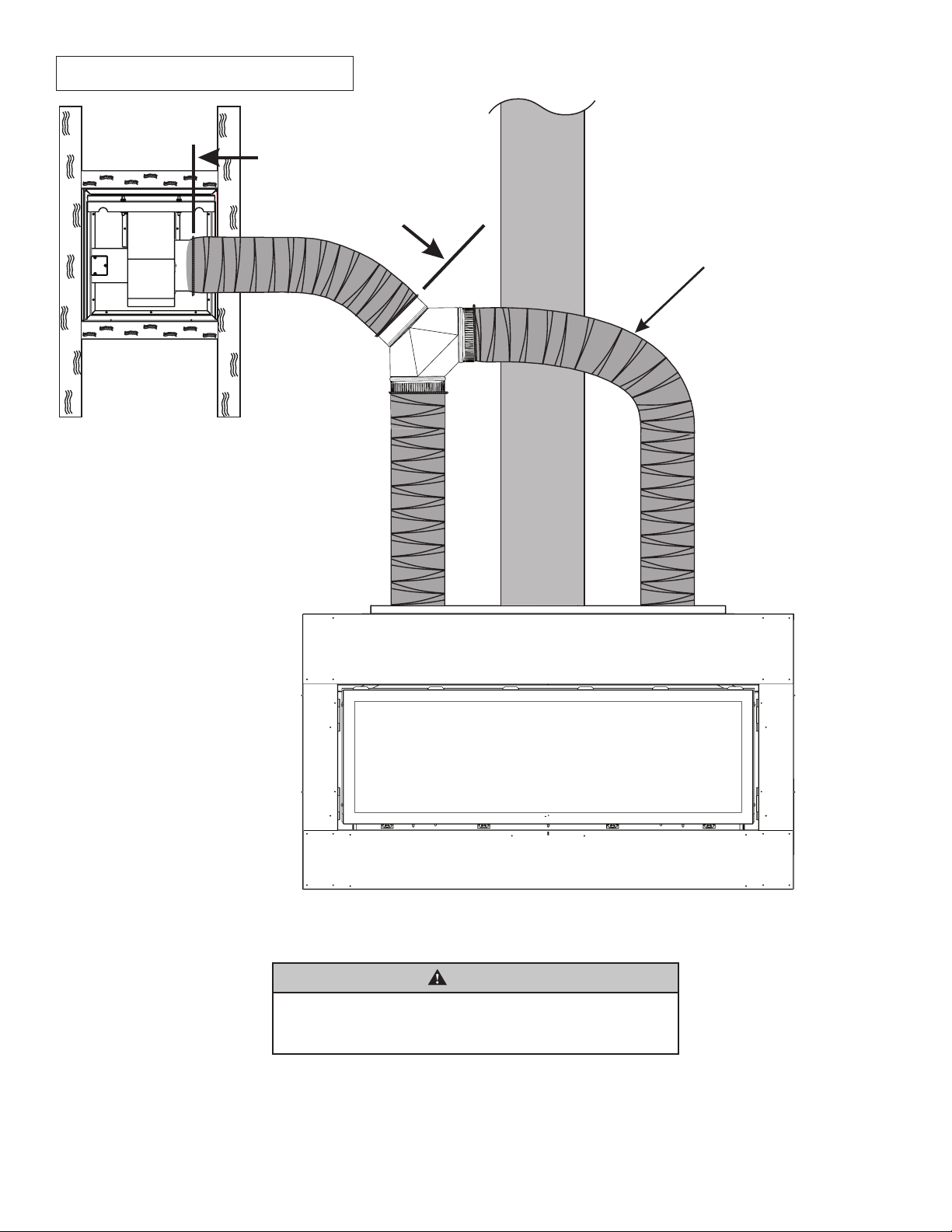

Figure 3
Vertical Vented Fireplace
VERTICAL
ALL APPLICATIONS REQUIRE
A
MINIMUM 7’ LENGTH OF FLEX
VENT FROM “Y” CONNECTOR
TO THE BLOWER
3”
MINIMUM CLEARANCE
TO
COMBUSTIBLES FROM
FLEX VENT
DUCT WORK
VERTICAL VENTED FIREPLACE
VERTICAL
ALL APPLICATIONS REQUIRE A
MINIMUM 7’ LENGTH OF FLEX
VENT FROM “Y” CONNECTOR
TO THE BLOWER 3” MINIMUM CLEARANCE
TO COMBUSTIBLES FROM
FLEX VENT DUCT WORK
VERTICAL VENTED FIREPLACE
ALL APPLICATIONS
REQUIRE A MINIMUM
7' LENGTH OF FLEX
VENT FROM THE
"Y" CONNECTOR
TO THE BLOWER
3" MINIMUM
CLEARANCE TO
COMBUSTIBLES
FROM FLEX VENT
DUCT WORK
CAUTION
Due to sharp edges and the weight of the assembly,
please use proper eye protection and gloves to reduce
the potential for injuries.
NOTE: Flex venting from kit
SD6DFA25.
NOTE: Flex venting from kit SD6DFA25.

42724-0-1120 Page 5Empire Comfort Systems Inc. • Belleville, IL
2. It is recommended that the replace venting system be
installed before the HMFA duct components are installed.
3. Other considerations such as planning the location for
the junction box, eld wiring, and internal placement of
the rheostat to control the HMFA should be made. Refer
to electrical connections on page 10.
4. The framed opening for installation of the HMFA is 14 ½"
X 14 ½" in all applications. See Figure 4.
CAUTION
Due to sharp edges and the weight of the assembly,
please use proper eye protection and gloves to reduce
the potential for injuries.
Figure 4
Framing Install
14 1/2”
14 1/2”
14 ½ "
14 ½ "

42724-0-1120Page 6 Empire Comfort Systems Inc. • Belleville, IL

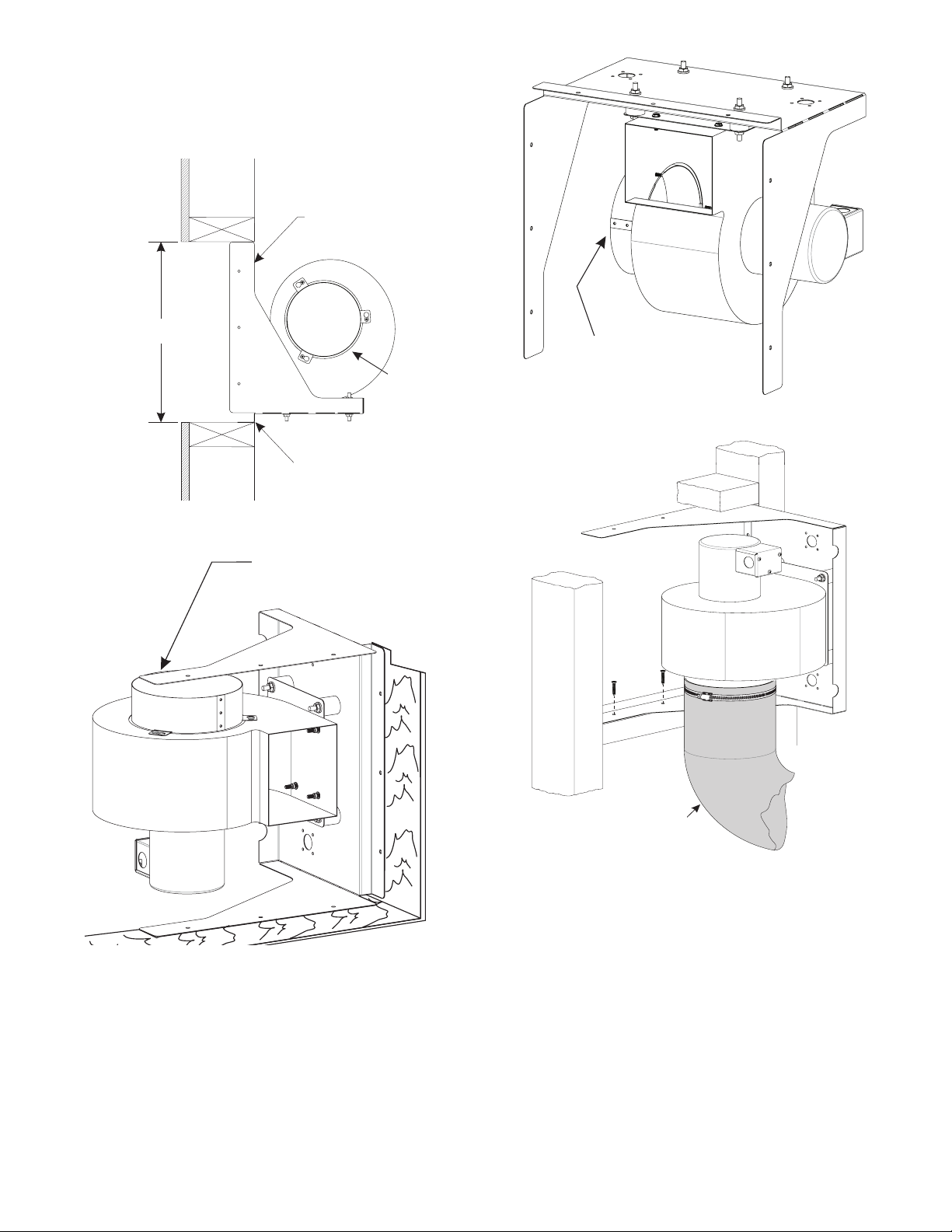

5. Once the framing is completed, install the Blower & Base
assembly as shown in Figures 5a - 5d. The Blower &
Base assembly can be installed in the wall in any of four
positions which allows exibility of the venting connection
to the blower.
14 1/2”
OFFSET FLANGE TO
BE FLUSH WITH
INSIDE WALL,
AND SECURED
BACK EDGE OF BLOWER BASE BRACKET TO
BE MOUNTED FLUSH
TO THE INSIDE WALL
VENT
CONNECTION
(RIGHT
SIDE)
Figure 5a
Figure 5b
LEFT SIDE
VENT CONNECTION
Figure 5c
BOTTOM
VENT
CONNECTION
BOTTOM
VENT
CONNECTION
Figure 5d
VENT
CONNECTION
(LEFT SIDE)
BACK EDGE OF BLOWER
BASE BRACKET TO
BE MOUNTED FLUSH
TO THE INSIDE WALL
VENT
CONNECTION
(RIGHT SIDE)
OFFSET FLANGE TO
BE FLUSH WITH INSIDE
WALL, AND SECURED
14 ½ "
BOTTOM VENT
CONNECTION
TOP VENT
CONNECTION

42724-0-1120 Page 7Empire Comfort Systems Inc. • Belleville, IL

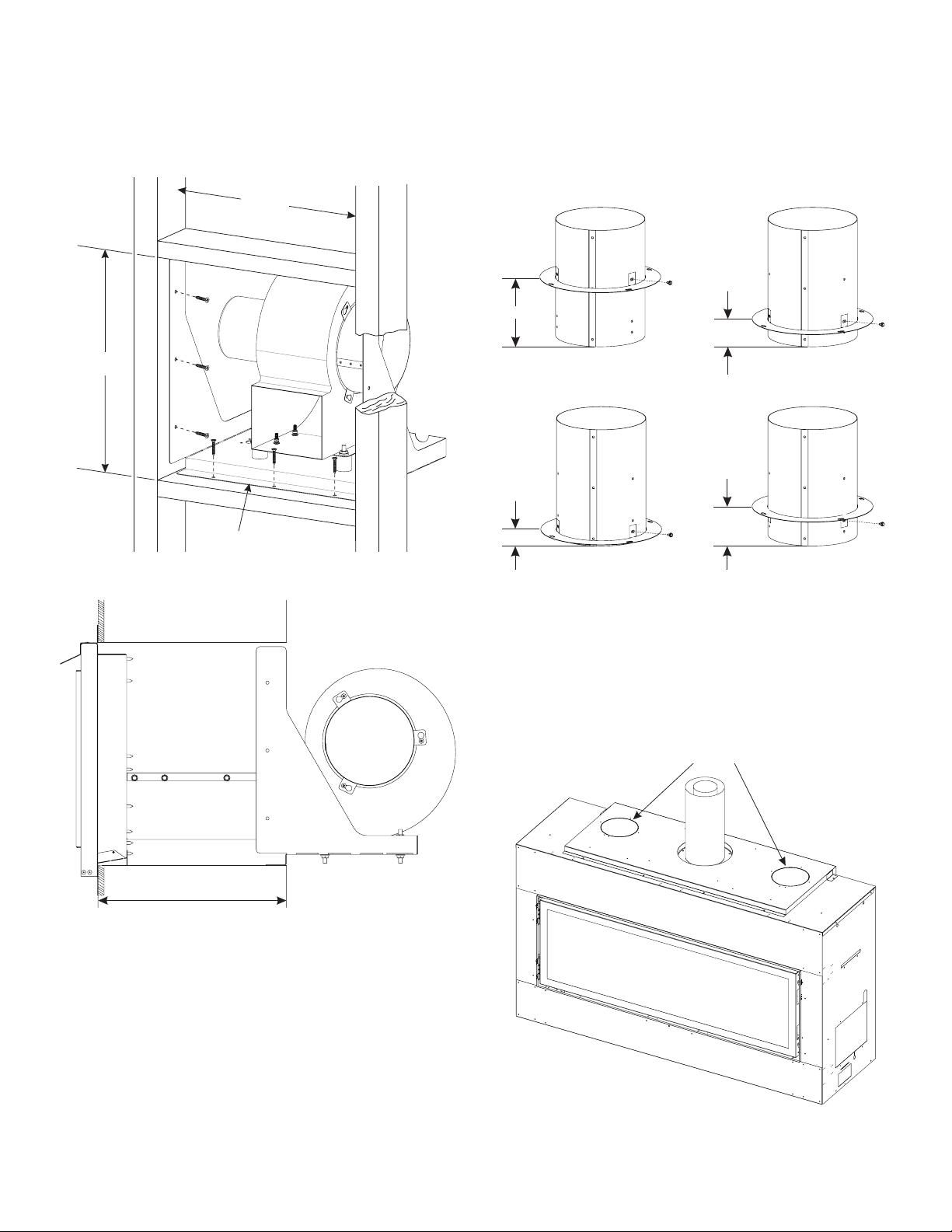

6. Place the offset ange of the Base against the back
edge of the framed opening. In addition, align the back
edge of the side brackets with the back edge of the
framed opening. Secure the Blower & Base assembly
with the (9) 1" long drywall screws provided as shown
in Figure 6.
14 1/2”
14 1/2”
Figure 6
TOTA LWALL THICKNESS
MINIMUM - 4”
MAXIMUM - 12 1/2””
Figure 7
7.
Assemble (2) 6" diameter X 8" long collars with the collar
anges as shown in Figure 8. Attach the ange to the
collar with (3) # 10 X ½" screws using the proper hole
locations based on the particular replace model you have.
NOTE: Collar Flange - Hand bend tabs to be bent down
on DVLL72 only.
4"
DVCT SERIES
1"
DVLL(36,48,60)
2"
DVLL72
3/8"
DVL(36,46)
4"
DVCT SERIES
1"
DVLL(36,48,60)
2"
DVLL72
3/8"
DVL(36,46)
DVLL(36,48,60)DVCT SERIES
DVL(36,46) DVLL72
Figure 8
8. Remove the (2) knockout holes on top of the replace
that are located to either side of the vent system. Use a
standard screwdriver and/or sheet metal snips to remove
these knockouts. See Figure 9. Both vent openings must
be used with the HMFA accessory.
REMOVE KNOCKOUTS & INSULATION
PLUGS PRIOR TO INSTALLING THE 6”
DIAMETER COLLAR ASSEMBLIES
Figure 9
14 ½ "
14 ½ "
TOTAL WALL THICKNESS
MINIMUM - 4"
MAXIMUM - 12
½ "
REMOVE KNOCKOUTS AND
INSULATION PLUGS PRIOR TO INSTALLING
THE 6" DIAMETER COLLAR ASSEMBLIES
OFFSET FLANGE

42724-0-1120Page 8 Empire Comfort Systems Inc. • Belleville, IL
9. Once the top metal knockouts are removed, an insulation
plug will also be pulled out.
NOTE: on some models, it may be necessary to use a
knife to cut the insulation plug out to the same diameter
as the metal knockout hole.
After the insulation plugs are removed, additional metal
knockouts must be removed from the inner heat shield
using a standard screwdriver and/or sheet metal snips.
See Figure 10.
REMOVE KNOCKOUTS
& INSULATION PLUGS
PRIOR TO INSTALLING THE 6”
DIAMETER COLLAR ASSEMBLIES
INSTALL EACH 6” COLLAR
ASSEMBLIES TO THE
FIREPLACE WITH (4)
SCREWS PROVIDED #10 X 1/2
Figure 10
10. Install the starter collar assemblies (from step# 7) to the
replace. Insert the collars into the vent holes on top of
the replace making sure the bottom of the collars are
touching the inner heat shield, then install (4) # 10 X ½"
screws to secure each collar assembly. See gure 10.
INSTALLATION OF THE FLEX VENTING
11. Plan out the location of the “Y” adapter. Depending upon
whether the replace is vented vertically or horizontally,
will affect the placement of the “Y” adapter. The “Y”
adapter and venting require a 3" clearance to combustible
construction, therefore, wire or metal plumbers tape
should be used to secure the ex venting as required.
See Figures 2 and 3.
12.
Install the 6" adaptor to the “Y” Branch Duct Connector
with (3) # 10 X ½" Self-drilling screws. This is needed
in order to connect the ex vent at each of the three
openings. See Figure 11.
6” FLEX ADAPTER
SELF DRILLING SCREWS
(3) PLACES
Figure 11
6" FLEX
ADAPTOR
SELF
DRILLING
SCREWS
(3) PLACES
REMOVE KNOCKOUTS
AND INSULATION PLUGS
PRIOR TO INSTALLING
THE 6" DIAMETER
COLLAR ASSEMBLIES
INSTALL EACH 6" COLLAR
ASSEMBLIES TO THE
FIREPLACE WITH (4)
SCREWS PROVIDED # 10 X ½"

42724-0-1120 Page 9Empire Comfort Systems Inc. • Belleville, IL

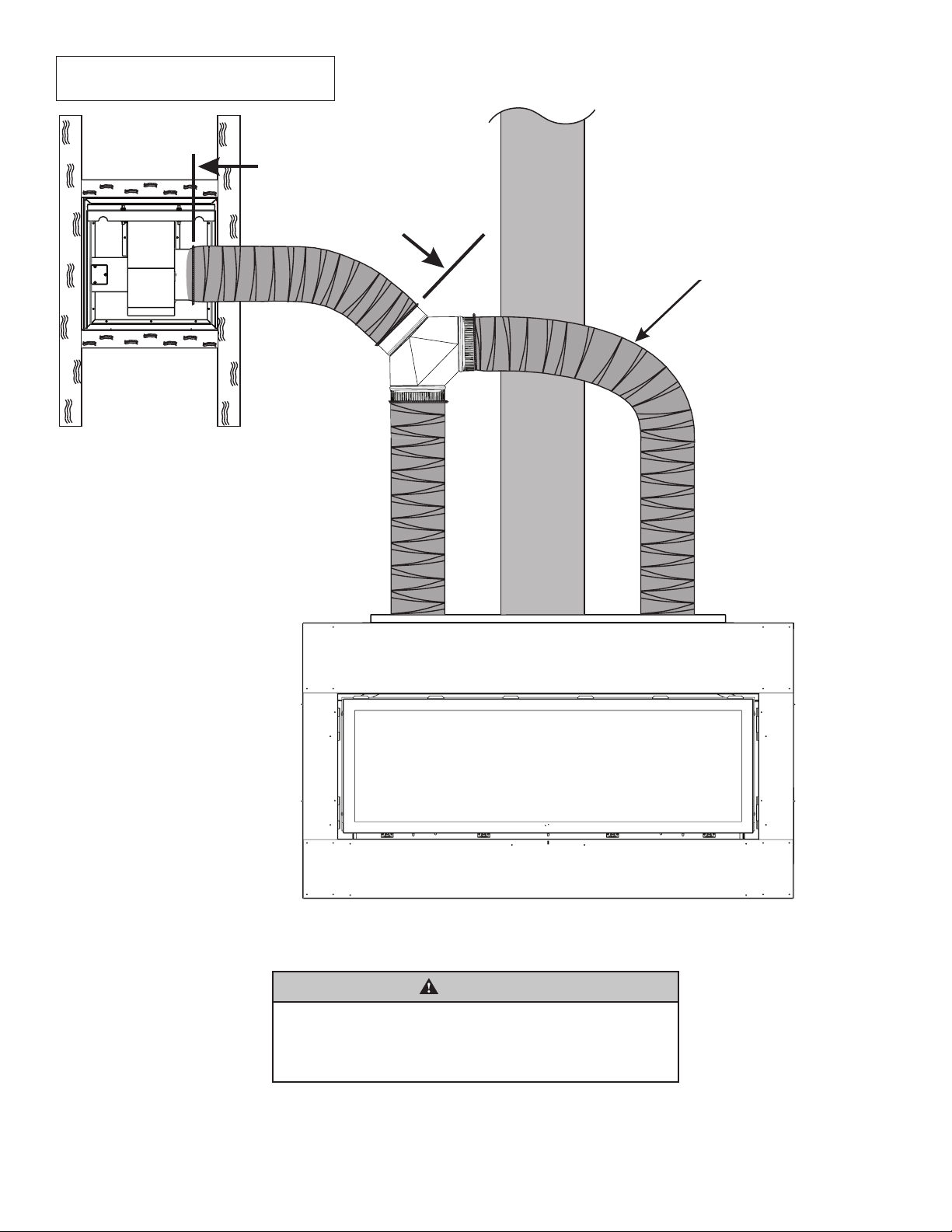

Figure 12
Typical Installation
13. Using gloves, unstretch the 6" diameter ex venting from
the SD6DFA25 Flex Vent kit.
CAUTION
Due to sharp edges and the weight of the assembly,
please use proper eye protection and gloves to reduce
the potential for injuries.
14. Measure and cut the length for the two ex vent sections
that attach from the replace collars to the “Y” adapter
installed in step 10. Secure each ex vent section to the
collars on top of the replace with a 7" diameter gear
clamp. See Figure 12.
15. Attach and secure the “Y” adapter to the two ex sections
coming off the replace with 7" diameter gear clamps.
See Figure 12.
FLEX VENT KIT - SD6DFA25
(NOT INCLUDED IN HMFA KIT) INCLUDES
25' FOOT OF FLEX WITH (2) CLAMPS
BAND CLAMP
(SD6DFA25 KIT) BAND CLAMP
(SD6DFA25 KIT)
SELF DRILLING
SCREWS (3) PLACES
STARTING COLLAR
(2) PLACES
6" FLEX
ADAPTOR
BAND CLAMP
(INCLUDED IN HMFA KIT)
BAND CLAMP
(INCLUDED IN HMFA KIT)
6" DIA. 3-WAY
“Y” CONNECTOR BAND CLAMP
(INCLUDED IN HMFA KIT)
BAND CLAMP
(INCLUDED IN HMFA KIT)

42724-0-1120Page 10 Empire Comfort Systems Inc. • Belleville, IL

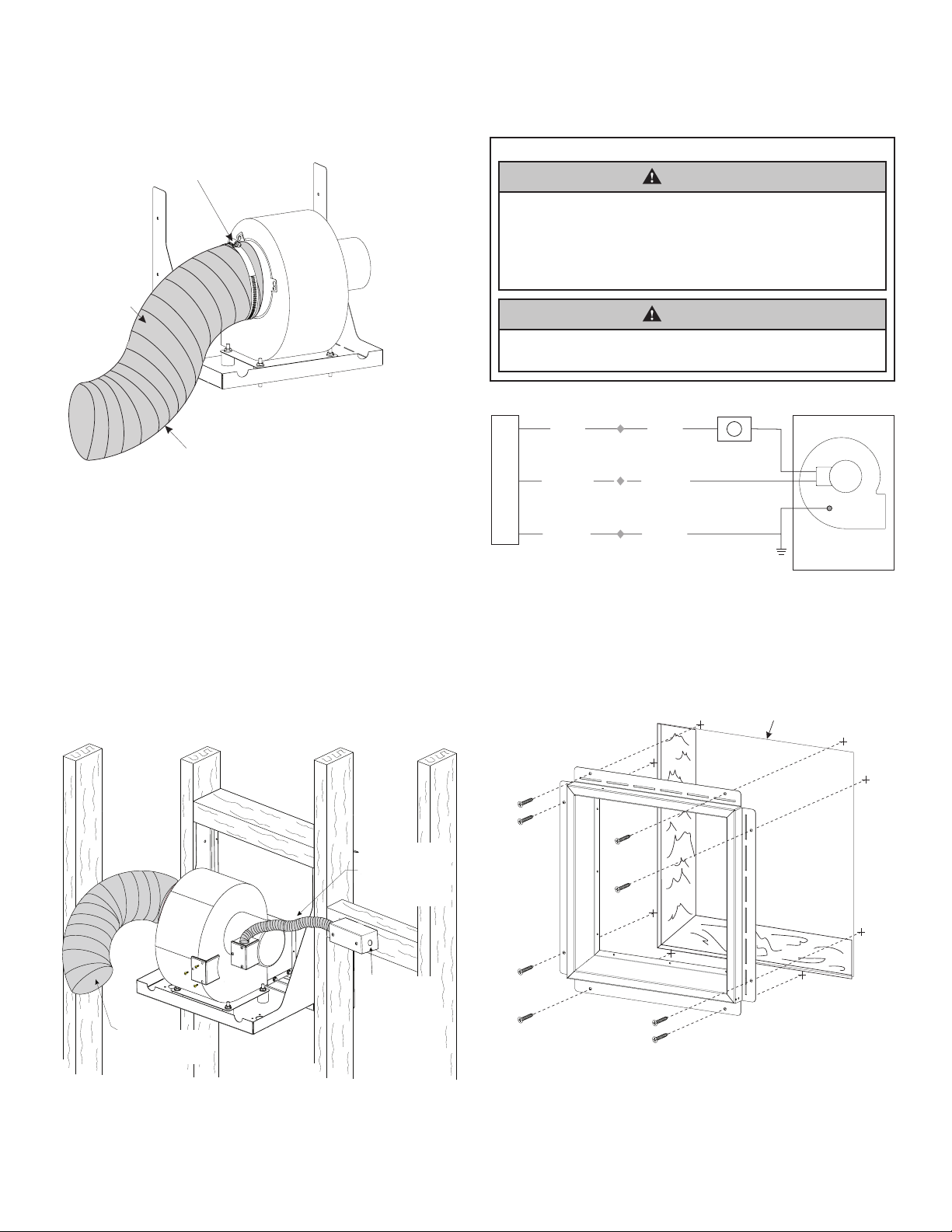

16. Measure, cut, and install the ex vent section that connects
from the “Y” adapter to the inlet collar mounted on the
Blower Housing. To secure, use the two 7" diameter band
clamps provided in the SD6DFA25 Flex Vent kit. Refer to
Figures 12 and 13 for a typical venting installation.
NOTE: FLEX VENTING MUST BE SUPPORTED WITH
WIRE OR PLUMBERS STRAPPING AT INTERVALS THAT
ADEQUATELY SUPPORT THE VENT PIPE. 2’-3’ INTERVALS RECOMMENDED.
6” DIA
FLEX DUCT
BAND CLAMP
3” MINIMUM CLEARANCE TO COMBUSTIBLES
AND INSULATION MATERIALS FROM FLEX VENTING
Figure 13
NOTE: Flex venting must be supported with wire or plumbers
strapping at intervals that adequately support the vent pipe.
2-3' intervals are recommended.
ELECTRICAL CONNECTIONS
17. Mount the included metal junction box to the framing near
the blower base within 2' foot so the exible metal clad
wire harness can be terminated and spliced into the 120
Volt electrical supply. See Figure 14.
NOTE: all electrical connections must be performed by a
qualied electrician.
2’ Flexible Conduit
Wire Harness
120 VAC Power In
(From Rheostat
Wall Switch)
To Fireplace
Connections
Figure 14
18.
The electrician is responsible for performing all wiring
from the blower to the wall mounted rheostat. The
rheostat must be mounted in a standard wall box (not
included).
WIRING
WARNING
All wiring should be done by a qualied electrician ,
and shall bein compliance withlocal codesand with
the current National Electric Code ANSI/NFPA 70
(in the U.S.), or with the current CSC22.1 Canadian
Electric Code (in Canada).
WARNING
Make sure the replace electrical circuit is disabled
prior to working on electrical hookup.
120V POWER SUPPLY
BLOWER
ASSEMBLY
COMMON
(WHITE)
◊
COMMON
(WHITE)
JUNCTION BOX
RHEOSTAT
HOT
(BLACK)
◊
HOT
(BLACK)
GROUND
(GREEN)
◊
GROUND
(GREEN)
OUTER TERMINATION INSTALLATION
19. Install the Outer Termination into the 14 ½" X 14 ½"
framed opening through the exterior wall of the building,
then secure with 1" long drywall screws as shown in
Figure 15.
14 1/2 X 141/2
EXTERIOR WALL
OPENING
Figure 15
TO FIREPLACE
CONNECTIONS
24" FLEXIBLE
CONDUIT
WIRE
HARNESS
120 VAC
POWER
IN (FROM
RHEOSTAT
WALL
SWITCH)
6"
DIAMETER
FLEX
DUCT
BAND CLAMP
3" MINIMUM CLEARANCE TO
COMBUSTIBLES AND INSULATION
MATERIALS FROM FLEX VENTING
14 ½" X 14 ½"
EXTERIOR
WALL OPENING

42724-0-1120 Page 11Empire Comfort Systems Inc. • Belleville, IL
20. Locate the two halves of the Air Duct. To determine the
length needed for this duct, take a measurement from
the blower housing outlet to the inner ange on the Outer
Termination Frame. See Figure 16.
TERMINATION BACK
PLATE OPENING
EDGE OF
BLOWER OUTLET
“A” “B”
Figure 16
21. Add 1 ¼" to the dimension taken in step 20, then using
metal snips, cut both halves of the Air Duct to length. See
Figure 17, and discard the trimmed off ends.
“A” to ”B”
+ 1 1/4”
SEE FIGURE 16
MARK & CUT BOTH
HALVES OF THE
DUCT SECTIONS
DISCARD PORTION
NOT NEEDED
AIR DUCT SIZING
(CUT TO LENGTH)
Figure 17
22. Using # 10 X ½" long Hex Head screws, join the two
halves of the Air Duct together as shown in Figure 18.
Figure 18
23. Install the cut end of the Air Duct over the Blower outlet.
See Figure 19.
24. Check to see if the anges of the Air Duct are ush with
the bottom inside ange of the Outer Termination as
shown by Figure 19. If too long, trim additional metal
from the back edges of the Air Duct to t.
ONCE THE AIR DUCT IS SLIPPED OVER THE BLOWER OUTLET,
THE FLANGES OF THE DUCT MUST BE FLUSH WITH THE
INNER FLANGES OF THE OUTER TERMINATION ASSEMBLY
Figure 19
14 1/2 X 141/2
EXTERIOR WALL
OPENING
TERMINATION BACK
PLATE OPENING
EDGE OF
BLOWER OUTLET
“A” “B”
14 ½" X 14 ½"
EXTERIOR
WALL OPENING
EDGE OF
BLOWER
OUTLET
TERMINATION
BACK PLATE
OPENING
DISCARD
PORTION
NOT NEEDED
MARK & CUT BOTH
HALVES OF THE
DUCT SECTIONS
"A" TO "B"
+ 1 ¼"
SEE FIGURE 16
AIR DUCT SIZING
(CUT TO LENGTH)
ONCE THE AIR DUCT IS SLIPPED OVER THE BLOWER OUTLET,
THE FLANGES OF THE DUCT MUST BE FLUSH WITH THE
INNER FLANGES OF THE OUTER TERMINATION ASSEMBLY

42724-0-1120Page 12 Empire Comfort Systems Inc. • Belleville, IL

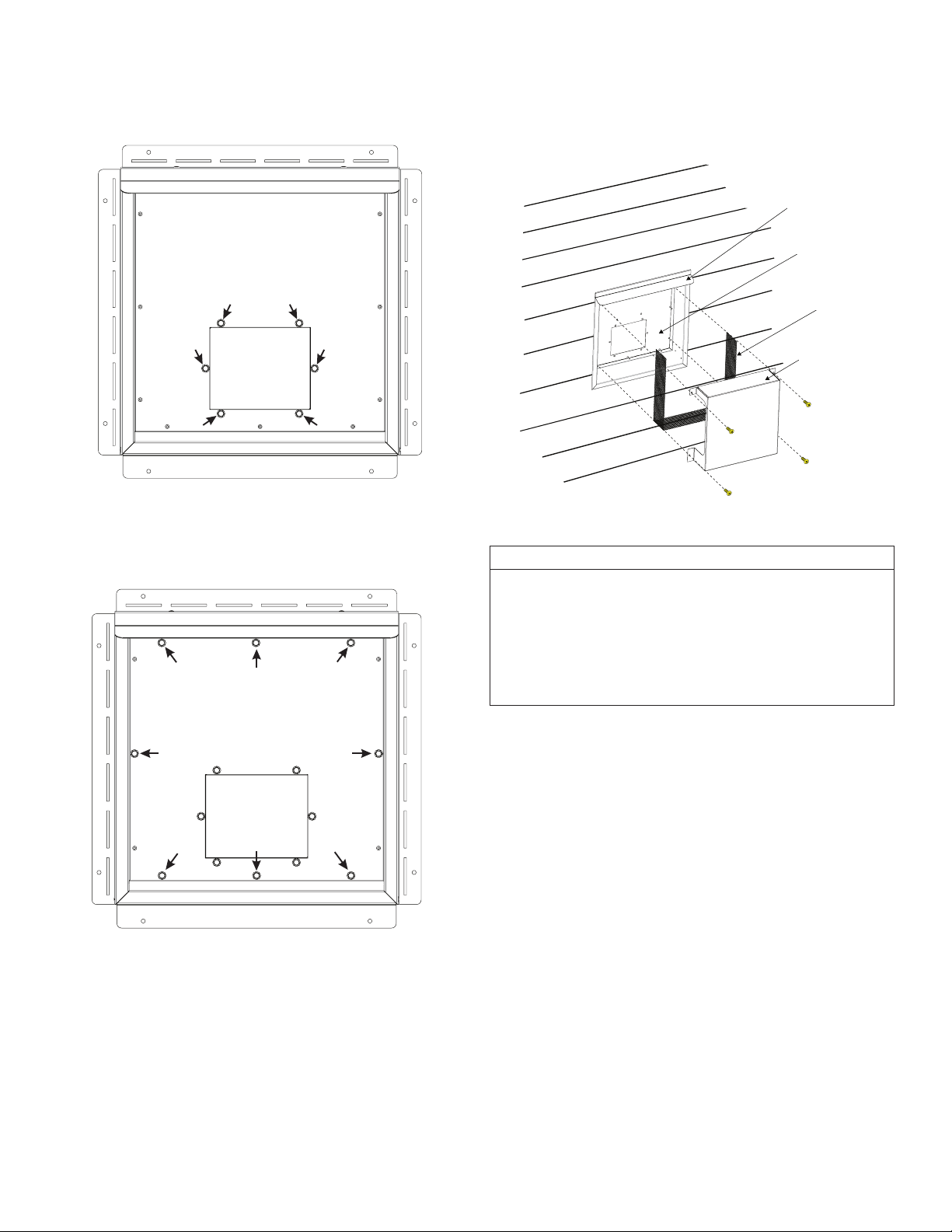

25. Install the Termination Back Plate by aligning the large
rectangular hole with the Air Duct. Using (6) # 10 X
½" screws, secure the Back Plate to the Air Duct. See
Figure 20.
Figure 20
26. Secure the Back Plate to the Outer Termination with (8)
# 10 X ½" screws. See Figure 21. Do not install the
upper and lower side screws at this time.
Figure 21
27. To install the Outer Cover and Screen, place the “U”
shaped screen inside the Outer Cover, then place the
Outer Cover into the Outer Termination frame. Using (4)
# 10 X ½" screws, secure the Outer Cover to complete
the installation. See Figure 22.
BACK PLATE
OUTER TERMINATION ASSEMBLY
SCREEN
COVER PLATE
Figure 22
FINISHING
The Outer Termination Assembly is designed to allow
exterior combustible nishing materials to be installed
around the outer edges of the termination. This provides
for J-channel, or other siding materials to be installed up
to the termination face. It is the installer(s) responsibility
to caulk or seal around the termination to prevent water
leakage to the building envelope.
OUTER
TERMINATION
ASSEMBLY
BACK PLATE
SCREEN
COVER
PLATE

42724-0-1120 Page 13Empire Comfort Systems Inc. • Belleville, IL
This page intentionally left blank.

42724-0-1120Page 14 Empire Comfort Systems Inc. • Belleville, IL
PARTS LIST
Index Number Part Number Description Quantity
142720 Termination Cover Plate 1
2 42648 Screen 1
3 42726 Termination Assembly 1
4 42719 Termination, Back Plate 1
5 42721 Air Duct 2
642760 Inlet Collar 1
7 R13212
Blower, P-Tech TTB-3018 1
8 42716 Mounting Plate 1
9R10856 Spacer, Vibration 4
10 42715 Base, Blower 1
N/S R13145 Wire Harness, 2 Feet 1
N/S R13221
Diverter Connector, 6 X 6 X 6 Y-Branch 1
N/S R13222 Adapter, 6 Inch Flex 1
N/S R13223 Clamp, 7 Inch Diameter Gear Clamp 4
N/S R4186 Rheostat 1
N/S R4192 Knob, Rheostat 1
N/S 42727 Collar, 6 Inch Diameter 2
N/S 42728 Flange, Collar 2
N/S R11243 Cover, Plate, Junction Box 1
N/S R1563 Wirenut, Black 2
N/S R3490 Junction Box 1
N/S B101569 Screw, # 10 X ½" Self Drilling SS 3
N/S R11686 Drywall Screw, # 8 X 1" 19
N/S R2737 Screw, # 10 X ½" HWH 26
N/S = Not Shown

42724-0-1120 Page 15Empire Comfort Systems Inc. • Belleville, IL
Figure 23
Exploded View
1
2
3
4
5
6
7
8
9
10

42724-0-1120Page 16
www.empirecomfort.com
Empire Comfort Systems Inc.
Belleville, IL
If you have a general question
about our products, please e-mail
us at [email protected].
If you have a service or repair
question, please contact your dealer.

42724-0-1120 Page 1Empire Comfort Systems Inc. • Belleville, IL
INSTRUCTIONS D’INSTALLATION TROUSSE
DE SYSTÈMES DE GESTION DE LA CHALEUR
INSTALLATEUR :
Laisser ce manuel avec l’appareil.
ACHETEUR :
Garder ce guide pour référence ultérieure.
AVERTISSEMENT
RISQUE D’INCENDIE OU D’EXPLOSION
Le non-respect des mises en garde à la lettre
pourrait entraîner des blessures graves, la
mort ou des dommages matériels.
— Ne pas entreposer ni utiliser d’essence ou
autres vapeurs et liquides inammables près
de cet appareil ou d’autres.
— QUE FAIRE EN CAS D’ODEUR DE GAZ?
• Ne pas tenter d’allumer un appareil, quel qu’il soit.
• Ne toucher à aucun interrupteur électrique; ne
pas utiliser de téléphone dans le bâtiment.
• Quitter le bâtiment immédiatement.
• Téléphoner immédiatement au fournisseur
de gaz depuis une maison voisine. Suivre les
instructions du fournisseur de gaz.
• S’il est impossible de joindre votre fournisseur
de gaz, appeler le service d’incendie.
— L’installation et l’entretien doivent être exécutés
par un installateur qualié, une agence de
service qualiée ou par le fournisseur de gaz.
AVERTISSEMENT
Si l’installation, l’usage et l’entretien de ce
produitnesontpasconformesauxinstructions
dufabricant, ce produitpourrait vous exposer
àdessubstancescontenuesdanslecarburant
ou provenant de la combustion du carburant,
lesquelles peuvent causer la mort ou des
maladies graves.
Nous suggérons que nos
produits fonctionnant
au gaz soient installés et
entretenus par des
professionnels accrédités
aux É.-U. comme spécialistes
du gaz par le National
Fireplace Institute
®
(NFI).
CERTIFIÉ
HMFA-1 TROUSSE DE
SYSTÈMES DE GESTION DE
LA CHALEUR À AIR PULSÉ À
UTILISER AVEC
LES MODÈLES
SUIVANTS DE
FOYER À
ÉVACUATION
DIRECTE :
DVLL(36,48,60,72)BP DVCT(36,40,50)CBP
DVL(36,46)BP DVCT40CSP
GAS-FIRED
DOSSIER UL
N° MH30033

42724-0-1120Page 2 Empire Comfort Systems Inc. • Belleville, IL
ATTENTION
En raison du poids de l’appareil et du fait qu’il présente
des bords tranchants, porter une protection oculaire
appropriée et des gants pour réduire les risques de
blessure.
OUTILS REQUIS :
• Tournevis • Tournevis • Tournevis à douille • Cisailles à
Phillips à tête plate 5/16 po (7,94 mm), métaux
• Couteau à lame rétractable
3/8 po (9,52 mm)
Autres outils divers fréquemment utilisés pour la structure
et le câblage.
INTRODUCTION
Le système de gestion de la chaleur à air pulsé (HFMA) est
conçu pour être installé en même temps que les foyers spéciés
d’Empire Comfort Systems
spéciques , an de réduire la
quantité de chaleur produite pendant le fonctionnement du foyer.
Ce système comprend une soufante à commande de variation de
vitesse qui fournira un pourcentage souhaité de la chaleur produite
par le foyer à l’extérieur du bâtiment.
CONTENU :
1. Soufante dotée d’une base (1)
2. Assemblage d’extrémité extérieure (1)
3. Collier à bride de 6 po (152,4 mm) de diamètre (2)
4. Raccord de conduit en « Y » 6 po x 6 po x 6 po (152,4 mm x
152,4 mm x 152,4 mm) (1)
5. Adaptateur de 6 po (152,4 mm) de diamètre (raccord en
« Y » à exible) (1)
6. Serre-joint à sangle (4)
7. Rhéostat (commande de variation de vitesse) à bouton (1)
8. Boîte de jonction à couvercle (1)
9. Trousse de quincaillerie (1)
REMARQUE : Un conduit d’évacuation exible n’est pas
inclus dans la trousse HMFA. Prière de commander la trousse
de conduit d’évacuation exible SD6DFA25 qui comprend un
conduit exible de 25 pi (7,62 m) et 2 serre-joints à sangle pour
effectuer l’installation du système.
DÉTERMINATION DE L’EMPLACEMENT DU SYSTÈME DE GESTION DE LA CHALEUR
1. Déterminer l’emplacement du système HMFA par rapport
au foyer. Le placement du système de soufante HMFA par
rapport au foyer est indiqué avec des dimensions
d’ouverture minimales et des exigences de longueur de conduit
comme illustré dans les Figures 1 à 3.
Figure 1
Emplacement des structures d’ouvertures du système HMFA
FRAMED OPENING
WHEN BELOW TOP
OF FIREPLACE
FRAMED OPENING
WHEN ABOVE THE
TOP OF FIREPLACE
6” FLEX VENT
4’ FOOT
MINIMUM
4” INCHES
MINIMUM
CONDUIT D’ÉVACUATION
FLEXIBLE DE 6 po (152,4 mm)
OUVERTURE
LORSQU’ELLE
SE TROUVE
AU-DESSUS DU
SOMMET DU
FOYER
FRAMED OPENING
WHEN BELOW TOP
OF FIREPLACE
FRAMED OPENING
WHEN ABOVE THE
TOP OF FIREPLACE
6” FLEX VENT
4’ FOOT
MINIMUM
4” INCHES
MINIMUM
4 pi
(1,22 m)
MINIMUM
4 po (101,6 mm)
MINIMUM
DISPOSITIONS EN MATIÈRE D’AIR D’APPOINT
En fonctionnement, le système de gestion de la chaleur à air
pulsé HMFA fournit un pourcentage d’air chauffé depuis le
foyer à l’extérieur du bâtiment. Puisqu’une certaine quantité
d’air sera retirée du bâtiment, elle doit être remplacée par de
l’air frais d’appoint, an d’empêcher une pression négative de
s’accumuler à l’intérieur de la structure.
Certains appareils de chauffage central comprennent des
registres d’air d’appoint. Si un registre d’air d’appoint est fourni
avec l’appareil de chauffage, vérier son bon fonctionnement.
Tous les registres d’air d’appoint pour appareil de chauffage
central ne sont pas similaires; par conséquent, il faut vérier
si le système existant est compatible. Certains systèmes sont
conçus pour fonctionner en cas de détection d’une pression
négative à l’intérieur du bâtiment.
D’autres systèmes sont conçus pour fonctionner uniquement
lorsque la soufante de l’appareil de chauffage central
fonctionne, et nécessitent donc l’installation d’un système de
registre d’air d’appoint supplémentaire.
Des registres d’air d’appoint sont proposés dans les magasins
locaux ou par des prestataires de chauffage, ventilation et
climatisation. Le registre d’air d’appoint doit être dimensionné
sur la base de la quantité potentielle d’air cubique à rejeter.
Le système HMFA est susceptible de rejeter 150 pieds cubes
(4,25 mètres cubes) par minute.
En cas d’installation d’un registre d’air d’appoint, le placer
de préférence à l’extrémité opposée du bâtiment. En outre,
l’installation d’un registre à un niveau élevé d’un plafond
voûté contribue à diluer l’air froid entrant avec l’air plus chaud
normalement présent près du plafond.
OUVERTURE LORSQU’ELLE
SE TROUVE AU-DESSOUS
DU SOMMET DU FOYER

42724-0-1120 Page 3Empire Comfort Systems Inc. • Belleville, IL
Figure 2
Foyer à évacuation horizontale
PAS DE LONGUEUR
MINIMALE REQUISE
TOUTES LES
APPLICATIONS
NÉCESSITENT UNE
LONGUEUR MINIMALE DE
CONDUIT D’ÉVACUATION
FLEXIBLE DE 7 pi (2,13 m)
DU RACCORD EN « Y »
JUSQU’À LA SOUFFLANTE
PAS DE LONGUEUR
MINIMALE REQUISE
REMARQUE : Conduit d’évacuation
exible de la trousse SD6DFA25.
ATTENTION
En raison du poids de l’appareil et du fait qu’il présente
des bords tranchants, porter une protection oculaire
appropriée et des gants pour réduire les risques de
blessure.

42724-0-1120Page 4 Empire Comfort Systems Inc. • Belleville, IL
Figure 3
Foyer à évacuation verticale
VERTICAL
ALL APPLICATIONS REQUIRE
A
MINIMUM 7’ LENGTH OF FLEX
VENT FROM “Y” CONNECTOR
TO THE BLOWER
3”
MINIMUM CLEARANCE
TO
COMBUSTIBLES FROM
FLEX VENT
DUCT WORK
VERTICAL VENTED FIREPLACE
VERTICAL
ALL APPLICATIONS REQUIRE A
MINIMUM 7’ LENGTH OF FLEX
VENT FROM “Y” CONNECTOR
TO THE BLOWER 3” MINIMUM CLEARANCE
TO COMBUSTIBLES FROM
FLEX VENT DUCT WORK
VERTICAL VENTED FIREPLACE
ATTENTION
En raison du poids de l’appareil et du fait qu’il présente
des bords tranchants, porter une protection oculaire
appropriée et des gants pour réduire les risques de
blessure.
TOUTES LES APPLICATIONS
NÉCESSITENT UNE LONGUEUR
MINIMALE DE CONDUIT
D’ÉVACUATION FLEXIBLE DE 7 pi
(2,13 m) DU RACCORD EN « Y »
JUSQU’À LA SOUFFLANTE
DÉGAGEMENT MINIMUM DE
3 po (76,2 mm) JUSQU’AUX
MATÉRIAUX COMBUSTIBLES
À PARTIR DU CONDUIT
D’ÉVACUATION FLEXIBLE
REMARQUE : Conduit d’évacuation
exible de la trousse SD6DFA25.
