INSTALLATION INSTRUCTIONS
AND OWNER’S MANUAL
BIRCH LOGS
WARNING
FIRE OR EXPLOSION HAZARD
If the information in these instructions is
not followed exactly, a re or explosion may
result causing property damage, personal
injury or loss of life.
— Do not store or use gasoline or other
ammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch;
do not use any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier
from a neighbor’s phone. Follow
the gas supplier’s instructions.
• If you cannot reach your gas
supplier, call the re department.
— Installation and service must be
performed by a qualied installer,
service agency or the gas supplier.
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference. Log sets comply with ANSI Z21.11.2 Unvented
Heaters and also comply with ANSI Z21.60
Decorative Vented Appliances for Solid Fuel
Burning Fireplaces. State or local codes may
only allow operation of log sets in a vented
conguration. Check your state or local codes.
�
WARNING
If not installed, operated and maintained
in accordance with the manufacturer's
instructions, this product could expose you
to substances in fuel or from fuel combustion
which can cause death or serious illness.
Please See Our Website For Log Assembly Videos.
LOG SET FOR UNVENTED
GAS LOG HEATER OR VENTED
DECORATIVE APPLIANCE
MODELS:
LS18CB-1
LS24CB-1
LS30CB-1
GAS-FIRED
LS24CB SHOWN

41097-0-0120Page 2
TABLE OF CONTENTS
Section Page
Important Installation Guidelines..................................................................................................................................3
General Information .....................................................................................................................................................3
Requirements for Canada............................................................................................................................................4
LS(18,24,30)CB Log Sets ............................................................................................................................................5
Log Identication LS18CB............................................................................................................................................6
Log Placement LS18CB........................................................................................................................................7 - 14
Log Identication LS24CB..........................................................................................................................................15
Log Identication LS30CB..........................................................................................................................................16
Log Placement LS(24,30)CB ..............................................................................................................................17 - 24
Ember Placement LS(18,24,30)CB............................................................................................................................25
Appliance Service History ..........................................................................................................................................26
Master Parts Distributor List.......................................................................................................................................27
How To Order Repair Parts ........................................................................................................................................27

41097-0-0120 Page 3
Proper Log Placement

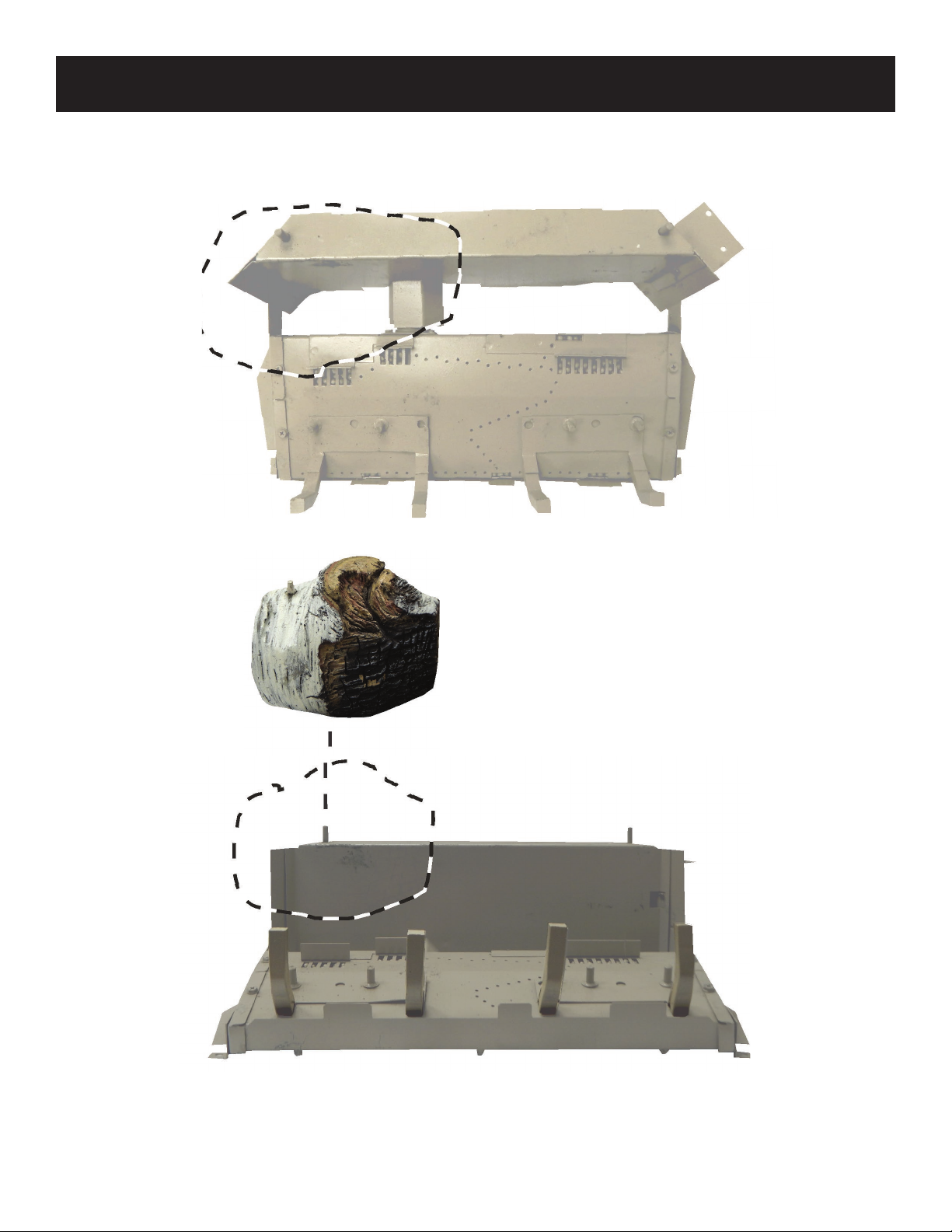

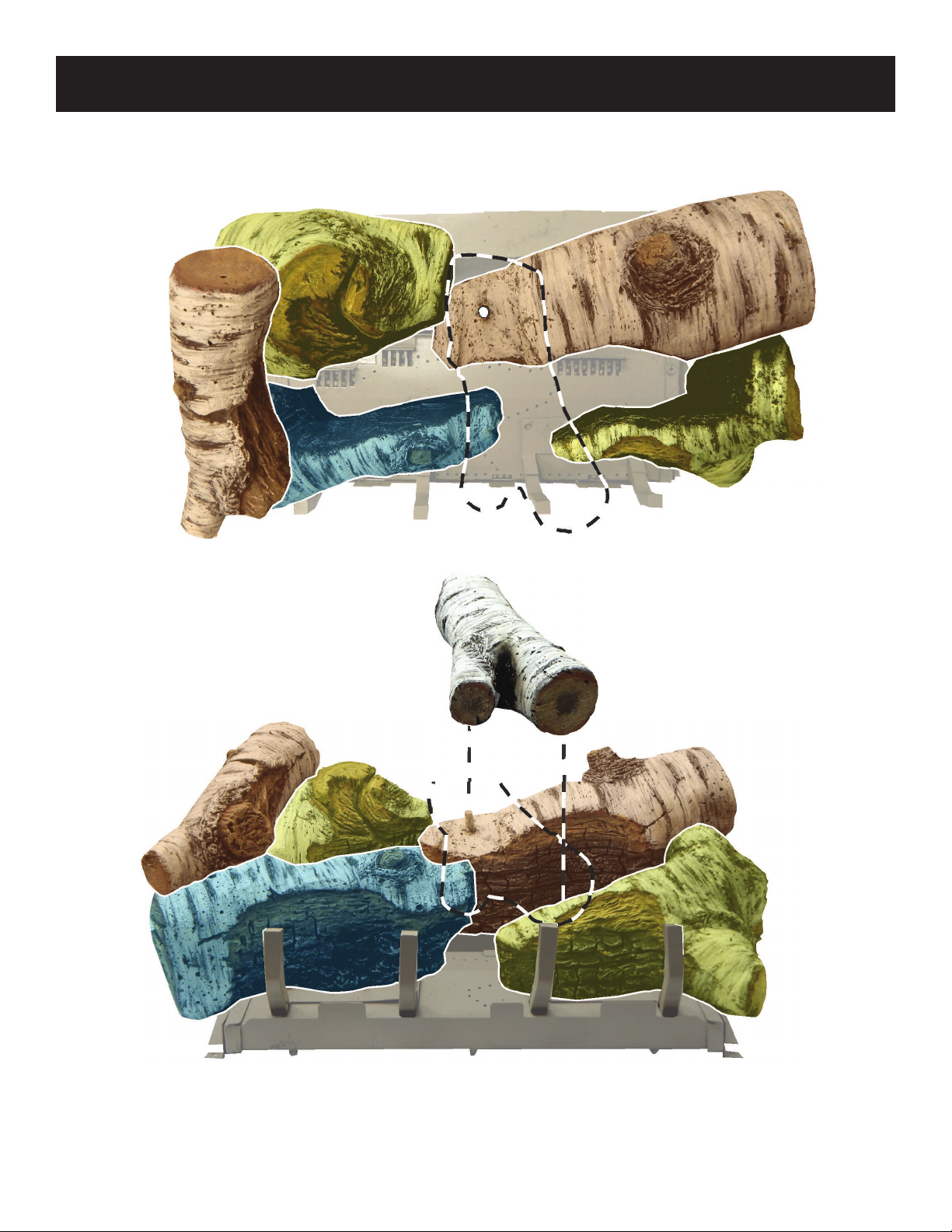

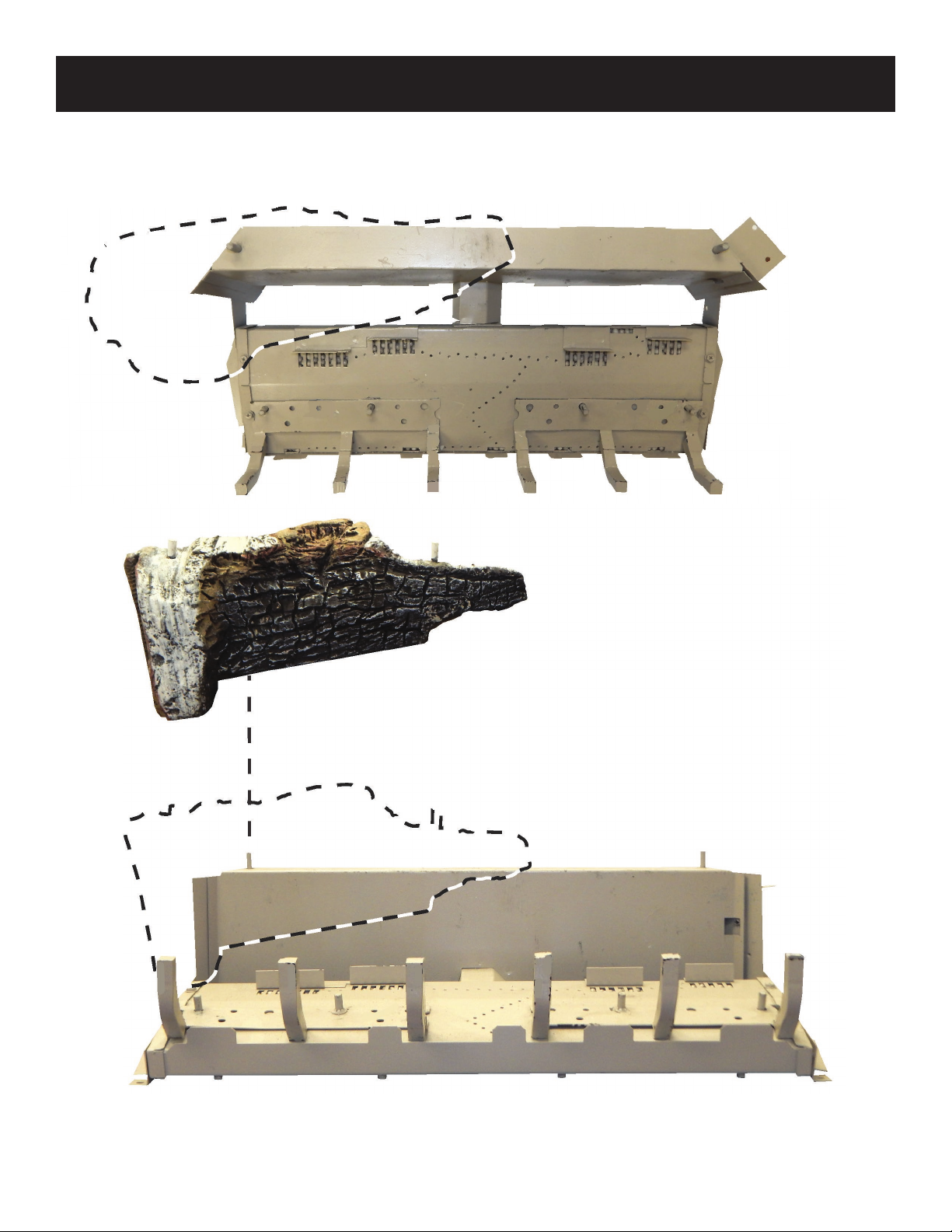

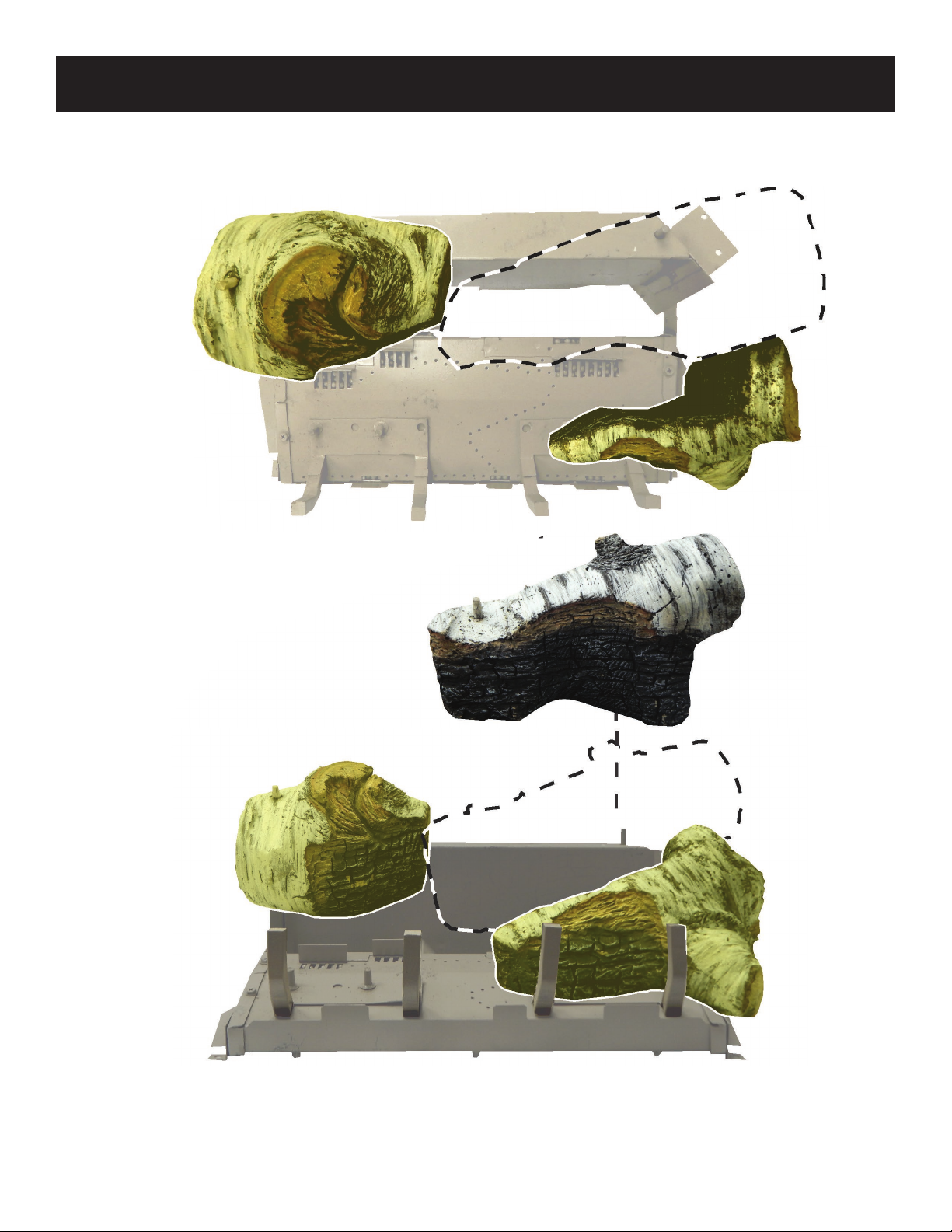

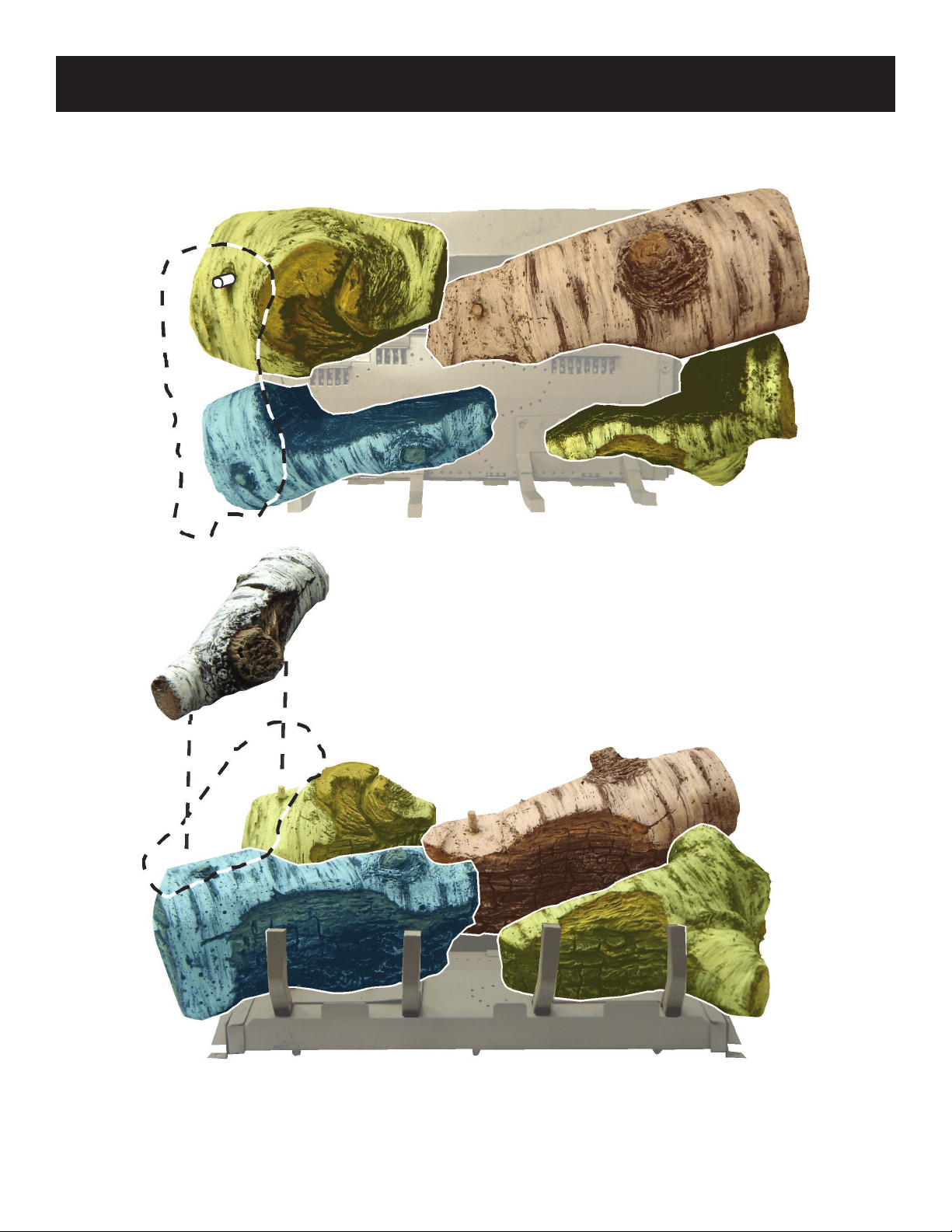

Log placement is critical to proper burner performance. Logs must
be correctly positioned onto the burner. The photos in this manual
show the proper pinned position for logs on this set. Owners need to
be shown proper log placement and instructed not to move the logs.
Logs must t rmly onto the burner when positioned as shown in the
photos. Malformed logs or logs with sloppy pin holes must be replaced.
Proper Placement of Rock Wool and Decorative Lava Rock
Rock wool can be added to burners for a glowing ember effect. Place
on the front portion of the burner only. The photos in this manual
show the proper placement of rock wool.
Never place decorative lava rock or small wood pieces on the burner.
Place them on the oor of the replace or rebox only.
Proper Primary Airow into Burner
For proper burner operation and ame appearance, the ow of
primary air into the venturi tube, located on the rear of the burner,
must not be reduced. Air ow may be reduced if dirt, lint or other
obstructions build-up around or inside the venturi. Any obstruction
must be removed. Air ow into the venturi is also reduced if the gas
orice isn’t centered in the venturi inlet or is not aligned with the
venturi. Correct any misalignment of the burner orice by bending
the shutter cap holding the orice to the inlet of the venturi tube.
Ceiling Fans, Portable Fans or Logs Installed Near Cold Air Returns
Ceiling fans or oscillating fans need to be monitored during the
operation of this vent-free burner. If air blows directly into the ame
causing it to impinge on the log set, or rebox, turn off or redirect the
fan. Ceiling fans may be reversed to eliminate ame impingement.
Upon installation, be aware of any cold-air returns or vents in the
proximity of the burner. Any draft created around a vent-free burner
can cause ame impingement and create soot.
WARNING
Do not allow fans to blow directly into the replace. Avoid
any drafts that alter burner ame patterns.
WARNING
Do not use a blower insert, heat exchanger insert or other
accessory not approved for use with this heater.
Candles
Avoid the use of scented or decorative candles while the log set is
in operation. Candles produce a residue in the air that creates a
soot-like substance. Burning candles while the burner is operating
magnies the problem. Candles in general produce soot. The
amount of time burned and the quantity of candles will determine
the amount of soot produced.
Make Owners Aware of Proper Log Set Operation
Properly installed and properly maintained log sets do not deposit
soot on the logs. If users see soot on a log, they should call for
service. Do not continue to operate the log set.
Sunken Fireplace
If installing this unit into a sunken replace, raise the oor to ensure
adequate airow and guard against sooting. Raise replace oor
using a non-combustible material, which is secure.
Glass Doors
Keep glass doors open during all operations of the logset. The
opening of the glass door frame should be the dimension used for
the minimum front opening of the rebox.
Wood-Burning Fireplaces
The interior of the rebox and the chimney must be cleaned and free
of all creosote before installing a gas log set. Creosote will soften
when heated and can drop onto the logset causing odors and soot.
WARNING
Before installing in a solid-fuel burning replace, the chimney
ue and rebox must be cleaned of soot, creosote, ashes
and loose paint by a qualied chimney cleaner.
Initial Operation
Once the installation is complete and the logs and embers are
in place, light the burner and operate it on high for a minimum of
three continuous hours. This will burn off any foreign materials,
such as dust or paint overspray, that might cause odors during
normal operation. Open windows or doors as needed to allow
odors and excess heat to escape.
Qualied Installing Agency
Installation and replacement of gas piping, gas utilization equip-
ment or accessories and repair and servicing of equipment shall be
performed only by a qualied agency. The term "qualied agency"
means any individual, rm, corporation, or company that either in
person or through a representative is engaged in and is responsible
for (a) the installation, testing, or replacement of gas piping or (b) the
connection, installation, testing, repair, or servicing of equipment;
that is experienced in such work; that is familiar with all precautions
required, and that has complied with all the requirements of the
authority having jurisdiction.
The installation must conform with local codes or, in the absence of
local codes, with the National Fuel Gas Code,ANSI Z223.1/NFPA54.*
*Available from the American National Standards Institute, Inc. 11 West
42nd St., New York, N.Y. 10018.
Commonwealth of Massachusetts: The installation must be
made by a licensed plumber or gas tter in the Commonwealth of
Massachusetts. Sellers of unvented propane or natural gas-red
supplemental room heaters shall provide to each purchaser a
copy of 527 CMR 30 upon sale of the unit. In the Commonwealth
of Massachusetts, unvented propane and natural gas-red space
heaters shall be prohibited in bedrooms and bathrooms.
IMPORTANT INSTALLATION GUIDELINES
GENERAL INFORMATION

41097-0-0120Page 4
REQUIREMENTS FOR CANADA
This unit cannot be installed in a UNVENTED application,
this unit can only be installed as a VENTED application
with these requirements.
IMPORTANT SAFETY INFORMATION
This unit complies with ANSI Z21.60and CGA 2.26 Decora-
tive Gas Appliances For Installation In Solid Fuel Burning
Fireplaces. Do not burn wood or solid fuels in a replace
where a decorative gas log set is installed. This appliance is
for installation only in a solid fuel burning replace, masonry
replace or manufactured replace.
WARNING: Any modication to this gas log set can be dan-
gerous. Improper installation or use of the gas log set can
cause serious injury or death from re, burns, explosion or
carbon monoxide poisoning.
1. Please follow all local codes regarding installation,
combustion and ventilation air or in the absence of
local codes follow the National Fuel Gas Code ANSI
Z223.1(U.S. installation), or CAN/CGA-B149, Installa-
tion Code (Canada installation).
2. Proper installation, burner location and log placement
is important to achieve optimum look and performance
of your gas log set. The logs have been designed for
easy location and placement on the grate and must be
followed for proper operation.
3. Do not operate the burner with glass doors in the closed
position. A replace screen must be in place when the
burner is burning. Adequate combustion air must be
provided for proper venting. All ames should go up and
out the top of the rebox into the ue vent. If any ames
oat or curl forward into the room do not operate appli-
ance. Check for an open ue and adequate combustion
air into the room. A damper clamp must be installed on
the rebox damper to maintain an open ue vent condi-
tion. Refer to replace owners manual INSTALLING
DAMPER CLAMP section.
4. Young children must be carefully supervised when they
are in the same room as an operating vent-free burner.
Do not place stockings, clothing or any ammable ma-
terial above or near the replace.
5. Do not substitute or use materials other than those sup-
plied for use with the log set.
6. Also refer to IMPORTANT SAFETY INFORMATION in
the replace Owner's Manual.
WARNING; DO NOT OPERATE THIS GAS LOG SET
WITH GLASS DOORS CLOSED
• Clothing or other ammable material should not be
placed on or near the appliance.
• Do not place debris or other articles on the log set dur-
ing operation.
• A window should be opened during the initial bake out
period.
• Installation and repair should be done by a qualied
service person. The appliance should be inspected
before use and at least annually by a qualied service
person. More frequent cleaning may be required due to
excessive lint from carpeting, bedding materials, etc. It
is imperative that control compartments, burners and
circulating air passageways of the appliance be kept
clean.
• Do not use this appliance if any part has been under
water. Immediately call a qualied service technician
to inspect the appliance and to replace any part of the
control system and any gas control which has been un-
der water.
• Never burn solid fuels in replace where a gas log set is
installed.
• This unit complies with ANSI Z21.60 Decorative Vented
Appliances for Solid Fuel Burning Fireplaces. State or
local codes may only allow operation of this appliance
in a vented conguration. Check your state or local
codes.

41097-0-0120 Page 5
LS(18,24,30)CB -LOG SETS
LS24CB - LOG SET
LS30CB - LOG SET
LS18CB - LOG SET

41097-0-0120Page 6
PART NUMBER
& DESCRIPTION TOP VIEW FRONT VIEW
R12811
Rear Left
(Log A)
R12812
Rear Right
(Log B)
R12813
Rear Right
(Log C)
R12814
Front Left
(Log D)
R12815
Left Branch
(Log E)
R12816
Right Branch
(Log F)
LOG IDENTIFICATION - LS18CB

41097-0-0120 Page 7
Before you begin: Do not, handle these logs with your bare hands!
Always wear gloves to prevent skin irritation. After handling logs,
wash your hands gently with soap and water.
All Logs
The positioning of the logs is critical to the safe and clean operation
of this heater. Sooting and other problems may result if the logs are
not properly and rmly positioned in the appliance.
Refer to Figure 1 for the following warning.
WARNING
Failure to position the parts in accordance with this diagram
or failure to use only parts specically approved with this
appliance may result in property damage or personal injury.
ATTENTION: Do not use Figure 1 to order replacement logs. Refer
to Log Identication LS18CB on Page 5 log to order logs for your
appropriate model number.
The following WARNING applies when log set is installed onto an
unvented gas burner assembly.
WARNING
This appliance is equipped for natural or propane gas. Field
conversion is not permitted.
Apply glowing embers per the ember placement section of this
manual on page 30. Replace glowing embers with appropriate part
number from the table below from Empire Comfort Systems, Inc.
Application of excess glowing embers may adversely affect perfor-
mance of the heater.
WARNING
All previously applied loose material must be removed prior
to reapplication.
Replacement Loose
Material (Glowing Embers) Part Number
LS18CB 15999
Platinum Bright Embers PE-20-1
NOTE: A single layer of embers is to be used when applying
Platinum Bright Embers (alone or in combination with production
embers) to the burner. As you add platinum embers, remove a like
amount of standard embers. The total amount of embers must not
exceed the amount provided with the burner. Tear the embers into
dime-size pieces and pull them open to reveal as much surface
area as possible.
LOG PLACEMENT - LS18CB
Please See Our Website For Log Assembly Videos.
LS18CB - Figure 1

41097-0-0120Page 8
1. Place Log (A) onto left rear pin on rear log support.
LOG PLACEMENT LS18CB (CONT'D)
TOP VIEW
FRONT VIEW

41097-0-0120 Page 9
2. Place Log (B) onto two (2) right front pins on burner pan.
LOG PLACEMENT LS18CB (CONT'D)
TOP VIEW
FRONT VIEW

41097-0-0120Page 10
3. Place Log (C) onto right rear pin on rear log support.
LOG PLACEMENT LS18CB (CONT'D)
TOP VIEW
FRONT VIEW

41097-0-0120 Page 11
4. Place Log (D) onto two (2) left front pins on burner pan.
LOG PLACEMENT LS18CB (CONT'D)
TOP VIEW
FRONT VIEW

41097-0-0120Page 12
5. Place Log (E) on top of the pin located on Log (A). Log (E) should rest on top of the left side of Log (D).
LOG PLACEMENT LS18CB (CONT'D)
TOP VIEW
FRONT VIEW

41097-0-0120 Page 13
6. Place Log (F) on top of the pin located on Log (C). Log (F) should rest on top of the left side of Log (B) and the right side of Log (D).
LOG PLACEMENT LS18CB (CONT'D)
TOP VIEW
FRONT VIEW

41097-0-0120Page 14
7. Log placement is complete.
LOG PLACEMENT LS18CB (CONT'D)
TOP VIEW
FRONT VIEW

41097-0-0120 Page 15
PART NUMBER
& DESCRIPTION TOP VIEW FRONT VIEW
R12817
Rear Left
(Log A)
R12818
Front Right
(Log B)
R12819
Rear Right
(Log C)
R12820
Front Left
(Log D)
R12821
Left Branch
(Log E)
R12822
Right Branch
(Log F)
LOG IDENTIFICATION - LS24CB

41097-0-0120Page 16
PART NUMBER
& DESCRIPTION TOP VIEW FRONT VIEW
R12823
Rear Left
(Log A)
R12824
Front Right
(Log B)
R12825
Rear Right
(Log C)
R12826
Front Left
(Log D)
R12827
Left Branch
(Log E)
R12828
Right Branch
(Log F)
LOG IDENTIFICATION - LS30CB

41097-0-0120 Page 17
LOG PLACEMENT -LS(24,30)CB
Before you begin: Do not, handle these logs with your bare hands!
Always wear gloves to prevent skin irritation. After handling logs,
wash your hands gently with soap and water.
All Logs
The positioning of the logs is critical to the safe and clean operation
of this heater. Sooting and other problems may result if the logs are
not properly and rmly positioned in the appliance.
Refer to Figure 2 for the following warning.
WARNING
Failure to position the parts in accordance with this diagram
or failure to use only parts specically approved with this
appliance may result in property damage or personal injury.
ATTENTION: Do not use Figure 2 to order replacement logs.
Refer to Log Identication LS24CB on Page16 or Log Identication
LS30CB on Page 17 for your appropriate model number.
The following WARNING applies when log set is installed onto an
unvented gas burner assembly.
WARNING
This appliance is equipped for natural or propane gas. Field
conversion is not permitted.
Apply glowing embers per the ember placement section of this
manual on page 30. Replace glowing embers with appropriate part
number from the table below from Empire Comfort Systems, Inc.
Application of excess glowing embers may adversely affect perfor-
mance of the heater.
WARNING
All previously applied loose material must be removed prior
to reapplication.
Replacement Loose Material
(glowing embers)
Part
Number
LS24CB 15970
LS30CB 15970
Platinum Bright Embers PE20-1
NOTE: A single layer of embers is to be used when applying
Platinum Bright Embers (alone or in combination with production
embers) to the burner. As you add platinum embers, remove a like
amount of standard embers. The total amount of embers must not
exceed the amount provided with the burner. Tear the embers into
dime-size pieces and pull them open to reveal as much surface
area as possible.
Please See Our Website For Log Assembly Videos.
LS(24,30)CB - Figure 2

41097-0-0120Page 18
LOG PLACEMENT - LS(24,30)CB (CONT'D)
1. Place Log (A) onto left rear pin on rear log support.
FRONT VIEW
TOP VIEW

41097-0-0120 Page 19
FRONT VIEW
TOP VIEW
LOG PLACEMENT - LS(24,30)CB (CONT'D)
2. Place Log (B) onto two (2) right front pins on burner pan.

41097-0-0120Page 20
LOG PLACEMENT - LS(24,30)CB (CONT'D)
3. Place Log (C) onto right rear pin on rear log support.
FRONT VIEW
TOP VIEW
