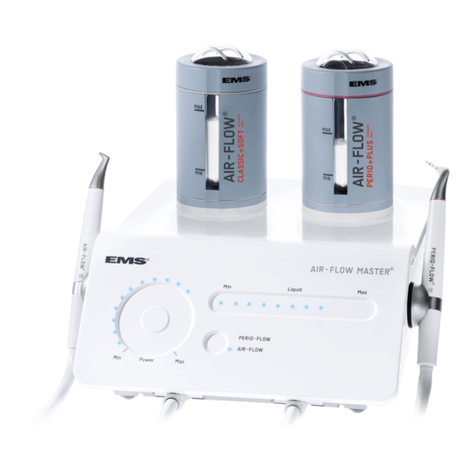

EMS AirFlow Master User manual

操作说明
OPERATION INSTRUCTIONS
AIR-FLOW®
Prophylaxis Systems
产 品 名 称 ： 手 柄
医疗器械注册证编号： 国械注进20162553228
国械注进20162215185
国械注进20162552588
产品技术要求编号：见注册证附件
FB-304_CN_rev_B_Syst_AF.indd 1 28/09/2018 14:43:23

21 3 6 7
10
11
9
1213
54 8
14
FB-304_CN_rev_B_Syst_AF.indd 2 28/09/2018 14:43:24

组件
1 SystemBox AIR-FLOW
®
2 喷嘴
3 洁牙手柄
4 Easy Clean
5 短洁牙针
6 长洁牙针
7 洁牙针导管
8 维护套件
9 牙粉导出管
10 出水口
11 用于洁牙手柄连接的小 O 型环
12 用于洁牙手柄连接的大 O 型环
13 洁牙手柄连接
14 洁牙手柄线
EMS 提供的产品具有不同配置。 装相列表中显示了你的机器中
都包括哪些内容。
COMPONENTS
1 SystemBox AIR-FLOW
®
2 Nozzle
3 Handpiece
4 Easy Clean
5 Short cleaning needle
6 Long cleaning needle
7 Needle guide
8 Maintenance set
9 Powder outlet tube
10 Water outlet port
11 Small O-ring for handpiece connection
12 Large O-ring for handpiece connection
13 Handpiece connection
14 Handpiece cord
EMS supplied this product in different congurations. The “Packing
list” shows exactly what your unit includes.
FB-304_CN_rev_B_Syst_AF.indd 3 28/09/2018 14:43:24

亲爱的客户：
感谢您购买新款 EMS 产品。 本系统符合最高的质量和安全标准。
本系统用于采用 EMS AIR-FLOW 装置的牙科诊所中。
本产品配合 EMS 提供的牙粉使用。
通过喷水机头限制牙粉可以非常精确地控制喷水量，从而可确保您的患者得
到满意的治疗。
该产品可去除牙齿凹槽、邻间区域或牙齿光滑表面上的牙菌斑、软牙垢和牙
齿表面的污垢。
应用
• 去除牙菌斑，以便注入窝沟封闭剂，
• 黏合/粘固镶嵌物、填补物、牙冠和贴面之前进行牙齿表面预备，
• 放置复合修复体之前进行牙齿表面预备，
• 黏合正畸托架之前进行清洗，
• 为正畸患者有效去除牙菌斑和牙垢，
• 装入前清洗植入牙固定装置，
• 去除牙垢，以确定阴影位置，
• 使用氢氟酸盐进行治疗之前，先清除牙菌斑，
• 执行牙齿美白程序之前，先清除牙菌斑和牙垢。
DEAR CUSTOMERS,
Thank you for buying a new EMS product. It meets the highest quality and
safety standards.
This system is for use in dentistry with EMS AIR-FLOW units.
This product functions with the powder provided by EMS.
The connement of the powder by a water jet makes it possible to steer
the water jet with great precision and thus ensures a pleasant treatment
for your patient.
This product removes dental plaque, soft deposits and surface stains from
pits, grooves, interproximal spaces or smooth surfaces of the teeth.
Applications
• Plaque removal for placement of sealants,
• Surface preparation prior to bonding/cementation of inlays onlays,
crowns and veneers,
• Surface preparation prior to placing composite restorations,
• Cleaning prior to bonding orthodontic brackets,
• Effective plaque and stain removal for orthodontic patients,
• Clean implant xture prior to loading,
• Stain removal for shade determination,
• Plaque removal prior to uoride treatment,
• Plaque and stain removal prior to whitening procedure.
FB-304_CN_rev_B_Syst_AF.indd 4 28/09/2018 14:43:24

请在开始工作前仔细阅读本手册！
本使用说明旨在确保正确安装和使用本产品。
请仔细阅读这些使用说明，其中包含了所有最重要的详细信息和程序。 请
特别注意安全注意事项。
在相关使用说明书中单独提供有关系统组件的说明。 在使用本产品
前，请阅读随每个组件附带的说明书。 请随时联系当地 EMS 经销商了解详
情。
请始终将本手册放在手边。
为了预防人身伤害和财产损坏，请注意相应的指令。 指令的标记如下：
危险
存在人身伤害风险
注意
存在损坏财产或危害环境的风险
请注意
有用的其他信息和提示
禁止
允许
PLEASE READ THIS BEFORE BEGINNING WORK!
This operating instructions are to ensure the correct installation and use of
this product.
Please read these operating instructions carefully as they explain all the
most important details and procedures. Please pay special attention to the
safety precautions.
Instructions concerning the components of the system are provided
separately in the relative instruction for use. Read the instruction manuals
originally delivered with each of the components before using this product.
Do not hesitate to contact your local EMS dealer for further information.
Always keep this instruction close at hand.
To prevent injury to people and damage to property, please heed the corre-
sponding directives. They are marked as follows:
Danger
Risk of injury
Caution
Risk of property damage or environmental harm
Please note
Useful additional information and hints
Prohibited
Authorized
FB-304_CN_rev_B_Syst_AF.indd 5 28/09/2018 14:43:25

关于本手册
请注意，本手册的译文是根据英文版手册翻译而来。 如有任何分歧，应以
英文版为准。
我们将乐意解答您的问题或听取您的建议。 当然，如果遇到技术问题，我
们将为您提供支持。 请直接致电经批准的 EMS 维修中心或您的经销商。
希望您使用顺利！
EMS
技术修改
EMS 保留随着技术或科学的进步而对技术、附件、套件使用说明或内容进
行修改之权利。
About this manual
Note that the English version of this manual is the master from which transla-
tions derive. In case of any discrepancy, the binding version is the English text.
We would be pleased to answer your questions or listen to your suggestions.
We do, of course, provide support in case of technical problems. Please call
directly in your approved EMS repair center or with your dealer.
We wish you lots of success!
EMS
TECHNICAL MODIFICATIONS
EMS reserves the right to modify the technique, accessories, operating
instructions or contents of the set due to technical or scientic improvements.
FB-304_CN_rev_B_Syst_AF.indd 6 28/09/2018 14:43:25

组件
治疗预备 ...........................................................3
连接洁牙手柄 ................................................3
治疗的常规提示 ................................................4
禁忌症 ........................................................... 4
关于牙粉的信息............................................. 4
使用注意事项 ................................................5
治疗...............................................................7
操作和设置水/空气 ........................................ 9
操作技术 ..................................................... 11
治疗结束时应注意的事项 ............................15
氢氟酸盐应用 ..............................................17
患者信息 ..................................................... 19
清洁、消毒和灭菌 ........................................... 21
清洁 洁牙手柄线..........................................21
使用针来清洁手持件 ...................................23
使用Easy Clean清洁剂来清洁手持件 .......... 25
灭菌.............................................................29
烘干并连接已经过灭菌处理的洁牙手柄....... 31
定期维护 .........................................................33
O 型环检查..................................................33
安全注意事项 .................................................. 34
产品储存 .........................................................35
产品报废 .........................................................36
保修 ................................................................36
附件 ................................................................36
EMS 客户服务 ................................................37
符号 ................................................................38
技术数据 .........................................................39
故障排除 .........................................................41
CONTENTS
Preparing for treatment..................................... 2
Connecting the handpiece ............................ 2
General hints for treatment ............................... 4
Contra-indication........................................... 4
Information about powders ...........................4
Precautions for use ....................................... 5
Treatment .....................................................7
Handling and setting water/air ......................8
Working technique ...................................... 10
Precautions to be taken at the end of
the treatment............................................... 14
Fluoride application..................................... 16
Patient information ...................................... 18
Cleaning, disinfecting and sterilizing .............. 20
Cleaning the handpiece cord ...................... 20
Cleaning the handpiece with needles ......... 22
Cleaning the handpiece with
the Easy Clean ........................................... 24
Sterilization .................................................29
Drying and connecting the sterilized
handpiece ...................................................30
Regular maintenance .....................................32
O-ring check ............................................... 32
Safety precautions .......................................... 34
Storing the product .........................................35
Product disposal ............................................. 36
Warranty ......................................................... 36
Accessories .................................................... 36
EMS-Service................................................... 37
Symbols .......................................................... 38
Technical data................................................. 39
Troubleshooting .............................................. 40
FB-304_CN_rev_B_Syst_AF.indd 7 28/09/2018 14:43:25

2
PREPARING FOR TREATMENT
Connecting the handpiece
Before each use clean, disinfect and sterilize the different pieces and accessories of this product.
Please refer to the information provided in the operating instructions. Non-sterile parts and accessories
may cause bacterial or viral infections.
FB-304_CN_rev_B_Syst_AF.indd 2 28/09/2018 14:43:25

3
CLICK
治疗预备
连接洁牙手柄
每次使用前，都应对本产品的各个部件和附件进行清洁、消毒和灭菌处理。 请参阅使用说明书中
提供的信息。 未经灭菌的零件和附件可能会造成细菌和病毒感染。
FB-304_CN_rev_B_Syst_AF.indd 3 28/09/2018 14:43:26

4
治疗的常规提示
禁忌症
任何情况下均不得使用气动抛光设备为患有慢性支气管炎或哮喘的患
者进行治疗。 喷出的气体和牙粉可能造成呼吸困难。
不得使用含有碳酸氢钠的牙粉为实行低盐饮食的患者进行治疗。 对于
实行低盐饮食的患者，应使用 EMS 提供的不含碳酸氢钠的牙粉。
关于牙粉的信息
EMS 提供的带香味的牙粉在某些特定情况下可能引发对香料的过敏性
反应。 对于已知晓对此类香料过敏的患者，应使用 EMS 提供的不带香味的
牙粉。
不得将牙粉喷嘴直接对准填充物、牙冠或假牙架，因为这样可能会损
坏这些修复体。
EMS 提供的含有碳酸氢钠的牙粉仅可用于龈上应用。 对于龈下应用，
请使用 EMS 提供的特定牙粉，并参阅其使用说明书。
绝不要使用研磨牙粉，即以二氧化硅或氧化铝为原料制成的牙粉。 这
样可能会损坏装置。
EMS 提供的牙粉经过特殊设计，可与装置配合使用。 不得使用其他制
造商生产的牙粉，因为这样可能损坏装置或对装置的有效性造成不良影响。
GENERAL HINTS FOR TREATMENT
Contra-indication
Patients suffering from chronic bronchitis or asthma must not, under
any circumstances, be treated with an air polishing device. The jet of air and
powder could cause respiratory difculties.
Patients on a low salt diet must not be treated with the powder containing
sodium bicarbonate. For patients on a law salt diet use the powder without
sodium bicarbonate provided by EMS.
Information about powders
The aromatic powder provided by EMS can lead, in specic cases, to
allergic reactions to the avor. For patients known to suffer such reactions,
use the powder without avor provided by EMS.
Do not direct the jet of powder toward llings, crowns or bridgework
as this could damage these restorations.
The powder containing sodium bicarbonate provided by EMS can
be used only for supra-gingival application. For sub-gingival application,
please use the specic powder provided by EMS and refer to its operation
instructions.
Never use an abrasive powder i.e. silica or alumina based. This would
damage the unit.
The powders provided by EMS are especially designed for use with
the unit. Do not use powders from other manufacturers as this could damage
the unit or could adversely affect its efciency.
FB-304_CN_rev_B_Syst_AF.indd 4 28/09/2018 14:43:28

5
使用注意事项
若牙粉意外喷入眼中，可能会导致严重眼损伤。 我们强烈建议所有人
员（包括牙医、护士、患者）在治疗过程中佩戴护目镜。
为了降低细菌或病毒感染以及吸入牙粉的风险，建议牙医和护士佩戴
安全防护面罩。
治疗过程中，患者的隐形眼镜或眼镜可能会被弄脏。 建议摘下隐形眼
镜或眼镜。
A powder jet accidentally directed into the eye can cause severe ocular
injury. During treatment, we strongly advise to all persons concerned dentist,
hygienist, patient, to wear eye protection.
To limit the risk of bacterial or viral infections and the powder inhalation,
we recommend to the dentist and the hygienist to wear a safety mask of
protection.
The contact lenses or glasses of the patient may get dirty during the
treatment. We recommend to take them off.
Precautions for use
FB-304_CN_rev_B_Syst_AF.indd 5 28/09/2018 14:43:29

6
m a c h o ire 3
开始治疗前，应先使用抗菌溶液清洗患者伤口至少30秒钟，这样可以
有效预防治疗过程中发生感染。
强烈建议在患者嘴唇上涂抹 Vaseline®，以免嘴唇干燥和开裂。
棉签可防止唾液流出、分开双唇并保护牙床。
Rinsing the patient mouth before treatment for at least 30 seconds with
an antibacterial solution will greatly prevent bacteria development during the
treatment.
We strongly recommend applying Vaseline®on the patient's lips in
order to avoid their getting dried and chapped.
The cotton rollers stop the ow of saliva, part the lips and protect the
gums.
FB-304_CN_rev_B_Syst_AF.indd 6 28/09/2018 14:43:30

7
m a c h o ire 3
m a c h o ire 3
治疗
放置用于舌下送气的泵机。
使用牙科装置的高速排空设备排空治疗牙齿时跑出的空气/牙粉混合
物。
洁牙手柄和高速排空设备必须由同一操作员操作。 因此高速排空设备
会朝向喷嘴的最佳方向。
Treatment
Position the pump for sublingual aspiration.
Use the high-speed evacuator of your dental unit to evacuate the air/
powder mixture deviated by the treated tooth.
The handpiece and the high-speed evacuator must be handled by the
same operator. The high-speed evacuator is thus directed in an optimal way
towards the nozzle.
FB-304_CN_rev_B_Syst_AF.indd 7 28/09/2018 14:43:31

8
Familiarize yourself with the use of the handpiece by cleaning a yellow coin or an extracted tooth.
You can inuence the result according to the adjustments:
• Increasing the air pressure increases the cleaning effect and reduces the polishing effect.
• Increasing the water ow rate increases the polishing effect and reduces the cleaning effect.
Handling and setting water/air
FB-304_CN_rev_B_Syst_AF.indd 8 28/09/2018 14:43:31

9
操作和设置水/空气
请先通过清洁黄色硬币或清洁已拔下的牙齿的方式熟练掌握洁牙手柄的使用方法。
可以根据适当的调整影响最终效果：
• 增大气压会增强清洁效果，但会削弱抛光效果。
• 增大水流速度会增强抛光效果，但会削弱清洁效果。
FB-304_CN_rev_B_Syst_AF.indd 9 28/09/2018 14:43:31

10
Direct the nozzle strictly towards the surface of the tooth, from the sulcus to the incisal edge.
Respect a distance of 3 to 5 mm.
The angle between nozzle and tooth must be set from 30 to 60 degrees. The atter the angle is,
the larger is the area cleaned.
During treatment, direct the high-speed evacuator towards the air/powder jet deviated by the tooth.
The angle of reection is identical to the angle of incidence.
Working technique
FB-304_CN_rev_B_Syst_AF.indd 10 28/09/2018 14:43:32

11
将喷嘴直接对准牙齿表面，顺着从沟槽到切缘的方向。 保持 3 到 5 mm 的距离。
喷嘴与牙齿之间的角度应设为 30 到 60 度。 角度越小，清洁区域越大。
治疗期间，直接将高速排空设备对准从牙齿中喷出的空气/牙粉。 反射角与入射角相同。
操作技术
FB-304_CN_rev_B_Syst_AF.indd 11 28/09/2018 14:43:33

12
The air/powder jet is powerful. It can cause injury to the gums or an emphysema caused by the
introduction of air into the soft tissues. It is strongly advised to never direct the nozzle at the gum tissue
or into the gingival sulcus.
Proceed with small circular motions for the treatment. Polish all dental surfaces after the treatment
by setting the water ow rate to maximum.
FB-304_CN_rev_B_Syst_AF.indd 12 28/09/2018 14:43:33

13
喷出的空气/牙粉动力很强。 可能造成牙床损伤，或造成因空气进入软组织而引发的气肿。 强烈建
议绝不要将喷嘴对准牙床组织或放入牙龈沟中。
治疗时，应使洁牙手柄保持小圆周运动。 治疗后，将水流速度调为最大值，对全部牙齿表面进行
抛光。
FB-304_CN_rev_B_Syst_AF.indd 13 28/09/2018 14:43:34

14
2 sec. 3 sec.
Precautions to be taken at the end of the treatment
When the foot is lifted of the foot pedal, the air/powder jet continues for a few more seconds. End
the treatment taking this time frame into account.
The nozzle can be introduced into the high-speed evacuator still in the patient mouth. This allows
time for the unit to decompress with no risk of hurting soft tissues.
FB-304_CN_rev_B_Syst_AF.indd 14 28/09/2018 14:43:34
