Enders COSY RATTAN Parts list manual

COSY RATTAN
Portable Infra-Red open-air heater
for non residental space heating
Assembly and usage instructions
WARNING!
For Outdoor Use Only.
WARNING!
Improper installation,
adjustment, alteration, service
or maintenance can cause
property damage, injury or
death. Read the installation,
operation and maintenance
instructions thoroughly before
installing or servicing this
equipment.
Save these instructions for
future reference. Please ensure
the owner of the heater retains
the manual for future reference.
ANS Z83.26-2007 / CSA 2.37-2007
Gas Fired Outdoor Infrared Patio Heater
5515_USA_RATTAN_060110.indd 1 07.01.10 10:26

2Owners manual: model 5515 outdoor patio heater 06-01-2010
WARNING
FOR YOUR SAFETY
If you smell gas:
1. Shut off the gas to the appliance.
2. Extinguish any open ame.
3. If odor continues, keep away from
the appliance and immediately
call your gas supplier or re de-
partment.
WARNING
FOR YOUR SAFETY
1. Gas leaks may cause a re or ex-
plosion which can cause serious
bodily injury, death or damage to
property.
2. You must follow all leak checking
procedures as outlined in step 8
before operating this unit.
3. Never use an open ame to check
for leaks.
WARNING
FOR YOUR SAFETY
Do not store or use gasoline
or other ammable vapours
and liquids in the vicinity of
this or any other appliance.
An LP-cylinder not connected
for use shall not be stored in
the vicinty of this or any other
appliance.
WARNING
California Proposition 65:
Chemicals known to the state of
California to cause cancer, birth
defects, or other reproductive
harm are created by the
combustion of propane.
WARNING
- Purchaser assumes all risk in the
assembly and operation of this unit.
Failure to follow this manual‘s
WARNINGS and instructions can
result in severe personal injury,
death or property damage.
- Do not use in an explosive
atmosphere. Keep heater away
from areas where ammable
liquids, gasoline, vapours, or
explosives are stored or used.
WARNING
Beware of sharp edges, ensure
gloves are worn on assembly.
5515_USA_RATTAN_060110.indd 2 07.01.10 10:26

3Owners manual: model 5515 outdoor patio heater 06-01-2010
TABLE OF CONTENTS Page
1 SAFETY FIRST 4 - 5

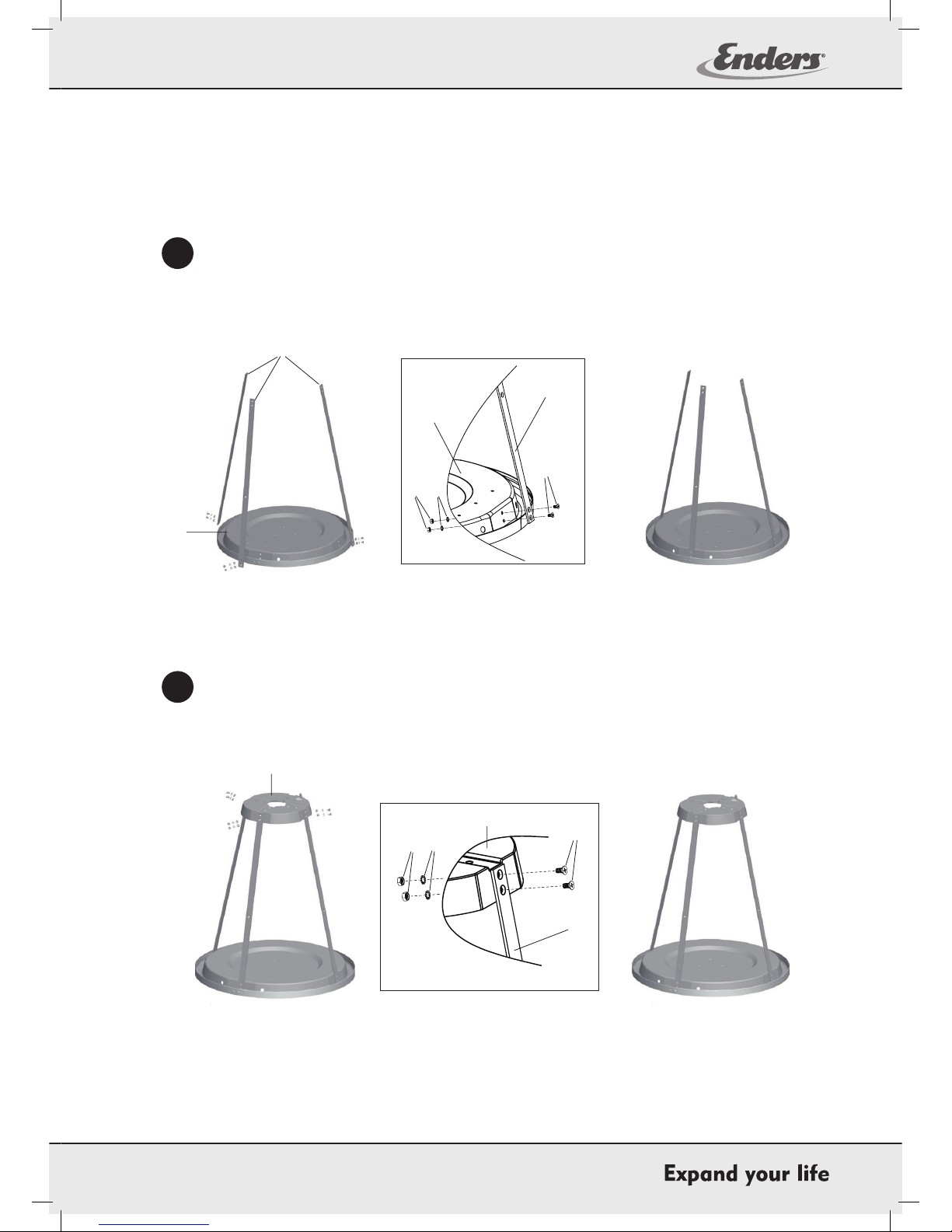

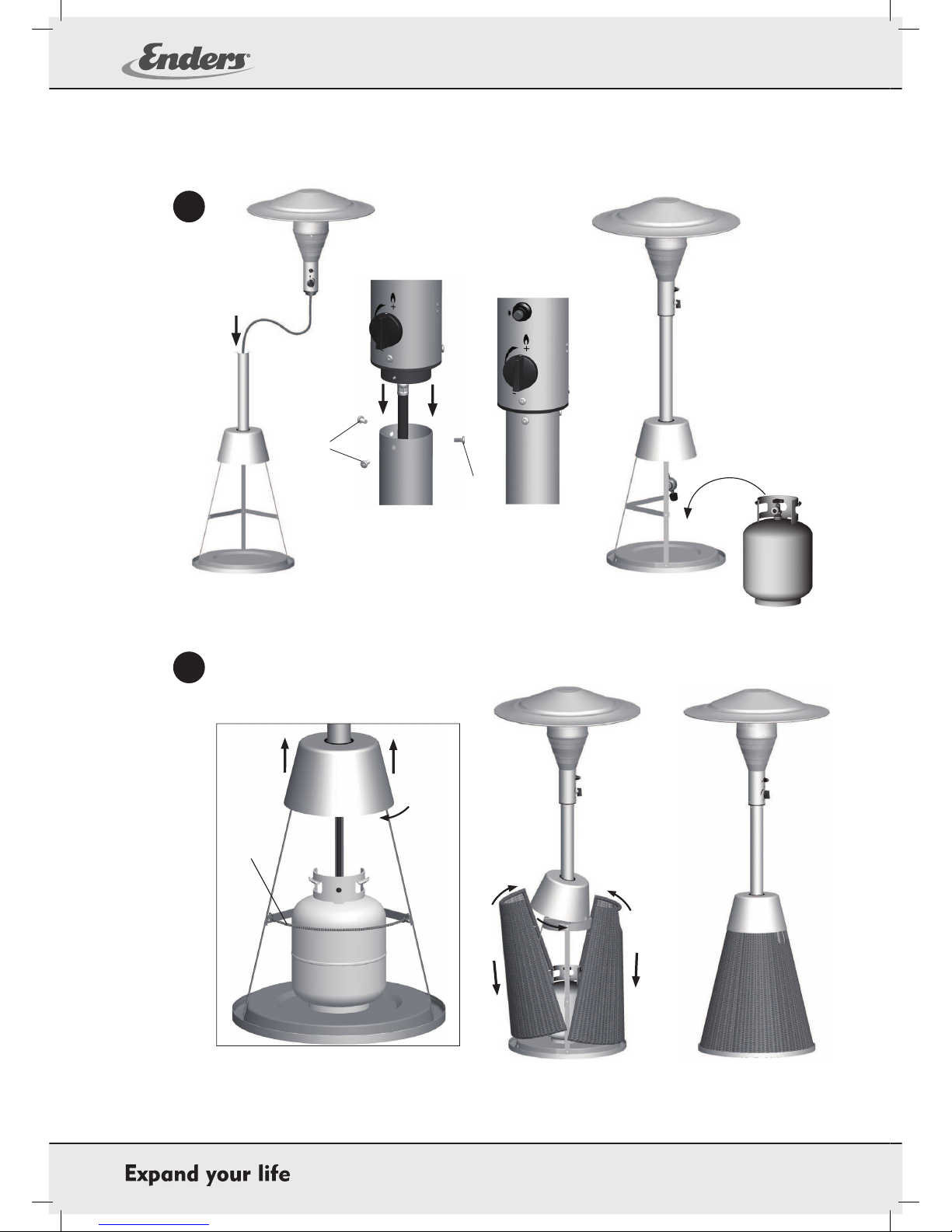

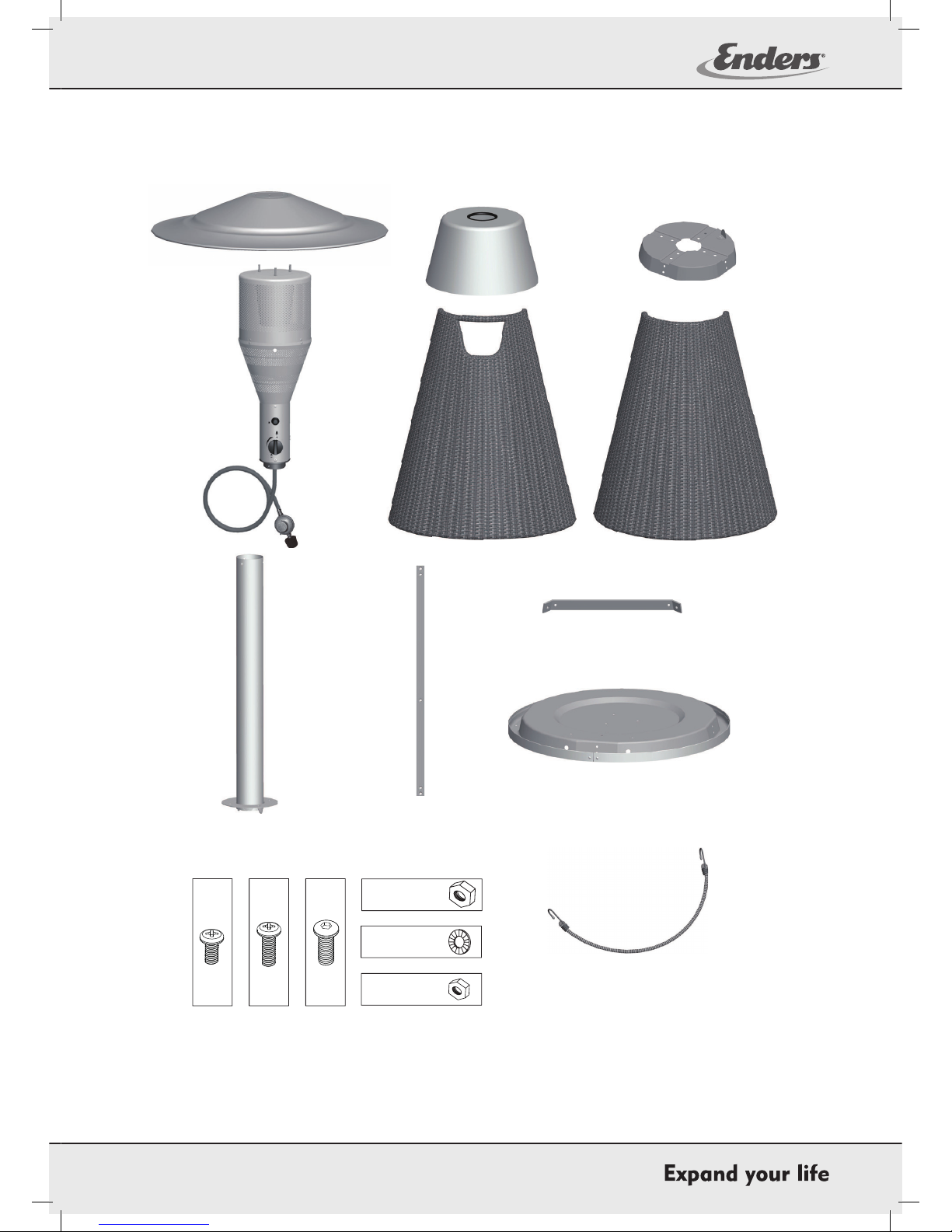

2 ASSEMBLY INSTRUCTIONS in 11 steps 6 - 13
3 OPERATION 14
3.1 BEFORE TURNING GAS SUPPLY “ON“ 14
3.2 BEFORE LIGHTING 15
3.3 LIGHTING 16
3.4 WHEN HEATER IS “ON“ 16
3.5 RE-LIGHTING 16
3.6 SHUTDOWN 16
4 OPERATION CHECKLIST 17
5 CLEANING & MAINTENANCE 18
6 STORAGE 18
7 SPECIFICATIONS 19
8 WARRANTY 19
9 SERVICE ADDRESS 19
The use and installation of this product must conform to local codes. In absence of local codes, use the
National Fuel and Gas Code, ANSI Z223, 1/NFPA 54, Storage and Handling of Liquid Petroleum Gases,
ANSI/NFPA 58 or CSA B149.1, Natural Gas and Propane Installation Code.
The installation must conrm with local building codes or, in the absence of local codes, with the current
CAN 1-B149 installation codes.
THE CONVERSION SHALL BE CARRIED
OUT BY A MANUFACTURE`S AUTHORISED
REPRESENTATIVE, IN ACCORDANCE
WITH THE REQUIREMENTS OF THE
MANUFACTURER, PROVINCAL OR
TERRITORIAL AUTHORITIES HAVING
JURISDICTION AND IN ACCORDANCE
WITH THE REQUIREMENTS OF THE
CAN/CGA-B149.1 OR CAN/CGA-B149.2
INSTALLATION CODES
5515_USA_RATTAN_060110.indd 3 07.01.10 10:26

4Owners manual: model 5515 outdoor patio heater 06-01-2010
1. SAFETY FIRST!
Read and become familiar with this entire manual especially the following
precautions. If you are unsure of anything in these instructions, STOP and
contact for assistance.
Caution:
This application is for outdoor use only (outside any enclosure).
Always make sure there is fresh air ventilation.

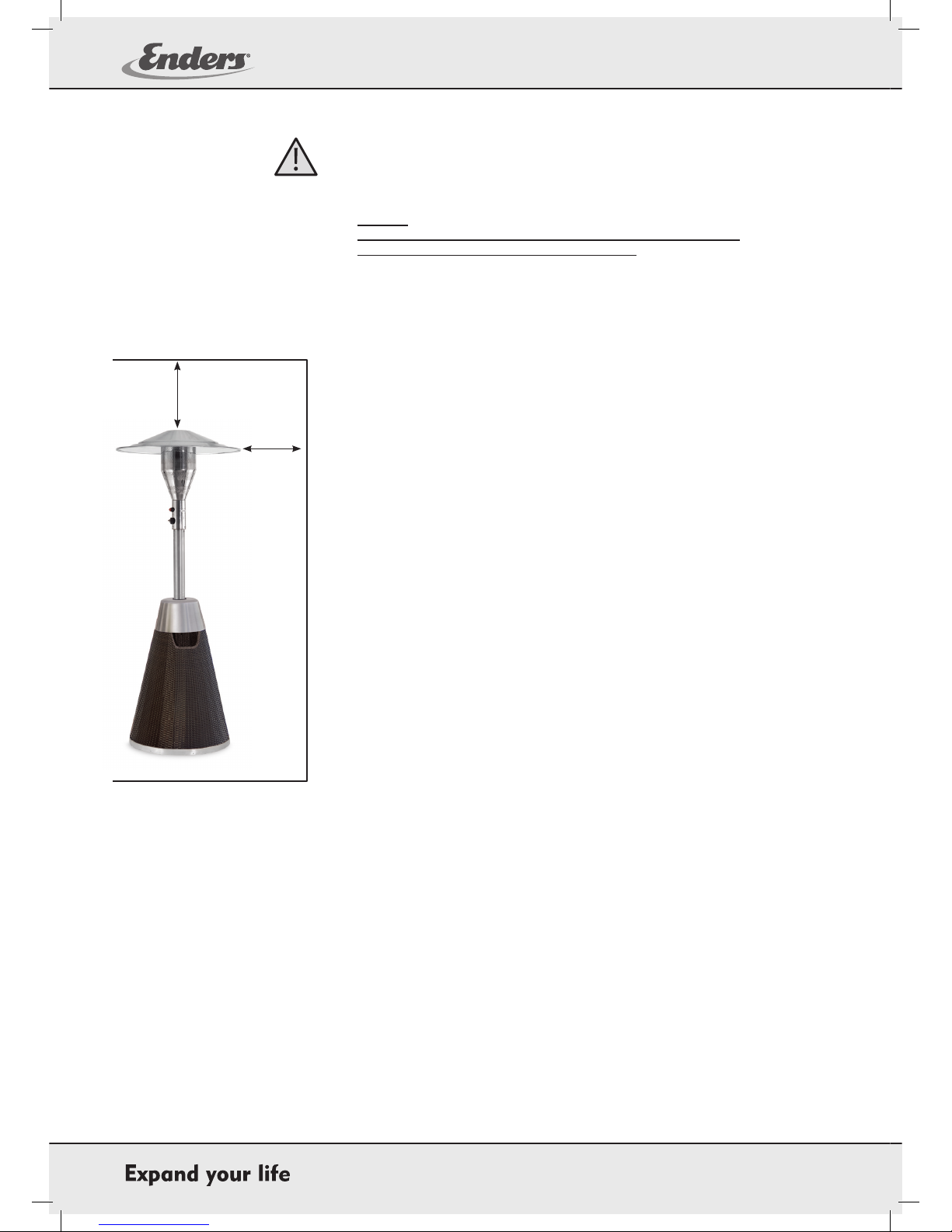

• Always maintain at least 36“ clearance (top) and 24“ clearance (side) from
combustible materials.
• Always place heater on a hard and level surface and mounted.
• Do not use if the wind velocity is greater than 10 miles per hour.
• Unit will operate at reduced ef ciency below 40°F (5°C).
• Keep sprinklers and other water sources away from burner and controls.
• Always use extreme caution when near heater. Alert both children and adults
to the hazards of high temperatures, especially to avoid burns or clothing
catching  re.
• Young children and pets should be carefully supervised when they are in the
area of the heater.
• Do not hang clothing or other  ammable materials either on or near the heater.
• Any guard or other protective device removed for servicing the heater must
be replaced prior to operating the heater.
• Certain materials or items, when stored under the heater, will be subjected to radiant
heat and could be seriously damaged.
• Do not alter heater in any manner.
• The pressure regulator and hose assembly supplied with the appliance must be
used and replacements must be those speci ed by the manufacturer. If regulator
becomes damaged, use only a factory-supplied replacement.
• lnspect heater before each use. If a damaged part is detected, do not operate
until an original equipment replacement part has been properly installed. Use of
unauthorized parts will void warranty and create an unsafe condition.
Please call 847 850 5335 for help!
• Prior to operating the heater, replace any guards or protective devices removed for
servicing.
• During operation, do not touch the burner assembly. The surface of the heater‘s
emitter can reach temperatures approaching 1600°F
• After shutdown, do not touch the burner assembly until the heater has cooled
(approximately 45 minutes after use).
Notice:
This product should not be used with any fuel other than liquid propane.
Use of other fuels will detract from the heaters performance and will void your
warranty.
Ceiling
Wall
36 "
24 "
The used LP-gas cylinder must be:
a Constructed an marked in accordance with the Speci cations for LP-gas cylinders of the U.S. Department of Transportation
(DOT); or the Standard for Cylinders, Spheres and Tubes for Transportation of Dangerous Goods and Commisiion, CAN/
CSA-B339, as applicable;
b Provided with a listed over lling prevention device; and
c Provided with a cylinderconnection device compatible with the connection for the appliance.
Storage of an appliance indoors is permissible only if the cylinder is disconected and removed from the appliance. A cylinder
must be stored outdoors in a well ventilated area out of the reach of children. A disconnected cylinder must have dust caps tightly
installed and must not be stored in a building, garage or any other enclosed area.
Do not store a spare LP-gas cylinder under or near this appliance. Never  ll the cylinder beyond 80 percent full. If the information
above is not followed exacly, a  re causing death or serious injury may occur.
5515_USA_RATTAN_060110.indd 4 07.01.10 10:26

5Owners manual: model 5515 outdoor patio heater 06-01-2010
Caution:
Liquid propane (LP) gas is ammable and hazardous if handled improperly.
Become aware of the characteristics before using any LP product.
• LP Characteristics — Flammable, explosive under pressure, heavier than air - settles
in pools in low areas.
• In its natural state, propane has no odor. For your safety, an odorant is added and
has a bad smell.
• Contact with LP can cause freeze burns to skin.
• This heater is shipped from the factory for LP gas use only.

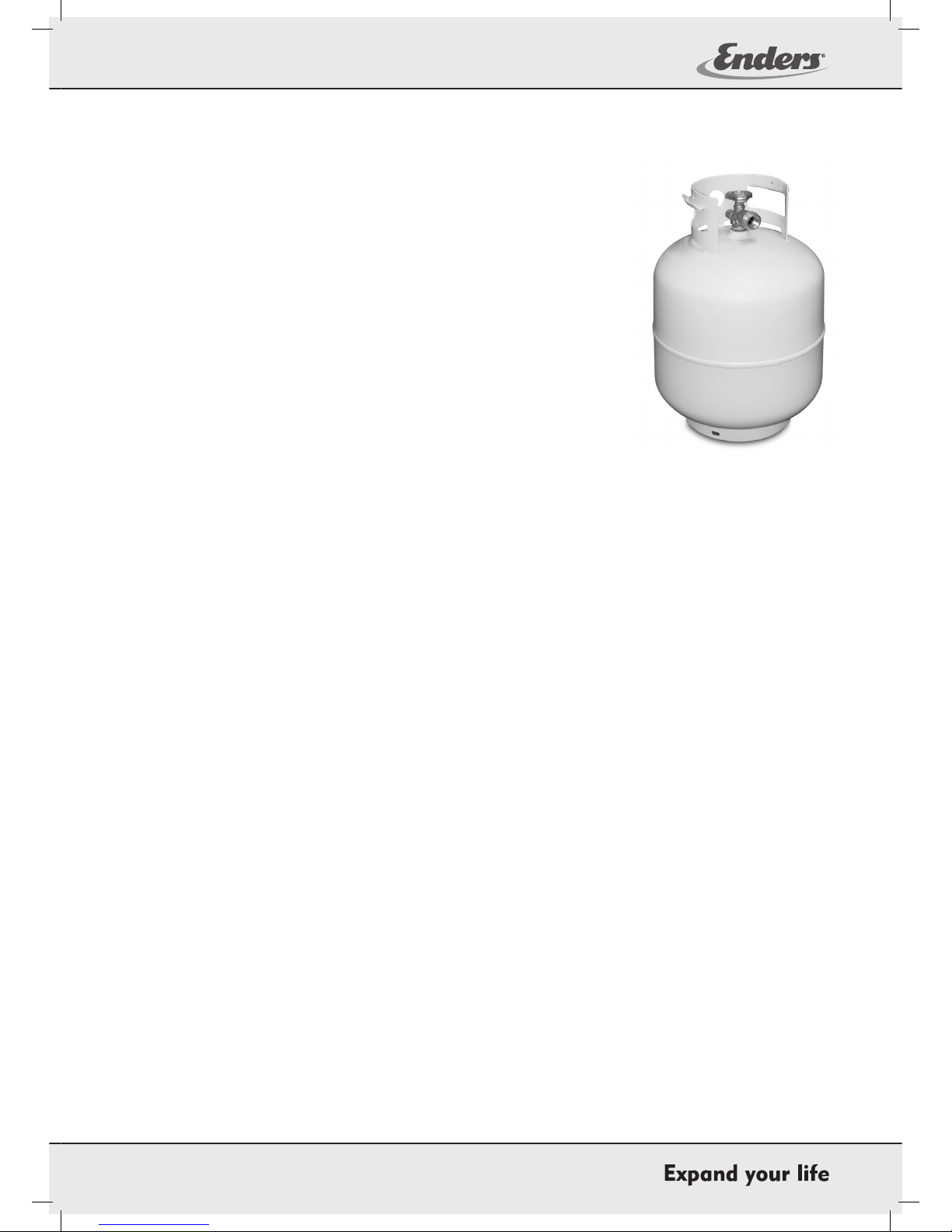

• Use only Department of Transportation (DOT) approved “20 Ib.“ LP gas tanks (Same
as those commonly used on gas grills) with Acme / Type 1 / QCC safety valves. These
valves can be quickly identied because they have external and internal threads.
• Never use an LP tank with a damaged body, valve, collar, or foot ring.
• Dented or rusted LP tanks may be hazardous and should be checked by your LP gas
supplier.
• The tank supply system must be arranged for vapour withdrawal.
• The tank used must include a collar to protect the tank valve.
• When heater is not in use, turn LP tank 0FF.
• Always perform a leak test on gas connections whenever a tank is connected. Never
use a ame to test for leaks. Do not smoke while performing a leak test.
Caution:
It is essential to keep the heater‘s valve compartment, burners,
and circulating air passages clean.
• Spiders and insects can create a dangerous condition that may damage the heater
or make it unsafe. Keep the burner area clean of all spiders, webs, or insects.
• lnspect the heater before each use.
• Have heater inspected annually and repairs should be made by a qualied
service person.
• Check the heater immediately if any of the following conditions exist:
• The smell of gas in conjunction with extreme yellow tipping of burner ames.
• Heater does not reach the proper temperature.
Note:
At temperatures less than 40°F, heat output will be reduced.
• Heater‘s glow is excessively uneven
• Burner makes popping noises during use.
Note:
A slight pop is normal when burner is extinguished.
• Carbon deposits may create a re hazard. Keep dome and emitter clean at all times.
• Do not clean heater with combustible or corrosive cleaners. Use warm, soapy water.
• Do not paint the burner, the burner access panel or dome.
FOR YOUR SAFETY
BEARE OF SPIDERS
Spiders or small insects can get into
the burner tube or other openings
of your heater and spin webs or
build nests.
These obstructions can lead to
gas ow problems. It is important
to make frequent inspections of
these areas and clean them when
necessary.
Before operating your heater for
the rst time, be sure to check
for obstructions that may have
occurred during shipment.
