Enders POLO 2.0 User manual

www.enders-germany.com
546033
GB INSTRUCTION MANUAL 02
ES MANUAL DE USO 16
NL GEBRUIKSAANWIJZING 30
POLO 2.0
PATIO HEATER
ESTUFA PARA EXTERIORES
TERRASVERWARMER
!
!
CAUTION!
DO NOT OPERATE THE DEVICE
IN ENCLOSED SPACES AND/OR
HABITABLE ROOMS! USING THIS
DEVICE IN AN ENCLOSED SPACE IS
DANGEROUS AND PROHIBITED.
THERE IS A RISK OF DEATH FROM
CARBON MONOXIDE POISONING.
CHECK THE CONNECTIONS ARE
AIRTIGHT BEFORE EACH USE! BUBBLE
FORMATION INDICATES THAT THE
CONNECTION IS LEAKING AND
THAT THERE IS A RISK OF FIRE AND
EXPLOSION!

2
ENGLISH
CONTENT
INFORMATION REGARDING 03
SYMBOLS IN THESE INSTRUCTIONS 03
UNPACKING 04
SAFETY NOTICE
REQUIRED TOOLS/AUXILIARY MATERIALS
PARTS DESCRIPTION
SCOPE OF DELIVERY
CLEANING/SERVICING 11
SICHERHEITSHINWEISE
STORAGE/TRANSPORT 12
SICHERHEITSHINWEISE
DISPOSAL 12
TECHNICAL SPECIFICATIONS 13
WARRANTY/WARRANTY CERTIFICATE 14
CONNECTING THE GAS CYLINDER 06
SAFETY NOTICE
REQUIRED TOOLS/AUXILIARY MATERIALS
ASSEMBLY PROCESS
OPERATING THE PATIO HEATER 08
SAFETY NOTICE
TURNING ON
TURNING OFF
FIRST AID MEASURES
MANUFACTURER 44

3
POLO 2.0 546033
220510
SYMBOLS IN THESE INSTRUCTIONS
Declaration of Conformity
Products marked with this symbol
comply with all applicable community
regulations of the European Economic
Area.
The EU Declaration of Conformity can
be requested at the address given on
the reverse.
!
!
This symbol stands for the word
ATTENTION and warns of possi-
ble injuries or material damages
as well as damage to the appli-
ance.
Have another person help you here.
Useful tips and information.
Wear safety gloves during assembly, to
avoid getting cut.
Tools are required.
Do not use a cutter or similar sharp
objects when opening the packaging,
to avoid making scratches on the pro-
duct.
Furthermore, during assembly, place
a soft mat beneath the components, to
avoid scratches and damages here as
well.
Congratulations on purchasing this Enders product!
Please read and observe these instructions for use and
particularly the safety notice before using the product
and only use the product as described in these instruc-
tions, to prevent accidental injuries or damages.
Keep these instructions for future reference. If the pro-
duct is given to someone else, please include these in-
structions.
Have fun with your Enders gas grill.
INFORMATION REGARDING

No Quantity
11
21
31
41
51
62
72
81
91
10 1
11 1
12 1
13 1
14 1
15 2
16 2
17 2
18 5
No Quantity
19 2
20 9
21 3
22 2
23 13
24 2
25 2
26 8
27 2
28 18
29 2
30 2
32 1
4
ENGLISH
!
QDespite careful processing of all individual
parts, individual components can have
sharpedges.Therefore,pleasewearsafety
gloves, to avoid getting cut.
SAFETY NOTICE
UNPACKING
QRisk of death by suffocation/swallowing.
Keep the packaging materials out of
the reach of children and dispose of it
immediately. Also keep small parts out of
their reach.

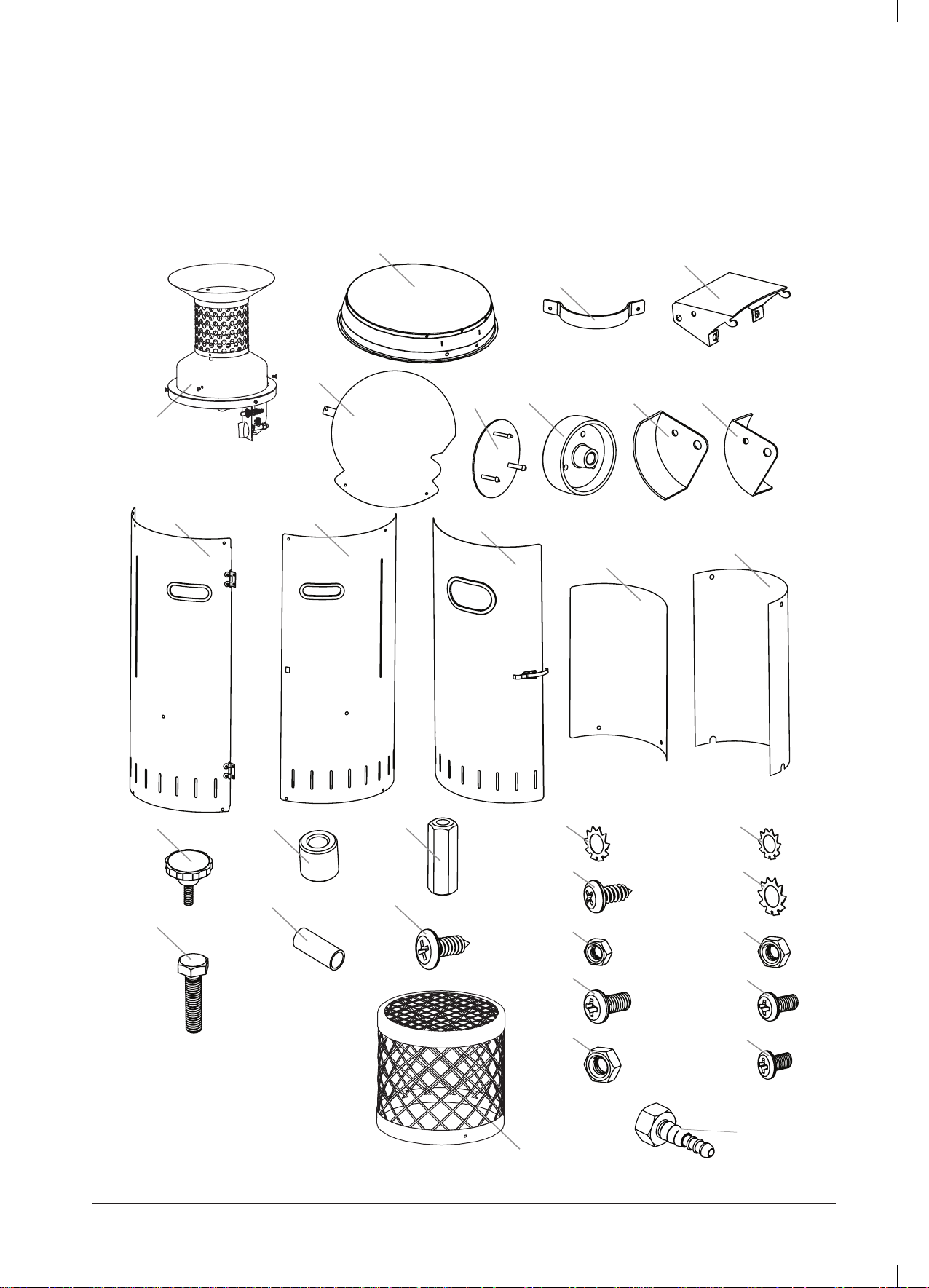

PARTS DESCRIPTION
REQUIRED TOOLS/AUXILIARY MATERIALS

32
1
2
3
4
5
6 7 98
10 11 12
13 14
15
16
17 18 19 20
21 22
23 24
25 26
27 28
29 30
33
5
POLO 2.0 546033
220510
31
SCOPE OF DELIVERY

6
ENGLISH
!
QThe gas grill can only be operated with a
pressure regulator. Also read and observe
the assembly instructions and instructions
for use, which are separately enclosed with
the pressure regulator.
QThe gas hose may have to be replaced if
respectivenationalregulationsorthelifetime
of the hose line require this.
QGas hose and pressure regulator must be
replacedatregularintervals.(Forthis,please
refer to chapter Cleaning/Servicing.)
QGet information at a specialist shop when
purchasing or renting gas cylinders.
QMake sure that there are no sources of
CONNECTING THE GAS CYLINDER
ignition, open fire or the like in the vicinity,
when connecting or replacing the gas
cylinder.
QMake sure that the gas hose does not have a
kinkinit oris chafed andthatits entire length
is accessible.
QAfter installing the gas cylinder, please check
all connection points for leak tightness using
a commerciallyavailableleakdetectionspray
orsoapywater.Iftherearenoleaks,cleanthe
connections with water after the inspection.
QChecking for leaks with an open flame is
strictly prohibited!
SAFETY NOTICE
RISK OF FIRE AND EXPLOSION
JUMBO REGULATOR - Gas connection
DIN EN 16129 (Not included)
EN 16436-2
(Not included)

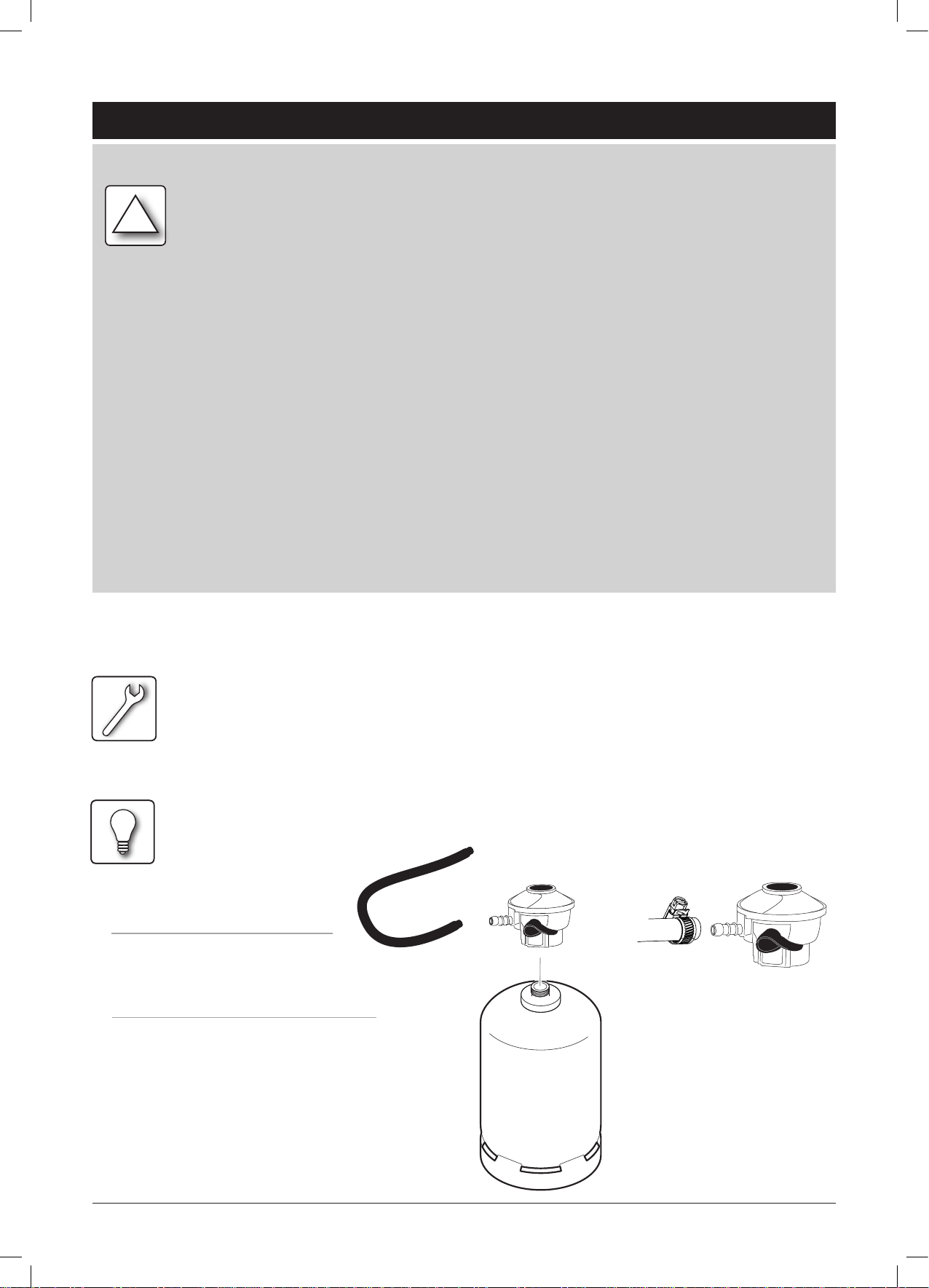

ASSEMBLY PROCESS
REQUIRED TOOLS/AUXILIARY MATERIALS

7
POLO 2.0 546033
220510
32 1
1. Place the gas cylinder next to the patio heater.
2. Screw the swivel nut (left-hand thread) on the hose
end onto the screw connection on the patio heater.
Tighten the swivel nut firmly by hand. Do not use
tools to avoid damaging the gasket.
2.1 GB (CLICK ON) CONNECTING THE GAS CYLINDER:
Screw the union nut (left-hand thread) of the
pressure regulator onto the thread on the gas
cylinder or connect the pressure regulator to the
connection on the gas cylinder and secure with the
Click ON fastener.
3. Screw the adapter (right-hand thread) hand tight
onto the thread on the patio heater. Do not use tools
here either to avoid damaging the gasket. Connect
the hose to the adapter nozzle and secure with the
hose clamp.
4. Connect the other end of the hose to the nozzle on
the pressure regulator and also secure with the
hose clamp.
5. Spray all sealing points with standard leak detection
spray or brush on soapy water (ratio 1 part soap/3
parts water). Open the valve on the gas cylinder.
Bubbles will form wherever there are leaks. Close
the valve on the gas cylinder and fix the leak. Then
repeat step 5 until all leaks are fixed.
ASSEMBLY PROCESS
ATTENTION
!
Gas cylinders with maximum dimensions of
Ø 30 x 59 cm can be used and placed in the grill
cart. Larger cylinders can only be placed next
to the grill.

8
ENGLISH
OPERATING
SAFETY NOTES
!
INTENDED USE
QUsingthisdeviceinan enclosed areaisDANGEROUS
and PROHIBITED.
QCAUTION: For use
outdoors or in well
ventilated areas. In the
case of a well ventilated
area, at least 25 % of
the enclosure area must
be open. The enclosure
area is the total of all walls. According to applicable
regulations, the device must be installed and the
liquid gas cylinder used.
QThe installation area must have a minimum volume
of 20 m³ per 1 kW of installed nominal heat input
of the fire pit and be well ventilated (covered patio,
beer tents, etc.).
QThis device must be installed per these instructions.
QThe fire pit must not be used in residential,
basement and office spaces or similar spaces.
QThe fire pit may only be operated using an
interconnected pressure regulator with a
permissible output pressure (see Type plate and
factory preset).
QOnly use the types of gas and gas cylinders
recommended by the manufacturer!
QThe gas cylinder should be in the designated
enclosure when operating the device.
QCAUTION: The glass becomes very hot during
use. If the screen on the device splits or breaks,
do not touch with bare hands. Immediately shut
off the gas supply, remove all shards with tools to
prevent injuries, and contact the manufacturer for
a replacement screen.
FIRE AND EXPLOSION HAZARD
QThe device must be placed on a level, firm base.
QWe recommend using a suitable mat to protect the
flooring.
QIn high winds, ensure the device does not tip.
QVerify the gaskets on the cylinder valve are in place
and in good condition (no damage) before every
use. Do not use additional gaskets.
QNever kind the gas hose.
QThe remaining distance to flammable objects must
not be less than 1 m.
QProtect liquid gas cylinder from strong sunlight
(< 40°C).
QMaintain a safe distance to flammable
materials and substances during use. The
distance in the radiation direction between
the radiating surface and flammable
substances must not be less than 2 m.
QDo not cover the vents of the housing
for the liquid gas cylinder. Any escaping
gas would build in the container, posing an
explosion hazard.
QDo not move the device during use.
QRemove the gas cylinder before moving the device.
QRepairs and maintenance of gas-related parts of the
device must be carried out by authorised specialists.
QAlways immediately shut off the valve of the gas
cylinder if a malfunction occurs.
QShut off the valve of the liquid gas cylinder or the
pressure regulator after use.
QCheck the gas hose for cracks and damages before
every use.
QThe hoses must be replaced within the prescribed
periods.
QThe gas hose and the pressure regulator must be
replaced by a specialised company at least every
10 years.
QIf the gas hose is damaged, replace with a gas
hose of the same quality and length, not to exceed
150 cm.
QDo not use the device if there is a gas leak. The
gas supply must be shut off if this occurs during
use. Check the device and replace damaged parts
before using it again. Tighten any lose connections.
QClose the valve of the liquid gas cylinder or the
pressure regulator before moving the device.
QCheck all connections for leaks following
installation. Use a foaming agent (e.g. gas control
spray or soapy water).

9
POLO 2.0 546033
220510

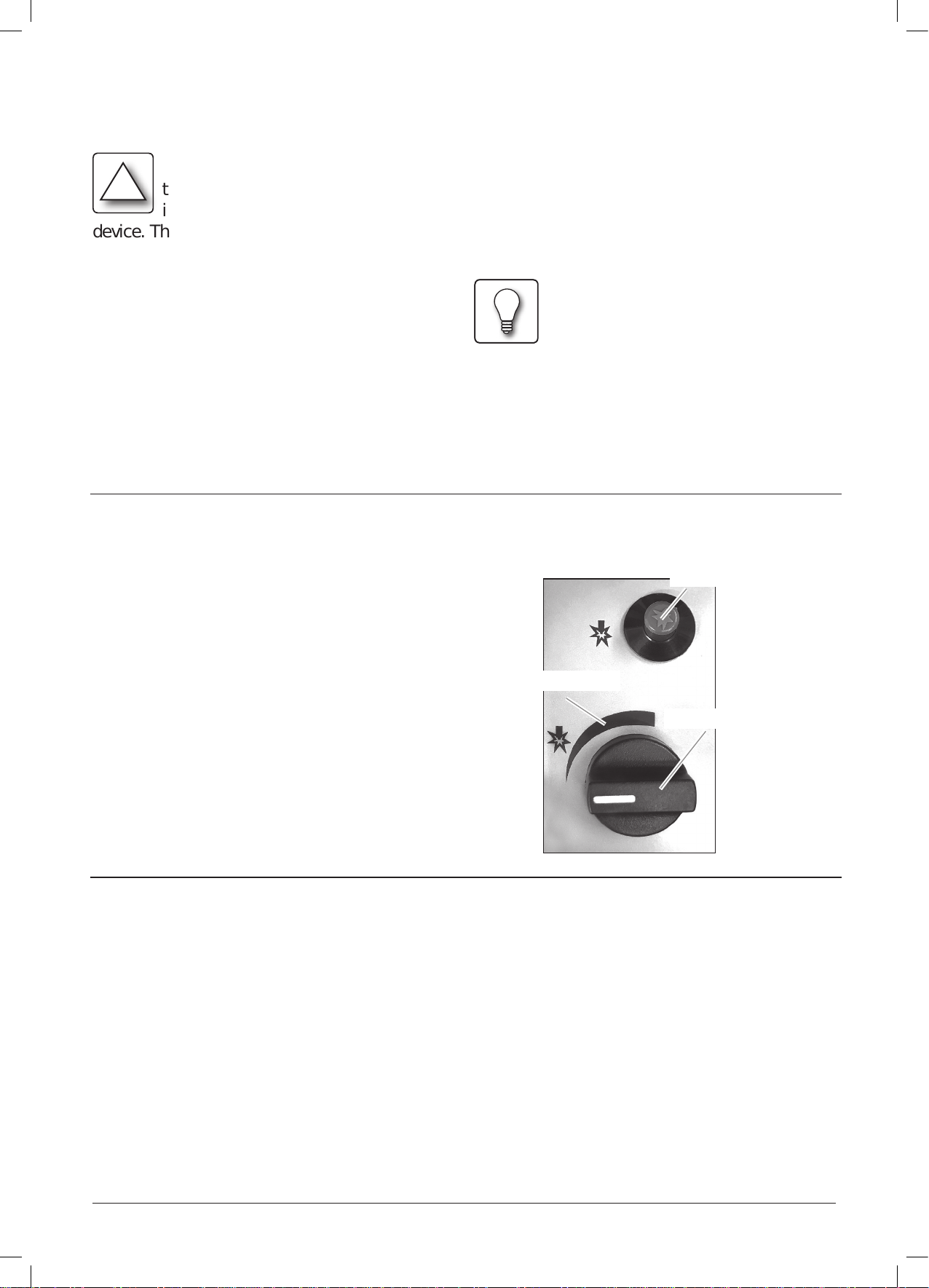

TURNING ON
CAUTION: Asmallamountofdeflagra-
tion may occur on the burner when
igniting and when switching off the
device. This does not constitute a fault with the
device and is no cause for alarm. Always keep a
sufficient distance from the burner.
1. Open the regulator valve.
2.Press the regulator button (F) until the small flam
symbol appears and at the same time continuously
press the piezo-ignition button (G). After successful
ignition, keep the regulator button pressed for
another 10 seconds. This brings the burner up to the
necessary operating temperature.
TURNING OFF
1. To switch of the device, close the regulator valve.
PROBLEM:
QThe patio heater does not ignite.
QThere is a gas smell.
SOLUTION:
QThe patio heater contains a tilt prevention device,
making possible to encapsulate the gas feed can
in a globe during transportation. In order to acti-
vate the gas feed, shake the burner head lightly to
propel the globe back to its original position and
ensure a proper supply of gas.
QDo not use the device if there is a gas leak. The gas
supply must be shut off if this occurs during use.
Check the device and replace damaged parts befo-
re using it again.
NOTE: The device can also
be ignited by other means of ignition
(candle lighter, long match) through the side of the
glow grille. Wear gloves and keep a safe distance
from the burner! Caution, accessible parts can be
extremely hot. Keep away from children
Piezo ignition (G)
Control knob (F)
high/low setting
SYMBOL EXPLANATION
3. The rare case that the heater does not ignite after
the piezo-ignition button has been pressed 4 or 5
times, repeat the procedure after 2 minutes.
!

10
ENGLISH
REFLECTOR
QThe height-adjustable reflector provides
optimal alignment and individually adjustable
heat protection on the back of the device.
QCAUTION: Only lower the reflector when it
is cold!
Reflector
The reflector can be
freely adjusted
!
FIREFIGHTING MEASURES
QBring bystanders to safety! If possible, close
the valve on the gas cylinder. Cool off the
gas cylinder with water. When doing so,
pay attention to your own safety! A repeated
spontaneous, explosive combustion is
possible.
QIn case of fire, filled compressed-gas
cylinders should be removed from the
flammable surroundings. If this is not
possible, the compressed-gas cylinders
should be protected against too intensive
heat by spraying them with water or similar
suitable means from a protected location.
MEASURES AFTER INHALING GAS
QHigh concentrations can cause suffocation.
Symptomscanbethelossoftheabilitytomove
and consciousness. The victim is not aware
of being suffocated. In low concentrations
dizziness, headaches, nausea and problems
with coordination can arise.
QBring the victim to a location where he/
she can breath fresh air. Call a physician or
the emergency services. Conduct first aid
measures in the event of respiratory arrest.
MEASURES AFTER SEVERE BURNING
OR SCALDING
QThere is an acute risk of hypothermia
and shock. Call emergency services
immediately!
QImmediately extinguish possible burning
clothing with water or put out the flames
using a thick blanket.
QInthecaseofscalding:Immediatelyremove
clothing.
QIn the case of burns: Leave clothing on the
body.
QCool with cold water for at least 15 minutes
until the pain subsides.
QCover the respective area with a sterile
Metalline compress. Place the side coated
withMetallineontheinjuredskinandloosely
fixate with a gauze bandage and a cravat.
QDo not use any “household remedies” such
asointments, powder,oils, disinfectants, etc.!
MEASURES AFTER MINOR BURNS
OR SCALDING
QIn the case of scalding: Immediately remove
clothing.
QIn the case of burns: Only remove clothing if
it does not stick.
QCool with cold water for at least 15 minutes
until the pain subsides.
QAllow minor burns or scalding without
blistering to heal with the help of fresh air; do
notcoverwithaplasteroranyotherdressing.
FIRST AID MEASURES

11
POLO 2.0 546033
220510
QDo not use any aggressive cleaning agents or those
containing chlorine.
QWipe the soiled surface with a damp cloth or rinse
with hot water. If necessary, use a mild detergent.
Rinse with water and wipe the entire surface with a
microfiber cloth.
QWhen using a mild cleaning agent, the
manufacturer‘s instructions / product information
should be observed in order to avoid surface
damage.
QAllow the device to dry completely before using it
again.
!
CLEANING/SERVICING
QDespite careful processing of all individual
parts, individual components can have
sharp edges. Therefore, please wear safety
gloves, to avoid getting cut.
QHot surface: Do not clean the patio heater
until it has sufficiently cooled off.
RISK OF FIRE AND EXPLOSION
Avoiding grease fires:
QClean the appliance each time before use,
to avoid the accumulation of grease. When
doing so, pay particular attention to grease
accumulation on the inside of the firebox,
the flame covers, the grease drip tray and
the grease cup.
QDo not use any flammable cleaning agents.
Handling the gas installation/gas grill:
QRepairs and servicing of the gas-conveying
parts can only be conducted by specialists
authorized to do so.
QDo not make any modifications to the gas
grill or pressure regulator. The hose must
be serviced after 5 years (refer to the date of
manufacturer on the hose).
QReplace the pressure regulator and the
hose after 10 years at the latest; even if no
external damage can be detected. Make sure
that the pressure regulator is approved for
your country and the gas used and that it is
adjustedtothecorrect output pressure (refer
to Technical Specifications) . A new hose
cannot be longer than 1.5 m.
QAll components, which were sealed by the
manufacturer or its representative, cannot
be manipulated or modified.
QTogether with oil, the gas forms an explosive
mixture. Never try to loosen tight valves or
regulator knobs with oil or penetrating oil.
QThe burners can be removed for cleaning
purposes.
SAFETY NOTICE

12
ENGLISH
DISPOSAL
The product packaging is made of recyclable materials,
whichcanbeusedforrecycling.Disposeofthispackaging
correctly sorted in the collection bins provided.
If you want to dispose of the product, do not do so with
household waste. Ask your local waste management
company or your municipal administration about the
possibilities of an environmentally-friendly disposal,
which preserves resources.
!
QStore the gas cylinder out of the reach of
children.
QKeepthegascylinderawayfromflammable
gases and other oxidizing substances.
QEscaping liquefied gas is heavier than air
and sinks to the ground. Do not store the
gas cylinder in the house, under ground
level (e.g. basements, wells, underground
car parks, etc.) or in non-ventilated spaces,
in which escaping gas could accumulate.
QProtect the gas cylinder against direct
sunlight and other heat sources.
QStore the gas cylinder at temperatures
under 40°C in a well ventilated space and
where it is protected against the influences
of weather.
QStore the gas cylinder in an upright position
and ensure it cannot topple over.
STORAGE/TRANSPORT
QThese storage instructions also apply to
empty gas cylinders because these always
contain a residual amount of liquefied gas.
QIfpossible,donottransportthegascylinder
in vehicles, in which the cargo bay/boot is
not separated from the driver’s cab. The
driver must be aware of the possible risks
of the load and he/she must know what to
do in case of an accident or emergency.
QTransport the gas cylinder in an upright
position and ensure it cannot topple over or
slip/shift.
QMake sure the valve on the gas cylinder is
closed and leakproof.
QAsk your gas retailer about effective
national requirements and information.
QStore the appliance in a dry room free of frost.
Close the lid of the grill and cover the appliance,
to prevent soiling and damages.
SAFETY NOTICE
RISK OF FIRE AND EXPLOSION

13
POLO 2.0 546033
220510
MODEL: POLO 2.0
Item no.: 546033
∑ QnHs:6 kW/ 437 g/h
Type of gas: Propan G31/Butan G30
Product ID no.:
UKCA Product no.: 0085CM0371 742142
Dimensions: 115 x Ø 42 cm
Weight: 13 kg
Vers. no.: 220510
This appliance has been tested and approved in
accordance with DIN EN 14543 : 2017. As shipped, the
appliance is designed for operation with liquid gas.
Recommended hose length: 0,4 m
Gas canister: Ø: 30 x 59 cm can be positioned into the
appliance.
Dest. Category p (mbar) Nozzle designation (mm)
GB I3+ 28-30/37 Ø 1,25
TECHNICAL SPECIFICATIONS
0085
22
0086/22

14
ENGLISH
We offer a 2 year warranty on the function of the
appliance. The warranty is contingent upon proper use
of the unit and official proof of purchase including the
date the unit was bought.
The warranty becomes null and void after expiration
of the guarantee period or immediately if independent
modifications are performed on the appliance.
Manipulation of components sealed by the manufacturer
or its representative is strictly forbidden!
If, despite our quality control measures, your product
should display a defect, please contact Enders directly
and do NOT return it to the retailer. This enables us to
process your inquiry quickly.
Service:
www.enders-germany.com
Please complete and keep warranty card and proof of
purchase for further reference!
Model name:
Manufacturer part number
Serial number (see back of appliance)
Purchase date
Point of purchase
WARRANTY/WARRANTY CERTIFICATE
Attach proof of purchase
For spare parts orders, see page 10 of the
assembly instructions

15
POLO 2.0 546033
220510

ESPAÑOL
16
CONTENIDO
ACERCA DE ESTA CHIMENEA PARA EXTERIORES 17
SÍMBOLOS EMPLEADOS EN ESTE MANUAL 17
DESEMBALAR LA CHIMENEA PARA EXTERIORES 18
ADVERTENCIAS DE SEGURIDAD
HERRAMIENTAS/MATERIAL NECESARIO
DESCRIPCIÓN DE LAS PIEZAS
VOLUMEN DE ENTREGA
LIMPIEZA Y MANTENIMIENTO 25
ADVERTENCIAS DE SEGURIDAD
ALMACENAJE/TRANSPORTE 26
ADVERTENCIAS DE SEGURIDAD
DESECHO 26
DATOS TÉCNICOS 27
GARANTÍA/CERTIFICADO DE GARANTÍA 28
FABRICANTE 44
CONECTAR LA BOMBONA DE GAS 20
ADVERTENCIAS DE SEGURIDAD
HERRAMIENTAS/MATERIAL NECESARIO
DESCRIPCIÓN DEL MONTAJE
CERRAR LA CARCASA
UTILIZAR LA CHIMENEA PARA EXTERIORES 22
ADVERTENCIAS DE SEGURIDAD
ENCENDER LA CHIMENEA PARA EXTERIORES
APAGAR LA CHIMENEA PARA EXTERIORES
MEDIDAS DE PRIMEROS AUXILIOS

POLO 2.0 546033
17
220510
ACERCA DE ESTA CHIMENEA PARA EXTERIORES
¡Enhorabuena por haber elegido este producto de la
marca Enders!
Instale la chimenea para exteriores siguiendo las
instrucciones que le damos a continuación.
Lea el manual antes de instalar y poner en marcha
el producto. Utilice el producto exclusivamente tal y
como se describe en este manual para evitar lesiones
o daños por accidente.
El aparato deberá ser instalado de acuerdo a las
instrucciones y regulaciones locales. Guarde este
manual a buen recaudo para futuras consultas.
En caso de entregar el artículo a terceros, incluya
también este manual.
Deseamos que disfrute con su chimenea para
exteriores de Enders.
SÍMBOLOS EN ESTAS INSTRUCCIONES
Declaración de conformidad
Los productos identificados con este
símbolo cumplen con todas las dis-
posiciones comunitarias del espacio
económico europeo. Puede consultar
la declaración de conformidad EU en
la dirección indicada en el reverso.
!
!
Este símbolo representa el tér-
mino indicativo ATENCIÓN y le
advierte de posibles lesiones
o daños materiales, así como
daños al aparato.
Deje que otra persona le ayude en
este punto.
Consejos e información útiles.
Utilice guantes de seguridad durante
el montaje para evitar lesiones por
cortes.
Se requieren herramientas.
No utilice un cúter u otros objetos afil-
ados similares al abrir el embalje para
no rayar el aparato.
Coloque una base blanda bajo las
piezas durante el montaje para evitar
también arañazos y daños.

ESPAÑOL
18
DESEMBALAR LA ESTUFA PARA EXTERIORES
ADVERTENCIAS DE SEGURIDAD
QA pesar del cuidado puesto en la fabricación
de todas las piezas, es posible que algunos
componentes presenten bordes afilados. Por
ello, utilice guantes de seguridad durante el
montaje para evitar lesiones por cortes.
QPeligro de muerte por asfixia y/o
atragantamiento. Mantenga el material de
embalaje fuera del alcance de los niños y
deséchelo inmediatamente. Guarde las
piezas pequeñas fuera del alcance de los
niños.
HERRAMIENTAS/INSTRUMENTOS NECESARIOS
!
DESCRIPCIÓN DE LAS PIEZAS
N° Quantité
11
21
31
41
51
62
72
81
91
10 1
11 1
12 1
13 1
14 1
15 2
16 2
17 2
18 5
N° Quantité
19 2
20 9
21 3
22 2
23 13
24 2
25 2
26 8
27 2
28 18
29 2
30 2
32 1

POLO 2.0 546033
19
220510
VOLUMEN DE ENTREGA
32
1
2
3
4
5
6 7 98
10 11 12
13 14
15
16
17 18 19 20
21 22
23 24
25 26
27 28
29 30
33

ESPAÑOL
20
CONECTAR LA BOMBONA DE GAS
ADVERTENCIAS DE SEGURIDAD
!
PELIGRO DE INCENDIO Y EXPLOSIÓN
QATENCIÓN: Está prohibido utilizar el aparato
sin el regulador de presión. En la placa de
identificacióndelaparatoencontraráinformación
relativa a la presión del gas específica para
cada país. El regulador de presión incluido está
debidamente configurado de fábrica para el
funcionamiento con gas líquido. Por favor, lea y
observe también las instrucciones de instalación
y uso adjuntas con el regulador de presión.
QEs posible que tenga que reemplazar la
manguera de gas y el regulador de presión
si así lo exigen las directivas nacionales o
el periodo de validez de los mismos. (véase
apartado LIMPIEZA Y MANTENIMIENTO.)
QDéjese asesorar por un especialista cuando
compre o alquile la bombona de gas.
QAsegúrese de que no haya fuentes de
ignición, llamas abiertas o similares en las
inmediaciones mientras instala o cambia la
bombona de gas en un espacio bien ventilado.
QAsegúrese de que la manguera de gas no
esté doblada ni desgastada.
QDespués de instalar la bombona de gas,
compruebe la estanqueidad de todos los
puntos de conexión utilizando un espray
detector de fugas o agua con jabón. Una vez
comprobado que no haya fugas, limpie las
uniones con agua.
QATENCIÓN: ¡Queda terminantemente
prohibido realizar el test de estanqueidad con
llamas abiertas, ya que el gas fugado podría
incendiarse!
HERRAMIENTAS/INSTRUMENTOS NECESARIOS
PROCESO DE MONTAJE
REGULADOR JUMBO - Conexión de gas
DIN EN 16129 (No incluido)
EN 16436-2
(No incluido)
