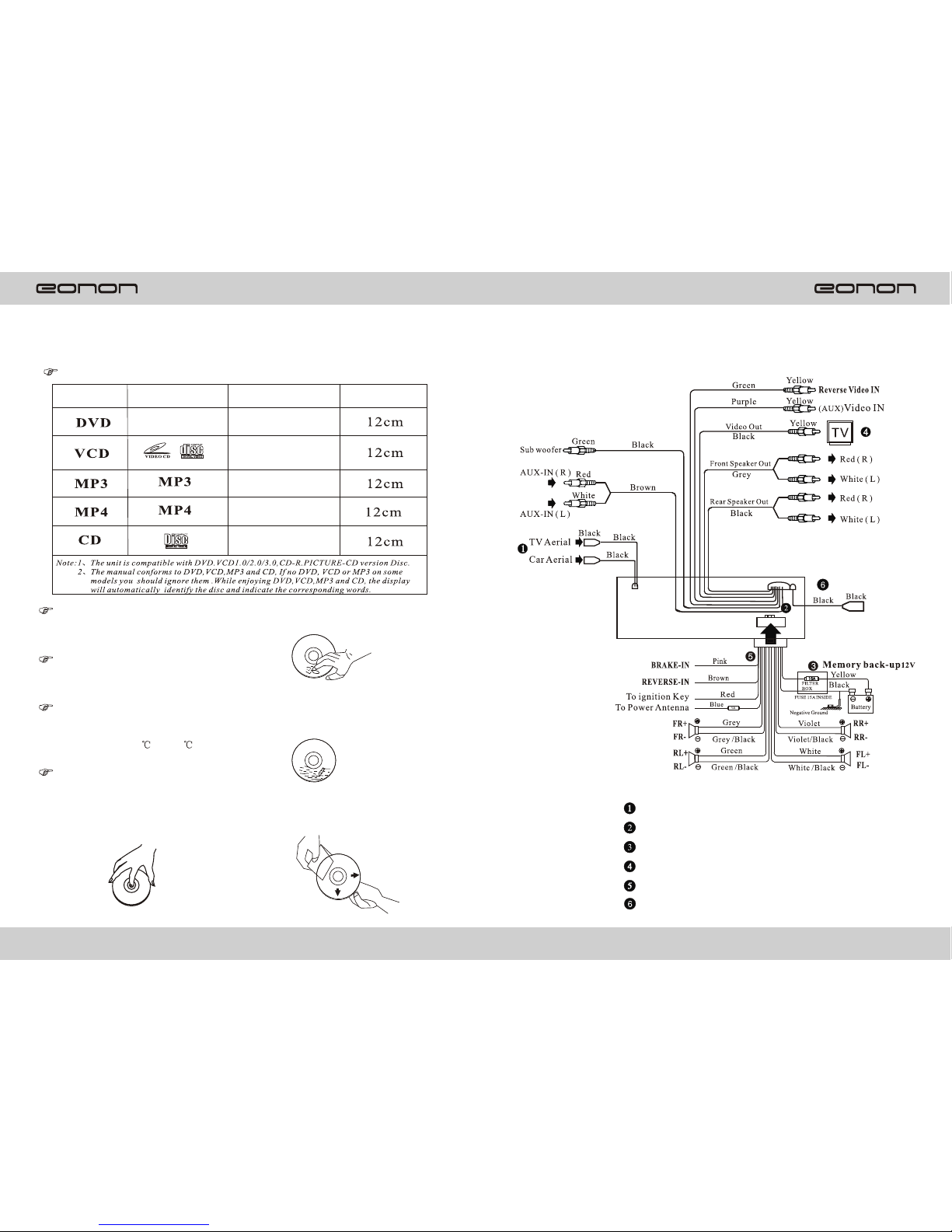

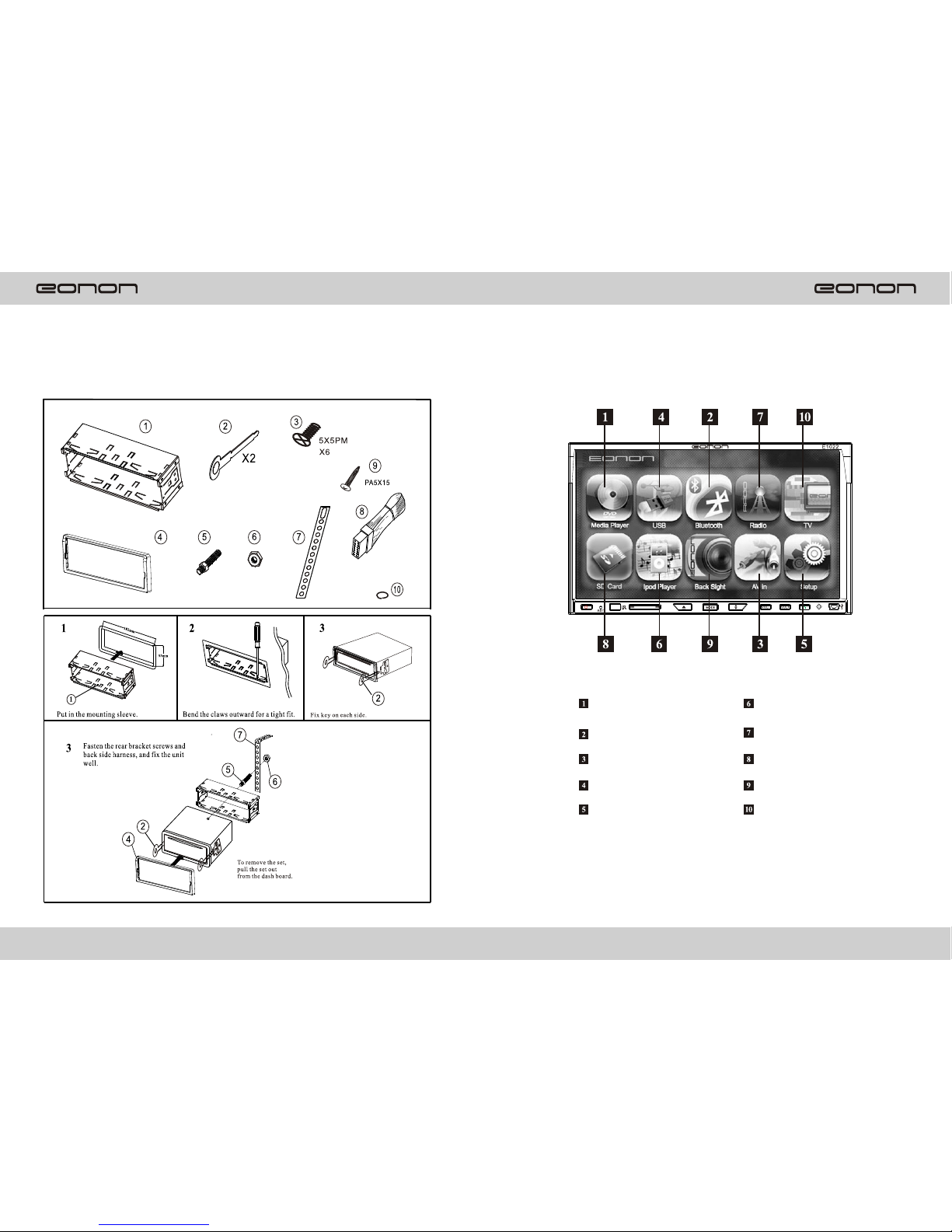

Panel illustration INSTALLATION
Mounting Example
Installing the front panel
Detaching the front panel
Precautions
This mounting methodis used for Japanese cars.
The actual mountingmethod should depend on
the types ofthe cars.
Notes: 1.Store small articles that are not accessible
to children.
2.Install only with the supplied screws.
3.Installation varies depending on the
type of cars and unit installed by
qualified technician.
Bracket
Existing parts supplied
with your car
Do not touch the front panel connection
on the unit body, since this may result in poor
electrical contact. If dirt or dust get on the
contacts, wipe them with c clean ,dry cloth.
25
4
Remote control sensor
Sensor for the card remote commander.
(For remote control version only)
Note: This window is used with remote
control function. Without this
function,you should ignore the
operation contents about remote
control function.
Seek button

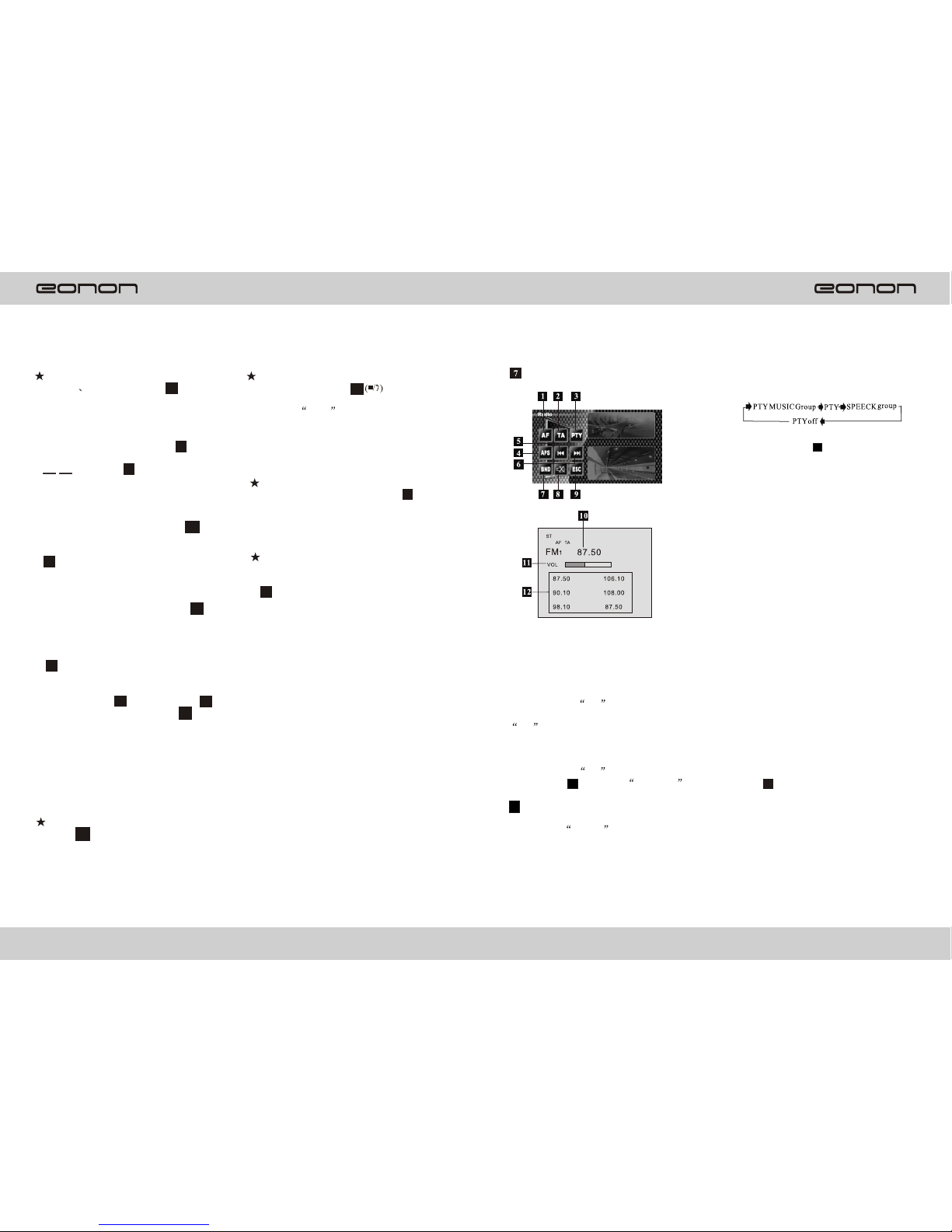

In radio mode
Manual tuning: Press" "or " "
buttons repeatedly to tune a channel
manually.
Automatic tuning: Press and hold
" " or " " buttons for a channel
automatically. Then press the same
button again to stop the search.
In playback mode or BT music mode
(playing MP3 viaBluetooth), press
" " or " " to skip backward or
forward to selectthe desired track
(note: this function depends on the
format of the disc or the format of the
MP3 files, ifthe format does not have
separate tracks, press these buttons
will resume to the start of the disc or
the start of MP3 file).
In playback mode, press and hold
" " or " " to fast rewind orfast
forward to selectthe desired track.
Eject bu tton
A. When there is no disc in the unit,
press it and the front panel will
flip down to shown the disc slit in
the main unit, Insert the disc into
the CD slot, and the mechanism
wills automatically playback the
Disc.
B. When there is a disc in the unit,
press it, the front panel will
automatically flip down and eject
the disc, if you don t take the
disc away within 5 seconds, the
mechanism will automatically slot
in the disc, lock the front panel and
select radio mode.
Mode button
Press it to select source in the
following order:
Angle button
Press it to adjust the angle of the front
panel, and there are totally four
angles optional.
Tel button
When there comes a call, press it to
Answer the call.(When you want to
Reject or hang up the call, press" "
on the front panel or HANG UP touch
key in the TEL touch menu).
Volume button
For volume button, press( ) the
button clack wise to increase the sound
level and anti-clockwise to decrease the
sound level.
Vol+ Vol-
The unit canbe connected to s USB
device for playing MP3 songs through
the USB cable from mini size to the
normal standard USB size.
USB port

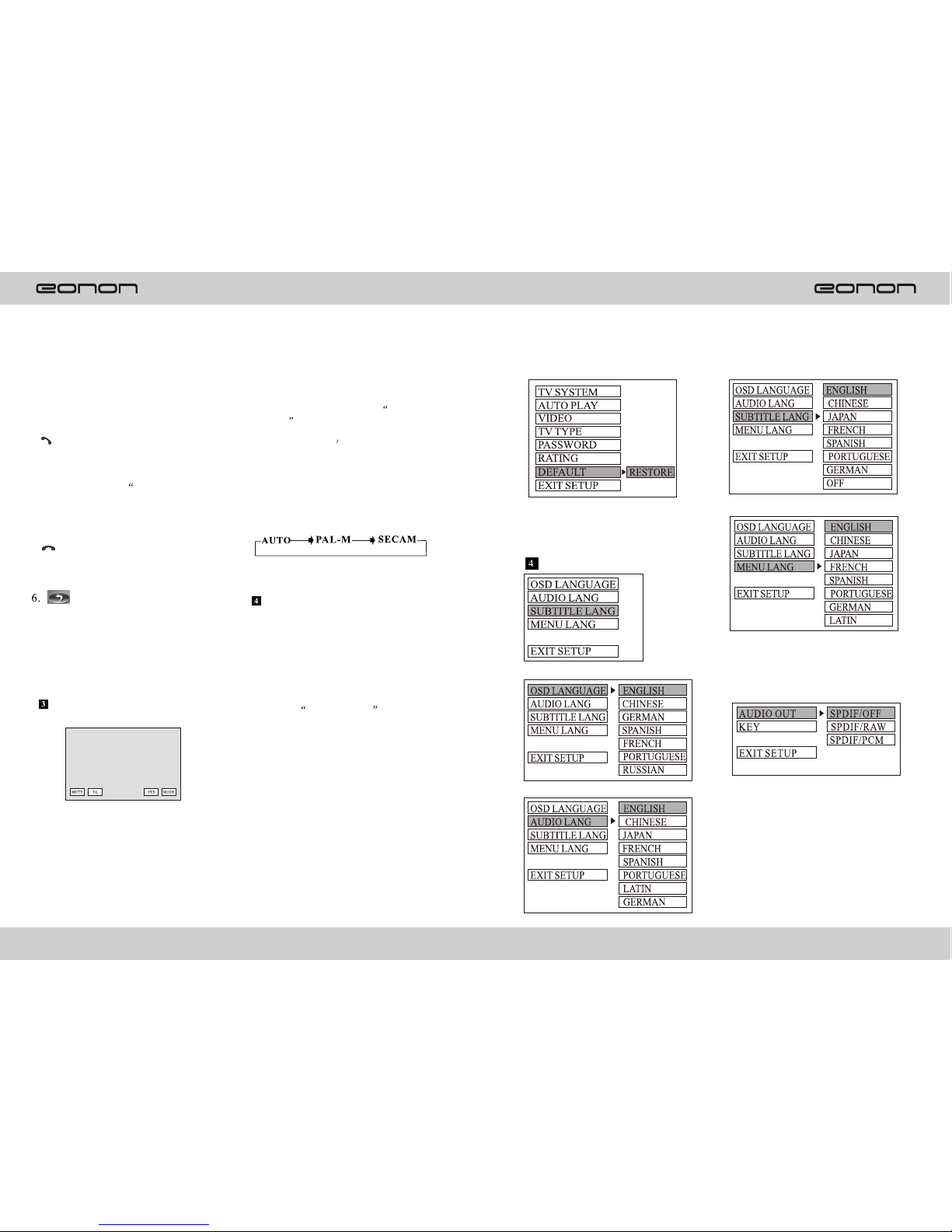

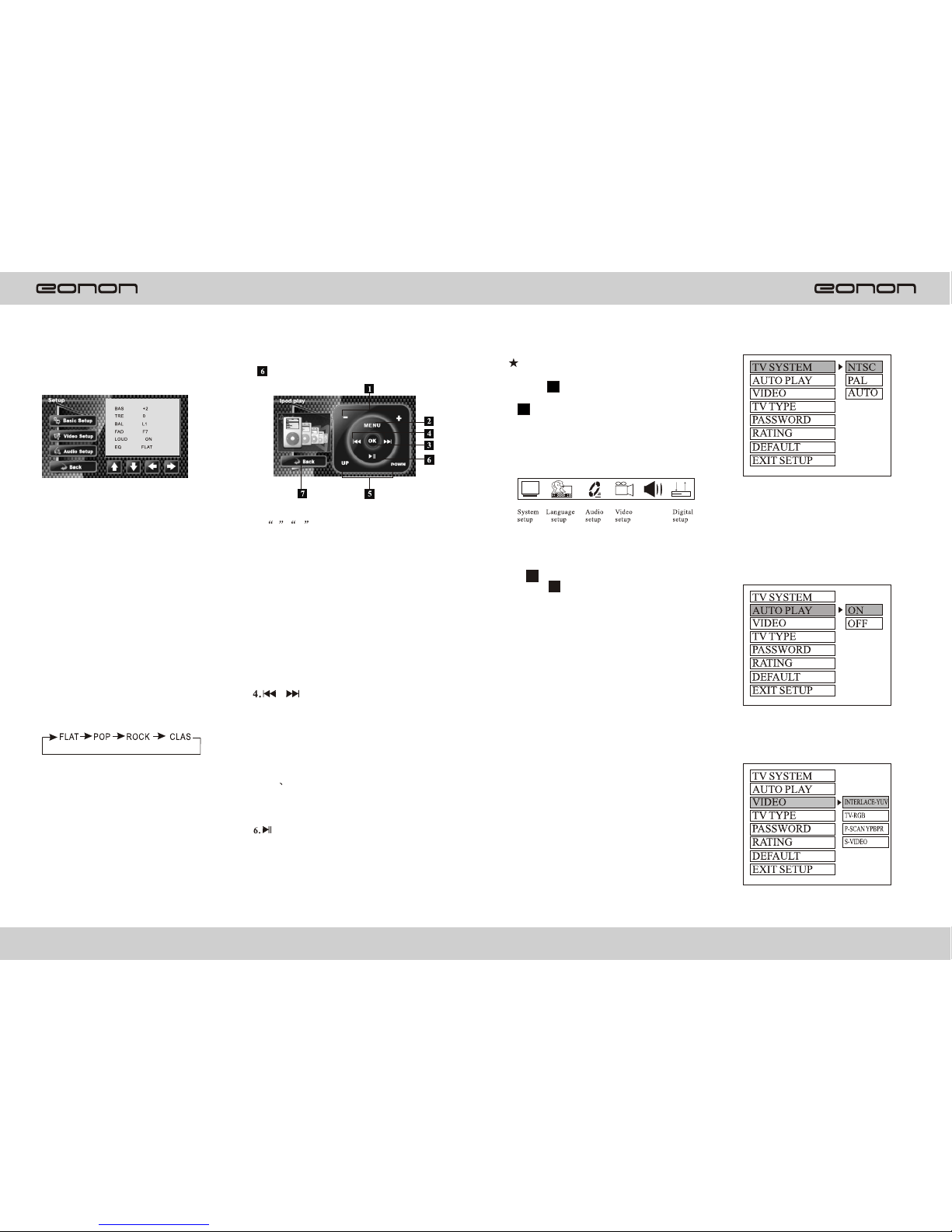

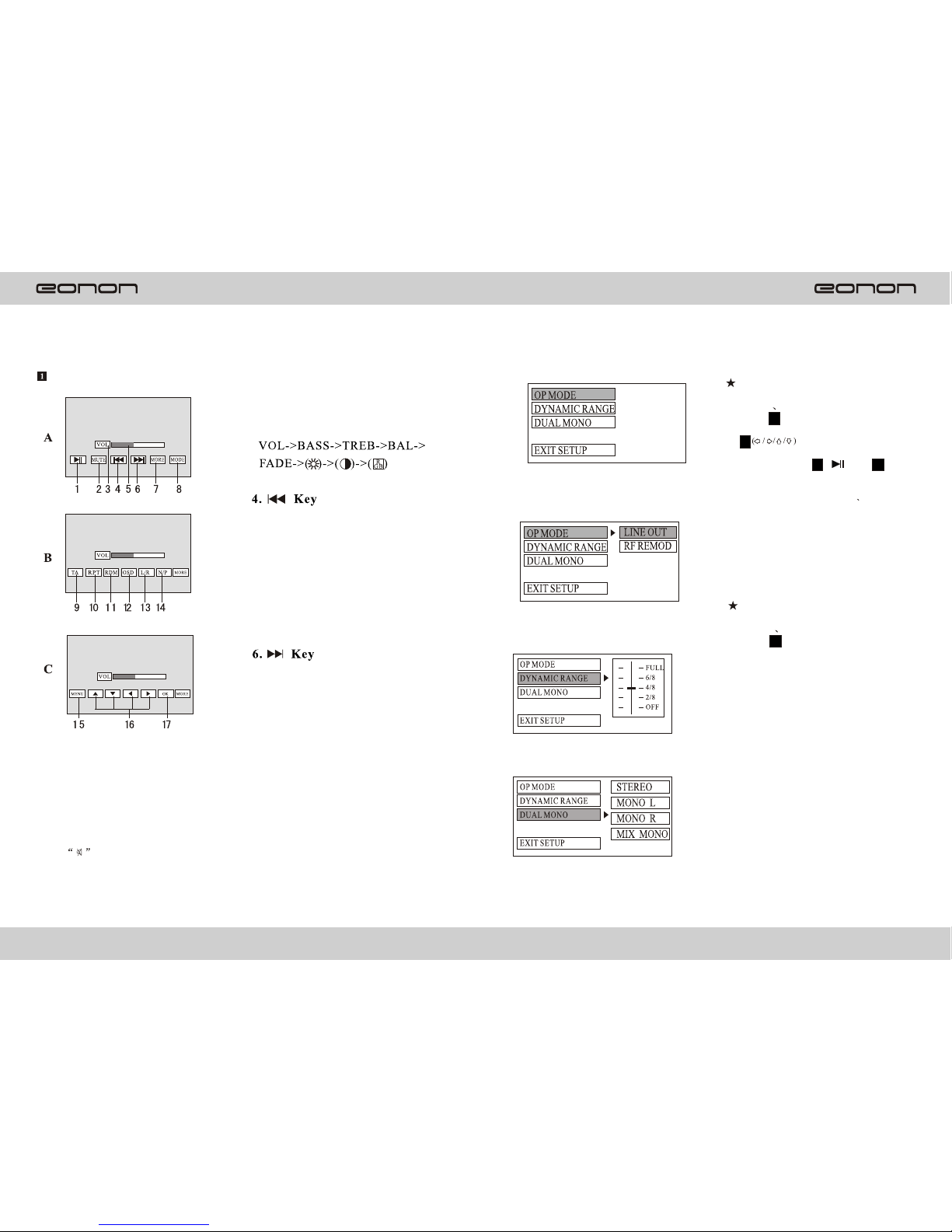

Touch screen
Press any place on the touch screen,
the corresponding touch menu will
display on the screen under different
Mode, pleas refer to corresponding
Chapter below for operation in
details.
