Epson B813102 Installation and operating instructions

Using Optional Equipment Page 29
Using the Transparency Unit
The optional transparency unit (part number B81310*) lets you
scan full color transparencies, strips of negatives or positives,
and slides. You can also scan normal opaque documents with
the TPU installed.
Follow the steps in these sections to install and use the TPU:
◗Unpacking the Transparency Unit
◗Removing the Shipping Screws
◗Installing the Transparency Unit
◗Installing the Transparency Guide
◗Scanning Transparencies and Oversized Film
◗Using the Film Holders
◗Scanning Normal Documents with the Transparency Unit
Installed
◗Adjusting the Transparency Guide Angle

Using Optional Equipment Page 30
Unpacking the Transparency Unit
Make sure all these items are included in the box with the
TPU. Contact your EPSON dealer if anything is missing or
damaged.
transparency unit
reflective document mat
transparency guide
guide and adjust pins

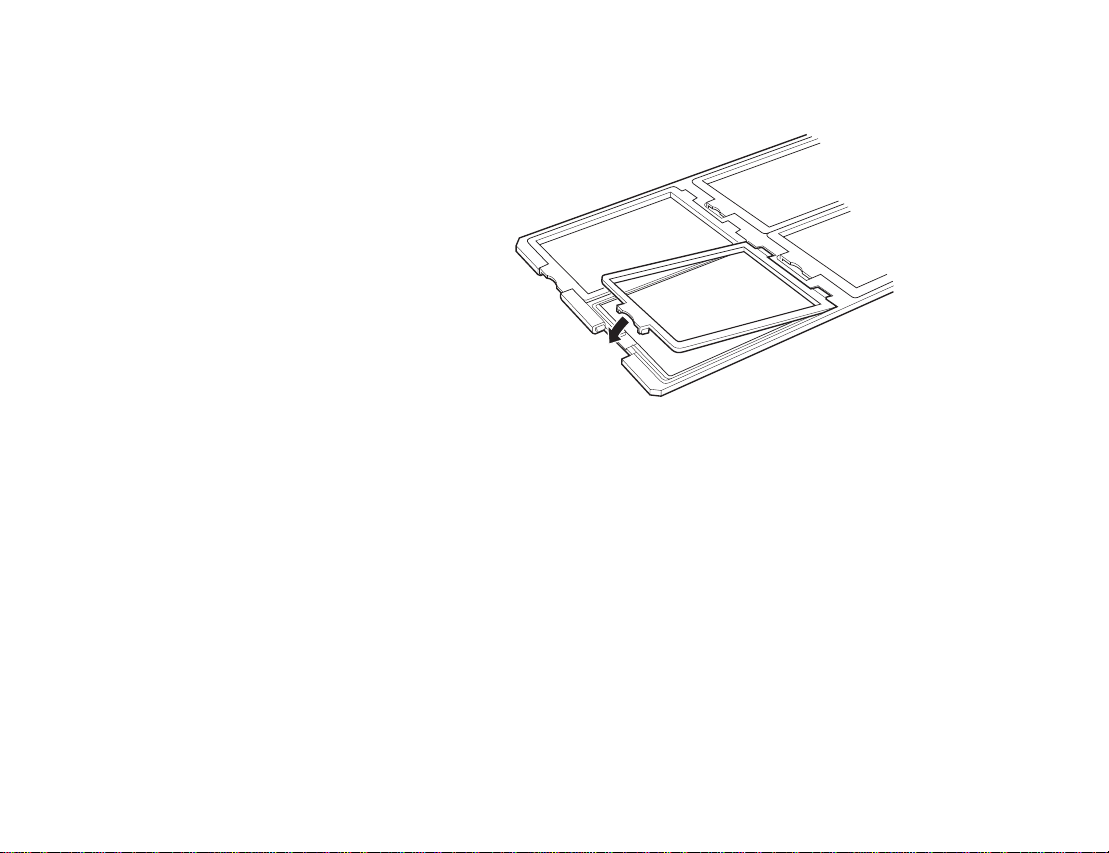

4× 5-inch film holder
medium format film
holder
35 mm filmstrip
holder
35 mm slide holder

Using Optional Equipment Page 31
Removing the Shipping Screws
To prevent damage during shipping, shipping screws are
attached to the TPU to secure its lamp assembly. You must
remove these screws before using the TPU.

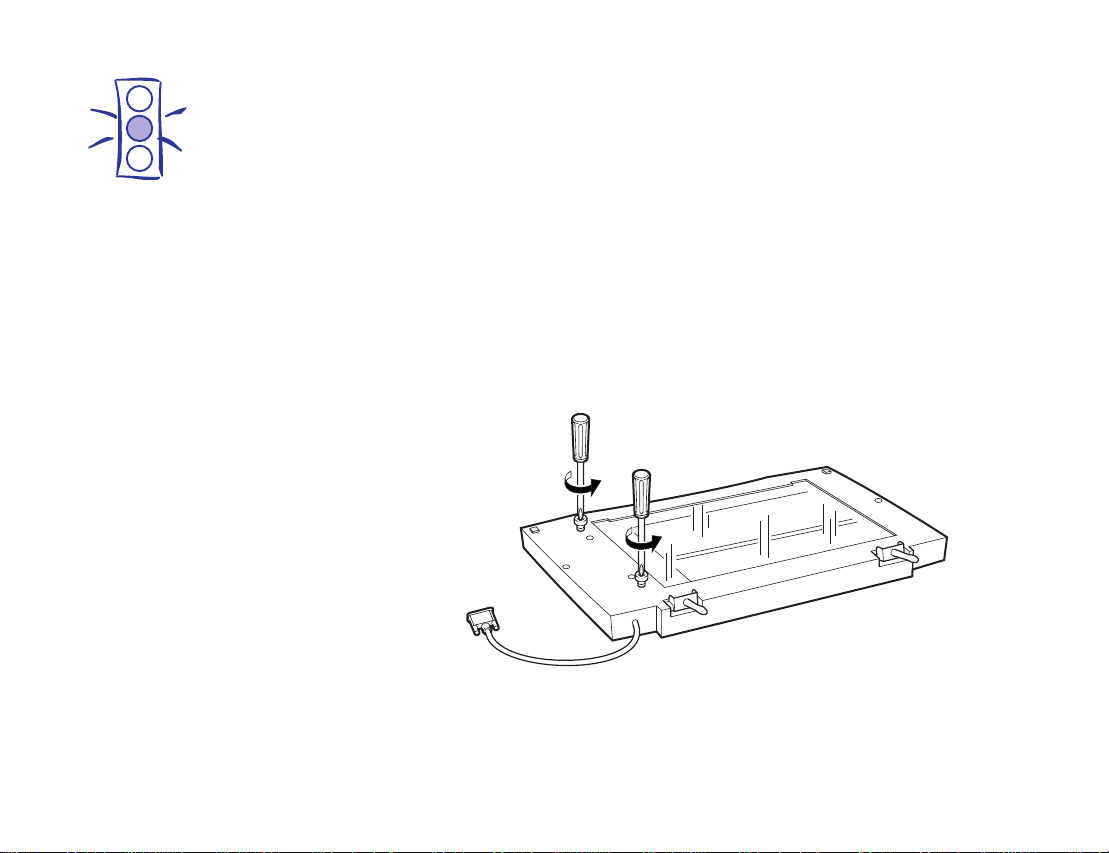

1Turn the TPU so the glass side faces up.
2Use a Phillips head (cross head) screwdriver to remove
both shipping screws from the holes labeled CLAMP, as
shown below.
Caution:
If a screw is left in
an outer hole while
using the TPU, the
TPU may be
damaged.

Using Optional Equipment Page 32
3Install the screws in the storage holes labeled STOCK
between the shipping holes, as shown below.
Before transporting the scanner, turn it off, remove the TPU,
and replace the shipping screws in the outer shipping holes
labeled CLAMP. The transportation lock screw on the scanner
must also be locked before transporting the scanner (see the
scanner’s
Setup Guide).
Note:
If you can’t replace
the shipping
screws, the TPU’s
lamp assembly may
not be in its home
position. If this is the
case, reattach the
TPU to the scanner,
close the TPU, and
turn on the scanner.
The lamp assembly
returns to its home
position. Turn off the
scanner,removethe
TPU, and insert the
screws.

Using Optional Equipment Page 33
Installing the Transparency Unit
Follow the steps below to install the TPU:
1Make sure the scanner is turned off. Then unplug the
power cable from the scanner.
2Remove the document cover by grasping it beside the
hinges and lifting it straight up.

Using Optional Equipment Page 34

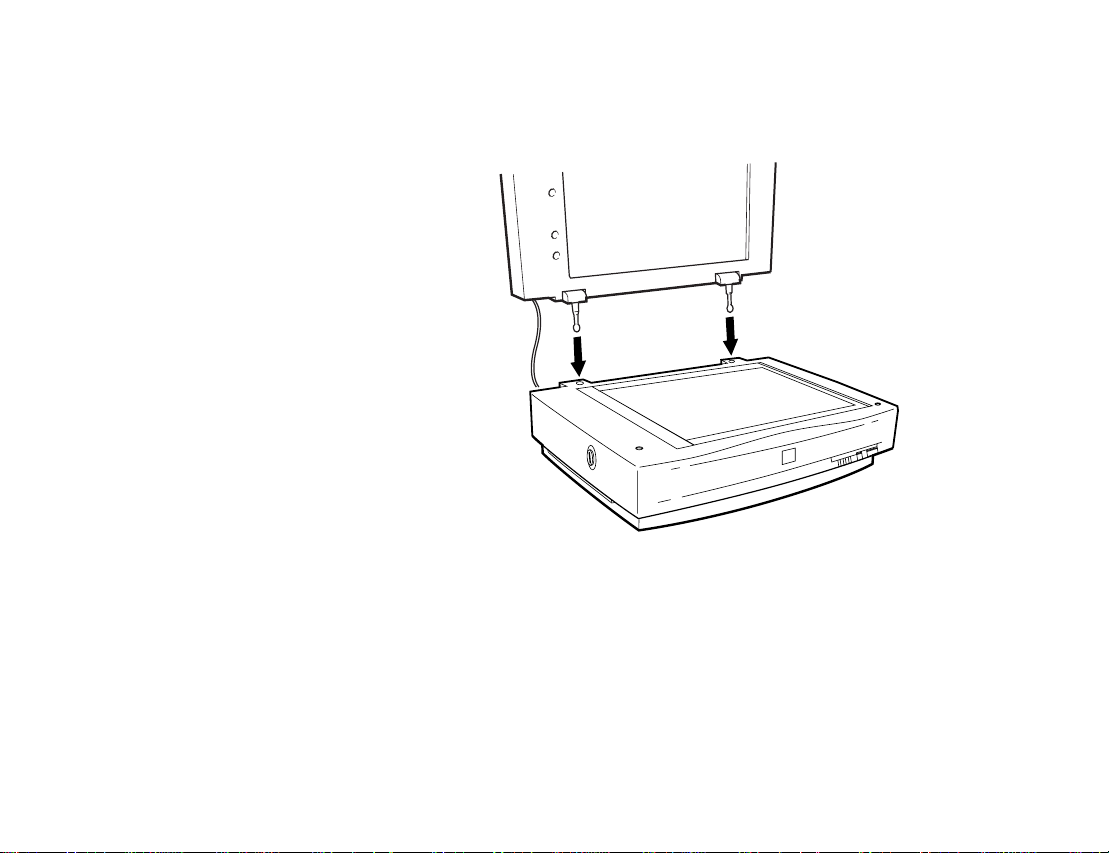

3Align the TPU hinge pins with the holes in the scanner,
then lower the TPU until the pins rest securely in the holes.
4Close the TPU.

Using Optional Equipment Page 35
5Attach the TPU connector to the option connector at the
back of the scanner. Secure the connector using the
attached screws.
6Plug the scanner back in and turn it on.
Caution:
Do not put heavy
objects on the
TPU—doing so may
damage the TPU.

Using Optional Equipment Page 36
Installing the Transparency Guide
Follow the steps below to install the transparency guide:
1Lift the TPU.

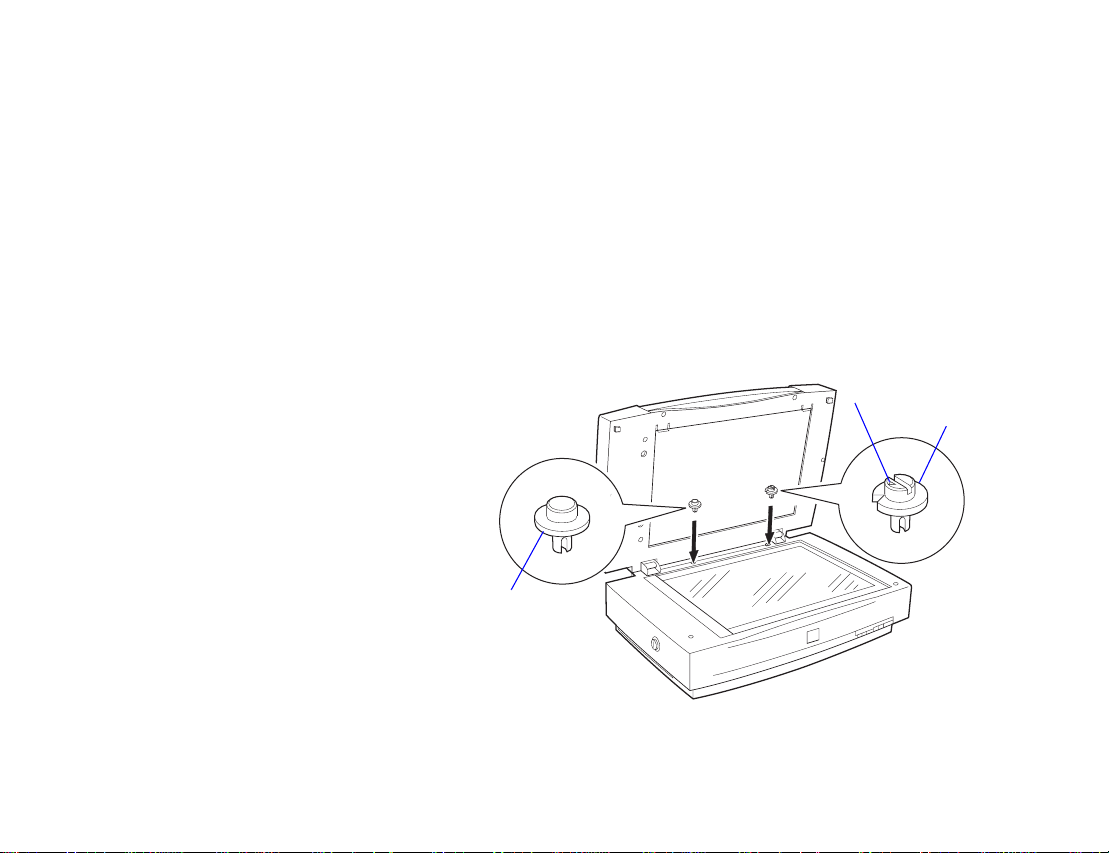

2If your scanner doesn’t already have a guide pin and
adjust pin installed as shown below, insert the guide pin
and adjust pin that came with the TPU. Make sure the
adjust pin’s arrow faces the guide pin.
adjust pin
guide pin
arrow

Using Optional Equipment Page 37

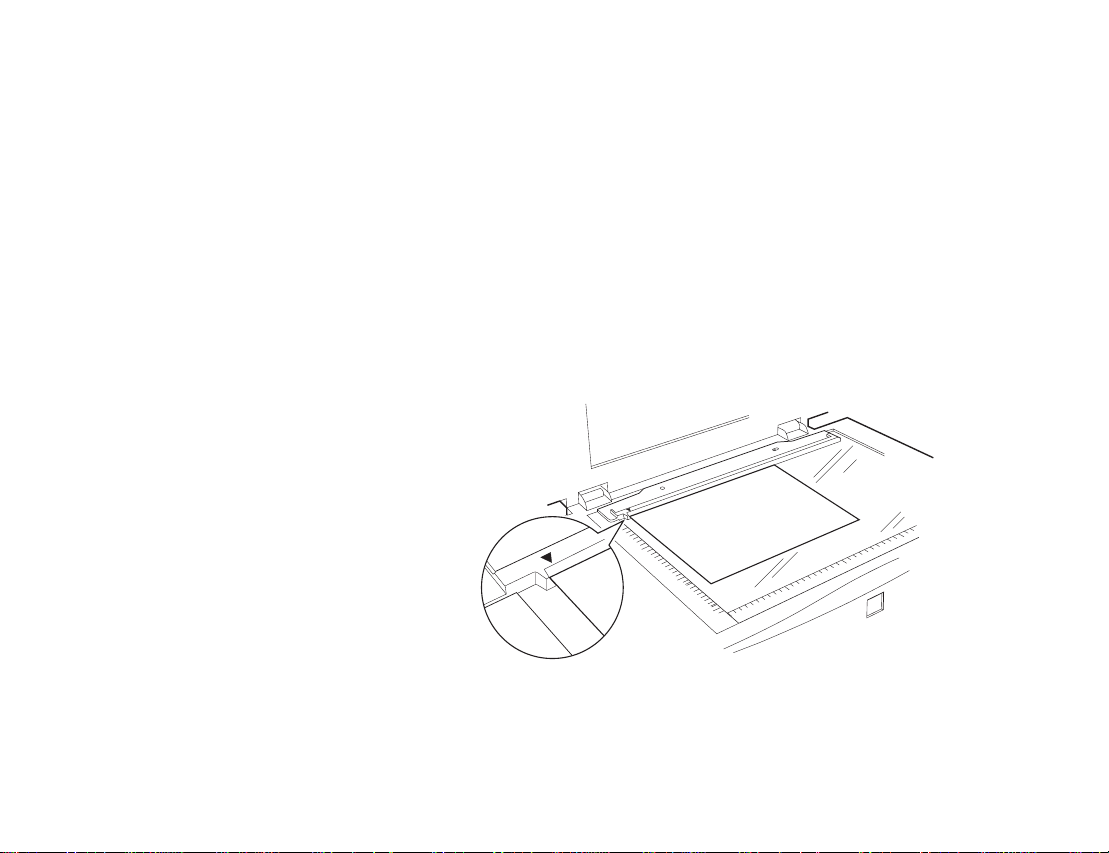

3Place the transparency guide above the scanner’s
document table over the pins as shown below. Make sure
the oval hole is on the right.

Using Optional Equipment Page 38
Before scanning transparencies, use a soft, dry, lint-free cloth
to wipe the glass of the TPU and the scanner’s document
table, including the narrow window visible through the
transparency guide.
◗To scan transparencies, see Scanning Transparencies
and Oversized Film.

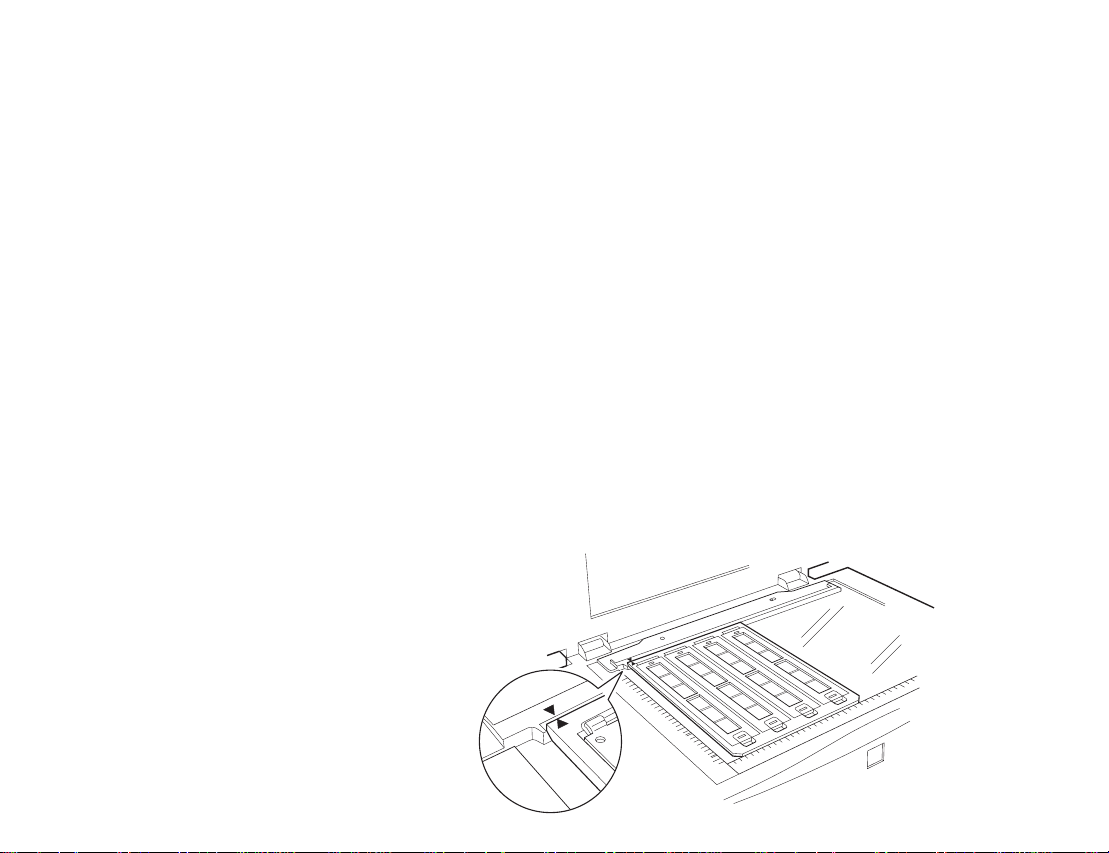

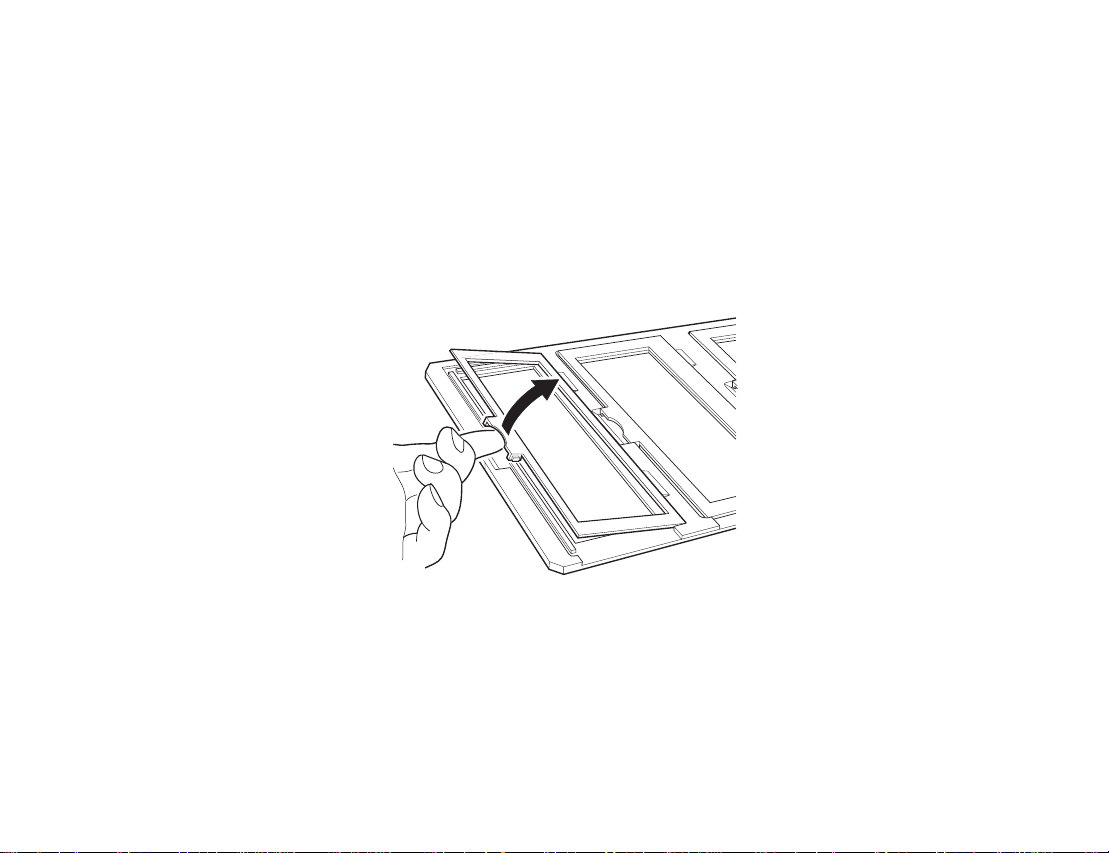

◗To scan slides or strips of negative or positive film, see
Using the Film Holders.
◗To scan normal documents with the transparency guide
installed, Scanning Normal Documents with the
Transparency Unit Installed.
