Ercol Shalstone User manual

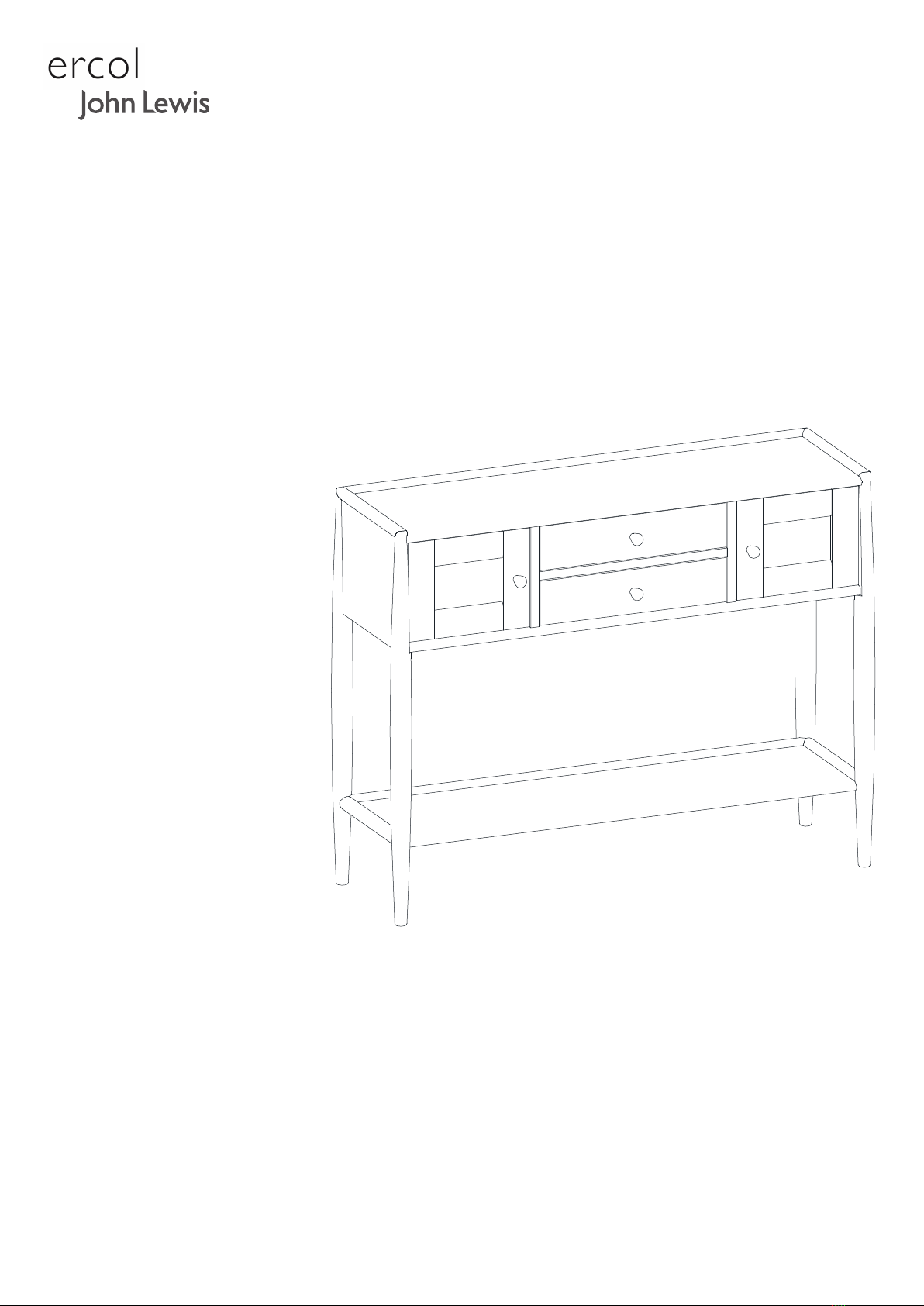

ercol Shalstone Console Table
Stock Number: --- -----
H86 W109 D36cm
for
YNG TAL 14 / ESMT12 D:02.12.2016 / RN001

Thank you for purchasing the ercol Shalstone Console Table. Please read the instructions and warnings carefully
before use, to ensure safe and satisfactory operation of this product.
At John Lewis, we are committed to making great products possible.
From our in-house Design Team, to our Buyers, we work together to bring great design to life.
Our expert Product Technologists work collaboratively with our buyers and suppliers to assure the legality, safety
and quality of the product we sell.
We are all committed to designing and developing products to the highest industry standarts.
We hope you are happy with your ercol product and welcome any feedback or comments you may have.
The John Lewis Team
1
Tools Required
Time to assemble
30 mins
People to assemble

2
Important safety information
Warnings
The product should only be used on firm, level ground.
Keep small parts ot of reach of children.
Ensure the product is fully assembled as illustrated before use.
Do's
Check the pack and make sure you have all the parts listed.
Check all screws or bolts are tightened and inspect regularly.
Make sure the legs remain in contact with the ground at all times.
Dont's
Do not over tighten screws or bolts.
Do not stand on the product.
Don not use power tools to construct as overtightening and panel failure may occur.

3
Fixtures and fittings
Fixtures and fittings
supplied (actual size)
Ref Description Dimensions Qty
Fixtures and fittings
supplied (not actual size)
Ref
B
Description Dimensions Qty
2
Wedges
A3,5mm x 16mm 2
Screw

4
ercol Shalstone Console Table
--- -----
Final Assembly
Parts, fittings and tools
A
1 Place your product in the final
position. Loosen the screws on the
metal brackets just enough so that
the slotted bracket can be extended
to meet the wall.
2Then re-secure the screws.
3Mark the wall for drilling through
the hole in the short face of the
bracket.
Then remove the unit from the wall
so that the marked holes can be
drilled.
Ensure you use an appropriate fixing
type for your wall (see page 5).Then
return the unit to position.
4 Secure the unit to the wall fixings
with own screws through the
brackets.
5Finally add the extra securing
screws to the holes in the long faces
of the brackets.
Warning
Serious or fatal crushing
injuries can occur from
furniture tipping over.
To prevent this furniture
tipping over it must be
permanently fixed to the
wall.
123
4 5
A
CLIP top BLUMOTION
Deaktivierung / Deactivation / Désactivation / Disattivazione / Desactivación
CLIP top BLUMOTION

5
Wall attached item only.
A guide to wall mounting and fixings
Warning
Serious or fatal crushing injuries can occur from furniture tipping over.
To prevent this furniture from tipping over it must be permanantly fixed to the wall.
Wall fixing screws are not included, since different wall materials require different types of screws / fixings.
Please ensure you use the correct screws / fixings for your type of walls and seek professional advice if you
are not sure.
Failure of the product due to incorrect fixings is the responsibility of the installer.
Important: When drilling into the walls always check that there are no hidden wires or pipes etc.
Types of walls
You can use one of the following types of wall plug if your walls are made of
brick, breezeblock, concrete, stone or wood.
1. General Purpose wall plug
Generally aerated blocks should not be used to support heavy loads, use a
specialist fitting in this case. For light loads, general - purpose wall plugs can
be used.
2. Plasterboard wall plug
For use when attaching light loads on to plasterboard partitions.
3. Cavity Fixing wall plug
For use with plasterboard partitions or hollow wooden doors.
4. Cavity Fixing - Heavy Duty wall plug
For use when fitting or supporting heavy loads such as shelving, wall cabi-
nets and coat racks.
5. Hammer Fixing wall plug
For use with walls stuck with plasterboard. The hammer fixing allows it to
be fixed to the wall rather than the plasterboard. Always check the fixing is
secure to the retaining wall.
6. Shield Anchor wall plug - Heavy loads
For use with heavier loads such as TV and Hi-Fi speakers and satellite dishes
etc.
Safety: Periodically check all fittings and wall fixings to ensure they
have not come loose and retighten as necessary.
Aktivierung / Activation / Activation /
Attivazione / Activación

6
ercol
Cabinet hinge adjustment
Thank you for purchasing this ercol product. Please read the instructions carefully before use to ensure safe and
satisfactory operation of this product. If you wish to adjust the doors, please follow the guidelines below:
To adjust the door vertically, adjust the middle screw as shown.
To adjust the door horizontally, adjust the front screw as shown.
To adjust the door back and forth, adjust the rear screw as shown.
Verstellung / Adjustment / Réglage / Regolazione / Ajuste
Technische Änderungen vorbehalten / Subject totechnical changes without notice / Modications techniques réservées / Cambiamenti tecnici sono riservati / Sujeto a modicaciones tecnicas sin previo aviso
Deaktivierung einer BLUMOTION bei kleinen / leichten Fronten.
Deactivation of BLUMOTION for small / light fronts
Désactivation d’un BLUMOTION pour faces petites / légeres
Disattivazione di un BLUMOTION con ante piccole e/o leggere
Desactivación de BLUMOTION con frentes pequeñas / levas
max. ± 3.0 mm ± 2.0 mm +3.0 / - 2.0 mm
+
-
+
--
+
Technische Änderungen vorbehalten / Subject totechnical changes without notice / Modications techniques réservées / Cambiamenti tecnici sono riservati / Sujeto a modicaciones tecnicas sin previo aviso
Julius Blum GmbH
Beschlägefabrik
A-6973 Höchst, Austria
Tel.: [phone]
Fax: [phone]
E-Mail: [e-mail]
www.blum.com
MA-464/0ML 11.09
Aktivierung / Activation / Activation /
Attivazione / Activación
+3.0 / - 2.0 mm
-
+
Verstellung / Adjustment / Réglage / Regolazione / Ajuste
Technische Änderungen vorbehalten / Subject totechnical changes without notice / Modications techniques réservées / Cambiamenti tecnici sono riservati / Sujeto a modicaciones tecnicas sin previo aviso
Deaktivierung / Deactivation / Désactivation / Disattivazione / Desactivación Aktivierung / Activation / Activation /
Attivazione / Activación
Deaktivierung einer BLUMOTION bei kleinen / leichten Fronten.
Deactivation of BLUMOTION for small / light fronts
Désactivation d’un BLUMOTION pour faces petites / légeres
Disattivazione di un BLUMOTION con ante piccole e/o leggere
Desactivación de BLUMOTION con frentes pequeñas / levas
± 2.0 mm +3.0 / - 2.0 mm
+
-
-
+
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
Ercol Furniture Ltd, Summerleys Road, Princes Risborough, Buckinghamshire. HP27 9PX www.ercol.com

7
Safety Instructions
General warnings
Never drag furniture when moving it, always lift it. Periodically check all fixings to ensure none have come loose and
re-tighten where necessary. Please take care when handling or moving the furniture as careless handling may cause
damage or injury. Furniture can be dangerous if incorrectly installed. Assembly should be carried out by a compe-
tent person. No liability will be accepted for damage or injury caused by incorrectly installed or assembled furniture.
Specific warnings for heavy items
It is recommended that before moving heavy objects to a new location they are completely dis-assembled to avoid
personal injury or damage to the furniture. Please be careful to retain all fittings when doing this. (For fully or partial
assemble items).
Storage units over 600mm
Installation shall be carried out exactly according to the manufacturer’s instructions – otherwise a safety risk can
occur if incorrectly installed; a warning shall be given to the consumer to notify them of related risks.
WARNING In order to prevent overturning this product must be used with the wall attachment device provi-
ded.
Chair specific warnings
Never tilt the chair. Ensure the chair is always placed firmly on the ground. Regularly check leg attachment and
retighten screws as necessary. Do not use chair if legs are unstable. Please check fixings and tighten as required.
Stool/Barchair specific warnings
Never tilt the chair. Ensure the chair is always placed firmly on the ground.
Important safety note:
Do Not: Use the stool as a ladder. Climb on the stool. Stand on the foot-rest of the stool, as this could lead to the
stool becoming unbalanced and overturning.
Warnings specifically for any product containing glass
If the glass is chipped or broken stop using the product and consult the manufacturer or supplier.
WARNING:
a) Do not place very hot or very cold items directly on glass surafces.
b) Do not sit or stand on glass surfaces.
c) Do not strike the glass with hard or pointed items, or use the glass as a chopping surface.
d) Do not use washing powders ir any other sustances containing abrasives, as these may scratch the glass.
Additional Requirements for tables
Handle with care! A damaged edge or scratched surface can in rare cases cause the glass to fail unexpectedly into
many small pieces. Glass is most vulnerable when struck from the side.
Technische Änderungen vorbehalten / Subject totechnical changes without notice / Modications techniques réservées / Cambiamenti tecnici sono riservati / Sujeto a modicaciones tecnicas sin previo aviso
Julius Blum GmbH
Beschlägefabrik
A-6973 Höchst, Austria
Tel.: [phone]
Fax: [phone]
E-Mail: [e-mail]
www.blum.com
MA-464/0ML 11.09
Julius Blum GmbH
Beschlägefabrik
A-6973 Höchst, Austria
Tel.: [phone]
Fax: [phone]
E-Mail: [e-mail]
www.blum.com
MA-464/0ML 11.09
Aktivierung / Activation / Activation /
Attivazione / Activación

8
Care Instructions

Wood Furniture
Wood displays different grain patterns depending on which way they cut - for example, the ‘medullary ray’ which
can appear on oak furniture is a mark of good quality timber - these are just characteristics of the natural beauty of
the wood. Some furniture is also deliberately aged and rustic.

Wood veneers also allow distinctive patterns to be created on flat surfaces, such as table tops and drawer fronts by
the way the slivers are arranged.

All timber surfaces will change colour and mellow over time. New furniture will initially vary in shade from items
that have been previously purchased.

How to care for your wood furniture
Furniture with a hard lacquer, wax polish or painted surface should be dusted with a dry cloth.

Waxed furniture will need to be given a coat of beeswax a couple of times a year to help maintain its luster.
Spray polishes are best avoided as they contain silicones which may spoil the furniture’s surface by building up over
time.

Make sure all surfaces are protected from heat and liquids by mats and coasters.Wipe up spills immediately and
ensure that a mat or pad is placed under paper if you are writing.
Extendable dining tables should be left extended for the first few months to avoid an uneven appearance. Likewise,
lamps and ornaments should also be moved regularly.

Our furniture will endure most temperatures in the home but it is best to avoid placing furniture next to heat
sources such as radiators or fires. Be particularly careful with solid wood as the lack of humidity caused by central
heating can cause damage such as warping.
Glass and acrylic furniture
Use glass cleaner or soapy water for cleaning, do not use anything abrasive as this may damage the surface of the
product.

Protect surfaces from scratches and marks by using mats and coasters.

Metal and leather
Protect leather from spillage, sunlight and heat. A slightly damp cloth is the best cleaning agent for both materials.
Do not use any abrasive cleaner or harsh detergent as this can damage the surface. Care for the leather with
leather conditioner. We recommend applying leather conditioner before using the furniture for the first time.

Avoid spilling or dropping crumbs of food with a high fat content on the surface as this can permanently mark the
leather

