ESD VME - ASIO16 User manual

VMEVME -- ASIO16ASIO16
1616 serialserial InterfacesInterfaces
VME-ASIO16 Rev. 1.7

NOTE
The information in this document has been carefully checked and is
believed to be entirely reliable. esd makes no warranty of any kind
with regard to the material in this document, and assumes no respon-
sibility for any errors that may appear in this document. esd reser-
ves the right to make changes without notice to this, or any of its
products, to improve reliability, performance or design.
esd assumes no responsibility for the use of any circuitry other
than circuitry which is part of a product of esd gmbh.
esd does not convey to the purchaser of the product described herein
any license under the patent rights of esd gmbh nor the rights of
others.
esd electronic system design gmbh
Vahrenwalder Str. 207
D-30165 Hannover
Germany
Phone: [phone]
FAX: [phone]
This document shall not be duplicated, nor its contents used
for any purpose, unless express permission has been granted.
Copyright by esd
VME-ASIO16 Rev. 1.7

Manual file: ...\MANUALS\VME\asio1617.en6 14.11.97
Described ASIO16 1.1
PCB version
Described ASIO4.0
firmware version
Changes in the chapters
The changes in the user’s manual listed below affect changes in the
firmware, as well as changes in the description of the facts only.
Chapter Alternations versus rev. 1.6
1.4.3.1 Correction of P2’s pin assignment in fig. 1.4.2
Further technical data are subject to change without notice.
VME-ASIO16 Rev. 1.7

VME-ASIO16 Rev. 1.7

User’s Manual VME-ASIO16
Content Page
1. Hardware .......................... 5
1.1 Block Diagram .................... 5
1.2 Technical Data .................... 6
1.2.1 Overview ................... 6
1.2.2 Real-time Software .............. 6
1.2.3 Summary of the Technical Data ......... 7
1.2.4 Order Information ............... 9
1.3 Address Selection on the VME-ASIO16 ......... 11
1.4 Configuration Jumpers ................ 13
1.4.1 Default Setting ................ 14
1.4.2 VMEbus Interface Jumpers ........... 15
1.4.2.1 The Address Modifier (AM) and DS1 at BR3 15
1.4.2.2 Base Address Decoding via Jumpers BR1
andBR2 ................ 19
1.4.2.3 Interrupt Levels ............ 20
1.4.3 Jumperfields of the Serial Interfaces ..... 21
1.4.3.1 Feeding of the Power Supply ...... 21
1.4.3.2 Selection between RS-232 and TTY
Interfaces ............... 23
1.4.3.3 Control Signals of the Serial Interfaces 26
1.5 Serial Interfaces .................. 29
1.5.1 Circuitry of the Serial Interfaces ...... 29
1.5.2 The RS-232 Interface ............. 30
1.5.3 The TTY Interface ............... 30
1.6 Interrupt Processing ................. 31
2. RTOS-UH Software Support .................. 33
2.1 Survey Channel Structure ............... 33
2.2 Parameter Channel .................. 34
2.2.1 Structure of the Parameter Channel Ix.PARA
(Px.) ..................... 34
2.2.2 Description of the Parameters in Particular . . 35
VME-ASIO16 Rev. 1.7 1

Content Page
3. Appendix .......................... 39
3.1 Connector Pin Assignments .............. 39
3.1.1 VMEbus P1 ................... 39
3.1.2 I/O Connector P2
(at Internal Supply of the TTY Interface) . . . 40
3.1.3 I/O Connector P2
(at External Supply of the TTY Interface) . . . 41
3.1.4 I/O-Connector P2 (if ASIO RS422 Add On is used) 42
3.2 ASIO16 Adaptor (VME-ASIO-ADAPT) ........... 43
3.2.1 General .................... 43
3.2.2 View of the ASIO16 Adaptor .......... 44
3.2.3 Jumpers of the ASIO16 Adaptor ......... 45
3.2.3.1 Power Supply Selection via BR21 to BR25 45
3.2.3.2 Fixing of the Connector Pin Assignment
via BR1 to BR16 ............ 47
3.2.4 Covering of the 14 pole Connector Plug on the
ASIO16 P2 Adapter ............... 49
3.2.5 Connector Pin Assignment RS-232 via Flat Cable
to DSUB-15 or to DSUB-25 Females ....... 50
3.2.6 Connector Pin Assignment TTY via Flat Cable to
DSUB-9, DSUB-15 or to DSUB-25 Females ..... 51
3.2.7 Connector Pin Assignment RS422 via Flat Cable
to DSUB-15 or to DSUB-25 Females ....... 52
3.3 Add-On ’ASIO-422’.................. 53
3.3.1 General .................... 53
3.3.2 View of the ASIO422-Add-Ons .......... 53
3.3.3 Jumpers of the ASIO422 Add-On ......... 54
3.3.3.1 Selection of the Power Supply via the
Jumpers J1 to J3 ............ 54
3.4 Front Panel ..................... 55
3.5 Circuit Diagrams ................... 57
3.6 Data Sheets ..................... 59
VME-ASIO16 Rev. 1.72

User’s Manual VME-ASIO16
Contents of Figures Page
Fig. 1.1.1: Block Diagram of the VME-ASIO16 .......... 5

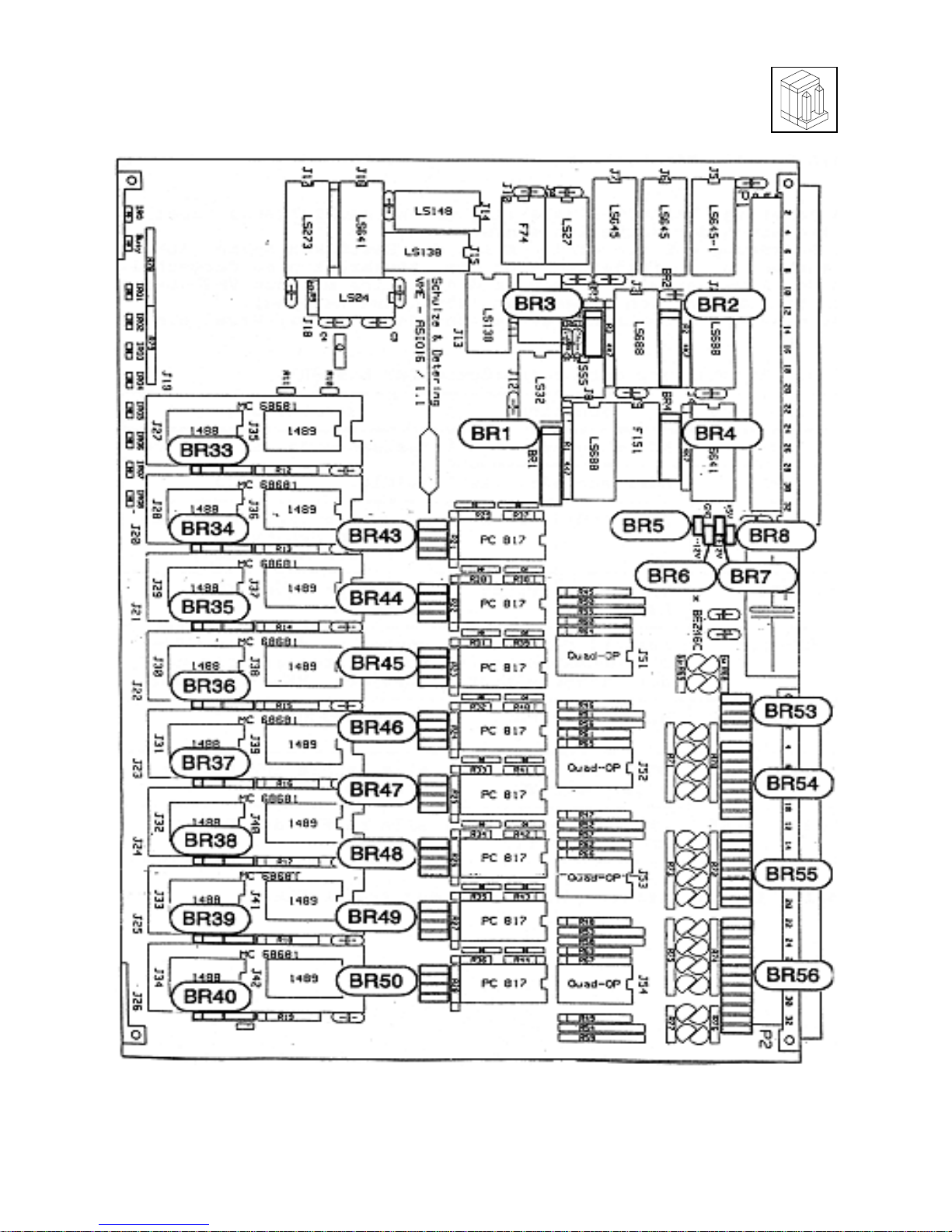

Fig. 1.4.1: Position of the Jumpers on the ASIO16 ....... 13
Fig. 1.4.2: Wiring of the External TTY Interfaces Power Supply 22
Fig. 1.4.3: Block Diagram of the Interfaces .......... 23
Fig. 1.5.1: Circuitry of the Serial Interfaces
(Example: Channel 1) ............... 29
Fig. 3.2.1: View of the ASIO16 Adapter with Designation of the
Jumpers ...................... 44
Fig. 3.3.1: Top Overlay Placement of the RS-422 Add-Ons with
Marking of the Jumpers .............. 53
Contents of Tables
Table 1.2.1: General Data of the VME-ASIO16 .......... 8
Table 1.2.2: Order Information ................ 9
Table 1.3.1: Address Model of the VME-ASIO16 ......... 11
Table 1.4.1: Default Jumper Setting .............. 14
Table 1.4.2: AM Configuration of the VME-ASIO16 ........ 15
Table 1.4.3: Recommended Access Modes for Standard Accesses
(A24) ...................... 17
Table 1.4.4: Recommended Access Modes for Standard Accesses
(A16) ...................... 18
Table 1.4.5: Channel Assignment to the Jumpers BR33 to BR40 . . 26
Table 1.4.6: Functions of the DUART68681 Ports ........ 26
Table 2.1.1: Data Station Designation ............ 33
VME-ASIO16 Rev. 1.7 3

VME-ASIO16 Rev. 1.74

Overview
1. Hardware
1.1 Block Diagram
Fig. 1.1.1: Block Diagram of the VME-ASIO16
VME-ASIO16 Rev. 1.7 5

Overview
1.2 Technical Data
1.2.1 Overview
The VME-ASIO16 is an input/output board for asynchronous serial data
transfer via 16 channels. Each channel can be operated as a RS-232
interface or as a 20 mA current loop. The operation mode can be
selected for each channel separately by jumpers. All signal and
supply lines are fed via the P2 connector.
The current loop interfaces are provided with electrical isolation
via optocouplers. For operation as current loop interfaces ±12 V
power can be supplied either externally via P2 or internally via the
VMEbus. The current sources for transmission and reception signals
are located on the board (active current source). At operation as
RS-232C interface the data lines and handshakes are available even
in the base version.
An interrupt logic with priority control generates a common inter-
rupt on the VMEbus for each two channels. The interrupt level is
selectable from 1 to 7 by jumpers. An interrupt is also generated at
a line break of the 20 mA current loop.
Alternatively (Add-on-Board) the board can be equipped with up to 12
channels of RS-422 (optoisolated) and 4 channels of RS-232.
The channel handling is performed by up to 8 DUART 68681, depending
on the equipment of the board.
1.2.2 Real-time Software
Driver packages for the VME-ASIO16 are available for operating
systems such as VxWorks, OS-9 and others.
VME-ASIO16 Rev. 1.76
