ETEKCITY ESF-551 User manual

1
Smart Fitness Scale
Model: ESF-551
User Manual
Questions or Concerns?
Mon–Fri, 9:00 am–5:00 pm PST/PDT
[e-mail] • [phone]

2
Thank you for purchasing the
Smart Fitness Scale by Etekcity.
If you have any questions or concerns, please reach out to our
helpful Customer Support Team at [e-mail]. We
hope you enjoy your new scale!

3
Table of Contents
Package Contents
Specications
Safety Information
Function Diagram
Display Diagram
Before First Use
VeSync App Setup
Using the Smart Scale
Maintenance
Troubleshooting
Attributions
FCC Statement
IC Statement
Warranty Information
Customer Support
4
4
5
8
9
10
11
13
15
18
28
21
22
23
28

4
Specications
Package Contents
Weight Capacity 400 lb / 180 kg / 28 st
Increments ≤ 10 kg 0.05 lb / 0.02 kg
≤ 180 kg 0.1 lb / 0.05 kg
Weight Units lb / kg / st
Platform Tempered Glass
Battery 3 x 1.5V AAA Batteries (Pre-Installed)
Auto-Off 5 / 10 / 30 seconds
Dimensions 11 x 11 x 1.1 in / 28 x 28 x 2.9 cm
Operating Systerm iOS®12.0+ or Android™ 6.0+
1 x Smart Fitness Scale
3 x 1.5V AAA Batteries (Pre-Installed)
1 x Quick Start Guide

5
Safety Information
Please read and follow all instructions and safety guidelines in
this manual.
READ AND SAVE THESE INSTRUCTIONS
• Check the scale before using. Do not use the scale if it is damaged
in any way.
• Do not strike or bang on the scale and do not use the scale if
there is a crack on the glass. While tempered glass is stronger
General Use
• This scale should not be used to diagnose or treat any medical
condition.
• Scale data should not be used as a substitute for medical advice
from a healthcare professional.
• This scale uses a harmless electrical current to measure body fat.
Consult a healthcare professional before using the smart scale if
you use medical electronic equipment such as a pacemaker.
Medical

6
and fractures more safely than ordinary glass, it may shatter
unexpectedly after developing a slight crack. If you see a crack,
contact Customer Support (see page 28). The glass platform is
slippery when wet. Always make sure the platform and your feet are
dry before stepping on for measurement.
• Place the scale on a hard, at surface to avoid tipping.
• To weigh safely and accurately, stand with your feet shoulder-width
apart while on the scale. Do not stand on the edge of the scale or
jump on the scale.
• Avoid standing on the scale for a long period of time, or when not
measuring yourself.
• Do not overload the scale. Maximum weight capacity is
400 lb / 180 kg / 28 st.
• Keep the scale in a cool area with low humidity. Keep the scale
away from heat sources, such as ovens or heaters. Avoid
temperature uctuations. Store the scale in a horizontal position,
not a vertical position.
• Handle with care. Not for commercial use. Household use only.

7
• Do not mix new and old batteries.
• If the scale is not in use for a long period of time, remove the
batteries to extend the lifetime of the scale.
Batteries
Slide
Slide
1.5v - AAA
1.5v - AAA
1.5v - AAA
1.5V - AAA
1.5V - AAA
1.5V - AAA

8
Function Diagram
A. Conductive Areas
B. Display
C. Weighing Platform
B
A
C
E
D
D. Battery Compartment
E. Anti-Skid Padding

9
Display Diagram
A. Weight Measurement
B. Bluetooth®Icon
C. Weight Units
A
BC

10
Before First Use
1. Open the battery compartment on the underside of the scale.
Remove the included AAA batteries.
2. Remove the plastic insulator strip from the battery
compartment.
3. Replace the batteries. Follow the guidelines in the battery
compartment to match the +and –terminals.

11
VeSync App Setup
1. To download the VeSync app, scan the QR code or search “VeSync”
in the Apple App Store®or Google Play Store.
Note: Due to app updates and improvements, the VeSync app may be slightly different
than shown in the manual. In case of any differences, follow the in-app instructions.
Note: For Android™ users, you may need to select Allow to use VeSync.
Note: You must create your own VeSync account to use third-party services and
products. With a VeSync account, you can also allow your family and friends to use
your smart tness scale.
2. Open the VeSync app. If you already have an account, tap
Log In. To create a new account, tap Sign Up.
Note: You can change the name and icon at any time in the smart tness
scale settings.
3. Make sure to enable Bluetooth®permission of the APP and turn
on Bluetooth®. For Android users, please allow the app to access
nearby devices in your phone settings.
Note: If your Android phone system is lower than Android™ 12.0+, please
authorize the location (GPS) permission of the VeSync app in your phone
settings.
4. Tap + in the VeSync app and select your smart tness scale.
5. Follow the in-app instructions to connect to your smart tness
scale.

12
If you are a new user, you will need to enter physical information
before weighing yourself for the rst time so the scale can calculate
your body metrics. Follow the in-app instructions to create a user
prole.
Users can create or log in to their own VeSync accounts and pair the
smart scale to their separate accounts. Each user’s weight data will
be private and can be synced to their third-party apps.
Users who create or log in to a VeSync account can create multiple
user proles within their account. All users can log in to the same
account (on their own smartphones) without requiring the other
users to log out.
Note:
• Entering inaccurate information will make the scale’s measurements less
accurate.
• If you don’t identify with the available gender options, or are unsure, pick the
option that you think best physically matches you. This choice is used for
physical measurements, such as body fat percentages.
• Children under 3 years of age cannot measure body metrics other than weight.
• Minors will need a guardian’s consent to create a VeSync account.
Creating a User
Multiple Users
Multiple Users with Separate VeSync Accounts
Multiple Users with a Shared VeSync Account
Note: Users sharing a VeSync account will be able to view each other’s
data recorded under this account. Only the main user’s data can be synced
to third-party apps.

13
Using the Smart Scale
1. Place the scale on a hard, at surface.
Note:
• Placing on soft surfaces such as a shaggy carpet may cause
inaccurate measurements or tipping. If necessary, the scale can be
used on low-pile carpet with a ber length of 0.4 inches / 10 mm or
less.
2. Step on the scale, then step off. Wait for the LED screen to
display “ ” before using.
3. Place dry, bare feet on the scale’s conductive areas. While
you stand on the scale, you will see a “ ” moving across the
screen, which is measuring body impedance values to calculate
body composition. Please stay on the scale during this part until
the screen re-displays your weight. If your scale is connected to
the VeSync app, additional results (such as BMI, body fat, etc.)
will be shown in the app.
Note:
• Turning on Zero-Current Mode in the VeSync app will turn off the
scale’s electrical current and will only provide measurements for weight
and BMI. This mode can be helpful for users who are pregnant or who
have implanted medical devices, such as pacemakers.
• To measure your baby or pet, turn on Baby Mode and follow the in-
app instructions for weighing. Baby Mode will not measure other body
metrics and will only measure weight and BMI.

14
Switching Units
1. To change the unit of measurement (kg, lb, or st), lightly tap on
the scale and open the VeSync app. Select the scale(you should
see “Connected” in the app), then tap the Settings icon ( ).
You can adjust the units on this page. [Figure 1.1]
2. The default unit is pounds (lb). After changing units, the scale
will show the new unit of measurement.
LB KG ST
Device
Home Page
[Figure 1.1]

15
Maintenance
If the scale has been moved or ipped upside down, it must be
cleared to ensure accurate results.

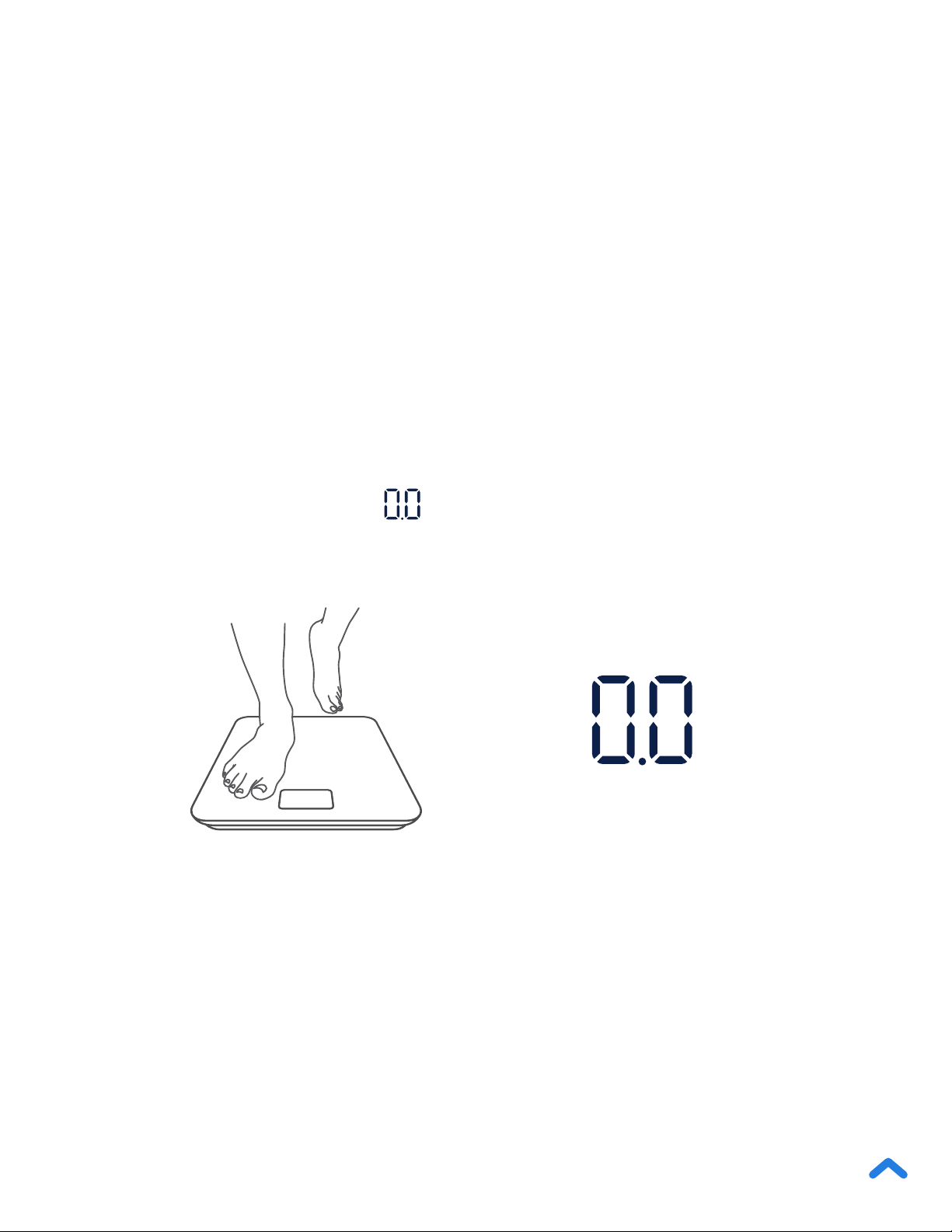

Clearing the Smart Scale
1. Place the scale on a hard, at surface.
2. Step on the scale until digits appear on the display, then step
off. [Figure 2.1]
3. The scale will show “ ” when cleared. [Figure 2.2]
[Figure 2.1] [Figure 2.2]

16
Cleaning the Smart Scale
• Use a slightly damp cloth to clean the surface of the scale,
followed by a soft, dry cloth to wipe away any remaining
moisture.
• Do not use chemical or abrasive cleaning agents to clean the
scale.
Replacing the Batteries
1. Open the battery compartment on the underside of the scale.
2. Remove the old batteries and dispose of them properly.
3. Install 3 new 1.5V AAA batteries, making sure they are placed
under the correct polarity.
4. Replace the battery compartment cover.
Note: The scale may need to be cleared after replacing the batteries.
The display will show “Lo” when the batteries need to be replaced.

17
Common Display Codes
Bluetooth Connection No Bluetooth
Connection
Change Battery Turning On
Overload
Clearing

18
Troubleshooting
The scale doesn’t turn on.
• Check if the batteries are properly installed. If using the scale for
the rst time, remove the plastic insulator strip from the battery
compartment.
Information ashes on the display and then disappears.
• The batteries are low and may need to be replaced.
The smart scale can’t be added to the VeSync app.
1. Please conrm the following things before pairing:
• Allow VeSync to access Bluetooth®in your phone settings.
• The scale is not currently connected to any other phone or app.
• The scale should only be connected to your phone via the VeSync
App. Please do not connect it in your phone’s Bluetooth®settings.
• Turn off VPN (please ignore it if you are not using it).
• For Android users, please allow the app to access nearby devices in
your phone settings.
2. Try the following steps to pair your scale and your phone:
• Enable Bluetooth®on your Phone.
• Light up the scale and keep it on.
Note: If your phone system is lower than Android™ 12.0+, please authorize the
location (GPS) permission of the VeSync app.

19
Note: Make sure to choose the right device model (you can nd it on the back
of the scale), or it will lead to a connection failure.
• Open the Vesync App, and click “ Add Device ” or “ + ” on the top
right corner of the home page. Choose “Health” to select your device
model, and then follow the APP guides.
The scale readings seem unstable or inaccurate.
• Make sure the scale is on a hard, at surface.
• Reset the scale to zero (see page 15).
My scale will only measure my weight, not my other metrics.
• Set up your smart scale in the VeSync app. Your weight will show on
the scale display, and your weight, and more results will show on the
app.
• If you’re wearing shoes or socks, the scale cannot measure health
metrics such as body fat. Step on the scale with bare feet. [Figure 3.1]
• Make sure to place your feet on the scale’s conductive areas.
[Figure 3.2]
• Make sure Bluetooth®is turned on.
• Check if Zero-Current Mode is on. If it is, the smart tness scale will
provide measurements for only weight and BMI, not other metrics.
• If your feet are too dry or too wet, the biometrics may not be detected.
Since skin can become very dry during winter, please also try to
apply some lotion or have a foot soak when it cannot measure other
measurement values.

20
Note: If the scale has errors on the display, will not turn off automatically, or has a
problem not listed here, try removing the batteries for 3 seconds, then replacing
them. If the problem is not resolved, replace the batteries with new ones.
If you still need help, please contact Customer Support (see page 28).
Figure 3.1 Figure 3.2
Conductive Areas
Note:
If it does not help, please try the following:
• Restart the Bluetooth®or restart the phone.
• Click the Disconnected button on the top of the device page to detect
Bluetooth®anomalies.
My app is showing “Disconnected”.
Kindly note that when the scale display turns off, the scale will disconnect
to the Bluetooth®since the scale is entering the sleep mode for power-
saving. It will reconnect when the scale is lit up and the app is opened.
1. Turn on your phone Bluetooth®and lightly tap on the scale to wake the
display.
2. Open the app and select your scale. Wait for several seconds for it to
connect to Bluetooth®. You should see “ Connected ” at the top of the
page in the VeSync app once it connects.
