Event Lighting PIXBAR12x8 User manual

0
LED Pixel Bar
PIXBAR12x8
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this
manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any
errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
www.event-lighting.com.au
V2.1.0

www.event-lighting.com.au
1
CONTENTS
Safety Instructions
Product Installation
Diagrams
Control Board Operation
Special Chaser Mode
DMX Values
Technical Specifications
Warranty

www.event-lighting.com.au
2
Safety Instructions
WARNING
• Do not open this device, there is no user-serviceable parts inside. Risk of electric shock.
• Do not look at the light source when the device is on.
• CAUTION: This unit's housing may be hot during and after operation.
• Install this device in a location with adequate ventilation, at least 20 inch (50 cm) from adjacent surfaces.
• Do not leave any flammable material within 50 cm of this unit while operating or connected to power.
• Use a safety chain when mounting this device overhead.
• Do not operate this device outdoors or in any location where dust, excessive heat, water, or humidity may affect it.
• Do not operate this device if the housing, lenses, or cables appear damaged.
• Do not connect this device to a dimmer or rheostat.
• ONLY connect this device to a grounded and protected circuit.
• ONLY use the hanging bracket to carry this device.
• In case of a serious operating problem, stop using immediately.
• The maximum ambient temperature is 104° F (40° C). Do not operate this device at higher temperatures.
Power Input & Power Linking
This device has an auto-switching power supply work with input voltage range of 100~240 VAC, 50/60 Hz.
Link up to the maximum of 8A. DO NOT exceed this number.
Product Installation
This device can be mounted in many orientations provided each individual device is secured by the use of correct
mounting bracket.
Use a safety chain when mounting this device overhead.
Fuse Replacement
If the fine-wire fuse of the device fuses, only replace the fuse by a fuse of same type and rating.
Before replacing the fuse, unplug mains lead.
Procedure:
Step 1: Unscrew the fuse holder on the rear panel with a fitting screwdriver from the housing (anticlockwise).
Step 2: Remove the old fuse from the fuse holder.
Step 3: Install the new fuse in the fuse holder.
Step 4: Replace the fuse holder in the housing and fix it.

www.event-lighting.com.au
3

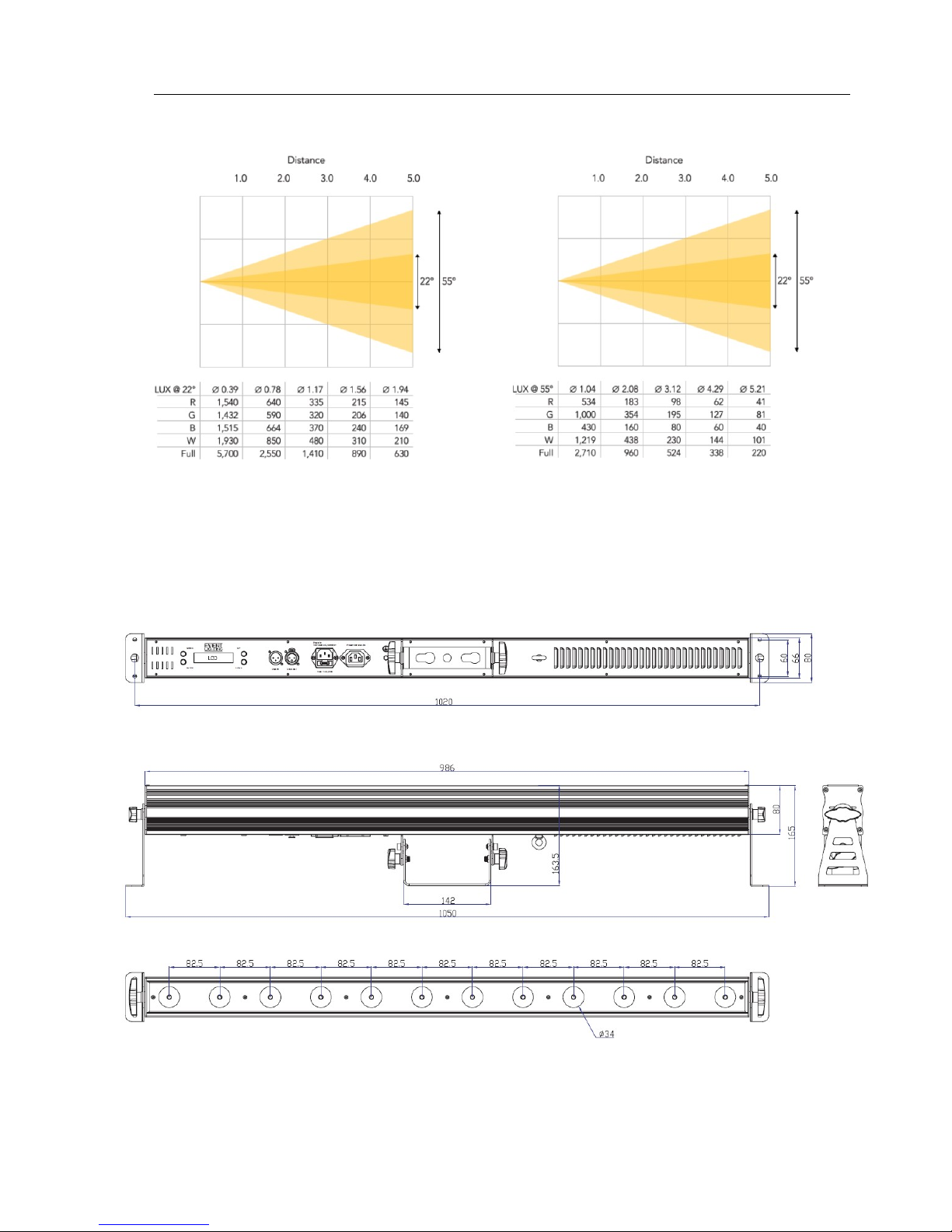

Lux Chart
Dimensions

www.event-lighting.com.au
4
CONTROL BOARD OPERATION
Display Options / Values Function
01.DMX Address <001> - <512> Set DMX address
02.DMX Channel <03> <04> <06> <08> <09>
<12> <16> <24> <48> <50>
Select DMX channel mode
03.Dimmer Curve <01> <02> <03> <04> <05> Select dimmer curve
04.Sound Mode Sen:<000> - Sen:<100> Select sound active mode and the sensitivity level from
Sen:<000> to Sen:<100>
05.Static Color R, G, B, W, , GB, RB, RG, ….
RGBW
Select static colour
06.Manual Color R<000> - <255>
G<000> - <255>
B<000> - <255>
W<000> - <255>
S<000> - S<030>
Set intensity of each colour separately for color mixing
and strobe rate
06.Manual WCT WCT: <01> - <11>
DIM: <001> - <100>
Set up colour temperature WCT 01~11 and adjust the
brightness
07. Auto Program <Pr:01> - <Pr:19>
<Sp:000> - <Sp:100>
<Dim:000> - <Dim:255>
Select built-in automatic programs, auto run speed and
dimmer level
08.Master/Slave <M> <S> Select Master/Slave modes
09.Factory Set <No>/<Yes> Recover manufactory default
DMX address
After select the "DMX Address" and press “Enter”, then use “Up” and “Down” to set the desired DMX address, press
"Enter" again to confirm.
DMX modes
After select the "DMX Channel" and press “Enter”, then use “Up” and “Down” to set the desired DMX mode, press
"Enter" again to confirm.
Dimmer curve
After select the "Dimmer Curve" and press “Enter”, then use “Up” and “Down” to set the desired dimmer curve, press
"Enter" again to confirm.
Static Colours
Entered "Static Color", you can select the desired solid color via the “Up” or “Down” buttons, then “Enter” to confirm.
Value Function
R Red
G Green
B Blue
W White

www.event-lighting.com.au
5
GB Green + Blue
RB Red + Blue
RG Red + Green
RGB Red + Green + Blue
RW Red + White
GW Green + White
BW Blue + White
RGW Red + Green + White
RBW Red + Blue + White
GBW Green + Blue + White
RGBW Red + Green + Blue + white
Manual Colour mode
Entered "Manual Color" mode, use “Up” and “Down” button to select the each colour RGBWAUV intensity from 000 to
255, select strobe (S) speed from S000 to S100. (S000 is strobe off). Press “Enter" to save new setting.
Manual WCT
Entered "Manual WCT" mode, use “Up” and “Down” button to select preset colour temperature from WCT01 to WCT11.
Press “Enter" and use “Up” and “Down” button to select dimmer from dim000 to dim100. Press “Enter" to save new
setting.
Automatic Mode
PR 01 3 colours switching
PR 02 7 colours switching
PR 03 7 colours fading
PR 04 Auto chasing 1
PR 05 Auto chasing 2
PR 06 Auto chasing 3
PR 07 Auto chasing 4
PR 08 Auto chasing 5
PR 09 Auto chasing 6
PR 10 Auto chasing 7
PR 11 Auto chasing 8
PR 12 Multi fixture chasing
Set auto run PR 01 - PR 11
Entered "Auto Program" mode, use “Up” and “Down” button to select the built-in programs. Press “Enter" and use “Up”
and “Down” button to select auto run speed from <Sp000> to <Sp100>. Press “Enter" and use “Up” and “Down” button
to select dimmer of “Auto Program” from <dim000> – <dim255>. Press “Enter" to save new setting.
Set multi fixture chases PR 12
Before starting, go to each fixture and reset the menu to fixture defaults.

www.event-lighting.com.au
6
1. On the master unit, setup the DMX address to the total number of fixtures in the string. For example, you may
have a total of 20 par cans including the master, so the DMX address should be set to “20”.
2. On the master unit, go to master/slave menu setting and set the unit to master
3. On the master unit, set the unit to “Auto Mode” “PR 12” which supports multi fixture chases.
4. On each slave unit, setup the DMX address to the fixture position in the string. For example, if this unit is the
2nd unit in the string including the master, then set the DMX address to 2. If this the last unit of 20, then the
DMX address should be set to 20. It is possible to double up fixture positions as well as fixture 1.
5. On each slave, go to the master/slave menu setting and set it to slave.
Sound Mode
After select the "Sound mode", use “Up” and “Down” to set the sound sensitivity Sen 000 ~ Sen 100, press “Enter” to
confirm.
Master/Slave Operation
1. Set the master fixture to one of the standalone operating modes: auto, sound, static color or manual color modes
2. Set the slaves, entered “Mas/Sla” mode, set to “s”, press “Enter”
Factory set
To recover factory default, select the "Factory Set" and press “Enter”, then use “Up” and “Down” to choose “Yes”, press
"Enter" again to confirm to recover manufactory default
DMX CHART
Channel Function Min
DMX
Max
DMX
Ch4 Ch6 Ch8 Ch9 Ch12 Ch16 Ch24 Ch48 Ch50
1 1 1 Red 0%-100% 0 255
2 2 2 Green 0%-100% 0 255
3 3 3 Blue 0%-100% 0 255
4 4 4 White 0%-100% 0 255
5 5
Master Dimmer 0%-100% for ch1, 2,
3, 4 & 7 0 255
6
6
No function 0 9
Strobe (slow to fast) 10 255
7
No function 0 9
R G B colors switching 10 29
7 colours switching 22 50
7 colours fading 35 71
Auto chasing 1 72 92
Auto chasing 2 93 113
Auto chasing 3 114 134
Auto chasing 4 135 155
Auto chasing 5 156 176
Auto chasing 6 177 197

www.event-lighting.com.au
7
Auto chasing 7 198 218
Auto chasing 8 219 239
Sound active mode 240 255
8 Auto run speed 0 255
9
Use preset dimming curve 0 9
dimmer curve 1 10 57
dimmer curve 2 58 106
dimmer curve 3 107 155
dimmer curve 4 156 204
dimmer curve 5 205 255
1 LED1-LED6 Red 0%-100% 0 255
2 LED1-LED6 Green 0%-100% 0 255
3 LED1-LED6 Blue 0%-100% 0 255
4 LED1-LED6 White 0%-100% 0 255
5 LED7-LED12 Red 0%-100% 0 255
6 LED7-LED12 Green 0%-100% 0 255
7 LED7-LED12 Blue 0%-100% 0 255
LED7-LED12 White 0%-100% 0 255
1 LED1-LED4 Red 0%-100% 0 255
2 LED1-LED4 Green 0%-100% 0 255
3 LED1-LED4 Blue 0%-100% 0 255
4 LED1-LED4 White 0%-100% 0 255
5 LED5-LED8 Red 0%-100% 0 255
6 LED5-LED8 Green 0%-100% 0 255
7 LED5-LED8 Blue 0%-100% 0 255
8 LED5-LED8 White 0%-100% 0 255
9 LED9-LED12 Red 0%-100% 0 255
10 LED9-LED12 Green 0%-100% 0 255
11 LED9-LED12 Blue 0%-100% 0 255
12 LED9-LED12 White 0%-100% 0 255
1 LED1-LED3 Red 0%-100% 0 255
2 LED1-LED3 Green 0%-100% 0 255
3 LED1-LED3 Blue 0%-100% 0 255
4 LED1-LED3 White 0%-100% 0 255
5 LED4-LED6 Red 0%-100% 0 255
6 LED4-LED6 Green 0%-100% 0 255
7 LED4-LED6 Blue 0%-100% 0 255
8 LED4-LED6 White 0%-100% 0 255
9 LED7-LED9 Red 0%-100% 0 255
10 LED7-LED9 Green 0%-100% 0 255
11 LED7-LED9 Blue 0%-100% 0 255
12 LED7-LED9 White 0%-100% 0 255

www.event-lighting.com.au
8
13 LED10-LED12 Red 0%-100% 0 255
14 LED10-LED12 Green 0%-100% 0 255
15 LED10-LED12 Blue 0%-100% 0 255
16 LED10-LED12 White 0%-100% 0 255
1 LED1-LED2 Red 0%-100% 0 255
2 LED1-LED2 Green 0%-100% 0 255
3 LED1-LED2 Blue 0%-100% 0 255
4 LED1-LED2 White 0%-100% 0 255
5 LED3-LED4 Red 0%-100% 0 255
6 LED3-LED4 Green 0%-100% 0 255
7 LED3-LED4 Blue 0%-100% 0 255
8 LED3-LED4 White 0%-100% 0 255
9 LED5-LED6 Red 0%-100% 0 255
10 LED5-LED6 Green 0%-100% 0 255
11 LED5-LED6 Blue 0%-100% 0 255
12 LED5-LED6 White 0%-100% 0 255
13 LED7-LED8 Red 0%-100% 0 255
14 LED7-LED8 Green 0%-100% 0 255
15 LED7-LED8 Blue 0%-100% 0 255
16 LED7-LED8 White 0%-100% 0 255
17 LED9-LED10 Red 0%-100% 0 255
18 LED9-LED10 Green 0%-100% 0 255
19 LED9-LED10 Blue 0%-100% 0 255
20 LED9-LED10 White 0%-100% 0 255
21 LED11-LED12 Red 0%-100% 0 255
22 LED11-LED12 Green 0%-100% 0 255
23 LED11-LED12 Blue 0%-100% 0 255
24 LED11-LED12 White 0%-100% 0 255
1 1 LED1 Red 0%-100% 0 255
2 2 LED1 Green 0%-100% 0 255
3 3 LED1 Blue 0%-100% 0 255
4 4 LED1 White 0%-100% 0 255
5 5 LED2 Red 0%-100% 0 255
6 6 LED2 Green 0%-100% 0 255
7 7 LED2 Blue 0%-100% 0 255
8 8 LED2 White 0%-100% 0 255
9 9 LED3 Red 0%-100% 0 255
10 10 LED3 Green 0%-100% 0 255
11 11 LED3 Blue 0%-100% 0 255
12 12 LED3 White 0%-100% 0 255
13 13 LED4 Red 0%-100% 0 255
14 14 LED4 Green 0%-100% 0 255

www.event-lighting.com.au
9
15 15 LED4 Blue 0%-100% 0 255
16 16 LED4 White 0%-100% 0 255
17 17 LED5 Red 0%-100% 0 255
18 18 LED5 Green 0%-100% 0 255
19 19 LED5 Blue 0%-100% 0 255
20 20 LED5 White 0%-100% 0 255
21 21 LED6 Red 0%-100% 0 255
22 22 LED6 Green 0%-100% 0 255
23 23 LED6 Blue 0%-100% 0 255
24 24 LED6 White 0%-100% 0 255
25 25 LED7 Red 0%-100% 0 255
26 26 LED7 Green 0%-100% 0 255
27 27 LED7 Blue 0%-100% 0 255
28 28 LED7 White 0%-100% 0 255
29 29 LED8 Red 0%-100% 0 255
30 30 LED8 Green 0%-100% 0 255
31 31 LED8 Blue 0%-100% 0 255
32 32 LED8 White 0%-100% 0 255
33 33 LED9 Red 0%-100% 0 255
34 34 LED9 Green 0%-100% 0 255
35 35 LED9 Blue 0%-100% 0 255
36 36 LED9 White 0%-100% 0 255
37 37 LED10 Red 0%-100% 0 255
38 38 LED10 Green 0%-100% 0 255
39 39 LED10 Blue 0%-100% 0 255
40 40 LED10 White 0%-100% 0 255
41 41 LED11 Red 0%-100% 0 255
42 42 LED11 Green 0%-100% 0 255
43 43 LED11 Blue 0%-100% 0 255
44 44 LED11 White 0%-100% 0 255
45 45 LED12 Red 0%-100% 0 255
46 46 LED12 Green 0%-100% 0 255
47 47 LED12 Blue 0%-100% 0 255
48 48 LED12 White 0%-100% 0 255
49 Master dimmer 0 255
50 Strobe (slow to fast) 10 255

www.event-lighting.com.au
10
TECHNICAL SPECIFICATIONS
Power
-Input Voltages: 100V~240V AC, 50/60Hz
-Power Consumption: 120W
-Power Connection: IEC Input & Output Connection
Photometrics
-Light Source: 12 pcs 8W RGBW LEDs
-Beam Angle: 22° (Optional 55° )
-Output: 2,550 lux @2.0 M RGBW full on
-PWM: 2,940 Hz
-LED Life: 50,000 hours
Effects
-8-bit Dimming Control /4 x 16-bit Dimming Curves
-Strobe: 1 - 30 Hz
Control
-Operational Modes: Static, Color Fade, Auto Program, Sound Active, Multi Fixture Chases, Master / Slave & DMX
Modes,
-Display: 4-button LCD Display Control Panel
-DMX Protocol: DMX512
-DMX Channel Mode: 3 / 4 / 6 / 8 / 9 / 12 / 16 / 24 / 48 / 50
-DMX Interface: 3-Pin (Optional 5-Pin XLR)
-Software Upgrade via DMX: Yes
Housing
-Housing Materials: Aluminium Housing
-Housing finish: Matte Black
-Cooling: Fanless Cooling
-Dimension: 1050 x 165 x 80 mm
-Net Weight: 4.5 kg
WARRANTY
Please refer to your local dealer or please contact Event Lighting Pty Ltd
Website: www.event-lighting.com.au
