evertz TR-3200E User manual

TR-3200E
User Manual
© Copyright 2013
EVERTZ MICROSYSTEMS LTD.
5292 John Lucas Drive,
Burlington, Ontario, Canada
L7L 5Z9
Phone: [phone]
Sales Fax: [phone]
Tech Support Phone: [phone]
Tech Support Fax: [phone]
Internet: Sales: [e-mail]
Tech Support: [email protected]
Web Page: http://www.evertz.com
Version 1.0 February 2013
The material contained in this manual consists of information that is the property of Evertz Microsystems and is
intended solely for the use of purchasers of the TR-3200E. Evertz Microsystems expressly prohibits the use of
this manual for any purpose other than the operation of the device.
All rights reserved. No part of this publication may be reproduced without the express written permission of Evertz
Microsystems Ltd. Copies of this guide can be ordered from your Evertz products dealer or from Evertz
Microsystems.

IMPORTANT SAFETY INSTRUCTIONS
The lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of uninsulated “Dangerous voltage”
within the product’s enclosure that may be of sufficient magnitude to constitute
a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (Servicing) instructions
in the literature accompanying the product.
•Read and keep these instructions
•Heed all warnings.
•Follow all instructions.
•Do not use this apparatus near water
•Clean only with dry cloth.
•Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
•Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
•Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than other. A grounding-type plug has two blades and a
third grounding prong. The wide blade or the third prong is provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
•Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles and the point where they exit from the apparatus.
•Only use attachments/accessories specified by the manufacturer
•Unplug this apparatus during lightning storms or when unused for long periods of time.
•Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR MOISTURE.
DO NOT EXPOSE THIS
EQUIPMENT TO DRIPPING OR SPLASHING AND ENSURE THAT NO
OBJECTS FILLED WITH LIQUIDS ARE PLACED ON THE EQUIPMENT
WARNING:
THIS EQUIPMENT USES POWER/MAINS CONNECTORS FITTED WITH
SAFETY GROUND PINS. TO REDUCE THE RISK OF ELECTRIC SHOCK,
GROUNDING OF THE GROUND PIN OF THE MAINS PLUG MUST BE
MAINTAINED. IN ADDITION GROUNDING OF GROUND TERMINAL ON THE
MAIN EQUIPMENT CHASSIS MUST BE MAINTAINED.

WARNING:
DANGEROUSLY HIGH VOLTAGES ARE PRESENT INSIDE THE POWER
SUPPLY FRAME.
WARNING:
TO COMPLETELY DISCONNECT THIS EQUIPMENT FROM THE AC MAINS,
DISCONNECT THE POWER SUPPLY CORD PLUG FROM THE AC
RECEPTACLE THIS EQUIPMENT MAY HAVE MORE THAN ONE POWER
SUPPLY CORD. TO REDUCE THE RISK OF ELECTRIC SHOCK, DISCONNECT
ALL POWER SUPPLY CORDS BEFORE SERVICING.
CAUTION: These servicing instructions are for use by qualified personnel only. To reduce the risk of
electric shock, do not perform any servicing other than that contained in the operating instructions
unless you are qualified to do so. Refer all servicing to qualified personnel.
CAUTION: To reduce the risk of electric shock, plug each power supply cord into separate branch
circuits employing separate service grounds.
NEVER use flammable or combustible chemicals for cleaning components.
NEVER operate this product with any covers removed.
NEVER wet the inside of this product with any liquid.
NEVER bypass any fuse or replace any fuse with a value or type other than those specified.
NEVER operate this product in an explosive atmosphere.
NEVER block the airflow through ventilation slots.
NEVER expose this product to extremely low or high temperatures.
This product complies with the requirements of the product family standards for video, audio, audio-
visual entertainment, and lighting control apparatus for professional use as mentioned below.

INFORMATION TO USERS IN EUROPE
NOTE
This equipment with the CE marking complies with bother the EMC Directive (89/336/EEC) and the Low Voltage
Directive (73/23/EEC) issued by the Commission of the European Community.
Compliance with these directives implies conformity to the following European standards:
•EN60065 Product Safety
•EN55103-1 Electromagnetic Interference Class A (Emission)
•EN55103-2 Electromagnetic Susceptibility (Immunity)
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to the
European Union EMC directive. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at his own expense.
INFORMATION TO USERS IN THE U.S.A.
NOTE
FCC CLASS A DIGITAL DEVICE OR PERIPHERAL
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at his own expense.
WARNING
Changes or Modifications not expressly approved by Evertz Microsystems Ltd. could void the user’s authority to
operate the equipment.
Use of unshielded plugs or cables may cause radiation interference. Properly shielded interface cables with the
shield connected to the chassis ground of the device must
EN60065
Safety
EN504192 2005
Waste electrical products should not be
disposed of with household waste. Contact your
Local Authority for recycling advice
EN55103-1: 1996
Emission
EN55103-2: 1996
Immunity
Evertz Microsystems Ltd
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions:
This device may cause harmful interference, and this device
must accept any interference received, including interference
that may cause undesired operation.
Tested to comply
with FCC
Standards
For Home or Office Use

TR3200E Tally Data Router
Revision 1.0
TABLE OF CONTENTS
1OVERVIEW...................................................................................................................................1
2INSTALLATION ............................................................................................................................2
2.1 ELECTRICAL CONNECTIONS............................................................................................2
2.2 INPUT PORTS......................................................................................................................2
2.3 OUTPUT PORTS..................................................................................................................3
2.4 SETTING THE POWER LINE VOLTAGE.............................................................................4
2.5 MAINTENANCE ...................................................................................................................4
3CONFIGURATION ........................................................................................................................5
3.1 SETTING THE IP ADDRESS................................................................................................5
3.1.1 The Quartz Serial Cable............................................................................................5
3.2 ROUTER CONFIGURATION................................................................................................5
4SPECIFICATIONS.........................................................................................................................6
4.1 INPUTS ................................................................................................................................6
4.2 OUTPUTS ............................................................................................................................6
4.3 ETHERNET ..........................................................................................................................6
4.4 CONTROL............................................................................................................................6
4.5 POWER................................................................................................................................6
4.6 PHYSICAL............................................................................................................................6
Figures
Figure 1-1: Front Panel View ............................................................................................................................1
Figure 1-2: Rear Panel View.............................................................................................................................1

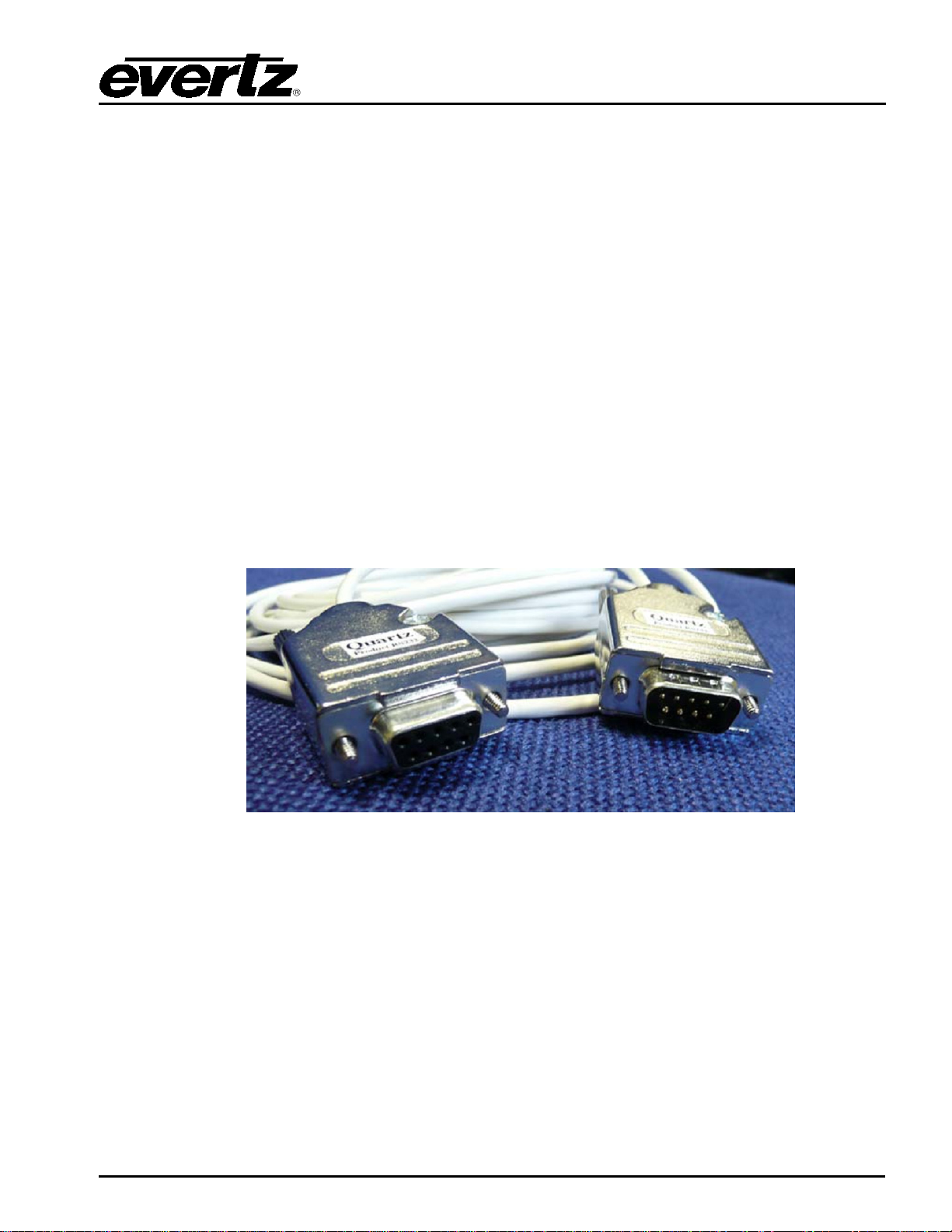

Figure 3-1: Quartz Serial Cable ........................................................................................................................5

TR3200E Tally Data Router
Revision 1.0
REVISION HISTORY
REVISION DESCRIPTION DATE
1.0 First release Feb 2013
Information contained in this manual is believed to be accurate and reliable. However, Evertz assumes no responsibility for the use thereof
nor for the rights of third parties, which may be affected in any way by the use thereof. Any representations in this document concerning
performance of Evertz products are for informational use only and are not warranties of future performance, either expressed or implied. The
only warranty offered by Evertz in relation to this product is the Evertz standard limited warranty, stated in the sales contract or order
confirmation form.
Although every attempt has been made to accurately describe the features, installation and operation of this product in this manual, no
warranty is granted nor liability assumed in relation to any errors or omissions unless specifically undertaken in the Evertz sales contract or
order confirmation. Information contained in this manual is periodically updated and changes will be incorporated into subsequent editions. If
you encounter an error, please notify Evertz Customer Service department. Evertz reserves the right, without notice or liability, to make
changes in equipment design or specifications.

TR3200E Tally Data Router
Revision 1.0 Page -1
1 OVERVIEW
The TR-3200E Tally router is used in conjunction with MAGNUM-TALLY. It receives tally inputs from a
device, such as a vision mixer, and provides this information to MAGNUM-TALLY which then
processes the information. The information can then be used by MAGNUM-TALLY to provide tally
information to cameras, Under Monitor Displays (UMDs), switchers, etc.
The TR-3200E Tally router provides up to 64 tally inputs and up to 32 tally outputs.
Features:
•64 tally inputs
•32 tally outputs
•Housed in a 1RU frame
Figure 1-1: Front Panel View
Figure 1-2: Rear Panel View

TR3200E Tally Data Router
Page - 2 Revision 1.0
2 INSTALLATION
The Tally router is designed to fit into standard 19” equipment racks. It can be mounted at any angle.
Rack-mount flanges (or ears) are vulnerable to damage so these are packed separately for protection
and must be removed from the accessory kit and fitted to the sides of the unit with the screws supplied
in the kit.
Installation in a 19” rack is simple. Guide the unit through the aperture in the front of the rack until the
rack-mounting flanges are flush against the side member of the rack and bolt in place with fixing
screws (not supplied).
Behind the unit you should allow for a depth of 170mm plus provision for the connection of external
cables.
2.1 ELECTRICAL CONNECTIONS
The chassis ground pin of the 25 way D-type connectors is connected to the earth of the power plug
and the metalwork. Use mating connectors with tin plating and metal hoods to maintain earth continuity
and RFI shielding. Also connect the shield of the control cable to the ground pin for RFI shielding.
Note that the connectors and their hoods must not exceed 17mm width. Some designs are wider than
this and will not fit correctly the rear of the unit if both rows are used.
2.2 INPUT PORTS
These ports are used to read the tallies from, say, the vision mixer (production switcher) and use
standard 25 way D-type socket connectors.
1. The mixer tally output will usually be an isolated circuit i.e. a relay. The receiver circuit in the Tally
router has its own logic pull-up so there should be no need for extra interface circuitry.
Nevertheless some small amount of power is made available for special purposes. Please take
note of the ratings below.
2. Connect one pin of the mixer tally to an input pin. Note that +0.8v is the permitted maximum value
of voltage for a valid low reading.
3. Connect the other pin of the mixer tally (or common) to the common 0 volts pin of the connector pin
24. This pin is connected to the technical ground within the Tally Router.

TR3200E Tally Data Router
Revision 1.0 Page -3
The list below shows the pin connections of the D25 socket connectors on the rear of the unit.
2.3 OUTPUT PORTS
These ports are used to drive the camera tally lamps and use standard 25 way D-type socket
connectors.
1. The tally output is an isolated closing relay contact pair. The camera will normally provide the
power to drive its lamp. Nevertheless some small amount of power is made available for special
purposes. Please take note of the ratings below, as this unit is not able to provide sufficient current
to drive camera tally lamps.
2. Connect the contact pair to the pins shown below.
The list below shows the pin connections of the D25 socket connectors on the rear of the unit.

TR3200E Tally Data Router
Page - 4 Revision 1.0
2.4 SETTING THE POWER LINE VOLTAGE
The voltage must be checked and if necessary set prior to inserting the power cord. The 230v setting is
suitable for both 220v and 240v countries. The 115v setting is suitable for 110v and 120v countries.
1. Remove the power cord.
2. Use a small screwdriver to ease loose the voltage selector/fuse holder by prising from above.
3. Pull out the fuse drawer. The main fuse is clearly visible, however, there is also a spare slid inside
the drawer. The fuse rating is shown on the serial number plate of the unit.
4. Rotate the drawer so that the correct power line voltage is orientated to be read (top of the text up)
with the top of the frame also facing upwards. Fit the correct fuse and replace the fuse holder
drawer until it snaps home.
5. Plug in the power cord into the equipment.
2.5 MAINTENANCE
First of all isolate the problem to the Tally Router. The +24v and +5v external supplies fed from the
Tally Input/Output Ports are protected from damage by quick blow fuses. If a fuse has blown it does
not affect the internal circuitry. Remove the front panel to reveal a red LED towards the right-hand side
of the unit. This will light only if either of the fuses has blown. The adjacent yellow LED indicates the
presence of the main +24v supply within the unit. Check and, if necessary, replace with a fuse of the
same type and rating (1A quickblow).

TR3200E Tally Data Router
Revision 1.0 Page -5
3 CONFIGURATION
3.1 SETTING THE IP ADDRESS
1. Open WinSetup 3.45 with a white ‘Quartz Serial Cable’ between the PC and the front DB-9 of
the unit.
2. Click ‘Options’ > ‘Communications’ to select the ‘Use Serial Communications’ pick the
appropriate Port for your PC, 38400, none, 8, 1
3. Click ‘System’ > ‘Ethernet Configuration’, and an IP Config window will open.
4. Query Router will print what the router IP is set to.
5. Fill in the IP, Subnet Mask and Gateway appropriately.
6. Update to send changes to the router.
7. An ‘Update’ window will appear to indicate a reboot is required. Click ‘OK’ and reboot the
router.
8. Once the router is booted ensure you can ping for 30 seconds.
3.1.1 The Quartz Serial Cable
The Quartz Serial cable is fitted with both a male and female connector. Please see Figure 3-1 for an
example of what the supplied “Quartz Serial Cable” looks like.
Figure 3-1: Quartz Serial Cable
If you are making your own cable then the interface cable needs a D9 socket at the PC end and a D9
plug at the router end. The cable must have the following connections.
PC D9 skt Quartz D9 plg
pin 3 (Tx) -----to----- pin 3 (Rx)
pin 2 (Rx) -----to----- pin 7 (Tx)
pin 5 (0v) -----to----- pin 6 (0v)
3.2 ROUTER CONFIGURATION
1. No router configuration is required from WinSetup or other means; this device has all
required functionality hard coded.

TR3200E Tally Data Router
Page - 6 Revision 1.0
4 SPECIFICATIONS
4.1 INPUTS
Input: < 0.8V for logic low
> 3.5V or open circuit for logic high
Connectors: D25 female
Four for inputs, each with 16 lines
4.2 OUTPUTS
Normally Open Contacts:
Gold over silver palladium
Contact Resistance:1Ωmax.
Operate/Release Time:
10ms max.
Contact Rating: 0.5A @ 24V DC resistive load
0.15A @ 100V rms. AC
Service Life: 1.0x106 at low load
0.5x106 at full load
Connectors: D25 female
Four for outputs, each with 8 relays
4.3 ETHERNET
Ethernet: Standard Ethernet interface for connection to MAGNUM-TALLY
RJ45
4.4 CONTROL
Control: MAGNUM-TALLY
4.5 POWER
Supply: 100-240V, 50/60Hz
Consumption: 15W
4.6 PHYSICAL
Height: 1RU, 44mm (1.75” nom.)
Width: 19” rack mount
Depth: 11” (280mm)
Weight: 2.5kg
Operating Temp: 0-40°C
Ventilation Natural: Convection
