1. OVERVIEW
The 7707CVT-4 is a VistaLINK®enabled, Quad Analog Video fiber transmitter for broadcast quality video and
audio signals. This single card module accepts four NTSC or PAL analog video inputs, performs analog to
digital conversion and transmits them over a single fiber. The companion 7707CVR-4 Quad Analog Video fiber
receiver demultiplexes the signals and converts them back to analog form.
The 7707CVT-4-A16 Quad Analog Video and 16 Channel Analog Audio fiber transmitter is a version that
digitizes and multiplexes 4 analog video and up to sixteen analog audio signals and converts them to an optical
signal for transmission. The companion 7707CVR-4-A16 Quad Analog Video and 16 Channel Analog Audio
fiber receiver accepts a fiber optic input, demultiplexes the signals, performs D to A conversion and outputs 4
NTSC or PAL analog video signals and up to sixteen balanced analog audio signals.
The fiber output is available in an assortment of optical wavelengths, accommodating standard or CWDM
transmission schemes. (7707CVT-4 shown, 7707CVT-4-A16 similar)
7707CVT13-4 1310 nm FP -7dBm output, suitable for distances up to 50 Km
7707CVT15-4 1550 nm DFB 0dBm output, suitable for distances up to 75 Km
There are several versions with built in isolators specifically suited to coarse wave division multiplexing
(CWDM) applications. These versions all have 0dBm output and are suitable for distances up to 75 Km.
7707CVT27-4 1270 nm DFB
7707CVT29-4 1290 nm DFB
7707CVT31-4 1310 nm DFB
7707CVT33-4 1330 nm DFB
7707CVT35-4 1350 nm DFB
7707CVT37-4 1370 nm DFB
7707CVT43-4 1430 nm DFB
7707CVT45-4 1450 nm DFB
7707CVT47-4 1470 nm DFB
7707CVT49-4 1490 nm DFB
7707CVT51-4 1510 nm DFB
7707CVT53-4 1530 nm DFB
7707CVT55-4 1550 nm DFB
7707CVT57-4 1570 nm DFB
7707CVT59-4 1590 nm DFB
7707CVT61-4 1610 nm DFB
There are several versions with built-in isolators specifically suited to dense wave division multiplexing
(DWDM) applications. The DWDM versions are suitable for distances >120 km @ 270 Mb/s (for DWDM
applications contact factory).
7707CVTyyy-4 DWDM DFB laser output, yyy – ITU channel number
The 7707CVT-4 occupies one card slot and the 7707CVT-4-A16 occupies two card slots. Both can be housed
in either a 1RU frame, which will hold up to three modules, or a 3 RU frame, which will hold up to 15 single slot
modules.

7700 MultiFrame Manual
7707CVT-4, 7707CVT-4-A16 Quad Analog Video Fiber Transmitter
7707CVT-4 - 2 Revision 1.2
Features:
•Single card fiber optic transmitter for up to four analog video and 16 analog audio signals
•Supports both NTSC and PAL video
•Broadcast quality analog video and audio performance
•High video signal to noise ratio
•Meets or exceeds EIA/TIA RS250-C short haul specifications for analog video transport
•Comprehensive signal and card status monitoring via four digit card edge display or remotely through
SNMP and VistaLINK®
•Signal transport over fiber is uninterrupted by loss of input video or audio feeds
•VistaLINK®capability is available when modules are used with the 3RU 7700FR-C frame and a 7700FC
VistaLINK®Frame Controller module in slot 1 of the frame
•Adjustable gain equalization for up to approximately 250m of Belden 1694 coaxial cable
•Fully Hot-swappable from front of frame with no fiber disconnect/reconnect required
•Supports Single mode (8-10 µm) and Multi-mode (50/62.5 µm) fiber optic cable
•Optical output wavelengths of 1310nm, 1550nm and up to 16 CWDM wavelengths (ITU-T G.694.2
compliant)
•DWDM wavelengths (ITU-T G.694.1 compliant) also available

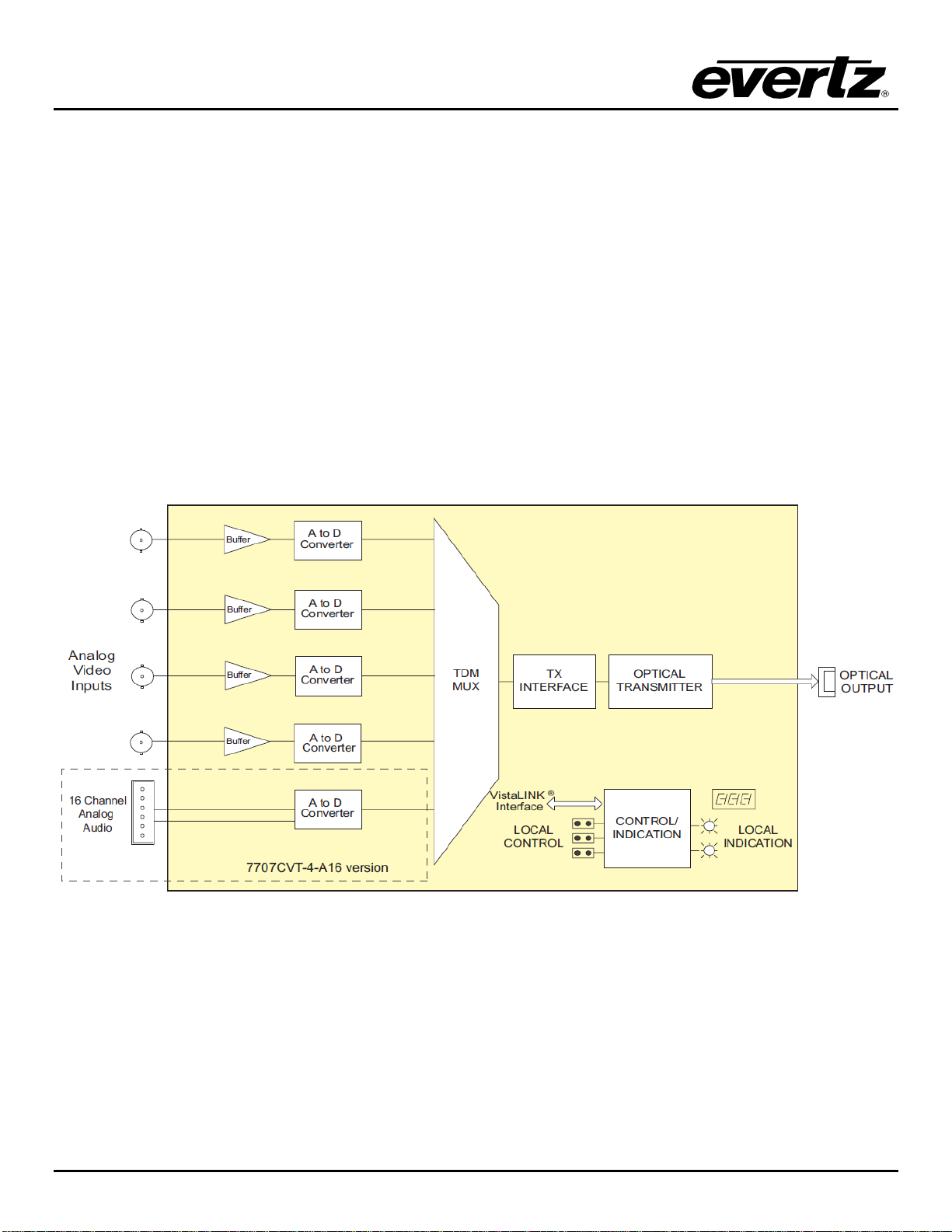

Figure 1-1: 7707CVT-4 and 7707CVT-4-A16 Block Diagram

7700 MultiFrame Manual
7707CVT-4, 7707CVT-4-A16 Quad Analog Video Fiber Transmitter
Revision 1.2 7707CVT-4 - 3
2. INSTALLATION
The 7707CVT-4 comes with a companion rear plate that has four BNC connectors and one SC/PC, SC/PC
with cover flap, ST/PC or FC/PC optical connector. Additionally the 7707CVT-4-A16 has one 48-pin terminal
header with removable terminal block. For information on mounting the rear plate and inserting the module
into the frame see section 3 of the 7700FR chapter.

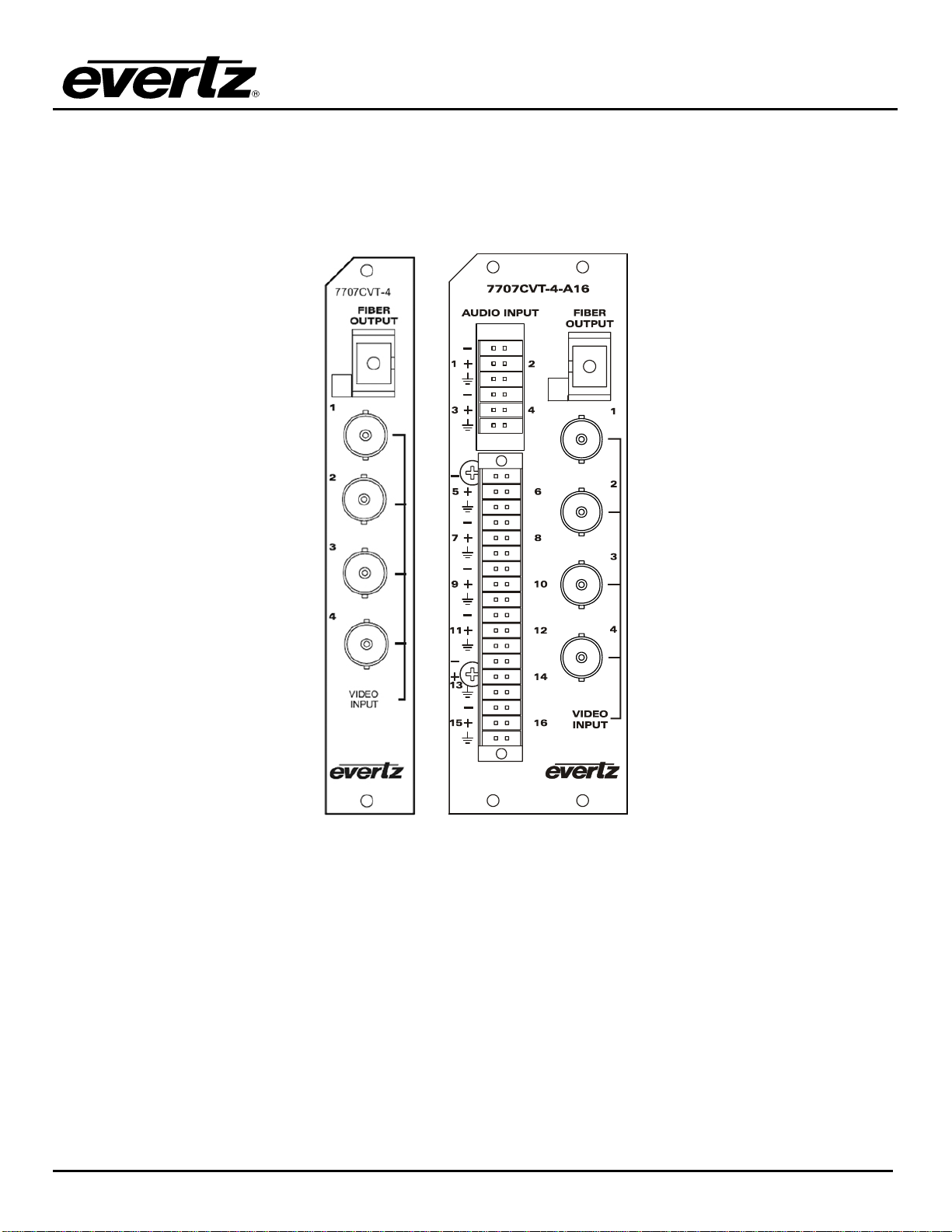

Figure 2-1: 7707CVT-4 and 7707CVT-4-A16 Rear Panels
VIDEO INPUT
1 to 4: Input BNC accepts analog NTSC or PAL video signals. There are separate video inputs for each of
the video signals. This input provides equalization compensation for up to approximately 250m of
industry standard Belden 1694 coaxial cable.

7700 MultiFrame Manual
7707CVT-4, 7707CVT-4-A16 Quad Analog Video Fiber Transmitter
7707CVT-4 - 4 Revision 1.2
OPTICAL OUTPUT: Output SC/PC, ST/PC or FC/PC female connector. This output contains the Time
Domain Multiplex (TDM) of the digitized analog video signal and analog audio signal.
This optical output is available in 1310nm, 1550nm, up to sixteen CWDM wavelengths
(ITU-T G.694.2 compliant) and up to 40 DWDM wavelengths (ITU-T G.694.1 compliant). The
output wavelength is marked on the rear panel of each module. When connected directly to a
companion module, the output is compatible with multi-mode fiber optic cable. If not connected
directly (i.e. connected through CWDM, DWDM, WDM, or splitter/combiner) the output is
compatible only with single-mode fiber optic cable.
"
Do not hook up the 7707CVT-4 series DWDM cards and any 7707CVR-4 series
cards directly with a short fiber optic cable. The 7707CVT-4 series DWDM cards
produce +7dBm of power, which will damage the receiver if connected directly.
"
Do not hook up the 7707CVT-4 series cards that output more than -7dBm of
power (see 7707CVT-4 series specifications for output power of various laser
types) and 7707CVR-4 series high sensitivity (-H versions) receiver cards
directly with a short fiber optic cable. The 7707CVT-4 series cards that produce
more than -7dBm of power will damage the receiver if connected directly.
AUDIO INPUTS
1 to 16: The 7707CVT-4-A16 modules provide terminal block input connections compatible with either
balanced or unbalanced analog audio. Balanced audio signals should be connected to the positive
(+) and negative (-) input terminals. Unbalanced audio signals should be connected to the positive
(+) input terminal, while the negative (-) input terminal is connected to ground. The audio cables
can be secured into the removable portion of the terminal strips using a small screwdriver. The
removable part of the terminal strip is then inserted into the rear panel.
2.1. CARE AND HANDLING OF OPTICAL FIBER
2.1.1. Safety
!
CLASS 1 LASER PRODUCT
Background colour: yellow
Triangular band: black
Symbol: black
2.1.2. Assembly
Assembly or repair of the laser sub-module is done only at Evertz facility and performed only by qualified
Evertz technical personnel.

7700 MultiFrame Manual
7707CVT-4, 7707CVT-4-A16 Quad Analog Video Fiber Transmitter
Revision 1.2 7707CVT-4 - 5
2.1.3. Labeling
Certification and Identification labels are combined into one label. As there is not enough room on the product
to place the label it is reproduced here in the manuals.
•There is no date of manufacture on this label as it can be traced by bar code label placed on the
Printed circuit board of each Evertz plug-in module
•The Model number is one of: 7707CVT13-4, 7707CVT13-4-A16, 7707CVT15-4, 7707CVT15-4-A16,
7707CVTxx-4, 7707CVTxx-4-A16, (xx = 27, 29, 31, 33, 35, 37, 43, 45, 47, 49, 51, 53, 55, 57, 59, 61)
7707CVTDyyy-4, 7707CVTDyyy-4-A16 (Dyyy represents ITU Grid Channel: D200, D210, D220, D230,
D240, D250, D260, D270, D280, D290, D300, D310, D320, D330, D340, D350, D360, D370, D380,
D390, D400, D410, D420, D430, D440, D450, D460, D470, D480, D490, D500, D510, D520, D530,
D540, D550, D570, D580, D590, D600)
Figure 2-2: Reproduction of Laser Certification and Identification Label
2.1.4. Handling and Connecting Fibers
"
Never touch the end face of an optical fiber. Always keep dust caps on optical fiber
connectors when not connected and always remember to properly clean the optical end
face of a connector before making a connection.
The transmission characteristics of the fiber are dependent on the shape of the optical core and therefore care
must be taken to prevent fiber damage due to heavy objects or abrupt fiber bending. Evertz recommends that
you maintain a minimum bending radius of 5 cm to avoid fiber-bending loss that will decrease the maximum
attainable distance of the fiber cable. The Evertz fiber optic modules come with cable lockout devices, to
prevent the user from damaging the fiber by installing a module into a slot in the frame that does not have a
suitable I/O module. For further information about care and handling of fiber optic cable see section 3 of the
Fiber Optics System Design section of this manual binder.

7700 MultiFrame Manual
7707CVT-4, 7707CVT-4-A16 Quad Analog Video Fiber Transmitter
7707CVT-4 - 6 Revision 1.2
3. SPECIFICATIONS
3.1. ANALOG VIDEO INPUT
Standards: NTSC, SMPTE 170M, PAL, ITU-R 624-4
Number of Inputs: 4
Connector: 1 BNC per IEC 61169-8 Annex A.
Signal Quantization: 12 bits
System Bandwidth: 5.5MHz
Input Level: 2 Vp-p (Maximum)
Gain Equalization: Up to 250m of Belden 1694 or equivalent (adjustable)
Input impedance: 75 Ohms
Return Loss: > 30 dB to 5.5 MHz
Signal/Noise Ratio: > 70 dB
Differential Gain: < 1.0 %
Differential Phase: < 0.7 Degree
Passband Ripple:
NTSC: < +/- 0.1dB to 4.1 MHz
< +/- 0.2dB to 5.5 MHz
PAL: < +/- 0.1dB to 4.8 MHz
< +/- 0.2dB to 5.8 MHz
Chroma/Luma Gain: 98% to 103%
Chroma/Luma Delay:
NTSC: < 5 ns
PAL: < 12 ns
Line Time Distortion: 1.2%
3.2. ANALOG AUDIO INPUTS (7707CVT-4-A16 Only)
Number of Inputs: 16
Type: Balanced analog audio
Connector: 48 pin removal terminal block
Input impedance: High Impedance (>20 KOhm)
Freq. Response: +/-0.1 dB, 20Hz to 20 kHz
THD 20Hz–20Khz: < 0.005%
Channel Phase Diff.: +/- 1 deg
SNR (weighted): > 85 dB
Max. Audio Input Level: +24 dBu
Signal Quantization: 24 Bits

7700 MultiFrame Manual
7707CVT-4, 7707CVT-4-A16 Quad Analog Video Fiber Transmitter
Revision 1.2 7707CVT-4 - 7
3.3. OPTICAL OUTPUT
Number of Outputs: 1
Connector: Female SC/PC, SC/PC with cover flap, ST/PC or FC/PC
Return Loss: > 14 dB
Wavelengths:
Standard: 1310nm, 1550nm (nominal)
CWDM: 1270nm to 1610nm (ITU-T G.694.2 compliant)
DWDM: ITU channel 20 to 60, 100GHz spacing, (ITU-T G.694.1 compliant)
Output Power:
1310nm FP (Standard): -7dBm ± 1dBm
1550nm & CWDM DFB: 0dBm ± 1dBm
DWDM DFB: +7dBm ± 1dB
3.4. ELECTRICAL
Voltage: +12VDC
Power: 11/12Watts. (Non-DWDM)
13/14Watts. (DWDM)
3.5. COMPLIANCE
Electrical Safety: CSA Listed to CSA C22.2 No. 60065-03, UL 60065-03
IEC 60065-(2001-12) 7th Edition
Complies with CE Low voltage directive 93/68/EEC
Laser Safety: Complies with 24 CFR 1040.10 and 1040.11 except for deviations
pursuant to LN No. 50, dated July 26, 2001
Complies with IEC 60825-1
EMI/RFI: Complies with FCC regulations for class A devices.
Complies with EU EMC directive 89/336/EEC.
3.6. PHYSICAL
7700 or 7701 frame mounting:
Number of slots: 1 (7707CVT-4)
2 (7707CVT-4-A16)

7700 MultiFrame Manual
7707CVT-4, 7707CVT-4-A16 Quad Analog Video Fiber Transmitter
7707CVT-4 - 8 Revision 1.2
4. STATUS INDICATORS AND DISPLAYS
The 7707CVT-4 series has 6 LED Status indicators and a 4 digit alphanumeric display on the front card edge
to show operational status of the card at a glance. The card edge pushbutton and toggle switch are used to
select various displays on the alphanumeric display. Figure 5-1 shows the location of the LEDs and card edge
controls.
4.1. STATUS INDICATOR LEDS
Two large LEDs on the front of the board indicate the general health of the module:
LOCAL FAULT: This Red LED indicates poor module health and will be On during the absence of a valid
video and audio input signal, if a laser fault exists, or if a local input power fault exists
(i.e.: a blown fuse). The LOCAL FAULT indication can also be reported to the frame
through the FRAME STATUS jumper.
MODULE OK: This Green LED indicates good module health. It will be On when a valid video or audio
input signal is present, and the laser and board power are good.
There are four small LEDs on the back side of the board that indicate the presence of video signals:
VIDEO 1 PRESENT: This Green LED indicates the presence of a valid signal on the Video 1 input.
This Red LED indicates that Video 1 input is blocked.
VIDEO 2 PRESENT: This Green LED indicates the presence of a valid signal on the Video 2 input.
This Red LED indicates that Video 2 input is blocked.
VIDEO 3 PRESENT: This Green LED indicates the presence of a valid signal on the Video 3 input.
This Red LED indicates that Video 3 input is blocked.
VIDEO 4 PRESENT: This Green LED indicates the presence of a valid signal on the Video 4 input.
This Red LED indicates that Video 4 input is blocked.
4.2. DOT-MATRIX DISPLAY / CARD STATUS AND CONTROLS
Additional status monitoring and controls are provided via the 4-digit dot-matrix display located at the card-
edge. The card-edge toggle-switch (see Figure 5-1) is used to navigate through the display menus and the
pushbutton is used to select options. Figure 5-1 provides a quick reference to the display menu structure.

7700 MultiFrame Manual
7707CVT-4, 7707CVT-4-A16 Quad Analog Video Fiber Transmitter
Revision 1.2 7707CVT-4 - 9
LASR...ERR (Laser Error)
Supersedes
VID...LOS (Video Loss)
Supersedes
OK (Ay-Okay)
BACK (Abort)
Pushbutton Ö
Menu Level 1 Menu Level 2 Menu Level 3
Indications
CTRL (Control)
Selections
STAT (Status)
VER (Software Version) Software Version
Indications
Selections
FRST(Factory Reset)
BACK (Abort)
DISP (Display Orientation) VERT (Vertical)
HORZ (Horizontal)
Selections
YES (Accept)
NO (Abort)
Menu Level 4
×
Toggle
Switch
Ø
CONT (Continuous)
DISC (Discontinuous)
Selections
LASR (Laser Enable Mode)
Selections
VID (Video)
EQ1 (Vid 1 Equalization)
Selections
0to 100 (%)
Selections
EQ2 (Vid 2 Equalization)
EQ3 (Vid 3 Equalization)
EQ4 (Vid 4 Equalization)
Menu Level 5
AUD (Audio)
JACK (Headphone Jack)
DUR (Detection Duration)
-30 to +10 (dBu)
Selections
1 to 10 (seconds)
Selections
CH2 (Audio 2)
CH1 (Audio 1)
......
CH16 (Audio 16)
Selections
DET (Audio Detection) LVL (Detection Level)
Selections
CHAN (Channel)
Selections
AUD (Audio) PRES (Present)
LOS (Signal Loss)
Indications
CH1 (Audio 1)
Selections
CH2 (Audio 2)
......
CH16 (Audio 16)
Selections
VID (Video)
Selections
PAL
NTSC
LOS (Signal Loss)
BLOK (Channel Blocked)
Indications
VID1 (Video 1)
VID2 (Video 2)
VID3 (Video 3)
VID4 (Video 4)
PSWD (Password)
Selections SelectionsSelections
0-9999
(Select / Enter Password) BLOK (Block Channel)
EN (Enable Channel)
VID1 (Video 1)
VID2 (Video 2)
VID3 (Video 3)
VID4 (Video 4)
0 to 64
Selections
VOL (Volume)
Figure 4-1: Card Edge Menu Structure
If a specific menu selection has a configuration value associated with it, then this may be changed using the
toggle switch. Pressing the pushbutton will apply the displayed value and return you to the previous menu
level.
The most recent user selection will be maintained in non-volatile memory in the event of power loss to
the module.

7700 MultiFrame Manual
7707CVT-4, 7707CVT-4-A16 Quad Analog Video Fiber Transmitter
7707CVT-4 - 10 Revision 1.2
4.2.1. Display of Warning Status Indications
The top level, default display indicates overall card status and warnings:
OK Card is functioning properly.
LASR…ERR Laser Error Warning – Flashing indication alternates between LASR and ERR.
VID…LOS No video input detected.
Pressing the pushbutton from this default display will allow the user to select from STAT (status) and CTRL
(control) menu items.
4.2.2. Displaying the Video Standard
The 7707CVT-4 detects the video standard of the signals present at its inputs. To display the video standard,
select the STAT menu item in menu level 1, select VID from menu level 2, then use the toggle switch to display
the desired video channel (from VID1 to VID4) and press the pushbutton to select it. For the sake of
simplicity, only the VID1 menu item will be described in the manual.
STAT
VID
VID1
NTSC
PAL
LOS
BLOK
The video standard will be displayed from the list below:
NTSC displays that NTSC is present.
PAL displays that PAL is present.
LOS displays that there is a Loss of Signal.
BLOK displays that there is a Channel Block.
4.2.3. Displaying the Audio Presence (7707CVT-4-A16 Only)
The 7707CVT-4-A16 detects analog audio at the inputs. To display the audio presence, select the STAT menu
item in menu level 1, select AUD from menu level 2, then use the toggle switch to display the desired audio
channel (from CH1 to CH16) and press the pushbutton to select it. For the sake of simplicity, only the AUD
menu item will be described in the manual.
STAT
AUD
CH1
PRES
LOS
The audio presence will be displayed from the list below:
PRES displays that the audio is present.
LOS displays that the audio is lost.
4.2.4. Displaying the Firmware Version
The VER option displays the card’s current firmware version. To display the firmware version, select the STAT
menu item in menu level 1 then use the toggle switch to display the VER option and press the pushbutton to
select it.
STAT
VER
(software version)
The firmware version will scroll across the display.
For example: VER 1.0 BLD 067

7700 MultiFrame Manual
7707CVT-4, 7707CVT-4-A16 Quad Analog Video Fiber Transmitter
Revision 1.2 7707CVT-4 - 11
4.2.5. Setting the Video Equalization
The EQ controls are used to set the amount of cable equalization being applied at the video input(s). It can be
adjusted to compensate for various input cable lengths to achieve a flat frequency curve. The display shows a
range of approximate cable length values expressed in meters for Belden 1694 cable or equivalent. When set
to 0 the cable equalization is turned off.
To set cable equalization, select the CTRL menu item in menu level 1, select VID from menu level 2, then use
the toggle switch to select the desired video channel equalization (from EQ1 to EQ4) and press the
pushbutton to select it. Use the toggle switch to set the equalization value of EQ1 to EQ4. For the sake of
simplicity, only EQ1 will be described in the manual.
CTRL
VID
EQ1
0 to 100
This control selects the amount of cable equalization that is applied at the video
input(s).
0 to 100% Equalization range, describing a % value
4.2.6. Setting the Analog Audio Detection Threshold (7707CVT-4-A16 Only)
In order to properly indicate audio signal presence, a detection threshold is used. The audio detection
threshold adjustment is implemented in the digital domain. The specified range of threshold adjustment is
–30dBu to +10dBu, in 1dB increments. Threshold adjustment is done using the card-edge interface or through
VistaLINK®control.
To change the audio detection threshold, use the pushbutton to select the CTRL menu item in menu level 1,
then use the pushbutton to select AUD from menu level 2. Use the pushbutton to select DET in menu level 3,
then LVL from menu level 4.
The toggle switch may then be used to change the threshold value. Use the toggle switch to select the desired
value then press the pushbutton to apply the displayed selection and return to menu level 3.
CTRL
AUD
DET
LVL
-30 to +10
This control selects the detection level.
-30 to +10 Detection threshold range, describing a dBu value
The factory default configuration applies an audio detection threshold value of
0dBu.
4.2.7. Setting the Analog Audio Silence Duration Period (7707CVT-4-A16 Only)
In order to properly indicate audio signal presence, a silence duration period is used. The duration period
adjustment is implemented in the digital domain. The specified range of time adjustment is 1sec to 10sec, in
1sec increments. Duration adjustment is done using the card-edge interface or through VistaLINK®control.
To change the audio silence duration period, use the pushbutton to select the CTRL menu item in menu level 1,
then use the pushbutton to select AUD from menu level 2. Use the pushbutton to select DET in menu level 3,
then DUR from menu level 4.

7700 MultiFrame Manual
7707CVT-4, 7707CVT-4-A16 Quad Analog Video Fiber Transmitter
7707CVT-4 - 12 Revision 1.2
The toggle switch may then be used to change the duration value. Use the toggle switch to select the desired
value then press the pushbutton to apply the displayed selection and return to menu level 3.
CTRL
AUD
DET
DUR
1 to 10
This control selects the detection duration.
1to 10 silence duration period range in seconds
4.2.8. Selecting the Headphone Jack Channel and Volume (7707CVT-4-A16 Only)
The 7707CVT-4-A16 provides a convenient audio monitoring headphone jack at the card-edge. This jack can
be used to verify signal presence or content for each audio channel, and is enabled while specific menu items
are selected within the JACK menu. The selected audio channel is applied to the left and right headphone
outputs as a monaural signal. Headphone jack channel and volume are selectable via the card-edge interface.
To configure the headphone jack, use the pushbutton to select the CTRL menu item in menu level 1, then use
the pushbutton to select AUD from menu level 2. Use the pushbutton to select JACK in menu level 3.
CTRL
AUD
JACK
CHAN
CH1
CH2
…
CH16
The 7707CVT-4-A16 allows the user to control the headphone monitoring jack
channel. Use the toggle switch then pushbutton to choose the parameter to be
controlled.
CHAN Allows selection of the headphone monitoring channel.
The following list describes possible selections for the headphone monitoring
channel:
CH1 to CH16 is the range of audio channels for the 7707CVT-4-A16 product
version.
Press the pushbutton to apply the displayed section. A scrolling line segment will be displayed. The headphone
jack will be enabled while in this state. Pressing the pushbutton again will exit this state, and mute the
headphone jack.
CTRL
AUD
JACK
VOL
0 to 64
The 7707CVT-4-A16 allows the user to control the headphone monitoring jack
volume. Use the toggle switch then pushbutton to choose the parameter to be
controlled.
VOL Allows selection of headphone monitoring volume.
Upon selecting the VOL menu item, a line segment is displayed. The position of the
line-segment on the dot-matrix display indicates the configured volume, and can be
adjusted via the toggle switch. The headphone jack will be enabled while in this
state. Pressing the pushbutton will exit this state, and mute the headphone jack.

7700 MultiFrame Manual
7707CVT-4, 7707CVT-4-A16 Quad Analog Video Fiber Transmitter
Revision 1.2 7707CVT-4 - 13
4.2.9. Setting the Password for Channel Blocking and Selecting Channels to be Blocked
The 7707CVT-4-A16 allows selective blocking of video channels 1 to 4 with a password. The default password
is 7154.
To view the menu for channel blocking, use the toggle switch and pushbutton to select the CTRL menu item in
menu level 1, then use the pushbutton to select the PSWD from menu level 2. Use the toggle switch to cycle
through password 0…9999. Use the pushbutton to enter the password shown on the display in menu level 3.
CTRL
PSWD
0-9999
VID1
VID2
VID3
VID4
EN
DIS
In menu level 4 use the toggle switch and then pushbutton to select the following:
PWSL Enter a new password 0…9999
VID1 Select Video Input 1
VID2 Select Video Input 2
VID3 Select Video Input 3
VID4 Select Video Input 4
To enable or disable blocking, select the video channel (VID1 to VID4) menu
item in menu level 4. Use the toggle switch to set the blocking parameter in menu
level 5 of VID1 to VID4 individually.
EN Enable Channel
BLOK Block Channel
"Without the correct password, the blocking or enable setting of each channel cannot be
changed. The current Block or Enable status can only be viewed in menu level 5.
4.2.10. Controlling the Behavior of the Laser
On the 7707CVT-4 the LASR option allows the user to set the behavior of the laser transmitter when there is no
video signal applied to the video inputs. To set the laser behavior, select the CTRL menu item in menu level 1,
then use the toggle switch to display the LASR menu selection and press the pushbutton to select it. Use the
toggle switch to choose between CONT and DISC and press the pushbutton to select the mode of operation.
CTRL
LASR
CONT
DISC
This control enables the user to select the laser enable mode.
CONT Laser will transmit continuously regardless of whether there are valid
input video signals present on the inputs of the 7707CVT-4.
DISC The laser will turn off when there is no recognizable video on the
7707CVT-4 inputs.
"
With the 7707CVT-4 set to discontinuous mode, due to the laser turning off, the
companion 7707CVR-4 will indicate an optical signal loss when no input video signal is
present at the 7707CVT-4.

7700 MultiFrame Manual
7707CVT-4, 7707CVT-4-A16 Quad Analog Video Fiber Transmitter
7707CVT-4 - 14 Revision 1.2
4.2.11. Setting the Orientation of the Text on the Card Edge Display
The DISP display option allows the user to set a horizontal or vertical orientation for the card edge display
messages. To set the display orientation, select the CTRL menu item in menu level 1, then use the toggle
switch to access the DISP menu selection and use the pushbutton to select it. Use the toggle switch to
change between HOR and VERT. Press the pushbutton to make your selection.
CTRL
DISP
HORZ
VERT
This control enables the user to select the display orientation.
HOR Horizontal display used when the module is housed in the 1 rack unit
7701FR frame or the stand-alone enclosure.
VERT Vertical display used when the module is housed in the 3-rack unit
7700FR frame.
4.2.12. Resetting Factory Defaults
The FRST menu option will return the 7707VT-4-HS to factory defaults. To return all settings to factory defaults,
select the CTRL menu item in menu level 1, then use the toggle switch to display the FRST menu selection and
use the pushbutton to select it. Use the toggle switch to change between YES and NO. Press the pushbutton
to make your selection.
CTRL
DISP
YES
NO
This control enables the user to reset the setting to factory default.
YES Return all card settings to factory default.
NO Retain current settings. Abort the factory reset operation.

7700 MultiFrame Manual
7707CVT-4, 7707CVT-4-A16 Quad Analog Video Fiber Transmitter
Revision 1.2 7707CVT-4 - 15

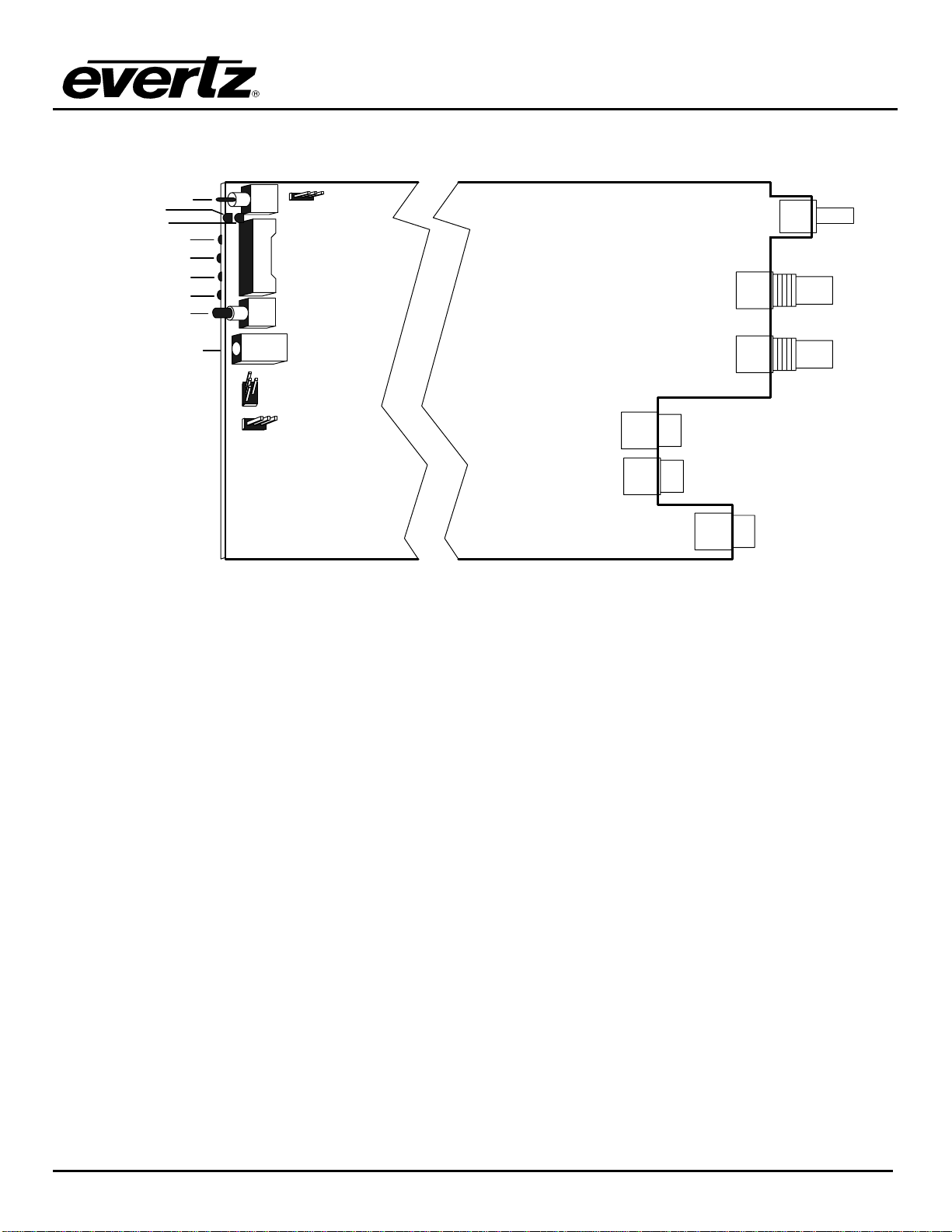

5. JUMPERS
FRAME STATUS
ON/OFF
LOCAL FAULT
DISPLAY
SELECT
PUSH BUTTON
TOGGLE SWITCH
UPGRADE
RUN/UPGD
J6
MODULE OK
HEAD PHONE JACK
7707CVT-4-A16 Only
VIDEO 2 PRESENT
VIDEO 3 PRESENT
VIDEO 1 PRESENT
VIDEO 4 PRESENT
J5
J7 SERIAL PORT
Figure 5-1: Location of Jumpers and Card Edge Controls
5.1. SELECTING WHETHER LOCAL FAULTS WILL BE MONITORED
BY THE GLOBAL FRAME STATUS
The FRAME STATUS jumper J6 determines whether local faults (as shown by the Local Fault indicator) will be
connected to the 7700FR frame's global status bus.
FRAME STATUS: To monitor faults on this module with the frame status indicators (on the Power Supply
FRAME STATUS LED's and on the Frame's Fault Tally output) install this jumper in the On position.
(Default)
When this jumper is installed in the Off position local faults on this module will not be monitored.
5.2. CONFIGURING THE MODULE FOR FIRMWARE UPGRADES
UPGRADE: The UPGRADE jumper J5 is used when firmware upgrades are being done to the module. For
normal operation it should be installed in the RUN position. See the Upgrading Firmware chapter of
this manual for more information.
To upgrade the firmware in the module unit pull it out of the frame. Move the UPGRADE jumper
into the UPGD position. Install the Upgrade cable provided (located in the vinyl pouch in the front of
this manual) onto the SERIAL header at the card edge. Re-install the module into the frame. Run
the upgrade as described in the Upgrading Firmware section of this manual. Once the upgrade is
complete, remove the module from the frame, move the UPGRADE jumper into the RUN position,
remove the upgrade cable and re-install the module. The module is now ready for normal
operation.

7700 MultiFrame Manual
7707CVT-4, 7707CVT-4-A16 Quad Analog Video Fiber Transmitter
7707CVT-4 - 16 Revision 1.2
6. VISTALINK®REMOTE MONITORING/CONTROL
6.1. WHAT IS VISTALINK®?
VistaLINK®is Evertz’s remote monitoring and configuration platform which operates over an Ethernet network
using Simple Network Management Protocol (SNMP). SNMP is a standard computer network protocol that
enables different devices sharing the same network to communicate with each other. VistaLINK®provides
centralized alarm management, which monitors, reports, and logs all incoming alarm events and dispatches
alerts to all the VLPro Clients connected to the server. Card configuration through VistaLINK®PRO can be
performed on an individual or multi-card basis using simple copy and paste routines, which reduces the time to
configure each module separately. Finally, VistaLINK®enables the user to configure devices in the network
from a central station and receive feedback that the configuration has been carried out.
1. An SNMP manager, also known as a Network Management System (NMS), is a computer running special
software that communicates with the devices in the network. Evertz VistaLINK®Pro Manager graphical
user interface (GUI), third party or custom manager software may be used to monitor and control Evertz
VistaLINK®enabled fiber optic products.
2. Managed devices (such as 7707CVT-4 and 7707CVR-4 cards) each with a unique address (OID),
communicate with the NMS through an SNMP Agent. Evertz VistaLINK®enabled 7700 series modules
reside in the 3RU 7700FR-C MultiFrame and communicate with the manager via the 7700FC VistaLINK®
frame controller module, which serves as the Agent.
3. A virtual database, known as the Management Information Base (MIB), lists all the variables being
monitored, which both the Manager and Agent understand. Please contact Evertz for further information
about obtaining a copy of the MIB for interfacing to a third party Manager/NMS.
For more information on connecting and configuring the VistaLINK®network, see the 7700FC Frame Controller
chapter.
6.2. VISTALINK®MONITORED PARAMETERS
The following parameters can be remotely monitored through the VistaLINK®interface.
Parameter Description
Laser OK Indicates whether the laser is operating without functional problems
Module OK Indicates whether the module is operating without functional problems
Video 1 to 4 Standard A range of values describing the detected video standard on channels 1
through 4
Video 1 to 4 Signal Valid Present Indicates the presence of a valid video input signal on channels 1 through
4
Audio 1 to 16 Present
(7707CVR-4-A16 Only) Indicates the presence of an Audio input signal on channels 1 through 16
Card Type Indicates whether the card is 7707CVT-4 or 7707CVT-4-A16
Table 6-1: VistaLINK®Monitored Parameters
