evertz 2407RGBT/DVIT User manual

2407RGBT/DVIT
DVI and RGB Video/Audio
Portable Fiber Transmitter
Instruction Manual
© Copyright 2007 - 2009
EVERTZ MICROSYSTEMS LTD.
5288 John Lucas Drive,
Burlington, Ontario,
Canada L7L 5Z9
Phone: [phone]
Sales: [email protected] Fax: [phone]
Tech Support: [e-mail] Fax: [phone]
Web Page: http://www.evertz.com
Version 1.2 September 2009
The material contained in this manual consists of information that is the property of Evertz Microsystems and is
intended solely for the use of purchasers of the 2407RGBT/DVIT. Evertz Microsystems expressly prohibits the
use of this manual for any purpose other than the operation of the 2407RGBT/DVIT.
All rights reserved. No part of this publication may be reproduced without the express written permission of
Evertz Microsystems Ltd. Copies of this manual can be ordered from your Evertz dealer or from Evertz
Microsystems.

IMPORTANT SAFETY INSTRUCTIONS
The lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of uninsulated “Dangerous voltage”
within the product’s enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (Servicing) instructions
in the literature ac-companying the product.
•Read this information
•Keep these instructions.
•Heed all warnings.
•Follow all instructions.
•Do not use this apparatus near water
•Clean only with dry cloth.
•Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
•Do not install near any heat sources such as radiators, heat registers, or other apparatus
(including amplifiers) that produce heat.
•Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has
two blades, one blade being wider than the other. A grounding type plug has two blades and a
third grounding prong. The wide blade or the third prong is provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete
outlet.
•Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles and the point where they exit from the apparatus.
•Only use attachments/accessories specified by the manufacturer
•Unplug this apparatus during lightning storms or when unused for long periods of time.
•Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way (ie. liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or has been
dropped).
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO
RAIN OR MOISTURE.
WARNING
DO NOT EXPOSE THIS EQUIPMENT TO DRIPPING OR SPLASHING AND ENSURE THAT NO
OBJECTS FILLED WITH LIQUIDS ARE PLACED ON THE EQUIPMENT.
WARNING
TO COMPLETELY DISCONNECT THIS EQUIPMENT FROM THE AC MAINS, DISCONNECT THE
PLUG FROM THE DUAL POWER SUPPLIES AC RECEPTACLE.
WARNING
THE MAINS PLUG OF THE POWER SUPPLY CORD SHALL REMAIN READILY OPERABLE.

INFORMATION TO USERS IN EUROPE
NOTE
This equipment with the CE marking complies with both the EMC Directive (89/336/EEC) and the Low
Voltage Directive (73/23/EEC) issued by the Commission of the European Community.
Compliance with these directives implies conformity to the following European standards:
•EN60065 Product Safety
•EN55103-1 Electromagnetic Interference Class A (Emission)
•EN55103-2 Electromagnetic Susceptibility (Immunity)
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to the European Union EMC directive. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
INFORMATION TO USERS IN THE U.S.A.
NOTE
FCC CLASS A DIGITAL DEVICE OR PERIPHERAL
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
WARNING
Changes or Modifications not expressly approved by Evertz Microsystems Ltd. could void the user’s
authority to operate the equipment.
Use of unshielded plugs or cables may cause radiation interference. Properly shielded interface cables
with the shield connected to the chassis ground of the device must be used

2407RGBT/DVIT DVI and RGB Video/Audio Portable Fiber Transmitter
Revision 1.2 i
TABLE OF CONTENTS
1. OVERVIEW.......................................................................................................................................... 1
1.1. SETTING UP THE DDC VALUE ................................................................................................ 3
2. INSTALLATION................................................................................................................................... 4
2.1. OPTICAL CONNECTIONS......................................................................................................... 4
2.2. SIGNAL CONNECTIONS........................................................................................................... 5
2.3. CARE AND HANDLING OF OPTICAL FIBER........................................................................... 6
2.3.1. Safety.............................................................................................................................. 6
2.3.2. Assembly......................................................................................................................... 6
2.3.3. Labeling........................................................................................................................... 6
2.3.4. Handling and Connecting Fibers..................................................................................... 7
3. SPECIFICATIONS............................................................................................................................... 8
3.1. ANALOG VIDEO INPUTS (2407RGBT ONLY).......................................................................... 8
3.2. DIGITAL VIDEO INPUTS ........................................................................................................... 8
3.3. DIGITAL VIDEO CONTROL....................................................................................................... 8
3.4. ANALOG AUDIO INPUTS (A2 & A2KM VERSIONS)................................................................ 8
3.5. KEYBOARD/MOUSE INPUT/OUTPUT (A2KM VERSIONS)..................................................... 9
3.6. SERIAL PORT (A2KM VERSIONS)........................................................................................... 9
3.7. USB PORT (USB VERSIONS ONLY)........................................................................................ 9
3.8. OPTICAL OUTPUT..................................................................................................................... 9
3.9. OPTICAL INPUT (-A2KM VERSIONS ONLY) ........................................................................... 9
3.10. ELECTRICAL ............................................................................................................................. 9
3.11. PHYSICAL................................................................................................................................ 10
4. CARD-EDGE MONITORING AND CONTROL ................................................................................. 11
4.1. ACCESSING THE TOGGLE SWITCH AND PUSH BUTTON.................................................. 11
4.2. CARD EDGE OPERATION...................................................................................................... 12
4.3. STATUS INDICATOR LEDS.................................................................................................... 13
4.4. CARD-EDGE DISPLAY AND CONTROLS.............................................................................. 13

2407RGBT/DVIT DVI and RGB Video/Audio Portable Fiber Transmitter
ii Revision 1.2
4.4.1. Card-Edge Display Warning Indications........................................................................ 14
4.4.2. Selecting the Output Laser Control Mode..................................................................... 15
4.4.3. Setting the RGB Output Video Sharpness (2407RGBT models only)........................... 15
4.4.4. Selecting the Display Data Channel Mode.................................................................... 16
4.4.5. Setting the Analog Audio Detection Threshold (A2 & A2KM Versions Only)................ 16
4.4.6. Setting the Analog Audio Detection Duration (A2 & A2KM Versions Only)................... 17
4.4.7. Adjusting the Headphone Jack Volume (A2 & A2KM Versions Only)........................... 17
4.4.8. Selecting the Serial Port Mode (-A2KM versions)......................................................... 17
4.4.9. Setting the Orientation of the Text on the Card Edge Display....................................... 18
4.4.10. Displaying the Input Optical Power (optical -A2 and -A2KM versions only).................. 18
4.4.11. Displaying Input Signal Resolution................................................................................ 18
4.4.12. Displaying Current Sharpness Setting .......................................................................... 18
4.4.13. Displaying the Selected Display Data Channel Mode................................................... 19
4.4.14. Displaying the Video Input Sync.................................................................................... 19
4.4.15. Displaying the Firmware Version................................................................................... 19
5. JUMPER CONTROLS....................................................................................................................... 20
5.1. CONFIGURING THE MODULE FOR FIRMWARE UPGRADES ............................................. 20
6. VISTALINK®REMOTE MONITORING/CONTROL........................................................................... 21
6.1. WHAT IS VISTALINK®?........................................................................................................... 21
6.2. VISTALINK®MONITORED PARAMETERS ............................................................................ 21
6.3. VISTALINK®CONTROLLED PARAMETERS ......................................................................... 22

2407RGBT/DVIT DVI and RGB Video/Audio Portable Fiber Transmitter
Revision 1.2 iii
Figures

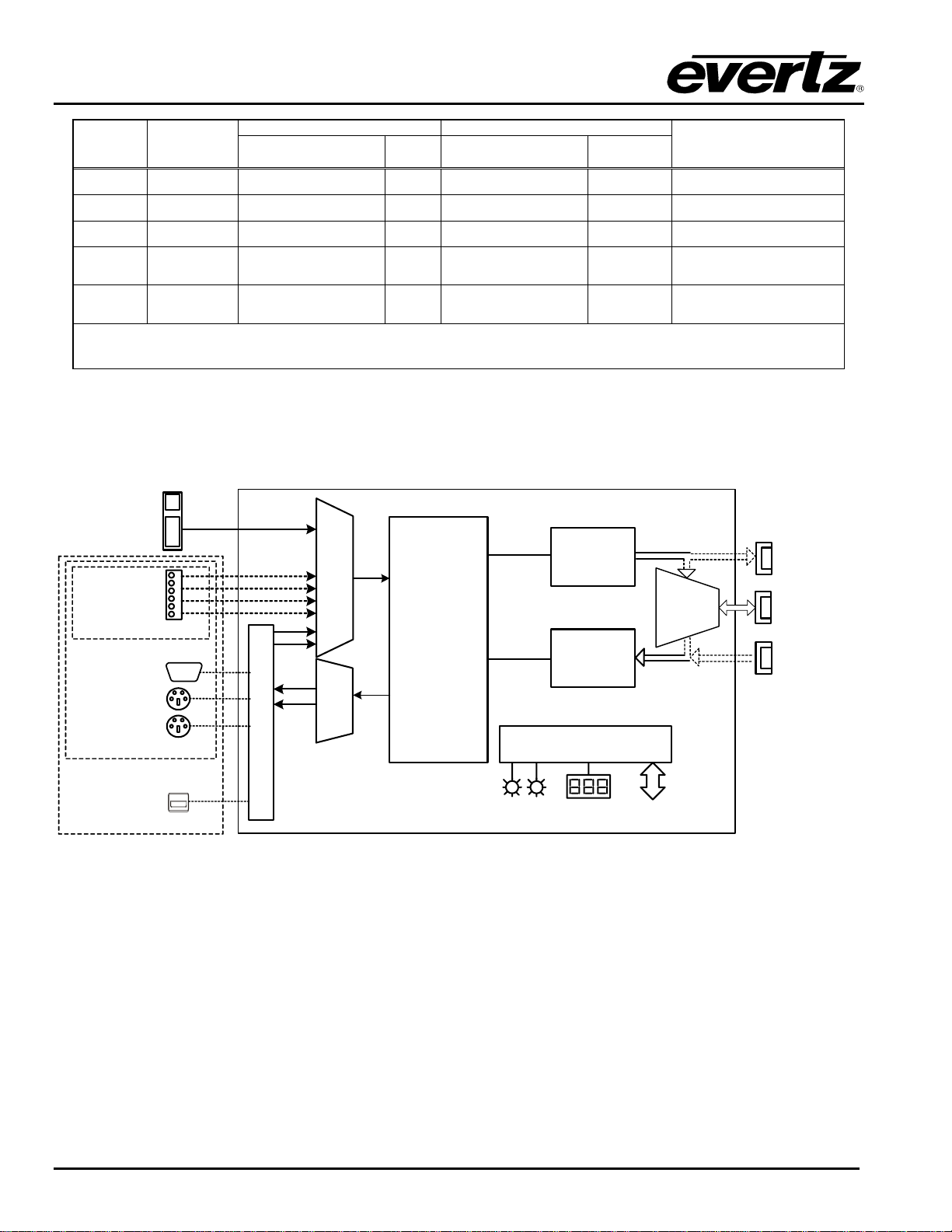

Figure 1-1: 2407RGBT Block Diagram .................................................................................................................2
Figure 1-2: 2407DVIT Block Diagram ...................................................................................................................3

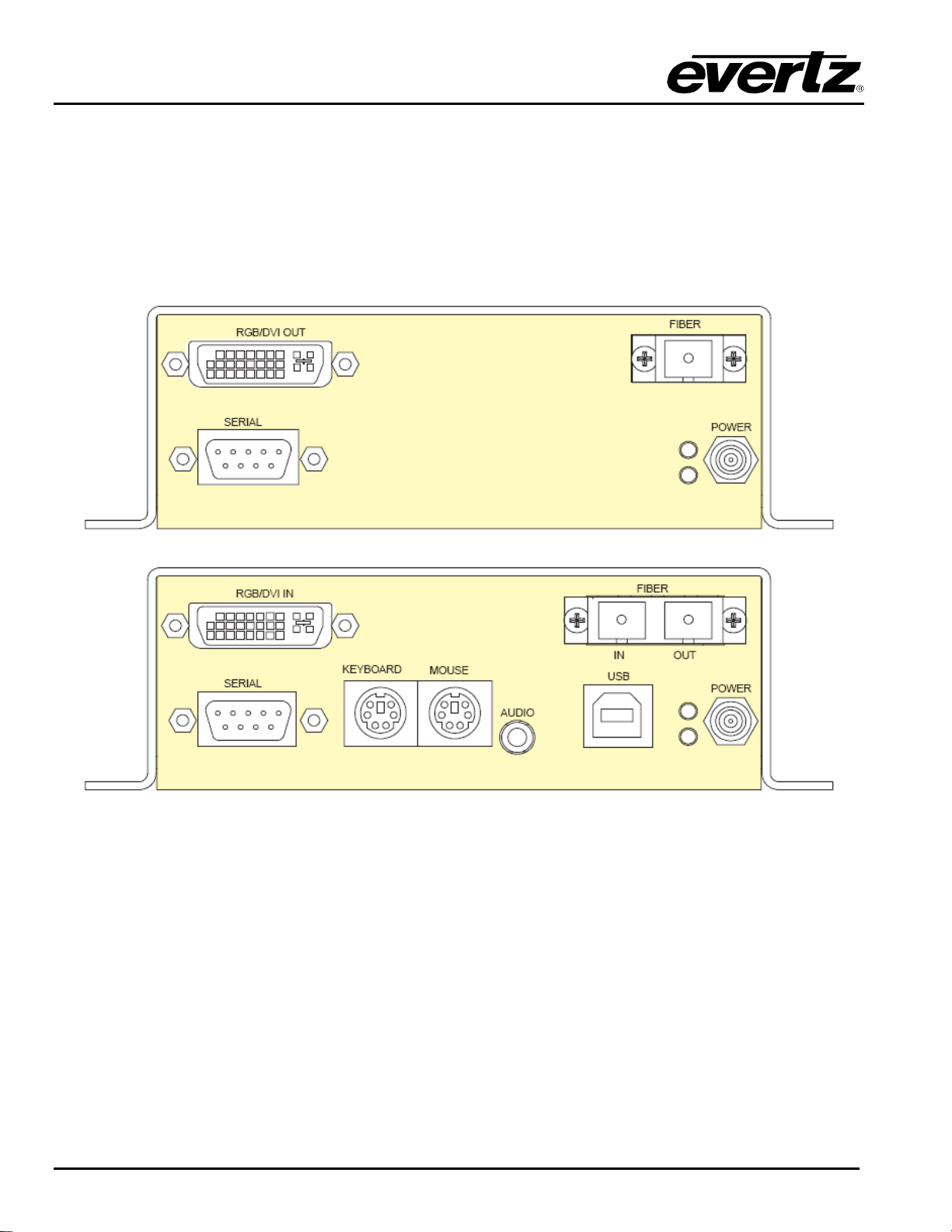

Figure 2-1: 2407RGBT/DVIT I/O CONNECTIONS...............................................................................................4

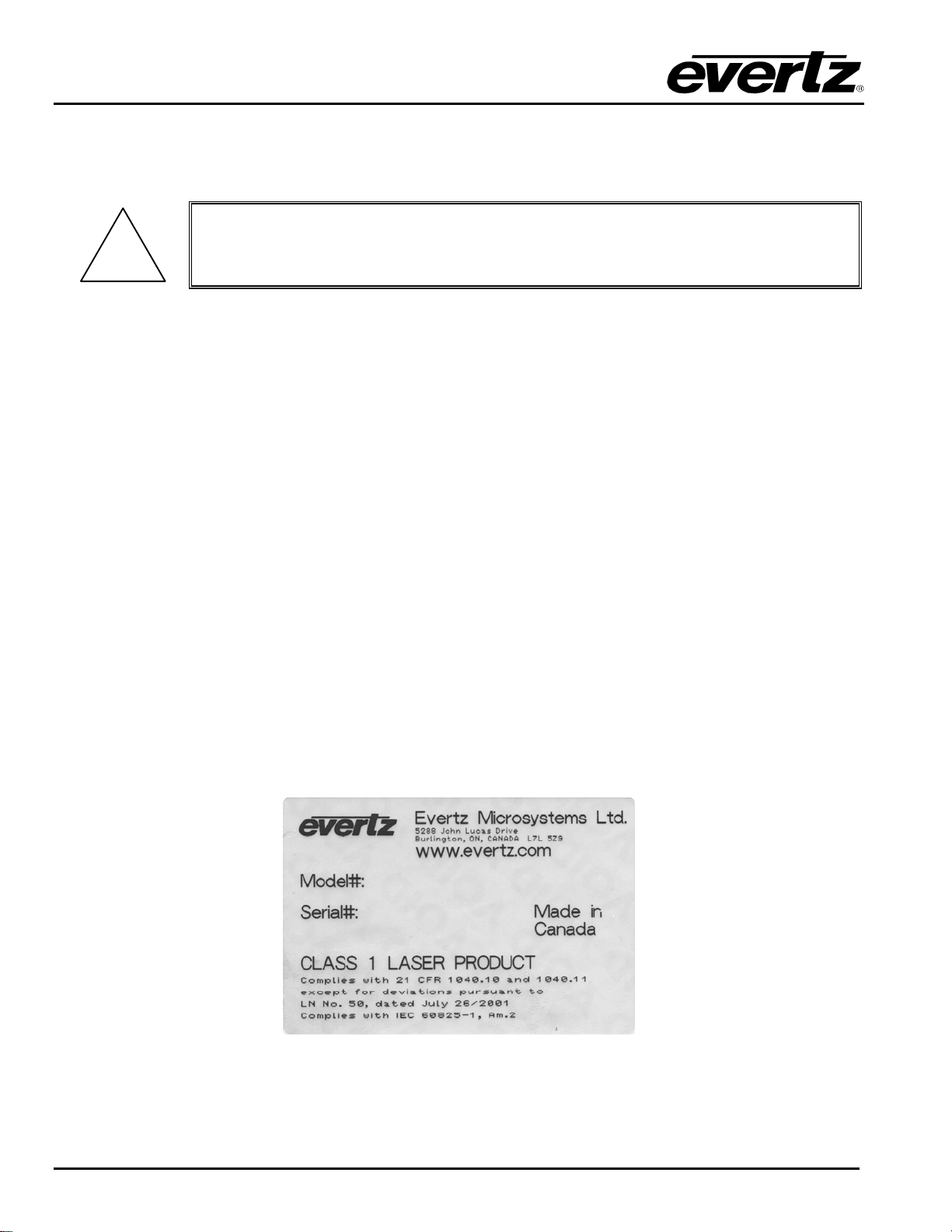

Figure 2-2: Reproduction of Laser Certification and Identification Label..............................................................6
Figure 4-1: Identifying Top Screws......................................................................................................................11
Figure 4-2: Screws on Bottom of Unit .................................................................................................................11
Figure 4-3: Inside View of Unit............................................................................................................................12
Figure 4-4: Location of Status Indicators and Jumpers ......................................................................................12
Figure 4-2: 2407RGBT/DVIT Card Edge Menu Flow Cart..................................................................................14
Tables
Table 1-1: Sample Typical Fiber Application Configurations ................................................................................2
Table 6-1: VistaLINK®Monitored Parameters.....................................................................................................21
Table 6-2: VistaLINK®Controlled Parameters ....................................................................................................22

2407RGBT/DVIT DVI and RGB Video/Audio Portable Fiber Transmitter
iv Revision 1.2
WARNING
Never look directly into an optical fiber. Irreversible eye damage can occur in a
matter of milliseconds.
"
Do not hook up the 2407RGBT/DVIT DWDM cards directly to companion
receivers with short fiber optic cables. The 2407RGBT/DVIT DWDM cards
produce +7dBm of power, which will damage the receiver if connected
directly.

2407RGBT/DVIT DVI and RGB Video/Audio Portable Fiber Transmitter
Revision 1.2 v
REVISION HISTORY
REVISION DESCRIPTION DATE
1.0 First Release Oct 07
1.1 Added information on accessing the toggle switch and pushbutton Jan 09
1.2 Added DDC Value information to section 1 Sept 09
Information contained in this manual is believed to be accurate and reliable. However, Evertz assumes no responsibility for the use thereof nor for
the rights of third parties, which may be affected in any way by the use thereof. Any representations in this document concerning performance of
Evertz products are for informational use only and are not warranties of future performance, either expressed or implied. The only warranty offered
by Evertz in relation to this product is the Evertz standard limited warranty, stated in the sales contract or order confirmation form.
Although every attempt has been made to accurately describe the features, installation and operation of this product in this manual, no warranty is
granted nor liability assumed in relation to any errors or omissions unless specifically undertaken in the Evertz sales contract or order confirmation.
Information contained in this manual is periodically updated and changes will be incorporated into subsequent editions. If you encounter an error,
please notify Evertz Customer Service department. Evertz reserves the right, without notice or liability, to make changes in equipment design or
specifications.

2407RGBT/DVIT DVI and RGB Video/Audio Portable Fiber Transmitter
vi Revision 1.2
This page left intentionally blank

2407RGBT/DVIT DVI and RGB Video/Audio Portable Fiber Transmitter
Revision 1.2 Page - 1
1. OVERVIEW
The 2407RGBT RGB/DVI Fiber Transmitter extends one digital (DVI) or analog (RGB) video display
connection over a single fiber optic or coaxial link, with display resolutions up to WUXGA (1920 x 1200).
The DVI-I connector combines analog and digital display technologies, promoting optimum compatibility
with different display types. Two optional analog audio inputs are also available, as well as optional serial
data, USB, keyboard, and mouse. These options facilitate complete remote computer control and display,
including the ability to connect USB peripherals. The 2407RGBT is designed to operate with a companion
2407RGBR or 2407RGBR receiver, to allow communication over fiber optic cable with minimal latency.
The 2407DVIT provides the same features listed above, but only accepts a digital (DVI) input.
Monitoring and control of the card status and parameters are provided locally at the card-edge, or
remotely via VistaLINK®capability. The optical output of the 2407RGBT is available in 1310nm, 1550nm,
CWDM and DWDM wavelengths.
Features:
•Digital (DVI) and analog (RGB) display technologies are supported through one interface on the
2407RGBT
•Available in a variety of fiber optic versions
•VESA video resolutions supported up to WUXGA (1920x1200)
•Two optional analog audio inputs
•Optional keyboard and mouse
•Optional USB interface
•Full 24 bits per pixel colour resolution
•True DC restoration with AGC for analog RGB input signals
•Ideal for use with high resolution LCD, plasma or projection screens
•Full-bandwidth 3 Gb/s signal transport over fiber – no compression or sub-sampling
•All configuration settings are controlled locally through the card-edge user interface, or remotely
through VistaLINK®
•Comprehensive signal and card status monitoring are available locally on the four-digit card-edge
display, or remotely through VistaLINK®
•Optical output wavelengths of 1310nm, 1550nm, and up to sixteen CWDM wavelengths (ITU-T
G.694.2 compliant)
•DWDM wavelengths also available (ITU-T G.694.1 compliant)
•Selectable continuous or discontinuous laser operation modes

2407RGBT/DVIT DVI and RGB Video/Audio Portable Fiber Transmitter
Page - 2 Revision 1.2
Transmit Side Receive Side
Fiber
Type Optical/Link Budget Ordering Product Info TX
Power Ordering Product Info RX Sensitivity Description
Multi-Mode < 500m 2407RGBT13-A2KM-USB-
F2 -7dBm 2407RGBR13-A2KM - USB-F2 -19dBm 1310nm on Tx and Rx fibers
Single-
Mode 12dB/34km 2407RGBT13-A2KM - USB-F2 -7dBm 2407RGBR13-A2KM - USB-F2 -19dBm 1310nm on Tx and Rx fibers
Single-
Mode 8dB/20km* 2407RGBT15-A2KM -W -1dBm 2407RGBR13M-A2KM -W -17dBm 1310nm/1550nm WDM bi- directional, one fiber
Single-
Mode 15.5dB/60km** 2407RGBTxx-A2KM -
USB-F2 0dBm 2407RGBRyy-A2KM -
USB-F2 -19dBm Different CWDM Wavelengths
for Tx & Rx, with 8Ch CWDM
Mux/Demux**
Single-
Mode 21dB/80km*** 2407RGBTDxxx-A2KM - USB-F2 +7dBm 2407RGBRDyyy-A2KM - USB-F2 -19dBm Different DWDM Wavelengths
for Tx & Rx, with 8Ch DWDM
Mux/Demux***
* With >20dB return loss on fiber interfaces Tx Power/Rx Sensitivity are nominal values of ±1dBm
** Assumes 8Ch CWDM Mux/Demux loss of 3.5dB Fiber loss =0.35/0.25dB per km @ 1310nm/1550nm
*** Assumes 8Ch DWDM Mux/Demux loss of 5dB
Table 1-1: Sample Typical Fiber Application Configurations
DVI/RGB IN
TX/RX
Interface
Control /
Indication
MUX
DEMUX
VistaLINK
2 Channel
Analog Audio
-A2 version
-A2KM-USB version
OPTICAL
RECEIVER
OPTICAL
TRANSMITTER
OPTICAL
COMBINER
Keyboard
Mouse
USB
DB-9
-A2KM version
Serial
Optical
Output
Optical I/O (single
fiber version)
Optical
Input
Figure 1-1: 2407RGBT Block Diagram

2407RGBT/DVIT DVI and RGB Video/Audio Portable Fiber Transmitter
Revision 1.2 Page - 3
DVI IN
TX/RX
Interface
Control /
Indication
MUX
DEMUX
VistaLINK
2 Channel
Analog Audio
-A2 version
-A2KM-USB version
OPTICAL
RECEIVER
OPTICAL
TRANSMITTER
OPTICAL
COMBINER
Keyboard
Mouse
USB
DB-9
-A2KM version
Serial
Optical
Output
Optical I/O (single
fiber version)
Optical
Input
Figure 1-2: 2407DVIT Block Diagram
1.1. SETTING UP THE DDC VALUE
DDC (Display Data Channel) is a series of protocols that enables plug and play communication between a
graphics adapter and a computer monitor. It allows the display to communicate its supported display
modes and display parameters to the graphics adapter.
The DDC emulation mode will need to be set on the transmitter card (RGBT/DVIT) before plugging a PC
into the RGBT/DVIT card. If the DDC is subsequently changed then a full re-boot will need to occur to
allow the DDC change to take effect.
1. Ensure that the PC is off or not connected to the RGBT/DVIT card.
2. Set the DDC emulation mode depending on your system configuration:
LCD: Emulate display with digital (DVI) input and output.
CRTA: Emulate display with analog (RGB) input and analog (RGB) output.
CRTD: Emulate display with analog (RGB) input and digital (DVI) output.
3. Connect the PC to the RGBT/DVIT card and power on the computer.
"
Please note: The DDC setting can not be set and applied while the PC is on and
connected to the RGBT card. Please ensure that the PC is not connected or is
turned off when changing the DDC.

2407RGBT/DVIT DVI and RGB Video/Audio Portable Fiber Transmitter
Page - 4 Revision 1.2
2. INSTALLATION
The 2407RGBT/DVIT modules are stand-alone units that have one DVI-I video connector and (depending
on the options ordered) may also have analog audio terminals, PS2 keyboard and mouse connectors, a
DB9 serial connector, and a type-B USB connector. In addition, there will be SC/PC (shown), ST/PC, or
FC/PC optical connector(s). On 2407RGBT models only, the DVI-I connector supports combined analog
and digital video through a single interface. An industry-standard DB-15 connector adapter may be used
for RGB. The following diagrams show some sample rear plate options for the 2407RGBT and 2407DVIT.
Figure 2-1: 2407RGBT/DVIT I/O CONNECTIONS
2.1. OPTICAL CONNECTIONS
FIBER OUTPUT: There is one SC/PC (shown), ST/PC, or FC/PC female connector when the
2407RGBT/DVIT is equipped with an optical output. The optical output is available in
1310nm, 1550nm, CWDM (ITU-T G.694.2 compliant) and DWDM (ITU G.694.1
compliant) wavelengths. This connector is compatible with multimode fiber when
connected directly to a companion 2407RGBR/DVIR receiver. The output signal on
the 2407RGBT/DVIT-GF will be in the G-Link format for connection to Evertz MVPTM
multi-display products.
FIBER INPUT (F2 Versions): There is one SC/PC (shown), ST/PC, or FC/PC female connector
when the 2407RGBT/DVIT is equipped with an optical input. This wide band optical
input accepts optical wavelengths of 1270nm to 1610nm and is compatible with
multimode fiber when connected directly to a companion 2407RGBR/DVIR receiver.

2407RGBT/DVIT DVI and RGB Video/Audio Portable Fiber Transmitter
Revision 1.2 Page - 5
FIBER I/O (W Versions): There is one SC/PC (shown), ST/PC, or FC/PC female connector when the
2407RGBT/DVIT is equipped with a combined optical input/output. This connector
should be mated to a companion 2407RGBR/DVIR13M-W version card using single-
mode fiber optic cable.
2.2. SIGNAL CONNECTIONS
VIDEO INPUT: The 2407DVIT accommodates digital DVI input signals only. The 2407RGBT DVI-I
connector accommodates analog and digital display technologies, promoting optimal
compatibility with different display types. Input DVI signals may be connected directly
to this port. A DB-15 RGB connection may also be accommodated using an industry
standard DB-15 to DVI-I adapter such as the Belkin F2E4162, or appropriately
terminated cable assembly such as the Amp 16539332-1.
"Note: When making digital DVI connections, Evertz recommends using only high
quality DVI cables, no longer than 6 feet (1.8m).
AUDIO INPUTS (A2 & A2KM Versions): The 2407RGBT/DVIT-A2 and 2407RGBT/DVIT-A2KM
modules provide a terminal block for input connections compatible with either balanced
or unbalanced analog audio. Balanced audio signals should be connected to the
positive (+) and negative (-) input terminals. Unbalanced audio signals should be
connected to the positive (+) input terminal, and a jumper connection should be
installed between the negative (-) input terminal and the ground terminal ( ).
KEYBOARD (A2KM Versions): The 2407RGBT/DVIT-A2KM provides a PS2 port for a keyboard
connection. Using a PS2 cable, connect this port to the PS2 keyboard port on the
computer.
MOUSE (A2KM Versions): The 2407RGBT/DVIT-A2KM provides a PS2 port for a mouse connection.
Using a PS2 cable, connect this port to the PS2 mouse port on the computer.
SERIAL (A2KM Versions): Female DB9 RS-232 serial port with standard PC style layout. Connect this
port to the computer using a straight-through serial cable. This port may also operate
in RS-422 mode by changing a user-selectable menu item. (See section 4.4.8)
USB (USB Versions): When equipped with the USB option, the 2407RGBT/DVIT provides a single
type-B USB port. Connect this port to the computer using a USB cable. To the
computer, the 2407RGBT/DVIT will appear as a USB hub.

2407RGBT/DVIT DVI and RGB Video/Audio Portable Fiber Transmitter
Page - 6 Revision 1.2
2.3. CARE AND HANDLING OF OPTICAL FIBER
2.3.1. Safety
!
CLASS 1 LASER PRODUCT
Background colour: yellow
Triangular band: black
Symbol: black
2.3.2. Assembly
Assembly or repair of the laser sub-module is performed only at the Evertz facility by qualified Evertz
technical personnel.
2.3.3. Labeling
Certification and Identification labels are combined into one label. As there is not enough room on the
product to place the label, it is reproduced here in the manuals.
•There is no date of manufacture on this label as it can be traced by the bar code label placed on
the printed circuit board of each Evertz plug-in module.
•The model number is one of: 2407RGBT13, 2407RGBT13-A2, 2407RGBT13-A2KM-USB-F2,
2407RGBT15-A2KM-W, 2407RGBTxx, (xx = 27, 29, 31, 33, 35, 37, 43, 45, 47, 49, 51, 53, 55, 57,
59, 61) with additional suffixes as above, or 2407RGBTDyyy (Dyyy represents ITU Grid Channel:
D200, D210, D220, D230, D240, D250, D260, D270, D280, D290, D300, D310, D320, D330,
D340, D350, D360, D370, D380, D390, D400, D410, D420, D430, D440, D450, D460, D470,
D480, D490, D500, D510, D520, D530, D540, D550, D570, D580, D590, D600) with additional
suffixes as above. 2407DVIT part numbers are similar, replacing “RGBT” with “DVIT”.
Figure 2-2: Reproduction of Laser Certification and Identification Label

2407RGBT/DVIT DVI and RGB Video/Audio Portable Fiber Transmitter
Revision 1.2 Page - 7
2.3.4. Handling and Connecting Fibers
"
Never touch the end face of an optical fiber. Always keep dust caps on optical fiber
connectors when not connected and always remember to clean the optical end face
of a connector properly before making a connection.
The transmission characteristics of the fiber are dependent on the shape of the optical core and therefore
care must be taken to prevent fiber damage caused by heavy objects or abrupt fiber bending. Evertz
recommends that you maintain a minimum bending radius of 5 cm to avoid fiber-bending loss that will
decrease the maximum attainable distance of the fiber cable. Evertz fiber optic modules come with
lockout devices to prevent the user from damaging the fiber connector by installing a module into a slot in
the frame that does not have a suitable rear plate. For further information about care and handling of fiber
optic cable, see section 3 of the Fiber Optics System Design section of this manual binder.

2407RGBT/DVIT DVI and RGB Video/Audio Portable Fiber Transmitter
Page - 8 Revision 1.2
3. SPECIFICATIONS
"Video and audio performance specifications are measured at the output of a
companion 2407RGBR/DVIR Receiver.
3.1. ANALOG VIDEO INPUTS (2407RGBT ONLY)
Number of Signals: 1
Signal Type: RGB
Sync Type: H and V, or Sync on Green
Connector: DVI-I with Analog or 15-pin HD-15 VGA Analog (with adapter)
Display Resolution:
Non-A2KM versions: Up to WUXGA, 1920x1200 @ 75Hz
-A2KM versions: Up to WUXGA, 1920x1200 @ 60Hz
Colour Depth: 24 Bit
Analog Bandwidth: 300MHz (max)
Impedance: 75Ω
SNR: >55dB
Input Level: 1Vp-p (max)
Linear Distortion: 2% (max)
Intensity Distortion: 2% (max)
3.2. DIGITAL VIDEO INPUTS
Number of Signals: 1
Signal Type: TMDS, per DVI specification
Connector: DVI-I
Display Resolution:
Non-A2KM versions: Up to WUXGA, 1920x1200 @ 75Hz
-A2KM versions: Up to WUXGA, 1920x1200 @ 60Hz
Colour Depth: 24-Bit
3.3. DIGITAL VIDEO CONTROL
Number of Signals: 1
Signal Type: DDC2B, per DVI specification
Connector: DVI-I
3.4. ANALOG AUDIO INPUTS (A2 & A2KM VERSIONS)
Number of Signals: 2
Connector: Removable Terminal Block
Input Level: +24dBu (max)
Input Impedance: 20kΩ(min, differential)
Frequency Response: ±0.1dB (max, 20Hz to 20KHz)
THD: < 0.005% (max, 20Hz to 20KHz, @ 0dBFS)
S/N Ratio: >85dB (min)
Channel Phase: ±1° (max, 20Hz to 20KHz)
Signal Quantization: 24 bits

2407RGBT/DVIT DVI and RGB Video/Audio Portable Fiber Transmitter
Revision 1.2 Page - 9
3.5. KEYBOARD/MOUSE INPUT/OUTPUT (A2KM VERSIONS)
Number: 2
Connector: 1 PS2 each for keyboard and mouse
3.6. SERIAL PORT (A2KM VERSIONS)
Standard: RS232 or RS422 (user selectable)
Number: 1
Connector: DB9F
3.7. USB PORT (USB VERSIONS ONLY)
Standard: USB 1.1
Number: 1
Connector: USB type-B
3.8. OPTICAL OUTPUT
Connector: SC/PC, ST/PC, FC/PC female housing
Fiber Size and Type: Single Fiber versions:9 µm core / single mode
Output Wavelengths:
Standard: 1310nm, 1550nm (nominal)
CWDM: 1270nm to 1610nm (ITU-T G.694.2 compliant).
DWDM: 1530nm to 1560nm (ITU-T G.694.1 compliant).
Output Power:
1310nm FP (Standard): -7 dBm ±1dBm
-W Version: -1 dBm ±1dBm
CWDM DFB: 0 dBm ±1dBm
DWDM DFB: +7 dBm ±1dBm
3.9. OPTICAL INPUT (-A2KM VERSIONS ONLY)
Connector: SC/PC, ST/PC, FC/PC female housing
Input Wavelength: 1270 to 1610nm (min)
Input Power: 0dBm (max)
Input Optical Sensitivity: -19dBm
3.10. ELECTRICAL
Voltage: 12V DC (nominal)
Power:
Non DWDM Laser: 11 Watts (max)
DWDM Laser: 14 Watts (max)

2407RGBT/DVIT DVI and RGB Video/Audio Portable Fiber Transmitter
Page - 10 Revision 1.2
3.11. PHYSICAL
Stand Alone units
Dimensions
With Flanges: 7.81"Lx5.63"Wx1.75"H
(199mm L x 143mm W x 45mm H)
