evertz 7700 Series User manual

7700 MultiFrame Manual
7707VB-2-OC12 Two Channel SDI + Ethernet SONET/SDH Fiber Transmitter
Revision 1.2
TABLE OF CONTENTS
1. OVERVIEW ..........................................................................................................................................1
2. INSTALLATION ...................................................................................................................................3
2.1. CARE AND HANDLING OF OPTICAL FIBER ...........................................................................4
2.1.1. Safety ..............................................................................................................................4
2.1.2. Assembly..........................................................................................................................4
2.1.3. Labeling............................................................................................................................4
2.1.4. Handling and Connecting Fibers......................................................................................5
3. SPECIFICATIONS................................................................................................................................6
3.1. SERIAL VIDEO INPUT................................................................................................................6
3.2. SERIAL VIDEO OUTPUTS:........................................................................................................6
3.3. OPTICAL OUTPUT .....................................................................................................................6
3.4. OPTICAL INPUT .........................................................................................................................7
3.5. ELECTRICAL..............................................................................................................................7
3.6. PHYSICAL...................................................................................................................................7
3.7. COMPLIANCE.............................................................................................................................7
4. STATUS INDICATORS AND DISPLAYS ............................................................................................8
4.1. STATUS INDICATOR LEDS.......................................................................................................8
4.2. CARD EDGE DISPLAY...............................................................................................................9
4.2.1. STAT Menu....................................................................................................................10
4.2.1.1. Displaying the Optical Link Data Standard...................................................11
4.2.1.2. Displaying Optical Power..............................................................................11
4.2.1.3. Displaying the Current Interval Counter .......................................................11
4.2.1.4. Displaying the Last Interval Counter.............................................................12
4.2.1.5. Displaying the Errored Seconds Ratio..........................................................12
4.2.1.6. Displaying the Loss of Signal seconds in Line Layer ...................................13
4.2.1.7. Displaying the Link Output Reference Clock Source....................................13
4.2.1.8. Displaying the Link Input Status...................................................................13
4.2.1.9. Displaying the TDM Data Errors...................................................................13
4.2.1.10. Displaying the Video Standard at Input Ports...............................................14
4.2.1.11. Displaying the Video Standard at Output Ports............................................14
4.2.1.12. Detecting the EDH Presence in a Compatible Signal at Input Ports ............14
4.2.1.13. Detecting the EDH Presence in a Compatible Signal at Output Ports..........14
4.2.1.14. Displaying the SDTI Status at Input Ports ....................................................15
4.2.1.15. Displaying the SDTI Status at Output Ports .................................................15
4.2.1.16. Displaying the Output Standard on Video LOSS..........................................15
4.2.1.17. Ethernet Status and Speed ..........................................................................15
4.2.1.18. Performance Monitoring and Error Reporting...............................................16
4.2.2. Control Menu..................................................................................................................17

7700 MultiFrame Manual
7707VB-2-OC12 Two Channel SDI + Ethernet SONET/SDH Fiber Transmitter
Revision 1.2
4.2.2.1. Setting the Optical Link Standard................................................................ 17
4.2.2.2. Setting the Behavior of Laser When There is No Applied Video................. 17
4.2.2.3. Setting the Clock Source............................................................................. 18
4.2.2.4. Clearing the Counters.................................................................................. 18
4.2.2.5. Setting the Severe Errored Second Threshold............................................ 18
4.2.2.6. Activating or Deactivating EDH Processing................................................. 19
4.2.2.7. Setting Video Standard on Loss.................................................................. 19
4.2.2.8. Monitoring a Specific Channel..................................................................... 19
4.2.2.9. Signal BLOCK Configuration....................................................................... 20
4.2.2.10. Setting the Orientation of the Text on the Card Edge Display..................... 20
5. JUMPERS ..........................................................................................................................................21
5.1. SELECTING WHETHER LOCAL FAULTS WILL BE MONITORED BY THE
GLOBAL FRAME STATUS.......................................................................................................21
5.2. CONFIGURING THE MODULE FOR FIRMWARE UPGRADES..............................................22
5.2.1. Using the Upgrade Jumper ............................................................................................22
5.2.2. Upgrade Serial Port Command......................................................................................22
6. VISTALINK
®
REMOTE MONITORING/CONTROL............................................................................23
6.1. WHAT IS VISTALINK
®
?............................................................................................................23
6.2. VISTALINK
®
MONITORED PARAMETERS .............................................................................24
6.3. VISTALINK
®
CONTROLLED PARAMETERS ..........................................................................25
6.4. VISTALINK
®
TRAPS.................................................................................................................25
Figures
Figure 1-1: 7707VB-2-OC12 Block Diagram.........................................................................................................2
Figure 2-1: 7707VB-2-OC12 Rear Panel..............................................................................................................3
Figure 2-2: Reproduction of Laser Certification and Identification Label..............................................................5
Figure 4-1: Location of Status Indicators and Controls.........................................................................................8
Figure 4-2: Card Edge Menu.................................................................................................................................9
Figure 4-3: STAT Menu Structure......................................................................................................................10
Figure 4-4: Control Menu ....................................................................................................................................17
Figure 5-1: Location of Status Indicators and Jumpers ......................................................................................21
Tables
Table 4-1: Current Interval Counter Menu ..........................................................................................................11
Table 4-2: Last Interval Counter Menu................................................................................................................12
Table 6-1: VistaLINK
®
Monitored Parameters.....................................................................................................24
Table 6-2: VistaLINK
®
Controlled Parameters....................................................................................................25
Table 6-3: VistaLINK
®
Traps...............................................................................................................................25

7700 MultiFrame Manual
7707VB-2-OC12 Two Channel SDI + Ethernet SONET/SDH Fiber Transmitter
Revision 1.2
REVISION HISTORY
REVISION DESCRIPTION DATE
1.0 First release Apr 07
1.1 Updated rear plate drawing Apr 08
1.2 Corrected Figure 2-1 Sept 08
Information contained in this manual is believed to be accurate and reliable. However, Evertz assumes no responsibility for the use thereof nor for
the rights of third parties, which may be effected in any way by the use thereof. Any representations in this document concerning performance of
Evertz products are for informational use only and are not warranties of future performance, either express or implied. The only warranty offered by
Evertz in relation to this product is the Evertz standard limited warranty, stated in the sales contract or order confirmation form.
Although every attempt has been made to accurately describe the features, installation and operation of this product in this manual, no warranty is
granted nor liability assumed in relation to any errors or omissions unless specifically undertaken in the Evertz sales contract or order confirmation.
Information contained in this manual is periodically updated and changes will be incorporated into subsequent editions. If you encounter an error,
please notify Evertz Customer Service department. Evertz reserves the right, without notice or liability, to make changes in equipment design or
specifications.

7700 MultiFrame Manual
7707VB-2-OC12 Two Channel SDI + Ethernet SONET/SDH Fiber Transmitter
Revision 1.2
WARNING
Never look directly into an optical fiber. Non-reversible damage to the eye can
occur in a matter of milliseconds.

7700 MultiFrame Manual
7707VB-2-OC12 Two Channel SDI + Ethernet SONET/SDH Fiber Transmitter
Revision 1.2 7707VB-2-OC12-1
1. OVERVIEW
The 7707VB-2-OC12 is a VistaLINK
®
-enabled, fiber transreceiver for SDI, DVB-ASI or SDTi video signal
that transports signals at OC-12/STM-4 data rates (622 Mb/s) and interfaces directly to SONET/SDH
infrastructure. The card also has a built-in Ethernet transceiver with a 10/100 Base-T port. This dual fiber
single card combines up to two asynchronous SDI, DVB-ASI or SDTi signals using Time Domain Multiplex
(TDM) technology. A companion 7707VB-2-OC12 card acts as a demultiplexer for the incoming signal and
converts them back to separate SDI video feeds, while utilizing a separate fiber for the outgoing signal.
The 7707VB-2-OC12 will transparently pass incoming SDI video feeds with embedded AES audio or any
other data in the horizontal or vertical ancillary data space. Monitoring and control of card status and
parameters is provided locally at the card edge or remotely via VistaLINK
®
.
The fiber output is available in an assortment of optical wavelengths, accommodating standard, CWDM or
DWDM transmission schemes.
7707VB13-2-OC12 1310 nm FP -7dBm output, suitable for distances up to 50 Km
7707VB15-2-OC12 1550 nm DFB 0dBm output, suitable for distances up to 75 Km
There are several versions with built in isolators specifically suited to coarse wave division multiplexing
(CWDM) applications. These versions all have 0dBm output and are suitable for distances up to 75 Km.
7707VB27-2-OC12 1270 nm DFB
7707VB29-2-OC12 1290 nm DFB
7707VB31-2-OC12 1310 nm DFB
7707VB33-2-OC12 1330 nm DFB
7707VB35-2-OC12 1350 nm DFB
7707VB37-2-OC12 1370 nm DFB
7707VB43-2-OC12 1430 nm DFB
7707VB45-2-OC12 1450 nm DFB
7707VB47-2-OC12 1470 nm DFB
7707VB49-2-OC12 1490 nm DFB
7707VB51-2-OC12 1510 nm DFB
7707VB53-2-OC12 1530 nm DFB
7707VB55-2-OC12 1550 nm DFB
7707VB57-2-OC12 1570 nm DFB
7707VB59-2-OC12 1590 nm DFB
7707VB61-2-OC12 1610 nm DFB
There are several versions with built in isolators specifically suited to dense wave division multiplexing
(DWDM) applications. The DWDM versions are suitable for distances >120 km @ 270 Mb/s (for DWDM
applications contact the factory).
7707VBDyyy-2-OC12 DWDM DFB laser output, yyy – ITU channel number
The 7707VB-2-OC12 occupies two card slots in the 3 RU frame, which will hold up to 7 modules or one
card slot in the 1RU frame, which will hold up to three modules. One 7707VB-2-OC12 module can also be
installed in the S7701 stand-alone enclosure.

7700 MultiFrame Manual
7707VB-2-OC12 Two Channel SDI + Ethernet SONET/SDH Fiber Transmitter
7707VB-2-OC12-2 Revision 1.2
Features:
•Transports signal over OC-12/STM-4 data rates (622 Mb/s)
•Single card TDM multiplexer and demultiplexer for two asynchronous SD-SDI, SDTi and DVB-ASI
signals
•Built-in Ethernet transceiver with one 10/100 Base-T port
•Interfaces directly to SONET/SDH infrastructure
•Uncompressed, full-rate video transport
•Signal transport uninterrupted by loss of any SDI, DVB-ASI or SDTi input feed
•Transparently passes embedded AES or any other data in the horizontal or vertical ancillary data
space
•Stratum 3 wander/holdover/jitter compliance
•Wide input frequency range tolerance (±50ppm)
•Comprehensive signal and card status monitoring via four character card-edge display
•VistaLINK
®
– enabled offering remote monitoring, control and configuration capabilities via SNMP.
VistaLINK
®
is available when modules are used with the 3RU 7700FR-C frame, a 7700FC
VistaLINK
®
Frame Controller module in slot 1 of the frame using the 9000NCP Network Control
Panel or Evertz VistaLINK
®
PRO or other third party SNMP manager software.
•Automatic coaxial equalization up to 250m at 270Mb/s (Belden 8281)
•Fully hot swappable from front of frame with no fiber/coax disconnect/reconnect required
•Supports single-mode and multi-mode fiber optic cable
•Optical output wavelengths of 1310nm, 1550nm and up to 16 CWDM wavelengths
•DWDM wavelengths also available
•SC/PC, ST/PC, FC/PC fiber connectors available
FIBER
OUTPUT
OPTICAL
TRANSMITTER
SDI/ASI/SDTi
VIDEO MONITOR
OUTPUT
INPUT
STAGE
INPUT
STAGE
MONITOR
SELECTOR
CONTROL/
INDICATION
VistaLINK ®
Interface
LOCAL
CONTROL
LOCAL
INDICATION
ETHERNET
RJ45 FIBER
INPUT
OPTICAL
RECEIVER
SONET/
SDH TDM
DEMUX
OUTPUT
STAGE
SDI/ASI/SDTi
VIDEO INPUT 1
SDI/ASI/SDTi
VIDEO INPUT 2 SONET/
SDH TDM
MUX
FBM Technology
OUTPUT
STAGE
OUTPUT
STAGE
SDI/ASI/SDTi
VIDEO OUTPUT 1
SDI/ASI/SDTi
VIDEO OUTPUT 2
RCLK OUT 2
RCLK OUT 1

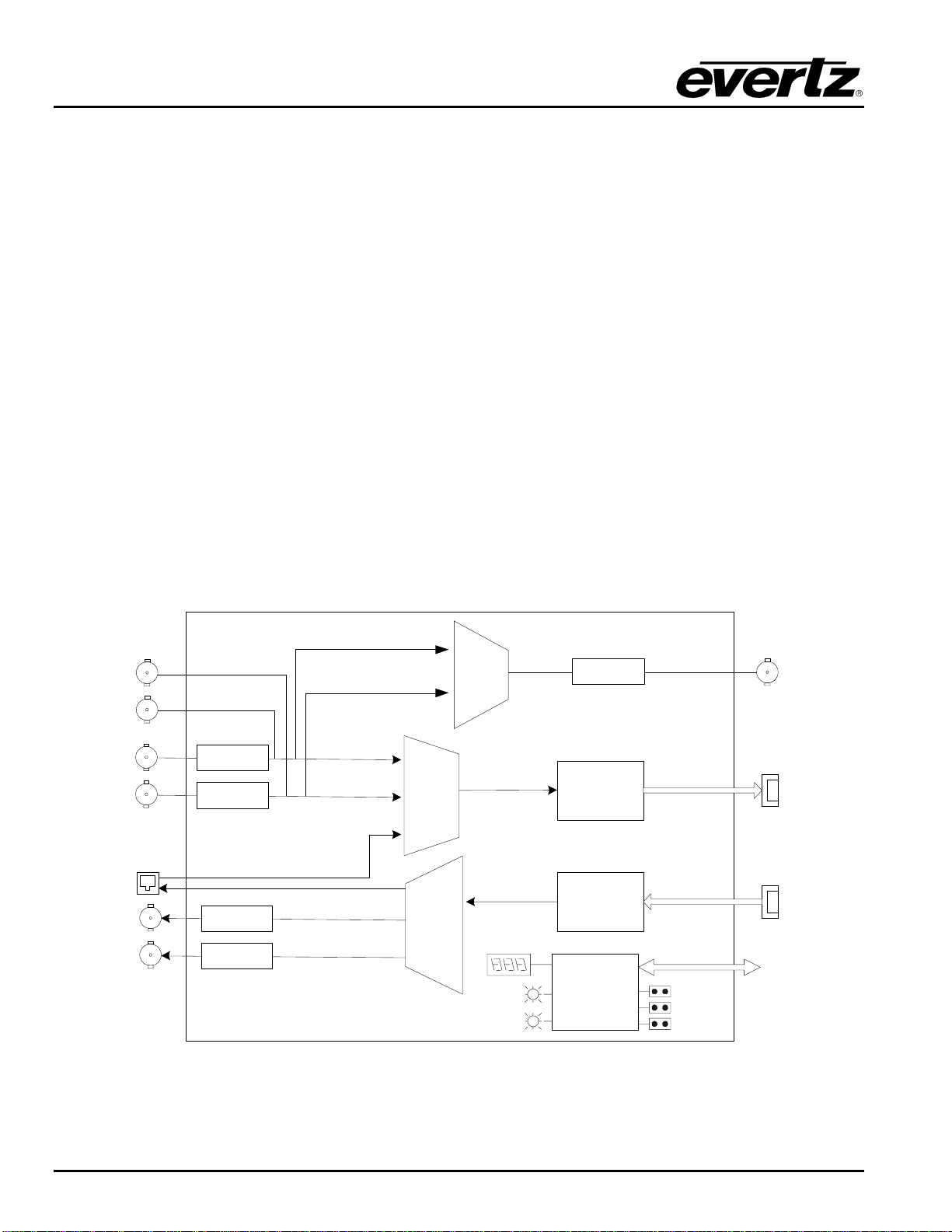

Figure 1-1: 7707VB-2-OC12 Block Diagram

7700 MultiFrame Manual
7707VB-2-OC12 Two Channel SDI + Ethernet SONET/SDH Fiber Transmitter
Revision 1.2 7707VB-2-OC12-3
2. INSTALLATION
The 7707VB-2-OC12 comes with a companion rear plate that has nine BNC connectors and one SC/PC
(shown), ST/PC or FC/PC optical connector. For information on mounting the rear plate and inserting the
module into the frame see section 3 of the 7700FR chapter.

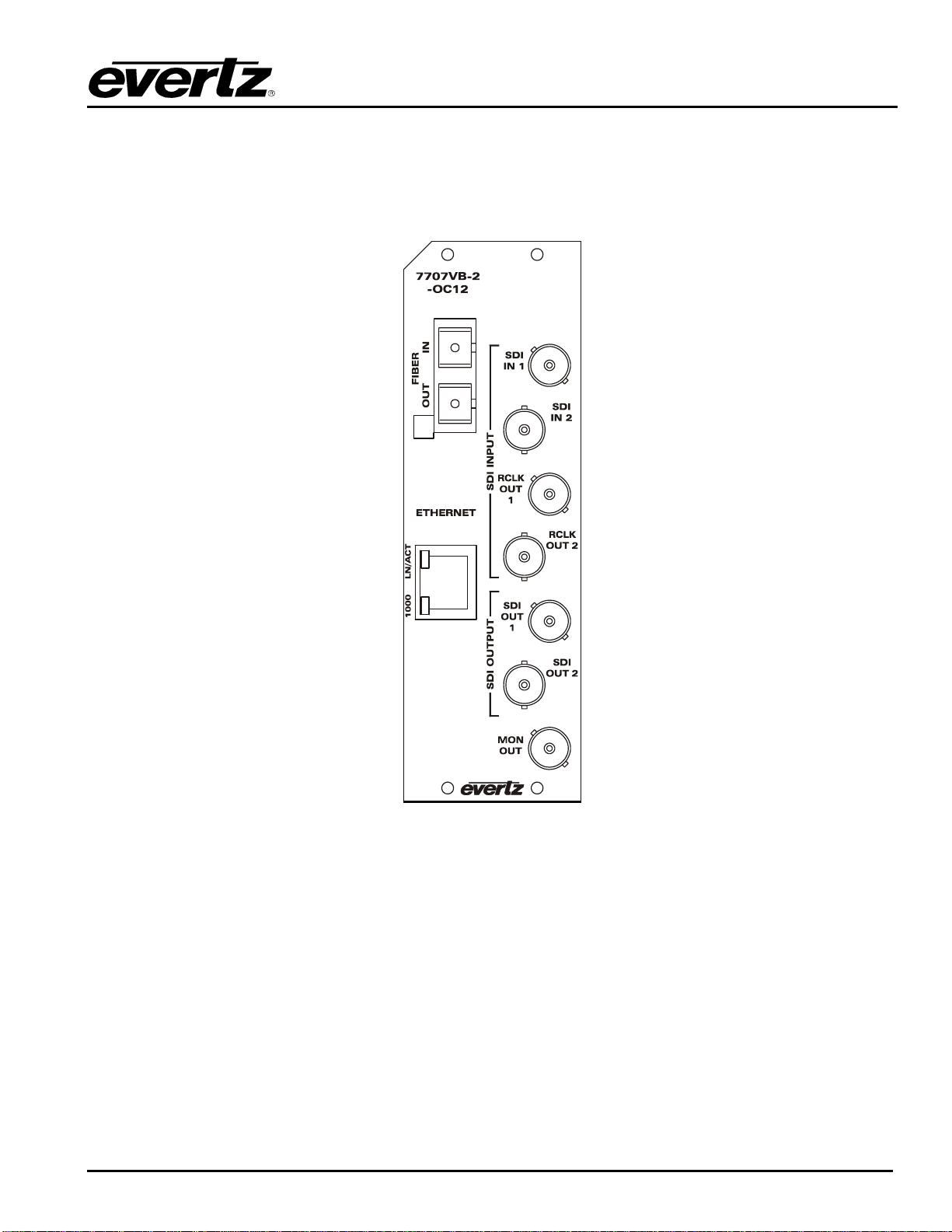

Figure 2-1: 7707VB-2-OC12 Rear Panel
SDI INPUT: Two independent BNC input connectors for 10-bit serial digital video signals
compatible with the SMPTE 259M, DVB-ASI or SMPTE 305M standards. These
inputs provide adaptive compensation for up to 250m of industry standard Belden
8281 cable, at 270Mb/s.
SDI OUTPUT: Six BNC outputs for two independent incoming and four reclocked serial digital
component video signals, compatible with the SMPTE 259M, SMPTE305M and
DVB-ASI standards.
MON OUTPUT: User selectable video loopback output. Any of the inputs or the outputs can source
this port for reclocked loop back functionality. Selection is controlled via the card
edge menu or VistaLINK
®.
If EDH correction is activated, the selected output will be
EDH corrected.

7700 MultiFrame Manual
7707VB-2-OC12 Two Channel SDI + Ethernet SONET/SDH Fiber Transmitter
7707VB-2-OC12-4 Revision 1.2
OPTICAL INPUT: SC/PC, SC/PC with cover (shown), ST/PC or FC/PC female connector. This wide
range input accepts optical wavelengths of 1270nm to 1610nm, accommodating
standard or CWDM transmission schemes.
OPTICAL OUTPUT: Output SC/PC, SC/PC with cover (shown), ST/PC or FC/PC female connector. This
optical output contains the two input SDI video signals. Any ancillary data (e.g.
embedded audio, closed captioning, etc) present in the input SDI video stream prior
to multiplexing is transparently passed through to the fiber output.
2.1. CARE AND HANDLING OF OPTICAL FIBER
2.1.1. Safety
!
CLASS 1 LASER PRODUCT
Background colour: yellow
Triangular band: black
Symbol: black
2.1.2. Assembly
Assembly or repair of the laser sub-module is done only at Evertz facility and performed only by qualified
Evertz technical personnel.
2.1.3. Labeling
The Certification and Identification labels are combined into one label. As there is inadequate space on
the product to place the label, it is reproduced here in the manuals.
•There is no date of manufacture on this label as it can be traced by bar code label placed on the
printed circuit board of each Evertz plug-in module
•The Model number is one of: 7707VB13-2-OC12, 7707VB15-8-OC12,
7707VBxx-8-OC12, (xx = 27, 29, 31, 33, 35, 37, 43, 45, 47, 49, 51, 53, 55, 57, 59, 61)
7707VBDyyy-8 (Dyyy represents ITU Grid Channel: D200, D210, D220, D230, D240, D250, D260,
D270, D280, D290, D300, D310, D320, D330, D340, D350, D360, D370, D380, D390, D400,
D410, D420, D430, D440, D450, D460, D470, D480, D490, D500, D510, D520, D530, D540,
D550, D570, D580, D590, D600)

7700 MultiFrame Manual
7707VB-2-OC12 Two Channel SDI + Ethernet SONET/SDH Fiber Transmitter
Revision 1.2 7707VB-2-OC12-5
Figure 2-2: Reproduction of Laser Certification and Identification Label
2.1.4. Handling and Connecting Fibers
"
Never touch the end face of an optical fiber. Always keep dust caps on optical fiber
connectors when not connected. Always remember to properly clean the optical
end face of a connector before making a connection.
The transmission characteristics of the fiber are dependent on the shape of the optical core and therefore
care must be taken to prevent fiber damage due to heavy objects or abrupt fiber bending. Evertz
recommends that you maintain a minimum bending radius of 5 cm to avoid fiber-bending loss that will
decrease the maximum attainable distance of the fiber cable. The Evertz fiber optic modules come with
cable lockout devices to prevent the user from damaging the fiber by installing a module into a slot in the
frame that does not have a suitable I/O module. For further information about the care and handling of
fiber optic cable see section 3 of the Fiber Optics System Design section of this manual binder.

7700 MultiFrame Manual
7707VB-2-OC12 Two Channel SDI + Ethernet SONET/SDH Fiber Transmitter
7707VB-2-OC12-6 Revision 1.2
3. SPECIFICATIONS
3.1. SERIAL VIDEO INPUT
Standards: SMPTE 259M-C, SMPTE 305M(SDTi), DVB-ASI.
Number of Inputs: 2 independent SDI, SDTi or DVB-ASI 270Mb/s signals
Connector: 2 BNC input per IEC 60169-8 Amendment 2
Equalization: Automatic 250m (min) @ 270 Mb/s with Belden 1694 or equivalent cable
Return Loss: > 15 dB up to 1.5Gb/s
Frequency Offset Tolerance: ±50ppm
3.2. SERIAL VIDEO OUTPUTS:
Standards: SMPTE 259M-C, SMPTE 305M, DVB-ASI
Number of Outputs: 2 Independent SDI, SDTi or DVB-ASI 270Mb/s signals
Connectors: BNC per IEC 60169-8 Amendment 2
Signal Level: 800mV(nominal)
DC Offset: 0V ±0.5V
Rise and Fall Time: 900ps(nominal)
Overshoot: < 10% of amplitude
Return Loss: > 12dB
Wide Band Jitter: < 0.2UI
3.3. OPTICAL OUTPUT
Standards: OC-12/STM-4
Number of Outputs: 1
Connector: Female SC/PC, ST/PC or FC/PC
Return Loss: > 14 dB
Wide Band Jitter: < 0.2UI
Fiber Size: 9 µm core / 125 µm overall
Wavelengths:
Standard: 1310nm, 1550nm (nominal)
CWDM: 1270nm to 1610nm (See ordering information)
DWDM: C-Band channel 20 to 60, 100GHz spacing (ITU-T G.694.1 compliant)
Output Power:
1310nm FP: -7dBm ±1dBm
1550nm & CWDM: 0 dBm ±1dBm
DWDM: +7dBm ±1dBm

7700 MultiFrame Manual
7707VB-2-OC12 Two Channel SDI + Ethernet SONET/SDH Fiber Transmitter
Revision 1.2 7707VB-2-OC12-7
3.4. OPTICAL INPUT
Number of Inputs: 1
Standards: OC-12/STM-4
Connector: Female SC/PC, ST/PC or FC/PC
Return Loss: > 25dB
Wavelength: 1270nm to 1610nm
Maximum Input Power:
Standard: -1dBm
High Sensitivity (-H): -8dBm
Optical Sensitivity:
Standard: -21dBm
High Sensitivity (-H): -28dBm
3.5. ELECTRICAL
Voltage: +12VDC
Power: 10 Watts (Non DWDM)
13 Watts (DWDM)
3.6. PHYSICAL
Number of slots: 2
3.7. COMPLIANCE
Electrical Safety: CSA Listed to CSA C22.2 No. 60065-03, UL 60065-03
IEC 60065-(2001-12) 7th Edition
Complies with CE Low voltage directive 93/68/EEC
Laser Safety: Complies with 24 CFR 1040.10 and 1040.11 except for deviations
pursuant to LN No. 50, dated July 26, 2001
Complies with IEC 60825-1, Am. 2
EMI/RFI: Complies with FCC regulations for class A devices
Complies with EU EMC directive 89/336/EEC

7700 MultiFrame Manual
7707VB-2-OC12 Two Channel SDI + Ethernet SONET/SDH Fiber Transmitter
7707VB-2-OC12-8 Revision 1.2
4. STATUS INDICATORS AND DISPLAYS
The 7707VB-2-OC12 has 6 LED Status indicators and a 4 digit alphanumeric display on the front card
edge to show operational status of the card at a glance. The card edge pushbutton and toggle switch are
used to select various displays on the alphanumeric display. Figure 5-1 shows the locations of the
indicators, pushbutton and toggle switch.
Alpha-numeric
Display
7707VB-2-OC12
Green Module OK LED
12 34
Toggle Switch
Pushbutton
Red Local Fault LED
56
Video IN Video OUT Ethernet Payload
Figure 4-1: Location of Status Indicators and Controls
4.1. STATUS INDICATOR LEDS
LOCAL FAULT: On the 7707VB-2-OC12 board this Red LED will be ON if a laser fault exists, or if
the laser is set to Discontinuous mode with no valid inputs present, or if a local input
power fault exists (i.e.: a blown fuse).
The LOCAL FAULT indications can also be reported to the frame through the
FRAME STATUS jumper.
MODULE OK: This Green LED indicates good module health. It will be ON when a valid input
signal is present, and the laser and board power are good.
VIDEO IN STATUS LED:
GREEN Valid signal input. No errors.
RED Valid signal input. Errors detected.
OFF No valid input detected.
YELLOW Input is blocked by user from being transported through fiber.
VIDEO OUT STATUS LED:
GREEN Valid signal at output. No errors.
RED Valid signal at output. Errors detected.
OFF No valid output detected.
YELLOW Output is blocked by user from being transported through fiber.
ETHERNET STATUS LED:
GREEN Connection established.
BLINK Sending or receiving data.
OFF No valid connection.
PAYLOAD STATUS LED:
GREEN Payload OK.
RED Errors detected.

7700 MultiFrame Manual
7707VB-2-OC12 Two Channel SDI + Ethernet SONET/SDH Fiber Transmitter
Revision 1.2 7707VB-2-OC12-9
4.2. CARD EDGE DISPLAY
Additional signal and status monitoring is provided via the 4-digit dot-matrix display located at the card-
edge. The card edge toggle switch is used to select whether you are displaying status from the card
(monitoring mode) or setting control parameters for the card (control mode). Press the toggle switch to
select ‘monitor mode’ (STAT) or ‘control mode’ (CTRL).
Figure 4-2 shows the menu structure for the 7707VB-2-OC12 card.
Level 1 Level 2 Level 3 Level 4 Level 5 Level 6
STD OC, STM
PWR -40 to 0 dB
CIC 15m, 24H
ESL, SESL, ESS,
SESS, ESP, SESP,
SEFS 0 to 9999
LIC 15m, 24H
ESL, SESL, ESS,
SESS, ESP, SESP,
SEFS 0 to 9999
ESR SECT, LINE, PATH 0.0% - 100%
LOSL 0 to 9999
OUT REF ERR, XO,
HOLD, LINK
FIBR
REF INP LOS, FOS, OK
TDMD LOSS, ERR, OK
STD VID1, VID2
ASI, N270, P270,
LOSS
EDH VID1, VID2 PRES, LOSS
VIN
SDTI VID1, VID2
PRES, LOSS
STD VID1, VID2
ASI, N270, P270,
LOSS
EDH VID1, VID2 PRES, LOSS
SDTI VID1, VID2 PRES, LOSS
VOUT
OSTD VID1, VID2
OFF, ASI, N270,
P270
LINK UP, DOWN
STAT
ETH SPD 10, 100, 1000, DOWN
OSTD OC, STM
LASR CONT, DISC
REF LINK, XO, AUTO
CIC ALL, 15M, 24H CLR
LOSL CLR
CESR CLR
FIBR
SETH SESS, SESL, SESP 1 to 9999
VIN EDH VID1, VID2 OFF, ON
EDH VID1, VID2 OFF, ON
VOUT OSTD VID1, VID2 N270, P270, ASI,
OFF
VMON VIN1, VIN2, VOT1,
VOT2
PSWD 0 to 9999
PWSL 0 to 9999
VIN VID1, VID2 DIS, EN
This area visible
only if correct
password is entered VOUT VID1, VID2 DIS, EN
CTRL
DISP HORZ, VERT
Figure 4-2: Card Edge Menu

7700 MultiFrame Manual
7707VB-2-OC12 Two Channel SDI + Ethernet SONET/SDH Fiber Transmitter
7707VB-2-OC12-10 Revision 1.2
4.2.1. STAT Menu
When in monitoring mode, the toggle switch determines what data is being displayed on the alphanumeric
display. Each time the toggle switch is pressed up/down, the display advances to the next/previous
option.
The card-edge pushbutton and toggle switch are used to navigate through the display menu. Figure 4-3
provides a quick reference to the monitoring mode display. The details of the each of the displays are
described in the sections 4.2.1.1 to 4.2.1.14. For information about setting up the module in control mode
(CTRL) see section 4.2.2.
Level 1 Level 2 Level 3 Level 4 Level 5 Level 6
STD OC, STM
PWR -40 to 0 dB
CIC 15m, 24H
ESL, SESL, ESS, SESS, ESP,
SESP, SEFS 0 to 9999
LIC 15m, 24H
ESL, SESL, ESS, SESS, ESP,
SESP, SEFS 0 to 9999
ESR SECT, LINE, PATH 0.0% - 100%
LOSL 0 to 9999
OUT REF ERR, XO, HOLD, LINK
FIBR
REF INP LOS, FOS, OK
TDMD LOSS, ERR, OK
STD VID1, VID2 ASI, N270, P270, LOSS
EDH VID1, VID2 PRES, LOSS
VIN
SDTI VID1, VID2 PRES, LOSS
STD VID1, VID2 ASI, N270, P270, LOSS
EDH VID1, VID2 PRES, LOSS
SDTI VID1, VID2 PRES, LOSS
VOUT
OSTD VID1, VID2
OFF, ASI, N270, P270
LINK UP, DOWN
STAT
ETH SPD 10, 100, 1000,
DOWN
Figure 4-3: STAT Menu Structure

7700 MultiFrame Manual
7707VB-2-OC12 Two Channel SDI + Ethernet SONET/SDH Fiber Transmitter
Revision 1.2 7707VB-2-OC12-11
4.2.1.1. Displaying the Optical Link Data Standard
STAT
FIBR
STD
OC
STM
The STD menu shows the current transmission standard implemented by the
card.
OC is displayed for SONET transmission.
STM is displayed for SDH transmission. These modes can be set through the
control menu, see section 4.2.2.
4.2.1.2. Displaying Optical Power
STAT
FIBR
PWR
-40 to 0 dBm
The 7707VB-2-OC12 can measure and display optical power over a range of -40
to 0dBm in 1dBm increments.
4.2.1.3. Displaying the Current Interval Counter
STAT
FIBR
CIC
15m, 24h
ESL
SESL
ESS
SESS
ESP
SESP
SEFS
The Current Interval Counter menu provides the user with an option to monitor
15m or 24h counters to detect errored transmission.
The following parameters are available:
ESL, SESL, ESS, SESS, ESP, SESP, SEFS
For a detailed description see Table 4-1.
0 to 9999
STAT/FIBR/CIC 15M 24H
ESL Current 15 minute interval, errored
seconds line Current 24 hour interval, errored seconds line
SESL Current 15 minute interval, severe errored
seconds line Current 24 hour interval, severe errored seconds line
ESS Current 15 minute interval, errored
seconds section Current 24 hour interval, errored seconds section
SESS Current 15 minute interval, severe errored
seconds section Current 24 hour interval, severe errored seconds section
ESP Current 15 minute interval, errored
seconds path Current 24 hour interval, errored seconds path
SESP Current 15 minute interval, severe errored
seconds path Current 24 hour interval, severe errored seconds path
SEFS Current 15 minute interval, severe errored
seconds frame Current 24 hour interval, severe errored seconds frame
Table 4-1: Current Interval Counter Menu

7700 MultiFrame Manual
7707VB-2-OC12 Two Channel SDI + Ethernet SONET/SDH Fiber Transmitter
7707VB-2-OC12-12 Revision 1.2
For detailed information about these parameters, refer to section 4.2.1.18.
4.2.1.4. Displaying the Last Interval Counter
STAT
FIBR
LIC
15m, 24h
ESL
SESL
ESS
SESS
ESP
SESP
SEFS
0 to 9999
Displays the last interval counter for the following parameters:
ESL, SESL, ESS, SESS, ESP, SESP, SEFS
For a detailed description see Table 4-2.
STAT/LIC 15M 24H
ESL Last 15 minute interval, errored seconds
line Last 24 hour interval, errored seconds line
SESL Last 15 minute interval, severe errored
seconds line Last 24 hour interval, severe errored seconds line
ESS Last 15 minute interval, errored seconds
section Last 24 hour interval, errored seconds section
SESS Last 15 minute interval, severe errored
seconds section Last 24 hour interval, severe errored seconds section
ESP Last 15 minute interval, errored seconds
path Last 24 hour interval, errored seconds path
SESP Last 15 minute interval, severe errored
seconds path Last 24 hour interval, severe errored seconds path
SEFS Last 15 minute interval, severe errored
seconds frame Last 24 hour interval, severe errored seconds frame
Table 4-2: Last Interval Counter Menu
4.2.1.5. Displaying the Errored Seconds Ratio
STAT
FIBR
ESR
SECT
LINE
PATH
0.0% - 100%
Displays the Errored Seconds Ratio in Percentage for Section, Line, and
Path layers from 0.0 to 100%
SECT = Sets the Section Parameter.
LINE = Sets the Line Parameter.
PATH = Sets Path Parameter.

7700 MultiFrame Manual
7707VB-2-OC12 Two Channel SDI + Ethernet SONET/SDH Fiber Transmitter
Revision 1.2 7707VB-2-OC12-13
4.2.1.6. Displaying the Loss of Signal seconds in Line Layer
STAT
FIBR
LOSL
0 to 9999
Displays the Loss of Signal seconds in Line Layer.
4.2.1.7. Displaying the Link Output Reference Clock Source
STAT
FIBR
REF
OUT
REF ERR
XO
HOLD
LINK
Displays Link Output Clock Reference Source.
REF ERR = Sets the Reference error.
XO = Indicates the Oscillator.
HOLD = Indicates the Hold Over.
LINK = Indicates the Link Input.
4.2.1.8. Displaying the Link Input Status
STAT
FIBR
REF
INP
LOS
FOS
OK
Displays Link Input Status.
LOS = Indicates the LINK LOST.
FOS = Indicates the FREQUENCY OFFSET.
OK = Indicates the LINK VALID.
4.2.1.9. Displaying the TDM Data Errors
STAT
TDMD
LOSS
ERR
OK
Displays if there are errors in the clear channel TDM data.
This allows you to monitor if transmission errors are occurring at the SONET
network or at TDM stream.
LOSS = Indicates TDM Data Lost.
ERR = Indicates TDM Error Detected.
OK = Indicates TDM Data is present and no errors detected.

7700 MultiFrame Manual
7707VB-2-OC12 Two Channel SDI + Ethernet SONET/SDH Fiber Transmitter
7707VB-2-OC12-14 Revision 1.2
4.2.1.10. Displaying the Video Standard at Input Ports
STAT
VIN
STD
VID1
VID2
ASI
N270
P270
LOSS
Displays the video standard present at the input ports.
ASI Indicates DVB-ASI Signal at input.
N270 Indicates SMPTE 259M-C, 270 Mb/s 4:2:2 Component 525 line, 4:3
or SMPTE 305M at input.
P270 Indicates SMPTE 259M-C, 270 Mb/s 4:2:2 Component 625 line, 4:3
or SMPTE 305M at input.
LOSS Loss of Valid Input Signal.
4.2.1.11. Displaying the Video Standard at Output Ports
STAT
VOUT
STD
VID1
VID2
ASI
N270
P270
LOSS
Displays the video standard present at the output ports.
ASI Indicates DVB-ASI Signal at Output.
N270 Indicates SMPTE 259M-C, 270 Mb/s 4:2:2 Component 525 line, 4:3
or SMPTE 305M at output.
P270 Indicates SMPTE 259M-C, 270 Mb/s 4:2:2 Component 625 line, 4:3
or SMPTE 305M at output.
LOSS Loss of Valid Input Signal.
4.2.1.12. Detecting the EDH Presence in a Compatible Signal at Input Ports
STAT
VIN
EDH
VID1
VID2
PRES
LOSS
Displays video EDH status at the input terminal.
PRES = Indicates EDH Packets present with input signal.
LOSS = Indicates EDH Packets missing from input signal.
4.2.1.13. Detecting the EDH Presence in a Compatible Signal at Output Ports
STAT
VOUT
EDH
VID1
VID2
PRES
LOSS
Displays video EDH status at the output terminal.
PRES = Indicates EDH Packets present with output signal.
LOSS = Indicates EDH Packets missing from output signal.

7700 MultiFrame Manual
7707VB-2-OC12 Two Channel SDI + Ethernet SONET/SDH Fiber Transmitter
Revision 1.2 7707VB-2-OC12-15
4.2.1.14. Displaying the SDTI Status at Input Ports
STAT
VIN
SDTI
VID1
VID2
PRES
LOSS
Displays input video SDTI status.
PRES = Indicates EDH Packets present with input signal.
LOSS = Indicates EDH Packets missing from input signal.
4.2.1.15. Displaying the SDTI Status at Output Ports
STAT
VOUT
SDTI
VID1
VID2
PRES
LOSS
Displays output video SDTI status.
PRES = Indicates EDH Packets present with output signal.
LOSS = Indicates EDH Packets missing from output signal.
4.2.1.16. Displaying the Output Standard on Video LOSS
STAT
VOUT
OSDT
VID1
VID2
OFF
ASI
N270
P270
Displays the video standard set to be generated when a valid video signal
is lost.
OFF Indicates No output standard.
ASI Indicates DVB-ASI.
N270 Indicates SMPTE 259M-C, 270 Mb/s 4:2:2 Component 525 line,
4:3.
P270 Indicates SMPTE 259M-C, 270 Mb/s 4:2:2 Component 625 line,
4:3.
4.2.1.17. Ethernet Status and Speed
STAT
ETH
LINK
UP
DOWN
Displays the Ethernet Connection Status.
UP = Indicates Ethernet link established.
DOWN = Indicates No valid Ethernet connection.

7700 MultiFrame Manual
7707VB-2-OC12 Two Channel SDI + Ethernet SONET/SDH Fiber Transmitter
7707VB-2-OC12-16 Revision 1.2
STAT
ETH
SPD
10
100
1000
DOWN
Displays the Ethernet Transmission Speeds.
10 = Indicates 10 Base-TX Ethernet link.
100 = Indicates 100 Base-TX Ethernet link.
1000 = Indicates 1000 Base-TX Ethernet link.
DOWN = Indicates No valid Ethernet connection.
4.2.1.18. Performance Monitoring and Error Reporting
The 7707VB-8-OC12 card enables the user to proactively monitor the performance parameters of three
physical layers in two different counter settings. A current interval counter is indicated on the card as CIC
and the last interval counter is indicated as LIC. Both counters keep track of 15-minute and 24-hour time
period.
To display the errors, depress the pushbutton, go to STAT/FIBR and choose the appropriate setting (for
example, STAT/FIBR/CIC/15m/ESL to access the line errors reported in the last 15 minutes on the current
interval counter). Refer to Figure 4-2 and Figure 4-3 for menu structure.
Line Layer Performance Parameters
•ESL (Errored Seconds – Line) shows the number of seconds during which a line Bit Interleaved
Parity (BIP) error or an alarm signal was detected.
•SESL (Severely Errored Seconds – Line) displays the number of seconds during which H, line BIP,
or alarm signal error was detected. H can be set by the user through the CTRL/SETH/SESL menu.
Section Layer Performance Parameters
•ESL (Errored Seconds – Section) shows the number of seconds during which a signal Bit
Interleaved Parity (BIP) error or an alarm signal was detected.
•SESL (Severely Errored Second – Section) shows the number of seconds during which H, section
BIP, or alarm signal error was detected. H can be set by the user through the CTRL/SETH/SESS
menu.
Path Layer Performance Parameters
•ESL (Errored Seconds – Path) shows the number of seconds during which a path Bit Interleaved
Parity (BIP) error or an alarm signal was detected.
•SESL (Severely Errored Seconds – Path) shows the number of seconds during which H, more
path BIP, or alarm signal error was detected. H can be set by the user using the
CTRL/SETH/SESP menu.
Frame Errors
•SEFS (Severe Errored Seconds – Frame) shows the number of seconds during which H or more
Frame errors were detected. H can be set by the user in the CTRL/SETH/SEFS menu.
