evertz 7700 Series User manual

7700 MultiFrame Manual
7707MT Multi-Signal SDTV Fiber Transmitter
Revision 1.8
TABLE OF CONTENTS
1. OVERVIEW.......................................................................................................................................... 1
2. INSTALLATION................................................................................................................................... 3
2.1. AES AUDIO AND AUXILLIARY I/O............................................................................................ 4
2.1.1. Connecting the AES Inputs............................................................................................. 5
2.1.2. Connecting the RS232/422 Serial Data Port................................................................... 5
2.1.3. Connecting the GPI Inputs and GPO Outputs................................................................. 5
2.2. INSTALLING THE BULKHEAD BREAKOUT PANEL ............................................................... 6
2.2.1. Connecting the Breakout Panel AES Inputs.................................................................... 7
2.2.2. Connecting the Breakout Panel RS232/422 Serial Data Port......................................... 7
2.2.3. Connecting the GPI Inputs and GPO Outputs................................................................. 8
2.3. CARE AND HANDLING OF OPTICAL FIBER............................................................................ 8
2.3.1. Safety.............................................................................................................................. 8
2.3.2. Assembly......................................................................................................................... 8
2.3.3. Labeling........................................................................................................................... 8
2.3.4. Handling and Connecting Fibers..................................................................................... 9
3. SPECIFICATIONS............................................................................................................................. 10
3.1. SERIAL VIDEO INPUT ............................................................................................................. 10
3.2. SERIAL VIDEO OUTPUT (NOT AVAILABLE ON DUAL FIBER ‘-F2’ VERSION)................................ 10
3.3. AES AUDIO INPUTS ................................................................................................................ 10
3.4. OPTICAL INPUT/OUTPUT....................................................................................................... 11
3.5. SERIAL DATA PORT ............................................................................................................... 11
3.6. GENERAL PURPOSE INPUTS................................................................................................ 11
3.7. GENERAL PURPOSE OUTPUTS............................................................................................ 11
3.8. SYSTEM PERFORMANCE ...................................................................................................... 12
3.9. ELECTRICAL ........................................................................................................................... 12
3.10.PHYSICAL................................................................................................................................ 12
3.11.COMPLIANCE.............................................................................................................................. 12
4. STATUS INDICATORS AND DISPLAYS ......................................................................................... 13
4.1. STATUS INDICATOR LEDS..................................................................................................... 13
4.2. DOT-MATRIX DISPLAY........................................................................................................... 13
4.2.1. Displaying the Link Activity............................................................................................ 14
4.2.2. Displaying Optical Power .............................................................................................. 14
4.2.3. Displaying the Video Standard...................................................................................... 15
4.2.4. Displaying the Audio Presence ..................................................................................... 15
4.2.5. Displaying the Serial Data Activity................................................................................. 15
4.2.6. Displaying the State of the General Purpose Outputs................................................... 16
4.2.7. Displaying the State of the General Purpose Inputs ..................................................... 16

7700 MultiFrame Manual
7707MT Multi-Signal SDTV Fiber Transmitter
Revision 1.8
4.2.8. Setting the Orientation of the LED Display.................................................................... 16
4.2.9. Displaying the Firmware Version................................................................................... 16
5. CARD EDGE CONTROLS ................................................................................................................ 17
6. JUMPERS.......................................................................................................................................... 18
6.1. SELECTING WHETHER LOCAL FAULTS WILL BE MONITORED
BY THE GLOBAL FRAME STATUS........................................................................................ 19
6.2. SELECTING WHETHER MODULE WILL BE CONTROLLED FROM THE
LOCAL CONTROLS OR THROUGH THE VISTALINK
®
INTERFACE...................................... 19
6.3. SELECTING THE DATA COMMUNICATIONS STANDARD (RS-232 OR RS-422)................. 19
6.3.1. Configuring RS422 Device Communication between a Controller and Tributary.......... 20
6.4. SELECTING THE DEFAULT BEHAVIOUR OF THE INPUTS WHEN THERE IS NO SIGNAL
CONNECTED........................................................................................................................... 20
6.5. CONFIGURING THE MODULE FOR FIRMWARE UPGRADES.............................................. 21
6.6. SELECTING THE AES INPUT CONFIGURATION (BALANCED OR UNBALANCED)........... 21
6.7. SETTING THE BALANCED AES INPUT LEVEL SENSITIVITY............................................... 21
6.8. SELECTING THE GPI PULLUP VOLTAGE ............................................................................. 22
6.9. SELECTING NORMALLY OPEN OR CLOSED GPOS ............................................................ 22
7. VISTALINK
®
REMOTE MONITORING/CONTROL........................................................................... 23
7.1. WHAT IS VISTALINK
®
?............................................................................................................... 23
7.2. VISTALINK
®
MONITORED PARAMETERS .............................................................................. 24
7.3. VISTALINK
®
CONTROLLED PARAMETERS ........................................................................... 24

7700 MultiFrame Manual
7707MT Multi-Signal SDTV Fiber Transmitter
Revision 1.8
Figures
Figure 1-1: 7707MT (-F2) Block Diagram .............................................................................................................2
Figure 2-1: 7707MT and 7707MT-F2 Rear Panels...............................................................................................3
Figure 2-2: Breakout panel for Wiring Connections..............................................................................................6
Figure 2-3: Reproduction of Laser Certification and Identification Label..............................................................9
Figure 6-1: Location of Jumpers – I/O Module....................................................................................................18
Figure 6-2: Location of Jumpers – Main Module.................................................................................................18
Figure 6-3: Receiver Input Pull-up Configuration................................................................................................20
Figure 6-4: GPI Input Circuitry.............................................................................................................................22
Figure 6-5: Selecting Normally Open or Closed GPO Configuration..................................................................22
Tables
Table 1-1: Typical Application Configurations.......................................................................................................2
Table 2-1: AES IN/RS422/GPIO Connector Pin Definitions .................................................................................4
Table 2-2: Breakout Panel RS232/422 Connector Pin Definitions........................................................................7
Table 7-1: VistaLINK
®
Monitored Parameters.....................................................................................................24

7700 MultiFrame Manual
7707MT Multi-Signal SDTV Fiber Transmitter
Revision 1.8
REVISION HISTORY
REVISION DESCRIPTION DATE
1.0 Preliminary Version Sep 01
1.1 First Release Oct 01
1.2 Rear panel changed, Jumper numbers updated, general cleanup Mar 02
1.3 Added sections on Breakout Panel, updated Jumper information Apr 02
Corrected pin designations on DB15
1.4 Support for separate monitoring of AES1 and AES2 Jun 02
1.4.1 Added section on configuring RS422 communications as Controller/Tributary Dec 02
Added 8 new CWDM wavelengths
1.5 Corrected Jumper designations on Figure 4 Jan 03
1.6 Added Applications Configuration Table May 04
Added Combined 7707MR & 7707MT–F2 Block Diagram
1.7 Added –W version. Fixed errors in Application Config Chart Jun 04
1.8 Updated features, specs & VistaLINK
®
description. Fixed format Nov 08
Information contained in this manual is believed to be accurate and reliable. However, Evertz assumes no responsibility for the use thereof nor for
the rights of third parties, which may be affected in any way by the use thereof. Any representations in this document concerning performance of
Evertz products are for informational use only and are not warranties of future performance, either expressed or implied. The only warranty offered
by Evertz in relation to this product is the Evertz standard limited warranty, stated in the sales contract or order confirmation form.
Although every attempt has been made to accurately describe the features, installation and operation of this product in this manual, no warranty is
granted nor liability assumed in relation to any errors or omissions unless specifically undertaken in the Evertz sales contract or order confirmation.
Information contained in this manual is periodically updated and changes will be incorporated into subsequent editions. If you encounter an error,
please notify Evertz Customer Service department. Evertz reserves the right, without notice or liability, to make changes in equipment design or
specifications.

7700 MultiFrame Manual
7707MT Multi-Signal SDTV Fiber Transmitter
Revision 1.8
This page left intentionally blank

7700 MultiFrame Manual
7707MT Multi-Signal SDTV Fiber Transmitter
Revision 1.8
WARNING
Never look directly into an optical fiber. Non-reversible damage to the eye can
occur in a matter of milliseconds.
"
Do not hook up the 7707MT DWDM cards directly with a short fiber optic
cable. The 7707MT DWDM cards produce +7dBm of power which will damage
the receiver if connected directly.

7700 MultiFrame Manual
7707MT Multi-Signal SDTV Fiber Transmitter
Revision 1.8 7707MT-1
1. OVERVIEW
The 7707MT Multi-Signal Fiber Transmitter is a VistaLINK
®
enabled, fiber transmitter for SDI Video, AES
Audio, RS422 control and GPIO. This single card module transports one uni-directional SDI Video plus
two uni-directional AES Audio plus one bi-directional RS422 plus two bi-directional GPI’s and GPO’s.
These signals are combined using Time Domain Multiplex (TDM) technology and transmitted over a single
fiber. The companion 7707MR Multi-Signal Fiber receiver de-multiplexes the signals and converts them
back to their original formats.
The 7707MT and companion 7707MR will transparently pass incoming SDI video feeds with embedded
AES audio or any other data in the horizontal or vertical ancillary data space. Minimal Audio to Video
latency over the transport interface is also achieved.
The fiber output is available in an assortment of optical wavelengths, accommodating 1310nm/1550nm,
CWDM and DWDM transmission schemes.

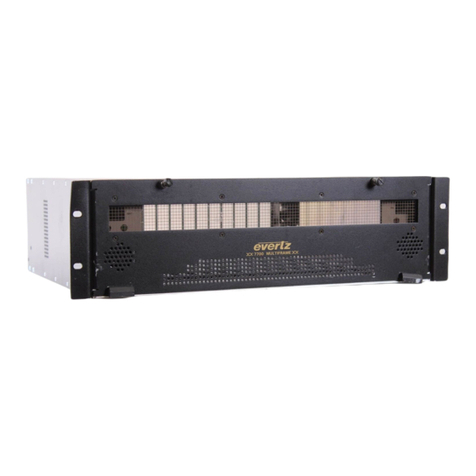

The 7707MT occupies one card slot and can be housed in either a 1RU frame, which will hold up to three
modules, or a 3 RU frame, which will hold up to 15 modules.
Features:
•SDI Video, 2 AES Audio, 1 bi-directional RS-232/422 and 2 GPI/O fiber optic transmitter
•Supports 525 or 625 line 4:2:2 component SDI signals
•Supports SDTi signals
•Supports 32, 44.1, 48kHz AES audio inputs
•Dolby-E™ compatible
•Supports bi-directional RS-422 signals at baud rates up to 3Mb/s
•AES audio inputs can be synchronous or asynchronous to each other and/or to input video
•Reclocked SDI output for additional signal distribution
•Signal transport over fiber uninterrupted by loss of input SDI, AES, Serial Data or GPI/O feeds
•Low Audio to Video latency over transport interface
•Comprehensive signal and card status monitoring via four digit card edge display or remotely through
SNMP and VistaLINK
®
•VistaLINK
®
capability is available when modules are used with the 3RU 7700FR-C or 350FR frame
and a 7700FC VistaLINK
®
Frame Controller module in slot1 of the frame
•Local display of optical signal strength, video, audio, and data presence, video and AES formats, EDH
errors, GPI and GPO status
•Automatic coaxial input equalization to 300m at 270Mb/s (Belden 1694A)
•Fully hot-swappable from front of frame with no fiber disconnect/reconnect required
•Bi-directional optical input/output
•Accepts any wavelength in the 1270nm to 1610nm range
•Optical output wavelengths of 1310nm, 1550nm, and up to sixteen CWDM wavelengths (ITU-T
G.694.2 compliant)
•DWDM wavelengths (ITU-T G.694.1 compliant) also available
• Supports multi-mode and single mode fiber optic cable

7700 MultiFrame Manual
7707MT Multi-Signal SDTV Fiber Transmitter
7707MT-2 Revision 1.8
Different versions of the 7707MT allow the user to choose the optimal function / price / performance ratio
to suit a particular application. Versions with no suffix are the lowest cost, but have higher insertion losses
as they receive and transmit on the same wavelength (1310nm) over a single fiber. The W versions are
designed to receive (1310nm) and transmit on different wavelengths (1550nm) over a single fiber and
have a lower insertion loss. The F2 versions have the lowest insertion loss and are designed to receive
and transmit over separate fibers.
The following chart shows some typical applications and power budget calculations for the 7707MT:
Transmit Side Receive Side
Fiber
Type Fibers Optical/Link
Budget Ordering
Product Info TX Power Ordering Product Info RX Sensitivity Description
Multi-Mode 2 < 3km 7707MT13-F2 -7dBm 7707MR13-F2 -28dBm 1310nm on Tx & Rx fibers
Single-
Mode 2 21dB/60km 7707MT13-F2 -7dBm 7707MR13-F2 -28dBm 1310nm on Tx & Rx fibers
Single-
Mode 1 14dB/40km* 7707MT13 -10dBm 7707MR13 -24dBm
1310nm, bi-directional, one
fiber
Single-
Mode 1(WDM) 25dB/71km 7707MT15-W -1dBm 7707MR13M-W -26dBm 1310nm/1550nm, WDM, bi-
directional on one fiber
Single-
Mode 1(CWDM) 24dB/96km** 7707MTxx-F2 0dBm 7707MRyy-F2 -28dBm Different CWDM wavlenghts
on Tx & Rx, with 8 channel
CWDM Mux/Demux**
Single-
Mode 1(DWDM) 30dB/105km** 7707MTDxxx-F2 +7dBm 7707MRDyyy-F2 -28dBm Different DWDM wavlenghts
on Tx & Rx, with 8 channel
DWDM Mux/Demux**
*With >20dB return loss on fiber Interface Tx Power/Rx Sensitivity are nominal values ±1dBm
**Assume 8 Ch CWDM Mux/Demux loss of 3.5dB Fiber Loss = 0.35/0.25dB per km @1310nm/1550nm
*** Assume 8 Ch DWDM Mux/Demux loss of 5dB
Table 1-1: Typical Application Configurations
Fiber Input/
Output
Global
Clock
Reclocker
Output
Drivers
Input
Receivers
AESAudio
Inputs
RS422
AES 1
AES 2
RS422
GPO 1
GPO 2
DE-
MUX
MUX
SDI Video
Input
TDM
MUX
TX/RX
Interface
Optical
Receiver
Optical
Transmitter
CONTROL/
INDICATION
Vista LINK
®
Interface
LOCAL
CONTROL
LOCAL
INDICATION
SDI Video
Output
Cable
Driver
Optical
Combiner
GPI 1
GPI 2
Fiber
Output
Fiber
Input
(Dual Fiber -F2 Version)
(Single Fiber Version)
(Dual Fiber F2Version)
Figure 1-1: 7707MT (-F2) Block Diagram

7700 MultiFrame Manual
7707MT Multi-Signal SDTV Fiber Transmitter
Revision 1.8 7707MT-3
2. INSTALLATION
The 7707MT comes with a companion rear plate that has two BNC connectors, one female DB15 and one
SC/PC, SC/PC with cover (shown), ST/PC or FC/PC optical connector. For information on mounting the
rear plate and inserting the module into the frame see the 7700FR chapter section 3.
Figure 2-1: 7707MT and 7707MT-F2 Rear Panels
SDI IN: Input BNC connector for 10-bit serial digital video signals, compatible with the SMPTE 259M, or
SMPTE 305M standards. Optional support for DVB-ASI signals. This input provides adaptive
equalization compensation for up to 300m of industry standard Belden 1694 cable, at 270Mb/s.
SDI OUT: Output BNC connector for reclocked serial digital component video signal, compatible with the
SMPTE 259M, or SMPTE 305M standards.

7700 MultiFrame Manual
7707MT Multi-Signal SDTV Fiber Transmitter
7707MT-4 Revision 1.8
Single Fiber Version
OPTICAL I/O: There is one SC/PC, SC/PC with cover (shown), ST/PC or FC/PC female connector.
This optical I/O contains the input SDI video signal, the AES audio present at the AES1
and AES2 inputs and the bi-directional Serial Data and GPI/O signals. Any ancillary
data (e.g. embedded audio, closed captioning, etc) present in the input SDI video
stream prior to multiplexing, is transparently passed through to the output. This
connector also serves as the optical input for the bi-directional serial data and GPI/O
signals
Dual Fiber (-F2) Version
FIBER IN: There is one SC/PC (shown), ST/PC or FC/PC female connector with the optical input
to the module. This connector should be connected to the FIBER OUT connector of a
dual fiber 7707MR module at the destination end with a suitable fiber optic cable. The
dual fiber 7707MT versions receive on wavelengths in the 1270 to 1610nm range.
FIBER OUT: There is one SC/PC (shown), ST/PC or FC/PC female connector with the optical output
from the module. This connector should be connected to the FIBER IN connector of a
dual fiber 7707MR module at the destination end with a suitable fiber optic cable. The
dual fiber 7707MT versions transmit on the wavelength marked on the rear panel and
are designed to work with either single-mode or multi-mode fiber optic cable.
2.1. AES AUDIO AND AUXILLIARY I/O
A 15 pin High Density D connector labeled AES IN/RS422/GPIO contains 2 AES Audio inputs, a
bi-directional Serial Data port, 2 GPI inputs and 2 GPO relay contact outputs.
Pin
# Name Description
1 GPO2A General Purpose Output 2 Contact
2 GPI2 General Purpose Input 2
3 GPO1A General Purpose Output 1 Contact
4 AES1- Balanced AES1 – Input
5 AES1+ Balanced AES1 + or Unbalanced AES 1 Input
6 GPI1 General Purpose Input 1
7 GPO2C General Purpose Output 2 Common
8 GPO1C General Purpose Output 1 Common
9 SOUT1(-) RS232 Port 1 Transmit out or RS422 Transmit - out
10 SOUT2(+) RS232 Port 2 Transmit out or RS422 Transmit + out
11 GND Signal Ground
12 SIN1(-) RS232 Port 1 Receive In or RS422 Receive – in
13 SIN2(+) RS232 Port 2 Receive In or RS422 Receive + in
14 AES2- Balanced AES2 – Input
15 AES2+ Balanced AES2 + or Unbalanced AES 2 Input
Table 2-1: AES IN/RS422/GPIO Connector Pin Definitions

7700 MultiFrame Manual
7707MT Multi-Signal SDTV Fiber Transmitter
Revision 1.8 7707MT-5
2.1.1. Connecting the AES Inputs
AES INPUT: 4 Pins on the DB15 connector are used to carry balanced or unbalanced AES audio
inputs for channels 1&2 (AES 1) and 3&4 (AES 2) of an audio group. Each input
occupies two pins (+, -) on the DB15 with a shared GND pin. AES inputs can be
synchronous or asynchronous to each other and/or input SDI video.
For Balanced AES signals connect the + and – signals to the respective input pins. The
AES Term Jumpers J26 and J27 must be set to the 110 position for proper termination of
the balanced AES inputs. The AES LEVEL jumpers J24 and J25 are normally set to the
HI position for balanced AES signal levels of 2 to 7 volts. For signal levels below 2 volts,
move the AES LEVEL jumpers to the LO position.
Unbalanced AES signals should be connected to the AES+ input pin with the ground
connected to the AES- input pin. The AES Term Jumpers J26 and J27 must be set to the
75 position for proper termination of the unbalanced AES inputs. The AES LEVEL
jumpers J24 and J25 should be in the LO position when the TERM jumpers are in the 75
position.
2.1.2. Connecting the RS232/422 Serial Data Port
RS232/422: 4 Pins on DB15 connector are used for a bi-directional serial data port conforming to
RS422 signal levels when the SERIAL jumper is set to the RS422 position. When the
SERIAL Jumper is set to the RS232 position these pins are configured as two RS-232 bi-
directional serial data ports. See section 6.3 and 6.3.1 for information on configuring the
serial data port.
2.1.3. Connecting the GPI Inputs and GPO Outputs
GPI’s: 2 pins on the DB 15 connector are used for two General Purpose inputs (GPI). The GPIs
are active low with an internal pull up (10k ohm) resistor to +5V or +12V. The user can
activate GPIs simply by connecting the GPI input pins to Ground. This can be done with
a button, switch, relay or an open collector transistor. See section 6.8 for information on
selecting the pull-up voltage.
GPO’s: 4 pins on the DB15 connector are used for two General Purpose Outputs (GPO). Each
GPO output can be configured as a normally open or normally closed relay contact pair.
They can be used to pass simple contact closure information along with the video signal.
See section 6.9 for information on setting the jumpers for normally open or closed
contacts.

7700 MultiFrame Manual
7707MT Multi-Signal SDTV Fiber Transmitter
7707MT-6 Revision 1.8
2.2. INSTALLING THE BULKHEAD BREAKOUT PANEL
The 7707MX-BHP Bulkhead breakout panel is an accessory that provides you with a convenient way of
connecting the audio, RS232/422 and GPIO signals into the HD DB-15 connectors on the rear of the
modules. This panel occupies 2 rack units of rack space and is designed for mounting at the rear of your
rack panel. The breakout panel can be used to connect any combination of up to fifteen 7707MT or
7707MR modules. Each of the fifteen sets of connectors on the breakout panel is fitted with two BNCs for
unbalanced AES audio in or out (not on –B version of breakout panel), one six position terminal strip for
balanced AES audio in or out, one eight position terminal strip for the GPIO signals and one 9 pin female
D connector for the RS-232/422 signals. Figure 2-2 shows one section of the breakout panel. On the rear
of the breakout panels are fifteen male HD DB-15 connectors.
To connect the module to the breakout panel, connect the 15 pin extender cables supplied with the
breakout panel between the 15 pin female D connector on the rear of the module and the appropriate D
connector on the breakout panel. Make sure that you secure the connectors with the screws supplied.
The balanced AES audio and GPIO cables can be secured into the removable portion of the terminal
strips using a small screwdriver. The removable part of the terminal strip is then inserted into the breakout
panel and secured using the two hold-down screws.
Figure 2-2: Breakout panel for Wiring Connections

7700 MultiFrame Manual
7707MT Multi-Signal SDTV Fiber Transmitter
Revision 1.8 7707MT-7
2.2.1. Connecting the Breakout Panel AES Inputs
BALANCED AES INPUTS: For Balanced AES signals connect the + and – signals to the respective
input pins on the AES terminal strip. The AES Term Jumpers J26 and
J27 must be set to the 110 position for proper termination of the
balanced AES inputs. The AES LEVEL jumpers J24 and J25 are
normally set to the HI position for balanced AES signal levels of 2 to 7
volts. For signal levels below 2 volts, move the AES LEVEL jumpers to
the LO position.
UNBALANCED AES INPUTS: Unbalanced AES signals should be connected to the respective AES
BNCs. In addition, the respective AES- pin on the AES terminal strip
must be connected to one of the ground pins by using a short wire
jumper. This will connect the unused side of the transformer input to
ground. The AES Term Jumpers J26 and J27 must be set to the 75
position for proper termination of the unbalanced AES inputs. The AES
LEVEL jumpers J24 and J25 should be in the LO position when the
TERM jumpers are in the 75 position.
2.2.2. Connecting the Breakout Panel RS232/422 Serial Data Port
RS232/422: A 9 pin female D connector is used for a bi-directional serial data port conforming to RS422
signal levels when the SERIAL jumper is set to the RS422 position. When the SERIAL
Jumper is set to the RS232 position this connector is configured as two RS-232 bi-
directional serial data ports. The pin descriptions of the RS232/422 connector are shown
for both RS-232 and RS-422 jumper settings. See section 6.3 and 6.3.1 for information on
configuring the serial data port.
Pin # RS232 Pin Function RS422 Pin Function
1 Ground Ground
2 RS-232 Port 1 Tx Output RS-422 Tx-(a) Output
3 RS-232 Port 2 Rx Input RS-422 Rx+(b) Input
4 Ground Ground
5 n/c n/c
6 Ground Ground
7 RS-232 Port 2 Tx Output RS-422 Tx+(b) Output
8 RS-232 Port 1 Rx Input RS-422 Rx-(a) Input
9 Ground Ground
Table 2-2: Breakout Panel RS232/422 Connector Pin Definitions

7700 MultiFrame Manual
7707MT Multi-Signal SDTV Fiber Transmitter
7707MT-8 Revision 1.8
2.2.3. Connecting the GPI Inputs and GPO Outputs
GPI’s: The four top pins on the 8 pin terminal strip are used for two General Purpose inputs (GPI).
The GPIs are active low with an internal pull up (10k ohm) resistor to +5V or +12V. The
user can activate GPIs simply by connecting the GPI input pins to one of the ground pins
provided. This can be done with a button, switch, relay or an open collector transistor. See
section 6.8 for information on selecting the pull-up voltage.
GPO’s: The four bottom pins on the 8 pin terminal strip are used for two General Purpose Outputs
(GPO). Each GPO output can be configured as a normally open or normally closed relay
contact pair. They can be used to pass simple contact closure information along with the
video signal. See section 6.9 for information on setting the jumpers for normally open or
closed contacts.
2.3. CARE AND HANDLING OF OPTICAL FIBER
2.3.1. Safety
!
CLASS 1 LASER PRODUCT
Background colour: yellow
Triangular band: black
Symbol: black
2.3.2. Assembly
Assembly or repair of the laser sub-module is done only at Evertz facility and performed only by qualified
Evertz technical personnel.
2.3.3. Labeling
Certification and Identification labels are combined into one label. As there is inadequate space on the
product to place the label, it is reproduced here in the manuals.
•There is no date of manufacture on this label as it can be traced by bar code label placed on the
printed circuit board of each Evertz plug-in module
•The Model number is one of: 7707MT13, 7707MT15W, 7707MT13-F2,
7707MTxx, (xx = 27, 29, 31, 33, 35, 37, 43, 45, 47, 49, 51, 53, 55, 57, 59, 61)
7707MTDyyy (Dyyy represents ITU Grid Channel: D200, D210, D220, D230, D240, D250, D260,
D270, D280, D290, D300, D310, D320, D330, D340, D350, D360, D370, D380, D390, D400,
D410, D420, D430, D440, D450, D460, D470, D480, D490, D500, D510, D520, D530, D540,
D550, D570, D580, D590, D600)

7700 MultiFrame Manual
7707MT Multi-Signal SDTV Fiber Transmitter
Revision 1.8 7707MT-9
Figure 2-3: Reproduction of Laser Certification and Identification Label
2.3.4. Handling and Connecting Fibers
"
Never touch the end face of an optical fiber. Always keep dust caps on optical fiber
connectors when not connected and always remember to properly clean the optical
end face of a connector before making a connection.
The transmission characteristics of the fiber are dependent on the shape of the optical core and therefore
care must be taken to prevent fiber damage due to heavy objects or abrupt fiber bending. Evertz
recommends that the user maintain a minimum bending radius of 5 cm to avoid fiber-bending loss that will
decrease the maximum attainable distance of the fiber cable. The Evertz fiber optic modules come with
cable lockout devices, to prevent the user from damaging the fiber by installing a module into a slot in the
frame that does not have a suitable I/O module. For further information regarding care and handling of
fiber optic cable see section 3 of the Fiber Optics System Design section of this manual binder.

7700 MultiFrame Manual
7707MT Multi-Signal SDTV Fiber Transmitter
7707MT-10 Revision 1.8
3. SPECIFICATIONS
3.1. SERIAL VIDEO INPUT
Standards: SMPTE 259M-C, 525 or 625 line component, SMPTE 305M
Connector: 1 BNC per IEC 61169-8 Annex A
Equalization: Automatic to 300m @ 270 Mb/s with Belden 1694A or equivalent cable
Return Loss: > 15 dB up to 270 Mb/s
3.2. SERIAL VIDEO OUTPUT (Not available on dual fiber ‘-F2’ version)
Number of Outputs: 1 Per Card reclocked
Connector: 1 BNC per IEC 61169-8 Annex A
Signal Level: 800mV nominal
DC Offset: 0V ±0.5V
Rise and Fall Time: 900ps nominal
Overshoot: < 10% of amplitude
Return Loss: > 15 dB at 270 Mb/s
High Freq. Jitter: < 0.2UI
3.3. AES AUDIO INPUTS
Number of Inputs: 2
Standard: Jumper selectable for balanced or unbalanced input
Unbalanced AES: SMPTE 276M
Balanced AES: AES3-1992 balanced AES
Other: Dolby-E™ compatible
Connector: 4 pins on female high density DB-15
Signal Level:
Unbalanced: 1V p-p ±0.1V
Balanced: 2 to 7 Vp-p with Level Jumper set to HI, 1 to 2 V p-p with level jumper set to LO
Equalization: 500m @ 48kHz with Belden 1800B or equivalent cable
Resolution: up to 24 bits
Sampling Rate: 32, 44.1, 48 kHz
Intrinsic Jitter: < 20ns
Impedance:
Unbalanced: 75 Ω
Balanced: 110 Ω

7700 MultiFrame Manual
7707MT Multi-Signal SDTV Fiber Transmitter
Revision 1.8 7707MT-11
3.4. OPTICAL INPUT/OUTPUT
Number: 1 (Single fiber version)
2 (Dual fiber version)
Connector: Female SC/PC, SC/PC with cover, ST/PC or FC/PC
Return Loss: > 20 dB
Rise and Fall Time: 200ps nominal
Maximum Input Power: 0 dBm
Input Optical Sensitivity:
WDM (-w version): -26dBm
Standard: -28dBm
Output Jitter: < 0.2 UI
Wavelengths:
Single Fiber Standard: 1310nm
Single Fiber W Version: 1550nm
CWDM: 1270nm to 1610nm
DWDM: C-Band (ITU-T G.694.1 compliant)
Output Power:
1310nm FP: -7dBm ±1dBm
1310nm (-W): -1dBm ±1dBm
1550nm, CDWM (DFB): 0dBm ± 1dBm
DWDM (DFB): +7dBm ± 1dBm
Fiber Size: 9 µm core / 125 µm overall
3.5. SERIAL DATA PORT
Number of Ports: 1 RS-422 or 2 RS-232 – Jumper Selectable
Connector: 4 pins (plus ground) on female high density DB-15
Baud Rate: Up to 3 Mb/s (Determined by incoming data)
3.6. GENERAL PURPOSE INPUTS
Number of Inputs: 2
Type: Opto-isolated, active low with internal pull-ups to +5 or +12V (jumper
selectable)
Connector: 2 pins (plus ground) on female high density DB-15
Signal Level: Open or closure to ground
3.7. GENERAL PURPOSE OUTPUTS
Number of Outputs: 2
Type: “Dry Contact” relay closure
Connector: 2 pins per output on female high density DB-15
Signal Level: normally closed or normally open (jumper settable)

7700 MultiFrame Manual
7707MT Multi-Signal SDTV Fiber Transmitter
7707MT-12 Revision 1.8
3.8. SYSTEM PERFORMANCE
Video Input to Output Delay: < 1.5 µs
Audio to Video delay: < 1µs with SoftSwitch™ disabled on 7707MR
< 2ms with SoftSwitch™ enabled on 7707MR
3.9. ELECTRICAL
Voltage: +12VDC
Power: 12 Watts (Non DWDM)
14 Watts (DWDM)
3.10. PHYSICAL
7700 or 7701 frame mounting:
Number of slots: 1
3.11. COMPLIANCE
Electrical Safety: CSA Listed to UL 60065-03, IEC 60065
Complies with CE Low voltage
Directive
Laser Safety: Class 1 laser product
Complies with 24 CFR 1040.10 and 1040.11
IEC 60825-1
EMI/RFI: Complies with FCC Part 15, Class A
EU EMC directive

7700 MultiFrame Manual
7707MT Multi-Signal SDTV Fiber Transmitter
Revision 1.8 7707MT-13
4. STATUS INDICATORS AND DISPLAYS
The 7707MT has 6 LED Status indicators and a 4 digit alphanumeric display on the front card edge to
show operational status of the card at a glance. The card edge pushbutton is used to select various
displays on the alphanumeric display. Figure 6-2 shows the location of the LEDs and card edge controls.
4.1. STATUS INDICATOR LEDS
Two large LEDS on the front of the board indicate the general health of the module
LOCAL FAULT: This Red LED indicates poor module health and will be On during the absence of a
valid optical input signal, if a laser fault exists, or if a local input power fault exists
(i.e. a blown fuse). The LOCAL FAULT indication can also be reported to the frame
through the FRAME STATUS jumper.
MODULE OK: This Green LED indicates good module health. It will be On when a valid optical
input signal is present, and the laser and board power are good.
There are four small LEDs on the back of the board that indicate the presence of video, audio and data
signals:
VIDEO PRESENT: This Green LED indicates the presence of a valid input video signal.
AES1 PRESENT: This Green LED indicates the presence of a valid AES1 signal.
AES2 PRESENT: This Green LED indicates the presence of a valid AES2 signal.
DATA ACTIVITY: This Green LED indicates the presence of a Serial Data activity.
4.2. DOT-MATRIX DISPLAY
Additional signal and status monitoring is provided via the 4-digit dot-matrix display located on the card
edge. The card edge toggle switch is used to select which data is being displayed in the alphanumeric
display. Each time the toggle switch is pressed up/down, the display advances to the next/previous
display. A message indicating what display mode is active is shown for one second. After one second
without the toggle switch being pressed, the selected display data is shown. The card edge pushbutton is
used to select sub-items where applicable. The following display messages indicate what is being
displayed. The details of the each of the displays are described in the sections 4.2.1 to 4.2.9.

7700 MultiFrame Manual
7707MT Multi-Signal SDTV Fiber Transmitter
7707MT-14 Revision 1.8
LINK ERR Loss of optical link
PWR Input optical power
VSTD Video standard in use
A1S AES clock rate in use on AES1
A2S AES clock rate in use on AES2
DATA Activity on RS232/422
GPO1 GPO1 state
GPO2 GPO2 state
GPI1 GPI1 state
GPI2 GPI2 state
DISP Set orientation of text in the card edge display
S/W Display firmware version
The details of each of the displays are described in the sections 4.2.1 to 4.2.9.
4.2.1. Displaying the Link Activity
When there is no valid optical link between the 7707MT and its companion 7707MR the display will
alternately show LINK and ERR. This message will override any of the other display messages.
4.2.2. Displaying Optical Power
The 7707MT detects the input optical power and displays this on the four-digit card edge display. The
following list describes possible displays and their meaning.
OK Indicates optical input power is within acceptable range (> -10 dB)
-10 to –28 Numerical value of optical input power
