Extech Instruments 380395 User manual

User's Guide
Digital High Voltage Insulation Tester
Model 380395 or 380396
MAX
MIN
Shop for Extech products at: 1.888.610.7664
ShopExtech.com

380395/380396 -EU-EN-V1.2-4/12
2
Introduction
Congratulations on your purchase of the Extech 380395 (120V) or 380396 (220V) High Voltage
Insulation Tester. This meter provides four Insulation Resistance test ranges plus Continuity,
AC/DC Voltage, Polarization Index and Dielectric Absorption Ratio measurements. This meter is
shipped fully tested and calibrated and, with proper care and use, will provide years of reliable
service.
Features
Auto ranging 6000 count LCD display with bargraph
Selectable LCD backlight level function facilitates working in dimly illuminated areas.
MAX/MIN, PEAK, Relative, and Data hold functions for DC/AC voltage measurements.
Designed to the following safety standards:
IEC 61010-1 (CAT IV 600V Pollution degree 2)
IEC 61010-031 (Requirements for hand-held probes)
Insulation test range: 0.1Mto 60G.
Insulation test voltages: 500V, 1000V, 1500V, and 5000V.
AC/DC voltage: 0.5 V to 600 V.
200mA Continuity.
Resistance: 0.1 to 6k.
Auto-discharge function & voltage output warning function.
Electric charges stored in capacitive circuits are automatically discharged after measurements.
Discharge status can be checked using the real time voltage bargraph.
LIVE circuit warning symbols plus audible warning.
Live circuit detection prevents insulation test if voltage > 30 V is detected.
Auto-power off function and battery check.
Programmable Test Timer measurement function.
Polarization Index measurement (PI).
Dielectric Absorption Ratio measurement (DAR).
Power source: Eight (8) 1.5V ‘C’ Cell Batteries.
Shop for Extech products at: 1.888.610.7664
ShopExtech.com

380395/380396 -EU-EN-V1.2-4/12
3
Safety
International Safety Symbols
This symbol, adjacent to another symbol or terminal, indicates the user must refer to the
manual for further information.
This symbol, adjacent to a terminal, indicates that, under normal use, hazardous voltages
may be present.
Danger: identifies conditions and actions that pose hazard(s) to the user.
Warning: alerts the user to avoid electric shock.
Caution: identifies conditions and actions that may damage the Insulation Resistance
tester.
Operating Caution: identifies conditions where the user needs to take extra care during the
operation of the Insulation resistance tester
Danger: Use of this instrument in a manner not specified by the manufacturer may impair
safety features/protection provided by the equipment. Read all of the safety information
carefully before using or servicing the instrument.
This symbol indicates that the meter uses double or reinforced insulation.
Safety Notes
Do not exceed the maximum allowable input range for any of the meter’s functions.
Set the function switch OFF when the meter is not in use.
Remove the batteries if the meter is to be stored for longer than 60 days.
Warnings
Set the function switch to the appropriate position before measuring.
Do not measure current on a circuit whose voltage exceeds 600V.
When changing ranges always disconnect the test leads from the circuit under test.
Do not use the Insulation resistance tester if it is damaged or if metal parts are exposed. Also,
check the meter for cracks or missing plastic.
Be careful when working above 30V AC rms or 30V DC. Such voltages pose a shock hazard.
Discharge all circuit loads under test after measuring high voltage.
Do not replace the batteries with the tester in a wet environment.
Place the test leads in the proper input terminals. Ensure that the test leads are firmly
connected to the Insulation Resistance tester’s input terminals.
Ensure that the Insulation Resistance tester is switched off when opening the battery
compartment.
Shop for Extech products at: 1.888.610.7664
ShopExtech.com

380395/380396 -EU-EN-V1.2-4/12
4
Cautions
Improper use of this meter can cause damage, shock, injury or death. Read and understand
this user manual before operating the meter.
Always remove the test leads before replacing the batteries.
Inspect the condition of the test leads and the meter itself for any damage before operating the
meter. Repair or replace any damage before use.
Voltage checks on electrical outlets can be difficult and misleading because of the uncertainty
of a definitive connection to the recessed electrical contacts. Other means should be used to
ensure that the outlet terminals are not "live".
If the equipment is used in a manner not specified by the manufacturer, the protection provided
by the equipment may be impaired.
Do not use the Insulation resistance tester near explosive gas, vapor or dust.
When using the test leads, keep fingers away from the lead contacts. Keep fingers behind the
test lead finger guards.
Do not use the tester if its cover or any of its parts are removed.
When performing resistance tests, remove all power from the circuit under test.
When servicing the Insulation Resistance tester, use only the supplied test leads and power
adaptor.
Do not use the Insulation resistance tester if the battery indicator shows a low battery.
Do not use or store the meter in areas of high humidity, high temperature, potentially explosive
or flammable environments, or in strong magnetic fields.
Soft cloth and mild detergent should be used to clean the surface of the Insulation resistance
tester when servicing. Do not use abrasives or solvents.
Dry the Insulation resistance tester before storing if it is wet.
Remove the test leads and set the Range selector switch to the OFF position after use.
Safety Category Information
This Insulation resistance tester complies with IEC61010 standard safety measurement
requirements: pollution degree 2, over-voltage category (CAT. IV) 600V, with double insulation.
Shop for Extech products at: 1.888.610.7664
ShopExtech.com

380395/380396 -EU-EN-V1.2-4/12
5
Meter Description

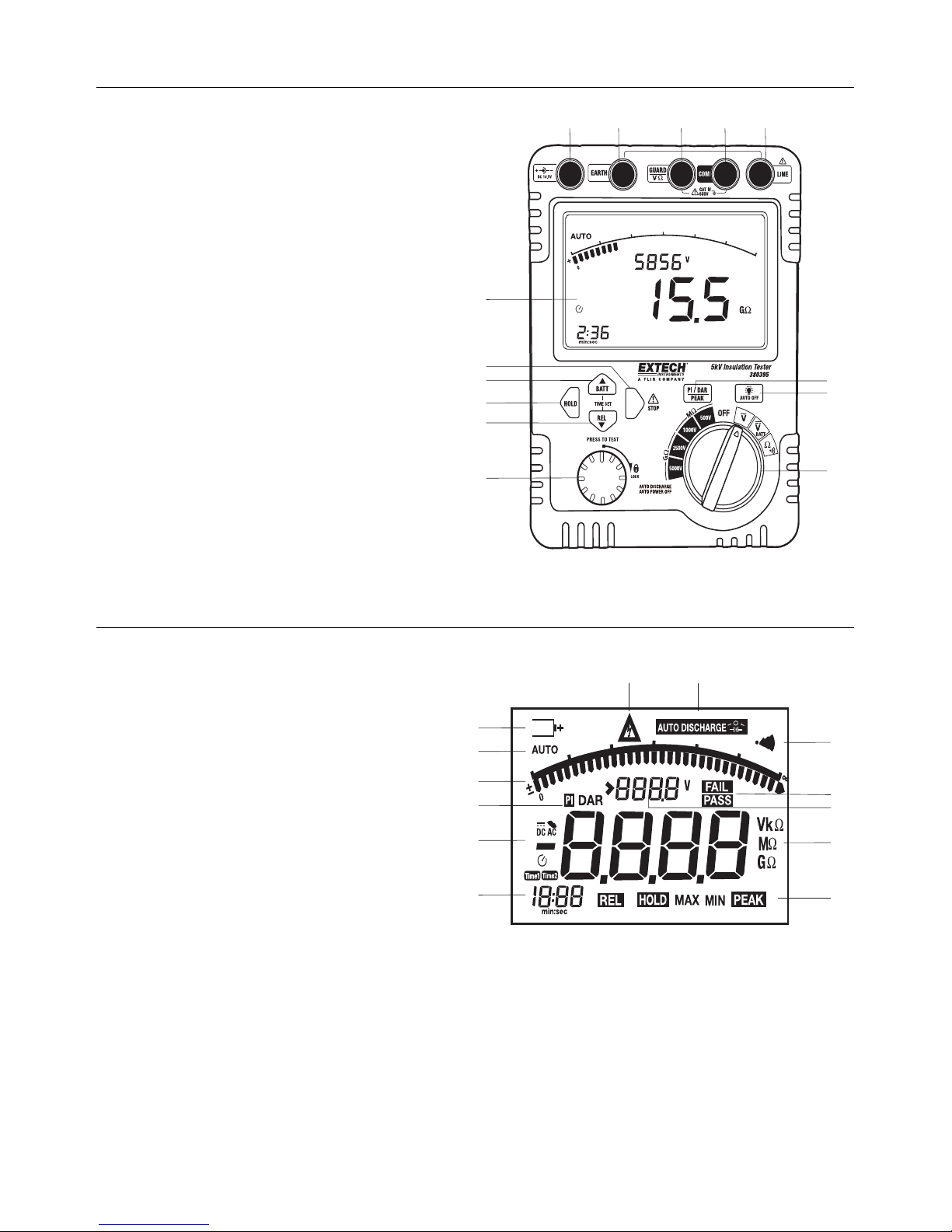

1. Insulation resistance Test/Lock switch
2. REL /down button
3. HOLD button
4. BATT /up button
5. MAX /MIN /STOP button
6. LCD Display
7. DC power adaptor Input
8. EARTH Input
9. Vinput and IR GUARD terminal
10. VCOM input and High voltage
shielding terminal
11. LINE: 500V to 5000V High
Voltage Output
12. PI /DAR /PEAK button
13. Backlight /AUTO OFF button
14. Function Selector Switch
Display Description
1. Timed Test Indicators
2. AC/DC Indicators
3. Polarization Index and
Dielectric Absorption
Ratio Indicators
4. Analog Bargraph
5. Auto Range Indicator
6. Low Battery Indicator
7. High Voltage Indicator
8. Auto discharge Indicator
9. Continuity Buzzer Indicator
10. PASS /FAIL Indicator
11. Live Circuit Voltage Indicator
12. Units Indicator
13. Function Indicators
MAX
MIN
1
2
3
4
5
6
7891011
12
13
14
1
2
3
4
5
6
78
9
10
11
12
13
Shop for Extech products at: 1.888.610.7664
ShopExtech.com

380395/380396 -EU-EN-V1.2-4/12
6
Insulation Resistance Testing
CAUTIONS:
Ensure that no electrical charge exists on the circuit under test.
Insulated gloves should be worn while testing.
Use extreme caution to avoid touching the tips of the test leads or the circuit under test
when the PRESS TO TEST button is pressed; High Voltage is present.
Do not make measurements when the battery cover is removed.
Always connect the Earth Cord (black) to the Earth terminal of the circuit under test.
CAUTION: When the live circuit warning indicates “>30V” or the warning buzzer sounds and
the display flashes, the measurement cannot be made even if the
“Press to Test” button is pressed.
DANGER
Do not touch the circuit under test immediately after testing. Voltage stored in the circuit may
cause electric shock.
Leave the test leads connected to the circuit under test and never touch the circuit until the
discharge is complete.
PRESS TO TEST Knob
All insulation resistance tests are initiated with the PRESS TO TEST
knob.
1. Press and HOLD the knob to perform a test. Release the knob to
end the test.
2. Press and TURN the knob 90 degrees clockwise to the LOCK
position to lock the meter in the continuous test mode. To end a test,
either rotate the knob 90 degrees counterclockwise or press the
STOP button.
3. Always return the knob to the vertical position before beginning a
test.
Emergency Stop
To stop a test at any time, press the STOP button or rotate the PRESS TO TEST knob in a counter-
clockwise direction.
The STOP button also clears the display and beeper after a discharge is complete.
Shop for Extech products at: 1.888.610.7664
ShopExtech.com

380395/380396 -EU-EN-V1.2-4/12
7
Insulation Resistance Test
Manual Test

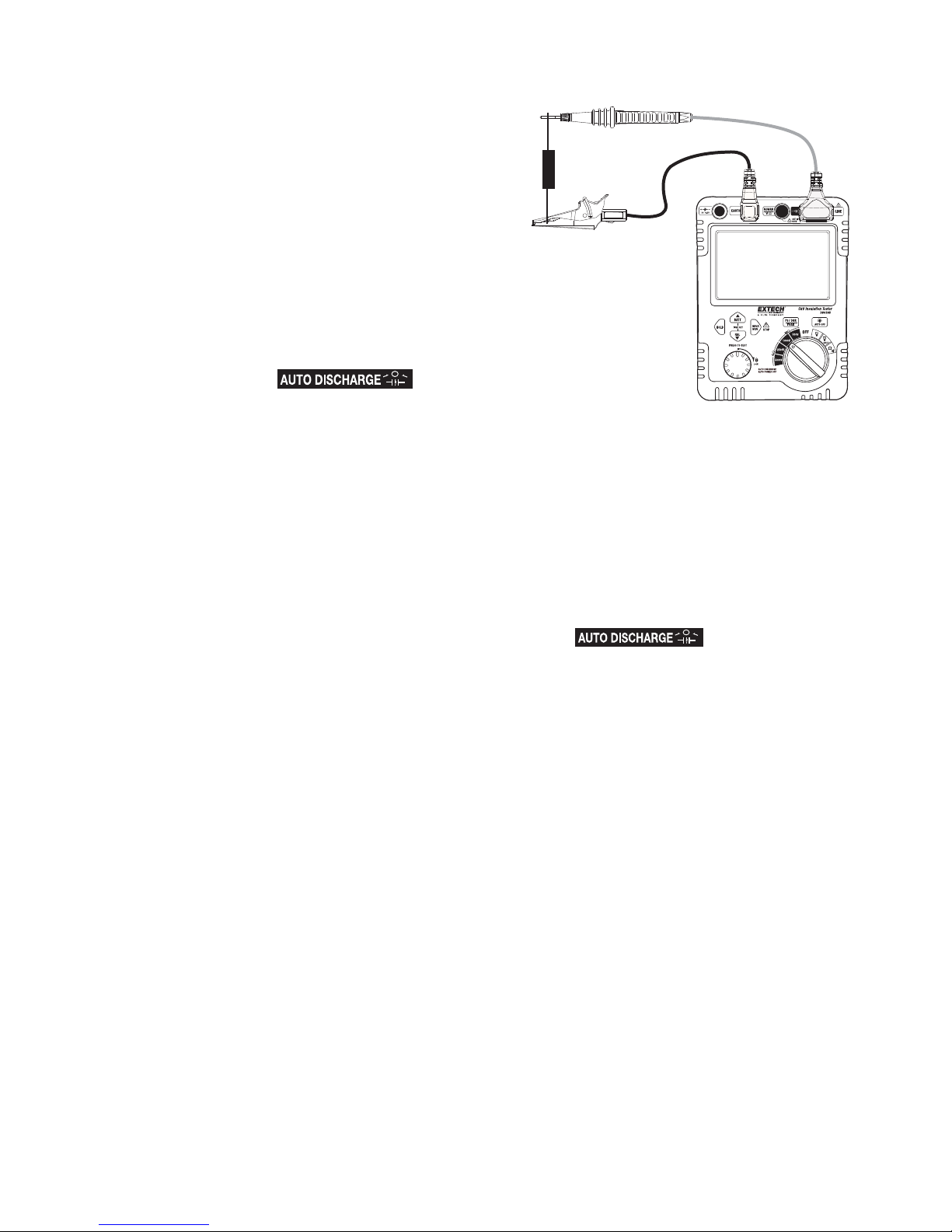

1. Connect the Black Earth test lead to the Earth
connector and the Red test lead to the LINE and
COM connectors.
2. Set the Function Selector switch to the desired
insulation test voltage.
3. Connect the test leads to the device under test.
4. Press and hold the PRESS TO TEST button to
run the test. The buzzer will beep during the
test.
5. Read the measured value on the LCD display.
6. Release the button to end the test and
discharge the device. While the circuit is
discharging, the icon will
flash. The measured value, HOLD and the
measurement time will remain in the display.
7. Press the STOP button to clear the display.
8. Set the Function Selector switch to OFF position and remove the test leads from the circuit.
Locked Test
1. Repeat steps 1 to 3 as above.
2. Press and turn the PRESS TO TEST button to the lock position to run the test. The buzzer will
beep during the test.
3. Read the measured value on the LCD display.
4. Rotate the PRESS TO TEST button to the PRESS TO TEST position to end the test and
discharge the device. While the circuit is discharging, the icon will flash. The
measured value, HOLD and the measurement time will remain in the display.
5. Press the STOP button to clear the display.
6. Set the Function Selector switch to OFF position and remove the test leads from the circuit.
Shop for Extech products at: 1.888.610.7664
ShopExtech.com

380395/380396 -EU-EN-V1.2-4/12
8
Timed Insulation Test
The timed insulation test feature allows the user to specify the period of time the test will run. The
run time can be set from 1 to 15 minutes in 1 minute increments.
1. Connect the Black Earth test lead to the Earth connector and the Red test lead to the LINE and
COM connectors.
2. Connect the test leads to the device under test.
3. Set the Function Selector switch to the desired insulation test voltage.
4. Use the Time Set and arrow buttons to select the desired run time for the insulation test.
The selected time will be shown in the lower left corner of the LCD.
5. Press and hold the PRESS TO TEST knob (or lock it). The beeper will sound and the voltage
warning icon will flash at one second intervals during the test.
6. At the end of the timed period, keep the test leads connected the meter will
the device and the results will be held in the display
7. Release or unlock the PRESS TO TEST knob and press the STOP button to clear the display.
8. Set the Function Selector switch to the OFF position and remove the test leads from the circuit.
Polarization Index (PI)
The polarization index Test calculates the ratio of the resistance measurement after 10 minutes to
the resistance measurement after 1 minute: Results are determined by the type, age and condition
of the insulation material tested. Established standards and test procedures should be used to
establish pass/fail criteria for each application.
Polarization Index = Resistance after 10 minutes / Resistance after 1 minute
1. Connect the Black Earth test lead to the Earth connector and the Red test lead to the LINE and
COM connectors.
2. Connect the test leads to the device under test.
3. Set the Function Selector switch to the desired insulation test voltage.
4. Use the PI/DAR button to select TIME 1 (1:00) for the Polarization Index (PI) function.
5. Press and hold the PRESS TO TEST button and turn it clockwise to the LOCK position. The
beeper will sound during the test.
6. When the test has completed, the LCD will display PASS if the Polarization Index is greater
than 1. FAIL will be displayed if the Polarization Index is below 1.
7. Keep the test leads connected to the equipment under test and release the PRESS TO TEST
button. The circuit will discharge through the meter. While the circuit is discharging, the
icon will flash.
8. Press the STOP button to clear the results
Shop for Extech products at: 1.888.610.7664
ShopExtech.com

380395/380396 -EU-EN-V1.2-4/12
9
Dielectric Absorption Ratio (DAR)
The dielectric absorption test calculates the ratio of the resistance measurement after one minute to
the resistance measurement after 30 seconds: Results are determined by the type, age and
condition of the insulation material tested. Established standards and test procedures should be
used to establish pass/fail criteria for each application.
Dielectric Absorption Ratio = Resistance after 1 minute / Resistance after 30 seconds
1. Connect the Black Earth test lead to the Earth connector and the Red test lead to the LINE and
COM connectors.
2. Connect the test leads to the device under test.
3. Set the Function Selector switch to the desired insulation test voltage.
4. Use the PI/DAR button to select the Dielectric Absorption Ratio function (DAR) for TIME1.
5. Press and hold the PRESS TO TEST button and turn it clockwise to the LOCK position. The
beeper will sound during the test.
6. When the test has completed, the LCD will display PASS if the Dielectric Absorption Ratio is
greater than 1. FAIL will be displayed if the Dielectric Absorption Ratio is below 1.
7. Keep the test leads connected to the device under test and release the PRESS TO TEST
button. The circuit will discharge through the meter. While the circuit is discharging, the
icon will flash.
8. Press the STOP button to clear the results
Insulation Resistance Measurement Considerations
The Resistance of an insulator is determined by applying a test voltage to the insulator and then
measuring the subsequent current flow.
Notes:
The insulation resistance of a device may not be stable therefore the readings supplied by
the meter may vary.
An audible beep will be heard while a test is in progress, this is normal.
Measurements taken on a capacitive load may take some time to complete.
Insulation Resistance tests output a positive (+) voltage from the Earth terminal and a
negative (-) voltage from the Line terminal.
Shop for Extech products at: 1.888.610.7664
ShopExtech.com

380395/380396 -EU-EN-V1.2-4/12
10

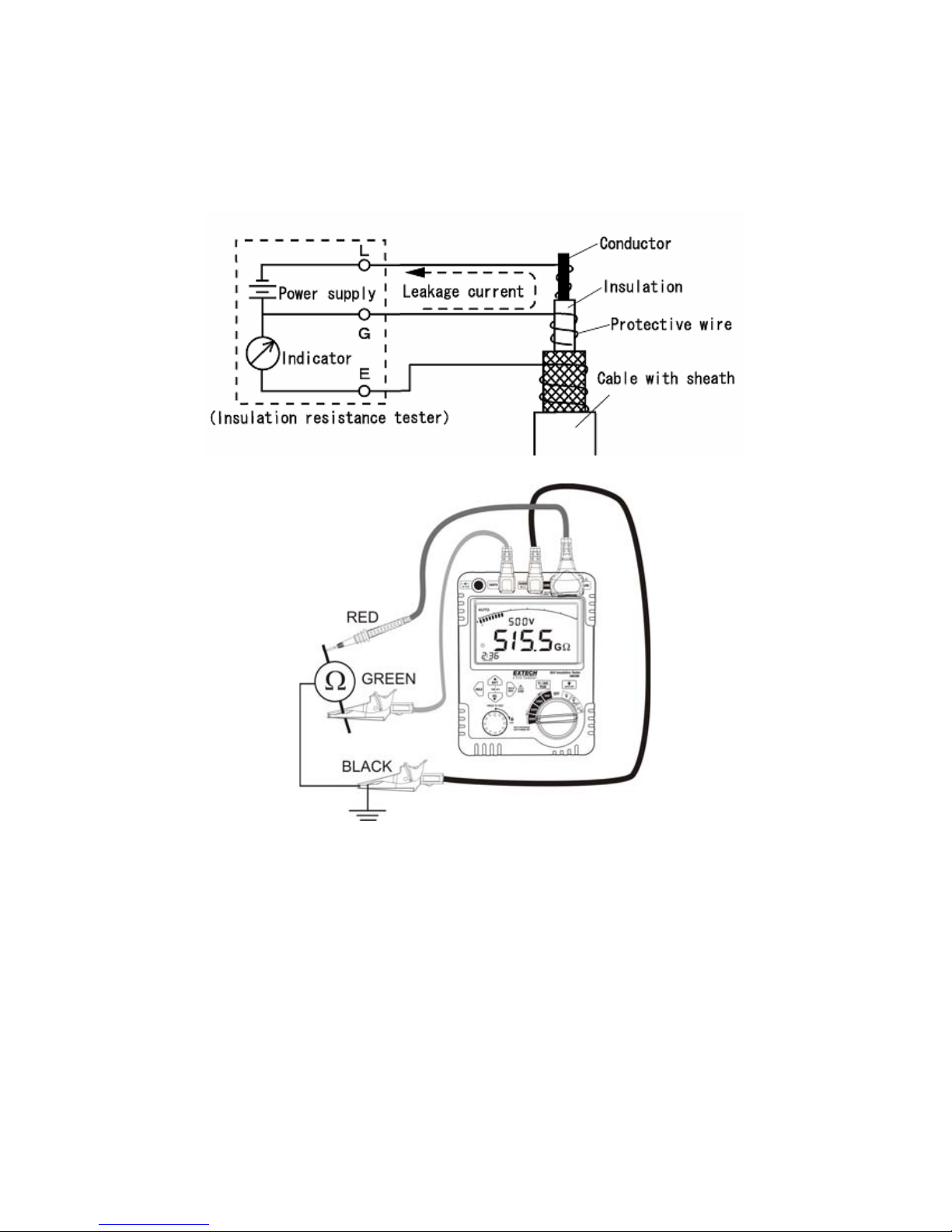

Use of the Guard Terminal
When measuring a cable, leakage current flowing on the surface of cable’s jacket and the current
flowing inside the cable’s insulator combine and may cause measurement errors. In order to prevent
such errors, a conductive wire should be wound around the point where leakage current flows. The
conductive wire should then be connected to the Guard terminal as shown in accompanying figure.
Be sure to use only the Guard cable supplied with this instrument to connect the instrument to the
Guard terminal.
Shop for Extech products at: 1.888.610.7664
ShopExtech.com

380395/380396 -EU-EN-V1.2-4/12
11
Data Hold
1. Press the HOLD button to freeze the displayed reading on the LCD display. The HOLD display
icon will switch ON in this mode.
2. Press the HOLD button again to return the meter to the normal operation mode. The HOLD
display icon will switch OFF.
Backlight
1. Press the backlight button to switch on the LCD display backlight.
2. Press the backlight button a second time to increase the brightness.
3. Press the backlight button a third time to switch off the backlight.
4. The backlight will turn off automatically after 60 seconds.
Auto Power Off
The auto-power off function extends the battery life of the unit. The unit will automatically power off
after 20 minutes of inactivity.
Battery Check
1. Disconnect the test leads from the unit.
2. Set the Function Selector Switch to the “ BATT” DCV position.
3. Press the BATT button. The “ ” (batt) icon will appear on the LCD display.
4. Read the battery voltage level on the LCD. A reading of 12V or grater indicates good batteries.
A reading of 10V or less indicates the remaining battery life is limited.
5. Press the BATT button again to exit the Battery Check mode. The unit will also automatically
exit the Battery Check mode after 5 seconds.
Shop for Extech products at: 1.888.610.7664
ShopExtech.com

380395/380396 -EU-EN-V1.2-4/12
12
AC/DC Voltage and Resistance Testing
AC/DC Voltage Measurements
1. Connect the red test lead to the Vterminal and the
black test lead to the COM input terminal.
2. Set the Function Selector Switch to the “ ” VAC or the
“” VDC position.
3. Connect the test leads to the circuit under test.
4. Note the voltage reading on the LCD display
Low Resistance and Continuity Measurements
WARNING: Do not perform this test unless ACV/DCV = 0. Do not use this mode to check
diodes.
1. Connect the red test lead to the Vterminal and the
black test lead to the COM input terminal.
2. Set the Function Selector Switch to the Ωposition.
3. Connect the test leads to the circuit under test.
4. Note the resistance reading on the LCD display. If the
resistance measured is less than 50the audible
alarm will sound and the icon will display.
MAX/MIN Function (AC/DC Voltage measurements only)
1. Press the MAX/MIN button to enter the MAX/MIN mode. The ‘MIN’ icon will appear on the LCD
display and the meter will display and hold only the minimum value. The value will be held until
a new minimum value is measured.
2. Press the MAX/MIN button again and ‘MAX’ will appear on the LCD display. The meter will
display and hold only the maximum value. The value will be held until a new maximum value is
measured.
3. Press the MAX/MIN button a 3rd time, MAX/MIN will appear on the LCD display. In this mode
the meter will display the real time readings but will continue to store maximum and minimum
values for later recall. Use the MAX/MIN button to check the MIN and MAX values.
4. To exit MAX/MIN mode entirely, press and hold the MAX/MIN button for at least 2 seconds.
Shop for Extech products at: 1.888.610.7664
ShopExtech.com

380395/380396 -EU-EN-V1.2-4/12
13
Peak Hold Function (AC/DC Voltage measurements only)
The PEAK HOLD function is used with the MAX/MIN function to capture voltage max and min peaks
in the range of 10 to 100mS (milliseconds). The voltage range is 0.5V to 600V AC or DC.
1. Press the MAX/MIN button. MIN will appear on the LCD display.
2. Press the PEAK button. MIN/PEAK will appear on the LCD display. The meter will now capture
minimum readings.
3. Press the MAX/MIN button again to display the MAX/PEAK icon. The meter will now capture
maximum readings.
4. Press and hold the MAX/MIN button for at least 2 seconds to exit the PEAK hold mode.
Relative Mode (AC/DC Voltage measurements only)
The relative mode displays the difference between the measured value and a stored reference
value.
1. Press REL to store the reading presently indicated on the display as the reference value; the
"REL" indicator will appear.
2. Subsequent readings will represent the difference between the stored reference value and the
measured value.
3. Press the REL button again to return to normal operation
Shop for Extech products at: 1.888.610.7664
ShopExtech.com

380395/380396 -EU-EN-V1.2-4/12
14
Maintenance
Battery Replacement
WARNING: To avoid electric shock, disconnect all of the test leads from the unit before
replacing the batteries.
Operating Caution
Do not mix old and new batteries.
Make sure the polarity is correct when installing batteries. Do not take measurements with the
battery compartment open.
Replace the batteries as soon as the low battery indication appears. Do not use the tester
in a low battery condition.
1. Switch the meter off and disconnect all of the test leads.
2. Remove the four screws that hold the battery
compartment cover in place.
3. Remove the battery compartment cover.
4. Replace the eight (8) 1.5V batteries.
5. Replace the battery compartment cover and screws.
6.
You, as the end user, are legally bound (Battery ordinance) to return all used batteries and
accumulators; disposal in the household garbage is prohibited!
7. You can hand over your used batteries / accumulators at collection points in your community
or wherever batteries / accumulators are sold!
Disposal: Follow the valid legal stipulations in respect of the disposal of the device at the
end of its lifecycle
Power Adaptor
1. The power adaptor input terminal is located at the top
left of the tester.
2. Ensure that the meter is powered off before inserting
the power adaptor into the input terminal.
3. It is highly recommended that all of the batteries be
removed from the meter before using the power
adaptor.
4. Ensure that the meter is powered off when the power
adaptor is disconnected from the meter.
Shop for Extech products at: 1.888.610.7664
ShopExtech.com

380395/380396 -EU-EN-V1.2-4/12
15
Cleaning and Care
Warning: This device must be repaired, calibrated, or otherwise serviced by qualified personnel
only
Periodically wipe the case with a damp cloth and mild detergent. Do not use abrasives or
solvents to clean the instrument.
Periodically clean the terminals with a cotton swab and detergent; grit or debris in the
terminals can affect readings.
Moisture in the terminals can affect the reading. Keep the instrument dry and clean.
Switch the Insulation resistance tester OFF when it is not in use.
Remove the batteries when the meter is removed from service for long periods.
Do not use or store the meter in areas of high humidity, high temperature, potentially
explosive or flammable environments, or in strong magnetic fields.
Shop for Extech products at: 1.888.610.7664
ShopExtech.com

380395/380396 -EU-EN-V1.2-4/12
16
Specifications
General Specifications
Display 6000 count LCD display with bargraph
Sampling Rate 2.5 times per second
Over range indication "OL" appears on the LCD
Short Circuit Current > 200mA
Open Circuit Test Voltage > 4.5V
Low battery indication Battery symbol appears on the LCD
Power supply Eight (8) 1.5V ’C’ Cell Batteries or 13.5V 1Amp AC adaptor
Fuse 500mA/600V (6 x 32mm) ceramic 3AG fast blow
Auto Power Off After approximately 20 minutes of inactivity
Operating Temperature 0 to 40oC (32 to 104oF)
Operating Humidity < 80% RH
Altitude Up to 2000 meters
Storage Temperature -10 to 60oC(14 to 140oF )
Storage Humidity < 80% RH
Dimensions 198 x 148 x 86mm(7.8 x 5.8 x 3.4" )
Weight Approx. 1438g. (50.7 oz) with battery
Safety Standards/Ratings Pollution degree 2, Meets IEC 61010-1 and IEC 61010-031
Category Rating CAT IV 600V
Shop for Extech products at: 1.888.610.7664
ShopExtech.com

380395/380396 -EU-EN-V1.2-4/12
17
Insulation Resistance Measurement Specifications
Test Voltages 500V 1000V 2500V 5000V *
0.005~6.000M0.005~6.000M0.05~60.00M0.05~60.00M
6.01~60.00M6.01~60.00M60.1~600.0M60.1~600.0M
60.1~600.0M60.1~600.0M0.61~6.00G0.61~6.00G
Measurement
Range
(Auto-ranging)
0.61~6.00G0.61~6.00G6.1~60.0G6.1~60.0G
Open circuit
Voltage
DC 500V
+20%,-0%
DC 1000V
+20%,-0%
DC 2500V
+20%,-0%
DC 5000V
+20%,-0%
Rated
current
1~1.2mA
(0.5 Mload)
1~1.2mA
(1 Mload)
1~1.2mA
(2.5 Mload)
1~1.2mA
(5 Mload)
Short-circuit
current Approx.1mA
0.005~600.0M+2.5% reading +15 digits
0.61~6.00G+3% reading +15 digits
6.1~60.0G+4% reading +15 digits
Accuracy
5~6000VDC +1.5%reading +5 digits
Note on voltage
display in IR test
mode
In Insulation Resistance test mode, this device is used to check whether or not the
electric charge stored in the equipment under test has been discharged. During an
Insulation Resistance test, the voltage value displayed on the LCD above the
resistance measurement is the test reference voltage value.
* NOTE: For 5000V IR measurements, use of the ac adapter to power the unit is recommended.
AC/DC Voltage Specifications
Range Resolution Accuracy
0.5 to 600 VAC (40 to 400Hz) ±1% of rdg + 5d (40 to 60 Hz)
±2.5% of rdg + 10d (61 to 400 Hz)
0.5 to 600 VDC
0.1V
±1% of reading + 5 digits
Low Resistance Measurement and Continuity Specifications
Range Resolution Accuracy
0.1 to 6000.1±1.5% rdg + 10d
601 to 6.00k0.001k±1.5% rdg + 15d
Continuity Buzzer Triggers if the resistance is 50or lower
Open Circuit Voltage 4.5V minimum
Short Circuit Current 200mA minimum
Copyright ©2012 Extech Instruments Corporation (a FLIR company)
All rights reserved including the right of reproduction in whole or in part in any form.
www.extech.com
Shop for Extech products at: 1.888.610.7664
ShopExtech.com
