1
Overview
1� Package Contents
PIR Sensor Shielding Cover Double-sided Tape
Regulatory Information Quick Start Guide
2� Basics
Detector Body
Cover
Base
Lens
With LED indicator inside
Installation
Instruction Mark
Shielding Cover
Name Description
LED Indicator
• Fast-flashing Blue: Detector enters device adding mode.
• Fast-flashing Blue 3 Times: Changing working mode.
• Blue for 1 second: PIR signal triggered/waken the device by
pressing the RESET button/tamper alarm triggered.
Shielding
Cover Fix it on the lens to limit detection range.

2
RESET Button
Name Description
RESET Button
Press and hold for about 5 seconds, the device will enter device
adding mode.
Double press to change working mode (the interval between the two
pressings should be less than 1 second).
• Factory Mode: Detect objects in every 10 seconds.
• Energy-saving Mode: Detect objects in every 1 minute.
Get the EZVIZ App
1. Connect your mobile phone to Wi-Fi (suggested).
2. Download and install the EZVIZ app by searching for “EZVIZ” in the App Store
or Google PlayTM.
3. Launch the app and register an EZVIZ user account.
EZVIZ App
If you have already used the app, please make sure that it is the latest version. To find
out if an update is available, go to the app store and search for "EZVIZ".
Preparations
1� Remove Cover
Remove the cover of the detector by turning the cover counterclockwise as
shown in the gure below.
2� Remove Insulation Strip

3

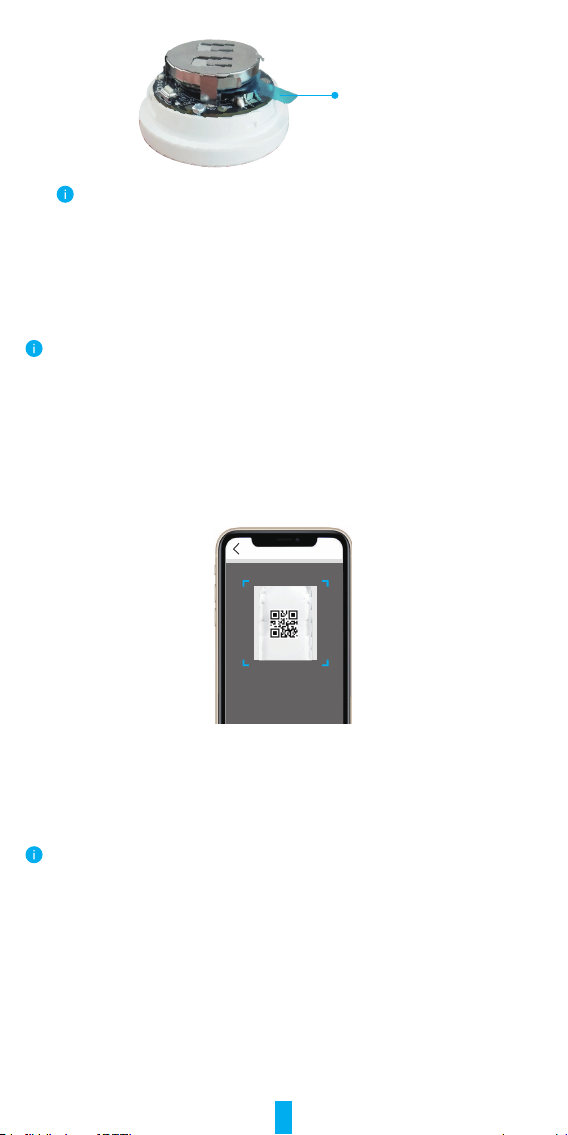

Press and hold the battery, and then remove the battery insulation strip.
Insulation Strip
• After removing the insulation strip, before performing any operations, please wait
about 2-3 minutes, which will make the PIR detection performance more stable.
• When the battery level is low, the low battery notification will be pushed to the
EZVIZ app to remind you to replace batteries.
• If you need to replace batteries, please purchase CR2450 620mAh batteries.
• When replacing batteries, please insert with the positive side facing up.
• Keep your hands dry and clean when touching the circuit board.
Add Device
The detector should be used along with EZVIZ Smart Gateway (afterinafter referred to
as "gateway"). Please add gateway to the EZVIZ Cloud, and then add the detector to the
gateway by the following two methods.
1� Method One: Add by Scanning QR Code
1. Log in to your account through EZVIZ app, tap the device adding icon and
then the QR code scanning interface will be displayed.
2. Scan the QR code on the inner side of the cover or on the user manual, and
then add the detector to the gateway.
Scan QR Code
3. Rotate the cover clockwise until the installation instruction mark and the
EZVIZ logo are aligned.
2� Method Two: Add by the Gateway
When adding detector by the gateway, place the detector as close to the gateway as
possible.
1. Make the gateway enter device adding mode as instructed by the user
manual of the gateway
2. Press and hold the RESET button for over 5 seconds until the indicator on
the detector turns fast-flashing blue, and then the detector will enter adding
mode.
3. The detector will be added to the gateway automatically, and the LED
indicator will be off.
4. Rotate the cover clockwise until the installation instruction mark and the
EZVIZ logo are aligned.

4
Installation
The detector can be put on the table, or be sticked on where you want through the
double-sided tape at the bottom of the detector. The following installation positions and
angles are only for reference.
1� 1�8m Wall Mount
For better detection effect, please make the side with installation instruction mark and
EZVIZ logo faces the ground as shown in the figure below.
We all get
discovered!!!
10°
0°
123
1.8 m So are we!!!

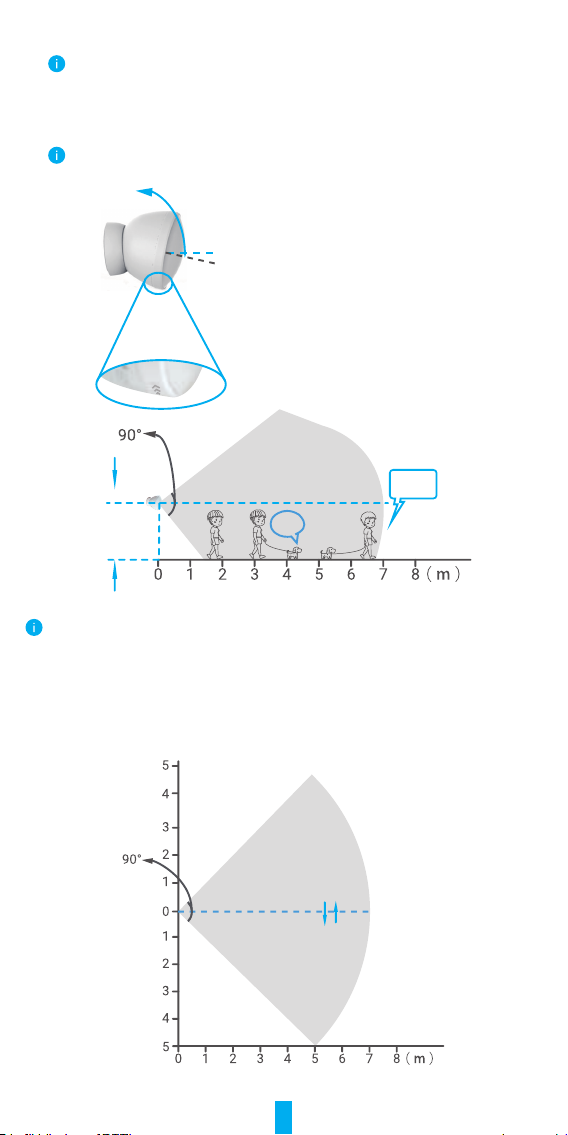

Fig� 1 Side view of the detection range
• After you have installed the detector, you need to adjust the angle of the detector to get
appropriate detection range.
• The detection angle of the detector are 90° vertically and horizontally.
• The detector should be placed facing an area where people often walk across, and there
should be no obstacles in front of the detector.
• Do not install the detector at places with intense direct sunlight or places where
temperature changes greatly (near air conditions, refrigerators, electric fans, ovens,
windows, and more).
• Before sticking the dector, clean the surface first. Do not stick the detector on limewashed walls.
Detection Range
Fig� 2 Top view of the detection range

5
2� Use Shielding Cover (Optional)
For better detection effect, please make the side with installation instruction mark
and EZVIZ logo faces the ground as shown in the figure below.
Shielding cover can be used in situations as below:
• To prevent false alarms produced by pets.
12
2
Not
detected~
Alarms
triggered!?
0°
Shielding
Cover

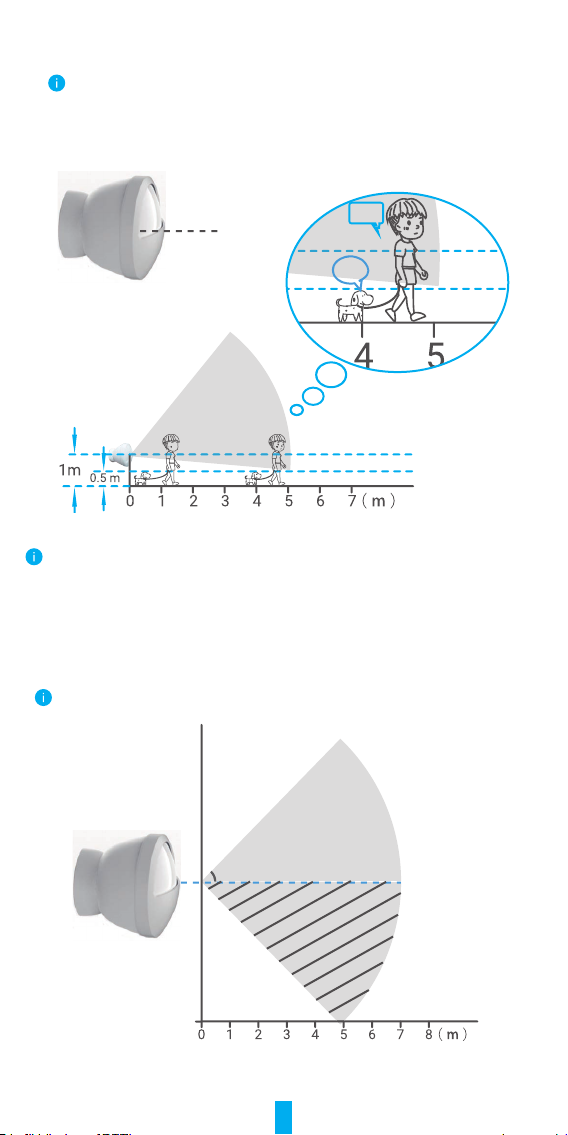

Fig� 1 Side view of the detection range
• The shielding cover will prevent part of the detector receving heat radiation emitted
by moving objects, thus limits detection range of the detector. This can prevent
false alarms especially produced by pets.
• If you have pets, the installation height=pet height+0.5m; if the pet height ≤ 0.5m,
the recommended installlation height is 1m.
• After using the shielding cover, the maximum detection distance of the detector is
5m.
• Small expecting detection range.
For better detection effect, please make the side with installation instruction mark
and EZVIZ logo faces the ground as shown in the figure below.
45°
Detection Range
Non-detection Zone
Fig� 2 Top view of the detection range

6
BATTERY INSTALLATION and REPLACEMENT
1� Install Battery
Tear off the battery insulation, put the battery into the baseplate and insert it to the
end.
2� Replace Battery
Remove the battery from baseplate and replace battery with the Lithium Battery
CR2450 purchased by a regular manufacturer. Test the device for correct operation
whenever the baterries are replaced after re-fitting the device onto the base plate.
If the device is not working properly, please add the device and configurate the
network again by following the steps in Setup part or directly contact our technical
support.
• Risk of explosion if the battery is replaced by an incorrect type.
• Improper replacement of the battery with an incorrect type may defeat a safeguard(for example, in
the case of some lithium battery types).
• Do not dispose of the battery into fire or a hot oven, or mechanically crush or cut the battery, which
may result in an explosion.
• Do not leave the battery in an extremely high temperature surrounding environment or extremely
low air pressure, which may result in an explosion or the leakage of flammable liquid or gas.
• Dispose of used batteries according to the instructions.
• identifies the battery holder itself and identifies the positioning of the cell(s) inside the
battery holder.
• "+" identifies the positive terminal(s) of device which is used with, or generates direct current, "-"
identifies the negative terminal(s) of device which is used with, or generates direct current.
3� Removable Lithium ion Battery(CR2450)
Ingredient CAS No� Content (wt%)
Lithium 7439-93-2 2.55(0.176 gram)
Propylene Carbonate 108-32-7 6.8
Manganese dioxide 1313-13-9 33.9
1,2-Dimethoxyethane 110-71-4 4.9
Lithium perchlorate 7791-03-9 1.8
Graphite 7782-42-5, 1333-
86-4 3.7
Polypropylene 9003-07-0 1.8
Teflon 9002-84-0 1.8
Stainless steel 7439-89-6 42.75

7
Operations on the EZVIZ App
The app interface may be different due to version update, and the interface of the app you
installed on your phone shall prevail.
1� Homepage
Launch the EZVIZ app, open the homepage of the related gateway, you can manage
your detector as needed on the page.
Log Detection log of the detector.
Dismiss Clear alarms of the detector.
2� Settings
Parameter Description
Device Name Customize the name of your device.
Alarm Settings You can set the notification parameters as needed.
Linkage Camera Select your camera to connect to the detector. Once
connected, the camera will turn to the direction when a
human detection happened.
Energy-saving mode Double press to change working mode (the interval
between the two pressings should be less than 1 second).
• Factory Mode: Detect objects in every 10 seconds.
• Energy-saving mode: Detect objects in every 1 minute.
Related Devices You can see the gateway connected to your detector.
Device Information You can see the device information here.
Share Share your device.
Delete Device Tap to delete the detector from EZVIZ cloud.

8
INFORMATION FOR PRIVATE HOUSEHOLDS
1. Separate collection of waste equipment: Electrical and electronic equipment that
has become waste is referred to as waste equipment. Owners of waste equipment
must dispose of it separately from unsorted municipal waste. In particular, waste
equipment does not belong in household waste, but in special collection and return
systems.
2. Batteries and rechargeable batteries as well as lamps: Owners of waste
equipment shall, as a rule, separate waste batteries and rechargeable batteries that
are not enclosed in the waste equipment, which can be removed from the waste
equipment without being destroyed, from the waste equipment before handing them
in at a collection point. This does not apply if waste equipment is prepared for reuse
with the participation of a public waste management authority.
3. Options for returning waste equipment: Owners of waste equipment from private
households can return it free of charge to the collection points of the public waste
management authorities or to the take-back points set up by manufacturers or
distributors within the meaning of the Electrical and Electronics Equipment Law.
Stores with a sales area of at least 400 m² for electrical and electronic equipment
and those grocery stores with a total sales area of at least 800 m² that offer
electrical and electronic equipment several times a year or on a permanent basis
and make it available in the market are required to take it back. This also applies in
the case of distribution using means of distance communication, if the storage and
shipping areas for electrical and electronic equipment are at least 400 m² or the
total storage and shipping areas are at least 800 m². Distributors shall, in principle,
ensure take-back by providing suitable return facilities at a reasonable distance from
the respective end user. The possibility of returning waste equipment free of charge
exists for distributors who are obliged to take it back, among other things, if a new
similar device that essentially fulfills the same functions is delivered to an end user.
4. Privacy Notice: Waste equipment often contains sensitive personal data. This
applies in particular to devices of information and telecommunications technology
such as computers and smartphones. In your own interest, please note that each
end user is responsible for deleting the data on the waste equipment to be disposed
of.
5. Meaning of the symbol “crossed-out wheelie bin”: The symbol of a crossed-out
wheelie bin regularly depicted on electrical and electronic equipment indicates that
the respective device is to be collected separately from unsorted municipal waste at
the end of its service life.
Other manuals for T1C
1
Table of contents
Other Ezviz Accessories manuals
Popular Accessories manuals by other brands

ServersCheck
ServersCheck Infrasensing EST-IRSPOT Series Guide

Dialog Semiconductor
Dialog Semiconductor DA14580 user manual

S+S Regeltechnik
S+S Regeltechnik RHEASGARD KLGF-U Operating Instructions, Mounting & Installation

Bavarian Edge
Bavarian Edge M17471 manual

Panasonic
Panasonic TY-TPEN6 - Stylus - Wireless operating instructions

idinio
idinio 140110 manual
