FAAC FSW900 User manual

Swing Gate Operator
FAAC International Inc.
Headquarter & East Coast Operations
5151 Sunbeam Road
Suites 9-11
Jacksonville, FL 32257
Tel. [phone]
www.faacusa.com
FAAC International Inc.
West Coast Operations
357 South Acacia Avenue
Unit 357
Fullerton, CA 92831
UL325 - UL991

T
TABLE ABLE O OF F C CONTENTS ONTENTS
IMPORTANT SAFETY INFORMATION
Important User Instructions .................................... 3
Restrictions & Warnings ........................................ 3
Internal Entrapment Prevention ............................. 5
External Entrapment Prevention ............................ 5
UL325 Gate Operator Classification ...................... 6
Glossary Of Terms ................................................ 6
Warning Sign Installation ....................................... 7
Installation Precautions ......................................... 7
Pre Installation Guidelines ..................................... 7
Manual Release ..................................................... 8
TECHNICAL SPECIFICATION
Gate Operator Specifications ................................. 9
GATE OPERATOR INSTALLATION
Gate Operator Location ....................................... 10
Concrete Pad Size & Location ............................. 10
Gate Operator Bolt Down .................................... 11
Measure & Weld The Gate Arm ........................... 11
Connecting The Gate Arm ................................... 11
Gate Operator Direction ...................................... 12
Limit Switch Setup ............................................... 12
ELECTRICAL INSTALLATION
Power Switch Location ........................................ 13
AC Power Guidelines .......................................... 13
AC Power Connection ......................................... 13
Battery Power Connection ................................... 14
Accessory Power ................................................. 14
Master/Slave Connection .................................... 15
GATE OPERATOR ADJUSTMENTS
Reverse Sensitivity Adjustment ........................... 16
Reverse Sensitivity Shutdown ............................. 16
Close Time Delay Adjustment ............................. 17
DIP Switch Settings ............................................. 17
ACCESSORY CONNECTIONS
Accessory Wire Overview .................................... 18
Edge Sensor Connections ................................... 19
Photo Sensor Connections .................................. 20
Standard Reverse Connections ........................... 21
Open, Close, Stop Connections .......................... 21
External Reset Connection .................................. 21
Access Control Connection ................................. 22
Fire Lock Connection ........................................... 22
Radio Receiver Connections ............................... 23
MagLock & Solenoid Lock Connections .............. 23
Alarm & Warning Light Connections .................... 24
Solar Panel Connections ..................................... 24
LOOPS & LOOP DETECTORS
Basic Loop Layout ............................................... 25
Loop Installation Guidelines ................................ 25
Plug-In Loop Detector Connections ..................... 26
External Loop Detector Connections ................... 26
TROUBLESHOOTING TIPS
Fault Light Count ................................................. 27
SPARE PARTS
............................................................................. 28
LIMITED WARRANTY
Limited Warranty ................................................. 30
Read and follow all U.L. and Safety Standards before installing any access device. Please refer to this manual and
qualified personnel for assistance. Do not install this device unless all entrapment and pinch points are eliminated!
!
FSW900 Swing Gate Operator 2
Revision A

I
IMPORTANT MPORTANT S SAFETY AFETY I INFORMATION NFORMATION
IMPORTANT USER INSTRUCTIONS:
Automatic gate systems provide user convenience and limit vehicular traffic. Because these systems can produce high levels
of force, it is important that you are aware of the potential hazards associated with the system. Potential hazards may include
pinch points, entrapment positions, lack of proper pedestrian access, blind spots for traffic visibility.
It is the joint responsibility of the designer, purchaser, installer and end user to verify the system is properly configured for its
intended use. Be sure that the installer has instructed you on the proper operation of the gate and gate system before use. Be
sure the installer trains you about the basic functions of the required reversing devices associated with the gate system and
how to properly test them. Reversing devices may include reverse loops, sensing edges, photoelectric cells, inherent reverse
detection, and/or other external devices.
All users should follow and understand the following points:
 Carefully read and follow all instructions in this manual and keep it in a safe place for future reference.
 Carefully read and follow the “Restrictions & Warnings” section of this manual.
 Carefully read and follow the “Entrapment Prevention” section of this manual.
 Carefully read and understand the “Glossary of Terms” section of this manual.
 Make sure that all residents and users are familiar with the proper use of the gate system and its potential hazards.
 Make sure proper reversing devices are installed on all gates to avoid all potential hazards and entrapment.
 Understand loops and loop detectors, photoelectric cells and other devices must be installed with this gate operator to
prevent the gate from closing on vehicles.
 Installation, service and maintenance must be carried out by qualified personnel.
 Understand the manufacturer can not be held responsible for damage or injury caused by improper, erroneous or
unreasonable use. Failure to comply with these guidelines may create a dangerous situation and will void any and all
warranties.
 Always consult your qualified dealer if any concerns or questions arise.
RESTRICTIONS & WARNINGS:
WARNING - To reduce the risk of injury of death:
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. Never let children operate or play with gate controls. Keep the remote control away from children. Never allow children
to play in the area of the gate system.
3. Always keep people and objects away from gate. NO ONE SHOULD CROSS THE PATH OF THE MOVING GATE!
4. Test the operator monthly. The gate MUST reverse on contact with a rigid object or stop or reverse when an object
activates the non-contact sensors. After adjusting the force or the limit of travel, retest the gate operator. Failure to
adjust and retest the gate operator properly can increase the risk of injury or death. If any reverse device functions
improperly, remove the operator from service immediately.
5. KEEP GATES PROPERLY MAINTAINED. Read the owner’s manual. Have a qualified service person make repairs to
gate hardware.
6. The entrance is for vehicles only. Pedestrians must use separate entrance. Keep all pedestrian traffic away from the
gate.
7. Use the emergency release/shut off only when the gate is not moving. Make sure the power for the gate operator is off
by using the On/Off switch located inside the cover on the left side of the controller.
8. Every gate operator installation MUST have secondary protection devices against entrapment, such as edge sensors
and photoelectric cells more in particularly in places where the risk of entrapment is more likely to occur. Proper
reversing devices MUST be installed on all gates to avoid all potential hazards and entrapment.
9. SAVE THESE INSTRUCTIONS
WARNING: A moving gate can cause serious injury or death. Read and follow all
Installation Manual, Reference Manual, and Warning Label Instructions.
!
FSW900 Swing Gate Operator 3

I
IMPORTANT MPORTANT S SAFETY AFETY I INFORMATION NFORMATION
RESTRICTIONS & WARNINGS:
Install the gate operator only if:
1. The gate operator is appropriate for the construction of the gate and the usage Class of the application. Make sure the
gate is within the weight and length limitations specified for the operator.
2. All openings of a horizontal slide gate are guarded or screened from the bottom of the gate to a minimum of 4 feet
(1.2m) above the ground to prevent a 2 1/4 inch (57.15mm) diameter sphere from passing through the openings
anywhere in the gate, and in that portion of the adjacent fence that the gate covers in the open position.
3. ALL EXPOSED PINCH POINTS ARE ELIMINATED OR GUARDED AND GUARDING IS SUPPLIED FOR EXPOSED
ROLLERS. DO NOT INSTALL THIS DEVICE UNLESS ALL ENTRAPMENT AND PINCH POINTS ARE ELIMINATED!
4. The operator is intended for installation only on swing gates used to control vehicles. Pedestrians must be provided with
a separate access opening.
5. The gate must be installed in a location so that enough clearance is provided between the gate and adjacent structures
when opening and closing to reduce the risk of entrapment. Gates should not open into public access areas.
6. The gate must be properly installed and work freely in both directions prior to the installation of the gate operator. DO
NOT REDUCE REVERSING SENSITIVITY OR OVERTIGHTEN THE CLUTCH TO COMPENSATE FOR A DAMAGED
GATE.
7. Gate operator controls must be placed far enough from the gate to prevent the user from coming in contact with the gate
while operating the controls. All activating devices must be installed in a clear line-of-sight with the gate and its travel.
Activating devices must be installed a minimum of 10 feet away from the gate. Be sure to mount ALL operating devices
clearly out of reach of through gate. Controls intended to be used to reset an operator after two sequential activations of
the entrapment protection device must be located in the line-of-sight of the gate. Outdoor or easily accessible controls
shall have a security feature to prevent unauthorized use.
8. Warning signs must be permanently installed on both sides of the gate and must be fully visible to traffic and
pedestrians.
9. Install the gate system and gate in accordance with ASTM F220-02: Standard Specification for Automated Vehicular
Gate Construction. and with UL325: Standard for Safety for Door, Drapery, Gate, Louver, and Window Operators and
Systems
Vehicular Gate Only
Pedestrian
Access
Fence
The operator is intended for installation only
on swing gates used for vehicular traffic.
Pedestrians must be provided with a sepa-
rate access opening.
NO ONE SHOULD CROSS THE PATH OF
A MOVING GATE!
Gate operator controls must be placed far
enough from the gate to prevent the user
from coming in contact with the gate while
operating the controls. All activating devices
must be installed in a clear line-of-sight with
the gate and its travel. Be sure to mount all
devices clearly out of reach of through gate.
Fence Pilaster Fence
Pilaster
Provide spacing between the
hinge, gate and pilaster to
reduce the risk of entrapment for
this area.
Vehicular Gate Only
Fence Pilas-
Mount hinges on
the corner of
pilasters to help
prevent
entrapment
areas.
Building
Or
Structure
Or
Fence
Provide spacing
between the
hinge, gate and
building to
reduce the risk of
entrapment in
this area
FSW900 Swing Gate Operator 4

I
IMPORTANT MPORTANT S SAFETY AFETY I INFORMATION NFORMATION
INTERNAL ENTRAPMENT PREVENTION:
This vehicular gate operator is equipped with an inherent (Type A) entrapment sensing device. The system will sense an
obstruction in both the open and close cycles, and will reverse the direction of the gate travel upon encountering an
obstruction. If the system detects a second obstruction before reaching the full open or close limit after the initial reversal, a
warning alarm will activate and the operator will require a reset before resuming normal operation. This is called a “Hard
Shutdown”. Please read and follow the “Shutdown Conditions” section of this manual for more directions.
EXTERNAL ENTRAPMENT PREVENTION:
Non-contact and/or contact sensors must be installed to provide external entrapment prevention in accordance with UL325
section 3.1. Use only UL325 compliant devices and low voltage (24V) devices. Carefully follow the installation manual for the
UL325 device used for installation, usage, and maintenance.
Non-Contact Sensors (Photo Beams):
Non-contact sensors generally are photoelectric cells or like devices. For gate operators utilizing non-contact sensors:
1. Refer to the diagram below for placement of non-contact sensors.
2. Use care to reduce the risk of nuisance tripping, such as when a vehicle trips the sensor while the gate is still moving.
3. One or more non-contact sensors shall be located where a risk of entrapment or obstruction exists, such as the
perimeter reachable by a moving gate or barrier, entrapment areas, and/or pinch points. Use caution when installing
non-contact sensors since some devices only cover a select area. For example, a photo beam will not cover the full
height of a gate/fence area. Refer to the diagram below.
Contact Sensors (Edge Sensors):
Contact sensors generally are sensing edges or like devices. For gate operators utilizing contact sensors:
1. Refer to the diagram below for placement of contact sensors.
2. One or more contact sensors shall be located where the risk of entrapment or obstruction exists, such as the inside and
outside leading edge of the gate. One or more edge sensors shall be located on the bottom edge of the gate if the gate
is more than 6” above ground at any point of its arc or travel.
3. Hardwired contact sensors shall be located and its wiring arranged so the communication between the sensor and the
gate operator is not subject to any mechanical damage.
4. Wireless contact sensors such as ones that transmit radio frequency (RF) signals to the gate operator for entrapment
prevention functions shall be located where the transmission of the signals are not obstructed or impeded by building
structures, landscaping or similar obstructions. All wireless contact sensors shall function under the intended end-use
conditions.
Open beams help protect
areas between the gate and
an adjacent fence or wall.
CAUTION: This beam only
detects at the installed height.
Standard Reverse beams help
prevent the gate from hitting ob-
structions during the close cycle.
CAUTION: This beam only detects
at the installed height.
Wall or Fence
One or more Edge Sensors shall
be located on the inside and
outside leading edge of the gate.
One or more Edge Sensors shall
be located on the bottom edge of
the gate if the gate is greater than
6” above ground at any point of its
arc or travel.
Bottom Edge
Sensor If Greater
Than 6 Inches
FSW900 Swing Gate Operator 5

I
IMPORTANT MPORTANT S SAFETY AFETY I INFORMATION NFORMATION
UL325 GATE OPERATOR CLASSIFICATION:
RESIDENTIAL VEHICULAR GATE OPERATOR
CLASS I: A vehicular gate operator (or system) intended for use in a home of one
to four single family dwelling, or a garage or parking area associated therewith.
COMMERCIAL/GENERAL ACCESS VEHICULAR GATE OPERATOR
CLASS II: A vehicular gate operator (or system) intended for use in a commercial
location or building such as a multi-family housing unit (five or more single family
units), hotels, garages, retail store, or other building servicing the general public.
INDUSTRIAL/LIMITED ACCESS VEHICULAR GATE OPERATOR
CLASS III: A vehicular gate operator (or system) intended for use in an industrial
location or building such as a factory or lading dock area or other locations not
intended to service the general public.
RESTRICTED ACCESS VEHICULAR GATE OPERATOR
CLASS IV: A vehicular gate operator (or system) intended for use in a guarded
industrial location or building such as an airport security area or other restricted
access locations not servicing the general public, in which unauthorized access is
prevented via supervision by security personnel.
GLOSSARY OFTERMS:
GATE: A moving barrier such as a swinging, sliding, raising, lowering, or the like, barrier, that is a stand-alone passage barrier
or is that portion of a wall or fence system that controls entrance and/or egress by people or vehicles and completes the
perimeter of a defined area.
VEHICULAR SWING GATE OPERATOR (Or System): A vehicular gate operator (or system) that controls a gate which
swings and is intended for use for vehicular entrance or exit to a drive, parking lot, or the like.
VEHICULAR HORIZONTAL SLIDE GATE OPERATOR (Or System): A vehicular gate operator (or system) that controls a
gate which slides in a horizontal direction that is intended for use for vehicular entrance or exit to a drive, parking lot, or the
like.
ENTRAPMENT: A condition when a object is caught or held in a position that increases the risk of injury or death.
INHERENT ENTRAPMENT SENSING DEVICE: An automatic sensor system, which senses entrapment of a solid object and
is incorporated as a permanent and integral part of the gate operator.
NON-CONTACT SENSOR: External device such as a photoelectric cell used to provide entrapment prevention and located
where a risk of entrapment or obstruction exists.
CONTACT SENSOR: External device such as a edge sensor used to provide entrapment prevention located where a risk of
entrapment or obstruction exists such as the leading edge, trailing edge, and posts mounted inside and outside of the vehicular
slide gate and motor.
IMPORTANT: Make sure the gate operator usage classification is correct for the site
and the type of gate. Do not install this device beyond its classification.
!
ABC Apartments
ABC Manufacturing
Regional Airport
FSW900 Swing Gate Operator 6

I
IMPORTANT MPORTANT S SAFETY AFETY I INFORMATION NFORMATION
WARNING SIGN INSTALLATION:
This vehicular gate operator is supplied with two warning signs to alert people that a potential hazard may exist and that
appropriate action should be taken to reduce the risk of hazard, injury or death.
1. Warning signs must be permanently installed on both sides of the gate and must be fully visible to traffic and pedestrians
2. Use appropriate hardware such as metal screws (not supplied) to permanently install each warning sign
INSTALLATION PRECAUTIONS:
PREINSTALLATION GUIDELINES:
Before starting any installation, consider the following guidelines:
 Install the gate system and gate in accordance with ASTM F220-02: Standard Specification for Automated Vehicular
Gate Construction. Install the gate system and gate in accordance with UL325 standards.
 Provide spacing between the gate and any structure such as a building, wall or fence to reduce the risk of entrapment in
this area.
 Swing gates shall not open into public access areas.
 Be sure the gate is properly installed and moves freely. Repair or replace worn or damaged gate hardware before
installing the gate operator.
 Add safety devices such as warning signs, photo eyes, and reverse edges to help prevent injuries or death. Reduce all
pinch points and protect all entrapment areas.
 If pedestrian traffic will be present, provide a separate pedestrian walk gate clear from the path of the automatic gate.
 Loops and loop detectors are required to help prevent the gate from closing on vehicles. Loops do not protect
pedestrian traffic.
 Select the proper gate operator for the installation. Consider the usage, capacity, gate size, gate weight, and needed
features and safety accessories.
 If proper safety guidelines can not be followed do not install the gate operator.
DO NOT allow children to play
near, on or with the gate, gate
operator, or any of its controls.
!
800 lb. Maximum
18 Feet Maximum
DO NOT mount the gate operator
to a gate longer than 18 feet.
Maximum gate length = 18 feet.
!
DO NOT allow pedestrian use of the
vehicular gate. No one should cross
the path of a moving gate!
!
DO NOT mount the gate operator
on uphill or downhill applications.
Do not allow gate to free swing.
!
DO NOT mount the gate operator
to a gate heavier than 800 lbs.
Maximum gate weight = 800 lbs.
!
DO NOT mount operating devices
accessible through the gate or in
between the gate and wall.
!
FSW900 Swing Gate Operator 7

I
IMPORTANT MPORTANT S SAFETY AFETY I INFORMATION NFORMATION
MANUAL RELEASE:
To manually release the gate operator:
1. TURN POWER OFF. Use the emergency release/shut off only when the gate is not moving. Make sure power for the
gate operator is OFF by using the On/Off switch located inside the cover on the left side of the controller.
2. Remove the top arm cap cover.
3. Lift the Release Handle.
4. Remove the Alignment Pin.
5. Move the gate to the desired location.
To reengage the gate operator:
1. Make sure power is OFF.
2. Manually move the gate to align the arm with the output shaft and insert the Alignment Pin.
3. Press the Release Handle down until tight. The release handle should be tightened so the arm connector does not slip
on the output shaft during gate operation
4. Attach the top arm cap cover.
5. Turn power on. Make sure the gate and all reversing devices are operating correctly.
FSW900 Swing Gate Operator 8

T
TECHNICAL ECHNICAL S SPECIFICATION PECIFICATION
GATE OPERATOR SPECIFICATIONS:
Type of Gate ............................................................................. Vehicular Swing Gate Only
Horse Power ............................................................................. 1/2 HP, 500 Watt
Power Input ............................................................................... 120 VAC
Current ...................................................................................... 6A
Cycles/Hour .............................................................................. 75
Travel Speed ............................................................................ 90 ° In Approx 14 Seconds
Maximum Gate Weight ............................................................. 800 lbs
Maximum Gate Length .............................................................. 18 Feet
Primary Entrapment Protection ................................................. Inherent Current Sensor
Secondary Entrapment Protection ............................................ Provisions for Non-Contact & Contact Sensors
UL325 Class of Operation ......................................................... Class I, II, II, IV
23.5”
18”
18.5”
FSW900 Swing Gate Operator 9

G
GATE ATE O OPERATOR PERATOR I INSTALLATION NSTALLATION
GATE OPERATOR LOCATION:
Use the following steps to locate the standard position of the gate operator. The charts may be used for alternate locations.
1. D = 35” from hinge center straight back.
2. E = 11” from D to Operator Output Shaft.
3. DISTANCE = 45” from gate to wall.
CONCRETE PAD SIZE & LOCATION:
The FSW900 vehicular gate operator is designed to be mounted on a concrete pad. Select a location for the gate operator to
be installed. For pad location and size:
1. Determine the location for the operator to be installed. Determine the location of the output shaft as described above.
Then determine the location of the concrete pad following the drawing below
2. Follow all local building codes to determine the required depth of the concrete pad. The average concrete pad should
be 24” wide x 28” long x 24” deep. Extend the pad 4” above ground.
3. When the exact location of the operator can be predetermined, all conduits may be located in the concrete pad
terminating directly under the operator. Extend each conduit a minimum of 1” above the level of the concrete pad. See
the Conduit Location diagram below. It is suggested to install a minimum of four (4) conduits: (1) High Voltage Conduit,
(1) Low Voltage Conduit , (1) Loop Lead Wire Conduit, (1) Accessory Conduit.
4. When the exact location of the operator can not be predetermined, bring all conduits up to one side and terminate in a
Bell Box. Make connections to the operator using water-tight flex conduit.
5. Form the concrete pad and pour concrete. Allow the concrete to cure for 48 hours before removing forms and mounting
the operator.
6. Do not place mounting bolts in the concrete while pouring. Bolts may drift in wet concrete making the operator location
inaccurate.
A
B
Long Arm
E
C
Short Arm
D
Distance
A B C D E Dist
46” 35.5” 29.5” 35” 11” 45”
46.75” 35.5” 33.5” 42” 11” 37”
46.75” 37” 31.5” 40” 11” 41”
47.25” 37.25” 30” 37” 11” 45”
47” 35” 29.5” 32” 11” 45”
42.5” 33” 26.5” 28.5” 11” 41”
A B C D E Dist
34.5” 34.75” 29.5” 35” 14” 43”
44” 36.5” 32.5” 42” 14” 32”
44” 37” 30.5” 40” 14” 40”
45” 37” 30.5” 37” 14” 43”
44.75” 35.75” 29.5” 32” 14” 44”
41” 39” 27.5” 28.5” 14” 41”
24”
4”
28”
24”
12”12”
8”
20”
24”
28”
Available
Conduit
Area
FSW900 Swing Gate Operator 10

G
GATE ATE O OPERATOR PERATOR I INSTALLATION NSTALLATION
GATE OPERATOR BOLT DOWN
To align the operator to the gate and bolt it down:
1. Remove the gate operator cover and place the operator on the concrete pad. Position the operator as determined in
“Gate Operator Location. Make sure the gate and operator are parallel and level with each other.
2. Mark the mounting holes and remove the operator. Drill the mounting holes to the required depth and diameter for the
sleeve anchors being used. It is recommended to use 3/8” x 4” sleeve anchors. The use of sleeve anchors allows
greater flexibility and makes the installation and alignment much easier.
3. Clean the mounting holes and install the sleeves. Position the operator over the anchors. Recheck to make sure the
gate and operator are parallel and level with each other. Tighten the anchor bolts to securely hold the operator.
MEASURE & WELD THE GATE ARM
To determine the arm length in a standard location:
1. Make sure the Arm, Operator, and gate are level with each other.
2. A = Measure 46” from gate hinge out on gate.
3. B = Measure 35.5” for Long Arm length.
4. C = Measure 29.5” for Short Arm length.
5. Use the “Gate Operator Location Charts” for optional dimensions.
6. Mark all points and remove arm before welding.
7. With the arm disconnected, weld the arm, arm bars and brackets.
CONNECTING THE GATE ARM
1. Make sure the power switch is OFF before connecting the arm assembly.
2. Place the Arm Connector over Output Shaft.
3. Manually move the gate to align the arm with the Output Shaft and insert the Alignment Pin.
4. Move the Release Handle down to tighten. The release handle should be tightened so the arm connector does not slip
on the output shaft during gate operation
5. The Release Handle Nut Plate may be removed to adjust the Release Handle position if needed. Reconnect the plate
when adjusted.
6. Attach the top Arm Cap Cover.
A
B
Long Arm
E
C
Short Arm
IMPORTANT! Always disconnect the arm and arm connectors before
welding to prevent damage to the gate operator and its electronics.
!
CORRECT INSTALLATION INCORRECT INSTALLATION
FSW900 Swing Gate Operator 11

G
GATE ATE O OPERATOR PERATOR I INSTALLATION NSTALLATION

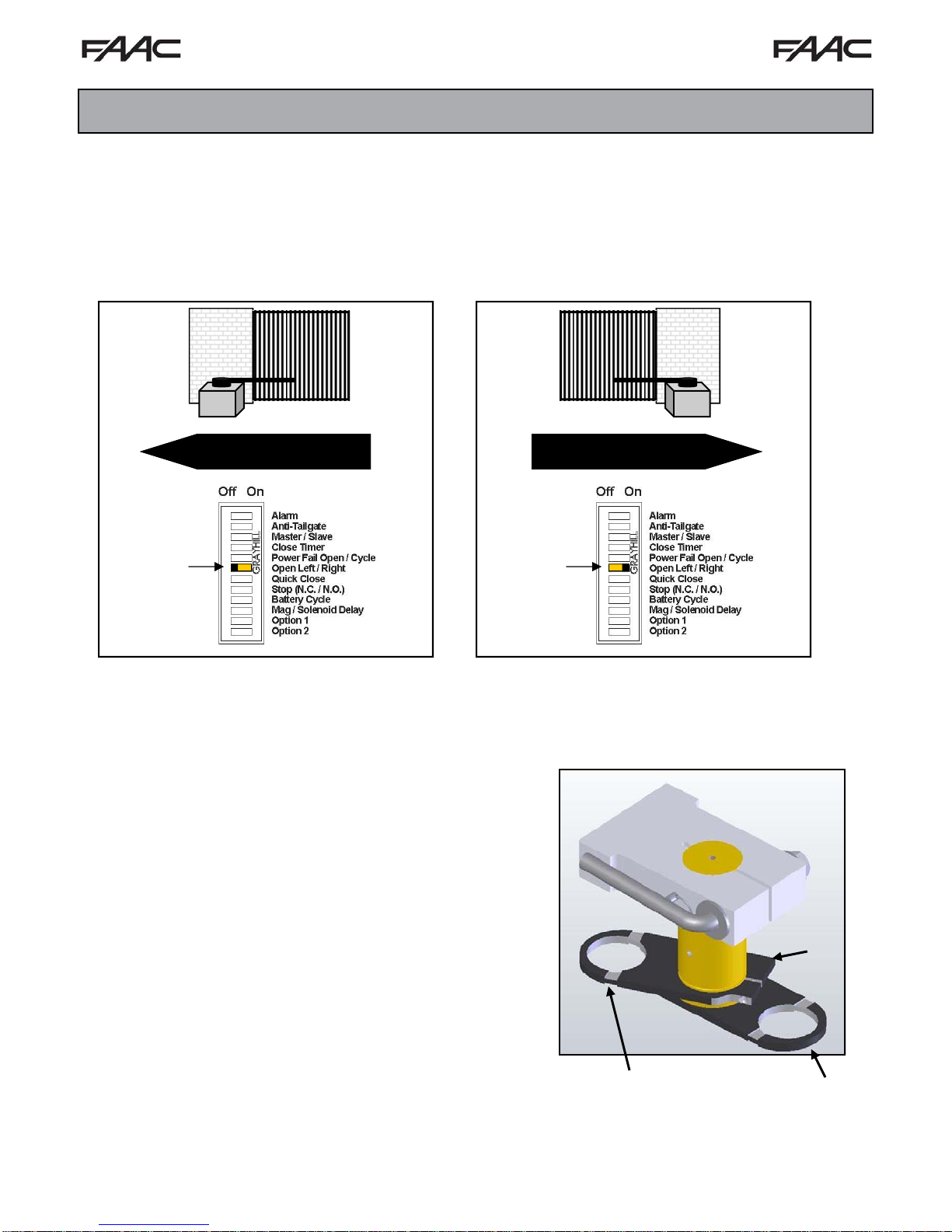

GATE OPERATOR DIRECTION:
The gate operator uses a DIP switch setting to determine the open and close direction. To set the Open/Close direction:
1. Turn power OFF. Use the power switch on the side to assure AC and Battery power are both OFF.
2. Standing inside the gate looking at the gate operator, determine if the gate opens to the LEFT or RIGHT.
3. If the gate opens to the LEFT, move DIP SWITCH 6 to the Left.
4. If the gate opens to the RIGHT, move DIP SWITCH 6 to the Right.
LIMIT SWITCH SETUP:
The gate operator uses a limit switch assembly to adjust the distance of travel. These adjustments must be made before the
operator can be used. To adjust the distance of travel using the limits:
1. Move the open and close Limit Cams to the approximate
location.
2. Turn the operator ON and give it an open command. Let it
run until it gets to the open position. Give the operator a stop
command when the gate reaches the full open position.
Rotate the Open Limit Cam until it activates the switch. The
switch will click when activated. Tighten the Limit Cam screw
if needed.
3. Give the operator a close command. Let it run until it gets to
the close position. Give the operator a stop command when
the gate reaches the full close position. Rotate the Close
Limit Cam until it activates the switch. The switch will click
when activated. Tighten the Limit Cam screw if needed.
4. Run the operator again and fine tune the Cam positions.
5. Make sure each limit cam hits the switch cleanly.
Opens LEFT
Switch 6:
OFF
Opens RIGHT
Switch 6:
ON
FSW900 Swing Gate Operator 12
TOP CAM:
CLOSE for Left hand op.
OPEN for Right Hand op.
Limit
Cam
Screw
BOTTOM CAM:
OPEN for Left hand op.
CLOSE for Right Hand op.

E
ELECTRICAL LECTRICAL I INSTALLATION NSTALLATION
POWER SWITCH LOCATION:
The gate operator uses a built-in power switch to control power to the operator and controller. This switch should be turned
OFF during installation and service. Failure to use this switch can result in unexpected gate movement. Please note:
1. The switch is located on the LEFT side of the control box.
2. DOWN position = OFF. UP position = ON.
3. This switch must be used to turn OFF AC and battery power. Only disconnecting AC power still allows battery power to
the operator, controller, and accessories.
AC POWER GUIDELINES:
Under normal conditions, the gate operator will use a single phase AC power line to operate the gate, charge the batteries, and
power gate accessories. Use the following guidelines when installing the AC power:
1. Check the local wiring codes in all cases and follow all local building codes. Wiring and hookup should be performed by
a qualified electrician/installer only.
2. AC power should be supplied from a circuit breaker panel and must have its own dedicated circuit breaker. This supply
must include a green ground conductor.
3. Only use UL approved 14 AWG or larger 600 Volt Insulated Wire. Use the following chart to determine the AC wire size.
This information is for suggested use only - Check your local codes before installation.
4. Properly ground the gate operator to minimize or prevent damage from power surges and/or lightning. Use a grounding
rod if necessary. A surge suppresser is recommended for additional protection.
AC POWER CONNECTION:
To connect AC power to the gate operator:
1. Turn the circuit breaker for the AC gate operator power OFF before connecting the AC input wires.
2. Turn the Power Switch OFF located on the left side of the controller before connecting the AC input wires.
3. Connect the AC input wires to the AC terminal located on the bottom/center of the control box. See diagram below.
4. Batteries must be installed after the AC power is on. See Battery Power Connection.
Wire Size: 14 Gauge 12 Gauge 10 Gauge 8 Gauge 4 Gauge
Distance: 250 Feet 400 Feet 650 Feet 1000 Feet 2000 Feet
L N
GREEN = Ground
WHITE = Neutral
BLACK = Line
FSW900 Swing Gate Operator 13

E
ELECTRICAL LECTRICAL I INSTALLATION NSTALLATION
BATTERY POWER CONNECTION:
If AC power is connected, the system does not need the batteries to function. However, the batteries must be connected for
the Power Fail Battery Backup features to operate. When AC power is active, the batteries will charge until fully charged.
Once the batteries have fully charged, the system will stop charging. Charging is automatic when AC power is available. The
system should be prewired with the batteries. If not, to connect batteries to the system:
1. Connect the RED wire from the Battery + Terminal to the positive terminal of the first battery.
2. Connect the BLACK wire from the Battery - Terminal to the negative terminal of the second battery.
3. Connect a jumper between the remaining terminals of each battery.
ACCESSORY POWER:
Two plug-in power plugs are located on the back of the controller. These plugs are for low voltage accessories and are
separately fused. Low voltage, low current draw transformers may be plugged into these outlets for accessory power. DO
NOT USE THESE POWER OUTLETS FOR INSTALLATION OR SERVICE TOOLS. Each plug supplies 110 VAC when AC
power is active to the gate operator. If AC is not available, the power plugs will not supply power. Accessories requiring power
during battery backup modes should use the 24 VDC located on the controller terminals.
Additional accessory power may be found on the controller terminals. The controller terminals supply 24 VDC for accessories.
This power is available during AC and battery power modes. When AC power is active, accessories will be supplied 24 VDC
without a power draw on the batteries. When the battery backup mode is active, accessories will be supplied 24 VDC from the
batteries. If the battery power mode is used frequently, consider the current draw of the accessories. The lower the current
draw, the longer the battery power supply will last. Additional 24 VDC for accessories may be found on the Radio Terminal,
Edge/Photo Terminal, and External Loop Terminal. A connection between 24V DC+ and Common will supply power.
Batteries should be tested regularly for proper battery backup operation.
Batteries should be replaced each year or as needed.
!
12VDC, 8 amp
Battery
12VDC, 8 amp
Battery
+
+
-
-
RED
BLACK
FSW900 Swing Gate Operator 14

FSW900 Swing Gate Operator 15
Master
Switch 3:
OFF
Slave
Switch 3:
ON
Slave
Gate Operator
WIRELESS Connection
24 VDC
COM
Master
Gate Operator
E
ELECTRICAL LECTRICAL I INSTALLATION NSTALLATION
MASTER/SLAVE CONNECTION:
The operator can be used in a Master-Slave configuration to control the two leafs of a bi-parting gate. That can be done with a
wired or wireless connection. The wired connection should be the default choice if there is a way to bring a cable across the
gate opening. If that’s impractical you can use the wireless connection accessory WMS100 to establish the communication
between Master and Slave. In the latter case you need to make sure there is no metal blocking the line of sight between the
two operators, for example a metal gate with no openings.
To connect two operators together:
1. Determine which operator is the Master and which operator is the slave. All external devices such as loop detectors
and safety devices must be wired directly to the Master unit. If one gate travels further than the other the gate that
travels further must be the Master
2. Turn Slave Operator DIP Switch 3 to ON = SLAVE
3. Turn Master Operator DIP Switch 3 to OFF = MASTER
4. WIRED CONNECTION: in a separate conduit, run a 6-conductor cable (twisted pairs) between the Master operator and
the Slave operator. Make the connections on the Master/Slave Terminal Block following the schematic below.
(Recommended Wire: Outdoor Rated CAT 5 Cable. If shielded make sure the shield is connected on one side only)
OR
4. WIRELESS CONNECTION: Plug one WMS100 board on the RJ45 connector on the top left of the Master control board
and one on the Slave. Wire the 24V power to it from one of the accessory terminal blocks.
5. Power up the operators and verify that the SLAVE LEDs are blinking
WIRED Connection
[RX–] to [TX–] ORANGE-WHITE
[RX+] to [TX+] ORANGE
[TX–] to [RX–] GREEN-WHITE
[TX+] to [RX+] GREEN
[GND[ to [GND] BROWN

G
GATE ATE O OPERATOR PERATOR A ADJUSTMENTS DJUSTMENTS
REVERSE SENSITIVITY ADJUSTMENT:
The gate operator is equipped with an inherent (Type A) entrapment sensing system. The sensor detects obstructions in both
the open and close path of the gate. There is an OPEN SENSITIVITY Adjustment and a CLOSE SENSITIVITY Adjustment.
To adjust the sensitivity:
1. Activate the gate to open.
2. While the gate is running open, slowly rotate the OPEN SENSITIVITY adjustment clockwise to INCREASE the sensitivity
until the gate stops in mid-travel.
3. Gently rotate the OPEN SENSITIVITY adjustment counter-clockwise 1/8 turn to DECREASE the sensitivity.
4. Activate the gate to close.
5. While the gate is running closed, slowly rotate the CLOSE SENSITIVITY adjustment clockwise to INCREASE the
sensitivity until the gate stops in mid-travel.
6. Gently rotate the CLOSE SENSITIVITY adjustment counter-clockwise 1/8 turn to DECREASE the sensitivity.
7. Operate the gate a few times to be sure it fully cycles without stopping.
8. Place an immobile object in the open path of the gate to stop the gate while in travel. The gate should stop and enter a
Soft Shutdown upon striking the object.
9. Place an immobile object in the closed path of the gate to stop the gate while in travel. The gate should stop and enter a
Soft Shutdown upon striking the object.
10.Repeat steps 2 - 6 until the correct sensitivity adjustment is found.
REVERSE SENSITIVITY SHUTDOWN:
Upon a first obstruction, the reverse sensor should:
1. Stop the gate and reverse it approximately two (2) inches.
2. Disable the Timer To Close Feature until the gate operator receives a new command = Soft Shutdown.
3. Any standard input can reactivate the gate and return it to normal operation.
Upon a second consecutive obstruction before the gate reaches either limit, the reverse sensor should:
1. Stop the gate.
2. Disable the gate operator = Hard Shut Down.
3. Sound the audio alarm for five (5) minutes or until the operator has been reset.
4. Only resetting the operator will reactivate the gate and return it to normal operation.
5. To reset the operator in a Hard Shut Down situation: Press the reset button on the left side of the controller or turn the
power switch OFF and back ON.
For the Reverse Sensor to function correctly, the gate must be properly installed and
work freely in both directions. Repair or replace worn hardware.
!
Clockwise Turn:
INCREASE Sensitivity
(Reverse the gate more easily)
Counter-Clockwise Turn:
DECREASE Sensitivity
(Reverse the gate less easily)
Gently rotate each
adjustment. Turning
the adjustment POT
too hard will break the
adjustment.
CAUTION:
FSW900 Swing Gate Operator 16

G
GATE ATE O OPERATOR PERATOR A ADJUSTMENTS DJUSTMENTS
CLOSE TIME DELAY ADJUSTMENT:
The gate operator is equipped with a built-in automatic timer to close feature. This feature should be set to the OFF position
until proper safety and reverse devices have been installed. CAUTION: Turning on the Close Time Delay without proper
safety and reverse devices can cause serious injury, death, and property damage. The Close Time Delay can be set to from 1
to 90 seconds. When active, the Close Time Delay will hold the gate open until the internal timer has timed out and then
allows the gate to close. To turn OFF/ON and adjust the Close Time Delay:
1. To turn OFF the Close Time Delay, move DIP SWITCH 4 to the Left.
2. To turn ON the Close Time Delay, move DIP SWITCH 4 to the Right.
3. Turn power Off and back On to reset DIP Switch settings.
4. Rotate the TIME DELAY adjustment clockwise to INCREASE the delay.
5. Rotate the TIME DELAY adjustment counter-clockwise to DECREASE the
delay.
DIP SWITCH SETTINGS
The DIP Switches located on the top right face of the controller are used to set several different functions. This list gives a
brief description. The factory setting is in bold print. Please review each individual section in this manual for more detail.
Timer ON
Switch 4:
ON
Clockwise Turn:
INCREASE Time Delay
(Holds gate open longer time)
Counter-Clockwise Turn:
DECREASE Time Delay
(Holds gate open shorter time)
Switch Function Description
1 Alarm
OFF: Sounds the built-in alarm in shutdown applications only.
ON: Beeps while gate is moving. Sounds the alarm in shutdown applications.
2 Anti-Tailgate
OFF: Gate opens and closes normal.
ON: Uses loops to control vehicles individually.
3 Master / Slave OFF: Operator is set as a Master (Primary).
ON: Operator is set as a Slave (Secondary).
4 Close Timer
OFF: Time Delay Close feature is inactive. Command to open, command to close.
ON: Time Delay Close feature is active. Gate opens, times out, closes.
5 Power Fail Cycle / Open OFF: During power failure, gate will cycle using BBU until batteries are too low to function.
ON: During power failure, gate will open and remain open until AC power is restored.
6 Open Left / Right OFF: Opens the gate Left. (Standing inside looking out at operator)
ON: Opens the gate Right. (Standing inside looking out at operator)
7 Quick Close
OFF: Gate opens and closes normal.
ON: Gate opens until loops are cleared. Then closed gate even if gate did not reach full open position.
8 Stop (NO / NC) OFF: Allows a NO Stop Switch to be used.
ON: Allows a NC Stop Switch to be used. Stop Switch must be installed for this setting to be ON.
9 Battery Cycle
OFF: Cycles gate until batteries are too low and stops. Switch 5 must be OFF.
ON: Cycles gate until batteries are too low and then opens gate. Switch 5 must be OFF.
10 Mag / Solenoid Delay OFF: No delay - activates gate immediately
ON: Delays 2 seconds before activating gate. Allows time for Maglock to discharge.
11 Tamper Detect
OFF: No action - not used on FSW900
ON: Activates Tamper Detect Feature - not used on FSW900
12 Hard Start
OFF: Normal Soft Start, Soft Stop mode.
ON: Operator starts with 40% motor power for more starting torque. Normal start = 5% motor power.
Gently rotate each adjustment. Turning the
adjustment POT too hard will break the
adjustment.
CAUTION:
FSW900 Swing Gate Operator 17

A
ACCESSORY CCESSORY C CONNECTIONS ONNECTIONS
ACCESSORY WIRE OVERVIEW:
CLOSE
Photo Cell
OPEN
Photo Cell
O
P
E
N
E
D
G
E
C
L
O
S
E
E
D
G
E
Radio
Receiver OPEN
CLOSE
STOP
FIRE
LOCK
Card Access
1 2 3
4 5 6
7 8 9
* 0 #
Key Box
1 2 3
4 5 6
7 8 9
* 0 #
Phone Entry
FSW900 Swing Gate Operator 18

A
ACCESSORY CCESSORY C CONNECTIONS ONNECTIONS
EDGE SENSOR CONNECTIONS:
The gate operator has a Close Edge Terminal and an Open Edge Terminal for added control of the Sensing Edge functions.
The following chart describes the functions for a Close Edge Sensor and an Open Edge Sensor:
To connect a Sensing Edge:
1. Refer to the “External Entrapment Prevention” section of this manual for
guidelines and placement.
2. Connect Close Edge Sensors to EDGE CLOSE and COMMON.
3. Connect Open Edge Sensors to EDGE OPEN and COMMON.
Close Edge Input:
1. Input is only active during close cycle.
2. An input during the close cycle will stop and reverse the
gate to the full open position.
3. If an Open Edge Input is active before reaching the full
open position, the gate will stop and enter a soft
shutdown.
4. If the gate reaches the full open position and the Time
Delay Close is ON, the gate will time out and close.
5. If the gate reaches the full open position and the time
Delay Close is OFF, the gate will remain open until a
close input is received.
6. If a second Close Edge Input is received while closing,
the gate will stop and enter a soft shutdown.
Open Edge Input:
1. Input is only active during open cycle.
2. An input during open cycle will stop and reverse the gate
to the full closed position and enter a soft shutdown.
3. NOTE: If the gate was initially activated by a time clock
with a contact closure across the Access Input, this input
will be ignored until another input (Open Loop, Reverse
Loop, etc.) is received.
4. If a Close Edge input is active before reaching the full
closed position, the gate will stop and enter a soft
shutdown.
O
P
E
N
E
D
G
E
C
L
O
S
E
E
D
G
E
Edge Sensor Notes:
1. One or more contact sensors shall
be located where the risk of
entrapment or obstruction exists,
such the leading edge, bottom
edge, and posts mounted inside
and outside of the vehicular swing
gate and motor.
2. Hardwired contact sensors shall
be located and its wiring arranged
so the communication between
the sensor and the gate operator
is not subject to any mechanical
damage.
3. Wireless contact sensors such as
ones that transmit radio frequency
(RF) signals to the gate operator
for entrapment prevention
functions shall be located where
the transmission of the signals are
not obstructed or impeded by
building structures, landscaping or
similar obstructions. All wireless
contact sensors shall function
under the intended end-use
conditions.
4. Wireless contact sensors should
be checked on a regular basis.
Batteries should be replaced on a
regular basis.
5. Use only UL325 compliant
devices and follow all installation
guidelines set forth by the
manufacturer.
FSW900 Swing Gate Operator 19

A
ACCESSORY CCESSORY C CONNECTIONS ONNECTIONS
PHOTO SENSOR CONNECTIONS:
The gate operator has a Photo Close Terminal and an Photo Open Terminal for added control of the Photo Sensor functions.
The following chart describes the functions for a Photo Close Sensor and a Photo Open Sensor:
To connect a Photo Sensor:
1. Refer to the “External Entrapment Prevention” section of this manual for guidelines and placement.
2. Connect the Photo Close Sensor to PHOTO CLOSE and COMMON.
3. Connect the Photo Open Sensor to PHOTO OPEN and COMMON.
4. For Photo Sensors that use 24VDC power, connect power to +24VCD and COMMON.
OPEN
Photo Cell
CLOSE
Photo Cell
Photo Sensor Notes:
1. Use care to reduce the risk of
nuisance tripping, such as when a
vehicle trips the sensor while the
gate is still moving.
2. One or more non-contact sensors
shall be located where a risk of
entrapment or obstruction exists,
such as the perimeter reachable
by a moving gate or barrier and
arm pinch point and entrapment
areas. Use caution when
installing non-contact sensors
since some devices only cover a
select area. For example, a photo
beam will not cover the full height
of a gate/fence area. Refer to the
diagrams in the “Important Safety
Information” section of this
manual.
3. Use only UL325 compliant
devices and follow all installation
guidelines set forth by the
manufacturer.
Photo Close Input:
1. Input is only active during close cycle.
2. An input during the close cycle will stop the gate.
3. The gate will remain stopped until the input is cleared.
4. When the Photo Close is cleared, the gate will continue
to close.
Photo Open Input:
1. Input is only active during open cycle.
2. An input during open cycle will stop the gate.
3. The gate will remain stopped until the input is cleared.
4. When the Photo Open is cleared, the gate will continue
to open.
FSW900 Swing Gate Operator 20
