Fac F250 VO User manual

USE AND MAINTENANCE MANUAL
EN

Fabbrica Affettatrici Cavaria
FAC S.r.l.
MACCHINE AFFETTATRICI
INDUSTRIALI E FAMILIARI
Via Morazzone, 137 - 21044 CAVARIA (VA)
Tel. [phone] - Fax [phone]
www.slicers.it
[email protected]
MADE IN ITALY
F300 VO
Istruzioni per l’uso e la manutenzione
I
MADE IN ITALY
100% 100%
MADE IN ITALY
100% 100%

3 of 44
CONTENTS
- TECHNICAL SPECIFICATIONS…………………………………………………....…
________________________________________ page 5
- OVERALL SIZE ………………………………………………………………...….……
________________________________________ page 6
1.1 –PURPOSE OF USER GUIDE …………..………………………………….....…… page 7
1.2 - USER GUIDE CONSULTATION AND STORAGE …………………………….... page 7
1.3 - USER WARNINGS ….………………………………………………………………. page 8
1.4 - USING THE SLICER CORRECTLY ……..………………………………………... page 9
1.5 - MANUFACTURER'S WARRANTY AND LIABILITY ……..………………………. page 10
1.6 - IDENTIFYING THE SLICER ………………..………………………………………. page 10
1.7 –UNPACKING …………………………..……………………………………………..
________________________________________ page 11
2.1 - DESCRIPTION OF THE SLICER ………………………………………………......
________________________________________ page 12
3.1 - INSTALLING THE SLICER ……….………………………………………………... page 14

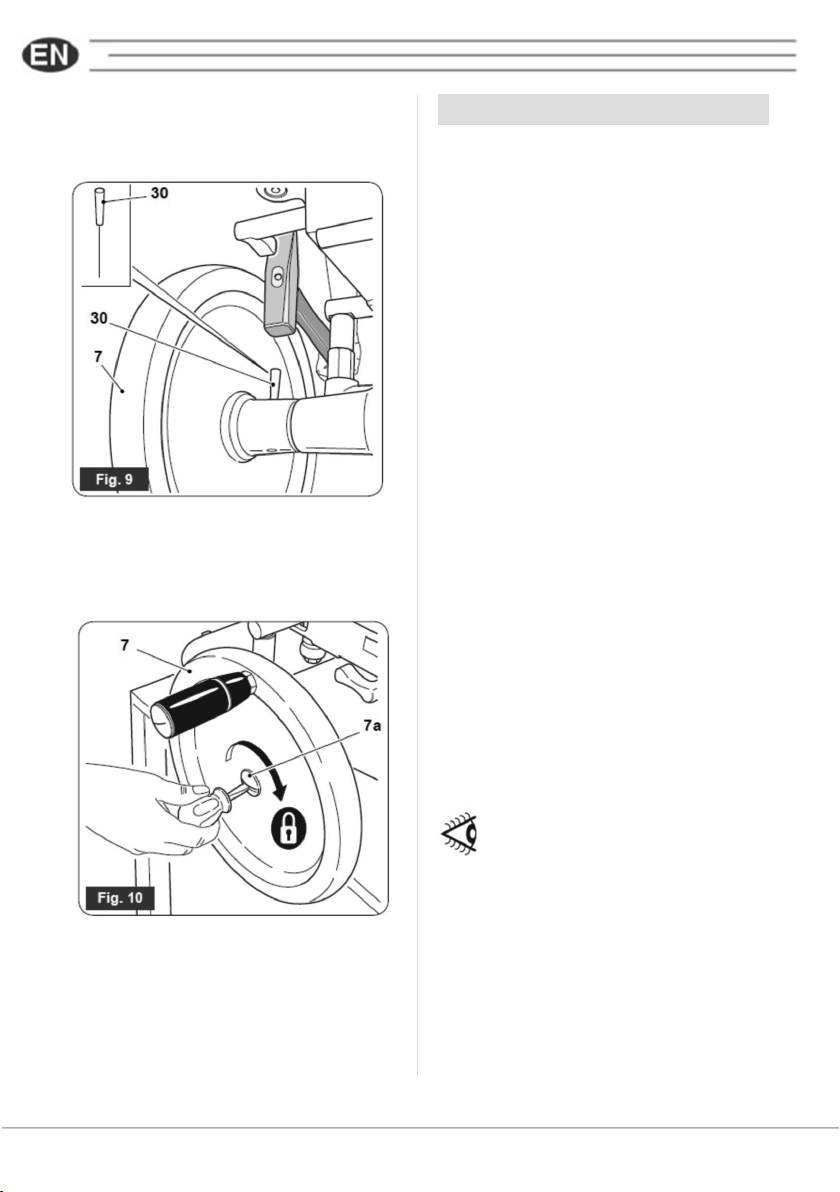

3.2 - FITTING THE FLYWHEEL …………………………………………………………. page 15
3.3 - DESCRIPTION OF CONTROLS …..……………………………………………….
________________________________________ page 16
4.1 - USING THE SLICER …………………………………………………………...….. page 18
4.2 - PLACING PRODUCT ON PRODUCT HOLDER ………………….…………….. page 18
4.3 - SLICING THE PRODUCT …………………………………………………………..
________________________________________ page 19
5.1 - CLEANING THE SLICER …………………………………………………………… page 22
5.2 - CLEANING THE BLADE ……………….…………………………………………… page 23
5.3 - CLEANING THE BLADE COVER …..……………………………………………… page 24
5.4 - CLEANING THE SLICE RECEIVING SURFACE ……...…………………………
________________________________________ page 24
6.1 - ROUTINE MAINTENANCE …………………….…………………………………… page 25
6.2 - OILING CARRIAGE GUIDE RAIL AND PRODUCT HOLDER AND …………..
LUBRICATION POINTS page 26
6.3 - BLADE SHARPENING ………..…………………………………………………….. page 28
6.4 - OILING CHAIN AND BEVEL GEAR ………………..………………………………
________________________________________ page 30
7.1 - TAKING THE SLICER OUT OF SERVICE …………..……………...…………….
________________________________________ page 31
8.1 - TROUBLESHOOTING ……………………………………………………......……..
________________________________________ page 32
- SPARES ……………..…………………………………………………………………….
________________________________________ page 33
- GUIDE TO THE TREATMENT OF WASTE EQUIPMENT ..………………………... page 42

4 of 44

5 of 44
TECHNICAL SPECIFICATIONS
____________________________________________________________________________
xBlade diameter .............................. mm 250
____________________________________________________________________________
xSlice thickness …........................... mm 0 ÷ 2,3
8 shots
____________________________________________________________________________
xEffective slice
_______________________________________________________________________
- Length ……............................... mm 185
_______________________________________________________________________
- Height ...................................... mm 150
_____________________________________________________________________________
xProduct holder stroke .................... mm 205
____________________________________________________________________________
xWeight
_______________________________________________________________________
- Slicer ….................................... kg 33
______________________________________________________________________
- Stand (optional) ………............. kg 72
____________________________________________________________________________

6 of 44

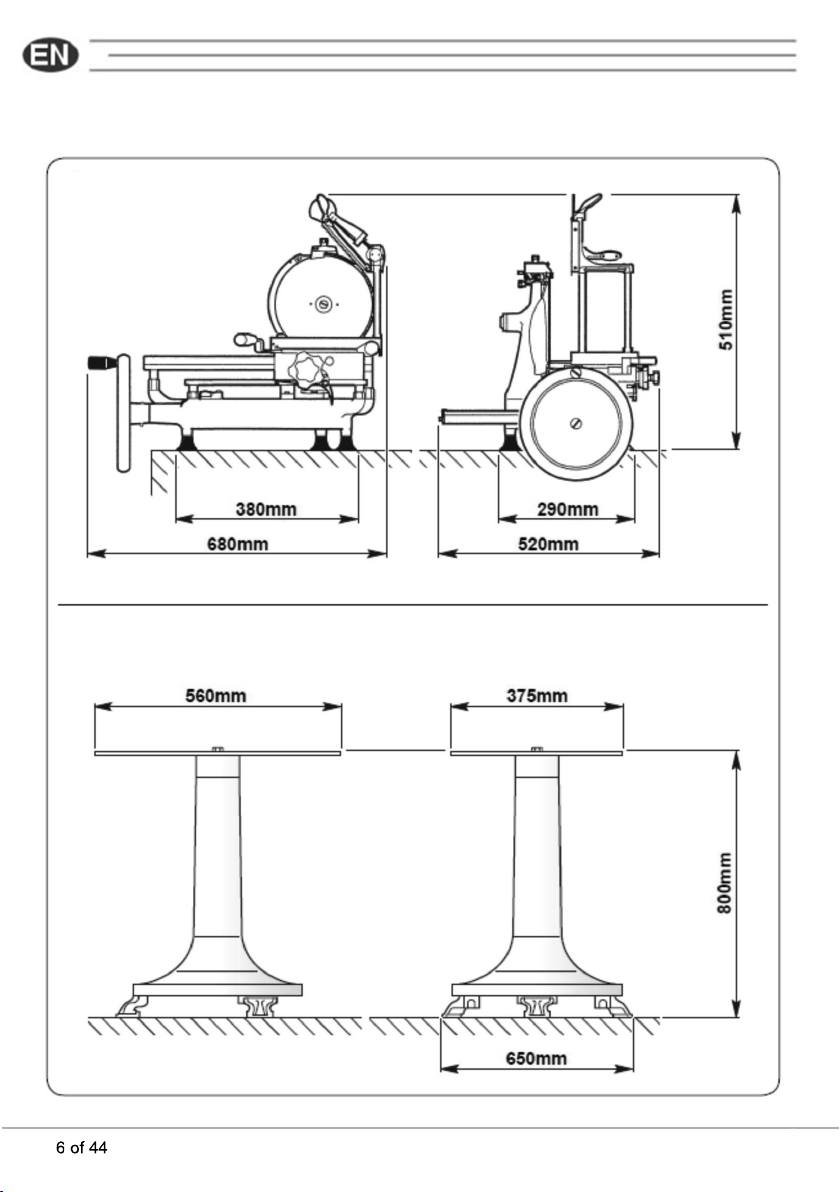

OVERALL SIZE
Slicer
Stand (optional)
Slicer
Stand (optional)

7 of 44
1.1 - PURPOSE OF USER GUIDE
1.2 - USER GUIDE CONSULTATION
AND STORAGE
xThis guide is an integral part of the
machine and should be kept in a safe
place for further consultation.
xThis publication contains all information
necessary for the installation use and
maintenance of F250 VO flywheel slicers.
xThe purpose of this use and maintenance
guide is to enable the end user to use the
slicer safely and guarantee its long-term
reliability.
Carefully read the warnings
contained herein as they provide
important information regarding
safe installation, use and
maintenance.
______________________
Keep this guide in a safe place
for further consultation.
xThis guide MUST be kept throughout
the life of the slicer and if necessary
(e.g. damage that prevents, even
partially, its consultation, etc.) the user
should ask the manufacturer for
another copy.
xWhen transferring ownership of the
slicer, please ensure the new owner
receives this guide as well.
If you have any doubts regarding
the contents of the user guide or
require additional information,
please contact the manufacturer or
technical support immediately
quoting the clause number of the
topic in question.
No part of this publication shall
be reproduced or transmitted
without written permission from
the manufacturer.
______________________
When ordering “Spares”, DO NOT consider the numbering
utilised herein, but refer exclusively to the exploded drawing
“Spares” (page 33).
1.1 - PURPOSE OF USER GUIDE
1.2 - USER GUIDE CONSULTATION
AND STORAGE
xThis guide is an integral part of the
machine and should be kept in a safe
place for further consultation.
xThis publication contains all information
necessary for the installation use and
maintenance of F250 VO flywheel slicers.
xThe purpose of this use and maintenance
guide is to enable the end user to use the
slicer safely and guarantee its long-term
reliability.
Carefully read the warnings
contained herein as they provide
important information regarding
safe installation, use and
maintenance.
______________________
Keep this guide in a safe place
for further consultation.
xThis guide MUST be kept throughout
the life of the slicer and if necessary
(e.g. damage that prevents, even
partially, its consultation, etc.) the user
should ask the manufacturer for
another copy.
xWhen transferring ownership of the
slicer, please ensure the new owner
receives this guide as well.
If you have any doubts regarding
the contents of the user guide or
require additional information,
please contact the manufacturer or
technical support immediately
quoting the clause number of the
topic in question.
No part of this publication shall
be reproduced or transmitted
without written permission from
the manufacturer.
______________________
When ordering “Spares”, DO NOT consider the numbering
utilised herein, but refer exclusively to the exploded drawing
“Spares” (page 33).

8 of 44
1.3 - USER WARNINGS
Use of the machine requires
great concentration, PAY
ATTENTION AT ALL TIMES!
xDo not wear loose-fitting clothes
particularly with open sleeves; where
necessary use suitable headgear to
cover hair.
xWhen slicing, do not allow anyone to
approach the slicer, especially the
blade.
xDo not remove, cover or alter the
rating plates fitted to the machine
body and ensure their prompt
replacement in case of damage.
Do not remove safety devices
and do not alter or remove
mechanical guards.
xOnly approved product types should
be sliced, do not attempt to slice
products that are specifically excluded
(see clause 1.4).
xEnsure that the product holder,
receiving tray, surrounding areas and
floor are kept clean and dry at all
times.
xDo not use the slicer as a supporting
surface or lay any object on it that is
extraneous to normal slicing
operations.
xStop the machine immediately and
request the assistance of authorised
technical support staff in the event of
malfunction, suspected breakage,
improper movements, strange noises,
etc.
Always use cut and tear-
resistant gloves when
performing cleaning and
maintenance.
xCheck the slicer's mechanical integrity
prior to every use.
Components should show no signs of
damage or cracks.
If this is not the case, DO NOT use the
slicer and take it to an authorised service
centre so that the necessary checks can
be performed.
The slicer is not designed for use by
people (including children) with
physical, sensory or mental
difficulties unless supervised or
trained by persons responsible for
their safety.
Children and young people should
be supervised so that they do not
play with the slicer.
The blade is very sharp and should
be handled with extreme care.
Do not damage the blade by cutting
hard objects such as bones.
If the dimensions of the food to be
sliced exceeds those specified under
“Effective slice” in the table on page 5,
reduce the size in order to work in
safety.
Safe use requires compliance with the
following warnings:
xInstall the machine in accordance with the
instructions given under the heading
“Installation”.
xInstall the machine in an area that cannot
be accessed by people who will not be
using it, especially children.
1.3 - USER WARNINGS
Use of the machine requires
great concentration, PAY
ATTENTION AT ALL TIMES!
xDo not wear loose-fitting clothes
particularly with open sleeves; where
necessary use suitable headgear to
cover hair.
xWhen slicing, do not allow anyone to
approach the slicer, especially the
blade.
xDo not remove, cover or alter the
rating plates fitted to the machine
body and ensure their prompt
replacement in case of damage.
Do not remove safety devices
and do not alter or remove
mechanical guards.
xOnly approved product types should
be sliced, do not attempt to slice
products that are specifically excluded
(see clause 1.4).
xEnsure that the product holder,
receiving tray, surrounding areas and
floor are kept clean and dry at all
times.
xDo not use the slicer as a supporting
surface or lay any object on it that is
extraneous to normal slicing
operations.
xStop the machine immediately and
request the assistance of authorised
technical support staff in the event of
malfunction, suspected breakage,
improper movements, strange noises,
etc.
Always use cut and tear-
resistant gloves when
performing cleaning and
maintenance.
xCheck the slicer's mechanical integrity
prior to every use.
Components should show no signs of
damage or cracks.
If this is not the case, DO NOT use the
slicer and take it to an authorised service
centre so that the necessary checks can
be performed.
The slicer is not designed for use by
people (including children) with
physical, sensory or mental
difficulties unless supervised or
trained by persons responsible for
their safety.
Children and young people should
be supervised so that they do not
play with the slicer.
The blade is very sharp and should
be handled with extreme care.
Do not damage the blade by cutting
hard objects such as bones.
If the dimensions of the food to be
sliced exceeds those specified under
“Effective slice” in the table on page 5,
reduce the size in order to work in
safety.
Safe use requires compliance with the
following warnings:
xInstall the machine in accordance with the
instructions given under the heading
“Installation”.
xInstall the machine in an area that cannot
be accessed by people who will not be
using it, especially children.

9 of 44
xThe product to be sliced should only be
placed on and removed from the feed
carriage when the latter is fully retracted
(furthest away from the blade) and the
carriage nearest the operator.
DO NOT use slicing accessories that
have not been supplied by the slicer
manufacturer.
Please contact the manufacturer or an
authorised service centre for all
extraordinary maintenance operations
(chain, blade replacement, etc.).
______________________
1.4 - USING THE SLICER CORRECTLY
xThe slicer is only designed to slice food
of the type and size specified herein.
The manufacturer shall accept no
liability for improper use or use by
staff who have failed to read and
fully understand the contents of
this manual; do-it-yourself
alterations and/or repairs; use of
spares that are non-original or not
specifically designed for the slicer
model covered by this user guide.
The following products may be sliced:
xAll types of cold cuts (raw and cooked
ham, bacon).
xBoneless meat (cooked or raw at a
temperature of not less than +3°C).
xBread and cheese (obviously the
sliceable type such as Gruyère, Fontina,
etc.).
The following products CANNOT be
sliced as they are liable to cause serious
harm to the user and/or slicer itself:
xFrozen food.
xDeep-frozen food.
xFood with bones (meat and fish).
xAny other type of product specifically
excluded product is sliceable but not
intended to be eaten.
Under no circumstances should
you attempt to slice a specifically
excluded product.
_______________________________
xThe product to be sliced should only be
placed on and removed from the feed
carriage when the latter is fully retracted
(furthest away from the blade) and the
carriage nearest the operator.
DO NOT use slicing accessories that
have not been supplied by the slicer
manufacturer.
Please contact the manufacturer or an
authorised service centre for all
extraordinary maintenance operations
(chain, blade replacement, etc.).
______________________
1.4 - USING THE SLICER CORRECTLY
xThe slicer is only designed to slice food
of the type and size specified herein.
The manufacturer shall accept no
liability for improper use or use by
staff who have failed to read and
fully understand the contents of
this manual; do-it-yourself
alterations and/or repairs; use of
spares that are non-original or not
specifically designed for the slicer
model covered by this user guide.
The following products may be sliced:
xAll types of cold cuts (raw and cooked
ham, bacon).
xBoneless meat (cooked or raw at a
temperature of not less than +3°C).
xBread and cheese (obviously the
sliceable type such as Gruyère, Fontina,
etc.).
The following products CANNOT be
sliced as they are liable to cause serious
harm to the user and/or slicer itself:
xFrozen food.
xDeep-frozen food.
xFood with bones (meat and fish).
xAny other type of product specifically
excluded product is sliceable but not
intended to be eaten.
Under no circumstances should
you attempt to slice a specifically
excluded product.
_______________________________

10 of 44
1.5 - MANUFACTURER'S WARRANTY
AND LIABILITY
1.6 - IDENTIFYING THE SLICER
xThe slicer mentioned in this instruction
booklet is designed and manufactured
according to current EU standards
with the CE marking confirming such
conformity.
In particular, the slicer complies with
standard EN 1974 (for requirements
deemed applicable).
xThe rating plate is positioned on the
base of the slicer as shown in fig.1.
The rating plate should NOT be
removed and should remain legible
at all times.
In the event of damage or wear,
the user has a duty to contact the
slicer manufacturer and obtain a
replacement.
xThe slicer described herein is covered by
a warranty as specified in the enclosed
certificate.
xThe warranty guaranteeing that the slicer
is of merchantable quality and fit for its
intended purpose is subject to correct
application of the provisions contained
herein.
The manufacturer shall accept no direct or
indirect liability arising from:
- Failure to comply with the instructions
given herein.
- Use by staff who have failed to read and
fully understand the contents of this
manual.
- Use that fails to comply with specific
current regulations in the country of
installation.
- Alterations and/or repairs to the machine
performed without prior authorisation.
- Use of accessories not supplied by the
manufacturer and non-original spares.
- Force majeure/acts of God.
When transferring ownership of the
slicer, failure to hand over this guide
to the new owner shall automatically
exempt the manufacturer from any
liability.
.
xIn the event of any dispute regarding the
interpretation of this publication,
exclusive reference shall be made to the
original Italian text.
_______________________________
Fig. 1 –Rating plate
1.5 - MANUFACTURER'S WARRANTY
AND LIABILITY
1.6 - IDENTIFYING THE SLICER
xThe slicer mentioned in this instruction
booklet is designed and manufactured
according to current EU standards
with the CE marking confirming such
conformity.
In particular, the slicer complies with
standard EN 1974 (for requirements
deemed applicable).
xThe rating plate is positioned on the
base of the slicer as shown in fig.1.
The rating plate should NOT be
removed and should remain legible
at all times.
In the event of damage or wear,
the user has a duty to contact the
slicer manufacturer and obtain a
replacement.
xThe slicer described herein is covered by
a warranty as specified in the enclosed
certificate.
xThe warranty guaranteeing that the slicer
is of merchantable quality and fit for its
intended purpose is subject to correct
application of the provisions contained
herein.
The manufacturer shall accept no direct or
indirect liability arising from:
- Failure to comply with the instructions
given herein.
- Use by staff who have failed to read and
fully understand the contents of this
manual.
- Use that fails to comply with specific
current regulations in the country of
installation.
- Alterations and/or repairs to the machine
performed without prior authorisation.
- Use of accessories not supplied by the
manufacturer and non-original spares.
- Force majeure/acts of God.
When transferring ownership of the
slicer, failure to hand over this guide
to the new owner shall automatically
exempt the manufacturer from any
liability.
.
xIn the event of any dispute regarding the
interpretation of this publication,
exclusive reference shall be made to the
original Italian text.
_______________________________
Fig. 1 –Rating plate

11 of 44
1.7 - UNPACKING
the delivery note and this instruction
booklet are present and fully intact.
xShould any faults be noted, such as:
- dents to the frame or guards;
- controls that are either not working
or broken;
- missing items or other problems;
please advise the courier,
manufacturer and service centre
immediately.
xCarefully dispose of packaging
components (bands, cardboard,
polystyrene, polythene bags, etc.).
Packaging components (bands,
cardboard, polythene, etc.) can be
treated as municipal solid waste
and therefore disposed of without
any problem.
xWhen taking delivery of the slicer, ensure
that the packaging is fully intact; if this is
not the case, please advise the courier or
local dealer immediately.
In order to remove the slicer from the
packaging, please proceed as follows:
xCut and remove the plastic bands.
xOpen the box and take out the instruction
booklet.
xProceed as described hereafter.
- Remove the protective cardboard
covers from inside the box.
- Lift the machine with great care and
place on a solid surface.
- Remove the plastic bag in which the
slicer is wrapped.
- Check that all components specified in
Fig. 2 –Removing the slicer from the packaging
1.7 - UNPACKING
the delivery note and this instruction
booklet are present and fully intact.
xShould any faults be noted, such as:
- dents to the frame or guards;
- controls that are either not working
or broken;
- missing items or other problems;
please advise the courier,
manufacturer and service centre
immediately.
xCarefully dispose of packaging
components (bands, cardboard,
polystyrene, polythene bags, etc.).
Packaging components (bands,
cardboard, polythene, etc.) can be
treated as municipal solid waste
and therefore disposed of without
any problem.
xWhen taking delivery of the slicer, ensure
that the packaging is fully intact; if this is
not the case, please advise the courier or
local dealer immediately.
In order to remove the slicer from the
packaging, please proceed as follows:
xCut and remove the plastic bands.
xOpen the box and take out the instruction
booklet.
xProceed as described hereafter.
- Remove the protective cardboard
covers from inside the box.
- Lift the machine with great care and
place on a solid surface.
- Remove the plastic bag in which the
slicer is wrapped.
- Check that all components specified in
Fig. 2 –Removing the slicer from the packaging

12 of 44
In any event, it is preferable to sort
products prior to disposal in accordance
with current recycling regulations.
DO NOT DUMP PACKAGING!
DISPOSE OF WASTE
RESPONSIBLY!
2.1 –DESCRIPTION OF THE SLICER
11. Sliding product holder fast forward
lever
12. Sliding product holder operating
handwheel
13. Slice thickness control graduated
knob
14. Blade cover
15. Supporting foot
16. Blade
17. Sharpener and cover
18. Grease collection pan
19. Blade drive chain
20. Bevel gear
1. Slice receiving surface
2. Slice deflector
3. Pusher
4. Sliding product holder
5. Carriage
6. Flywheel operating handle
7. Flywheel
8. Base
9. Blade guard
10. Pusher vertical slide lever
In any event, it is preferable to sort
products prior to disposal in accordance
with current recycling regulations.
DO NOT DUMP PACKAGING!
DISPOSE OF WASTE
RESPONSIBLY!
2.1 –DESCRIPTION OF THE SLICER
11. Sliding product holder fast forward
lever
12. Sliding product holder operating
handwheel
13. Slice thickness control graduated
knob
14. Blade cover
15. Supporting foot
16. Blade
17. Sharpener and cover
18. Grease collection pan
19. Blade drive chain
20. Bevel gear
1. Slice receiving surface
2. Slice deflector
3. Pusher
4. Sliding product holder
5. Carriage
6. Flywheel operating handle
7. Flywheel
8. Base
9. Blade guard
10. Pusher vertical slide lever

13 of 44
Fig. 3 –Description of components Fig. 3 –Description of components

14 of 44
3.1 –INSTALLING THE SLICER
Positioning the slicer (fig. 5)
xIf not using the optional stand, carefully
lift the slicer and position on a level
surface (fig. 5) that is dry and capable
of supporting the weight of both the
slicer and the product to be sliced (see
“Technical specifications”).
Ensure that there are no
obstructions to the movement of the
flywheel, carriage stroke and
loading of the product to be sliced.
Ensure that all slicer feet are
resting correctly on the work
surface.
xPosition the slicer in its allocated
workplace.
Use of stand (optional) (fig. 4)
xIf using the optional stand, this should be
positioned on the floor whilst checking
that it is level and that all three feet are
resting correctly on the ground.
xCarefully lift the slicer and position on the
stand.
Ensure that all slicer feet are
resting correctly on top of the
stand.
Fig. 4 –Use of stand
Fig. 5 –Positioning the slicer
3.1 –INSTALLING THE SLICER
Positioning the slicer (fig. 5)
xIf not using the optional stand, carefully
lift the slicer and position on a level
surface (fig. 5) that is dry and capable
of supporting the weight of both the
slicer and the product to be sliced (see
“Technical specifications”).
Ensure that there are no
obstructions to the movement of the
flywheel, carriage stroke and
loading of the product to be sliced.
Ensure that all slicer feet are
resting correctly on the work
surface.
xPosition the slicer in its allocated
workplace.
Use of stand (optional) (fig. 4)
xIf using the optional stand, this should be
positioned on the floor whilst checking
that it is level and that all three feet are
resting correctly on the ground.
xCarefully lift the slicer and position on the
stand.
Ensure that all slicer feet are
resting correctly on top of the
stand.
Fig. 4 –Use of stand
Fig. 5 –Positioning the slicer

15 of 44
3.2 –FITTING THE FLYWHEEL
xInsert the flywheel (7) so that the
operating handle (6) is positioned
above and to the left of the axis of the
taper pin hole (fig. 8).
Check that flywheel and shaft holes
are correctly aligned.
xInsert the taper pin (30) in the hole of
the sleeve.
>>>>>
In order to facilitate transport, the flywheel is
delivered unattached to the slicer.
In order to fit, please proceed as follows:
xMove the carriage as near to the operator
as possible.
xRemove the taper pin (30) from the
flywheel shaft (31).
Use a hammer to hit the taper pin
(30) on its smaller diameter.
xFit the shim (32) to the flywheel shaft (31).
3.2 –FITTING THE FLYWHEEL
xInsert the flywheel (7) so that the
operating handle (6) is positioned
above and to the left of the axis of the
taper pin hole (fig. 8).
Check that flywheel and shaft holes
are correctly aligned.
xInsert the taper pin (30) in the hole of
the sleeve.
>>>>>
In order to facilitate transport, the flywheel is
delivered unattached to the slicer.
In order to fit, please proceed as follows:
xMove the carriage as near to the operator
as possible.
xRemove the taper pin (30) from the
flywheel shaft (31).
Use a hammer to hit the taper pin
(30) on its smaller diameter.
xFit the shim (32) to the flywheel shaft (31).

16 of 44
xUse a hammer to insert the taper pin
(30) fully.
3.3 - DESCRIPTION OF CONTROLS
Flywheel
Clockwise rotation of the flywheel (7)
using the handle (6) will move the
carriage (5) with product holder (4),
whilst at the same time turning the
blade (16).
Slice thickness control knob
Turn the knob(13) clockwise in order to
obtain a thicker slice or anticlockwise for
a thinner one.
The knob (13) has a graduated scale
ranging from “0” to “8” (thickness 2
mm).
Sliding product holder operating
handwheel
The handwheel (12) allows you move
the product holder (4) towards or away
from the blade (16).
It can also be used to make slight
movements of the product holder (4).
Sliding product holder fast forward
lever
By lowering and holding in position the
lever (11) you can quickly move the
product holder (4) towards or away from
the blade (16) (with product).
The operation is quicker than when
using the handwheel (12).
Pusher vertical slide lever
By keeping pressed the lower button
(10a) for the vertical slide lever (10) you
can quickly raise or lower the pusher
(3).
xTighten the screw (7a).
xUse a hammer to insert the taper pin
(30) fully.
3.3 - DESCRIPTION OF CONTROLS
Flywheel
Clockwise rotation of the flywheel (7)
using the handle (6) will move the
carriage (5) with product holder (4),
whilst at the same time turning the
blade (16).
Slice thickness control knob
Turn the knob(13) clockwise in order to
obtain a thicker slice or anticlockwise for
a thinner one.
The knob (13) has a graduated scale
ranging from “0” to “8” (thickness 2
mm).
Sliding product holder operating
handwheel
The handwheel (12) allows you move
the product holder (4) towards or away
from the blade (16).
It can also be used to make slight
movements of the product holder (4).
Sliding product holder fast forward
lever
By lowering and holding in position the
lever (11) you can quickly move the
product holder (4) towards or away from
the blade (16) (with product).
The operation is quicker than when
using the handwheel (12).
Pusher vertical slide lever
By keeping pressed the lower button
(10a) for the vertical slide lever (10) you
can quickly raise or lower the pusher
(3).
xTighten the screw (7a).

17 of 44
Fig. 11 - Controls Fig. 11 - Controls

18 of 44
4.1 - USING THE SLICER
xMove the product holder (4) away as
far as its limit of travel (furthest from
the blade) using either the handwheel
(12) or the fast forward lever (11).
xPosition the product to be sliced on
the product holder (4) and hold in
place with the pusher (3) (so that it
can’t move), whilst adjusting the
height.
WARNING:
xDO NOT use the slicer if not fully
physically and mentally fit.
xDO NOT allow anyone to come near
to the slicer whilst you are using it.
xBe extremely careful whilst
loading/unloading the product from
the product holder and whilst
actually slicing.
PAY ATTENTION AT ALL TIMES!
_______________________________
4.2 - PLACING PRODUCT ON PRODUCT
HOLDER
xTurn the flywheel (7) in order to move
the carriage (5) to its forward limit
(towards the operator).
4.1 - USING THE SLICER
xMove the product holder (4) away as
far as its limit of travel (furthest from
the blade) using either the handwheel
(12) or the fast forward lever (11).
xPosition the product to be sliced on
the product holder (4) and hold in
place with the pusher (3) (so that it
can’t move), whilst adjusting the
height.
WARNING:
xDO NOT use the slicer if not fully
physically and mentally fit.
xDO NOT allow anyone to come near
to the slicer whilst you are using it.
xBe extremely careful whilst
loading/unloading the product from
the product holder and whilst
actually slicing.
PAY ATTENTION AT ALL TIMES!
_______________________________
4.2 - PLACING PRODUCT ON PRODUCT
HOLDER
xTurn the flywheel (7) in order to move
the carriage (5) to its forward limit
(towards the operator).

19 of 44
Failure to hold the product firmly in
place on the product holder could
cause the machine to cut uneven
slices.

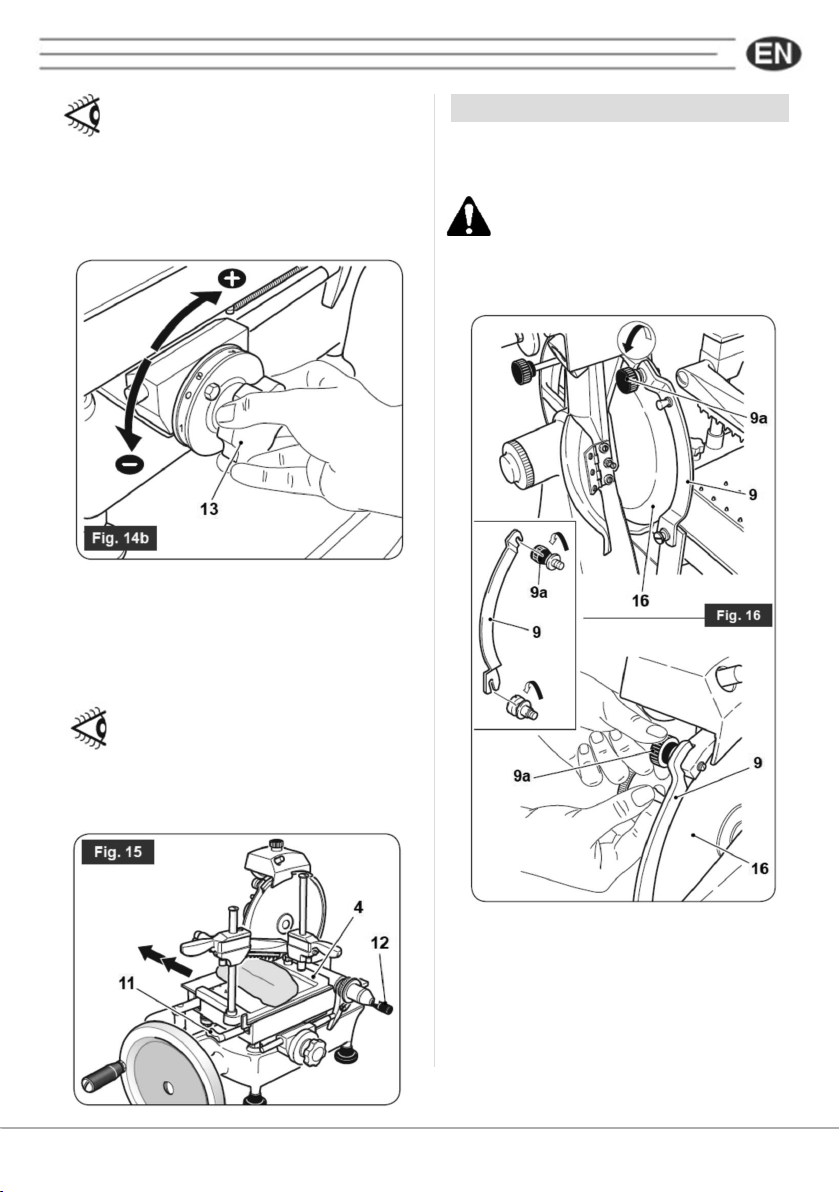

xTurn the knob (13) in order to set the
required slice thickness.
xBring the product holder (4) (with the
product) back from its limit of travel
(towards the blade) using either the
handwheel (12) or the fast forward lever
(11).
Draw the product holder (4) closer to
the blade so as to leave a space
between the product to be sliced and
the blade of between 0.5 cm and 1.0
cm.
4.3 - SLICING THE PRODUCT
xMove the blade guard (9) to the left by
loosening the knob (9a).
WARNING:
Exercise great caution if the
blade guard (9) is not fitted; the
blade (16) is extremely sharp.

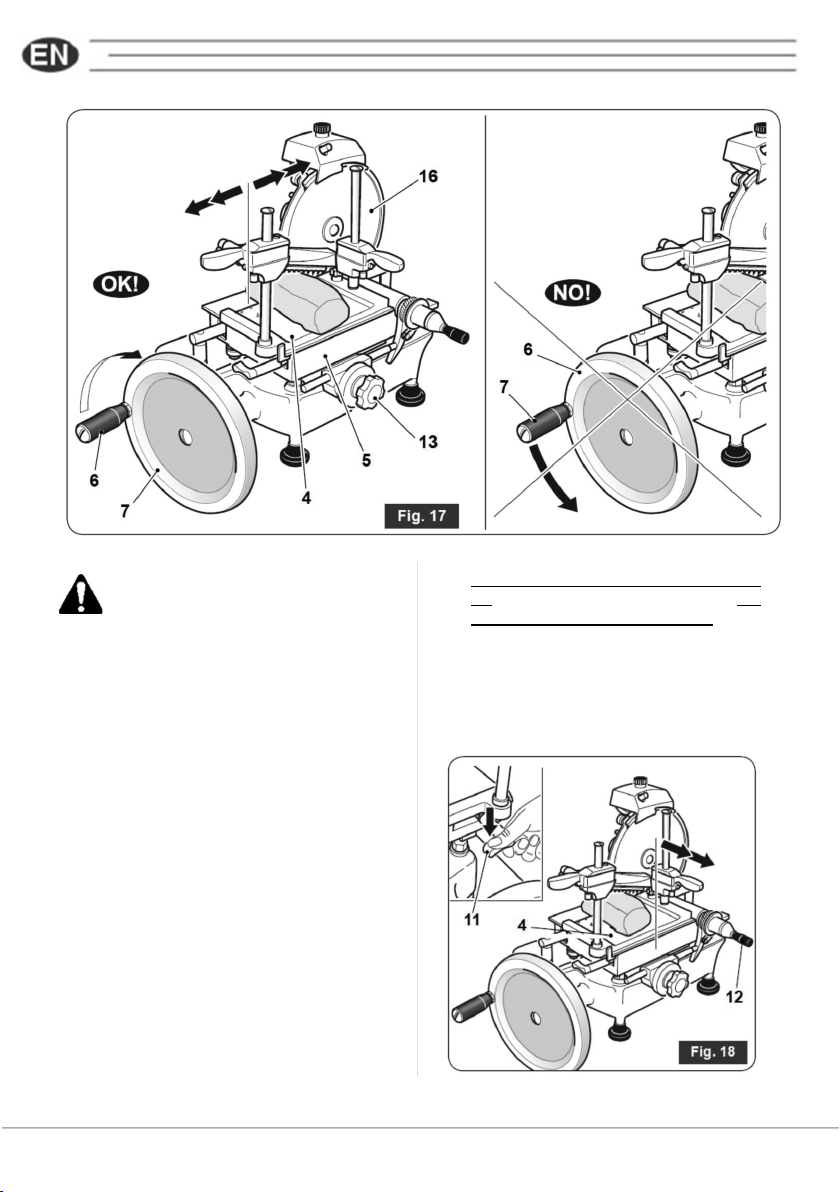

xHold the handle (6) and turn the
flywheel (7) clockwise in order to begin
blade rotation and the alternating
movement of the product holder (4)
(fig. 17).
Failure to hold the product firmly in
place on the product holder could
cause the machine to cut uneven
slices.
xTurn the knob (13) in order to set the
required slice thickness.
xBring the product holder (4) (with the
product) back from its limit of travel
(towards the blade) using either the
handwheel (12) or the fast forward lever
(11).
Draw the product holder (4) closer to
the blade so as to leave a space
between the product to be sliced and
the blade of between 0.5 cm and 1.0
cm.
4.3 - SLICING THE PRODUCT
xMove the blade guard (9) to the left by
loosening the knob (9a).
WARNING:
Exercise great caution if the
blade guard (9) is not fitted; the
blade (16) is extremely sharp.
xHold the handle (6) and turn the
flywheel (7) clockwise in order to begin
blade rotation and the alternating
movement of the product holder (4)
(fig. 17).

20 of 44
DO NOT turn the flywheel (7)
anticlockwise.
Serious damage to the slicer
could be caused.
xYou will need to turn the flywheel (7)
4/5 times before the product touches
the blade (16).
xWhilst the carriage (5) moves forward
(away from the operator), the blade (16)
enters the product.
Guided by the deflector (2), the slice is
detached and drops onto the slice
receiving surface (1).
xAs the carriage (5) returns (towards the
operator), a mechanical device is
operated that moves the product holder
(4) sideways towards the blade (16).
The amount of sideways movement is
set by using the slice thickness control
knob (13).
xYou should stop turning the flywheel
(7) once the operation is complete; the
blade will halt its movement (16).
xMove the product holder (4) (with the
remaining product) away from the
blade (16) using either the handwheel
(12) or the fast forward lever (11).
DO NOT turn the flywheel (7)
anticlockwise.
Serious damage to the slicer
could be caused.
xYou will need to turn the flywheel (7)
4/5 times before the product touches
the blade (16).
xWhilst the carriage (5) moves forward
(away from the operator), the blade (16)
enters the product.
Guided by the deflector (2), the slice is
detached and drops onto the slice
receiving surface (1).
xAs the carriage (5) returns (towards the
operator), a mechanical device is
operated that moves the product holder
(4) sideways towards the blade (16).
The amount of sideways movement is
set by using the slice thickness control
knob (13).
xYou should stop turning the flywheel
(7) once the operation is complete; the
blade will halt its movement (16).
xMove the product holder (4) (with the
remaining product) away from the
blade (16) using either the handwheel
(12) or the fast forward lever (11).
