Fantini Cosmi CH140GSM User manual

CH140GSM
WEEKLY PROGRAMMABLE THERMOSTAT
WITH INTEGRATED GSM

Intellicomfort
2
CH140GSM
PACKAGE CONTENTS
TABLE OF CONTENTS
INSTALLATION
GSM FUNCTIONALITY VERIFICATIONS
ELECTRICAL CONNECTIONS
QUICK GUIDE TO PROGRAMMING
DESCRIPTION OF KEYS
SETTING THE TIME AND DATE
OPERATING PROGRAMS
PROGRAMMABLE TEMPERATURES
SETTING THE OPERATING PROGRAMS
FUNCTIONS IN DETAIL
PROGRAMS AVAILABLE
PROGRAMMABLE TEMPERATURES
KEYS AND ADVANCED FUNCTIONS
RESET
REMOTE PROGRAMMING VIA SMS
SMS COMMANDS
COMMANDS FOR ALARMS AND ALERTS
COMMANDS FOR THE AUXILIARY RELAY (RELAY 2)
NO 230V POWER OR POWER SUPPLY RETURN ALERT MESSAGES
3
4
6
7
7
8
8
9
10
13
13
15
16
23
24
25
29
31
31
1 PROGRAMMABLE THERMOSTAT
1 USER MANUAL
PAG.

Intellicomfort
CH140GSM
3
1. INSTALLATION
The CH140GSM programmable thermostat is to be wall-mounted or installed on a
recessed box, with 3 modules or round, at a height of about 1.5 m from the ground.
Figure 1
Figure 3
Figure 2
PERFORM THE FOLLOWING STEPS:
1. Disconnect the power to the electrical system by actuating the main switch of the electrical
panel
2. Separate the rear baseboard from the body of the programmable thermostat by using a tool
on the relevant slot (see Figure 1)
3. Remove the insulation protection on the baseboard by unscrewing the specific captive screw.
4. Make the electrical connections as shown on page 5.
5. Secure the baseboard to the wall or to the recessed box, using the screws supplied.
6. Reposition the insulation protection by tightening the screw.
7. Open the SIM-holder compartment at the back of the programmable thermostat, as shown
in Figure 2.
8. Insert a SIM* (NOTE pag. 4), complying with the direction shown in Figure 3 (see pag. 4) and
close and tighten the flap of the SIM-holder.
9. Press the body of the CH140GSM to the baseboard secured to the wall and couple.
10. Restore the power of the electrical system.
push
to release

Intellicomfort
4
*NOTETheSIMused must conformtotheGSM11.12phase 2+ standard(in
practice, any SIM of regular mobile operators but not the USIMs of mobile
operator: TRE). It must be linked to a top-up voice with SMS contract (if
necessary, verify the credit) or with a subscription contract and the PIN
code must be disabled.
Before inserting the SIM card it is advisable to verify that it works by using
it in a mobile phone and trying to send and receive an SMS.
After inserting the SIM and switching the CH140GSM on, any SMS
messages that have not yet been delivered or sent in the first moments of
operation will be cancelled.
ATTENTION: the 2 auxiliary inputs must be connected to contacts that are
dry and voltage-free and with cables no longer than 3 m.
GSM FUNCTIONALITY VERIFICATIONS
The programmable thermostat connection to the GSM network can be
detected by the antenna symbol and three bars.
The antenna symbol flashes if the module is not registered to the GSM network
(e.g. no coverage, SIM not inserted or blocked by PIN, etc.).
Once the registration is complete, the antenna lights up steady together with any
bars indicating the signal strength.
On PAG08 of the SETUP menu you can see the quality of GSM coverage in real
time; the values are updated every three seconds. This feature is useful for testing
during installation if the position assumed is appropriate or not.
The following table shows the signal values and the corresponding messages
shown on the display.
Example:GSM:18.0meansthatthesignalisgood(twobars)andthecommunication
has no errors.
!
!

Intellicomfort
CH140GSM
5
NOTE: during the first seconds after the programmable thermostat is switched on,
any anomalies of the SIM are indicated by the appearance of the following error
messages:
ERR 310 = no SIM; verify that the SIM is inserted correctly and close the latch
of the SIM holder;
ERR 311 = SIM has PIN protection; remove the SIM and insert it into a phone
to remove the PIN protection function.
N.B.: Any other error codes that may appear must be noted to then contact the
technical support.
SYMBOL
Signal
level None
flashing
0÷1 2÷9 10÷14 15÷19 20÷30 99
Low Acceptable Good Excellent n.r.
VALUES
“RS”
"BE"
VALUE
0= <0.2%
5= 3.2÷6.4% 1= 0.2÷0.4% 6= 6.4÷12.8%
2= 0.4÷0.8%
6= >12.8% 3= 0.8÷1.6% 99= n.r. 4= 1.6÷3.2%

Intellicomfort
6

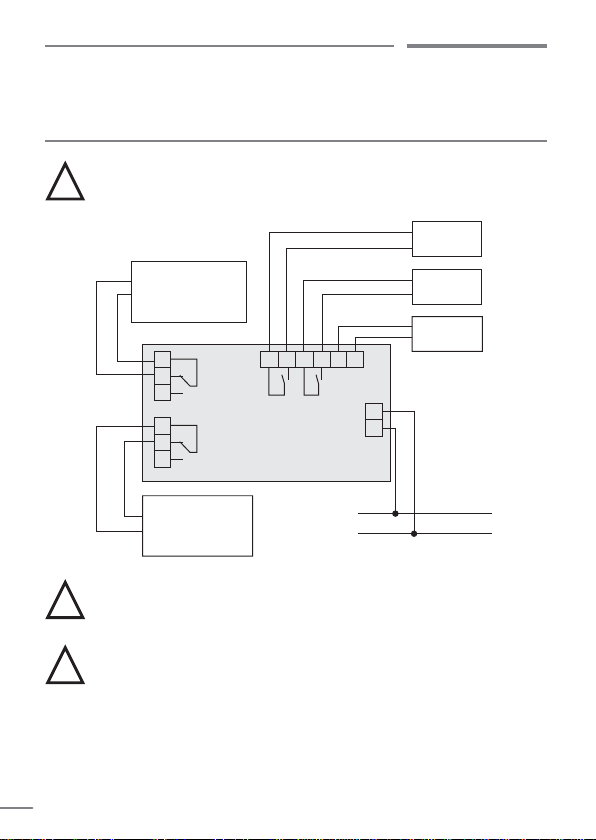

2. ELECTRICAL CONNECTIONS
ATTENTION: THE INSTALLATION MUST ONLY BE CARRIED OUT BY
SKILLED PERSONNEL
!
!
ATTENTION: before wiring, make sure the power has been disconnected
from the electrical system from the main switch on the electrical panel
NOTE: The programmed parameters will not be lost during blackout periods since
all the settings are saved in a non-volatile memory.
Even if the power supply is not available for long periods, the clock/calendar
operation is guaranteed by an internal battery.
5B
6A
7
1
Caldaia
CH140GSM
2
Gd
4
L
N
In2 In1 Gd
Relè ausiliario
(utenza elettrica)
Sonda
ausiliaria
Ingresso 1
(allarme)
230V 50Hz
Ingresso 2
(allarme)
!
ATTENTION: the cable length of the auxiliary probe must not exceed 3
metres.
Auxiliary relay
(electrical utility)
Boiler
Input 2
(alarm)
Input 1
(alarm)
Auxiliary
probe

Intellicomfort
CH140GSM
7
3. QUICK GUIDE TO PROGRAMMING

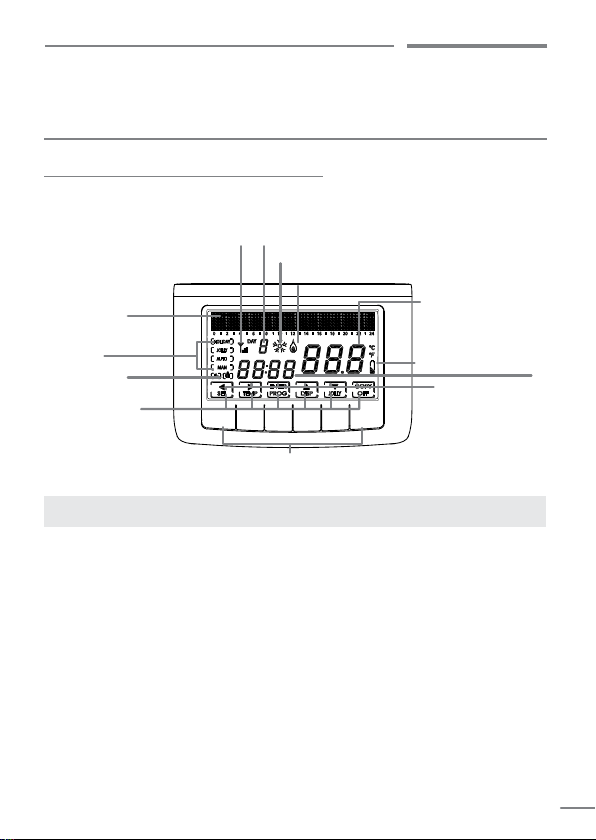

DESCRIPTION OF KEYS
Theprogrammablethermostatisfittedwith6keys,thefunctionofwhichvariesdepending
on the situation and is described by the symbol that appears on the display in line with
the key.
N.B.: the first time a key is pressed will have no effect other than turning the display
light for it to be seen better.
primary function
6 function keys
secondary function
relay ON winter
time
relay ON summer
ambient temperature
Celsius / Fahrenheit
graphic section:
temperature/clock profile
messages
flat battery symbol
day of the weekGSM antenna
programs
summer / winter

Intellicomfort
8
OPERATING PROGRAMS
The CH140GSM programmable thermostat allows for different operating modes,
called programs:

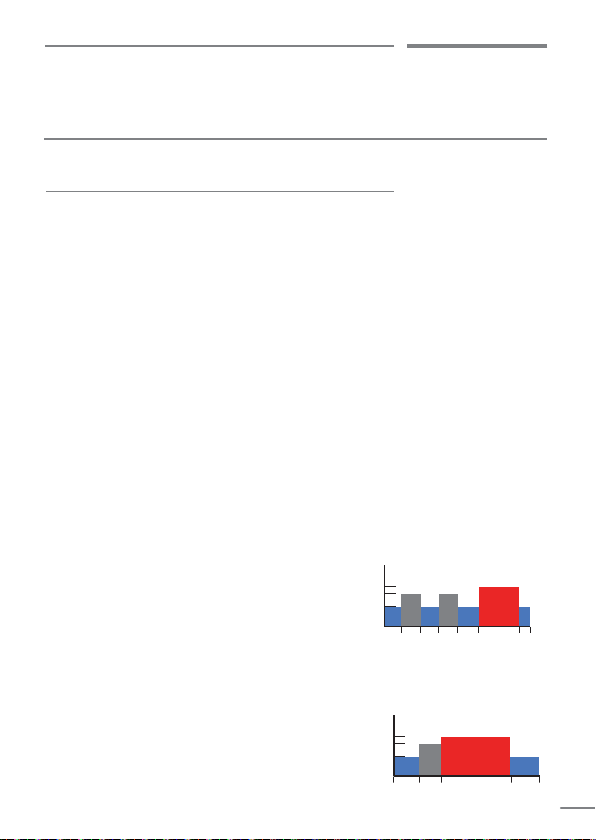

“AUTO” WEEKLY PROGRAM:
you can associate every half hour to one of the four
set temperatures for each day of the week. This is
the program that appears when the programmable
thermostat is switched on and in general, is the most
used.
“HOLIDAY” DAILY PROGRAM:
just like the AUTO program, you can select one of the
4 set temperatures for each half hour, however, this
sequence will be repeated, identical, every day.
SEL TEMP PROG DISP JOLLY OFF
HOLIDAY
ENTER
SETTING THE TIME AND DATE
1. After switch-on, press the PROG key
briefly: “Setup” appears; then press ,
to access the “Hours” page. Use the
and keys to set the hours and then
press to set the “Minutes”.
2. Press
again to select the Year, the
Month and the Day in order
3. Press again to select whether to
disable the automatic summer/winter
switch-over: initially, this function is
enabled, however, it can be disabled by
selecting “NO” with the and keys.
4. You can always return to the previous
page by pressing .
5. Press ENTER to exit the Setup menu.

Intellicomfort
CH140GSM
9
MAN
JOLLY

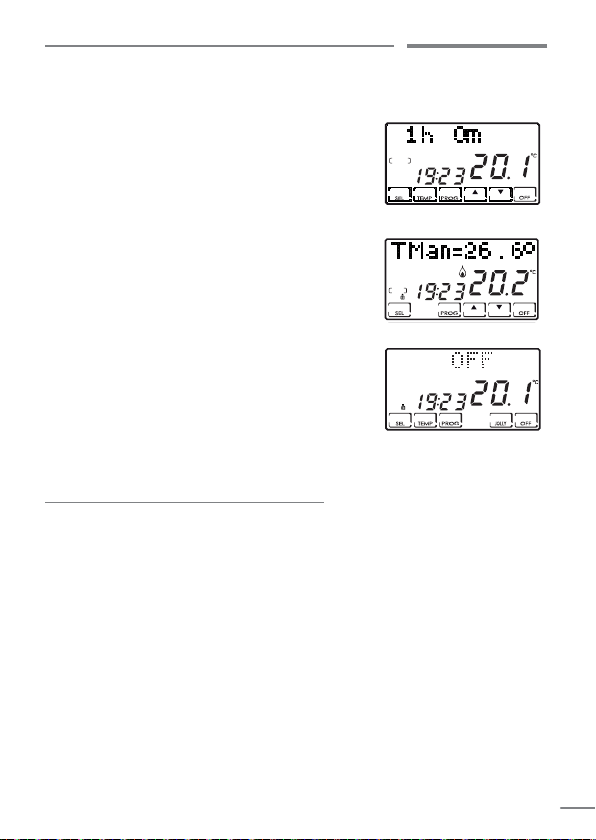

“JOLLY” TEMPORARY PROGRAM:
you can choose to maintain a certain temperature for
a given number of hours, after which it will return to
the previously active program.
“MAN” MANUAL PROGRAM:
the programmable thermostat maintains a fixed
temperature, specified from time to time, for
unlimited time, until another program is selected.
“OFF/ANTI-FREEZE” SYSTEM IS OFF OR WITH
ANTI-FREEZE PROGRAM:
the system remains off or alternatively it will
maintainaverylowtemperature(2to7°C),toprevent
the liquid in the heating system from freezing.
PROGRAMMABLE TEMPERATURES
The operating temperature settings can be accessed in the AUTO and HOLIDAY
programs.
Temperatures T1, T2 and T3 can be represented with values ranging from 2°
to 40°C,
The T anti-freeze (TA) temperature can range from 2° to 7°C or be set to OFF
(that is, system off).
These are the temperatures that can be set when configuring the daily program:
The MANUAL program has its own specific temperature (TMan), just like the
JOLLY (Tj) program, which are set on the respective screens and that range
from 2° to 40°C.
The ANTI-FREEZE/OFF program follows the TA temperature that can range
from 2° to 7°C; alternatively, it can be set to OFF for the system to switch off.

Intellicomfort
10
SETTING THE OPERATING PROGRAMS
SELECTING THE PROGRAM
Press the SEL key to select the various operating programs, in cyclical
sequence:
AUTO -> MAN -> OFF -> HOLIDAY -> AUTO.
NOTE: the JOLLY temporary program is not included in the sequence of programs
but is selected directly with the JOLLY key.
TEMPERATURE SETTINGS
In the AUTO, HOLIDAY and OFF programs press
the TEMP key to change the values of the 4 set
temperatures: pres the TEMP key repeatedly
for the value T1, T2, T3 and Ta to appear in
sequence; go to the T you wish to modify and use
the arrows and to increase or decrease the
temperature by a tenth of a degree at a time.
Use the arrow to go back to the beginning.
Consider that T1 will always be less or equal to
T2, and T2 of T3.
In the JOLLY program, the TEMP key alternates the display of the set
temperature Tj and the hours left for the program to end: these two values can
be changed using the and keys.
In the MAN program you can modify the fixed temperature TMan using the
and keys.
MODIFYING THE DATE AND TIME IN PROGRESS
Briefly press the PROG key to enter the “SETUP” menu, in which you can
change the time, the date, the winter/summer mode and the automatic
daylight saving function.
CUSTOMIZING THE WEEKLY “AUTO” AND DAILY “HOLIDAY” PROGRAM
Keep the PROG key pressed until “CONFIG”
appears. In this menu you can program the
weekly profiles (AUTO program) and daily
(HOLIDAY program) and set the advanced
functions (refer to the subsequent sections for
their description).
COPY
PROG
000

Intellicomfort
CH140GSM
11
NOTE:if“SETUP”appearsinsteadof“CONFIG”,youhavereleasedittooquickly
and must press ENTER to go back to the normal operating mode and try again.
When entering the “CONFIG” menu, the page that allows you to select the
desired temperature (T1/T2/T3/Ta) for every half hour of the day indicated
appears (from 1 to 7 to indicate the days from Monday to Sunday).
NOTE: T1/T2/T3/Ta are displayed on the right side of the display with
the symbols:
Use the and keys to move a half hour to the right or left.
Use the and keys to switch from one set temperature to another.
Use PROG (pressed briefly) to go to the next day (DAY 1 -> 2 -> 3 -> 4 -> 5 -> 6 ->
7 -> H).
Press COPY to copy the temperature profile of the current day to the next day.
The Correction parameter page is accessed after H (profile of the Holiday daily
program).
Use PROG (pressed for long) or at the beginning of day 1 to go directly to the
Correction page.
From the Correction page onwards, use ENTER to exit from the “CONFIG”
menu.
“JOLLY” PROGRAM SETTINGS
In all programs except MAN, the temporary program is selected by pressing
the JOLLY key: this program allows you to define the desired temperature and
its duration in hours (up to a maximum of 240, that is, 10 days).
For example, it may be useful to keep a lower temperature throughout the
weekend if you are away from home.
Once this program is accessed, you can change the duration, which is initially
an hour, and increase the number of hours using the or decrease them
using the .
Press TEMP to display and change the Tj temperature using the and
keys.

Intellicomfort
12
Press TEMP again to go back to displaying the duration of the JOLLY program.
When this time elapses, it returns to the initial program.
“OFF/ANTI-FREEZE” PROGRAM SETTINGS
Pressing OFF from any operating program will switched the programmable
thermostat to off/anti-freeze mode.
The anti-freeze temperature (Ta) can be set with the TEMP key from OFF
(boiler always off) to a temperature between 2.0 and 7.0°C, with a precision of
a tenth of a degree, using the and arrows.
Use the arrow to return to OFF.
Press OFF again to go back to the previous operating mode.
ALTERNATIVE DISPLAYS
In the AUTO and HOLIDAY programs you can view other information instead of
the temperature profile by pressing DISP repeatedly.
When it is pressed once the temperature set for the current half hour is
displayed; when pressed twice it will display the date; when pressed three
times it shows the temperature of the external sensor (if installed); and when
pressed four times it returns to the initial temperature profile.

Intellicomfort
CH140GSM
13
PROGRAMS AVAILABLE
CH140GSM has different operating modes (programs):
“AUTO” weekly program
“HOLIDAY” daily program
“JOLLY” temporary program
“MAN” manual program
system is off or with “OFF” anti-freeze program
“AUTO” WEEKLY PROGRAM
In the AUTO mode you can use 4 temperature levels (Ta, T1, T2, T3) according
to a setting of 30 minutes within 24 hours of 7 days. The days are numbered
from1to7 andcorrespond tothesevendays oftheweek, starting withMonday.
To simplify programming, you can set the first day and copy it to the others.
By default, days 1 – 5 (Monday to Friday) are:
00:00 – 06:30 T1
06:30 – 09:00 T2
09:00 – 11:30 T1
11:30 – 14:00 T2
14:00 – 17:00 T1
17:00 – 22:30 T3
22:30 – 24:00 T1
whereas days 6 and 7 (Saturday and Sunday) are:
00:00 – 08:00 T1
08:00 – 11:30 T2
11:30 – 23:00 T3
23:00 – 24:00 T1
winter program
Monday-Friday
winter program
Saturday-Sunday
6.30 9 11.30 14 17 22.30 24h0
0 8 11.30 23 24h
°C
T3 20
T2 19
T1 17
°C
T3 20
T2 19
T1 17
4. THE FUNCTIONS IN DETAIL

Intellicomfort
14
summer program
Monday-Friday
In the summer mode (air conditioning),
the default program is that shown in the
figure.
0 5 8 18.30 22.30 24h
°C
T3 28
T2 26
T1 24
The value of the 4 temperatures can be
set using the TEMP function.
The profile (time variation) of the
temperatures can be set using the
PROG function.
“HOLIDAY” DAILY PROGRAM
In the HOLIDAY mode you can use 4 temperature levels according to a setting of
30 minutes within 24 hours of the day.
Youthenobtaina dailyprogram,separatefrom the daysofthe week. Thedefault
profile of the temperatures is:
00:00 – 08:00 T1
08:00 – 11:30 T2
11:30 – 23:00 T3
23:00 – 24:00 T1
The value of the temperatures can be set using the TEMP function.
The profile (time variation) of the temperatures can be set using the PROG
function.
8 11.30 23 24h
°C
T3 20
T2 19
T1 17
JOLLY
The JOLLY mode allows you to set
a temperature (Tj) for a number of
hours (1 to 240). It is used when
you want to introduce a temporary
change to the programming
without changing the parameters,
for example to maintain a high
temperature longer for an evening
with friends or keep it low due to absence during the weekend.
If you have accessed JOLLY with the proper function key, once completed it
automatically returns to the current programming.
°C
T1 17
7gg 6.30 9 11.30 14 17 22.30 24h
JOLLY RETURN TO THE AUTOMATIC MODE

Intellicomfort
CH140GSM
15
MANUAL
The MAN mode allows you to manually
setafixedtemperature(Tman),varying
between +2.0 and +40.0 degrees, with
no expiry and without having to change
the weekly or daily program.
It can be used for example to keep
the house at a temperature different
from those of the daily programs during absences, or to switch the system on
remotely to bring it to a constant temperature.
°C
T3 21
24h
T1 temperature
set between 2 and 40°C
OFF
The OFF mode is used when you want to switch the system off.
It uses the TA temperature (anti-freeze) as a reference, to guarantee the
protection of the system at low temperatures.
TA is normally set to +5 degrees but can be set to OFF, obtaining therefore the
total shutdown of the boiler. Weekly or daily programs remain unchanged.
PROGRAMMABLE TEMPERATURES
The system requires 4 different temperature levels, three for normal use and one,
called "anti-freeze", to be used when you want to keep the boiler off but without
running the risk of the system liquid freezing.
The programming of the three T depends on the reciprocal values, in the sense that
T1 cannot be higher than T2, T2 cannot be higher than T3 or lower than T1 and T3
cannot be lower than T2.
You must therefore pay attention to their programming, which is achieved with the
TEMP key.
T1 varies between +2.0 and +T2 degrees, with changes every tenth of a degree [default 17.0]
T2 varies between +T1 and +T3 degrees, with changes every tenth of a degree [default 19.0]
T3 varies between +T2 and +40.0 degrees, with changes every tenth of a degree [default 20.0]
TA (anti-freeze) varies between +2.0 and +7.0 degrees, with changes every tenth of a degree,
or it can be OFF, that is, the boiler always remains off. [default 5.0].

Intellicomfort
16
KEYS AND ADVANCED FUNCTIONS
USING THE SEL KEY
TheSEL keyisused toselect the operatingmodeoftheprogrammable thermostat,
according to the following programs:
HOLIDAY
AUTO
MANUAL
OFF
To change the preset program, press the SEL key in sequence (cyclical). The first 3
conditionsareindicatedbyasmall message ontheleftsideof thedisplay,whereas
OFF appears in the graphic area at the top.
USING THE TEMP KEY
In AUTO, HOLIDAY and OFF
Pressing TEMP will let you access the programming of 4 temperatures
that can be used in these conditions.
Use the and arrows to vary the temperatures, while bearing in mind
that T1 cannot be higher than T2, T2 cannot be lower than T1 and higher
than T3 and T3 cannot be lower than T2.
Use the TEMP key to go to the next temperature (cyclical):
T1>T2>T3>Ta>TLOW >T1.
Use the arrow to go back to the initial window.
In JOLLY
Use the TEMP key to go to the programming of Tj.
Use and to change Tj (between +2 and + 40°) and the duration (1
hour interval).
Use the arrow to go back to the initial window.

Intellicomfort
CH140GSM
17
USING THE PROG KEY
PROG (pressed briefly) SETUP
WINTER/PAG01/Set
with or you switch from Winter to Summer and vice versa
with you change page, with ENTER you exit PROG.
HOURS HH: MM/PAG02/SEt
with you increase the hours cyclically and with you decrease them.
with you change page, with ENTER you exit PROG.
MIN. HH: MM/PAG03/Set
with youincreasetheminutes cyclicallyand with youdecrease them.
with you change page, with ENTER you exit PROG.
YEAR: YYYY/PAG04/Set
with you increase the years and with you decrease them
with you change page, with ENTER you exit PROG.
MONTH: MM/PAG05/Set
with you increase the months cyclically and with you decrease them
with you change page, with ENTER you exit PROG.
DAY: DD/PAG06/Set
with you increase the days cyclically and with you decrease them
with you change page, with ENTER you exit PROG.
NOTE:ifthedateset,theprogrammablethermostatautomaticallydetermines
the day of the week.

Intellicomfort
18
DST YES/PAG07/Set
Selectdaylightsavingtimeautomatically,applicableinEuropeancountries
andsome others. This settingsallowsthetimeto be automaticallyupdated
when the hour is moved (March and October). Use or to switch
between YES and NO.
Use to go back to pag.1 (Winter/Summer); use ENTER to exit PROG.
GSM: RS,BE/PAG08/SEt
This page displays the level of the signal (RS= 2 digits) and the error rate
(BE= two digits) of the GSM line.
The table on page 5, shows the key of the values concerning the coverage
quality.
Example: GSM: 18.0 means that the signal is good (two bars) and the
communication has no errors.
PROG (pressed for long) CONFIG.
The screen of day 1 is shown, with the graph of the temperatures every
half hour, the indication of the half hour and the associated temperature (
).
Day 1 corresponds to Monday, and so on. Day H is the Holiday, which does not
vary during the week.
Use to move a half hour forward
Use or to move up or down from tA to t1 to t2 to t3.
Use PROG (pressed briefly) to change the day (1, 2, 3, 4, 5, 6, 7, H).
Use H to go to page 01 (Correction).
Use PROG (pressed for long) to go directly to page 2.
Use COPY to copy the temperature profile of the current day to the next day.
From page 01 onwards use ENTER to exit the programming.
Use to go to the previous half hour (even of the previous day)
Use at the beginning of day 1 to go directly to page 01 (correction).
Correction/PG01/XX.X°
It allows you to change the read temperature, which may not indicate the
actualtemperaturefeltdueto the installationbeingrecessedin thewall or
maybe at a non-optimal height.

Intellicomfort
CH140GSM
19
It is recommended to calibrate it by comparing it with a thermometer
placed at a desired height/area.
Use and to change the value on the display of the temperature.
Use to go to the next page and ENTER to exit.
Celsius/PG02/XX.X°
It allows you to choose the display range of the temperature between
Celsius and Fahrenheit.
Use or to switch between Celsius and Fahrenheit.
Use to go to the next page and ENTER to exit.
Light OFF-ON Xs/PG03
It allows you to adjust the backlight of the display (light blue). You can
choose to not have it (OFF) or to have it with a set duration between 1 and
29 seconds.
Use or to switch from OFF to ON, and select the duration (1-29 sec.).
Use to go to the next page and ENTER to exit.
Int. Light X/PG04
It allows you to change the brightness of the display (9 levels).
Use or to change the brightness (1--9).
Use to go to the next page and ENTER to exit.
English/PG05
It allows you to change the language used for programming.
Use or to cyclically go from one language to another.
Use to go to the next page and ENTER to exit.
Block? NO(YES)/PG06
It allows you to block the keyboard with a 4-digit numerical code. It only
works once and must then be enabled again.
Use or to switch between NO and YES. Once ENTER is pressed a
password is requested which is entered using the or arrows by
selecting the digits with and

Intellicomfort
20
Use ENTER to save it and goes back to the normal operating display, in
which only the function key ENTER appears. Pressing it will require the
password, which must be entered with the and arrows, follows
by ENTER. The display goes back to the normal programming, thereby
enabling all the functions.
Use to go to the next page and ENTER to exit.
Reset? NO(YES)/PG07
Use or to switch between NO and YES. Press ENTER while “YES” is
displayed for all parameters (except the date and time) to be reset to the
default values.
Use to go to the next page and ENTER to exit.
CH140 V1.20/PG08
On this page, the software version of the programmable thermostat.
Use > to go to the next page and ENTER to exit.
EXT IN : ---/PG12
It allows you to change the management mode of the auxiliary input using
the keys and to change:
---: non active
Connect a probe EC18 - EC19 - EC20 to set:
DIS: displaying the temperature;
ADJ: adjustment of the ambient temperature by means of the external
probe.
Relay2:SMS/PG13
It allows you to use the Relay 2 of CH140GSM for different uses. In fact,
connecting electrical utilities to terminals 5-6-7 of Relay 2 and configuring
it appropriately in this sub-menu, allows you to add ancillary functions to
CH140GSM.
The available functions are:
SMS: Relay 2 is switched on (that is, it closes contacts 5: and 6 and opens
5 and 7) with the SMS command #ON and is switched off (that is, opens
contacts 5 and 6 and closes contacts 5 and 7) with the SMS command
#OFF.
