Fanvil Product User Manual
IP-Gateway
Model: A2
Version：V1.0.90.16
© 2005 Fanvil technology Co,. Ltd
All rights reserved.
This document is supplied by Fanvil Technology Co., Ltd, No part of this document may be
reproduced, republished or retransmitted in any form or by any means whatsoever, whether
electronically or mechanically, including, but not limited to, by way of photocopying, recording,
information recording or through retrieval systems, without the express written permission of
Fanvil Technology Co., Ltd. Fanvil Technology Co., Ltd reserves the right to revise this document
and make changes at any time and without the obligation to notify any person and/or entity of
such revisions and/or changes. Product specifications contained in this document are subject to
change without notice.

Safety Notices
Please read the following safety notices before installing or using this gateway.
They are crucial for the safe and reliable operation of the device.
zPlease use the external power supply that is included in the package. Other
powers supplies may cause damage to the device, affect the behavior or induce
noise.
zBefore using the external power supply in the package, please check with home
power voltage. Inaccurate power voltage may cause fire and damage.
zPlease do not damage the power cord. If power cord or plug is impaired, do not
use it, it may cause fire or electric shock.
zThe plug-socket combination must be accessible at all times because it serves
as the main disconnecting device.
zDo not drop, knock or shake it. Rough handling can break internal circuit
boards.
zDo not install the device in places where there is direct sunlight. Also do not
put the device on carpets or cushions. It may cause fire or breakdown.
zAvoid exposure the gateway to high temperature, below 0℃or high humidity.
Avoid wetting the unit with any liquid.
zDo not attempt to open it. Non-expert handling of the device could damage it.
Consult your authorized dealer for help, or else it may cause fire, electric shock
and breakdown.
zDo not use harsh chemicals, cleaning solvents, or strong detergents to clean it.
Wipe it with a soft cloth that has been slightly dampened in a mild soap and
water solution.
zWhen lightning, do not touch power plug or device line, it may cause an electric
shock.
zDo not install this device in an ill-ventilated place.
zYou are in a situation that could cause bodily injury. Before you work on any
equipment, be aware of the hazards involved with electrical circuitry and be
familiar with standard practices for preventing accidents.

Table of Content
1. WELCOME TO THE A2 TWO-PORT GATEWAY........................................................................... 5
1.1. Package Contents..................................................................................................... 5
2UNDERSTANDING OF A2 TWO-PORT GATEWAY......................................................................... 6
2.1. The positive of A2 two-port gateway ...................................................................... 6
2.2. Indicator signs .......................................................................................................... 7
2.3. Connector description.............................................................................................. 7
3. GETTING STARTED ............................................................................................................... 9
3.1. Connect the power and network ............................................................................. 9
3.1.1. Connect the network........................................................................................................9
3.1.2. Connect the power .........................................................................................................10
4. BASIC PHONE OPERATION OF A2 TWO-PORT GATEWAY..........................................................11
4.1. Call transfer..............................................................................................................11
4.2. Call hold....................................................................................................................11
5. WEB CONFIGURATION......................................................................................................... 12
5.1. Introduction of configuration................................................................................. 12
5.1.1. Ways to configure ..........................................................................................................12
5.1.2. Password Configuration................................................................................................12
5.2. Setting via web browser......................................................................................... 12
5.3. Configuration via WEB........................................................................................... 13
5.3.1. BASIC ..............................................................................................................................13
5.3.1.1. Status ...........................................................................................................................13
5.3.1.2. Wizard...........................................................................................................................13
5.3.2. Network ...........................................................................................................................15
5.3.2.1. WAN Config..................................................................................................................15
5.3.2.2. LAN Config...................................................................................................................17
5.3.2.3. Qos Config...................................................................................................................18
5.3.2.4. Service Port..................................................................................................................20
5.3.2.5. DHCP SERVER.............................................................................................................21
5.3.2.6. NTP ...............................................................................................................................22
5.3.3. VOIP.................................................................................................................................22
5.3.3.1. SIP Config ....................................................................................................................22
5.3.3.2. Stun Config..................................................................................................................26
5.3.3.3. DIAL PEER setting.......................................................................................................27
5.3.4. Phone ..............................................................................................................................31
5.3.4.1. DSP Config...................................................................................................................31
5.3.4.2. Call Service..................................................................................................................32
5.3.4.3. Digital Map Configuration...........................................................................................34
5.3.5. Maintenance....................................................................................................................35
5.3.5.1. Auto Provision.............................................................................................................35
5.3.5.2. Syslog Config ..............................................................................................................36
5.3.5.3. Config Setting..............................................................................................................37
5.3.5.4. Update ..........................................................................................................................38

5.3.5.5. Account Config............................................................................................................38
5.3.5.6. Reboot..........................................................................................................................39
5.3.6. Security ...........................................................................................................................40
5.3.6.1. MMI Filter......................................................................................................................40
5.3.6.2. Firewall.........................................................................................................................41
5.3.6.3. NAT Config...................................................................................................................42
5.3.6.4. VPN Config...................................................................................................................44
5.3.7. Logout .............................................................................................................................45
6.APPENDIX.......................................................................................................................... 46
6.1. SPECIFICATION................................................................................................................ 46
6.1.1. HARDWARE.................................................................................................................. 46
6.1.2. VOICE FEATURES.......................................................................................................... 46
6.1.3. NETWORK FEATURES.................................................................................................... 46
6.1.4. MAINTENANCE AND MANAGEMENT ................................................................................ 47
6.2. PARTICULARLY SUITABLE FOR A2 TWO-PORT GATEWAY..................................................... 47
6.3. COMMON PROBLEMS ...................................................................................................... 47

1. Welcome to the A2 two-port gateway
1.1. Package Contents
Please check your product packaging，it includes:
1. One A2 two-port gateway
2. A group of cable
3. A power adapter
NOTE: if you use the non-A2 two-port gateway comes with a power adapter,
two-port gateway may cause damage or other injury. Specifications for the power
adapter may different between the different shipment areas. If the power adapter
provided with the product can not be used locally, please consult your local dealer.
4. User manual

2 Understanding of A2 two-port gateway
A2 two-port gateway IP-based voice media access device is designed for operators,
enterprises, residential users, and residential VoIP solution to provide network
equipment. A2 two- port gateway into the analog voice information transmitted over
IP networks, which use IP networks to transmit voice. It is full compliance with the
SIP protocol standard, with the market most other SIP compliant devices and
server-side.
The gateway will play Internet network (either public network or private network)
connecting with the public telephone network bridge. It provides two FXS analog
voice interfaces, used for ordinary small business PBX or gateway (PBX).
This site using the most advanced voice processing technologies, such as
advanced voice compression standards, echo cancellation, dynamic voice
detection, silence detection, ensuring Quality of Service (QoS), and voice quality
comparable to regular PSTN phone.
In addition, A2 two-port gateway also integrates a small router function. WEB
comes through the gateway configuration page, simply configure the network
parameters, can achieve multiple computers and network equipment, broadband
access, ideal for small office and home users.
Because this site has a wealth of features and related detailed configuration
options, in your call to enjoy a stress free before you know your A2 two-port
gateway.
2.1. The positive of A2 two-port gateway

2.2. Indicator signs
Name Meaning Description
POWER Power LED Always light, has power, you
can start using the A2 two-port
gateway.
FXS1 Phone work
status lights Show the status of the phone under the port 1. No phone or
hang up: Off; pick up: always.
FXS2 Phone work
status lights
Show the status of the phone
under the port 2. No phone or
hang up: Off; Pick up: always.
WAN WAN network
interface lights Indicator light, WAN port connected to the network.
Flashing: Data transfer.
LAN LAN network
interface lights Indicator light, LAN port connected to the network.
Flashing: Data transfer.
2.3. Connector description
Name Meaning Description
POWER Power switch Output:12VDC，500mA。
FXS1 FXS1 Interface Ordinary telephone connection, or
switch into the line.
FXS2 FXS2 Interface Ordinary telephone connection, or
switch into the line.
LAN Network Interface 10/100M Adaptive connected PC.
WAN Network Interface 10/100M Adaptive connected to
the RJ45 port of Internet。

A2 two-port gateway with two network interface itself: WAN port and LAN port, you
can use the Internet connection into the WAN port or LAN port. Read the manual
carefully of “Safety” before inserting the power

3. Getting Started
Before you start using the A2 two-port gateway, please install the following:
3.1. Connect the power and network
3.1.1. Connect the network
During this step, make sure your environment already have broadband Internet
access capability.
1. Broadband Router
Direct network connection—by this method, you need at least one available
Ethernet port in your workspace. Use the Ethernet cable in the package to connect
WAN port of A2 two-port gateway to the Ethernet port in your workspace. Since this
gateway has router functionality, whether you have a broadband router or not, you
can make direct network connect. The following two figures are for your reference.
2. as a broadband router
Use this method if you have a single Ethernet port in your workspace with your
desktop computer already connected to it. First, disconnect the Ethernet cable from
the computer and attach it to the WAN port of gateway. Next, use the Ethernet cable
in the package to connect LAN port of gateway to your desktop computer. Your IP
Phone now shares a network connection with your computer. The following figure
is for your reference.

3.1.2. Connect the power
During this step, make sure your power supply connector and A2 two-port gateway
outlet match, while A2 is also in line voltage and current required for a two-port
gateway.
1. The transformer connected to the DC port on the back of A2 two-port gateway
POWER jack.
2. The AC adapter plug to an electrical outlet, A2 two-port gateway boot.
3. At this point all of your lights (except the POWER indicator) will flash together.
After booting, you will hear popping sounds, and then the indicator light is lit
according to your current configuration corresponding light. (If your light is not
normal, you need to further configure your network connection mode).
4. If you login on the gateway server, then you can start calling.

4. Basic phone operation of A2 two-port gateway
Since there are two FXS interfaces on the A2 two-port gateway, and the two
interfaces are independent, so the phones under the FXS1 and FXS2 have the same
operation. The phones under the two ports can be used as two separate telephones
at the same time. The following operations are applicable to the phones under the
FXS1 and FXS2.
4.1. Call transfer
zBlind Transfer
During a call, press FLASH (Flash) key, enter the number to be transferred【*】add
and press 【#】 key to confirm, you can transfer the current call to third parties. (To
use this feature, you must enable the gateway of the Call Waiting and Call Transfer
function)
zAttended Transfer
During a call, press FLASH (Flash) key, enter the number waiting to be transferred
connected, directly hang up, you can transfer successfully. (To use this feature,
you must enable the gateway of the Call Waiting and Call Transfer function)
NOTE:1, Call Transfer must call in two cases all the way is free for operation;
2, Gateway (transfer side) and the establishment of phone A calls phone C gateway
and then create a call, hang up the phone A, this time the gateway can also initiate
the transfer.
3, your VoIP traffic services providers need to support (RFC3515), this feature to
work correctly.
4.2. Call hold
zCall Hold and set aside
During a call you can press FLASH (FLASH) button and enter the number to dial
and press 【#】key to ensure
Recognition, can retain the current state of the call with third-party calls. If you
press the FLASH (Flash) key, you can switch back. You also can send and receive
on one side, then the party can not be retained to hear your conversation, the
speaker you can not. During a call if you press 【*】operation, will enter the
three-way calling mode. (To use this feature, you must enable the gateway of the
Call Waiting feature, you must achieve three-way calling mode to start the gateway
Three Way Call function)
zCall on hold and accept call waiting
In normal conversation, a third party dial-in, the handset will beep ~ beep ~ tips
coming, you can use FLASH (Flash) button to accept call waiting. If you press this

button again, you can switch back. You also can send and receive on one side, then
the party can not be retained to hear your conversation, the speaker you can not.
(To use this feature, you must enable the gateway of the Call Waiting feature)
5. Web configuration
5.1. Introduction of configuration
5.1.1. Ways to configure
A2 two-port gateway has two different ways to different users.
zUse web browser（recommendatory way）.
zUse telnet with CLI command.
5.1.2. Password Configuration
There are two levels to access to gateway: root level and general level. User with
root level can browse and set all configuration parameters, while user with general
level can set all configuration parameters except SIP (1-2) that some parameters
can not be changed, such as server address and port. User will has different access
level with different username and password.
zDefault user with general level：
username：guest
password：guest
zDefault user with root level：
username：admin
password：admin
5.2. Setting via web browser
When this gateway and PC are connected to network, enter the WAN port IP
address of the gateway as the URL (e.g. http://xxx.xxx.xxx.xxx/ or
http://xxx.xxx.xxx.xxx:xxxx/).
Gateway IP address can be received by dialing # * 111.
The login page is shown as below

5.3. Configuration via WEB
5.3.1. BASIC
5.3.1.1. Status
Status
Field name Explanation
Network Shows the configuration information on WAN and
LAN port, including the connect mode of WAN port
(Static, DHCP, PPPoE), MAC address, the IP
addresses of WAN port and LAN port, ON or OFF of
DHCP mode of LAN port.
Phone Number Shows the phone numbers provided by the SIP LINE
1-2 servers.
The last line shows the version number and issued
date.
5.3.1.2. Wizard
Wizard
Field Name Explanation

Please select the proper network mode according to the network condition.
A2 gateway provide three different network settings:
zStatic: If your ISP server provides you the static IP address, please select
this mode, and then finish Static Mode setting. If you don’t know about
parameters of Static Mode setting, please ask your ISP for them.
zDHCP: In this mode, you will get the information from the DHCP server
automatically; need not to input this information artificially.
zPPPoE: In this mode, you must input your ADSL account and password.
You can also refer to 3.2.1 to quick set your network.

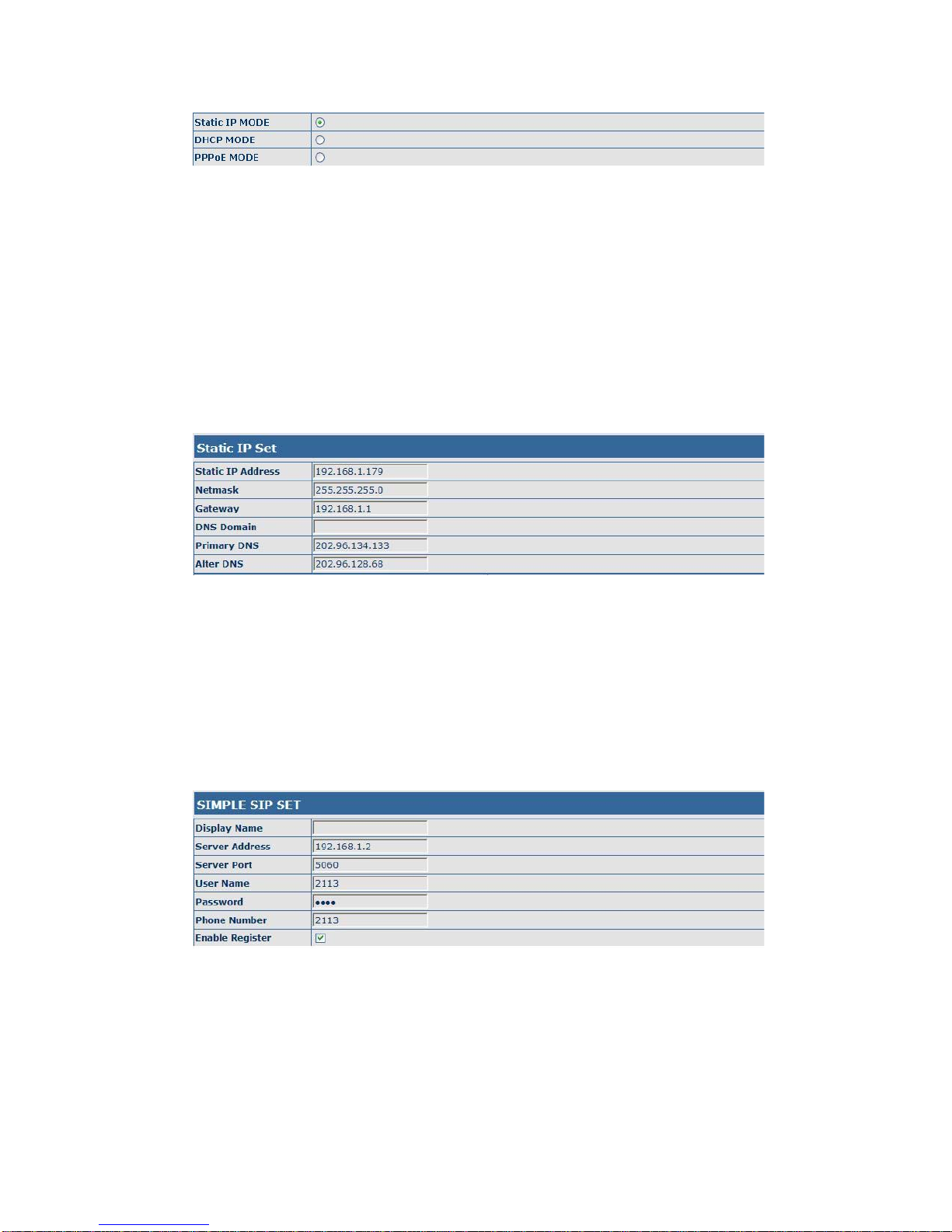

Choose Static IP MODE，click【NEXT】can config the network and SIP(default
SIP1)simply, also can browse too. Click【BACK】can return to the last page.
Static IP Address Input the IP address distributed to you.
Netmask Input the Netmask distributed to you.
Gateway Input the Gateway address distributed to you.
DNS Domain Set DNS domain postfix. When the domain which you
input can not be parsed, gateway will automatically add
this domain to the end of the domain which you input
before and parse it again.
Primary DNS Input your primary DNS server address.
Alter DNS Input your alternate DNS server address.
Display Name Set the display name.
Server Address Input your SIP server address.
Server Port Set your SIP server port.
User Name Input your SIP register account name.
Password Input your SIP register password.
Phone Number Input the phone number assigned by your VOIP service
provider.

Enable Register Start to register or not by selecting it or not.
Display detailed information that you manual config.
Choose DHCP MODE，click【NEXT】can config SIP(default SIP1)simply, also
can browse too. Click【BACK】can return to the last page. Like Static IP
MODE。
Choose PPPoE MODE，click【NEXT】can config the PPPoE account/password
and SIP(default SIP1)simply, also can browse too. Click【BACK】can return to
the last page. Like Static IP MODE。
PPPoE Server It will be provided by ISP.
Username Input your ADSL account.
Password Input your ADSL password.
Notice: Click【Finish】button after finished your setting, gateway will save the
setting automatically and reboot, After reboot, you can dial by the SIP
account.
5.3.2. Network
5.3.2.1. WAN Config
WAN Config

Field Name explanation
Active IP The current IP address of the gateway.
Current Netmask The current Netmask address.
MAC Address The current MAC address of the gateway.
Current Gateway The current Gateway IP address.
Get MAC Time Shows the time of getting MAC address
Please select the proper network mode according to the network condition.
A2 two-port gateway provide three different network settings:
zStatic: If your ISP server provides you the static IP address, please select
this mode, and then finish Static Mode setting. If you don’t know about
parameters of Static Mode setting, please ask your ISP for them.
zDHCP: In this mode, you will get the information from the DHCP server
automatically; need not to input this information artificially.
zPPPoE: In this mode, your must input your ADSL account and password.
You can also refer to 3.2.1 Network to quick set your network.
Obtain DNS
server
automatically
Select it to use DHCP mode to get DNS address, if you
don’t select it, you will use static DNS server. The
default is selecting it.
If you use static mode, you need set it.
IP Address Input the IP address distributed to you.
Netmask Input the Netmask distributed to you.
Gateway Input the Gateway address distributed to you.
DNS Domain Set DNS domain postfix. When the domain which you
input can not be parsed, gateway will automatically add
this domain to the end of the domain which you input
before and parse it again.
Primary DNS Input your primary DNS server address.
Alter DNS Input your alternate DNS server address.

If you uses PPPoE mode，you need to make the above setting.
PPPoE Server It will be provided by ISP.
Username Input your ADSL account.
Password Input your ADSL password.
Notice:
1）Click “Apply” button after finished your setting, IP gateway will save the
setting automatically and new setting will take effect.
2）If you modify the IP address, the web will not response by the old IP
address. Your need input new IP address in the address column to logon
in the web.
3）If networks ID which is DHCP server distributed is same as network ID
which is used by LAN of system, system will use the DHCP IP to set WAN,
and modify LAN’s networks ID(for example, system will change LAN IP
from 192.168.10.1 to 192.168.11.1) when system uses DHCP client to get IP
in startup; if system uses DHCP client to get IP in running status and
network ID is also same as LAN’s, system will refuse to accept the IP to
configure WAN. So WAN’s active IP will be 0.0.0.0
5.3.2.2. LAN Config
LAN Config
Field name explanation
LAN IP Specify LAN static IP.
Netmask Specify LAN Netmask.
DHCP Service Select the DHCP server of LAN port or not. After you
modify the LAN IP address, gateway will amend and
adjust the DHCP Lease Table and save the result
amended automatically according to the IP address and
Netmask. You need restart the gateway and the DHCP
server setting will take effect.
NAT Select NAT or not.
Bridge Mode Select Bridge Mode or not: If you select Bridge Mode,
the gateway will no longer set IP address for LAN
physical port，LAN and WAN will join in the same
network. Click “Apply”, the gateway will reboot.
Notice: If you choose the bridge mode, the LAN configuration will be

disabled.
5.3.2.3. Qos Config
The gateway support 802.1Q/P protocol and DiffServ configuration. VLAN
functionality can use different VLAN IDs by setting signal/voice VLAN and data
VLAN. The VLAN application of this device is very flexible.
In chart 1, there is two-layer switch without setting VLAN. Any broadcast frame will
be transmitted to the other ports except the send port. For example, a broadcast
information is sent out from port 1 then transmitted to port 2,3and 4.
In chart 2, red and blue indicate two different VLANs in the switch, and port 1 and
port 2 belong to red VLAN, port 3 and port 4 belong to blue VLAN. If a broadcast
frame is sent out from port 1, switch will transmit it to port 2, the other port in the
red VLAN and not transmit it to port3 and port 4 in blue VLAN. By this means, VLAN
divide the broadcast domain via restricting the range of broadcast frame transmit
ion.
Note: chart 2 use red and blue to identify the different VLAN, but in practice, VLAN
uses different VLAN IDs to identify.

QoS Configuration
Field name explanation
VLAN Enable Before select it to enable VLAN, you need enable Bridge
mode in LAN config.
VLAN ID Check
Enable
Enable VLAN ID check by selecting it. After enable
VLAN ID check, if VLAN ID of a data package is not the
same with the gateway or a data package do not have
VLAN ID, the data package will be discarded.
Voice/Data VLAN
differentiated
After enable VLAN, system will set packets with
different type of VLAN ID. Undifferentiated means after
using VLAN, both VoIP packets and other data packets
will use the voice VLAN ID; tag differentiated means
after using VLAN, VoIP(signal and voice) packets will
add voice VLAN ID, and other data packets will add data
VLAN ID; data untagged means after using VLAN, only
VoIP packets will add voice VLAN ID. Other data packets
will not use VLAN.
DiffServ Enable Select it or not to Enable or disable DiffServ.
DiffServ Value Set DiffServ value, the common value is 0x00.
Voice 802.1P
Priority Specify 802.1P Priority of voice/signal data package.
Data 802.1P
Priority Set 802.1p of data VLAN. Non-VoIP data (such as http, telnet, ping etc) will use this value to set VLAN package.
Voice VLAN ID Set VLAN ID of voice/signal data package.
Data VLAN ID Set 802.1q of data VLAN ID. Non-VoIP data (such as
http, telnet, ping etc) will use this value to set VLAN
package.
Notice：
1）Startup VLAN, if set Voice/Data VLAN differentiated as Undifferentiated, all
packets will use the Voice VLAN ID as the tag.
2) Startup VLAN, if set Voice/Data VLAN differentiated as tag differentiated
and disables the DiffServ, then system will not distinguish the voice and
data, all packets will use the Voice VLAN ID as the tag.
3) Startup VLAN, if set Voice/Data VLAN differentiated as tag differentiated
and enables the DiffServ, then system will distinguish the voice and data
and add the VLAN ID each other.

4) Startup VLAN, if set Voice/Data VLAN differentiated as data untagged, then
the packet of the signal/voice will use the Voice VLAN ID as the tag, but the
data packets will not take the VLAN tag.
5) If Disable the VLAN, regardless to set the Voice/Data VLAN differentiated or
not, all packets will not take the VLAN tag; If enable the DiffServ, all
packets will only take the DiffServ value.
6) One must to notice, enable the VLAN ID Check Enable that is default, If
enable it, the gateway will match the VLAN ID strictly. When others' VLAN
ID not matches with us, the packets will discard. Contrarily, the gateway
will accept the packets with the distinct VLAN ID.
7) You must gain the IP with the Static mode when you set VLAN, otherwise
can't gain the IP in the VLAN and also can not dial with point to point.
5.3.2.4. Service Port
You can set the port of HTTP/RTP by this page.
SERVICE PORT
Field name explanation
HTTP Port set web browse port, the default is 80 port，if you want
to enhance system safety，you'd better change it into
non-80 standard port；
Example: The IP address is 192.168.1.70. and the port
value is 8090, the accessing address is
http://192.168.1.70:8090
RTP Initial Port Set the RTP Initial Port. It is dynamic allocation.
RTP Port Quantity Set the maximum quantity of RTP Port, the default is
200.
Notice:
1）You need save the configuration and reboot the gateway after set this page.
2）If you modify the port of Telnet and HTTP, you would better set the value
more than 1024 because the port value less than 1024 is system port
reserved.
3）if you set 0 for the HTTP port, it will disable HTTP service.
