Fanvil LINKVIL W712 User manual

: 8VHU 0DQXDO
User Manual
W712
Software Version: 2.12.0
Release Date˖2023/2/3

: 8VHU 0DQXDO
Directory
Directory
1Picture
2 Table
3 Safety Instruction
3.1 Safety Instruction
3.2 Precautions
3.3 FCC
4Overview
5 Desktop Installation
5.1 Use POE or external Power Adapter
5.2 Replacement battery
5.2.1 LED status
6 Introduction to the User
6.1 Interface description
6.2 Installation instructions
6.2.1 Installation
6.2.2 Device IP address
6.3 Web Management
6.4 SIP Configurations
&KDQQHO FRQILJXUDWLRQ
&DOO FRQILJXUDWLRQ
6.7 0DLQWHQDQFH LQVWUXFWLRQ
7 Basic Function
7.1 Forward the call side call to the intercom side
7.2 )orward the intercom side to the call side
7RQH
8 Advance Function
8.1 Record
8.2 MCAST
8.3 SIP Hotspot
9 Web Configurations
9.1 Web Page Authentication
9.2 System >> Information

: 8VHU 0DQXDO
9.3 System >> Account
9.4 System >> Configurations
9.5 System >> Upgrade
9.6System>>AutoProvision
9.7 System >> Tools
9.8 System >> Reboot GHYLFH
1HWZRUN !! %DVLF
9.9.1 Network Settings
9.9.2 VPN
9.10 Network >> Wi-Fi Settings
9.11 Network >> Service Port
9.12 Network >> VPN
9.13 Line >> SIP
9.14 Line >> SIP Hotspot
9.15 Line >> Basic Settings
9.16 Line >> RTCP-XR
9.17 GHYLFH settings >> Features
9.18 GHYLFH settings >> Media Settings
9.19 GHYLFH settings >> MCAST
9.20 GHYLFH settings >> Action
9.21 GHYLFH settings >> Time/Date
9.22 GHYLFH settings >> Time Plan
9.22.1 Repeat Period Select Daily
9.22.2 Repeat Period Select Weekly
9.22.3 Time Plan List
9.22.4 Delete
9.23 Intercom Settings>> Channel Settings
9.24 Intercom Settings>> Call and VAD detection function
9.25 Call List
9.26 Call Log
9.27 Application >> Manage Recording
9.28 Security >> Web Filter
9.29 Security >> Trust Certificates
9.30 Security >> Device Certificates
9.31 Security >> Firewall
9.32 Device Log >> Device Log
10 Trouble Shooting

: 8VHU 0DQXDO
10.1 Get Device System Information
10.2 Reboot Device
10.3 Reset Device to Factory Default
10.4 Network Packets Capture
10.5 Get Log Information
8 GLVN7) FDUG XSJUDGH
10.7 Common Trouble Cases

: 8VHU 0DQXDO
1Picture
Picture - Interface display
Picture -Install antenna
Picture - Install network cable
Picture - Install power adapter
Picture -IPaddress
Picture - WEB Login
Picture -WebSIPregistration
Picture - Channel configuration
Picture - Digital channel parameters
Picture - Analog channel parameters
Picture - Channel configuration
3LFWXUH Time Plan
Picture - Web Setting Gateway Channel
Picture - Web setting transfer number
Picture - Setting voice prompt
Picture - recording settings Page
Picture - Multicast Settings Page
Picture - Register SIP account
Picture - SIP hotspot server configuration
Picture - SIP hotspot client configuration
Picture - Web page firmware upgrade
Picture - Page auto provision Settings
Picture -Tools
Picture - Reboot Phone
Picture -NetworkmodeSettings
Picture -DHCPnetworkmode
Picture - PPPoE network mode
Picture -StaticIPnetworkmode
Picture -IPv6StaticIPnetworkmode
Picture - Network Priority
Picture -WiFiSettings
Picture - Service Port Settings
Picture -TimePlan(1)
Picture -TimePlan(2)
Picture -TimePlan(3)

: 8VHU 0DQXDO
Picture -TimePlan(4)
Picture - Time Plan (5)
Picture -TimePlan(6)
Picture - Web Filter settings
Picture - Web Filter Table
Picture - Certificate of settings
Picture - Device certificate setting
Picture - Network firewall Settings
Picture - Firewall Input rule table
Picture - Delete firewall rules

: 8VHU 0DQXDO
2Table
Table - Button and LED status
Table - Interface Description
Table - MCAST Parameters on Web
Table - SIP hotspot Parameters
Table - Firmware upgrade
Table - Auto Provision
Table -Serviceport
Table - Line configuration on the web page
Table - Set the line global configuration on the web page
Table - VQ RTCP-XR Settings
Table - General function Settings
Table - Voice settings
Table - Multicast parameters
Table -Time&Datesettings
Table -TimePlan
Table - Call and VAD detection function
Table -NetworkFirewall
Table -TroubleCases

: 8VHU 0DQXDO
3 Safety Instruction
3.1 Safety Instruction
Please read the following safety notices before installing or using this unit. They are crucial for the safe
and reliable operation of the device.
Please use the external power supply that is included in the package. Other power supply may cause
damage to the device and affect the behavior or induce noise.
Before using the external power supply in the package, please check the home power voltage.
Inaccurate power voltage may cause fire and damage.
Please do not damage the power cord. If power cord or plug is impaired, do not use it because it may
cause fire or electric shock.
Do not drop, knock or shake the device. Rough handling can break internal circuit boards.
This device is designed for indoor use. Do not install the device in places where there is direct sunlight.
Also do not put the device on carpets or cushions. It may cause fire or breakdown.
Avoid exposure the device to high temperature or below 0ćor high humidity.
Avoid wetting the unit with any liquid.
Do not attempt to open it. Non-expert handling of the device could damage it. Consult your authorized
dealer for help, or else it may cause fire, electric shock and breakdown.
Do not use harsh chemicals, cleaning solvents, or strong detergents to clean it. Wipe it with a soft cloth
that has been slightly dampened in a mild soap and water solution.
When lightning, do not touch power plug, it may cause an electric shock.
Do not install this device in an ill-ventilated place. You are in a situation that could cause bodily injury.
Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be
familiar with standard practices for preventing accidents.
3.2 Precautions
The equipment supports one digital channel or analog channel, but cannot be mixed. When the gateway
is set as a digital channel, please use the digital radios to call. When the gateway is set as an analog channel,
please use the analog radios to call. If one party is set as a digital channel, and the other party is set as an
analog channel (no sub-tone code status), forced mixed use at the same frequency, the phone end and the
radios end may have use problems.

: 8VHU 0DQXDO
3.3 FCC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference.
(2) this device must accept any interference received, including interference that may cause undesired
operation.

: 8VHU 0DQXDO
4Overview
W712 is a RoIP intercom gateway developed specifically for the needs of industrial users. It supports the
interconnection between traditional analog/digital intercom and SIP industry products. Audio intercom is
realized by connecting analog/digital intercom and SIP products. It has strong penetration and can adapt to
various environments such as communities, buildings, warehouses, and parks, facilitating rapid deployment
of devices. And the equipment size is small, suitable for all kinds of integration of DIY applications.
ln order to help some users who are interested to read every detail of the product, this user manual is
provided as a user's reference guide. Stil, the document might not be up to date with the newly release
software, so please kindly download updated user manual from Fanvil website , or contact with Fanvil support
if you have any question using W611W.

: 8VHU 0DQXDO
5 Desktop Installation
5.1 Use POE or external Power Adapter
W712 supports two power supply modes, power supply from external power adapter or over Ethernet
(POE) complied switch.
POE power supply saves the space and cost of providing the device additional power outlet. With a POE
switch, the device can be powered through a single Ethernet cable which is also used for data transmission.
By attaching UPS system to POE switch, the device can keep working at power outage just like traditional
PSTN teledevice which is powered by the teledevice line.
For users who do not have POE equipment, the traditional power adaptor should be used. If the device is
connected to both POE switch and external power adapter, W712 will get power supply from POE switch in
priority, and change to external power adapter once the POE power supply fails.
Please use the power adapter and the POE switch met the specifications to ensure the device work
properly.
5.2 Replacement battery
5.2.1 LED status
Table 1 - Button and LED status
Type
LED
status
POWER lED
Normally on
Turn on power
SIP
Normally on
Register successfully
Fast flashing
In the call
Bicolor
Red normally on
Emitting status
Green normally on
Receiving status
BicolorSIP
Fast flash at the same
time
Power starting

: 8VHU 0DQXDO
6 Introduction to the User
6.1 Interface description
Picture 1 - Interface display
Table 2 - Interface Description
Number
Name
Description
ķ
External antenna interface
Transmit and receive signals
ĸ
Grounding screw interface
Grounding protection device to prevent leakage
Ĺ
Power interface
12V/1.5A input, pay attention to internal positive and
external negative
ĺ
USB interface
External USB flash disk can be connected, up to 128G
Ļ
TFcard interface
External USB flash disk can be connected, up to 128G
ļĽ
Ethernet WAN/LAN interface
Standard RJ45 interface, 10/100M adaptive,
recommended to use Category 5 or super Category 5
network cable
6.2 Installation instructions
6.2.1 Installation
1. Voltage check
Check whether the voltage of DC power or external power supply is within the working voltage range of this

: 8VHU 0DQXDO
product (12V/2A)
2. Product inspection
After the power is turned on, check whether the product runs normally by observing the status of all indicators
on the front panel. Please refer to "Basic Functional Operation".
3. Accessories installation
When this device is not enabled, first of all, it is necessary to install the supporting narrow belt antennas,
power adapter, and connected to WAN network cable.
4. Install antenna
Insert a threaded end with a thread into a narrowband connector and then tighten.

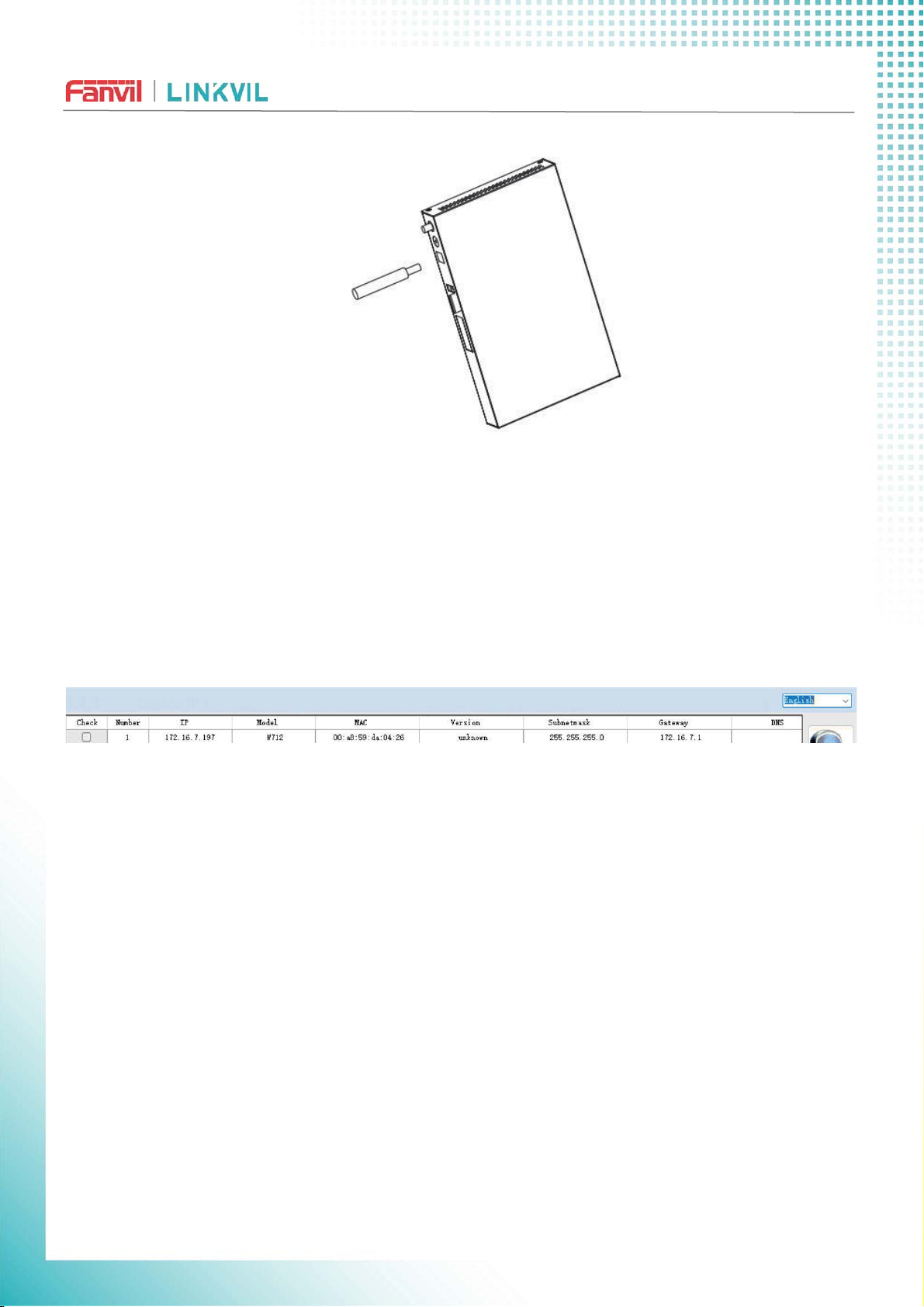

Picture 2 -Install antenna
5. Install network cable
Insert the network cable into the WAN mesh (Ethernet) and support POE power supply (802.3AT).
Picture 3 - Install network cable
6. Install power adapter
Insert the connection head of the power adapter wire into the 12V power connector of the device.

: 8VHU 0DQXDO
Picture 4 - Install power adapter
6.2.2 Device IP address
Open the web page and enter http://download.fanvil.com/tool/iDoordeviceNetworkScanner.exe
to download and install the IP scanning tool.
Open the IP scanning tool, click the refresh button, search for the device and find the
corresponding IP address.
Picture 5 - IP address
6.3 Web Management
When the device and your computer are successfully connected to the network, enter the IP address of
the device on the browser as http://xxx.xxx.xxx.xxx/ and you can see the login interface of the web page
management.

: 8VHU 0DQXDO

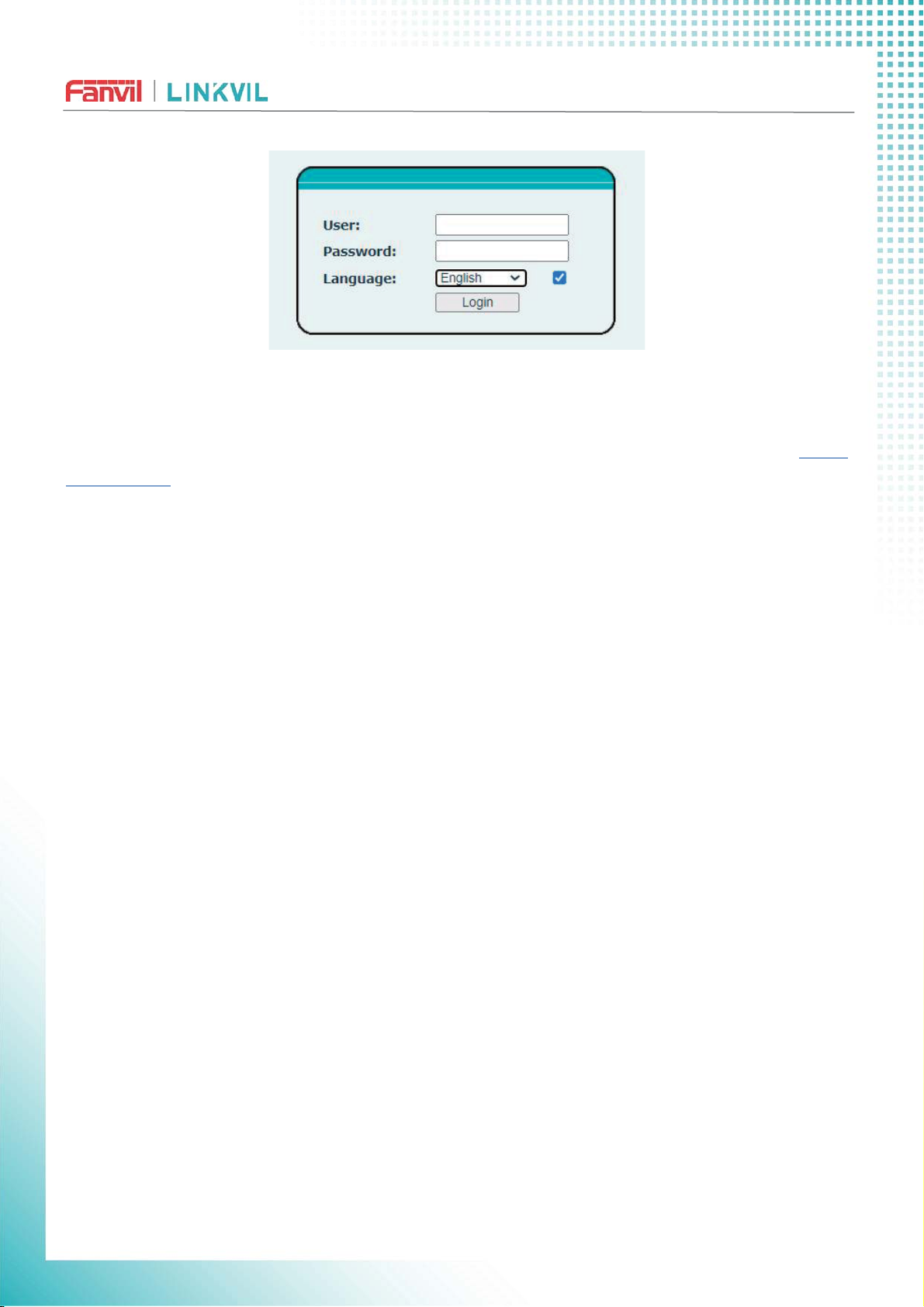

Picture 6 - WEB Login
The username and password should be correct to log in to the web page. The default username and
password are "admin". For the specific details of the operation of the web page, please refer to 9Web
Configurations
.
6.4 SIP Configurations
At least one SIP line should be configured properly to enable the telephony service. The line
configuration is like a virtualized SIM card. Just like a SIM card on a mobile device, it stores the service
provider and the account information used for registration and authentication. When the device is applied with
the configuration, it will register the device to the service provider with the server’s address and user’s
authentication as stored in the configurations.
WEB interface: After login into the device page, enter [Line]>>[SIP] and select SIP1/SIP2 for
configuration, click apply to complete registration after configuration, as shown below:

: 8VHU 0DQXDO
Picture 7 - Web SIP registration
6.5 Channel configuration
Setting requires configuration channel information to provide intercom services. If you want to talk to
the intercom, set the transmitting and receiving frequency to the same as the intercom. Click Edit to edit the
unique parameters of the digital channel/analog channel.
Digital channel settings are set up in intercom after the color code, and only when the transmission and
receiving color code can be transmitted. The analog channel configuration can also talk normally after the
Asian code is configured; the intercom that does not match the Asian sound cannot speak. The frequency can
be set for any value within the scope of the state regulations.
The power level determines the scope of launch. On the uninteresting urban road, the maximum range of
4W is 3 kilometers and the maximum range of 0.5W is 1.2 kilometers. Customers can choose power
according to the distance.

: 8VHU 0DQXDO
Picture 8 - Channel configuration
Picture 9 - Digital channel parameters

: 8VHU 0DQXDO
Picture 10 - Analog channel parameters
6.6 Call configuration
If you want to use the intercom to call the phone directly for calling, you need to configure the number of
intercom. Configure SIP number or multicast.
Picture 11 - Channel configuration

: 8VHU 0DQXDO
6.7 Maintenance instruction
To ensure stable operation of the device, it is recommended to perform a scheduled restart of the device as
follows:
1. Enter ǏPhone Settingsǐ-ǏTime Planǐ
2. Select the type as scheduled restart, the recurrence period as monthly, andselectacertaindayand
effective time to add.
3LFWXUH 7LPH 3ODQ

: 8VHU 0DQXDO
7 Basic Function
7.1 Forward the call side call to the intercom side
When there is a phone call, the device is automatically answered by default and does not need to
configure the user. When the user is configured on the webpage, the channel related parameters are
consistent with the intercom. When the user speaks on the phone, the gateway automatically forwards the
voice on the side of the phone to the intercom side side to the side of the intercom side side.
When there is a multicast, when the user speaks, the gateway will automatically forward the voice on the
side of the phone to the side of the intercom.
Note: When the user uses a multicast to the gateway on the side of the phone, the transmission needs to
be manually ended immediately after the speech, otherwise it will affect the gateway to transmit the intercom
to the phone
Picture 13 - Web Setting Gateway Channel
7.2 Forward the intercom side to the call side
There are two cases of the gateway to the side of the interpretation to the side of the phone.
When the phone actively initiates the call:
Users do not need to set up the intercom's call number on the intercom. Before the call is not over, the user
presses the PTT speech on the side of the intercom directly to initiate the call before the call is over. machine
When the intercom is initiated to initiate a call:
Users need to set up the intercom's call number on the [intercom settings] >> [call and VAD detection
function]. After setting, the user presses the PTT to speak on the intercom side to be forwarded to the
corresponding number to set the corresponding number.
Table of contents
Other Fanvil Gateway manuals

Fanvil
Fanvil PA3 User manual

Fanvil
Fanvil G100S User manual

Fanvil
Fanvil PA2S User manual

Fanvil
Fanvil A1 User manual

Fanvil
Fanvil A2 Operational manual

Fanvil
Fanvil PA2S Installation and user guide

Fanvil
Fanvil PA2S Installation and user guide

Fanvil
Fanvil PA2S User manual

Fanvil
Fanvil PA3 User manual

Fanvil
Fanvil PA2 User manual
Popular Gateway manuals by other brands

Raisecom
Raisecom ISCOM HT803G-W user manual

Ejoin
Ejoin ACOM516 user manual

Multitech
Multitech MultiVOIP MVP200 quick start guide

National Instruments
National Instruments NI 9792 WSN Getting started guide

Patton
Patton FiberPlex FPX6000 Series quick start guide

AudioCodes
AudioCodes MediaPack MP-11x Series user manual
