Federal Signal Corporation AV1-LED Manual

Model AV1-LED
Audio-Visual LED Light
2561528A
REV. A 512
Printed in U.S.A.
Imprimé aux États-Unis
Impreso en EE. UU.
Installation and
Maintenance Manual
français..............page 21
español..............página 41

2
Warranty – Seller warrants all goods for ve years on parts and 2-1/2 years
on labor, under the following conditions and exceptions: Seller warrants that
all goods of Seller's manufacture will conform to any descriptions thereof for
specications which are expressly made a part of this sales contract and at the time
of sale by Seller such goods shall be commercially free from defects in material
or workmanship. Seller reserves the right at the Seller’s discretion to “Repair and
Return” or “Replace” any item deemed defective during the warranty period. This
warranty does not cover travel expenses, the cost of specialized equipment for
gaining access to the product, or labor charges for removal and reinstallation of
the product. This warranty shall be ineffective and shall not apply to goods that
have been subjected to misuse, neglect, accident, damage, improper maintenance,
or to goods altered or repaired by anyone other than Seller or its authorized
representative, or if ve years have elapsed from the date of shipment of the goods
by Seller with the following exceptions: lamps and strobe tubes are not covered
under this warranty. Outdoor warning sirens and controllers manufactured by
Federal Warning Systems are warranteed for two years on parts and one year on
labor. No agent, employee, representative or distributor of Seller has any authority
to bind the Seller to any representation, afrmation, or warranty concerning the
goods and any such representation, afrmation or warranty shall not be deemed to
have become a part of the basics of the sales contract and shall be unenforceable.
THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL
OTHER WARRANTIES OR MERCHANTABILITY, FITNESS FOR PURPOSE
AND OF ANY OTHER TYPE, WHETHER EXPRESS OR IMPLIED. These
warranties shall not apply unless Seller shall be given reasonable opportunity
to investigate all claims for allegedly defective goods. Upon Seller's instruction
a sample only of allegedly defective goods shall be returned to Seller for its
inspection and approval. The basis of all claims for alleged defects in the goods
not discoverable upon reasonable inspection thereof pursuant to paragraph 8 hereof
must be fully explained in writing and received by Seller within thirty days after
Buyer learns of the defect or such claim shall be deemed waived.
Industrial Systems
2645 Federal Signal Drive • University Park, IL 60484-3167
Tel: [phone] • Fax: [phone]
Email: [email protected] • www.federalsignal-indust.com

Model AV1-LED Lights 3
Contents
Safety Messages to Installers and Users..............................................5
Unpacking the Model AV1-LED ..........................................................6
Introduction to the Model AV1-LED...................................................6
Mounting the Model AV1-LED............................................................6
Pipe Mounting .........................................................................................7
Surface Mounting ....................................................................................7
Wiring the Model AV1-LED.................................................................9
Single Power Supply for Light and Sounder ..........................................9
Separate Power Supplies for Light and Sounder ..................................10
Selecting How the Model AV1-LED Operates..................................12
Safety Message to Maintenance Personnel.......................................13
Replacing the Sounder........................................................................15
Accessing the Sounder ..........................................................................15
Replacing the Sounder and Reassembling the Light ............................15
Replacing the AV1-LED Stick PCBAs .............................................. 16
Obtaining Service, Assistance, and Parts..........................................17
Repair Service ......................................................................................17
Technical Assistance .............................................................................17
Mounting Accessories and Replacement Parts .....................................17
Returning a Product for Credit ..............................................................19

Model AV1-LED Lights
4
■ Installation and Maintenance Manual
Figures
Figure 1 Surface mount exploded view ................................................8
Figure 2 Mounting hole dimensions .....................................................9

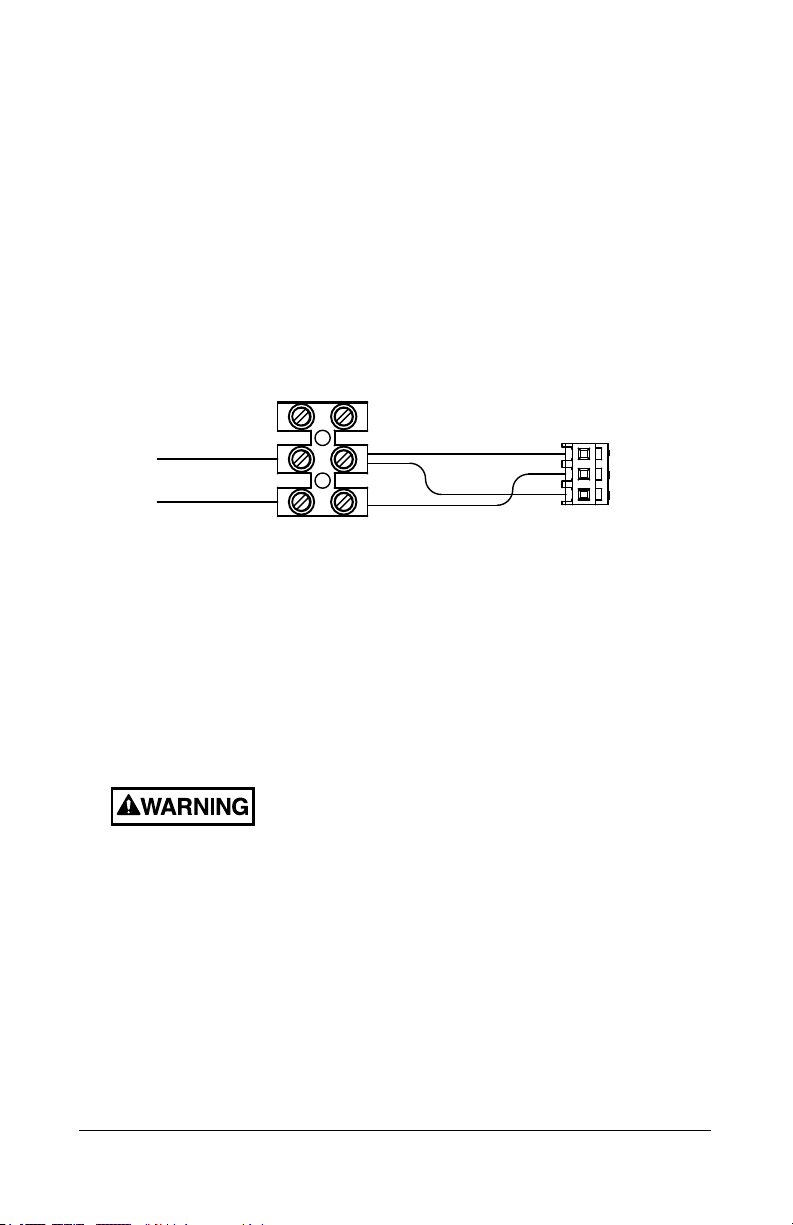

Figure 3 Wiring for single power supply ............................................10
Figure 4 Wiring for separate power supplies ......................................11

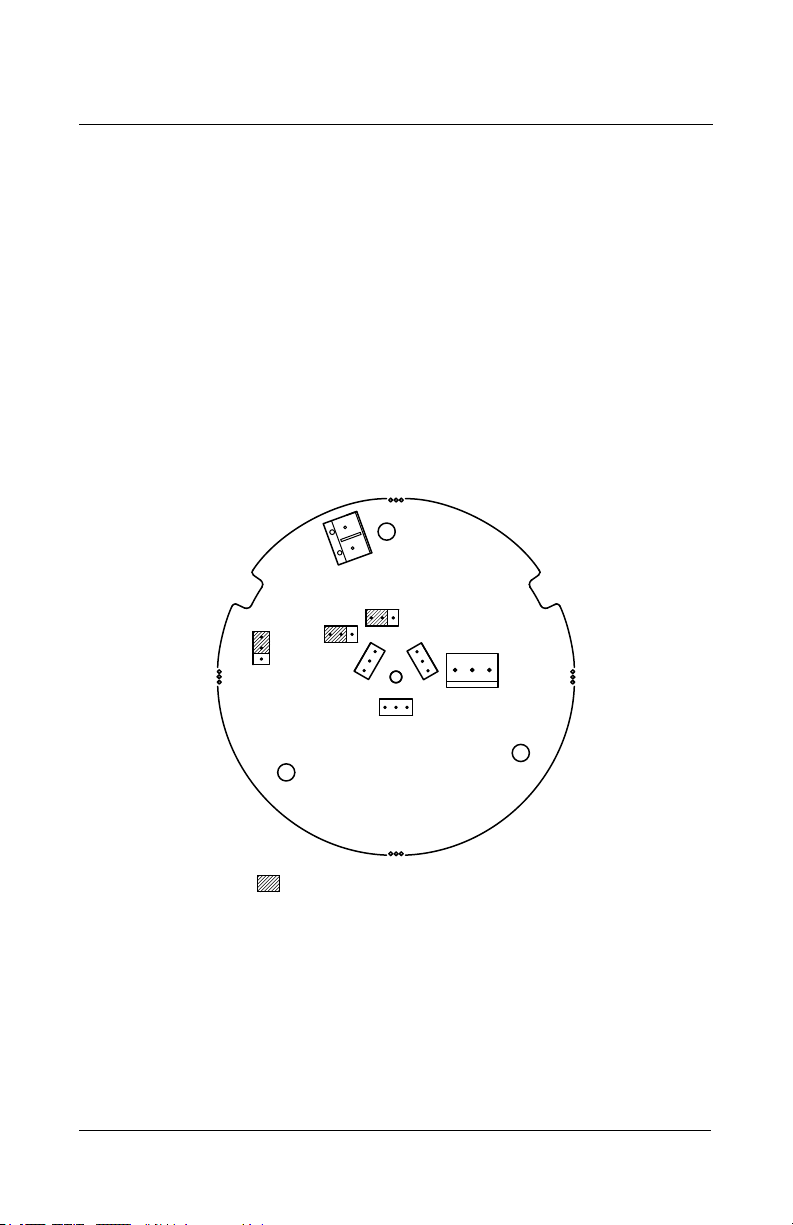

Figure 5 Jumpers controlling LED and buzzer ...................................12
Figure 6 Exploded view with sounder ................................................14
Tables
Table 1 Mounting accessories .............................................................18
Table 2 Replacement parts ..................................................................18

Model AV1-LED Lights 5
Installation and Maintenance Manual ■
Safety Messages to Installers and Users
It is important to follow all instructions shipped with this product. This
device is to be installed by trained personnel who are thoroughly familiar
with the country electric codes and will follow these guidelines as well
as local codes.
The selection of a mounting location for the Model AV1-LED, its
controls, and wiring routing must be done under the direction of the
facilities engineer and the safety engineer. In addition, listed below are
some other important safety instructions and precautions you should
follow:
• Read and understand all instructions before installing or operating
this product.
• To avoid electrical shock, disconnect the light from the power
supply before installing the light.
• After installation, test the system to ensure that it is operating
properly.
• The product nameplate, which may contain cautionary or other
information of importance to maintenance personnel, should not be
obscured in any way.
• To be an effective warning device, this product produces bright
light that can be hazardous to your eyesight when viewed at close
range. Do not stare directly into this lighting product at close range
or permanent damage to your eyesight may occur.
• Establish a procedure to routinely check the system for proper
activation and operation.
• After testing is complete, provide a copy of these instructions to all
operating personnel.
Failure to follow all safety precautions and instructions may result in
property damage, serious injury, or death.

Model AV1-LED Lights
6
■ Installation and Maintenance Manual
Unpacking the Model AV1-LED
After unpacking the Model AV1-LED, examine it for damage that
may have occurred in transit. If the product has been damaged, do
not attempt to install or operate it. File a claim immediately with the
carrier stating the extent of the damage. Carefully check all envelopes,
shipping labels and tags before removing or destroying them. If any
parts are missing, please call Federal Signal Customer Support at
708-534-4756.
Introduction to the Model AV1-LED
The Model AV1-LED combination audible/visual signal features a
100-percent polycarbonate housing that is rated for Type 3R rain-
tight applications. The Fresnel lens provides superior visibility in all
directions. Available lens colors include amber, blue, clear, green, and
red. Jumper settings enable you to select a fast or slow ash rate and
whether the buzzer and/or LED operate intermittently or continuously.
The AV1-LED design provides three mounting congurations. The
black base will accommodate mounting to a 1/2-inch NPT pipe, a
4-inch octagonal electrical box, or any at surface. The surface-mount
gasket serves as a template for preparing a at surface with appropriate
mounting holes.
All Model AV1-LED units feature a unique twist-and-lock lens to enable
tool-free access to the LED light. The integrated buzzer provides 85 dB
output at 10 ft (95 dB at 1 m). Two voltage variations are available:
24 Vdc and 120 Vac. Each Model AV1-LED is factory-assembled with
two color-coded leads for wiring to a junction box. If necessary, installers
can remove the leads and connect the power supply to the Model AV1-
LED directly to the terminal block located in the base of the unit.
Mounting the Model AV1-LED
This section describes how to pipe-mount and surface-mount the light. To
mount the light on a vertical surface, use a separately purchased Model
LWMB2 (wall mounting bracket) or LCMB2 (corner mounting bracket)
mounting kit (Table 1 on page 18). For weatherproof installation, the
light must be mounted vertically with the lens facing upwards.

Model AV1-LED Lights 7
Installation and Maintenance Manual ■
Pipe Mounting
To mount the Model AV1-LED on a 1/2-inch NPT pipe:
1. Attach the light to the pipe by turning the light clockwise.
2. To make the electrical connections, refer to “Wiring the Model
AV1-LED” on page 9.
Surface Mounting
To mount the Model AV1-LED on a at mounting surface:
1. Remove and retain the three #8 screws securing the upper
housing to the lower housing. Remove the upper housing.
(Figure 1 on page 8).
2. Using the gasket as a template or the dimensions shown in
Figure 2 on page 9, scribe three drill-position marks on the
mounting surface.
3. Drill a 3⁄16-inch (4.8 mm) diameter hole at the two outside
drill-position marks for mounting.
4. Drill or punch a 3⁄4-inch (19.1 mm) diameter hole at the center
drill-position mark for wire entry.
5. Use a small punch to remove the appropriate knockouts in the
lower housing.
6. Center the mounting holes in the rubber gasket over the
mounting holes in the mounting surface.
7. Center the mounting holes in the lower housing over the
mounting holes in the gasket.
8. Secure the light to the mounting surface using the two mounting
screws.
9. Refer to “Wiring the Model AV1-LED” on page 9 to complete
the installation.

Model AV1-LED Lights
8
■ Installation and Maintenance Manual

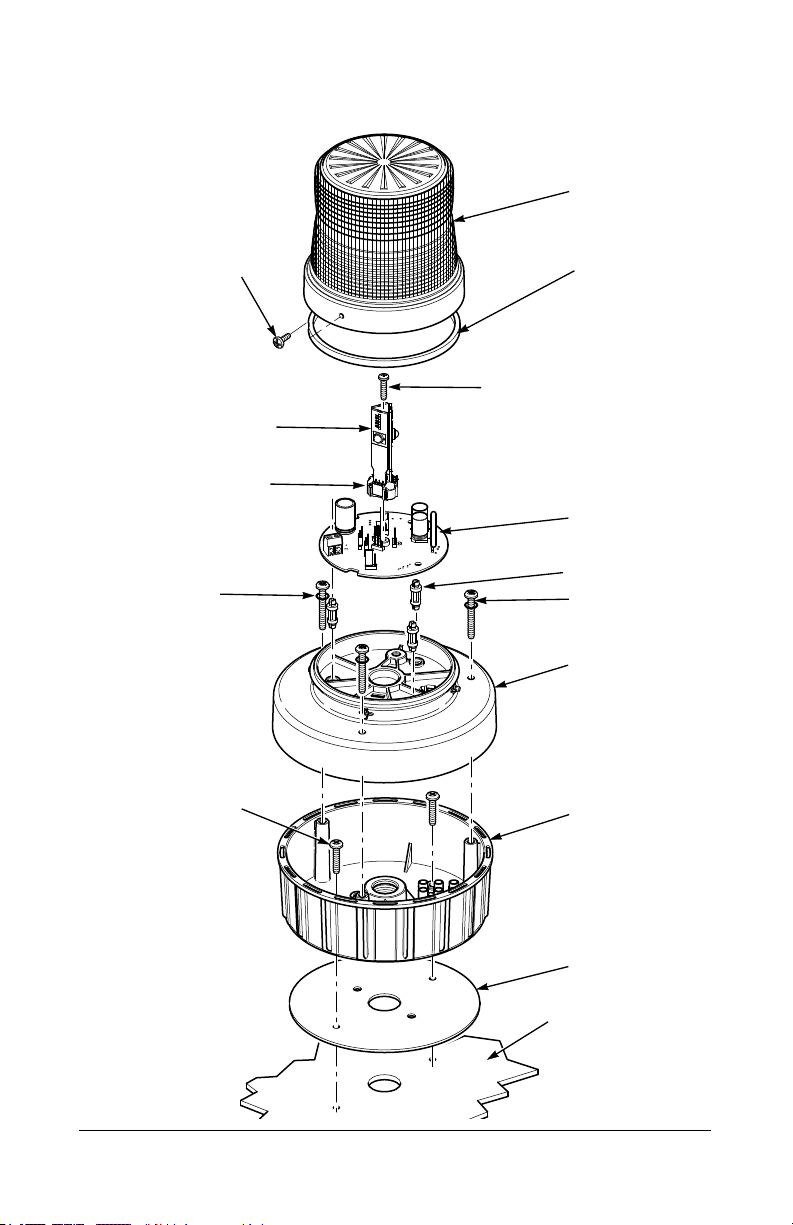

Figure 1 Surface mount exploded view
290A6504
LENS
LOCKING SCREW
POWER PCBA
#8 SCREW (3)
UPPER HOUSING
MOUNTING SCREW (2) LOWER HOUSING
SURFACE-MOUNT
GASKET
MOUNTING SURFACE
LOCKING HEX NUT (2)
O-RING (3)
LENS GASKET
AV1LED STICK PCBA
(3 REQUIRED)
PCBA STANDOFF (3)
RETAINING BRACKET
SCREW SECURING THE
RETAINING BRACKET WITH
THE GROUP OF THREE
AV1LED STICK PCBAS

Model AV1-LED Lights 9
Installation and Maintenance Manual ■
Figure 2 Mounting hole dimensions
3.50 in (88.9 mm)
0.75 in (19.1 mm) 0.188 in (4.8 mm)
290A6505
Wiring the Model AV1-LED
The Model AV1-LED comes assembled from the factory with two color-
coded leads for wiring to a junction box. To connect the Model AV1-
LED directly to a power supply, simply remove the factory leads and
make the power connections to the terminal block located in the lower
housing.
SHOCK HAZARD—Do not connect the light to the system while
the power is on. Failure to heed this warning may cause serious
injury or death
Single Power Supply for Light and Sounder
Required for the installation are supply wires of the appropriate size
(12 AWG [3.0 mm2] maximum thickness).
To wire the light to a single power supply for the unit:
1. Turn off power to the system.
2. Remove and retain the three #8 screws securing the upper
housing to the lower housing. Remove the upper housing.
3. Remove the factory eld-wiring leads from the terminal block.
4. Route supply wires of the appropriate gauge into the housing
through the conduit entry.

Model AV1-LED Lights
10
■ Installation and Maintenance Manual
5. Strip a maximum of 0.25 in (6.4 mm) of wire insulation from
the ends of the power leads.
6. See Figure 3. To connect the wires to the terminal block, insert
the stripped ends of the wires into the connector as far as
they can go, then tighten the clamping screw. The maximum
tightening torque is 4.5 in-lb (0.5 N•m).
7. Reassemble the Model AV1-LED, restore power, and test the
unit for proper operation.
Figure 3 Wiring for single power supply
TERMINAL
NEUTRAL/−
BLOCK
LINE/+
PCBA
CONNECTOR
YELLOW
RED
WHITE
290A6506
Separate Power Supplies for Light and Sounder
In some applications it may be benecial to control the light
independent of the sounder. If this is the case, separate power
supply wiring for each of the devices can be connected to the
terminal block. Required for the installation are supply wires of
the appropriate size (14 AWG [2.0 mm2] maximum thickness).
SHOCK HAZARD—Do not connect the light to the system
while the power is on. Failure to heed this warning may cause
serious injury or death.
To wire the light and sounder to separate power supplies:
1. Turn off power to the system.
2. Remove and retain the three #8 screws securing the upper
housing to the lower housing. Remove the upper housing.
3. Remove the factory eld-wiring leads from the terminal block.

Model AV1-LED Lights 11
Installation and Maintenance Manual ■
4. Route separate supply wires of the appropriate gauge for the
light and sounder into the housing through the conduit entry.
5. Strip a maximum of 0.25 in (6.4 mm) of wire insulation from
the ends of the power leads.
6. See Figure 4. To connect the wires to the terminal block, insert
the stripped ends of the wires into the connector as far as
they can go, then tighten the clamping screw. The maximum
tightening torque is 4.5 in-lb (0.5 N•m).
NOTE: If it is necessary to combine two NEUTRAL/– wires,
connect them to the same terminal on the terminal block.
7. Reassemble the Model AV1-LED, restore power, and test the
unit for proper operation.
Figure 4 Wiring for separate power supplies
LINE/+ (SOUNDER)
WHITE
YELLOW
RED
LINE/+ (LIGHT)
NEUTRAL/−
PCBA
CONNECTOR
290A6507

Model AV1-LED Lights
12
■ Installation and Maintenance Manual
Selecting How the Model AV1-LED Operates
Jumpers at J3, J4, and J5 on the power PCBA enable you to select how
the Model AV1-LED operates. The options are (factory settings in
brackets):
◆ J3 Flash Rate: [fast] or slow
◆ J4 LED: [intermittent] or continuous
◆ J5 Sounder: [intermittent] or continuous
Figure 5 shows the locations and factory-set positions of the three
jumpers.
Figure 5 Jumpers controlling LED and buzzer
F
F
RATE
J5
J4
J3
INDICATES FACTORY-SET POSITION
POWER PCBA
NOTE: The continuous illumination and sound features allow the
AV1-LED to be operated with variations in the external ash patterns
and duty cycle. However, the AV1-LED is not intended to be powered
on continuously for long periods of time. Doing so will signicantly
shorten the life of the sounder; and therefore continuous operation of
the AV1-LED is not recommended.

Model AV1-LED Lights 13
Installation and Maintenance Manual ■
Safety Message to Maintenance Personnel
Listed below are some important safety instructions and precautions
you should follow:
• Any maintenance to the system must be performed by a trained
electrician in accordance with NEC/CEC guidelines and local
codes.
• Read and understand all instructions before operating this system.
• To avoid electrical shock, turn off power to the system before
performing any maintenance.
• The circuitry of the Model AV1-LED can be damaged by
electrostatic discharge. Follow anti-static procedures when
servicing this product.
• Never alter the unit in any manner. Safety may be endangered if
additional openings or other alterations are made to the unit.
• The nameplate, which contains cautionary or other information of
importance to maintenance personnel, should not be obscured in
any way.
• To be an effective warning device, this product produces bright
light that can be hazardous to your eyesight when viewed at close
range. Do not stare directly into this lighting product at close range
or permanent damage to your eyesight may occur.
• After performing any maintenance, test the system to ensure that it
is operating properly.
• Establish a procedure to routinely check the system for proper
activation and operation.
Failure to follow all safety precautions and instructions may result in
property damage, serious injury, or death.

Model AV1-LED Lights
14
■ Installation and Maintenance Manual
Figure 6 Exploded view with sounder
LENS
LENS GASKET
AV1LED STICK PCBA
(3 REQUIRED)
BLACK WIRES
FROM SOUNDER
POWER PCBA
O-RING (3)
UPPER HOUSING
MOUNTING SCREW (2)
LOWER HOUSING
SOUNDER
PCBA STANDOFF (3)
#8 SCREW (3)
THREADED STUD
FLAT WASHERS (3)
290A6508
LOCKING SCREW

Model AV1-LED Lights 15
Installation and Maintenance Manual ■
Replacing the Sounder
Occasionally check for a reduction in the output of the sounder. If the
sound pressure is reduced to an ineffective level, replace the sounder.
SHOCK HAZARD—Do not connect the light to the system while
the power is on. Failure to heed this warning may cause serious
injury or death.
Accessing the Sounder
The sounder is located on the bottom of the upper housing (Figure 6
on page 14).
To access the sounder:
1. Turn off power to the system.
2. Loosen the lens locking screw and twist the lens counter-
clockwise one-quarter turn. Remove the lens from the upper
housing.
3. Loosen the screws on terminal block J9 on the PCBA and
remove the black leads of the sounder.
4. The mounting holes permit only one orientation of the PCBA.
Note or mark the orientation.
5. Use a at-head screwdriver to carefully pry the PCBA from the
three nylon standoffs and set the PCBA aside.
6. Remove the three #8 screws securing the upper housing to the
lower housing and remove the upper housing.
Replacing the Sounder and Reassembling the Light
1. Unscrew the sounder from the upper housing (Figure 5 on
page 12). Be careful to not lose the three washers that space
the sounder from the upper housing.
2. Place the washers on the threaded lug of the new sounder and
hand-tighten the sounder.

Model AV1-LED Lights
16
■ Installation and Maintenance Manual
3. To reconnect the wires to the terminal block, insert the ends
of the wires into the J9 connector as far as they can go, then
tighten the clamping screw. The maximum tightening torque is
4.5 in-lb (0.5 N•m).
4. Gently press the PCBA onto the standoffs until it locks in place.
5. Align the pins on the housing with the detents on the lens.
Apply downward pressure on the lens while turning it
clockwise one-quarter turn.
6. Tighten the lens locking screw.
7. Restore power and test the Model AV1-LED for proper
operation.
Replacing the AV1-LED Stick PCBAs
Although the AV1-LED stick PCBAs are designed to give years of
service, replacement parts are available. LED colors and replacement
part numbers are shown in Table 2 on page 18. Because the stick
PCBAs are connected in series, you must replace all three.
The stick PCBAs are held by a retaining bracket at 60 degrees to each
other. When joined with the bracket, the PCBAs connect to pins at J5,
J7, and J8 on the power PCBA. The stick PCBAs are secured to the
power PCBA with a Phillips-head screw (Figure 1 on page 8).
SHOCK HAZARD—Do not connect the light to the system while
the power is on. Failure to heed this warning may cause serious
injury or death.
To remove the AV1-LED stick PCBAs:
1. Turn off power to the system.
2. Loosen the lens locking screw and twist the lens counter-clockwise
one-quarter turn. Remove the lens from the upper housing.
3. Remove the Phillips-head screw retaining the bracket holding the
AV1-LED stick PCBAs.

Model AV1-LED Lights 17
Installation and Maintenance Manual ■
4. Grasp the group of three AV1-LED stick PCBAs and pull them
straight up from the power PCBA.
5. Remove and replace the AV1-LED stick PCBAs on the retaining
bracket.
6. Insert the bracket with the stick PCBAs onto the pins on the power
PCBA. Secure the assembly with the Phillips-head screw.
7. Align the pins on the housing with the detents on the lens. Apply
downward pressure on the lens while turning it clockwise one-
quarter turn.
8. Tighten the lens locking screw.
9. Restore power and test the Model AV1-LED for proper operation.
Obtaining Service, Assistance, and Parts
Federal Signal will service your product and provide technical
assistance and support. Please call the phone numbers listed below. For
instruction manuals and information about related products, please go
to http://www.federalsignal-indust.com
Repair Service
Products returned for repair require a Return Authorization form.
To obtain service for the product, please contact the Federal Signal
Service Department at 708-534-4858.
Technical Assistance
For technical assistance, please call Technical Support at
708-534-3424, extension 5823.
Mounting Accessories and Replacement Parts
To order replacement parts, please call Federal Signal Customer
Support at 708-534-4756.
For mounting accessories and replacement parts, see Table 1 and
Table 2 on page 18.

Model AV1-LED Lights
18
■ Installation and Maintenance Manual
Table 1 Mounting accessories
Description Model Number
Mounting bracket, wall LWMB2
Mounting bracket, corner LCMB2
Table 2 Replacement parts
Description Part Number
Lens, clear K8550292
Lens, blue K8550292-01
Lens, amber K8550292-02
Lens, red K8550292-03
Lens, green K8550292-04
Lens gasket K8550306
Surface-mount gasket K8591003
Printed circuit board assy., 120 Vac K2005642
Printed circuit board assy., 24 Vdc K2005695
PCBA, AV1-LED stick, amber (3 required) K2005633-A
PCBA, AV1-LED stick, blue (3 required) K2005633-B
PCBA, AV1-LED stick, green (3 required) K2005633-G
PCBA, AV1-LED stick, red (3 required) K2005633-R
PCBA, AV1-LED stick, white (3 required) K2005633-W
Sounder, 120 Vac K8591002
Sounder, 24 Vdc K8591002-03

Model AV1-LED Lights 19
Installation and Maintenance Manual ■
Returning a Product for Credit
Product returns for credit require a Return Authorization from your
local distributor prior to returning the product to Federal Signal.
Please contact your distributor for assistance.
A product is qualied to be returned for credit when the following
conditions are met:
• Product is resalable and in the original cartons
• Product has not been previously installed
• Product is the current revision
• Product has not been previously repaired
• Product is a standard product
• Product is not a service part
All returns are subject to a re-stock fee.
Defective products that are returned within the warranty period will
be repaired or replaced at Federal Signal’s sole discretion. Defective
products do not include those products with lamp failure.
Circumstances other than those listed above will be addressed on a
case-by-case basis.

20
Industrial Systems
2645 Federal Signal Drive • University Park, IL 60484-3167
Tel: [phone] • Fax: [phone]
Email: [email protected] • www.federalsignal-indust.com
