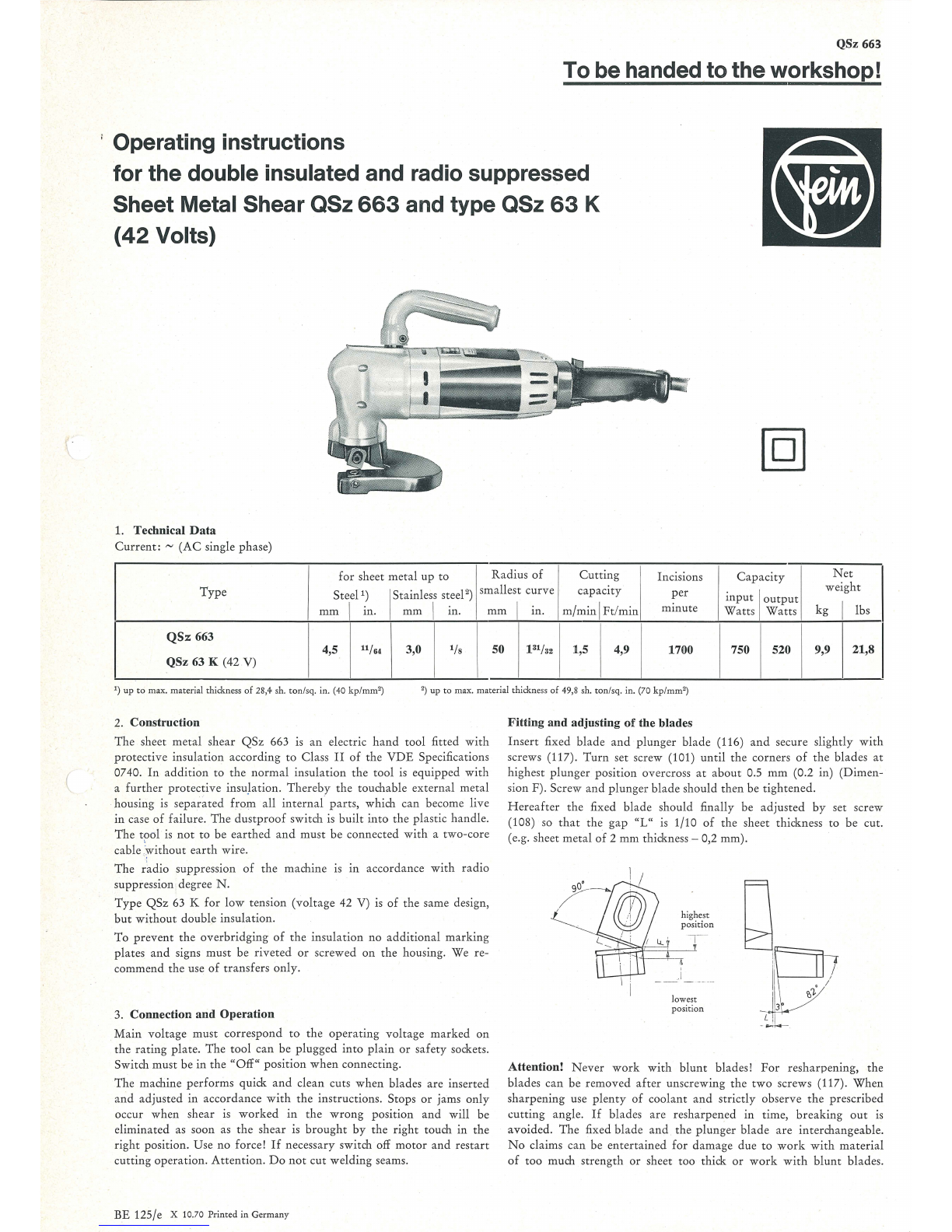

Fein QSz 63 K User manual

QSz 663
To be handed totheworkshop!
Operating instructions
for the double insulated and radio suppressed
Sheet Metal Shear QSz 663 and type QSz 63 K
(42 Volts)
1. Technical Data
Current: ~ (AC single phase)
for sheet
metal up to
Radiu s of
Cutting
Incisions
Capacit y
Net
Type
Steel1) Stainless steel2) smallest
curve
capacity
per
input I output
weight
mm
I m.
mm
I m.
mm m. m/
min IF t! min minute
Watt s Watts
kg
I lbs
QS:z: 663 4,5 11
/64
3,0 1
/s
50
13
1
/a2
1,5 4,9 1700 750 520 9,9 21,8
QSz 63 K (42 V)
1)
up to max. material thickness of 28,4 sh. ton /sq. in. (40 kp/mm
2) 2)
up to max. material thickness of 49,8 sh. ton/sq. in. (70 kp / mm' )
2. Construction
The sheet metal shear QSz 663 is an electric hand tool fitted with
protective insul ation according to C la ss II of the VDE Specifications
0740. In ad dition to the norm al i nsulat i on th e tool is equipped with
a further protective insu,lation. Thereby the touchable external metal
housing is
separated from all internal parts, which can become live
in case of failure. The dustproof switch is built into the plastic handle.
The tool is not to be earthed and must be connected with a two -core
cable :
without earth wire.
The r~dio suppression of the machine is in accordance wi th r adio
suppression degree N.
Type QSz 63 K for low tension (voltage 42 V) is of the same design,
but without double insulation.
To pre ve nt the overbridging of the in s ulation no additional marking
plates and signs must be riveted or screwed on the housing. We re-
commend
the use of transfers only.
3. Connection and Operation
Main voltage must correspond to the operating voltage marked on
the rating plate. The tool can be plugged into plain or safety sockets.
Switch must be in
the "Off" position when connecting.
The machine performs quick and clean cuts when blades are inserted
and adjusted in accordance with th e instructions. Stops or ja ms only
occur w hen s hear is worked in the w rong po sition a nd will be
eliminated as soon as
the shear is brought by th e ri g ht touch in the
right position. Use no force! If necessary switch off motor and restart
cutting operation.
Attention. Do not cut we lding seams.
BE 125/e X 10.70 Printed in German y
Fitting and adjusting of the blades
Insert fixed blade and plun ge r blade (116) and secure sli ghtly with
sc re ws (117). Turn set sc rew (101) until the corners of the blades at
high es t plunger position overcross at about 0.5 mm (0.2 in) (Dim en-
sion F). Screw
and plunger blade sho uld then be tightened.
Hereafter the fixed blade should finally be adjusted by set screw
(108) so that the gap "L" is 1/10 of the sheet thickn ess to be cut.
(e.g. sheet metal
of 2 mm thickness- 0,2 mm).
highest
position
l owes t
p
os ition
Attention! Never work with blunt blades! For resh ar pening, th e
blades
ca n be removed after unscrew ing the t wo sc rews (117). When
sharpening use plent y of coolant a nd strictly ob se rve the prescribed
cutting angle. If blades are resha rpened in time, breaking out is
avo ided . The fi xed bl ade and the plunger bla de are interchangeable.
No claims ca n be entertained for damage due to work w ith materia l
of too much strength or sheet too thick or work with b lunt blades.

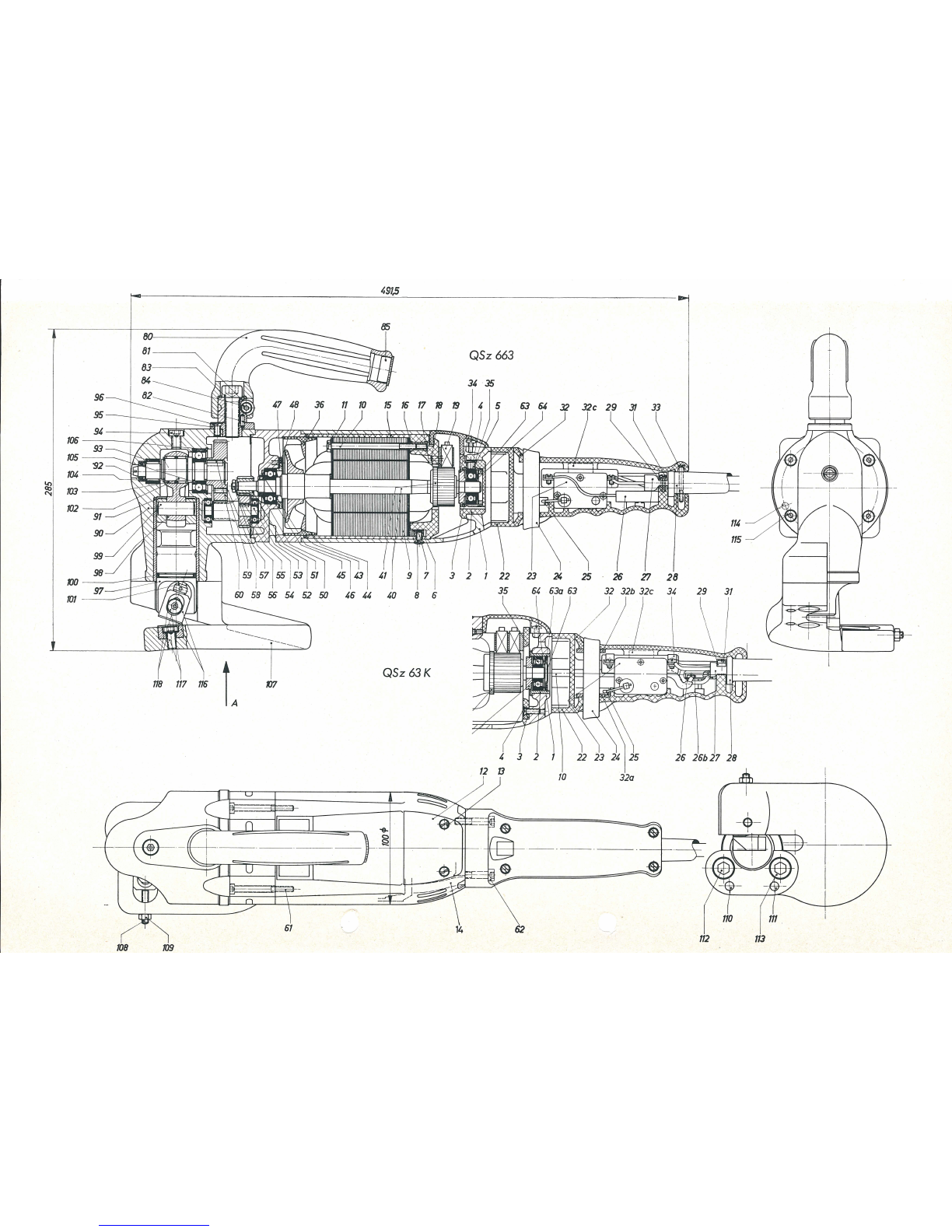

81 --------,_
96
106
105
104
103
102
Q1 ~
~ ... I I '!Al.W~ \ '11:11 Jl
)..
KJO
I ~~ i ~· I ~~ I ~~ I ~· I
97 t:f)
CD l:C 1:/
"" ""
101
108 109
~91,5
QSz 663
3' 35
l l llll ll lllllllililll ll lllll iii ii iiiiliil il iiii iiillliilil iiiiiii l /N ~I liif1<'l
~ ~~
""t' I
\ I ( {
·~ 1- i
~ · I - I . I --
--
•v
-~
25 26
27
/C N /1"1 D ~
35
64
63a 63
32 32b 32c
QSz 63K
"$-
g
...... II I I --· - --· - --
::.
14 62
1C»'
I
28
34
114
115
29
31
I 110 I 111
112 113
I
r
I
+ -·
I

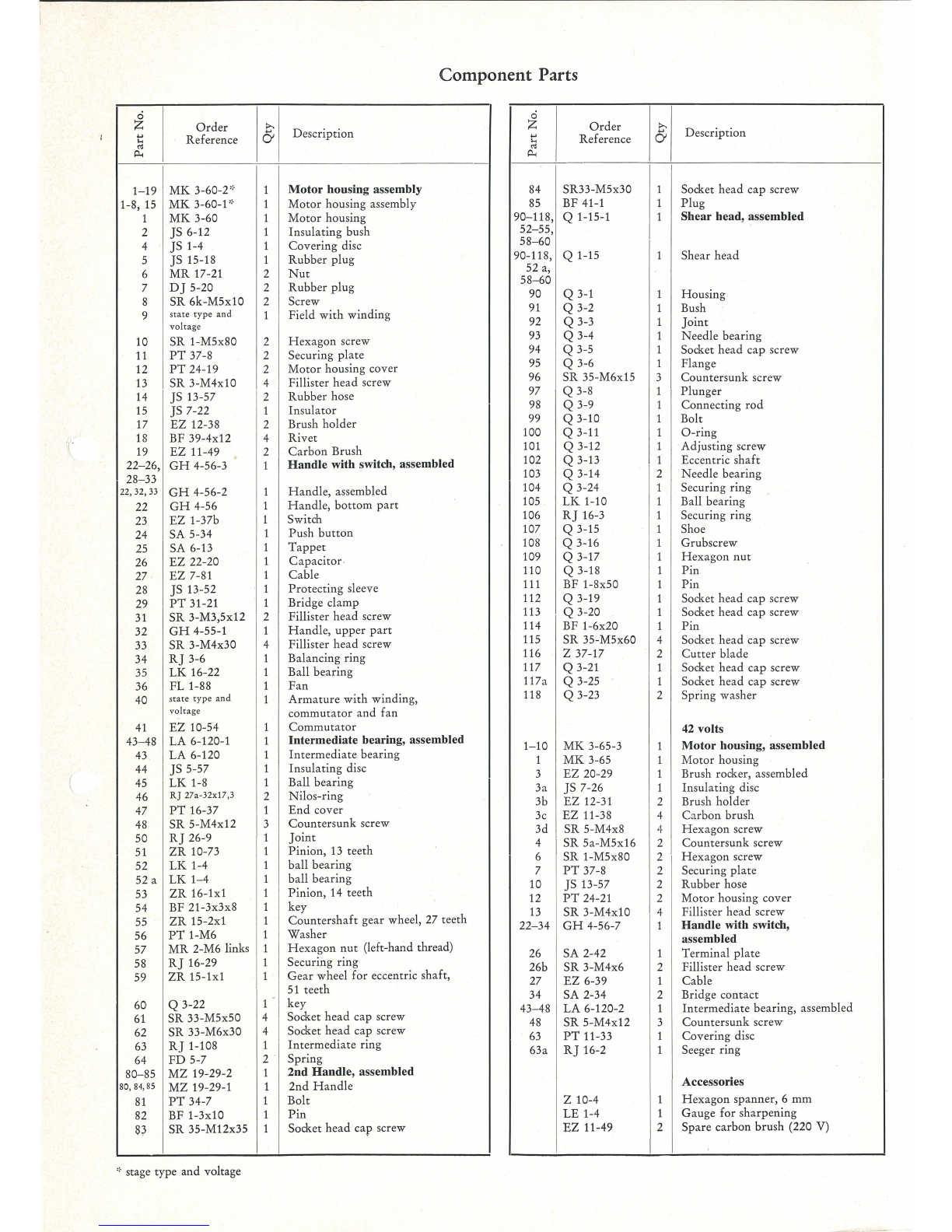

Component Parts
0
z
Order
>.
Description
...,
Reference 6
....
"'
0
z
Order
>.
Description
...,
Reference 6
....
"'
p..
p..
1-19
MK 3-60-2''· Motor housing assembly
84
SR33-M5x30 1 Socket
head cap screw
1-8, 15
MK 3-60-P Motor housing assembly
85
BF 41-1 1
Plug
1
MK 3-60
Motor housing 90-118, Q 1-15-1 1 Shear head, assembled
2 JS 6-12 Insulating bush
4 ]S 1-4
Covering disc
5 ]S 15-18
Rubber plug
6
MR 17-21 2
Nut
7
D] 5-20 2
Rubber plug
8
SR 6k-M5x10 2 Screw
9 state
type and 1 Field
with winding
voltage
10
SR 1-M5x80 2
Hexagon screw
11
PT 37-8 2 Securing
plate
12
PT 24-19 2
Motor housing cover
13
SR 3-M4x10 4 Fillister
head screw
14 ]S 13-57 2
Rubber hose
15 JS 7-22 1
Insulator
17
EZ 12-38 2 Brush holder
18
BF 39-4x12 4 Rivet
19 EZ 11-49 2
Carbon Brush
22-26,
GH 4-56-3 Handle with switch, assembled
28-33
Handle, assembled
22, 32, 33
GH 4-56-2 1
22
GH 4-56 1
Handle, bottom part
23
EZ 1-37b 1 Switch
24 SA 5-34 1 Push
button
25 SA 6-13
Tappet
26
EZ 22-20
Capacitor ·
27
EZ 7-81
Cable
28 JS 13-52
Protecting sleeve
29
PT 31-21 1 Bridge clamp
31
SR 3-M3,5x12 2 Fillister
head screw
32
GH 4-55-1 1
Handle, upper part
33
SR 3-M4x30 4 Fillister
head screw
34
R] 3-6 1 Balancing ring
35
LK 16-22 1 Ball bearing
36 FL 1-88 1
Fan
40 state type and 1
Armature with winding,
52-55,
58-60
90-118, Q 1-15 1 Shear
head
52 a,
58-60
90 Q 3-1 1 Housing
91
Q 3-2 1 Bush
92 Q3-3 1
Joint
93 Q 3-4 1 Needle bearing
94 Q 3-5 1 Socket head cap screw
95
Q 3-6 1 Flange
96
SR 35-M6x15 3
Countersunk screw
97 Q 3-8 1
Plunger
98
Q3-9 1 Connecting rod
99 Q3-10 1 Bolt
100 Q3-11 1 0-ring
101 Q 3-12 1 Adjusting screw
102 Q 3-13 1 Eccentric shaft
103 Q 3-14 2 Needle bearing
104 Q 3-24 1 Securing ring
105 LK 1-10 1 Ball bearing
106
RJ 16-3 1 Securing ring
107 Q 3-15 1 Shoe
108 Q 3-16 1 Grubscrew
109 Q 3-17 1 Hexagon nut
110 Q 3-18 1 Pin
111
BF 1-8x50 1
Pin
112 Q 3-19 1 Socket head cap screw
113 Q3-20 1 Socket head cap screw
114 BF 1-6x20 1
Pin
115 SR 35-M5x60 4 Socket
head cap screw
116 z37-17 2
Cutter blade
117 Q3-21 1 Socket head
cap screw
117a Q3-25 1 Socket head
cap screw
118 Q 3-23 2 Spring washer
voltage
commutator and fan
41
EZ 10-54
Commutator
42 volts
43-48 LA 6-120-1 Intermediate bearing, assembled
43
LA 6-120
Intermediate bearing
44
IJS 5-57
Insulating disc
45
LK 1-8 1 Ball bearing
46
RJ 27a-32xl7,3
2
Nilos-ring
47
PT 16-37 1
End cover
48
SR 5-M4x12 I
~
Countersunk screw
50
R] 26-9 Joint
51
ZR 10-73 Pinion,
13 teeth
52
LK 1-4 ball bearing
52 a
LK 1-4
ball bearing
53
ZR 16-1x1 Pinion, 14 teeth
54 BF 21-3x3x8 key
55
ZR 15-2x1
Countershaft gear wheel, 27 teeth
56
PT 1-M6 Washer
57
MR 2-M6 links 1
Hexagon nut (left-hand thread)
58
R] 16-29 1 Securing ring
59
ZR 15-1x1 1
Gear wheel for eccentric shaft,
11 -
51 teeth
60 Q 3-22 key
61
SR 33-M5x50 4 Socket
head cap screw
62
SR 33-M6x30 4 Socket
head cap screw
63
R] 1-108 1
Intermediate ring
64
FD 5-7 2 . Spring
1-10 MK 3-65-3 1 Motor housing, assembled
1
MK 3-65 1 Motor housing
3
EZ 20-29 1 Brush rocker, assembled
3a
JS 7-26 1 Insulating disc
3b
EZ 12-31 2 Brush holder
3c
EZ 11-38 4
Carbon brush
3d
SR 5-M4x8 4 He xagon screw
4 I
SR 5a-M5x16 2 I Countersunk screw
6 SR 1-M5x80 2
Hexagon screw
7
PT 37-8 2 Securing plate
10 JS 13-57 2 Rubber hose
12
PT 24-21 2 Motor housing cover
13 SR 3-M4x10 4 Fillister
head screw
22-34
GH 4-56-7 1 Handle with switch,
assembled
26 SA 2-42 1
Terminal plate
26b
SR 3-M4x6 2 Fillister head screw
27
EZ 6-39 1 Cable
34 SA 2-34 2 Bridge contact
43-48 LA 6-120-2 1
Intermediate bearing, assembled
48 SR 5-M4x12 3
Countersunk screw
63
PT 11-33 1
Covering disc
63a
R] 16-2 1 Seeger ring
80-85
MZ 19-29-2 1 2nd Handle, assembled
80, 84, 85
MZ 19-29-1 1
2nd Handle
Accessories
81
PT 34-7 1 Bolt z 10-4 1
Hexagon spanner, 6 mm
82
BF 1-3x10 1
Pin
LE 1-4 1 Gauge for sharpening
S3
SR 35-M12x35 Socket
head cap screw
EZ 11-49 2 Spare carbon brush (220
V)
,,. stage type and voltage

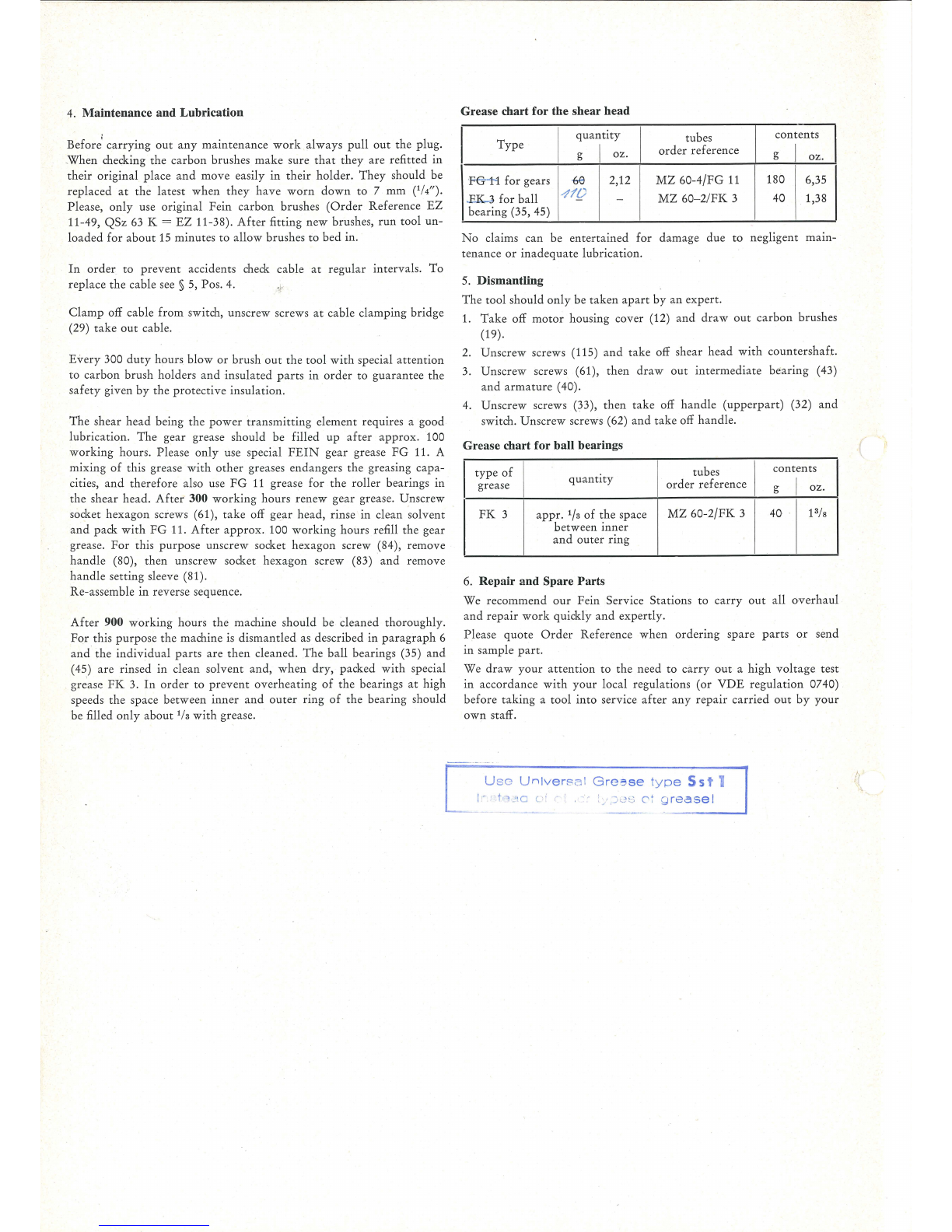

4. Maintenance and Lubrication Grease chart for the shear head
Before
1
carrying out any maintenance work always pull out the plug.
. When checking the carbon brushes make sure that they are refitted in
their original place and move easily in their holder. They should be
replaced at the latest when they have worn down to 7 mm (1 /4").
Please, only use original Fein carbon brushes (Order Reference EZ
11-49, QSz 63 K = EZ 11-38). After fitting new brushes, run tool un-
I
Type
I
·FG-1-1 for gears
.EK..J for ball
bearing (35, 45)
quantity
g I
oz.
{,6
2,12
-1 1[)
-
I tubes
contents
ord er reference
I
g
oz .
MZ 60-4/FG 11
180 6,35
MZ 60-2 / FK 3 40 1,38
loaded for about 15 minutes to allow brushes to bed in. No claims can be entertained for damage due to negligent mam-
tenance or inadequate lubrication.
In order to prevent accidents check cable at regular intervals. To
replace the cable see § 5, Pos. 4. ., 5. Dismantling
Clamp off cable from switch, unscrew screws at cable clamping bridge
(29) take out cable.
Every 300 duty hours blow or brush out the tool with special attention
to carbon brush holders and insulated parts in order to guarantee the
safety given by the protective insulation.
The shear head being the power transmitting element requires a good
lubrication. The gear grease should be filled up after approx. 100
working hours. Please only use special FEIN gear grease FG 11. A
mixing of this grease with other greases endangers the greasing capa-
cities, and therefore also use FG 11 grease for the roller bearings in
the shear head. After 300 working hours renew gear grease, Unscrew
socket hexagon screws (61), take off gear head, rinse in clean solvent
and pack with FG 11. After appro x. 100 working hours refill the gear
grease.
For this purpose unscrew socket hexagon screw (84), remove
handle (80), then unscrew socket hexagon screw (83) and remove
handle setting sleeve (81).
Re-assemble in reverse sequence.
After 900 w orking hours the machine should be cleaned thoroughl y.
For this purpo se the machine is dismantled as described in paragraph 6
and the individu al parts are then cleaned. The ball bearin gs (35) and
(45) are rinsed in clean solvent and, when dry, packed with special
grease
FK 3. In order to prevent overheating of the bearings at high
speeds
the space between inner and outer ring of the bearing should
be filled only about
1/s
with grease.
The tool should onl y be taken apart by an expert.
1. Take off motor housing cover (12) and draw out carbon brushes
(19).
2.
Unscrew scr ew s (115) and take off shear head with counter s haft.
3. Unscrew screws (61), then dra w out intermediate bearing (43)
and armature (40).
4.
Unscre w screws (33), then take off handle (upperpart) (32) a nd
switch. Unscrew screws (62) and take off handle.
Grease chart for ball bearings
I
type of
I I
tubes
I
contents
quantity
orde r reference
I
grease g
oz.
FK 3
appr . 1 /a of the space
bet ween inner
MZ 60-2/FK 3 40 !3/s
and outer ring
6. Repair and Spare Parts
We recommend our Fein Service Statio ns to carry out all o ver haul
and repair work qu ickly and expertl y.
Please quot e Order Reference w hen ordering spare parts or send
in sample pa rt.
We draw your attention to the need to carry out a high voltage test
in accordance with y our local regulat ions ( or VDE regu l ation 0740)
before taking a tool into service after an y repair carried out by your
own staff.
U sc U ni v er sa l G re::~se typ e Ss t 1
1· h:1a c · :_, )-5S o: g rease I
