First Degree Fitness E620 Seated UBE User manual

Owners Manual

Contents
1. Contents of E620 Box.
2. E620 assembly instructions.
3. Tank filling and water treatment.
4. Long term water treatment and basic
operation.
5. The E620 Ergometer with USB Function
6. Maintenance/Troubleshooting.
7. Tank belt drive/Chain adjustment.
8. Parts list and Warranty.

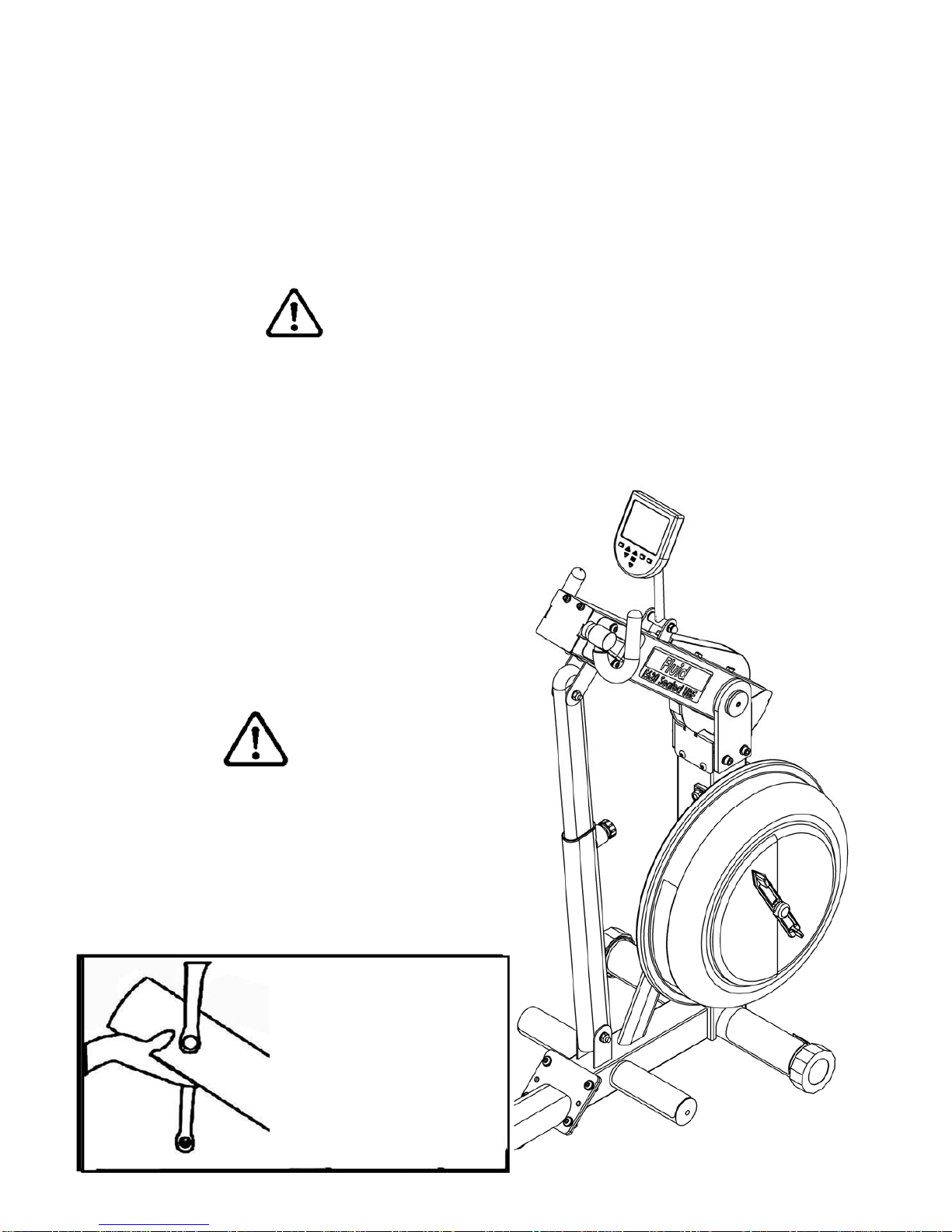

Training with E620
1. As with any piece of fitness equipment, consult a
physician before beginning your E620 exercise
program.
CAUTION:
2. Use two hands and follow all safety instructions when
raising lowering the E620 control arm.
Warning:
4. Keep fingers clear of pivot
points during both assembly
and use.
3. Do not remove hands while
crank is in motion. The crank will
continue to rotate and could cause
injury.
Note: The control
arm is gas-assisted.
Use both hands
when raising/
lowering the control
arm for safety.

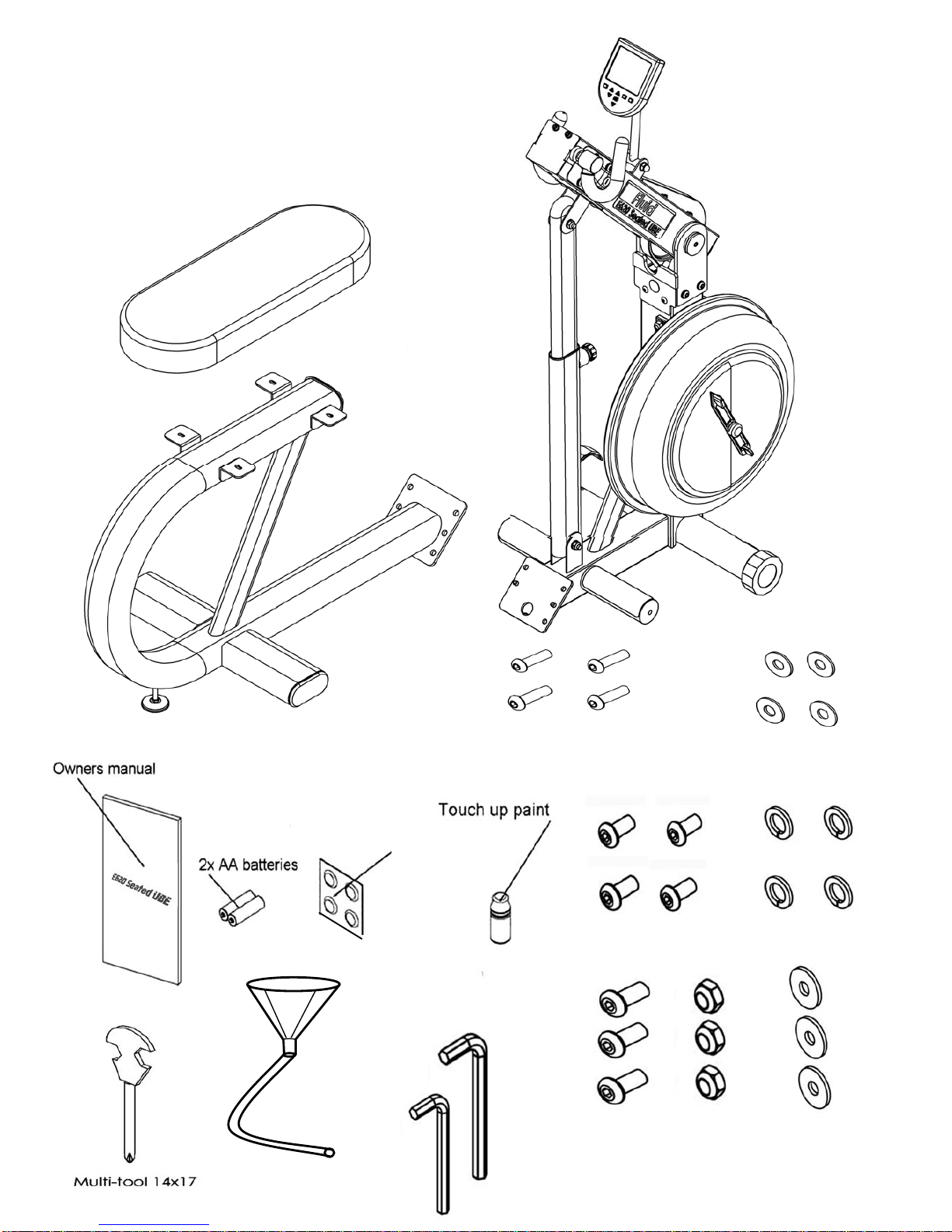

Box Contents:
E620 Seat M6x20mm seat bolt M6x20mm seat bolt washer
M8x15mm bracket bolt M8 spring washer
Funnel W/hose
6mm Allen Key
4mm Allen Key
M10x25mm bolt M10 Nylock M10 Washer
E620 Seat
E620 Mainframe
Chlorine Tablets x 4

Assembling the E620
Step 1:
Remove Seat frame and
seat from box. Attach seat
using 4x M6x20mm bolts
and 4x M6 washers.
Chrome snap faces
forward

E620 Assembly
Step 2:
Attach telescoping tube
to control arm using 4x
M8x15mm bolts and 4x
M8 spring washers.
The control arm is heavy and may
swing freely during this stage of
assembly. The yellow tension
knob is pre-tightened from the fac-
tory in the optimal position for as-
sembly in relation to the control
arm. Do not loosen the yellow
tension knob until the telescoping
tube has been safely secured to
the underside of the control arm
as pictured left.
CAUTION:
WARNING:
Keep fingers clear of pivot
points at all times.

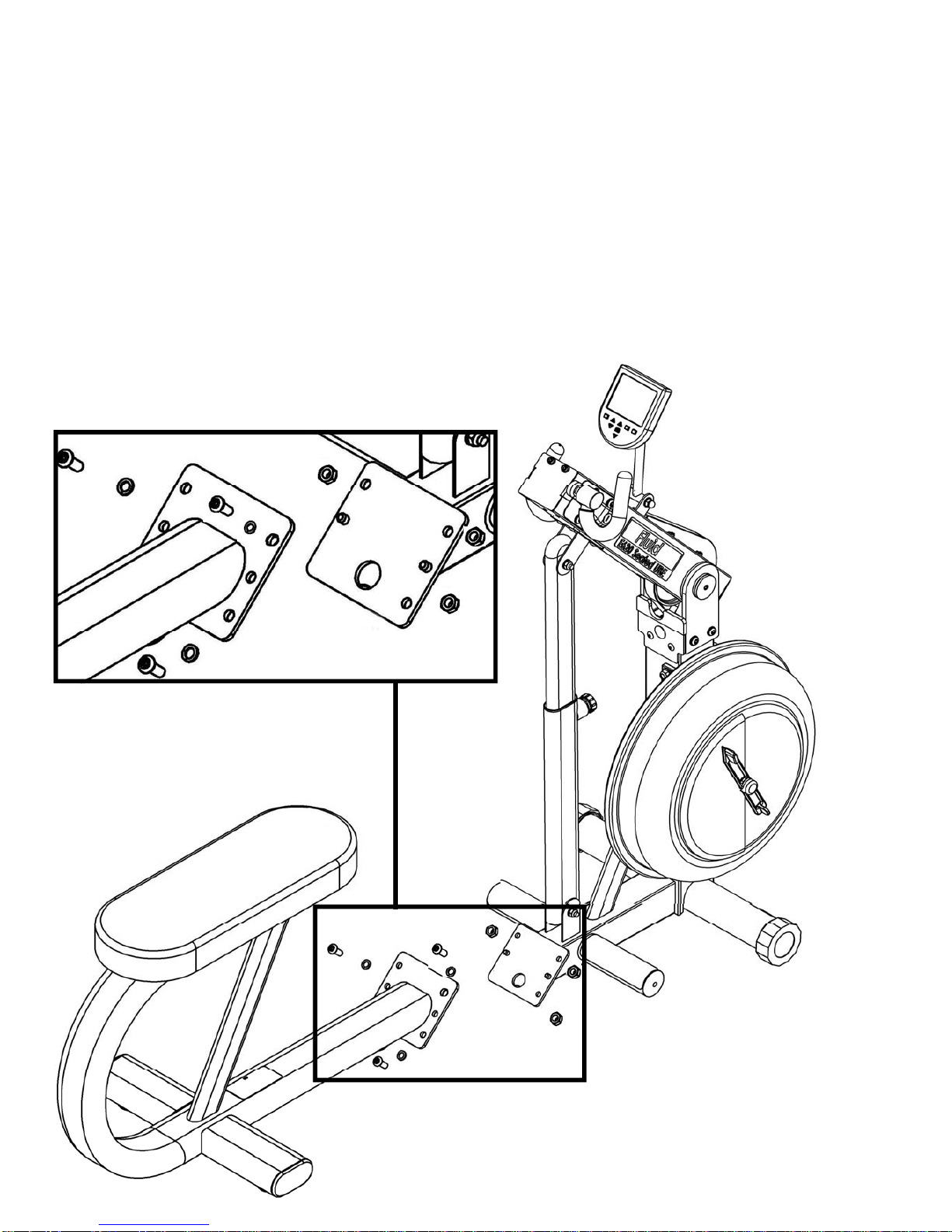

Step 3:
Attach the seat frame to the mainframe
using 2x M10x25mm bolts, 2x M10
washers and 2x M10 nylock nuts.
Tighten securely
E620 Assembly

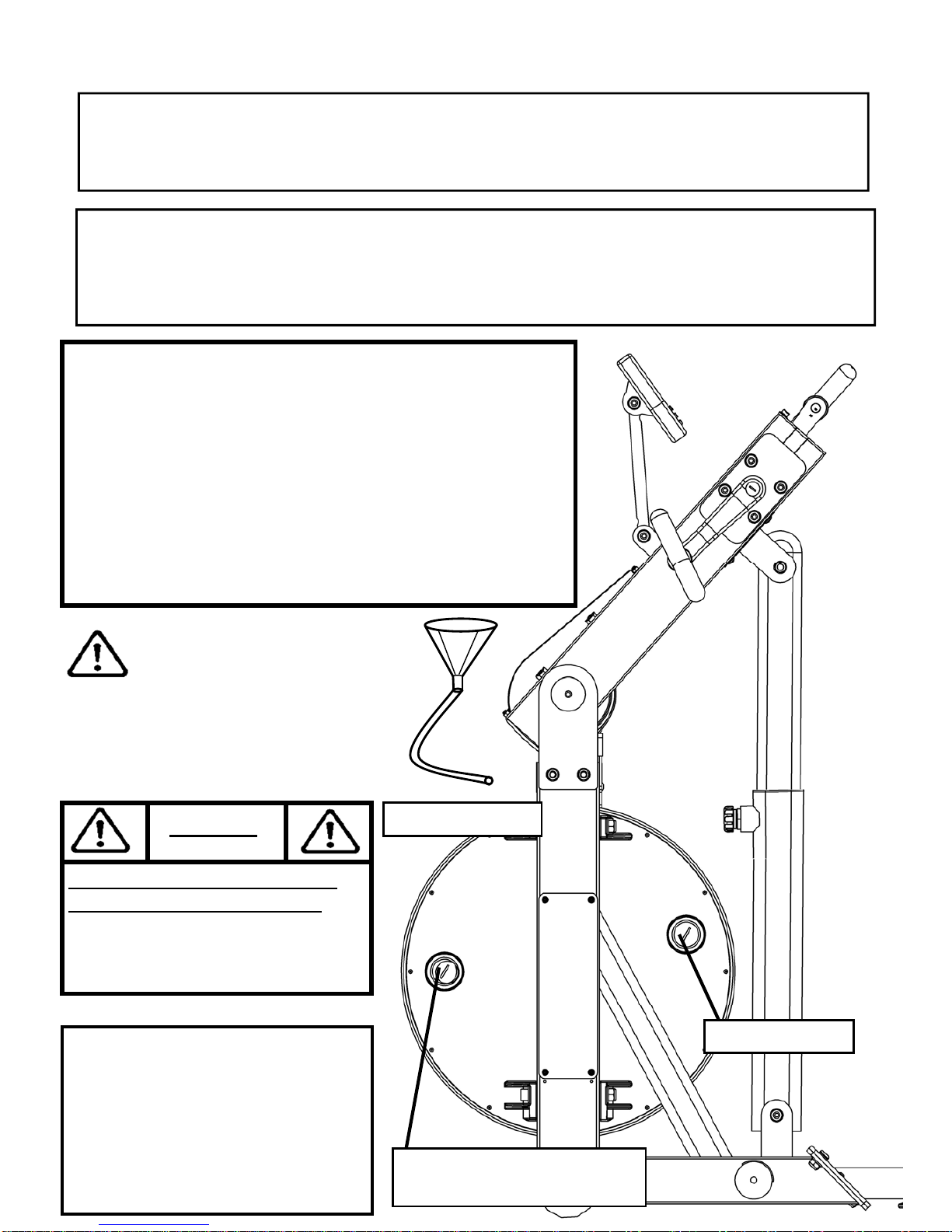

Yellow tank fill plug
Filling hose and funnel
Note: the lower tank plug is per-
manently sealed.
Tank filling and water treatment
Open the yellow fill plug on back of tank and insert hose (rotating the impeller slightly
may be necessary to allow the hose to pass). Move the tank adjuster handle to level
20 and begin filling. Do not fill the tank higher than the level indicator on the front of
the clear shell. A properly filled tank holds approximately 8 liters of water.
Note: A bucket is required for filling (Not included)
In areas where tap water quality is known to be poor, FDF recommends the use of
distilled water.
Draining the Fluid tank:
When outdoors simply open the
yellow fill plug and lie the E620
on its side to facilitate drainage.
Indoors a container capable of
holding 8 liters of water will be
required
Impeller blades are sharp! Do
not put fingers into the tank. Use
the end of the hose to move the
impeller should the need arise.
Warning:
Water Treatment Procedures:
1. Add Chlorine Tablet.
2. Enough Chlorine Tablets are supplied for many
years of Water treatment. Add a chlorine Tablet
whenever the Water appears dirty or cloudy.
WARNING: Only use First Degree Fitness Supplied
Water treatment tablets.
Use a drop cloth under the tank when
filling the tank to avoid damage floor or
carpet
Caution:

Long Term Water Treatment and Basic Operation
Caution: It is recommended that a drop cloth be used under the fluid tank
at any time during which the tank fill plug is open.
The level of resistance is determined by the
level indicator located on the front of the tank.
Level one indicates lightest resistance, level
twenty represents heaviest resistance.
Use the level +/- buttons on the E620 comput-
er to match the resistance setting on the fluid
tank.
Allow three to four seconds after adjusting re-
sistance handle for the correct resistance lev-
el to be achieved.
Long term water treatment:
Do not use any water treatment other than the tablets supplied with this
machine. For replacement tablets, contact your local First Degree Fit-
ness distributor.
Water treatment schedules for the E620 will vary according to the fluid tanks
exposure to sunlight, but expect 12+ months near a bright, sunlit window and 2
years or more for a darker location. At the point of finding the water slightly
cloudy, add a chlorine tablet.
Resistance:
Important:
Do not fill past the calibration mark as indicated on the tank level stick-
er or water spillage may occur. See tank filling/water treatment page
for details.

E-620 Ergometer.
Note: For complete operational instructions,
please refer to the computer manual, which is includ-
ed with your E620
Quick start provides instant workout information.
Just start training to activate. You can choose to
change UNITS displayed.
UNITS displays
RPM, HR, MPH,
KPH
Level Adjusta-
ble from 1-20
Set Changes Time, Distance
parameters Program Clears cur-
rent exercise program
Reset Clears data

The USB connectivity now built in to all new models of FDF Console and IPM allow you to enhance your
exercise experience by connecting to your home PC or Laptop. Using FDF's own sample applications you
can exercise while enjoying your favorite movies. NetAthlon 2 XF for Rowers lets you race with other Inter-
net connected rowers in a Virtual Reality 3D environment or train solo.
1. Download and Install the USB Device Driver (CDM2xxxx_Setup.exe for 32 and 64 bit Windows 7/Vista/XP)
from the FDF Website.
2. Download and Install the Sample USB Applications from the FDF Website (www.firstdegreefitness.com).
Download and Install NetAthlon 2 XF for Rowers from
http://www.webracing.org/downloads.htm
- The USB Connector is located on a flying lead at the rear of the IPM, along with the
Sensor and Heart Rate Monitor Connectors.
- Connect to a Laptop or PC using a standard USB cable, you may need to wait while
Windows starts the USB Device Driver.
Using the First Degree Fitness USB Interface
Description:
Setting up USB connectivity
Connecting your
Note: Please refer to computer manual where applicable or for further information
refer to our website at www.firstdegreefitness.com

Item Timeframe Instructions
Seat and Frame. Monthly Wipe weekly with lint free
cloth or more often with
heavy club use.
PK belt tension. Monthly. Check monthly for signs of
slippage. Adjust/tighten as
required. See the tensioning
belt section of this manual.
Tank and water treat-
ment. 12 months to 2 years. Follow instructions as speci- fied in the “Water Treatment”
section of this manual.
Chain drive. Check every 100 hours
for correct tension. Remove the Control arm front end cap and check ten-
sion using a screwdriver or
other tool. Tighten as re-
quired using chain tensioning
bolts located at the end of
the control arm. Do not un-
der any circumstances use
fingers to check chain ten-
sion! See tightening/
adjusting chain section of
this manual.
E620 pedals. Tighten weekly using
15mm box wrench
(supplied)
The pedals should be
checked on a regular basis.
A loose pedal can cause
damage to the crank arm
aluminum threads, requiring
replacement.
Maintenance Chart.

Fault Probable
Cause Solution
Water changes color
or becomes cloudy. Rower is in di- rect sunlight or
has not had
water treat-
ment.
Change rower location to reduce direct
exposure to sunlight. Add water treat-
ment or change tank water as directed
in the water treatment section of this
manual.
Knocking noise from
inside the control arm
while training, espe-
cially when changing
directions.
Chain requires
tightening or
adjustment.
Open front end cap and check chain
tension using a screwdriver of other im-
plement. Do not use fingers. Proper
tension is 3-5mm of play. Please refer
to the Chain adjustment page for further
instructions.
Pedals slip during
hard training. PK tank belt requires tight-
ening.
Remove large inspection plate on oppo-
site side of tank and check belt tension.
For details on belt tightening, please re-
fer to the belt tightening page in this
manual.
Pedal is loose (either
left or right) and can-
not be retightened.
Aluminum
crank arm
threads are
stripped.
Contact service center for replacement.
Then check weekly as recommended.
Computer screen illu-
minates, but does not
register when rowing.
Loose or failed
connection/
Sensor gap
too wide (see
erratic com-
puter display).
Check that the computer lead is con-
nected properly. If connected properly
check sensor gap. Contact your local
service center if this fails to address the
problem.
The E620 computer
does not illuminate af-
ter battery installation.
Batteries in-
stalled incor-
rectly or need
replacing.
Reinstall batteries in correct position
and try again. If the LCD screen fails to
illuminate, try rotating the batteries
slightly in the computer. If this fails,
contact your local service center.
The E620 computer
display is erratic/slow
while displaying RPM
and WATTS
Gap between
sensor and
magnetic ring
is too wide.
Remove inspection plate, check sensor
gap and that magnetic ring is not wob-
bly or loose. The sensor bracket can
be bent slightly to bring the reed switch
closer to the magnetic ring.
Troubleshooting Guide:

Chain tensioning
bolts
Adjusting the E620 Chain
To adjust chain tension/alignment, first loosen slightly the 8 crank arm bolts lo-
cated on the sides of the crank arm axle covers. It is not necessary to remove
them. Once crank arm bolts are loosened, tighten the chain tensioning bolts in
equal, small increments “max 1/4 turn” until the correct tension is achieved.
Retighten bolts.
If the chain requires alignment, use the chain tensioning bolts individually to
correct alignment as shown below.
Crank arm
bolts
Axle
Tightening right
chain tensioning
bolt only
Tightening left chain
tensioning bolt only Tightening left/right
chain tensioning
bolts equally
Axle Axle

The PK drive belt should rarely require tensioning, but should slippage be en-
countered, first remove the inspection plate cover. This will expose the tank
tensioning bolt which is tightened with a 13mm wrench. Turn clockwise and
test until slippage ceases.
Adjusting the E620 Drive belt
Note: If the belt is extremely loose, the tank bolts will have to be loosened
slightly before adjusting to allow maximum adjustment. This will require a
10mm Allen key and 19mm wrench (not supplied).
Do not over-tighten the tank bolts once adjustment is complete.
Tank tensioning bolt
Inspection plate
cover
For detailed instructions on complete
belt replacement, please contact your
local retailer/distributor.

E620 Exploded Diagram
Upper control arm/Computer stalk
mount assembly
Telescoping tube/gas assisted shock
assembly
Main frame assembly
Tank assembly
Seat assembly
12300

P/N Qty
Description P/N Qty Description
10012 2
Bearing NSK6005ZZ 12042 1 Axle / Sprocket for E620
10025 1
Seal NBR 37x30x8t for Flywheel Shaft 12043 1 Bushing
10026 1
Small PK Transmission Pulley 50mm 12044 1 Bushing - Short
10027 1
Adjuster Handle Shaft 12045 2 Spacer PVC
10028 1
Stainless 0.8mm Backing Plate 12047 1 Handle
10030 1 Blue Adjuster PP Tank Ring 358x10 12048 1 Handle Cover
10033 26
Washer 10x4.2x1 Stainless 12049 1 Main Pulley Shaft
10034 22 Nut M4 Stainless 12050 2 Non Slip D60
10035 22
Bolt M4 Stainless 12052 2 Warrany Decal
10036 6
Screw M3x20 SS for Blue Tank Ring 12053 1 Model Decal - E620
10039 2 O Ring 32 x 3.5 CR 12054 1 Warrany Decal - Hand
10040 2
Bolt M12x140 for Tank Assembly 12058 1 End Cap 100x100 for E620
10041 8 Nut M10 Nylock 12059 1 Seat Frame
10042 2 Nut M12 Nylock 12060 1 Bolt M8x60
10043 4
Washer M12 12064 2 Bolt M10x145
10044 1
Tank Black Outer Cover Ring 12144 1 End Cap- D25
10045 1 PC Tank 13046 1 PVC triangle cover inside the tank cover
10046 1
Tank Large Seal 13059 1 Tank Level Decal 20R
10047 9 Impeller Blade 20020 8 Bolt M10x35
10062 12 Bolt M3x12 20052 2 Side Bearing Cover E720/820
10067 1 Rubber Cover for Large PK Pulley 20132 2 French Screw M8x20xP1.0
10070 10 Screw M4x10 20133 2 Crank End Cap
10081 3 Washer M6 20134
1 Crank-Left
10082 24 Washer M10 20135 1 Crank-Right
10096 2
Bolt M10x70 for Aluminum Rail 20138 2 Bearing NSK6201ZZ
10097 2
Nut Dome Head M10 20139 1 Handle Shaft-Left
10112 1 Stainless Steel Computer Mounting Arm 20140 1 End Cap 38
10114 8 Plastic Bushing 20x16x13x10 20149 1 Handle Shaft-Right
10116 2 Bolt M10x60 20150 1 Bolt M10x15
10117 1 Computer Wiring 1200mm 20170 2 Chain Protection Decal
10136 1
Flywheel & Shaft 20183 1 Adjuster Cover
10145 1 Bearing Spacer 30x25.1x20.5mm 20184 2 Square Adjuster Nut
10157 1
Sensor Round 20185 2 Bolt M6x100
10162 2
Grub Screw M8x10 20190 2 Aluminum Block Bearing Housing
10170 4 Washer M4 20193
2 NSK 6004ZZ Aluminum Block Housing Bearing
10171 1 Bolt M6x8 20196 2 Wave Washer 20mm
10184 1 Adjuster Handle & PU Cover P/N 10193 23144 1 Knob - Yellow
10186 1 C Clip RTW-48 23945 8 Bolt M8x15
10187 1 Sensor Bracket 30012 1 DID-25 Chain 178
10193 1 PU yellow adjuster handle cover 33928 1 Internal Tube End Cap
10207 1 Tank Plug Yellow 33931 1 Telescoping Tube Plastic Sleeve
12300 1 SMC Tank Back—Gray 33933 1 Hydraulic Shock
12001 1 Lower Mian Frame 33935 1 Telescoping Tube (Internal Scribed)
12002 2 Bearing Bracket 33937 1 Flange Nut M25
12013 2 end Cap - Round D60 33938 1 Copper Locating Bushing
12015 2 Main Shaft - D20 33941 1 Telescoping Tube External
12016 1 Idle Wheel 50903 1 1.8Meter Wireless HC IPM
12017 4 C Clip 20mm 60211 2 Transport Wheel 76.2
12018 3 Needle Bearing #2016 60708 1 Washer M8.5x19x1.6t
12021 1 Control Arm Positioning Bracket 60710 4 Washer M6x16 same as 60146
12022 2 Control Arm Spacer 60711 4 Bolt M6x20 same as 10080
12026 1
Seat - E620 60805 2 Rear Leg Adjustable Height End Caps
12031 1 Positive stop bracket 71025 6 Main Shaft Rear Bracket Bolt M10x25mm
12034 1
PK Belt 1265 71036 1
Nut M8 (Note: For tank tensioning bolt)
12035 1 PK Pulley 73016 3 Foot Leveler M8x30 PVC
12039 1
Control Arm - E620 3
12029 3
End Cap Rear Leg 70321 1 Tank Plug Black
Parts List

FLUID UPPER BODY ERGO (UB-E620)
INTERNATIONAL WARRANTY – FULL COMMERCIAL USE
This product is designed and constructed for use in any Health Club / Fitness Studio application
First Degree Fitness Limited warrants that the Fluid Upper Body Ergometer (models UB-E620),
purchased from an authorised agent and in its undamaged original packaging, is free from defects in
materials and workmanship. First Degree Fitness Limited or its agent will, at their discretion, repair or
replace parts that become defective within the warranty period, subject to the specific inclusions and
exclusions below.
Metal Frame – 10 Year Limited Warranty
First Degree Fitness will repair or replace the metal Main Frame should it fail due to any defect in ma-
terials or workmanship within 10 years of the original purchase. Warranty does not apply to frame
coating.
Polycarbonate Tank & Seals – 3 Year Limited Warranty
First Degree Fitness will repair or replace the polycarbonate tank or seals should they fail due to any
defect in materials or workmanship within 3 years of the original purchase.
Mechanical Components (of a non-wearing nature) – 2 Year Limited Warranty
First Degree Fitness will repair or replace any mechanical component should it fail due to any defect
in materials or workmanship within 2 years of the original purchase.
All Other Components (of a wearing nature) – 1 Year Limited Warranty
First Degree Fitness will repair or replace any component should it fail due to any defect in materials
or workmanship within 1 year of the original purchase.
Specific Inclusions
Pedals & toe straps
Hand grip assemblies
Seat
All rubber components
Computer & speed sensor (excluding replaceable batteries)
All drive belts & chains
Crank arms
All pulleys, rollers & bearings
General Exclusions
Damage to the finish of any part of the machine
Damage due to neglect, abuse, incorrect assembly or use of the machine
Any charges for freight or customs clearance associated with the return or dispatch of parts
Any damage to or loss of goods during transport of any kind
Any labour cost associated with a warranty claim
General Conditions
 The serial number of the machine must be correctly registered with First Degree Fitness Limited
or one of its appointed distributors
 First Degree Fitness Limited reserve the right to examine any part where replacement is claimed
under warranty
 Warranty commences at time of sale but no later than six (6) months from date of original ship-
ment
 Warranty period applies only to the original purchaser from the date of purchase and is not trans-
ferable
 The product must be returned to your place of purchase in original packaging with transportation,
insurance and associated charges paid for by you and risk of loss or damage assumed by you
 First Degree Fitness makes no other warranties except as stated here and expressly disclaims all
warranties not stated in this warranty. Neither First Degree Fitness nor its associates shall be re-
sponsible for incidental or consequential damages
 Manufacturer's warranty automatically commences upon sale of the product to end user or upon
the expiration of one (1) year from month of manufacture, whichever occurs first
