Fisher-Price P5755 User manual

P5755
www.fisher-price.co.uk
IMPORTANT!
KEEP INSTRUCTIONS
FOR FUTURE REFERENCE.

2
Prevent serious injury or death from
falls or sliding out:
• The child should at all times wear a
safety harness correctly fitted and
adjusted. The tray is not designed to
hold the child in the chair.
• It is recommended that only children
capable of sitting upright unassisted use
the high chair in the upright position.
• Always keep child in view while using
the high chair.
• Never leave child unattended.
• Do not use the high chair unless all
components are correctly fitted and
adjusted.
Prevent injury from burns: Do not place
this high chair near open fires or any
hot surfaces.
WARNING
Consumer Information
IMPORTANT! Place the high chair on a level, stable surface away
from electrical flexes. Be sure to keep electrical flexes out of
child's reach.
• Please read these instructions before assembly and use of
this product.
• Adult assembly is required.
• Tool needed for assembly: Phillips Screwdriver (not included).
• Product features and decorations may vary from the photograph.

3
2 FramesPad Seat BottomSeat Back
Front Base
Back Base
Footrest
2 Seat Bottom Tubes
Hinge Rod
Food Tray Base Tray
Note: Tighten or loosen all screws with a Phillips screwdriver. Do not over-tighten the screws.
#8 x 1,9 cm Screws – 8 #10 x 2,2 cm Black Screw – 7
Shown Actual Size
Assembled Parts
CAUTION
This package contains small parts in its unassembled state. Adult assembly is required.

4
IMPORTANT! Before assembly and each use, inspect this product
for damaged hardware, loose joints, missing parts or sharp edges.
DO NOT use if any parts are missing or broken. Contact Fisher-Price®
for replacement parts and instructions if needed. Never substitute parts.
Footrest
Seat Bottom
• Place the seat bottom face down on a flat surface.
• At an angle, fit the footrest on the seat bottom, as shown.
Seat Bottom Tubes
• Slide a seat bottom tube through each set of plastic rings on the
seat bottom.
Plastic Rings
Plastic Rings
Assembly
1
2
• Align the holes in the plastic rings and the seat bottom tubes.
• Insert a #8 x 1,9 cm screw through each plastic ring and into
the seat bottom tubes, as shown. Tighten the screws. This may
require extra force.
• Push the seat bottom tubes back and forth to be sure they are
secured to the seat bottom. If the seat bottom tubes move,
you have probably not fastened them properly. Remove the
screws and check to be sure the screw holes in the seat bottom
tubes and seat bottom plastic rings are aligned. Replace and
tighten the screws.
3

5
Insert Screws Here
• Insert two #10 x 2,2 cm black screws through the footrest and
into the seat bottom. Tighten the screws. This may require
extra force.
Assembly
4
Seat Back Pin
• Turn the seat bottom assembly upright.
• Fit the seat back pins into the slots in the top side of the seat
bottom assembly.
Slot
Seat Bottom Assembly
Slot
5
• Turn the seat assembly face down.
• Insert the hinge rod through the hinge on the seat back and seat
bottom, as shown.
• Insert a #10 x 2,2 cm black screw into the hinge rod. Tighten
the screw.
• Set the seat assembly aside for Assembly step 9.
Hinge
Hinge Rod
6

6
• Pull the frame leg out on each frame to open. Make sure it
"clicks" into place.
• Position a frame so that the decorated side is outward.
• Fit the end of a base into the back leg of a frame.
• Fit a screw retainer over the hole in the back leg, as shown.
• Insert a #10 x 2,2 cm black screw through the screw retainer and
back leg. Tighten the screw.
• Repeat this procedure to fasten the other frame back leg to the
other side of the base.
Hint: The #10 x 2,2 cm black screws may have been assembled to
the screw retainers.
Frame Leg
Frame Decorated Side
Frame Back Legs
Screw Retainers
Base
7
Seat Assembly
• Fit the seat assembly between the frames.
• Insert the seat bottom tubes into the sockets in each seat
height adjuster.
Hints:
• Be sure the seat height adjusters are in the same position
(position 4).
• You may need to push the frames apart slightly to fit the seat
bottom tubes into the seat height adjuster sockets.
Sockets
Sockets
Seat Bottom Tubes
Seat Bottom Tubes
Seat Height Adjusters
Position 4
Press Lever
• While pressing the levers on the seat height adjusters, lift them to
position 4 on the frame front legs, as shown.
8
9
Assembly

7
PUSH
Seat Bottom Tube Ends
PUSH
Base
• Fit the frame front legs onto the remaining base.
• Fit a screw retainer over a hole in the front leg.
• Insert a #10 x 2,2 cm black screw through the screw retainer
and front leg. Tighten the screw.
• Repeat this procedure to secure the other end of the base with
the remaining screw retainer and #10 x 2,2 cm black screw.
Hint: The #10 x 2,2 cm black screws may have been assembled to
the screw retainers.
Screw Retainers
Assembly
10
• Push each seat height adjuster to be sure they are completely on
the seat bottom tubes.
• Insert a #8 x 1,9 cm screw through each seat height adjuster and
the ends of the seat bottom tube. Tighten the screws. This may
require extra force.
11
Seat Height Adjuster
• Push each seat height adjuster to be sure they are completely on
the seat bottom tubes.
• Insert a #8 x 1,9 cm screw through each seat height adjuster and
the ends of the seat bottom tube. Tighten the screws. This may
require extra force.
Seat Bottom Tube Ends
12

8
Assembly
Tabs
Pad
Elastic Loops
Elastic Loops

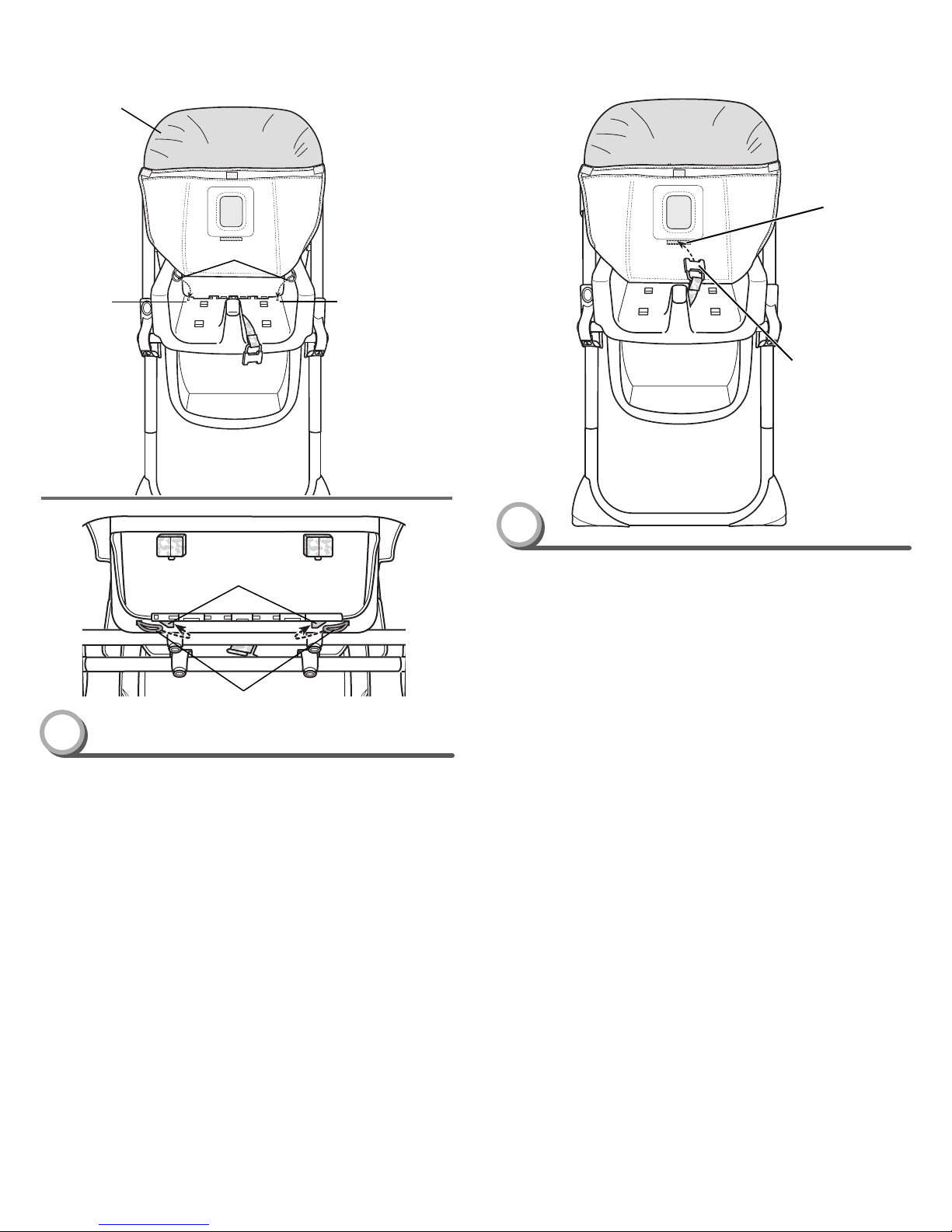

13
• Insert the crotch belt through the slot in the pad. Make sure the
crotch belt is not twisted.
Slot
Crotch Belt
14
BACK AND BOTTOM VIEW
FRONT VIEW
Hole Hole
• Lift the bottom of the pad. Insert the two elastic loops on the pad
through the holes in the seat bottom.
• From the back and bottom of the seat, hook the elastic loops to
the tabs on the seat.

9
Bottom Slots
• Lift the top of the pad.
• Thread the waist/shoulder belts through the bottom slots in the
back of the seat pad.
Shoulder Portion
• Fold the top of the pad down.
• Remove the shoulder portion of the waist/shoulder belts by
feeding them through the slots in the seat back.
15
16
Assembly
• Insert the shoulder portion of the shoulder/waist belt through the
slots in the pad and seat back.
- Use the lower shoulder belt slots for a smaller baby.
- Use the upper shoulder belt slots for a larger baby.
• Fit the top of the pad over the seat back.
• Fold the bottom edge of the pad under the edge of the seat
bottom to fasten.
Shoulder PortionUpper Shoulder Belt Slots
Lower Shoulder Belt Slots
Lower Shoulder Belt Slots
Belt Ends
• From behind the seat, be sure the shoulder portion of the waist/
shoulder belts are secure in the seat back slots.
17
18

10
Prevent serious injury or death from falls
or sliding out:
• The child should at all times wear a safety
harness correctly fitted and adjusted.
The tray is not designed to hold the child
in the chair.
• Do not use the high chair unless all com-
ponents are correctly fitted and adjusted.

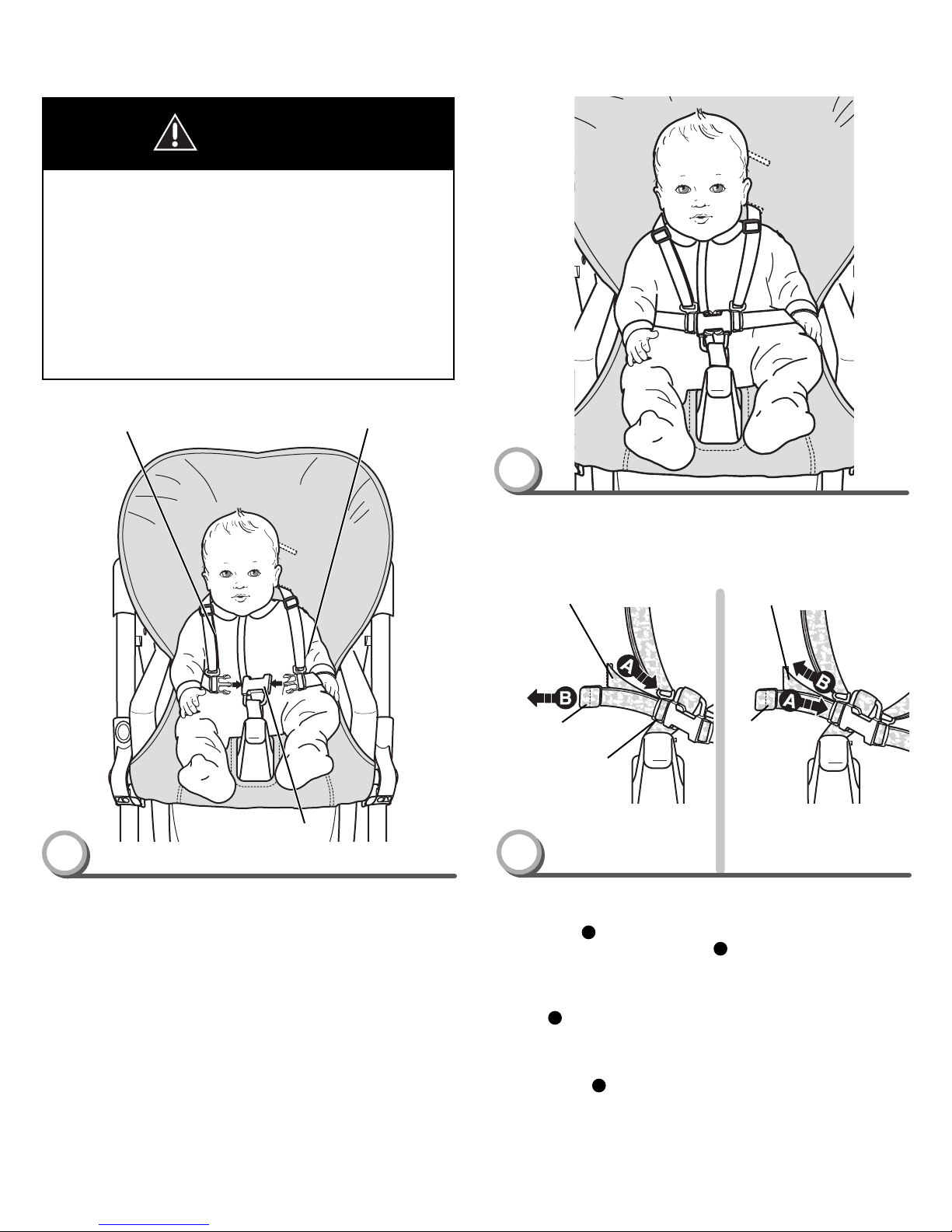

• Place your child in the seat. Position the crotch belt between
your child’s legs.
• Fasten both waist/shoulder belts to each side of the crotch belt.
Make sure you hear a "click" on both sides.
• Check to be sure the restraint system is securely attached by
pulling it away from your child. The restraint system should
remain attached.
Waist/Shoulder Belt Waist/Shoulder Belt
Crotch Belt
Crotch Belt
Secure Child
1
WARNING
• Tighten each waist belt and shoulder belt so that the restraint
system is snug against your child. Please refer to the next
section for instructions to tighten the waist belts.
2
TIGHTEN LOOSEN
To tighten the waist belts:
• Feed the anchored end of the waist belt up through the buckle to
form a loop
A
.
• Pull the free end of the waist belt
B
.
• Repeat this procedure to tighten the other waist belt.
To loosen the waist belts:
• Feed the free end of the waist belt up through the buckle to form
a loop
A
.
• Enlarge the loop by pulling on the end of the loop toward
the buckle.
• Pull the anchored end of the waist belt to shorten the free end of
the waist belt
B
.
• Repeat this procedure to loosen the other waist belt.
Anchored End Anchored End
Free End Free End
Buckle
3

11
To change shoulder belt slots:
• From the back of the high chair, push the shoulder portion of the
waist/shoulder belts through the seat back slots.
Secure Child
5
Hold Adjuster
Pull Down Strap
Slide Adjuster Down
TIGHTEN LOOSEN
To tighten the shoulder belts: Hold the adjuster and pull the front
shoulder strap down.
To loosen the shoulder belts: Slide the adjuster down.
Note: After adjusting the restraint system to fit your child,
make sure you pull on it to be sure it is securely fastened.
4
Shoulder Portion
• From the front of the high chair, pull the shoulder portion of
the waist/shoulder belts out and then fit them back through the
desired shoulder belt slots in the headrest pad, seat pad and the
seat back.
• Pull on the belts to be sure they are secure in the seat back.
6

12

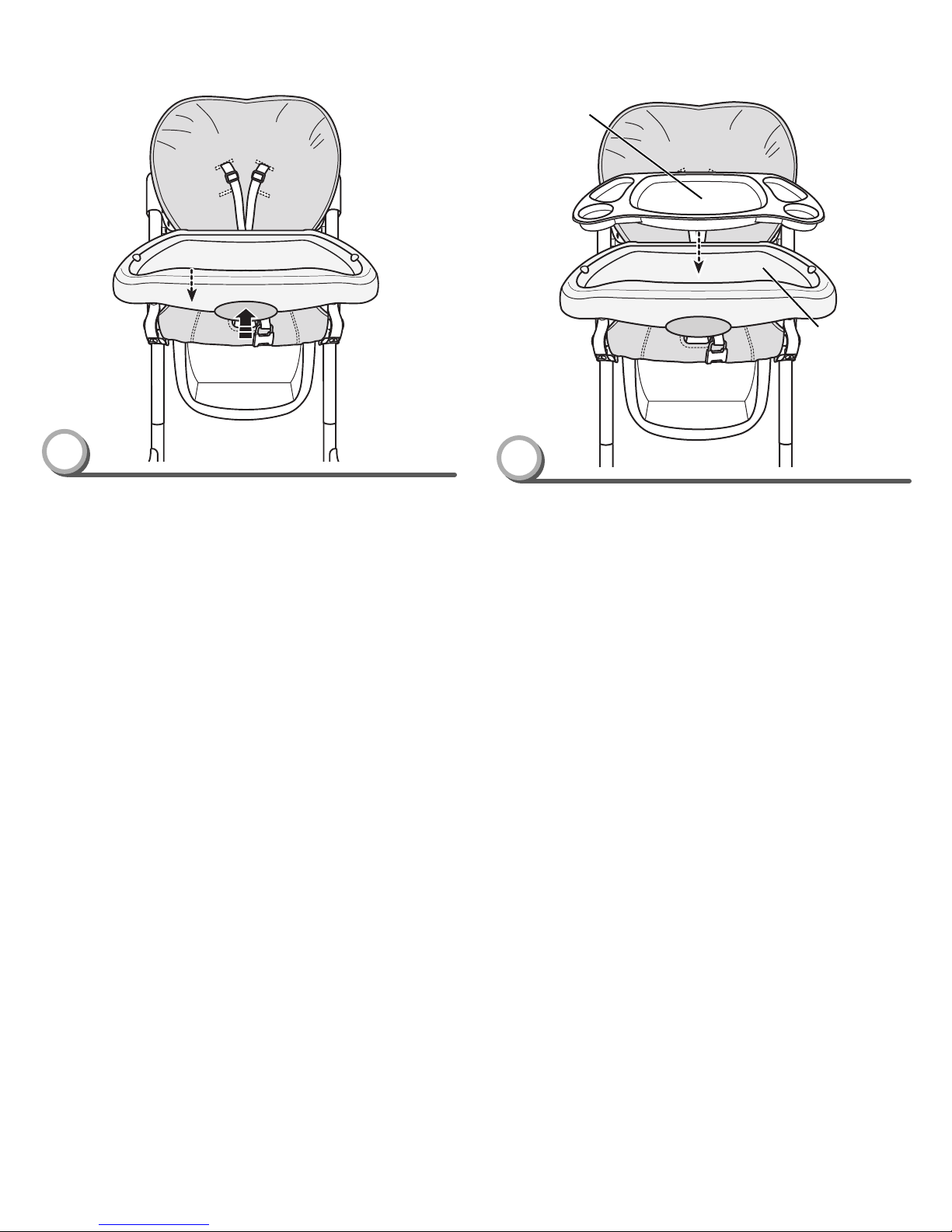

• While pushing the release bar on the front of the base tray,
adjust the base tray forward or backward.
Using the Trays
8
Base Tray
Armrest
Armrest
• Fit the base tray onto the seat armrests. Push down until the
base tray "snaps" into place.
Hint: Before use, thoroughly wash all parts (the trays) that may
contact food. The base tray is not dishwasher safe.
7
Prevent serious injury or death from falls
or sliding out. The child should at all times
wear a safety harness correctly fitted and
adjusted. The tray is not designed to hold
the child in the chair.
WARNING

13
Using the Trays
• While pushing the release bar on the front of the base tray,
pull the tray base towards you and remove.
9
• Fit the food tray into the base tray, as shown.
Hint: Before use, thoroughly wash all parts (the trays) that may
contact food. The food tray is not microwave safe.
Food Tray
Base Tray
10

14
Squeeze
Prevent serious injury or death from falls
or sliding out: It is recommended that only
children capable of sitting upright unassisted
use the high chair in the upright position.
Hint: Adjust the seat angle to any of three positions: Upright,
Semi-Recline or Recline.
Upright
Semi-Recline
Recline
To adjust the seat angle:
• Squeeze the seat back handle and push the seat back forward or,
pull it backwards to the desired position.
• Push the seat back to be sure it is latched in position.
Adjusting the Seat
11
WARNING
Hint: Adjust the seat height to any of seven positions!
To adjust the seat height:
• Press the levers on both seat height adjusters and lift or lower
the seat to the desired height.
• Make sure both sides of the seat are adjusted to the same height.
Push the seat bottom to be sure the seat is locked in place.
12
Press Lever

15
Storage
Pull Frame Release Latch
• With the legs all the way open, lower the seat to position 7
(the lowest position).
• Pull the frame release latches forward and push the rear legs
toward the front legs.
13
• The restraint system, pad, frame, trays and tray toy may be wiped
clean using a mild cleaning solution and a damp cloth. Do not
use bleach.
• The food tray is also top rack dishwasher safe (or use bottom
rack - without using the drying cycle).
To remove the pad:
• Remove the elastic loops from the pegs on the back of the seat.
• From behind the product, squeeze the restraint release tabs and
remove the restraint system from the peg.
• From the front of the product, pull to remove the restraint system.
• Unfasten the pad hooks from the front edge of the seat.
Lift the top of the pad off of the seat back.
• To replace the pad: refer to assembly steps 13-17.
IMPORTANT! Never use this product without the restraint system.
Replace the waist/shoulder belts and crotch belt.
Care

Fisher Price, Inc., a subsidiary of Mattel, Inc., East Aurora, NY 14052 U.S.A.
©2008 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc.
PRINTED IN CHINA P5755pr-0726
Great Britain: Vanwall Business Park, Maidenhead SL6 4UB. Helpline: 01628 500303. www.service.mattel.com/uk.
Asia: Mattel East Asia Ltd, Room 1106, South Tower, World Finance Centre, Harbour City, Tsimshatsui, HK, China.
Malaysia: Diimport & Diedarkan Oleh: Mattel SEA Ptd Ltd. (993532-P) Lot 13.5, 13th Floor, Menara Lien Hoe, Persiaran Tropicana Golf
Country Resort, 47410 PJ. Tel: [phone], Fax: [phone].
