Fisher-Price JEEP LIL WRANGLER 4X4 J0713 Use and care manual

Please read this manual and save it with your original sales receipt.
Tools needed for assembly: Phillips Screwdriver, Hammer,
Slotted Screwdriver, and Safety Scissors (tools not included).
Use only with a Power Wheels®Type H 6 Volt Battery and
a Power Wheels®Type H 6 Volt Charger (both included).
Jeep and the Jeep grille design are registered trademarks of DaimlerChrysler Corporation and are used under license.
©DaimlerChrysler Corporation 2005.
Goodyear (and winged foot design) and Wrangler (for tires) are trademarks of
The Goodyear Tire & Rubber Company, used with permission.
Fisher-Price, Power Wheels, Power Wheels by Fisher-Price and
Power Lock are U.S. trademarks of Mattel, Inc.
Product features may vary from the picture above.
Owner's Manual
Owner's Manual
with Assembly Instructions
with Assembly Instructions
For Mode
For Mode
l
l
J0713
J0713
Owner's Manual
with Assembly Instructions
For Model J0713

A Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
B Warnings and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
C Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
D Parts Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
E Battery Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
F Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
G Decoration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
H Battery Installation and Battery Retainer (Engine Cover) Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
I Battery Care and Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
J Safe Driving Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
K Vehicle Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
L Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
M Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
N Problems and Solutions Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
IMPORTANT INFORMATION
A
• Your new vehicle requires adult assembly. Please set aside at least
45 minutes for assembly.
• You must charge your battery for 18 - 30 hours before you use your
vehicle for the first time. We recommend that you start charging your
battery before beginning assembly. Please see Battery Charging
beginning on page 7 for detailed instructions.
• Read this manual carefully for important safety information and
operating instructions before using your vehicle. Please keep this
manual for future reference as it contains important information.
• Use this vehicle ONLY outdoors. Most interior flooring can be damaged
by riding this vehicle indoors. Fisher-Price®will not be responsible for
damage to floors if the vehicle is used indoors.
• This vehicle is designed for use on asphalt and other hard surfaces;
on generally level terrain; and by children 11
/2- 4 years of age.
• Make sure children know and follow these rules for safe driving
and riding:
- always sit on the seat.
- always wear shoes.
- only 1 (one) rider at a time.
• To prevent damaging the motors and gears, teach your child to stop
the vehicle before switching between forward and reverse. Do not
tow anything behind the vehicle or overload it. Do not exceed the
maximum weight capacity of 50 lb (23 kg).
• If you have any questions about your Power Wheels®vehicle, please
call our toll-free service lines at 1-800-348-0751 from 8 AM to 6 PM (EST)
Monday through Friday. Trained customer service representatives are
available to take your call in English or French. Habla Español? Si usted
tiene alguna pregunta ónecesita asistencia llame gratis 1-800-348-0755
para los Estados Unidos. Tenemos representantes que hablan español
para atender su llamada.
• For your convenience, Power Wheels®maintains an independently
owned and operated Authorized Service Center Network with more
than 400 authorized service centers nationwide. Our authorized
service centers will repair or replace parts under warranty at no extra
charge, and can perform non-warranty repairs for a minimal charge.
To find the authorized service center nearest you, visit us on-line at
www.powerwheels.com or call 1-800-348-0751.
• If you would like to register your vehicle, please visit us on-line at
www.powerwheels.com
2
TABLE OF CONTENTS
A
H4435pr-0920
2
TABLE OF CONTENTS
J0713pr-0920

J0713pr-0920
• In the unassembled state, this package contains small parts. Adult assembly is required.
• Use the charger in dry locations only.
Prevent Injuries and Deaths
• Direct Adult Supervision Required
• Never Ride at Night
• Keep Children Within Safe Riding Areas.
These areas must be:
- away from swimming pools and other bodies of water to prevent drownings
- generally level to prevent tipovers
- away from steps, cars, steep inclines, roads and alleys.
ELECTRICAL HAZARD
WARNING
CAUTION
• Battery can fall out and injure a child if vehicle tips over. Always use battery retainer.
• PREVENT FIRE
- Never modify the electrical system. Alterations could cause a fire resulting in serious injury
and could also ruin the electrical system.
- Use of the wrong type battery or charger could cause a fire or explosion resulting in
serious injury.
- Use of Power Wheels®components in products other than Power Wheels®vehicles could
cause overheating, fire or explosion.
• The battery must be handled by adults only. The battery is heavy and contains sulfuric acid
(electrolyte). Dropping the battery could result in serious injury.
• Never allow children to charge the battery. Battery charging must be done by adults only.
A child could be injured by the electricity involved in charging the battery.
• Never lift or carry the battery by the wires or connector. This can damage the battery and
possibly cause a fire resulting in serious injury. Lift and carry the battery by the case only.
• Read the safety instructions on the battery.
• Examine the battery, charger and their connectors for excessive wear or damage each time
you charge the battery. If damage or excessive wear is detected, do not use the charger or
the battery until you have replaced the worn or damaged part.
• HOT motors. Handle carefully.
WARNING
RIDING HAZARD
3
WARNINGS AND CAUTIONS
B
3
WARNINGS AND CAUTIONS
B

• If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product
to the store.
• Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded.
• Metal parts have been coated with a lubricant to protect them during shipment. Wipe all metal parts with a paper towel to remove any
excess lubricant.
J0713pr-0920
Windshield Frame
Windshield
Dashboard Set
Vehicle Body (with Dash and Hood)
Spark Plug Wires
Steering Wheel
(Top Half)
(Bottom Half)
Activity
Panel
Instrument Panel
Battery Retainer
(Engine Cover)
Taillight Housing Set
Sport Bar
Taillight Lens Set
Grille
Steering Column
Headlight Lens - 2
4
PARTS
C
4
PARTS
C

J0713pr-0920
Fasteners Shown Actual Size
5
PARTS
C
Cap Nut – 2
#6 x 1/2" Screw - 11
#6 x 11/2" Screw - 2
#8 x 18 x 1" Screw - 2
#8 x 1" Screw - 12
6 Volt Battery
Radio Dial
Steering Wheel Cap
Microphone
Shifter
6-VOLT
CHARGER
6 Volt Charger
Key Assembly
®
Cap Assembly
Traction Band - 4
Sport Bar
Cover Set
For your convenience, an extra cap nut has been included.
Note: Tighten and loosen all screws with a Phillips screwdriver.
Do not over-tighten the screws.
Parts Not Shown: Label Sheet - 2
5
PARTS
C

29 #6 x
1/ 2" Screw - 11
30 #6 x 11/ 2" Screw - 2
31 #8 x 18 x 1" Screw - 2
32 #8 x 1" - 12
1 Vehicle Body
2 Steering Column
3 Grille
4 Sport Bar
5 Sport Bar Cover Set
6 Taillight Lens - 2
7
Taillight Housing - 2
8 Headlight Lens - 2
9 Steering Wheel Cap
10 Spark Plug Wires
11 Traction Band - 4
12 Type H 6 Volt Charger
13 Cap Assembly
14 Battery Retainer (Engine Cover)
Parts Not Shown
Label Sheet - 2
15 Windshield
16 Windshield Frame
17 Dash
18 Hood
19 Microphone
20 Radio Dial
21 Activity Panel
6

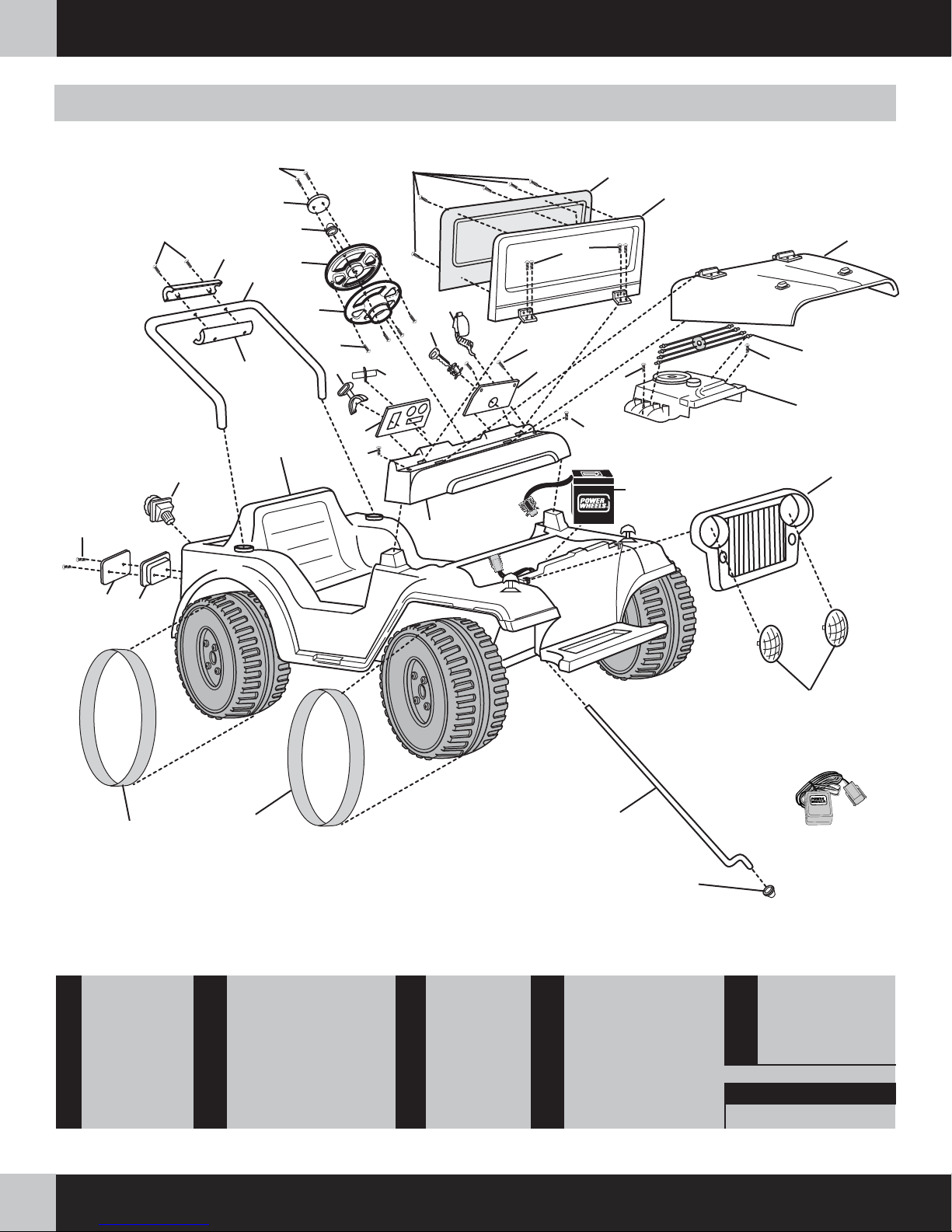

PARTS PICTURE
D
H4435pr-0920
®
18
10
12-VOLT
CHARGER
15
16
31
14
3
8
12
28
2
31
32
27
11
11
7
6
13
5
1
4
5
30
32
9
28
24
23
29
25
21
32
32 17
22
29
19
26
32
29
20
22 Instrument Panel
23 Steering Wheel - Bottom Half
24 Steering Wheel - Top Half
25 Shifter
26 Key Assembly
27 Type H 6 Volt Battery
28 .437 Cap Nut - 2
Note: Some of the parts shown are assembled to both sides of the vehicle.
6
PARTS PICTURE
D
J0713pr-0920

• Battery can fall out and injure a child if
vehicle tips over. Always use battery retainer.
• PREVENT FIRE
- Never modify the electrical system.
Alterations could cause a fire resulting
in serious injury and could also ruin the
electrical system.
- Use of the wrong type battery or charger
could cause a fire or explosion resulting
in serious injury.
- Use of Power Wheels®components in
products other than Power Wheels®
vehicles could cause overheating, fire
or explosion.
• The battery must be handled by adults only.
The battery is heavy and contains sulfuric
acid (electrolyte). Dropping the battery could
result in serious injury.
• Never allow children to charge the battery.
Battery charging must be done by adults
only. A child could be injured by the elec-
tricity involved in charging the battery.
• Never lift or carry the battery by the wires
or connector. This can damage the battery
and possibly cause a fire resulting in
serious injury. Lift and carry the battery by
the case only.
• Read the safety instructions on the battery.
• Examine the battery, charger and their
connectors for excessive wear or damage
each time you charge the battery. If damage
or excessive wear is detected, do not use
the charger or the battery until you have
replaced the worn or damaged part.
WARNING
Use the charger in dry locations only.
CAUTION
ELECTRICAL HAZARD
ELECTRICAL HAZARD
About Thermal Fuses
Your Power Wheels®6 volt battery is equipped with a built-in thermal
fuse. The thermal fuse is a self-resetting safety device which automati-
cally “trips” and shuts down operation of the vehicle if the vehicle is
overloaded or the driving conditions too severe. Once a fuse has
“tripped”, it will automatically reset itself after approximately 25 seconds
and allow the vehicle to resume normal operations. To avoid repeated
automatic shut-downs, do not overload the vehicle by exceeding the
50 lbs (23 kg.) maximum weight capacity or by towing anything behind
the vehicle. Avoid severe driving conditions, such as driving up slopes or
running into fixed objects, which can cause the wheels to stop spinning
while power is still being supplied to the motors. Make sure your child
stops the vehicle before switching speeds or direction.
If a thermal fuse in a battery continually trips under normal driving
conditions, please contact your local independently owned and
operated Power Wheels®Authorized Service Center. For the location
of the nearest you, visit us on-line at www.powerwheels.com.

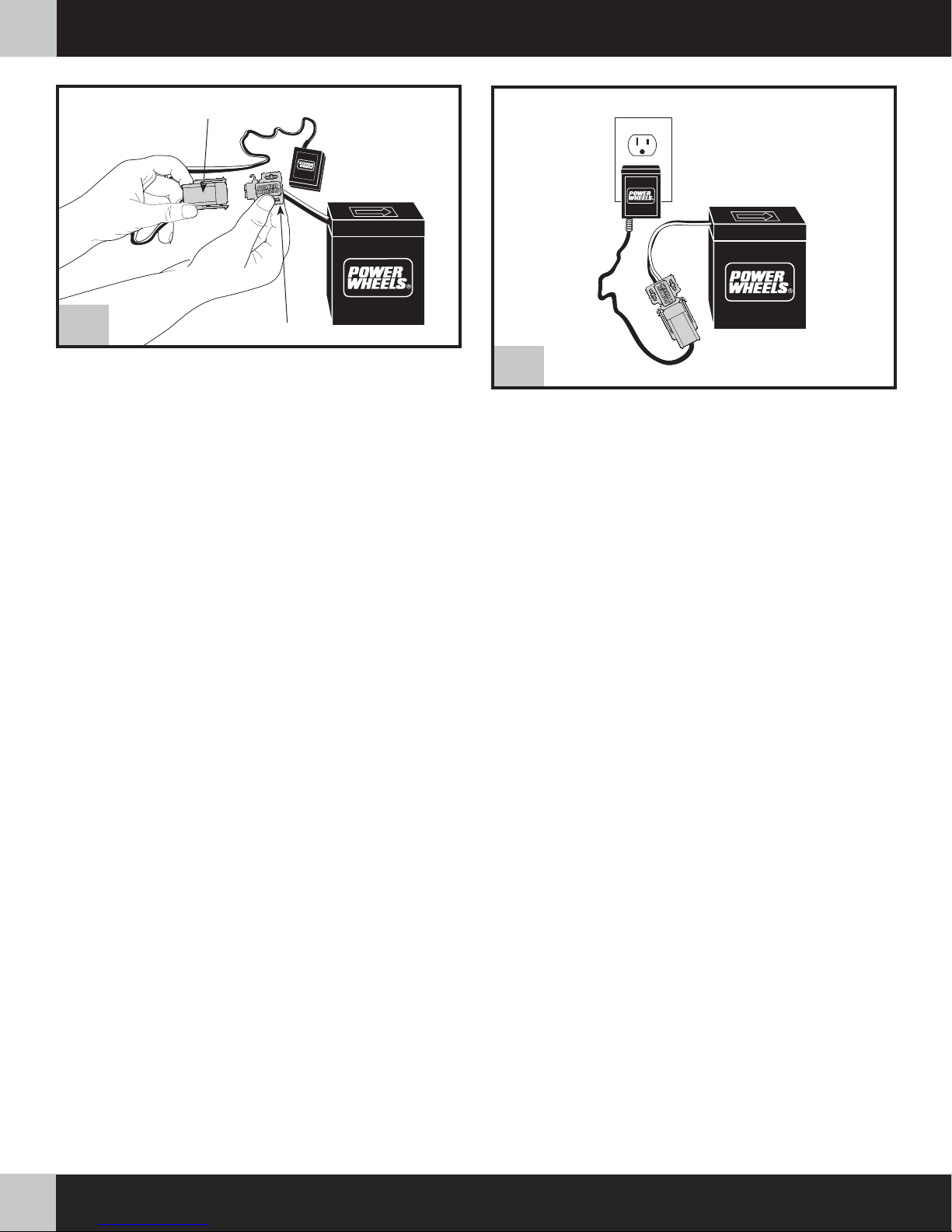

IMPORTANT!
Your new battery must be charged for at least 18 hours before
you use it in your vehicle for the first time.
• We recommend that you start charging your battery before beginning
assembly of your new vehicle.
• The battery must be upright while charging.
• The charger is not a toy.
• Do not short circuit the battery.
• If your battery is old and will not accept a charge, do not leave it in the
vehicle. Always remove a dead battery from the vehicle.
• Once installed, you do not need to remove the battery from your vehicle
to recharge it.
• Before charging the battery, examine the battery case for cracks and
other damage which may cause sulfuric acid (electrolyte) to leak during
the charging process. If damage is detected, do not charge the battery
or use it in your vehicle. Battery acid is very corrosive and can cause
severe damage to surfaces it contacts.
• Do not charge the battery on a surface (such as kitchen counter tops)
which could be damaged by the acid contained inside the battery. Take
precautions to protect the surface on which you charge your battery.
• Use only a Power Wheels®Type H 6 volt charger (120 VAC, 60 Hz, 12W
with an output of 6 VDC 4.8W 800mA) to charge your Power Wheels®
Type H 6 volt battery.
7
BATTERY CHARGING
E
J0713pr-0920

2
8
BATTERY CHARGING
E
J0713pr-0920
Battery Connector
• Squeeze the connector tabs on the charger connector and plug it into
the battery connector.
IMPORTANT! If you are recharging your battery, you will first need to
lift the hood and remove the battery retainer (pretend engine cover).
Disconnect the battery connector from the motor harness connector.
1
®
• Plug the charger into a standard wall outlet.
Note: If power flow to the wall outlet is controlled by a switch, make
sure the switch is “ON”.
• Before first-time use, charge the battery for at least 18 hours.
Never charge the battery longer than 30 hours.
• Recharge the battery for at least 14 hours after each use of your
vehicle. Do not charge the battery longer than 30 hours.
• Once the battery is charged, disconnect the charger connector from
the battery connector. Unplug the charger from the wall outlet. The
battery is now ready to be installed in your vehicle. Please see the
Battery Installation section on page 16 for detailed instructions on
installing your battery.
®
Charger Connector

9
ASSEMBLY
F
J0713pr-0920
4
BOTTOM VIEW
3
Children can be harmed by small parts,
sharp edges and sharp points in the
vehicle's unassembled state, or by electrical
items. Care should be taken in unpacking
and assembly of the vehicle. Children should
not handle parts, including the battery, or
help in assembly of the vehicle.
WARNING
1
• Fit the steering wheel top and bottom together.
• Insert four #6 x 1/2" screws into the holes in the steering wheel bottom
and tighten.
• Set the steering wheel aside.
• Insert a #8 x 1" screw through the hole in each end of the dash and
into the vehicle body. Tighten the screws.
Steering Wheel
Bottom
Dash
Vehicle
Body
• Position the vehicle body on its side.
• Fit the straight end of the steering column up through the square
opening in the vehicle body and out through the large round hole in
the dash. Make sure the steering column is positioned between
the guides on the underside of the vehicle body.
• Insert the end of the steering column through the hole in the steering
linkage (see inset).
Guide
Square
Opening
Steering
Column
Steering
Column
Guide
INSET
Steering
Linkage
2
• Turn the vehicle body upright.
• Align the keyed hole in the center of the steering wheel with the ribs
on the steering column. Fit the steering wheel onto the steering
column. The base of the steering wheel should fit into the large hole
in the dash.
• Fit a cap nut onto the end of the steering column.
• Tap the cap nut with a hammer to secure it on the steering column.
Hint: You may want the help of another person to support the steering
column while you tap the cap nut with the hammer.
Steering Wheel
Steering Column
Cap Nut
Steering
Wheel Top

10
ASSEMBLY
F
J0713pr-0920
7
• Fit the steering wheel cap into the center of the steering wheel with
the screw holes aligned.
• Insert two #8 x 1" screws into the holes in the steering wheel cap
and tighten.
• Position the vehicle body on its side.
• Fit a cap nut onto the end of the steering column.
• While supporting the steering column tap the cap nut with a hammer
to secure it on the steering column.
• Turn the vehicle body upright.
Cap Nut
5
6
8
Steering Wheel
Steering Wheel Cap
.437"
BOTTOM VIEW
• Using safety scissors, separate the activity panel and the instrument
panel. Dispose of the plastic connector.
• Apply labels 12 and 13 to the radio dial.
• From the back of the activity panel: fit one end of the radio dial onto a
tab on the activity panel; position the center gear in the slot; and then
press firmly to snap in the other end of the radio dial to the other tab
on the activity panel.
Radio Dial
Label 13
Label 12
Activity Panel
Gear
Slot
Tab
Tab
• Turn the activity panel over. With the wide part of the shifter handle
outward, insert and snap the shifter into the activity panel.
• Set the activity panel aside.
Activity Panel
Shifter

11
ASSEMBLY
F
J0713pr-0920
• Insert and “snap” the key assembly into the hole in the
instrument panel.
• Fit the tabs on the bottom of the instrument panel into the notches in
the dash opening to the left of the steering wheel.
• Press near the top of the instrument panel to snap the top tab on the
back of the instrument panel into the dash.
Instrument Panel
Steering Wheel
Tab
Tab
Notches
9
10
• Bend the plastic tip at the end of the microphone cord to form a “T”.
• Insert the plastic tip into the small hole in the left side of the vehicle
body. Pull gently on the cord to make sure it is secure.
• Fit the tab on the back of the microphone into the slot in the dash.
• Fit the tabs on the bottom of the activity panel into the notches in the
dash opening to the right of the steering wheel.
• Insert two #6 x 1/2" screws into the holes in the top of the activity panel
and tighten.
11
Microphone
Plastic
Tip
Slot Hole
Instrument Panel
Key
Assembly
Tab
Tab
Activity Panel
Notches
12

12
ASSEMBLY
F
J0713pr-0920
Slots
Dash

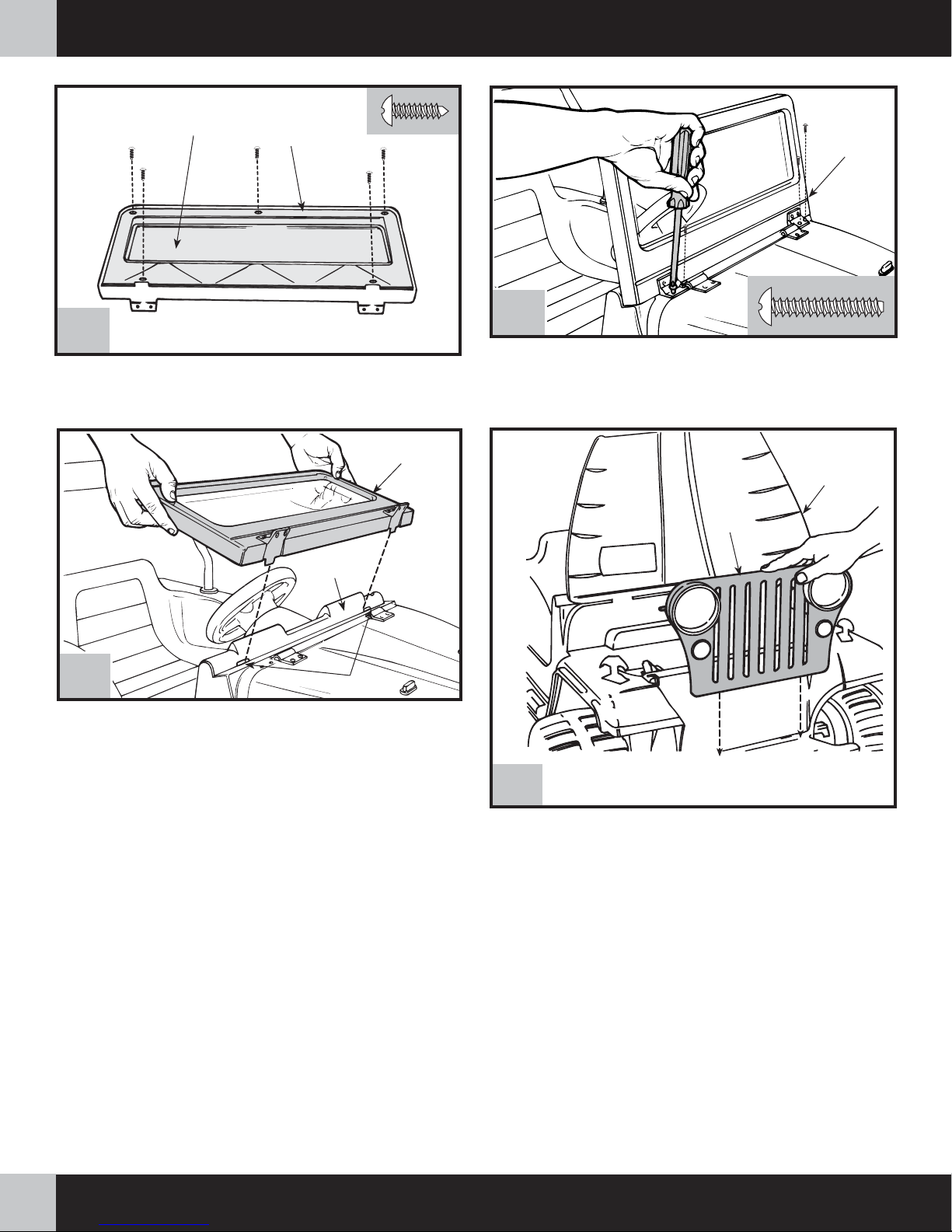

• Fit the tabs on the back of the windshield into the slots in the top of
the dash.
• Fit the windshield into the windshield frame.
• Insert five #6 x 1/2" screws into the holes in the windshield and tighten.
Windshield
Windshield
Frame
13
14
• Rotate the top of the windshield toward the front of the vehicle body.
• Insert four #8 x 1" screws into the holes in the hinge on the windshield
and tighten.
Windshield
15
Hood
Grille
• Lift the hood.
• Fit the tabs at the bottom of the grille into the slots in the vehicle body.
• Press near the top of the grille to snap it into the vehicle body.
• Lower the hood.
16
Windshield

13
ASSEMBLY
F
J0713pr-0920
20

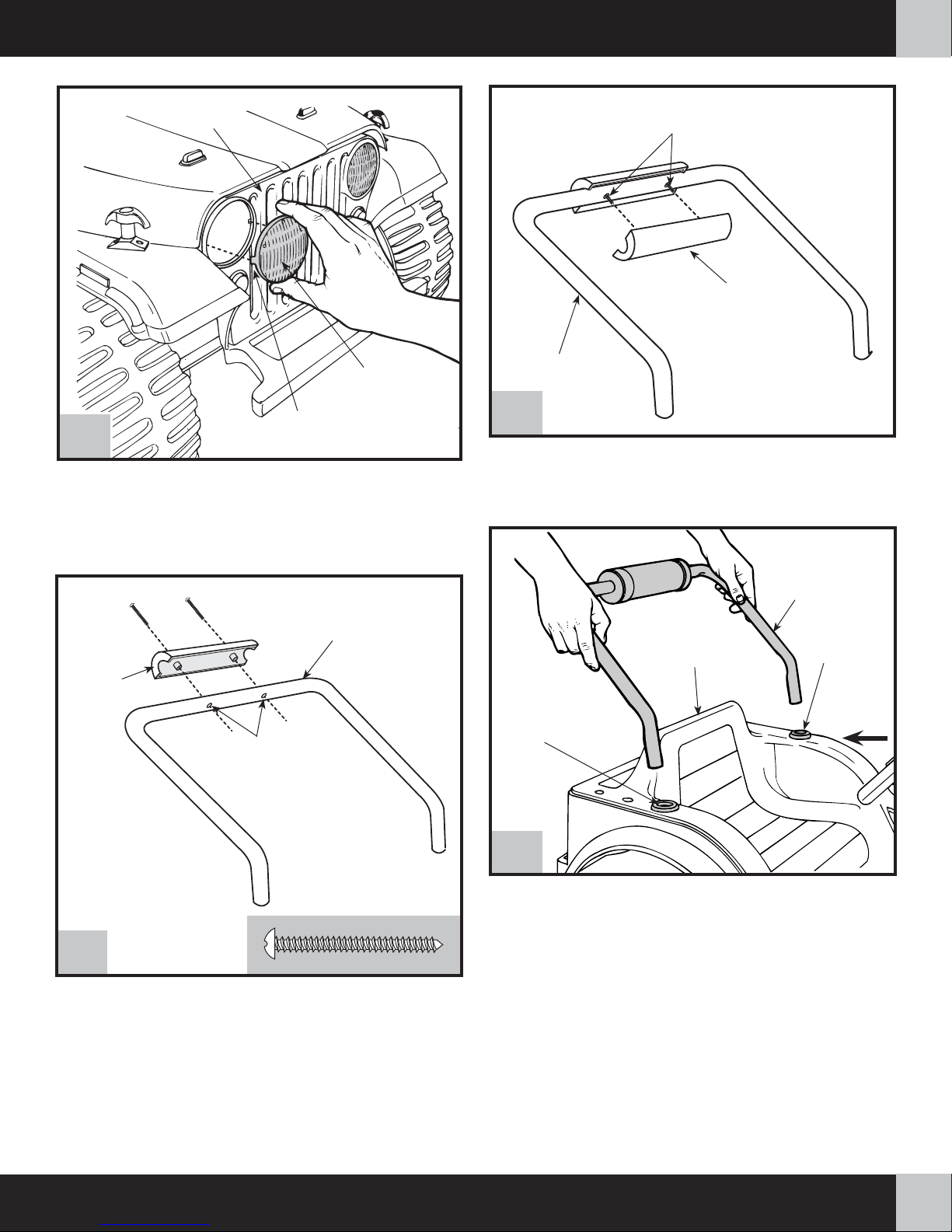

• Fit the tab on one side of a headlight lens into the notch in the grille.
• Push firmly to snap the tab on the other side of the headlight lens into
the grille.
• Repeat this procedure to assemble the other headlight lens to the grille.
Headlight
Lens
Tab
Grille
17
• Using safety scissors, separate the sport bar covers. Dispose of the
plastic connector.
• With the ends of the sport bar angled toward you, fit the sport bar
cover marked “BAC” to the sport bar.
• Align the holes in the sport bar with the holes in the sport bar cover.
• Insert two #6 x 11/2" screws through the sport bar cover and into the
sport bar, as shown.
Sport Bar
Cover
(BAC)
Sport Bar
Holes
18
• Align the tips of the screws with the holes in the other sport bar cover
marked RON. Fit the two sport bar covers together.
• Tighten the screws.
Sport Bar
Cover
(RON)
Screw Tips
Sport Bar
19
• With the sport bar positioned to angle towards the rear of the vehicle,
fit the ends of the sport bar into the holes in the vehicle body on either
side of the seat.
• Press firmly on each side of the sport bar to fit it into the vehicle body.
Rear of
Vehicle
Seat
Sport Bar
Hole
Hole

14
ASSEMBLY
F
J0713pr-0920
• Face the back of the vehicle.
• With the cap tether pointing down, insert and “snap” the cap assembly
into the square opening in the rear of the vehicle.
21
22
23
24
• Using safety scissors, separate the taillight lenses and taillight housings
from the plastic connectors. Dispose of the plastic connectors properly.
• Fit a taillight lens in a taillight housing.
• Face the back of the vehicle.
• Align the holes in the taillight with the holes in the vehicle body.
• Insert two #8 x 1" screws into the holes in the taillight and tighten.
• Repeat steps 22 and 23 to assemble the other taillight lens and taillight
housing to the vehicle body.
Rear of
Vehicle Body
• Turn the vehicle on its side.
• Fit a traction band around a wheel.
• Slide a slotted screwdriver under the traction band to push the traction
band onto the ridge in the center of the wheel.
Hint: If the traction band is difficult to fit around the wheel, you may
want to soak it in warm water to soften it slightly.
• Repeat this procedure to assemble a traction band to each wheel.
• Turn the vehicle upright.
Traction
Band
Wheel
Ridge
Taillight
BOTTOM VIEW
Cap Assembly
Tether
• “Snap” the center of the spark plug wire set onto the battery retainer
(engine cover).
• Fit each of the spark plug wire ends into the holes on the sides of the
battery retainer (engine cover).
IMPORTANT! You must install your Power Wheels®battery in your
vehicle before assembling the battery retainer (engine cover) under
the hood. Please refer to “Battery Installation” on page 16 for
detailed instructions.
25
Taillight Lens
Taillight
Housing
Spark Plug
Wire Set
Spark Plug
Wire End
Hole
Battery Retainer
(Engine Cover)

FRONT LEFT SIDE
REAR VIEW
15
DECORATION
G
J0713pr-0920
Proper label application will help to keep the labels looking their
best! Keep the following guidelines in mind when applying labels:
• Wash your hands before applying the labels.
• Before applying the labels, wipe the surface of the vehicle with a
clean, dry cloth to remove any dust or oils.
• Place the labels exactly as shown in these instructions.
• For best results, avoid repositioning a label once it has been applied to
the vehicle.
• After applying a label, rub the label firmly with a clean, dry cloth to
make sure the label is adhered to your vehicle. Start at the center of a
label and smooth towards the outer edges to remove air bubbles.
24
23
19
19
2
5
6
3
4
6
8
6
16
16
5
6
9
8
9
8
9
89
R
®
7
11
18
22
17
10
14
15
18
26
21
25
20
DASH VIEW -
LEFT SIDE (INSTRUMENT PANEL)
DASH VIEW -
RIGHT SIDE (ACTIVITY PANEL)
1
JEEP®and the Jeep ®grille design are registered trademarks of
DaimlerChrysler Corporation. JEEP ®WRANGLER®and its trade dress
are used under license from D aimlerChr ysler. ©DaimlerChryslerCorporation 2004
FRONT RIGHT SIDE

4
3
2
1
16
BATTERY INSTALLATION AND BATTERY RETAINER
(ENGINE COVER) ASSEMBLY
H
J0713pr-0920
¤

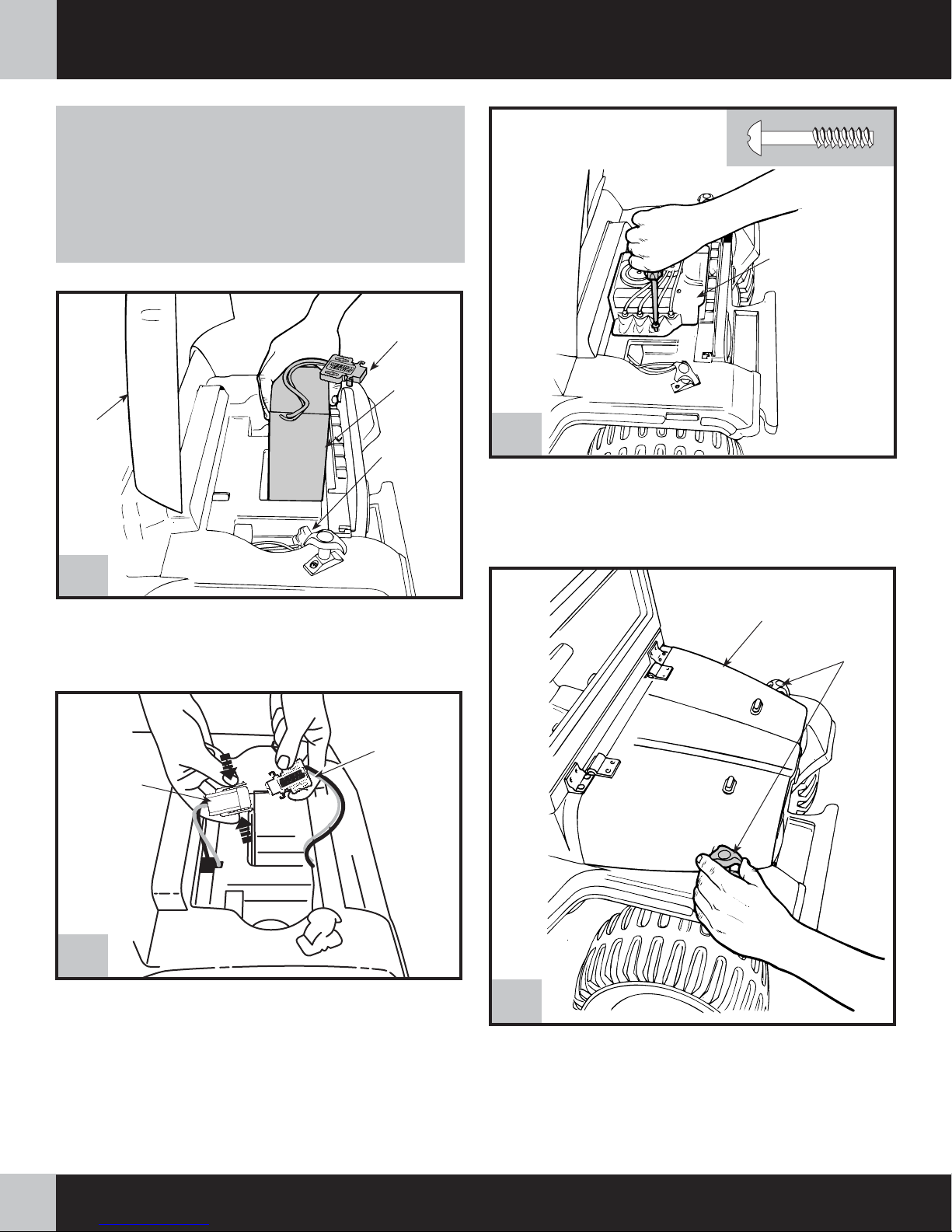

• Lift the hood.
• Place the battery in the battery compartment. Make sure the battery
connector extends toward the motor harness connector.
Battery
Motor
Harness
Connector
Hood
Battery
Connector
®
• Squeeze the tabs on each side of the motor harness connector. Plug
the battery connector into the motor harness connector.
Note: If the battery connector will not plug into the motor harness
connector, turn it over and try again. Do not force the battery
connector into the motor harness connector.
Motor Harness
Connector
Battery
Connector
• Fit the battery retainer (engine cover) over the battery, motor harness
connector and battery connector.
• Insert two #8 x 18 x 1" screws into the holes in the battery retainer
(engine cover) and tighten.
Battery Retainer
(Engine Cover)
• Lower the hood. Lift the hood latches and fit the short tabs onto the
notches on the hood to fasten it.
Hood
Hood
Latches
IMPORTANT! Use only a Power Wheels®Type H 6 Volt battery.
Use of any other battery will damage your vehicle. Make sure that
you charge the battery for at least 18 hours using the enclosed
Power Wheels®Type H 6 Volt charger before operating your vehi-
cle for the first time. Charge the battery for at least 14 hours after
each use of the vehicle. Never charge the battery longer than
30 hours. Failure to follow these instructions may damage your
battery and will void your warranty.

17
BATTERY CARE AND DISPOSAL
I
J0713pr-0920
If a battery leak develops, avoid contact with the leaking acid and
place the damaged battery in a plastic bag. See information below for
proper disposal.
If acid comes in contact with skin or eyes, flush with cool water for
at least 15 minutes and call a physician.
If acid is internally ingested, give water, milk of magnesia or egg
whites immediately. Never give emetics or induce vomiting.
Call a physician.
• Charge a new battery for at least 18 hours before first use. Never
charge the battery longer than 30 hours. Overcharging or under-
charging the battery may shorten battery life and decrease vehicle
running time.
• After the first charge, recharge the battery for at least 14 hours after
each use. Never charge the battery longer than 30 hours. Charge the
battery after each use, regardless of how long the vehicle was used.
• The battery must be upright while charging.
• Do not allow the battery to run down completely before charging.
• Charge the battery before storing the vehicle.
• Charge the battery at least once per month, even if the vehicle has
not been used.
• Leaving the battery in a discharged condition will ruin it.
• Always remove an exhausted battery from the vehicle. Battery leakage
and corrosion can damage the vehicle.
• Do not store the battery on a surface (such as kitchen countertops)
which could be damaged by the acid contained inside the battery.
Take precautions to protect the surface on which you store the battery.
• Do not store the battery in temperatures above 75° F or below -10° F.
• Prevent the battery from moving freely inside the battery compartment.
Always use the battery retainer (engine cover) to secure the battery
in the battery compartment.
• Examine the battery, charger and their connectors for excessive wear
or damage each time you charge the battery. If damage is detected,
do not use the charger or the battery until you have replaced the worn
or damaged part.
Care
• Your Power Wheels®battery is a non-spillable sealed lead-acid battery.
It must be recycled or disposed of in an environmentally sound manner.
• Do not dispose of a lead-acid battery in a fire. The battery may explode
or leak.
• Do not dispose of a lead-acid battery in your regular, household trash.
The incineration, landfilling or mixing of sealed lead-acid batteries with
household trash is prohibited by law in most areas.
• Return exhausted batteries to a federal or state approved lead-acid
battery recycler, such as a Power Wheels®authorized service center,
or a local seller of automotive batteries. For the service center location
nearest you, please call 1-800-348-0751. Contact your local waste
management officials for other information regarding the environmentally
sound collection, recycling and disposal of lead-acid batteries. If you live
in the State of Florida or Minnesota, it is prohibited by law for anyone to
throw away lead-acid batteries in the municipal waste stream.
Disposal

Teach Safety Rules to Children
While children can quickly develop the skill necessary to drive this
vehicle, it is important to remember that their judgment skills are still
very immature. Unsupervised driving by children can lead to serious
injury. Before children use this vehicle, an adult should carefully
evaluate the driving area as well as the children’s skill level and ability
to drive this vehicle safely. Children are not always able to recognize
or anticipate hazards, even when they have been taught about them.
There is no acceptable substitute for direct adult supervision.
Teach appropriate safety rules to your child before allowing operation
of this vehicle. These rules should also be reviewed with neighborhood
children or other playmates who want to drive this vehicle.
Riding Rules
Make sure children know and follow these rules for safe driving:
1. Always sit on the seat.
2. Always wear shoes.
3. Only 1 (one) rider at a time. A child who is not sitting on the seat or
who is standing on the vehicle could fall off, cause a tip-over or block
the driver’s view. A child could be seriously injured.
4. Do not allow any child to drive the vehicle in the street or near mov-
ing (motorized) vehicles.
5. Do not allow any child to drive near bodies of water (such as pools
or creeks), obstructions (such as furniture, low tree limbs or play
equipment), or drop-offs (such as stairs or decks).
6. Do not allow any child to drive the vehicle in the dark. A child could
encounter unexpected obstacles and have an accident. Operate the
vehicle only in the daytime or a well-lit area.
7. Do not allow your child to drive on sloped or inclined surfaces.
Restrict your child’s driving to generally level ground ONLY!
8. Do not allow your child to drive down or across a steep slope.
- The vehicle may gain unsafe speed, even if the pedal is released
to stop.
- The vehicle may tilt and tip over.
- The wheels could lose traction, causing the vehicle to slip.
9. Do not allow your child to drive up steep inclines. The motor may
stop and the vehicle could roll backwards at an unsafe speed.
10. Never put anything near any moving parts. Rotating parts such as
motors, gear boxes and wheels can snag fingers, hair, etc., causing
serious injury. Do not allow operation of the vehicle when it is on its
side or in an upside-down position.
11. Do not operate the vehicle near flammable vapors (gasoline, paint
thinner, acetone, liquid wax, etc.). The vehicle’s electrical switches,
like most electrical switches, emit an internal spark when first turned
on or turned off. The presence of flammable liquids or vapors could
cause an explosion or a fire. Keep all flammable products in tightly
sealed containers and away from the vehicle.
12. Do not allow a child to operate the vehicle without direct adult super-
vision. To prevent unsupervised use of the vehicle, disconnect the
motor harness from the battery when the vehicle is not in use.
To disconnect the motor harness connector and battery connector:
- Lift the hood.
- Remove the battery retainer (engine cover).
- Squeeze the tabs on the motor harness connector to unplug it from
the battery connector.
- Replace the battery retainer (engine cover).
- Lower the hood and fasten the hood latches.
WARNING
Prevent Injuries and Deaths
• Direct Adult Supervision Required
• Never Ride at Night
• Keep Children Within Safe Riding Areas
These areas must be:
- away from swimming pools and other
bodies of water to prevent drownings
- generally level to prevent tipovers
- away from steps, cars, steep inclines,
roads and alleys.
Use vehicle on generally level ground ONLY!
18
SAFE DRIVING RULES
J
J0713pr-0920
RIDING HAZARD

• Push the top button (FWD) to drive forward
11
1
.
• Press down on the foot pedal
11
2
. The vehicle moves forward at a
maximum of 21/2mph
11
3
.
• Help your child practice steering to learn how far and how quickly to
turn the steering wheel when driving forward.
11 1
11 2
REV
IMPORTANT! Use this vehicle ONLY outdoors. Most interior
flooring can be damaged by riding this vehicle indoors. Fisher-Price®
will not be responsible for damage if this vehicle is used indoors.
To Back-Up
• Once your child is comfortable operating the vehicle in forward, intro-
duce reverse.
IMPORTANT! To prevent damage to the motors, stop the vehicle before
switching between forward and reverse.
• Push the bottom button (REV) to drive in reverse
11
1
.
• Press down on the foot pedal
11
2
. The vehicle moves backwards at a
maximum of 21/2mph
11
3
.
• Help your child practice steering to learn how far and how quickly to
turn the steering wheel when driving in reverse.
To Stop
• Check all screws, retainers and protective coverings regularly and
tighten as required. Check plastic parts on a regular basis for cracks
or broken pieces.
• During snowy or rainy weather, the vehicle should be stored inside
or under a protective cover. Remember to charge the battery at least
once per month while your vehicle is not in regular use.
• Avoid operating the vehicle in wet or snowy conditions, and do not
spray the vehicle with a hose. Do not wash the vehicle with soap and
water. Water or moisture in the motor or electrical switches can cause
them to corrode, and could cause switch or motor failure.
• Avoid operating the vehicle on sand, loose dirt or gravel. Sand, loose
dirt or gravel in the motor or electrical switches can cause them to jam,
and could cause switch or motor failure.
• The vehicle can be wiped down with a soft, dry cloth. For a shiny finish,
you can wipe plastic parts with a non-wax furniture polish applied to a
soft-cloth. Do not use automotive wax. Do not use soap and water or
spray the vehicle with a hose.
• To ensure that your vehicle stays in good operating order, we
recommend that you periodically have your vehicle checked by a
Power Wheels®authorized service center. For the location of the
authorized service center nearest you, please visit us on-line at
www.powerwheels.com or call 1-800-348-0751.
11 1
11 2
11 3
FWD
To Drive
• Your vehicle has a patented, electronic braking system that automati-
cally stops the vehicle when your child’s foot is lifted from the pedal.
19
VEHICLE OPERATION
L
J0713pr-0920
K
VEHICLE CARE
11 3

*One year limited warranty from the date of purchase on the Power Wheels®vehicle.
Six month limited warranty on 6 volt battery.
For the original purchaser, this one year limited warranty covers the Power Wheels®ride-on vehicle (purchased from Power Wheels®) against
defects in materials and workmanship. The six month limited warranty applies only to the 6 volt battery included by Power Wheels®with the
original purchase of the vehicle.
This warranty covers normal use and does not cover the Power Wheels®vehicle or battery if it has been damaged by unreasonable use, neglect,
accident, abuse, misuse, improper service or other causes not arising out of defects in materials or workmanship. Evidence of any attempt at
consumer repair will void this warranty.
THIS WARRANTY DOES NOT COVER, AND IS INTENDED TO EXCLUDE, ANY LIABILITY ON THE PART OF POWER WHEELS®, WHETHER
UNDER THIS WARRANTY OR IMPLIED BY LAW, FOR ANY INDIRECT OR CONSEQUENTIAL DAMAGES FOR BREACH OF WARRANTY.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION, SO THIS LIMITATION MAY NOT APPLY TO YOU.
Should you need service or assistance with your vehicle during the warranty period, do not return the vehicle to the store. Power Wheels®has
provided a nationwide network of authorized service centers. For the location of the authorized service center nearest you, please visit us on-line
at www.powerwheels.com or call 1-800-348-0751. Power Wheels®is continually expanding our Authorized Service Center Network. If there is
not an authorized service center in your area, please call Consumer Relations for information, 1-800-348-0751.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH MAY VARY FROM
STATE TO STATE.
PLEASE SAVE YOUR ORIGINAL SALES RECEIPT.
20
BUMPER-TO-BUMPER LIMITED WARRANTY
M
J0713pr-0920
