• Your new vehicle requires adult assembly. Please set aside at
least 60 minutes for assembly.
• You must charge your battery for 18 - 30 hours before you use
your vehicle for the first time. We recommend that you start
charging your battery before beginning assembly. Please see
Battery Charging beginning on page 8 for detailed instructions.
• Read this manual carefully for important safety information
and operating instructions before using your vehicle. Keep this
manual for future reference as it contains important information.
• This vehicle is designed for use on: grass, asphalt and other
hard surfaces; on generally level terrain; and by children 2-6
years of age.
• Use this vehicle ONLY outdoors. Most interior flooring can be
damaged by riding this vehicle indoors. Fisher-Price®will not
be responsible for damage to the floor if the vehicle is
used indoors.
• To prevent damaging the motors and gears, teach your child to
stop the vehicle before switching direction. Do not tow anything
behind the vehicle or overload it. Do not exceed the maximum
weight capacity of 65 lbs (29.5 kg).
• If you have any questions about your Power Wheels®vehicle,
please call our toll-free service lines at 1-800-348-0751 from
9 AM to 7 PM (EST) Monday through Friday and 11 AM to 5 PM
(EST) Saturday. Trained customer service representatives are
available to take your call in English or French. Habla Español?
Si usted tiene alguna pregunta ó necesita asistencia llame
gratis 1-800-348-0755 para los Estados Unidos. Tenemos
representantes que hablan español para atender su llamada.
• For your convenience, Power Wheels®maintains an
independently owned and operated Authorized Service
Center Network with more than 300 authorized service centers
nationwide. Our authorized service centers will repair or replace
parts under warranty at no extra charge, and can perform non-
warranty repairs for a minimal charge. To find the authorized
service center nearest you, please visit us online at
www.powerwheels.com or call 1-800-348-0751.
• To register your vehicle, please visit us on-line at
www.powerwheels.com.
IMPORTANT INFORMATION
A
2
TABLE OF CONTENTS
K3033pr-0920
A Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
B Warnings and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
C Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
D Parts Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
E Battery Charging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
F Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
G Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
H Decoration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
I Battery Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
J Battery Care and Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
K Safe Driving Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
L Vehicle Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
M Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
N Problems and Solutions Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
2
TABLE OF CONTENTS
P5064pr-0920

P5064-0920 3
WARNINGS AND CAUTIONS
B
P5064pr-0920
• In the unassembled state, this package contains small parts. Adult assembly is required.
• Use the charger in dry locations only.
• Prevent Injuries and Deaths
• Direct Adult Supervision Required.
• Never Ride at Night.
• Keep Children Within Safe Riding Areas.
These areas must be:
- away from swimming pools and other bodies of water to prevent drownings
- generally level to prevent tipovers
- away from steps, steep inclines, cars, roads and alleys.
• Riding Rules
Make sure children know and follow these rules for safe driving and riding.
- Always sit on the seat.
- Always wear shoes.
- Only 1 (one) rider at a time.
ELECTRICAL HAZARD
WARNING
CAUTION
• Battery can fall out and injure a child if vehicle tips over. Always use the battery retainer.
• PREVENT FIRE
- Never modify the electrical system. Alterations could cause a fire resulting in serious injury
and could also ruin the electrical system.
- Use of the wrong type battery or charger could cause a fire or explosion resulting in
serious injury.
- Use of Power Wheels®components in products other than Power Wheels®vehicles could
cause overheating, fire or explosion.
• The battery must be handled by adults only. The battery is heavy and contains sulfuric acid
(electrolyte). Dropping the battery could result in serious injury.
• Never allow children to charge the battery. Battery charging must be done by adults only.
A child could be injured by the electricity involved in charging the battery.
• Never lift or carry the battery by the wires or connector. This can damage the battery and
possibly cause a fire resulting in serious injury. Lift and carry the battery by the case only.
• Read the safety instructions on the battery.
• Examine the battery, charger and their connectors for excessive wear or damage each time
you charge the battery. If damage or excessive wear is detected, do not use the charger or the
battery until you have replaced the worn or damaged part.
• HOT motors. Handle carefully.
WARNING
RIDING HAZARD

P5064-0920
4
PARTS
C
• If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to
the store.
• Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded.
• Metal parts have been coated with a lubricant to protect them during shipment. Wipe all metal parts with a paper towel to remove any
excess lubricant.
P5064pr-0920

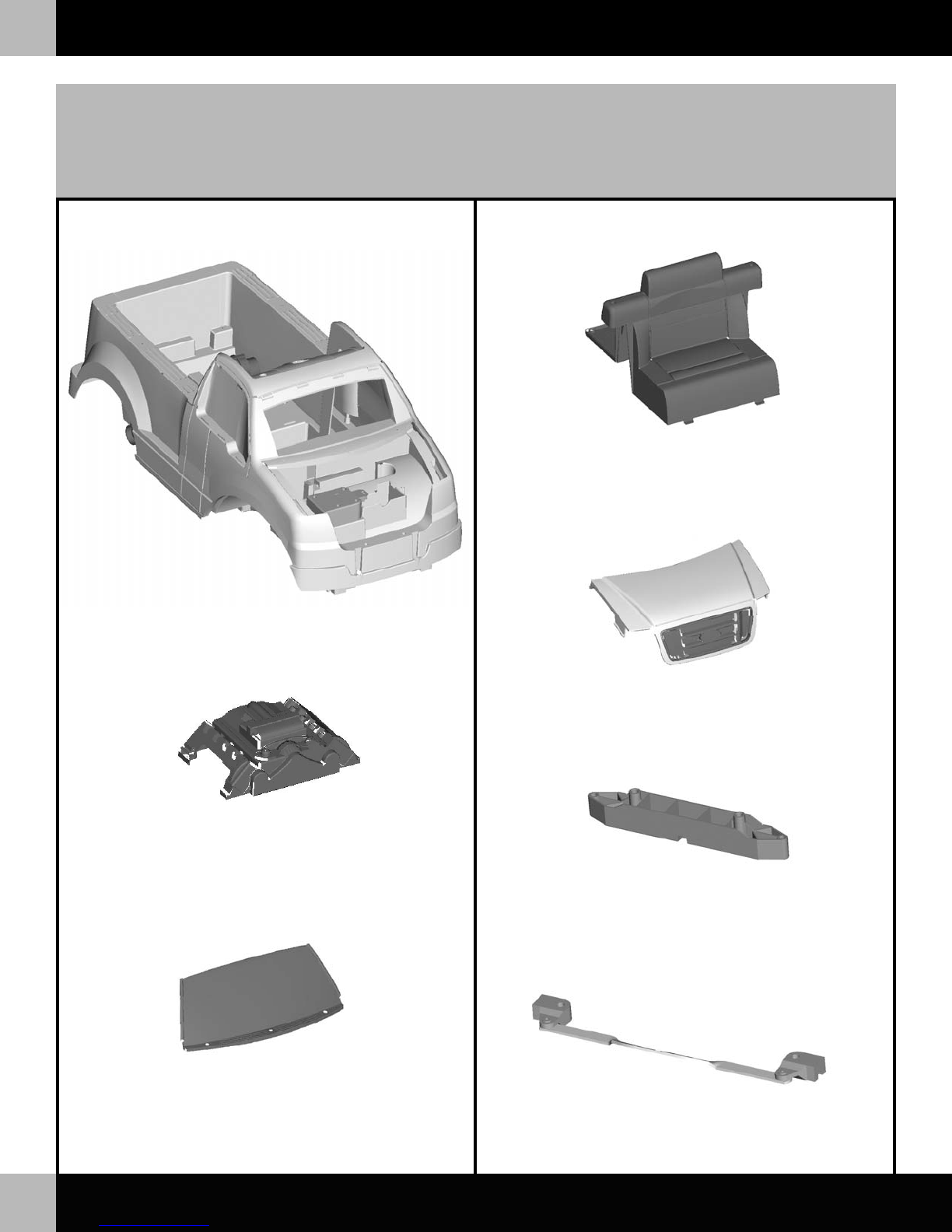

Seat
Hood
Pretend Motor
Windshield
Vehicle
Steering Linkage Cover
Steering Linkage

PARTS
C
P5064pr-0920 5

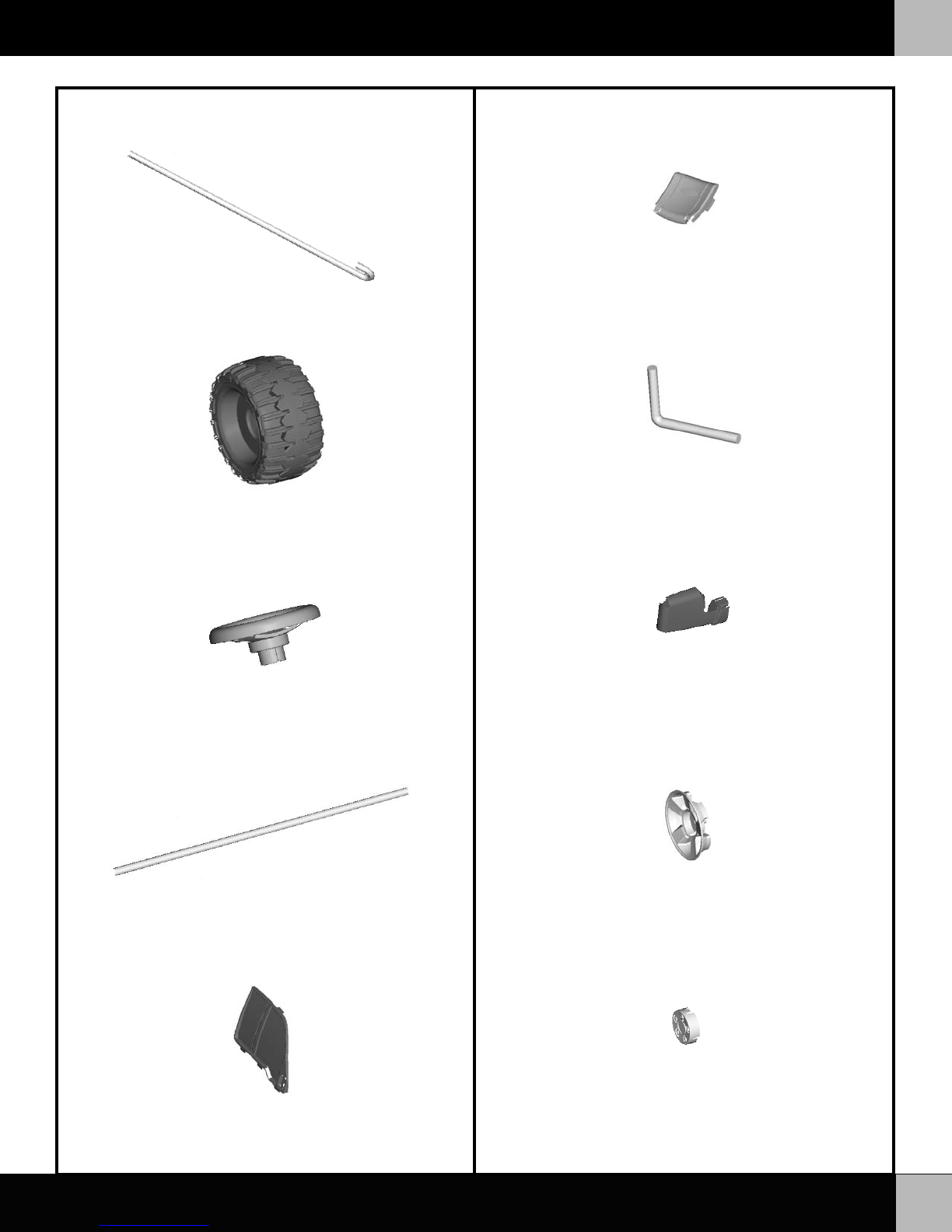

Rear Axle
Steering Wheel
Steering Wheel Cover
2 Side Windows
2 Front Axles
4 Hubcaps
4 Hubcap Covers
2 Side Mirrors
4 Wheels
Steering Column

6
PARTS
C
P5064pr-0920
Fasteners Shown Actual Size
For your convenience, we included extra fasteners!
Note: Tighten and loosen all screws with a Phillips
screwdriver. Do not over-tighten the screws.

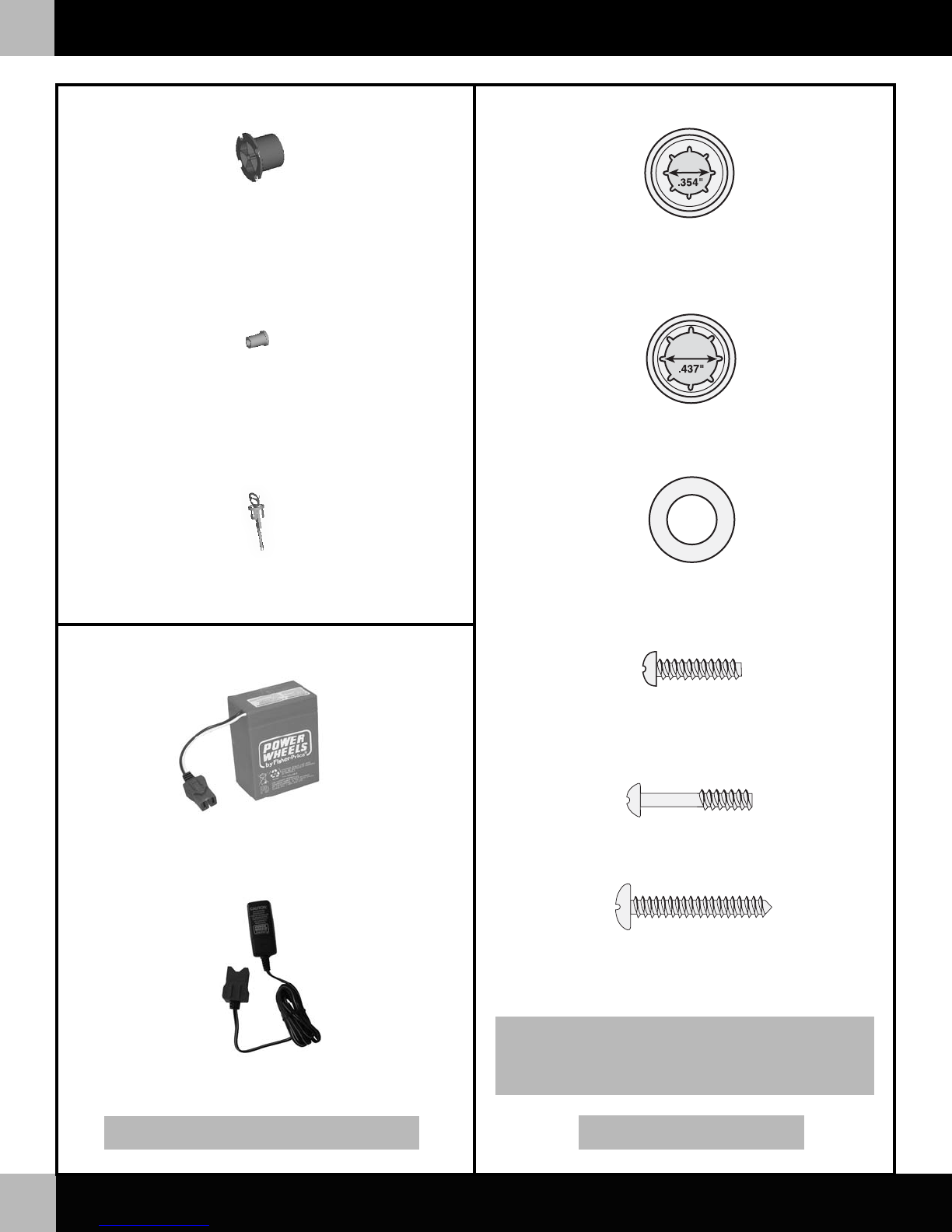

6 Volt Battery
Super 6 Volt Charger
2 Rear Wheel Drivers
2 Bushings
Key
#12-32 x 11/4" Screw - 2
#8 x 3/4" Screw - 11
1" Bolt - 2
.437 Cap Nut - 6
.354 Cap Nut - 1
7/16" Washer - 4
Parts not shown: Label Sheet - 2, Assembly Tool

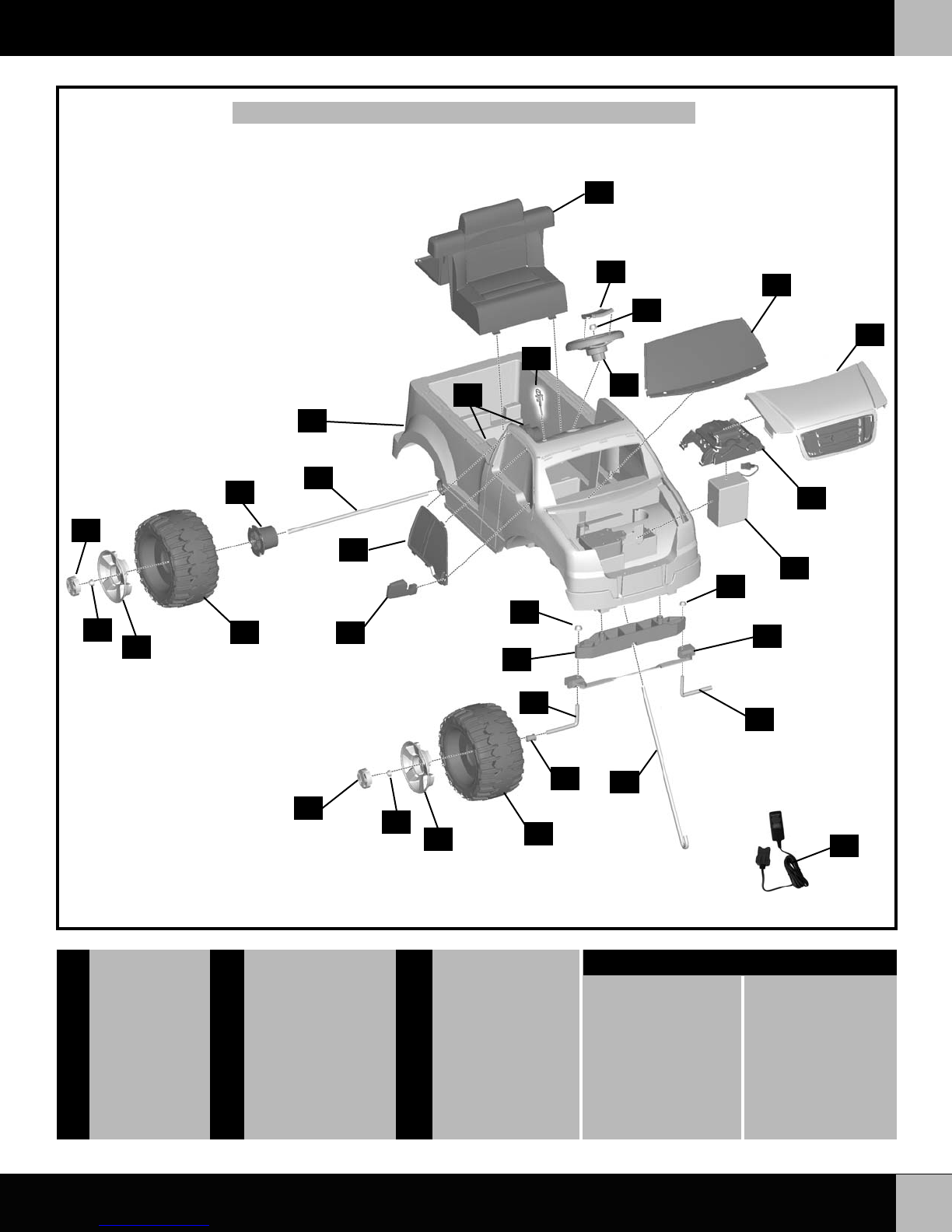

PARTS PICTURE
D
P5064pr-0920 7
13 12
18
15
21
8
16
5
1
7
12
4
9
Note: Some parts shown are assembled on both sides of the vehicle.
11
2
1 Vehicle
2 Seat
3 Hood
4 Windshield
5 Pretend Motor
6 6 Volt Battery
7 Steering Linkage
8 Front Axle - 2
9 Steering Column
10 Steering Linkage Cover
11 Bushing - 2
12 Wheel - 4
13 Hubcap - 4
14 .437 Cap Nut - 6
15 Hubcap Cover - 4
16 Steering Wheel
17 Steering Wheel Cover
18 Key
7/16" Washers - 4
#8 x 3/4" Screws - 11
1" Bolt - 2
19 Side Mirror - 2
20 Side Window - 2
21 Rear Axle
22 Rear Wheel Driver - 2
23 Super 6 Volt Charger
24 Motor (Inside vehicle)
25 .354 Cap Nut
#12 x 11/4" Screws - 2
Assembly Tool
Label Sheet - 2
Parts Not Shown
3
19
17
10
15
6
13
14
14
14
14
20
22
24
25
23
8

8
BATTERY CHARGING
E
P5064pr-0920
Use the charger in dry locations only.
ELECTRICAL HAZARD
Important Notes
• Your new battery must be charged for at least 18 hours
before you use it in your vehicle for the first time.
• We recommend that you start charging your battery before
beginning assembly of your new vehicle.
• The battery must be upright while charging.
• The charger is not a toy.
• Do not short circuit the battery.
• You do not need to remove the battery from your vehicle to
recharge it.
• Before charging the battery, examine the battery case for cracks
and other damage which may cause sulfuric acid (electrolyte)
to leak during the charging process. If damage is detected, do
not charge the battery or use it in your vehicle. Battery acid is
very corrosive and can cause severe damage to surfaces
it contacts.
• Do not charge the battery on a surface (such as a kitchen
counter top) which could be damaged by the acid contained
inside the battery. Take precautions to protect the surface on
which you charge your battery.
• Use only a Power Wheels®Super 6 volt charger with an A-style
connector (input 120 VAC, 60 Hz with an output of 6 VDC,
7.2W) to charge your Power Wheels®6 volt battery.
Adults Note: Regularly examine the charger for damage to the
cord, plug, housing or other parts that may result in the risk of
fire, electric shock or injury. In the event of any damage, do not
use the charger until the damage has been properly repaired.
Please call 1-800-348-0751.
• If your battery is old and will not accept a charge, do not
leave it in the vehicle. Always remove a dead battery from
the vehicle.
About Thermal Fuses
Your Power Wheels®6 volt battery is equipped with a built-in
thermal fuse. The thermal fuse is a self-resetting safety device
which automatically “trips” and shuts down operation of the
vehicle if the vehicle is overloaded or the driving conditions too
severe. Once a fuse has “tripped”, remove your foot from the
pedal and wait approximately 25 seconds before operating the
vehicle again. To avoid repeated automatic shut-downs, do not
overload the vehicle by exceeding the 65 lb. (29.5 kg) maximum
weight capacity or by towing anything behind the vehicle. Avoid
severe driving conditions, such as driving up slopes or running
into fixed objects, which can cause the wheels to stop spinning
while power is still being supplied to the motors and make sure
your child stops the vehicle before switching direction.
If a thermal fuse in a battery continually trips under normal
driving conditions, please contact your local Power Wheels®
Authorized Service Center. For the location of the Authorized
Service Center nearest to you, visit us on-line at
www.powerwheels.com, or call 1-800-348-0751.
• Battery can fall out and injure a child if
vehicle tips over. Always use the battery
retainer.
• PREVENT FIRE
- Never modify the electrical system.
Alterations could cause a fire resulting
in serious injury and could also ruin the
electrical system.
- Use of the wrong type battery or charger
could cause a fire or explosion resulting
in serious injury.
- Use of Power Wheels®components in
products other than Power Wheels®
vehicles could cause overheating, fire
or explosion.
• The battery must be handled by adults
only. The battery is heavy and contains
sulfuric acid (electrolyte). Dropping the
battery could result in serious injury.
• Never allow children to charge the battery.
Battery charging must be done by adults
only. A child could be injured by the elec-
tricity involved in charging the battery.
• Never lift or carry the battery by the wires
or connector. This can damage the battery
and possibly cause a fire resulting in
serious injury. Lift and carry the battery
by the case only.
• Read the safety instructions on the battery.
• Examine the battery, charger and their
connectors for excessive wear or damage
each time you charge the battery. If
damage or excessive wear is detected, do
not use the charger or the battery until you
have replaced the worn or damaged part.
WARNING CAUTION

P5064-0920 9
BATTERY CHARGING
F
P5064pr-0920
E
Battery
Connector
Charger
Connector
A
B
• Plug the battery connector into the charger connector
A
.
Push firmly to make sure the connectors are completely joined.
• Plug the charger into a standard wall outlet
B
.
Notes:
- Use the charger only in a wall outlet. Do not plug the AC
adaptor into a ceiling outlet.
- If power flow to the wall outlet is controlled by a switch, make
sure the switch is “ON”.
- The power indicator on the charger does not indicate the
charge status of your battery. The power indicator allows you
to see that there is power from the wall outlet.
• Before first-time use, charge the battery for at least 18 hours.
Never charge the battery longer than 30 hours.
• Recharge the battery for at least 14 hours after each use of your
vehicle. Do not charge the battery longer than 30 hours.
• Once the battery is charged, disconnect the battery connector
from the charger connector. Unplug the charger from the wall
outlet. The battery is now ready to be installed in your vehicle.
Please see the Battery Installation section on page 20 for detailed
instructions on installing your battery. If your battery is already
installed in your vehicle, simply re-connect the motor harness
connector to the battery connector.
WARNING
Children can be harmed by small parts,
sharp edges and sharp points in the
vehicle's unassembled state, or by electrical
items. Care should be taken in unpacking
and assembly of the vehicle. Children should
not handle parts, including the battery, or
help in assembly of the vehicle.
ASSEMBLY
• Place a .437 cap nut on a flat surface, inside up.
• Fit the end of the rear axle into the cap nut.
• Tap the opposite end of the rear axle with a hammer to secure
the cap nut on the rear axle. Pull on the cap nut to be sure
it’s secure.
Rear Axle
.437 Cap Nut
1
INCORRECT
GAP
CORRECT
NO GAP
Power
Indicator

10
ASSEMBLY
F
P5064pr-0920
2
3
4
FRONT VIEW

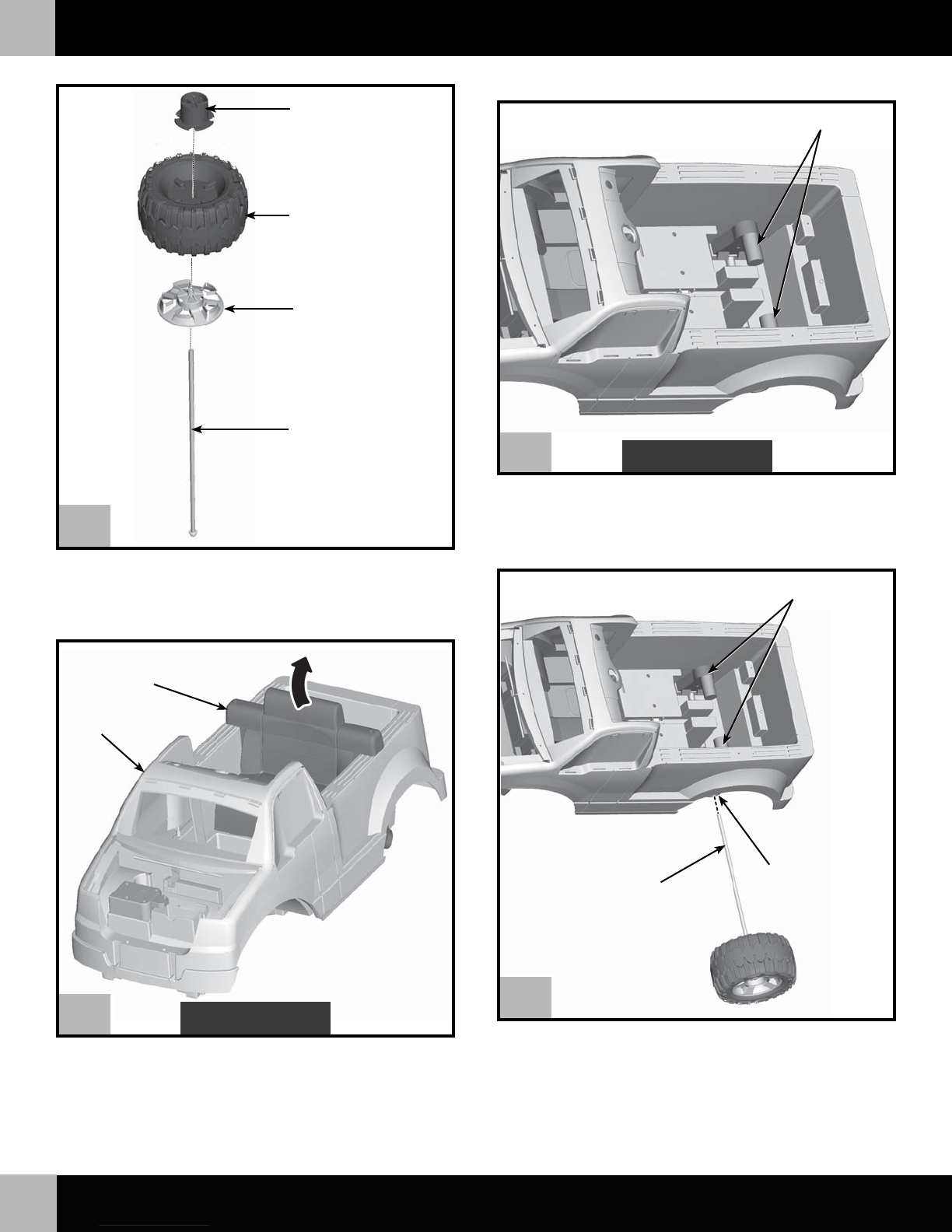

• Slide a hubcap, peg side up, onto the rear axle.
• Slide a wheel, ribs up, onto the rear axle.
• Slide a rear wheel driver, ring side down, onto the rear axle.
• Rotate the seat back and lift to remove from the vehicle.
Seat
Vehicle
Rear Wheel Driver
(Ring Side Down)
Wheel
(Ribs Up)
Hubcap
(Peg Side Up)
Rear Axle
• Slide the rear axle assembly through the hole in one motor, the
back end of the vehicle and then out through the other motor.
Rear Axle Assembly
Hole in Motor
• Locate the motors inside the vehicle.
• Make sure each motor is positioned in the rectangular recesses
inside the vehicle.
TOP VIEW
5
Motors
Motors

P5064-0920 11
ASSEMBLY
F
P5064pr-0920
6
7
8
9
BOTTOM VIEW

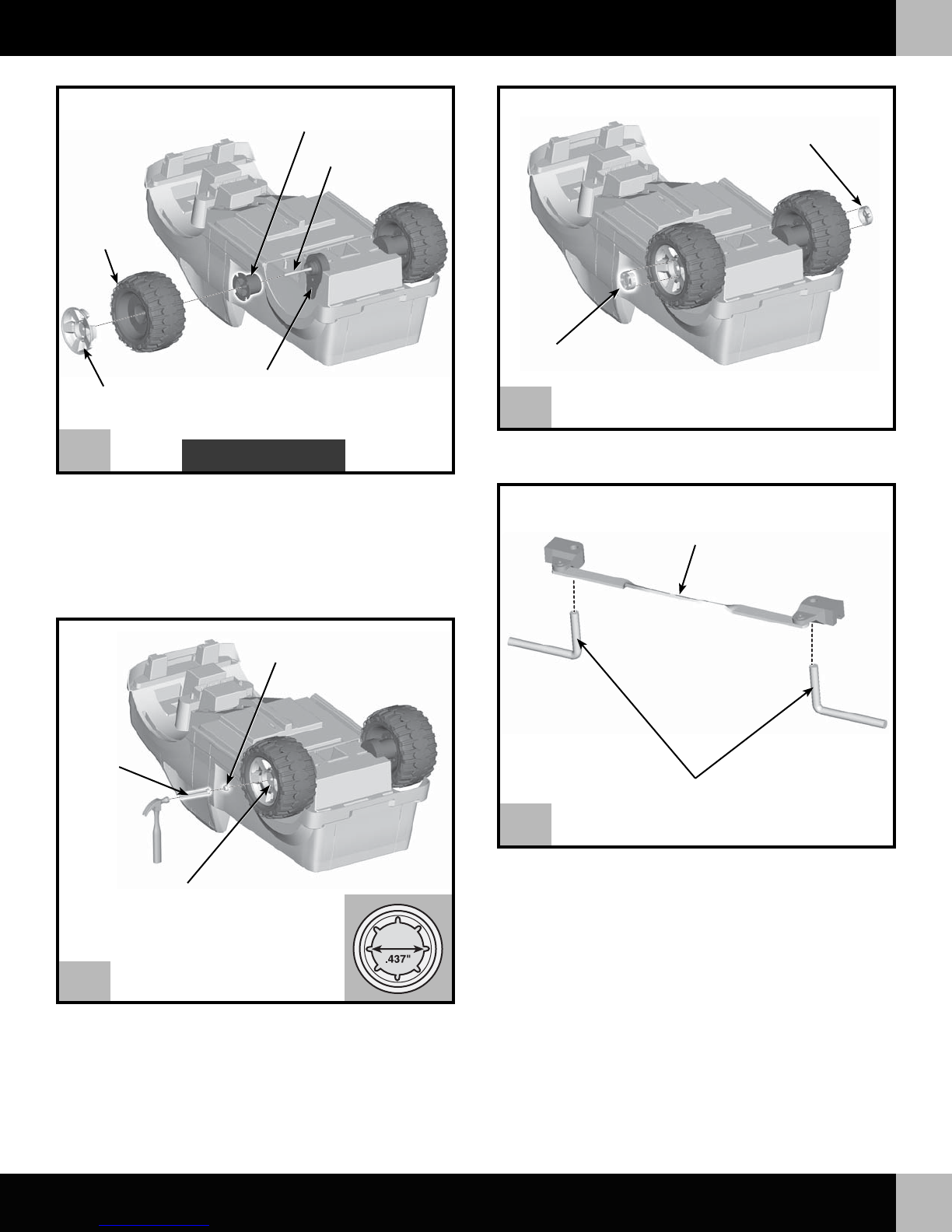

• Position the vehicle upside-down.
• Slide the other rear wheel driver, ring side out, onto the rear axle.
Make sure the rear wheel driver fits onto the pins in the motor.
• Slide a wheel, rib side in, onto the rear axle. Make sure the ribs
on the wheel fit into the grooves on the rear wheel driver.
• Slide a hubcap, peg side in, onto the rear axle.
• Fit a .437 cap nut on the end of the rear axle.
• Fit the assembly tool over the cap nut. Tap the end of the
assembly tool with a hammer to secure the cap nut on the end of
the rear axle. Pull the wheel to be sure it is secure.
Hint: You may need the help of another adult to support the other
end of the rear axle while you tap the cap nut.
Rear Wheel Driver
(Ring Side Out)
Rear Axle
Wheel
(Rib Side In)
Motor
.437 Cap Nut
Assembly
Tool
Rear Axle
Hubcap
(Peg Side In)
• Turn the steering linkage so that the inside (grooved side) is
facing up.
• Position each front axle so that the short end is facing up.
• Insert the short end of the front axles up through the ends of the
steering linkage, as shown.
Front Axle Short End
Steering Linkage
• Fit and snap a hubcap cover to each hubcap.
Hubcap Cover
Hubcap Cover

P5064-0920
BOTTOM
VIEW
12
ASSEMBLY
F
P5064pr-0920
10
11
• Slide a 7/16" washer onto the short end of each front axle.
• Fit the steering linkage cover onto the front axles, as shown.
Front
Axle
Front
Axle Steering
Linkage
Cover
7/16"
Washer 7/16"
Washer
• Fit a .437 cap nut onto the end of a front axle.
• Tap the cap nut with a hammer to secure it to the end of the
front axle.
• Repeat this procedure to fasten another .437 cap nut to the other
front axle.
Front Axle
.437
Cap
Nut
• Slide a 7/16" washer onto a front axle.
• Slide a bushing, ring side first, onto a front axle.
7/16" Washer
Front Axle
Bushing
(Ring Side First)
• Turn the vehicle so that the front end is toward you.
• Fit the steering linkage assembly to the front end of the vehicle.
• Insert two #12 x 11/4" screws into the holes in the steering
linkage assembly. Tighten the screws.
• Pull the steering linkage to be sure it is secure. If it is not secure,
tighten the screws a few more turns.
12
Steering Linkage
Assembly
Ring Side
First
13
.437
Cap
Nut

13
ASSEMBLY
F
P5064pr-0920
14
15
• Fit a .437 cap nut on the end of the front axle.
• Fit the assembly tool over the cap nut. Tap the end of the
assembly tool with a hammer to secure the cap nut on the end
of the front axle. Pull the wheel to be sure it is secure.
Front Axle
.437 Cap Nut Assembly
Tool
• Fit a wheel, rib side in, onto the front axle.
• Slide a hubcap, peg side in, onto the front axle.
Hubcap
(Peg Side In)
Wheel
(Rib Side In)
Front Axle
• Turn the vehicle upright.
• Insert the tabs on the front edge of the seat into the floor
of the vehicle.
Seat
Tabs
• Fit and snap a hubcap cover to the hubcap.
• Repeat Assembly steps 13-16 to assemble a washer, bushing,
wheel, hubcap, cap nut and hubcap cover to the other front axle.
Hubcap
Cover
16
17
FRONT VIEW

14
ASSEMBLY
F
P5064pr-0920
18
• Lift the front end of the vehicle.
• Insert the straight end of the steering column through the hole in
the vehicle and out through the hole in the dashboard.
• Hook the curved end of the steering column into the hole in the
steering linkage.
Straight End of Steering Column
Hole
Curved
Curved
End
End
Steering
Steering
Linkage
Linkage
Hole
Hole

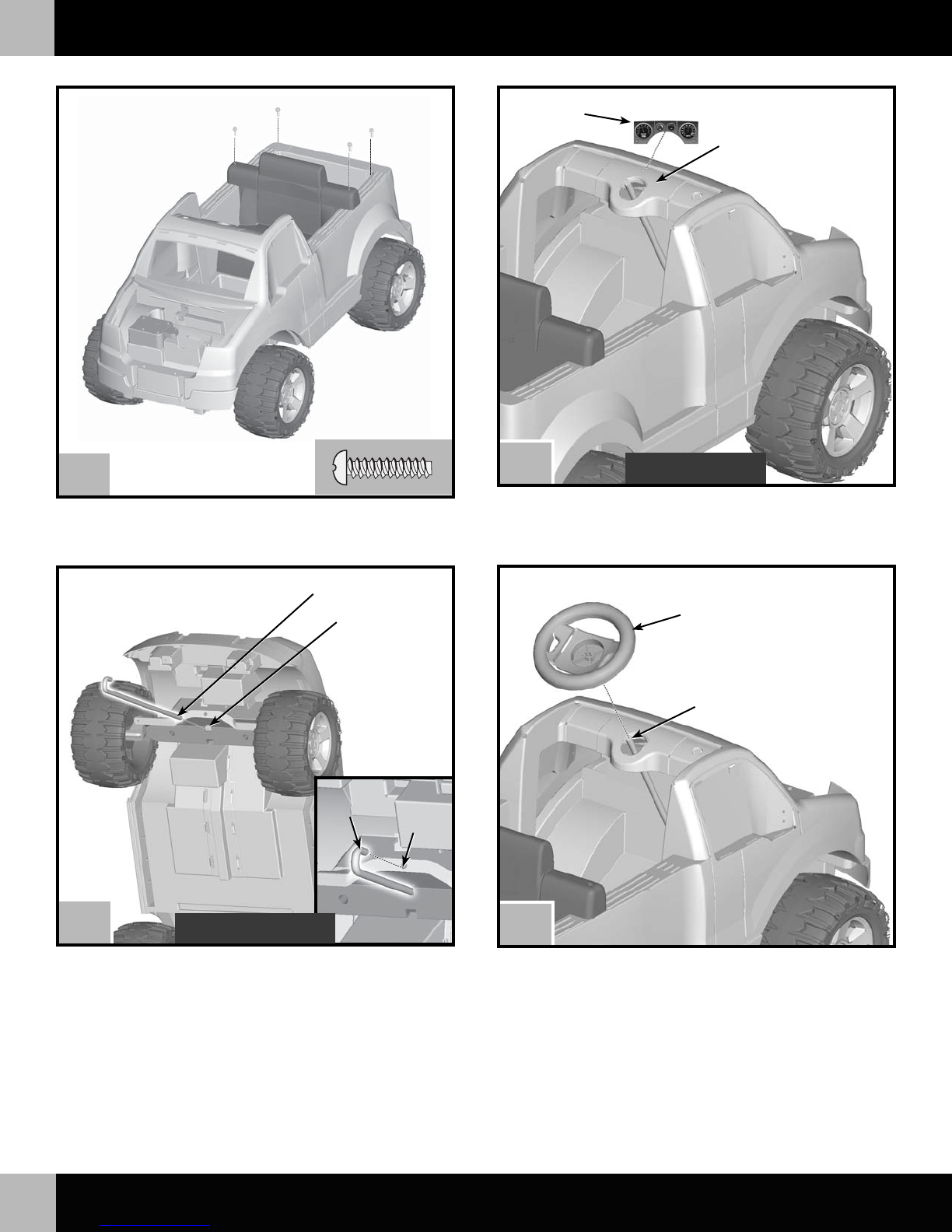

• Insert four #8 x 3/4" screws into the seat.
• Tighten the screws.
19
BOTTOM VIEW
Steering Wheel
Steering Wheel
Column
• Fit the steering wheel onto the end of the steering column and
into the hole in the dashboard.
• Lower the front end of the vehicle.
• Apply label #5 to the dashboard, as shown.
Dashboard
Label #5
21
20
DASH VIEW
Curved
End
Steering
Linkage
Hole

ASSEMBLY
F
P5064pr-0920 15
FRONT VIEW

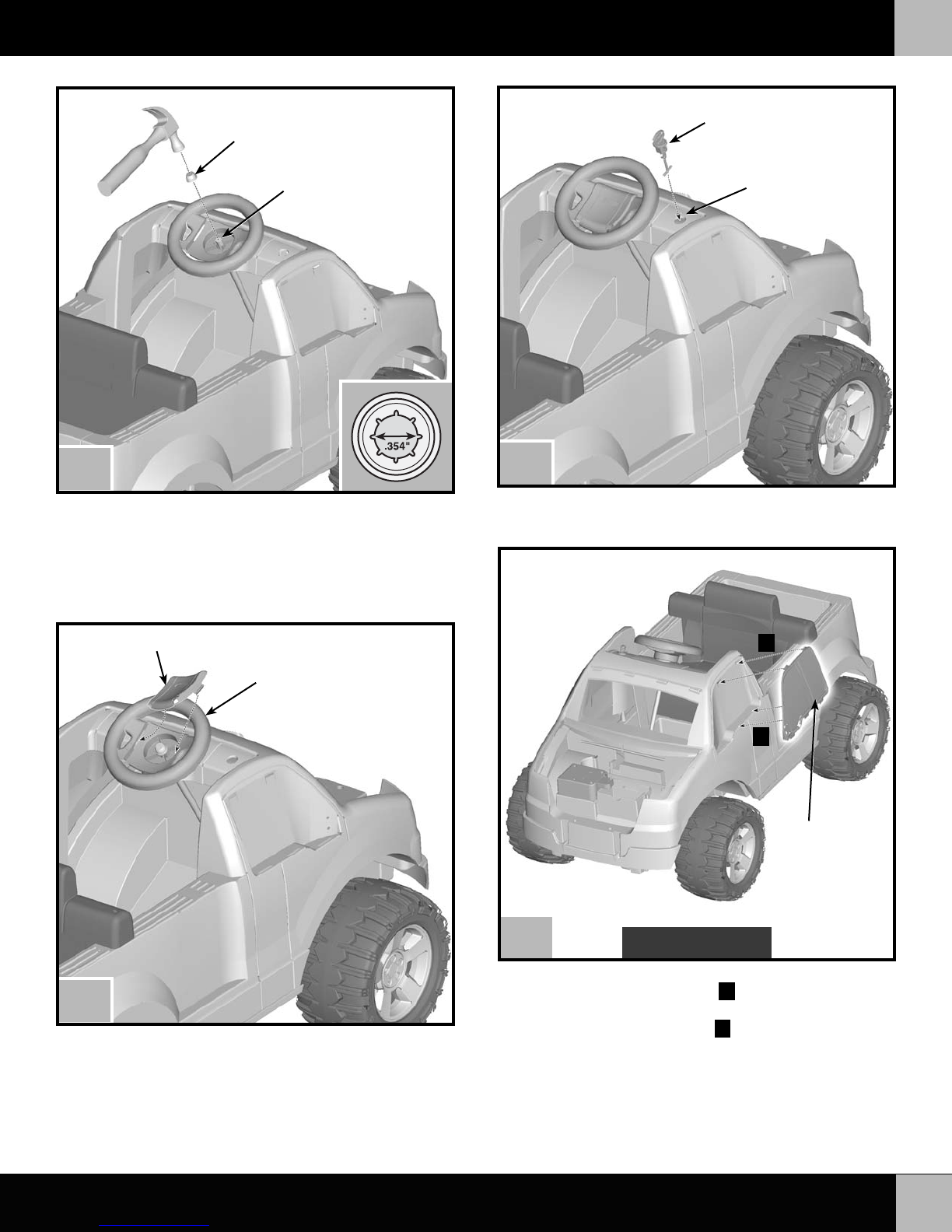

• Fit a .354 cap nut on the end of the steering column.
• Tap the cap nut with a hammer to secure. Pull the steering wheel
to be sure it it secure.
Hint: You may want the help of another person to support the
steering column while you tap the cap nut with the hammer.
.354 Cap Nut
Steering Column
• At an angle, fit the tabs on one side of the steering wheel cover
into the slots in the steering wheel.
• Press to “snap” the tabs on the other side of the steering wheel
cover into the slots in the steering wheel.
Steering Wheel Cover
Steering Wheel
22
23
• First insert the tabs on the bottom edge of the side window into
the slots on the side of the vehicle
A
.
• Then, push to “snap” the tabs at the top of the side window into
the slots in the side of the vehicle
B
.
• Repeat this procedure to assemble the other side window to
the vehicle.
Side Window
Key
Hole in
Dashboard
• Insert and “snap” the key into the hole in the dashboard.
24
25
B
A

16
ASSEMBLY
F
P5064pr-0920
29

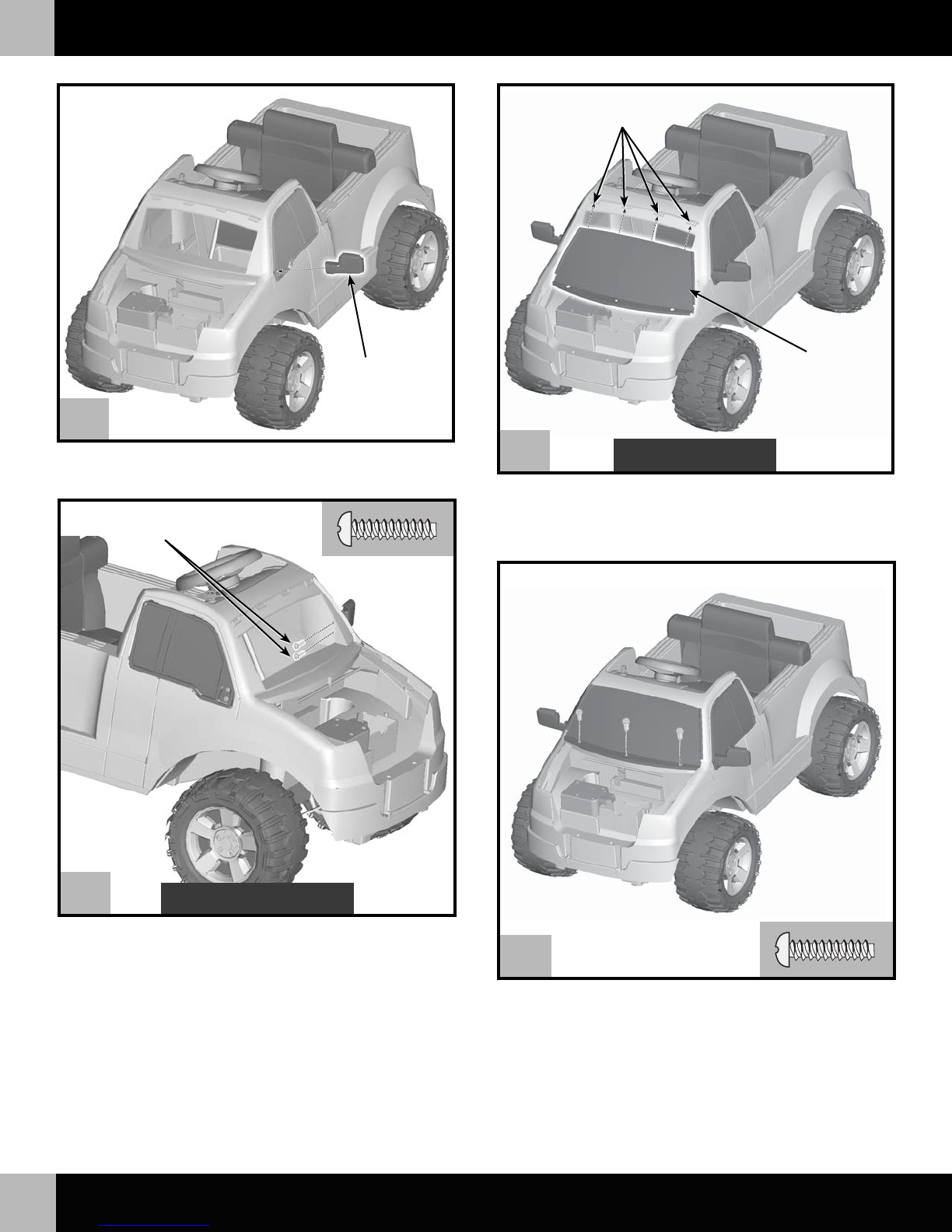

• Fit a side mirror to the side of the vehicle.
Side Mirror
• From the inside of the vehicle, insert two #8 x 3/4" screws
through the vehicle and into the side mirror.
• Tighten the screws.
• Repeat Assembly steps 26 and 27 to assemble the other
side mirror.
#8 x 3/4" Screws
26
27
RIGHT SIDE VIEW
• Insert three #8 x 3/4" screws into the windshield.
• Tighten the screws.
• Insert and “snap” the tabs at the top of the windshield into the
slots in the top edge of the vehicle.
Slots
Windshield
28
FRONT VIEW

ASSEMBLY
F
17
P5064pr-0920

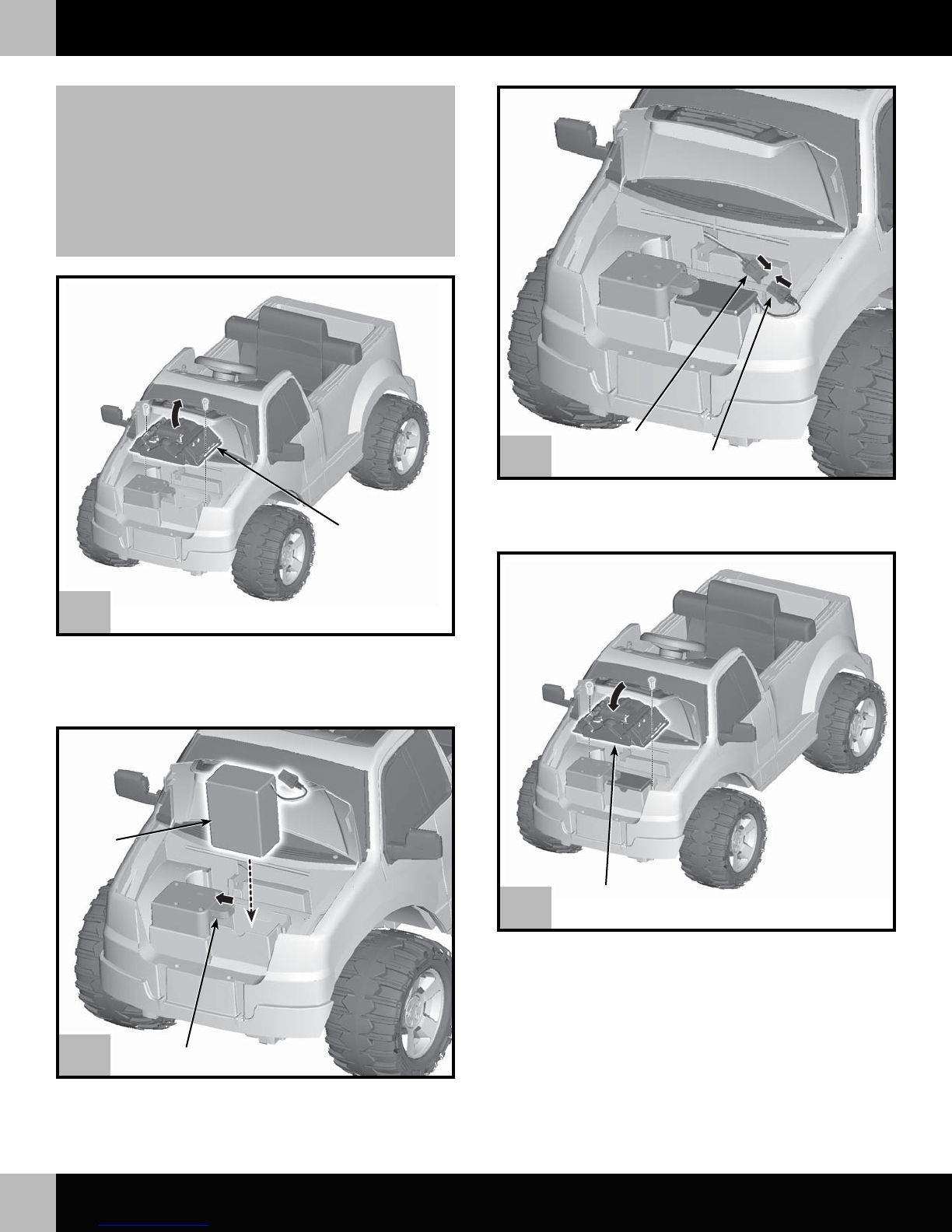

Hint: Before assembling the pretend engine, you may want to
install the battery. Please refer to page 20, steps 2 and 3.

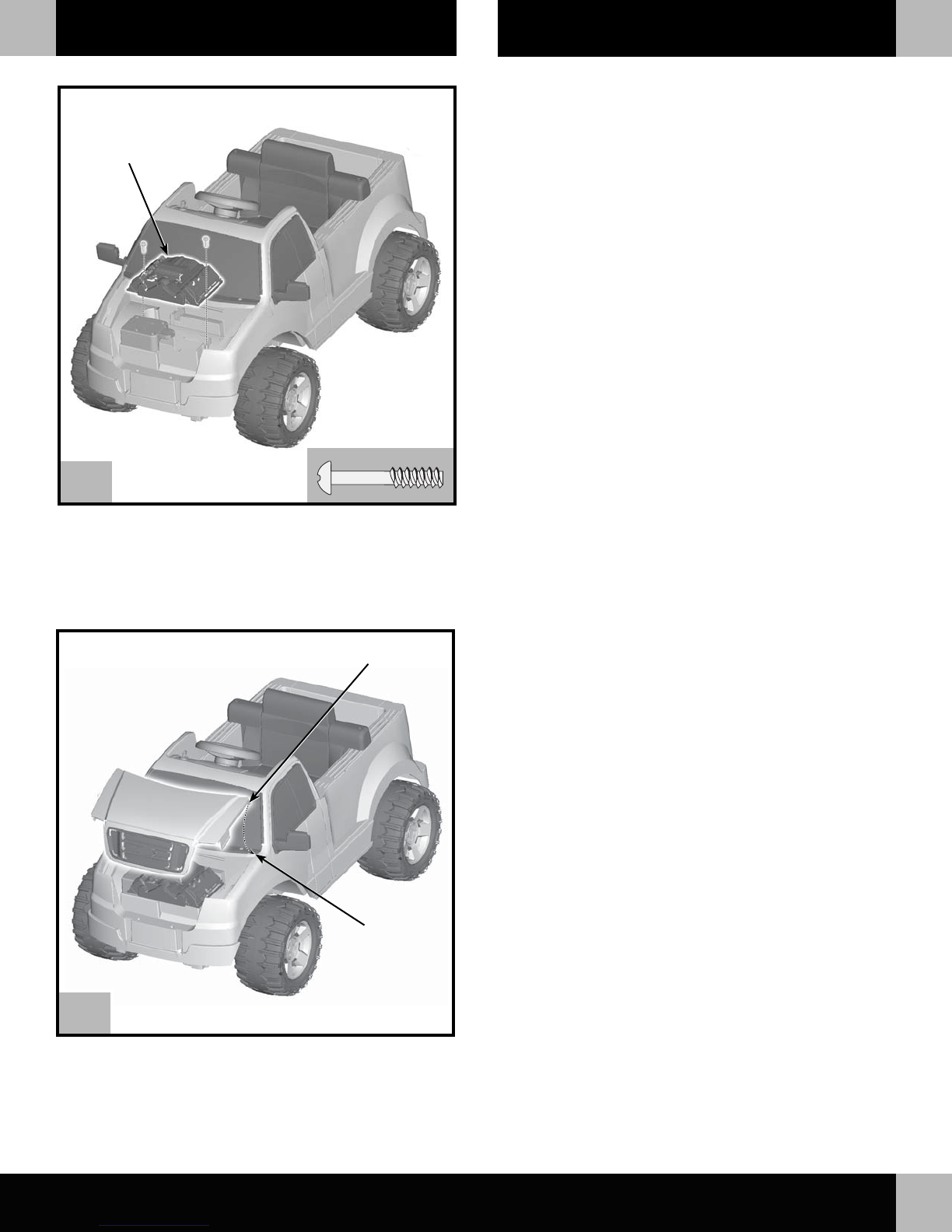

• Fit the pretend engine into the front end of the vehicle.
• Insert two 1" bolts into the pretend engine.
• Tighten the screws.
• Fit a peg on the hood into a slot in the front end of the vehicle.
• Flex the hood slightly and then insert the other hood peg into the
other slot in the front end of the vehicle.
• Lower the hood. Push down near the front of the hood to
“snap” into place.
Hood Peg
Slot
30
31
VEHICLE CARE
G
• Check all screws, cap nuts and their protective coverings
regularly and tighten as required. Check plastic parts on a
regular basis for cracks or broken pieces.
• During snowy or rainy weather, the vehicle should be stored
inside or under a protective cover. Remember to charge the
battery at least once per month while your vehicle is not in
regular use.
• Avoid operating the vehicle in wet or snowy conditions, and do
not spray the vehicle with a hose. Do not wash the vehicle with
soap and water. Water or moisture in the motors or electrical
switches can cause them to corrode, and could cause switch or
motor failure.
• Avoid operating the vehicle on sand, loose dirt or gravel.
Sand, loose dirt or gravel in the motors or electrical switches
can cause them to jam, and could cause switch or motor failure.
• The vehicle can be wiped down with a soft, dry cloth. For a
shiny finish, you can wipe plastic parts with a non-wax furniture
polish applied to a soft-cloth. Do not use automotive wax.
Do not use soap and water or spray the vehicle with a hose.
• To ensure that your vehicle stays in good operating order, we
recommend that you periodically have your vehicle checked by
a Power Wheels®authorized service center. For the location of
the authorized service center nearest you, please visit us on-line
at www.powerwheels.com or call 1-800-348-0751.
ASSEMBLY
F
Pretend
Engine

Proper label application will help to keep the labels looking their best! When applying labels, keep the following guidelines in mind:
• Wash your hands before applying the labels.
• Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils.
• Place the labels exactly as shown in the illustrations.
• For best results, avoid repositioning a label once it has been applied to the vehicle.
• After applying a label, rub the label firmly with a clean, dry cloth to make sure the label is adhered to your vehicle.
Start at the center of a label, and smooth towards the outer edges to remove air bubbles.
DECORATION
H
18 P5064pr-0920

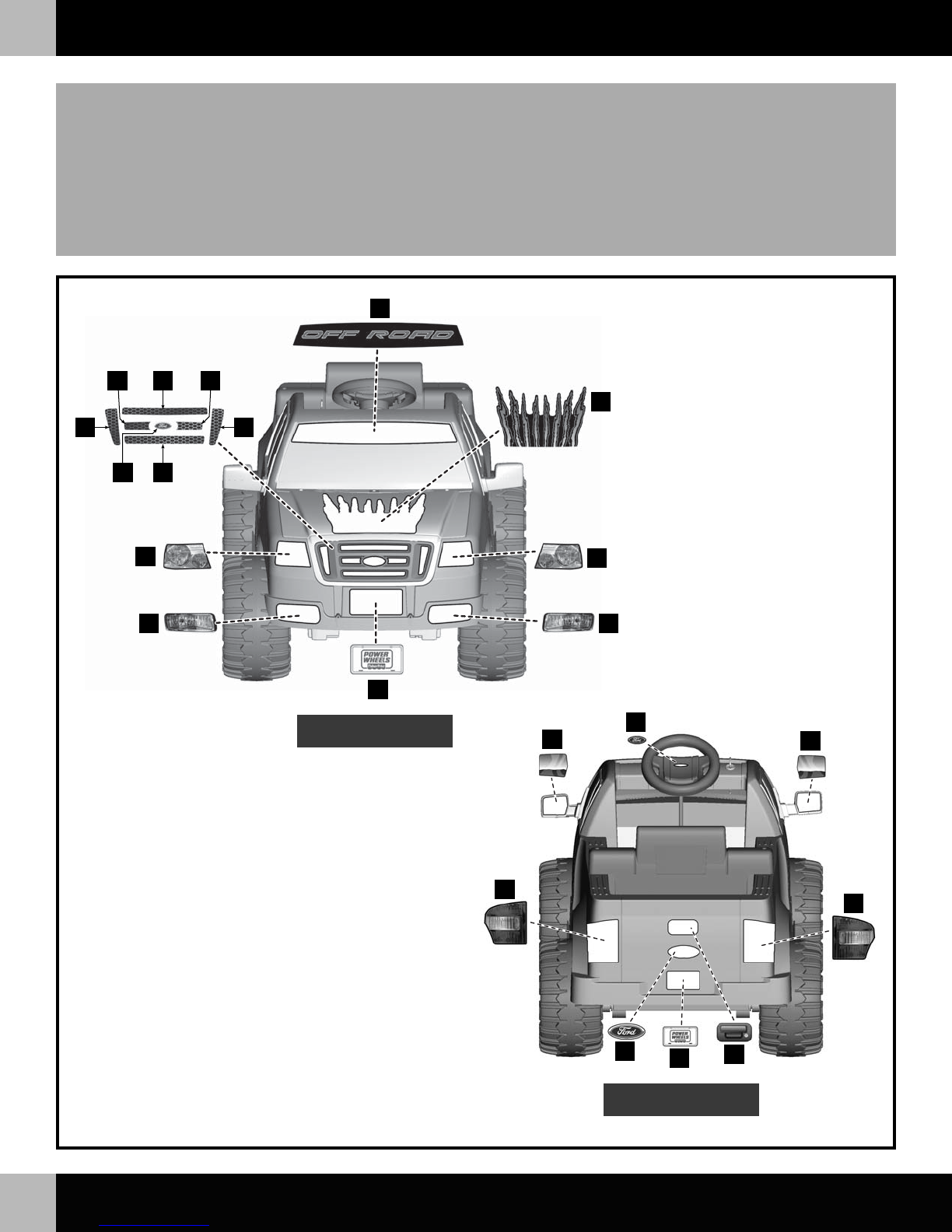

FRONT VIEW
1
4
19
28
22
29
18
13 15
14 16
12
11 17
REAR VIEW
6
20 21
24
23
30 10 7

19
P5064pr-0920
DECORATION
H
LEFT SIDE
8
26
2
27
25 25
RIGHT SIDE
25 25
27
3
9
26

IMPORTANT! Use only a Power Wheels®6 volt lead-acid
rechargeable battery. Use of any other battery will damage
your vehicle. Make sure that you charge the battery for at
least 18 hours using the enclosed Power Wheels®Super 6
volt charger before operating your vehicle for the first time.
Charge the battery for at least 14 hours after each use of the
vehicle. Never charge the battery longer than 30 hours. Failure
to follow these instructions may damage your battery and will
void your warranty.
P5064pr-0920
20
BATTERY INSTALLATION
I
• Push the battery retainer and fit the battery into the pocket.
• Release the battery retainer.
Battery Retainer
Battery
• Grasp the bottom edge of the grill and lift the hood.
• Remove the two screws in the pretend motor.
• Remove the pretend motor.
Pretend Motor
1
2
• Plug the battery connector into the motor harness connector.
Push firmly to make sure the connector is inserted properly.
Motor Harness
Connector
• Replace the pretend motor.
• Replace the two 1˝ bolts into the pretend motor and tighten.
• Lower the hood and “snap” in place.
Pretend Motor
3
4
Battery Connector
