Fisher-Price Perfect Fit 79205 User manual

Perfect FitTMStroller
Model Number: 79205, 79207, 79305, 79390
Please save these instructions for future reference.
Adult assembly is required.
(Tools are not needed for assembly.)
Maximum weight of child: 40 lbs.
Maximum height of child: 29 inches in carriage mode, 38 inches in stroller mode.
Maximum storage weight for storage basket: 8 lbs.
Maximum storage weight for canopy pockets: 2 lbs.
®

®
Front Wheel Assemblies
Frame
Hubcaps
Rear Axle
Assembly
Handle
Storage Basket Hooks
WARNING
•Never leave your child unattended.
• To prevent serious injury or death from falls or sliding out, always use the
restraint belts.
• Your child may slip into leg openings and strangle. Never use in the recline position
unless the footrest is raised.
•Do not carry additional children, goods or accessories in or on the stroller except as
recommended in the instructions.
• When making adjustments to the stroller, always ensure that all parts of your child’s
body are clear of moving parts.
• The stroller may become unstable if the maximum weight of the storage basket
and/or canopy pockets is exceeded. Do not exceed the maximum weight limit of
8 lbs. in the storage basket, and 2 lbs. in the canopy pockets.
• The stroller may become unstable if items are hanging from or placed on the handle.
Do not hang shopping bags, purses or accessories on the handle.
Occasionally a consumer may experience a problem with one of our products. If this should happen, please call us, toll-free,
rather than return this product to the store. Usually we can solve the problem over the telephone or by sending you
replacement parts. Please call Fisher-Price®Consumer Affairs, toll-free at 1-800-432-KIDS, between 8 AM - 6 PM EST
Monday through Friday. Hearing-impaired consumers using TTY/TDD equipment, please call 1-800-382-7470. Or, write to:
Fisher-Price®Consumer Affairs, 636 Girard Avenue, East Aurora, New York 14052.
32
PartsConsumer Information
The safety of your child while in the Perfect Fit™Stroller depends on you! Please
read and understand the following warnings and instructions before use.

4
Front Wheel Assembly
Front Wheel Assembly
• Position a front wheel assembly with the swivel lock
forward.
• Push the button on one of the front legs in and slide the
front wheel caster onto it until the button snaps into
position.
• Repeat this procedure to attach the other front wheel
assembly to the stroller.
• Pull down on the front wheel assemblies to be sure they are
locked into position.
Front Wheel Caster Front Leg
Swivel Lock
Button
®
®
®
PartsAssembly

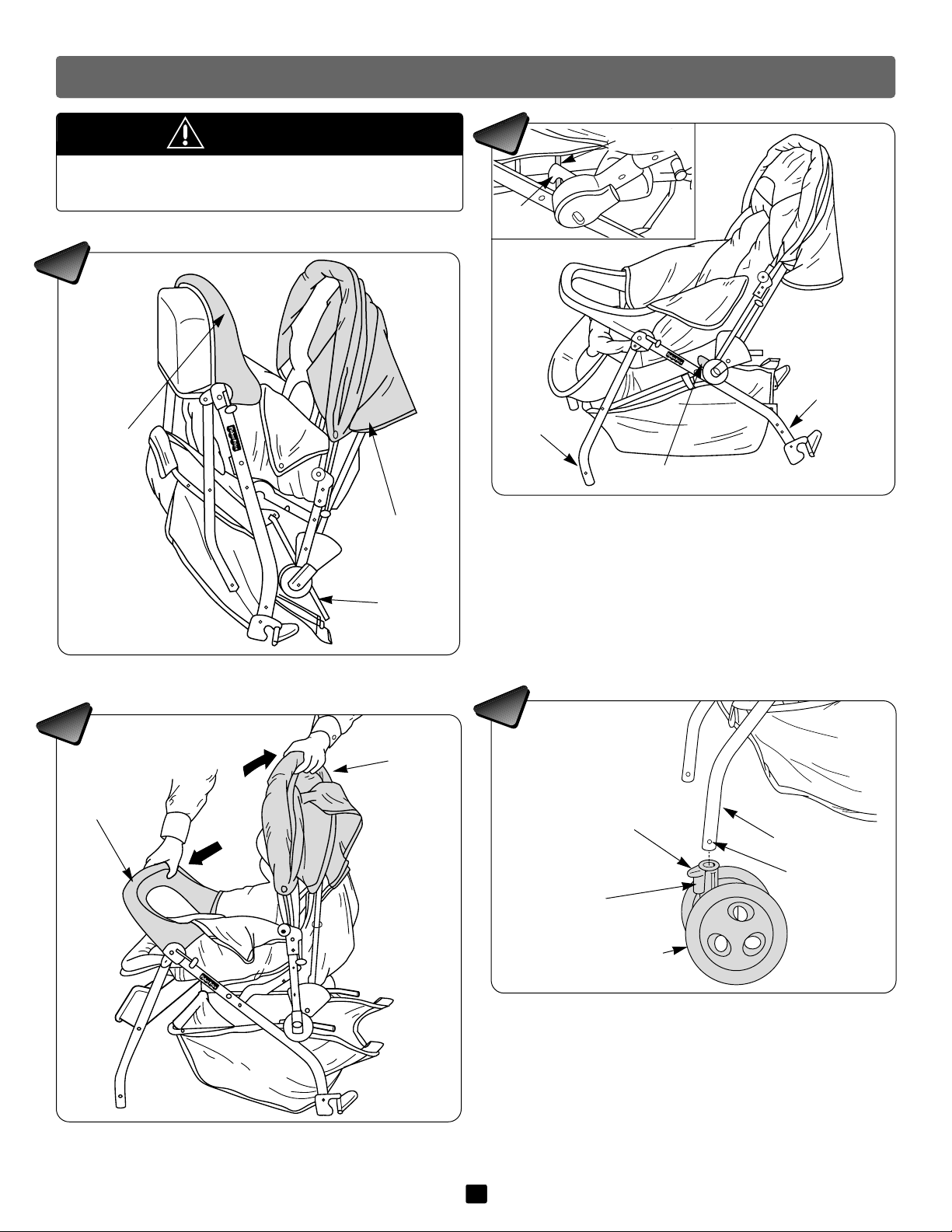

To Unfold
Frame
• Position the stroller on the floor with the canopy and grab
bar upright.
• Hold the canopy with one hand and the grab bar with the
other. Carefully pull the canopy and the grab bar apart to
unfold the stroller.
• Locate the latch on each side of the stroller.
• Continue to pull the canopy and grab bar apart until the
latches hook over the latch posts.
• Make sure the latches hook over the latch posts on both
sides of the stroller.
• Test to be sure both latches are secure by pulling the
bottom of one front leg and rear leg toward each other.
The latches should remain locked in position.
33
Canopy
Grab Bar
Grab Bar
Canopy
Latch Post
Latch
Latch
3
1
2
Front Leg
Rear Leg
CAUTION
Please keep small parts and plastic
bags out of children’s reach.

Hubcap
• Test to be sure the rear axle assembly is secure by pulling
up on the rear axle. If the rear axle moves, review steps
and and re-assemble.
• Snap a hubcap into the center of each rear wheel.
8
Hubcap
Rear Axle
6
7
34
PartsAssembly

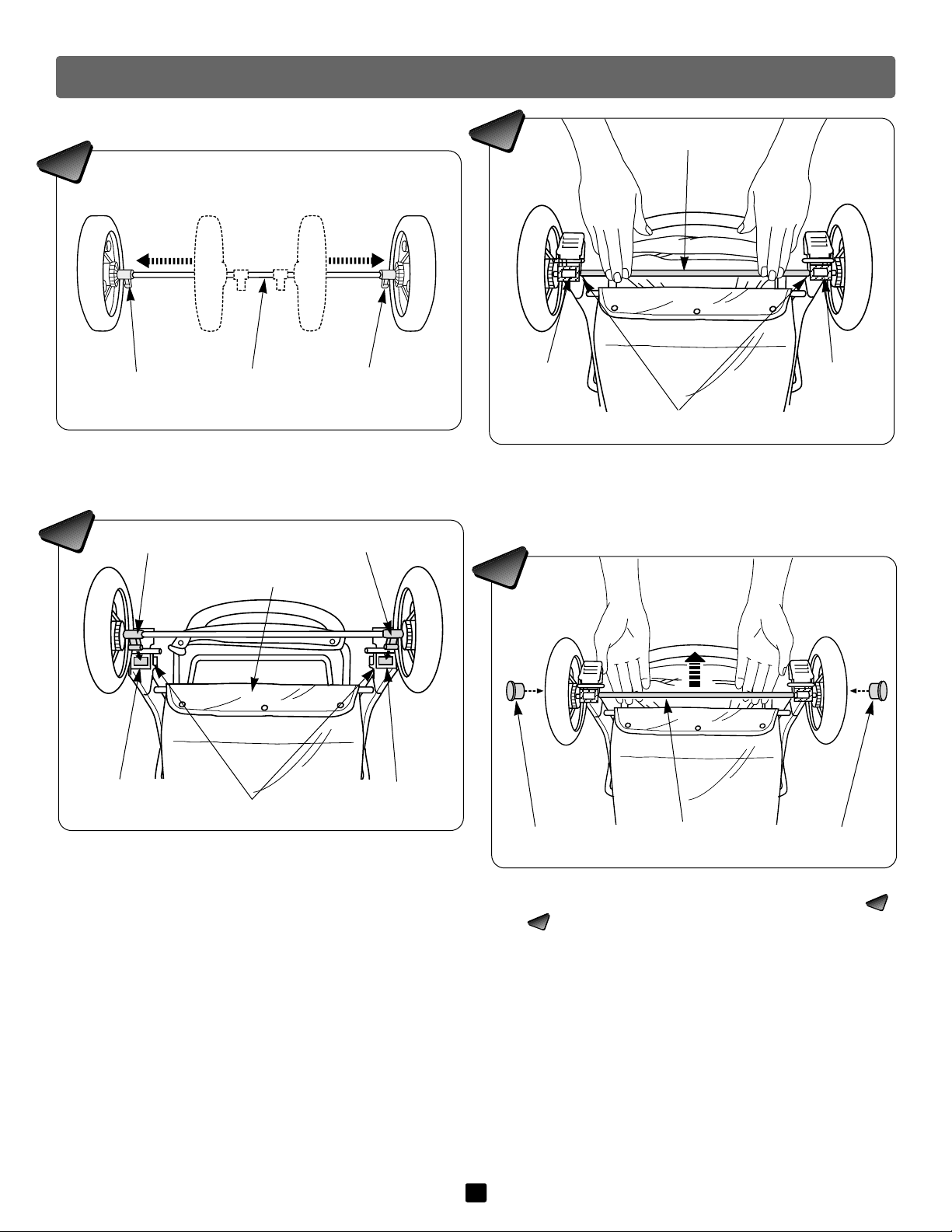

Rear Axle Assembly
Locking Tab
• Slide the locking tabs and rear wheels apart so that there
is one rear wheel and one locking tab on each end of the
rear axle.
Rear Wheel Retainers
• Turn the stroller upside down.
• Stand behind the stroller so that the underside of the
storage basket is facing you.
• Position the locking tabs over the square openings in the
rear wheel retainers.
Groove
• With the locking tabs aligned with the square openings in
the wheel retainers, push down firmly on the rear axle to
snap the locking tabs into the rear wheel retainers.
•Make sure you hear a “snap” on both sides.
5
6
7
Locking Tab
Rear Axle
Storage Basket
Locking TabLocking Tab
Square Opening
Square Opening
Rear Axle
Groove
Rear Wheel Retainers

®
Snaps
• Wrap the grab bar strap around the grab bar.
• Fasten the snaps on the grab bar strap, as shown.
Grab Bar Strap Assembly
Grab Bar Strap
Grab Bar
11
35
PartsAssembly
®
• Turn the stroller upright.
• Insert one of the storage basket hooks into one end of
the storage basket frame. Make sure the button on the
storage basket hook is aligned with the hole in the storage
basket frame.
• While pressing the button on the inside of the storage basket
hook, insert the storage basket hook into the storage basket
frame.The button will “snap” into the hole in the storage
basket frame.
• Repeat this procedure to attach the other storage basket
hook to the other side of the storage basket frame.
9
®
• Insert one of the storage basket straps through the storage
basket hook.
• Snap the ends of the strap together.
• Repeat this procedure to attach the storage basket strap
on the other side of the storage basket to the storage
basket hook.
10
Storage Basket Straps
Storage Basket Hook
Storage Basket Hook
Storage Basket
Frame
Hole
Button

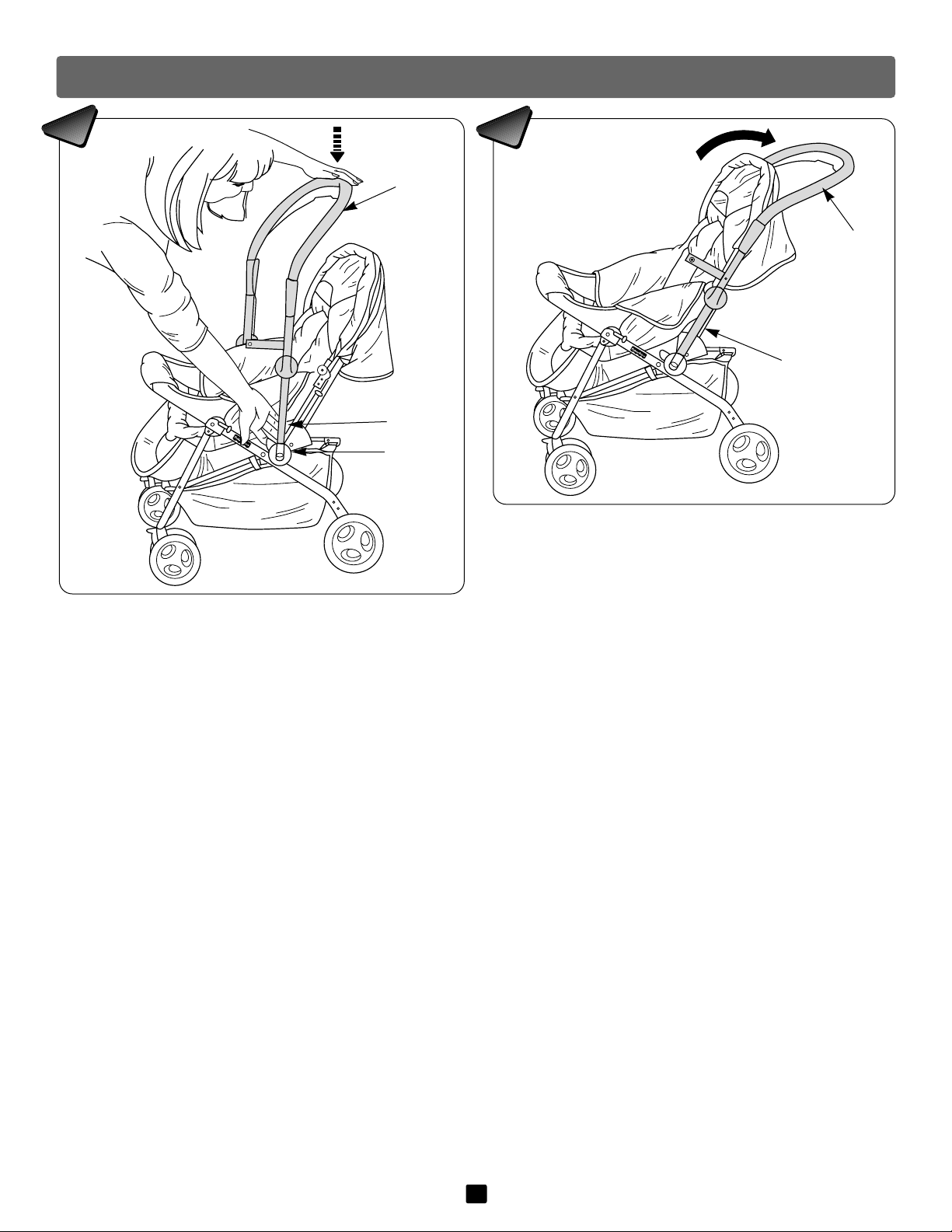

Handle Assembly
®
Opening
• Rotate the handle bases on each side of the seating area so
that the opening is upward.
• Position the handle so that the bend at the top points
toward the rear of the stroller.
• Insert the handle into the openings in the handle base.
Handle Base
Handle Bends Toward
Rear of Stroller
12

Assembly
®
Handle
• While pressing the button on the inside of the handle, insert
the handle into the base until it snaps into place.
• Repeat this procedure to attach the other side of the handle.
• Pull up on the handle to be sure it is locked in place.
®
Handle
Retainer
• Pull the handle back to lock it in place in the handle
retainers.
One-time assembly is now complete.
Handle
Button
Base
13
6
14

When making adjustments to the stroller, always ensure that all parts
of your child’s body are clear of moving parts.
Operation and Use

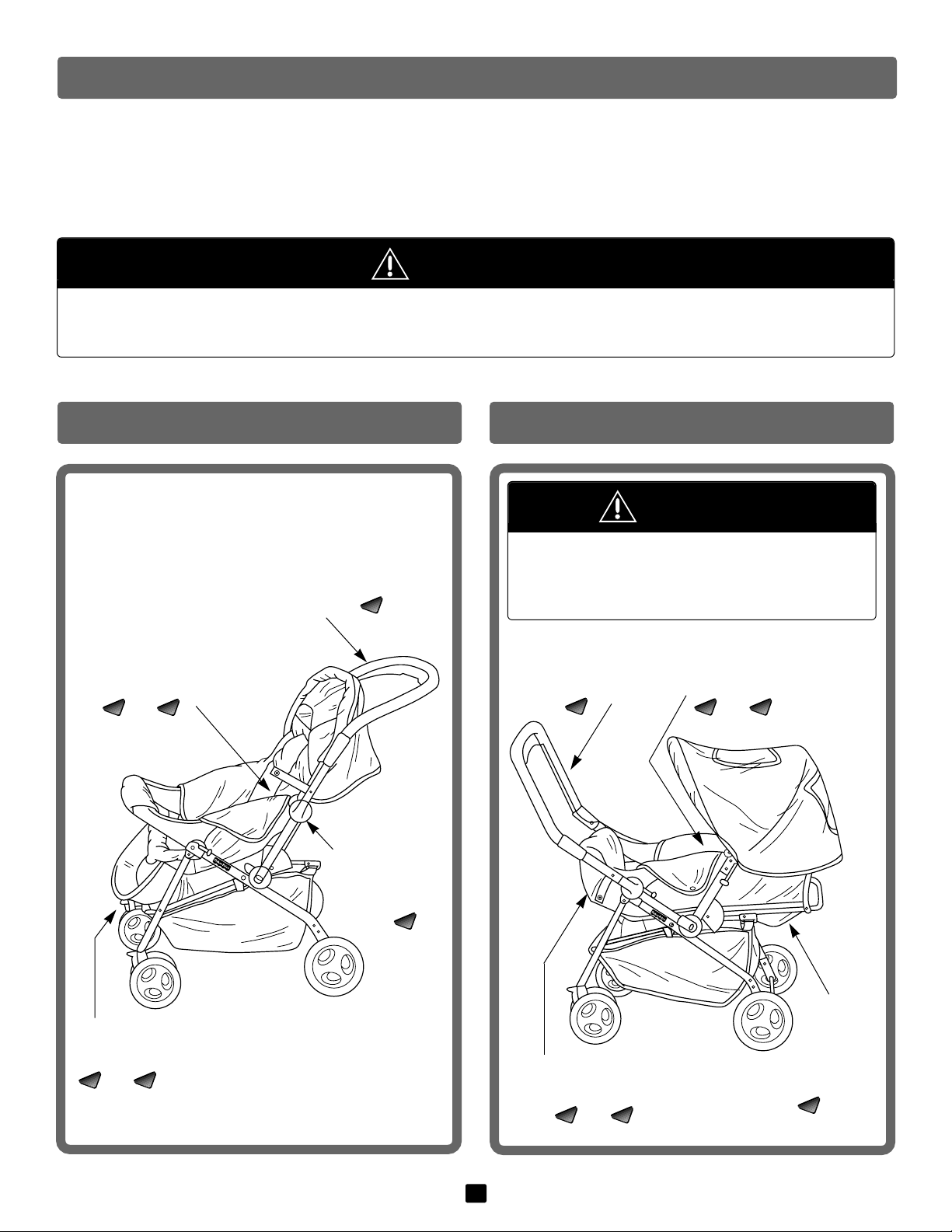

Stroller Use Carriage Use
Your Perfect Fit™Stroller can be converted to be used as a stroller (upright or semi-recline) or
as a carriage (recline). Please read the instructions below the illustrations on this page. These
instructions tell you how to convert your Perfect Fit™Stroller for desired use. More detailed
operation and use instructions follow on pages 8 through 12.
®
Adjust the cushion to the
desired position (see
Operation and Use steps
and ).
12
11
®
Adjust the cushion to the
desired position (see
Operation and Use steps
and ).
12
11
Rotate the handle so that it is
toward the seat back (see
Operation and Use step ).
4
Raise the seat
back to either
the upright or
the semi-recline
position (see
Operation and
Use step ).
5
Adjust the footrest to the
lowered position (see
Operation and Use steps
and ).
8
7
Rotate the handle
so that it is toward
the footrest (see
Operation and Use
step ).
8
Adjust the footrest to
the raised position (see
Operation and Use
steps and ).
8
7
Lower the
seat back to
the recline
position (see
Operation
and Use step
).
5
7
Your child may slip into leg openings
and strangle. Never use in the recline
position unless the footrest is raised.
WARNING
WARNING

PartsOperation and Use
®
• Position the stroller upright on its rear wheels, as shown.
• Unfasten the fold snap.

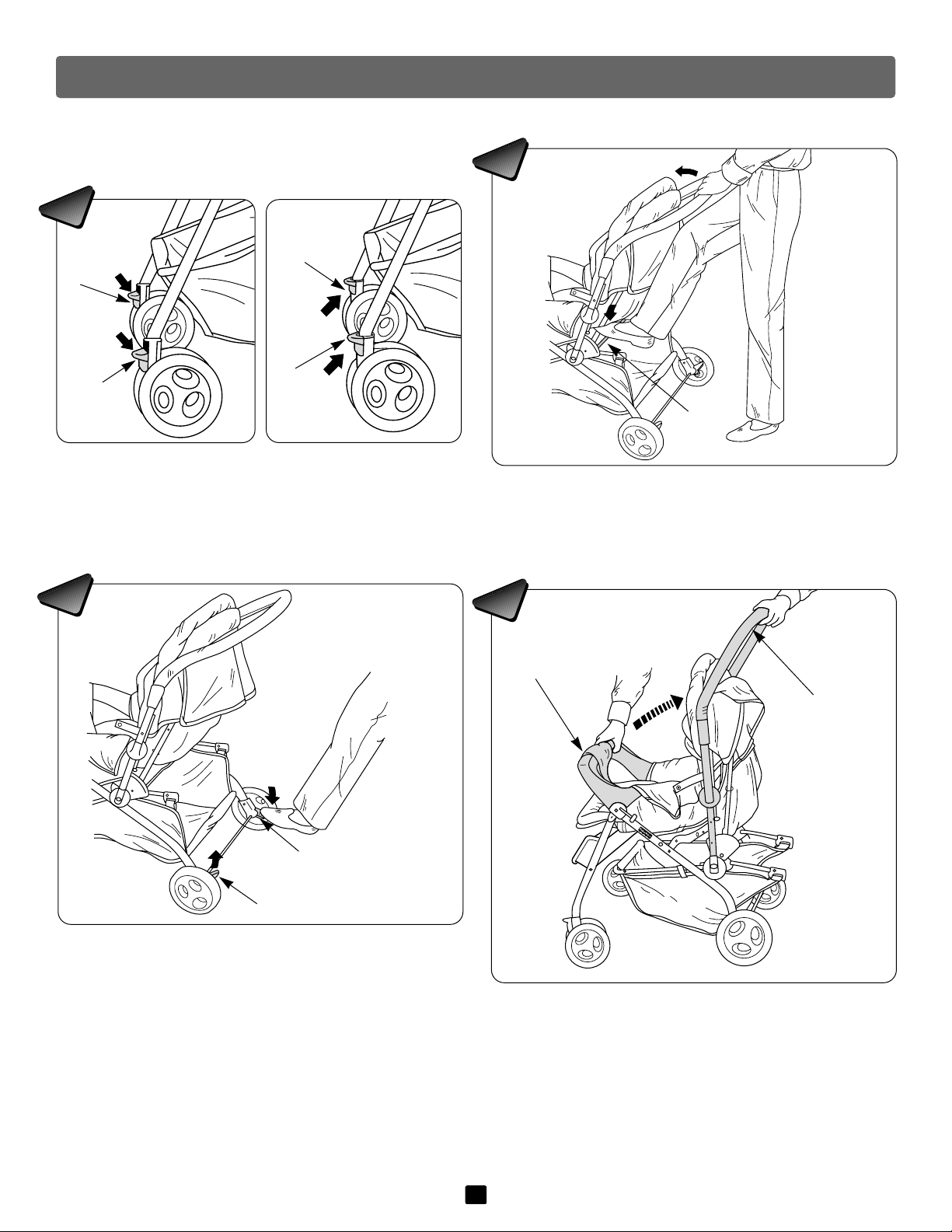

To Unfold
®
• Hold the handle with one hand and the grab bar with the
other. Pull the handle and the grab bar apart to unfold
the stroller.
Grab Bar
®
• Locate the latch on each side of the stroller.
• Continue to pull the handle and grab bar apart until the
latches hook over the latch posts.
• Make sure the latches hook over the latch posts on both
sides of the stroller.
• Test to be sure both latches are secure by pulling the handle
and grab bar towards each other. The latches should remain
locked in position.
®
• The handle can be reversed to push the stroller with your
child facing you.
• Pull up on the handle release while rotating the handle
forward.
• Release the handle release and make sure the handle
is secure.
Handle
Release
1
2
3
4
Handle
Handle
Grab Bar Latch
Latch Post
Latch
Fold Snap
8
Reversible Handle

®
®
Operation and Use
®

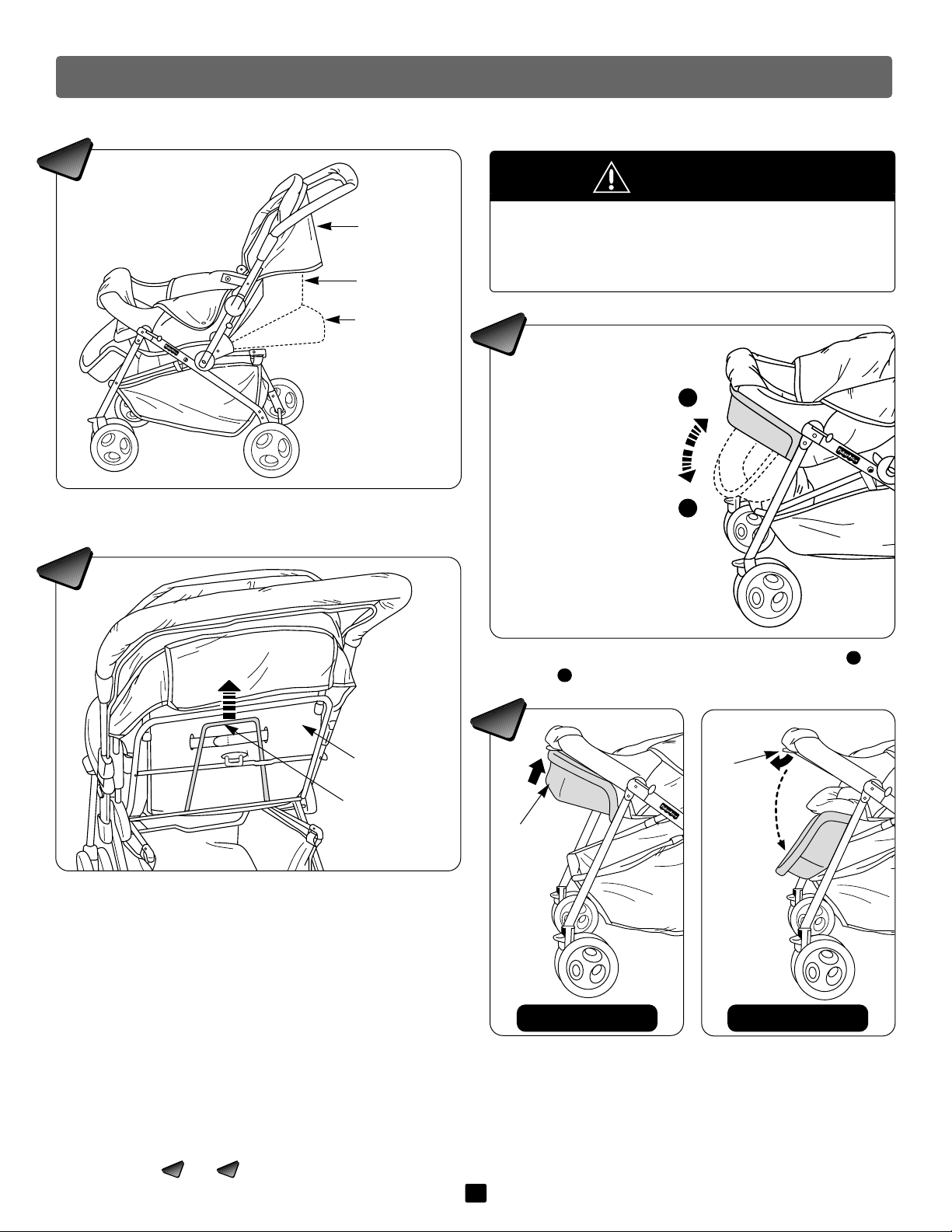

• For baby’s comfort, the seat back can be adjusted to an
upright, semi-recline or recline position.
Seat Back Adjustment
Recline
To adjust the seat back down to the semi-recline or
recline position:
• Turn the stroller so that the back is facing you.
• While pushing the seat back forward slightly pull up on
the seat back wire.
• Adjust the seat back down to the desired position.
• Release the seat back wire to lock the seat back
into position.
• To adjust the seat back up to the semi-recline or upright
position, push the seat back up to the desired position.
Please Note:
• Push down (from the front of the stroller) on the seat back
to be sure it is secure and locked in place.
• When using the stroller in the recline position, always
position the footrest to the raised position (see Operation
and Use steps and for instructions).
8
7
Seat Back
5
6
7
8
• The footrest can be adjusted to two positions: raised and
lowered .
Footrest Adjustment
WARNING
Your child may slip into leg openings
and strangle. Never use in the recline
position unless the footrest is raised.
To adjust for the raised position:
• Lift the footrest and snap it into place.
• Test to be sure the footrest is locked in position by pushing
down on the footrest. It should remain in the raised position.
To adjust for the lowered position:
• Pull the footrest release tab on the grab bar and lower
the footrest.
Upright
Semi-Recline
Seat Back Wire
Raised Position
Lowered Position
Footrest
Footrest
Release
Tab
9
A
B
A
B
Raised Position Lowered Position

• Turn the stroller so that the back is facing you.
• Make sure the fastener straps are tightly fastened.
• Press the cushion latch down to flatten the cushion.
13
Cushion Latch
• The canopy can be adjusted up or down.
Canopy Down
Canopy Adjustment
Canopy Up
Fastener Straps
Cushion
The cushion can be adjusted to surround baby’s head
for added support and extra comfort.
11
• Turn the stroller so that the back is facing you.
• Make sure the fastener straps are tightly fastened.
• Lift the cushion latch for added support and extra comfort.
Cushion Latch
Fastener Straps
12
9
10
PartsOperation and Use
• Place your child in the stroller.
• Pull the crotch belt up between your child’s legs.
• Fasten both waist belts to the crotch belt. Make sure you
hear a “click” on both sides.
Crotch Belt
Restraint Belts
To prevent serious injury or death,
always use the restraint belts.
To tighten the waist belts:
• Feed the anchored end of the waist belt up through the
buckle to form a loop .
• Pull the free end of the waist belt .
• Repeat this procedure to tighten the other waist belt.
To loosen the waist belts:
• Feed the free end of the waist belt up through the buckle to
form a loop .
• Enlarge the loop by pulling on the end of the loop toward
the buckle.
• Pull the anchored end of the waist belt to shorten the free
end of the waist belt .
• Repeat this procedure to loosen the other waist belt.
Please Note: After adjusting the waist belts to fit your child,
make sure you pull on them to be sure they are securely
fastened.
Anchored End
Buckle
Waist Belt
Waist Belt
Free End Free End
Anchored End
10
WARNING
A
B
A
B

PartsOperation and Use
14
To lock the front (swivel) wheels:
• Press both swivel knobs down.
To unlock the front (swivel) wheels:
• Lift both swivel knobs.
Front Swivel Wheels
Lock the front (swivel) wheels when strolling over
sand, grass or gravel.
Swivel
Knob
Swivel
Knob
Swivel
Knob
Swivel
Knob
11
15
16
Rear Wheel Brakes
To lock the rear wheel brakes:
• Press both brake pedals down until they click into the
locked position. Make sure the brake pedals are pressed
down completely.
• Always set both brake pedals whenever you park the stroller.
To unlock the rear wheel brakes:
• Lift both brake pedals until they click into the
unlocked position.
Unlock
To Fold
• Make sure the seat back is in the upright position; the
canopy is in the up position and the handle is positioned
toward the seat back.
• Push the latch bar down toward the front of the stroller
with your foot while pushing the handle forward.
Latch
Bar
Lock
Brake Pedal
Brake Pedal
®
17
• Pull the grab bar toward the handle so the stroller stands on
its rear wheels.
Grab Bar
Handle

®
Care
Care
• Machine wash the cushion and grab bar strap/footrest pad
in cold water and a mild detergent. Do not use bleach.
Tumble dry on low heat and remove promptly.
• Surface wash the liner, canopy, restraint belts and storage
area with a mild detergent and water. Do not use bleach.
Rinse clean with water to remove residue.
• Surface wash the frame with a mild soap and water solution.
Do not use harsh or abrasive cleaners. Rinse the frame clean
with water to remove soap residue.
®
To Remove the Grab Bar Strap
1
• Turn the stroller so that the front faces you.
• Lift the footrest and unfasten the two snap loops and the two
fastener loops.
• Lower the footrest.
2
• Unfasten the snaps on the grab bar strap.
• Pull the grab bar strap through the hole in the cushion.
Fastener Loops
Snap Loops
Grab Bar Strap
Snaps Grab Bar Strap
Operation and Use
®
18
• Squeeze the stroller together and fasten the fold strap.
Fold Strap
• From the front of the stroller, insert the crotch belt through
the lower slot in the cushion.
• Pull the cushion off the stroller.
Please Note: When re-assembling the cushion to the stroller,
make sure the fastener straps are tightly fastened.
Cushion
To Remove the Cushion
• Turn the stroller so that the back is toward you.
• Unfasten the fastener straps.
4
Fastener Straps
3
©1997 Fisher-Price, Inc., a subsidiary of Mattel Inc., East Aurora, New York 14052 79205, 79207, 79305, 79390 4 79205-0920
Printed in Hong Kong
If you have any questions about this product: In Canada, call 1-800-567-7724, or write to: Mattel/Fisher-Price, 6155 Freemont Blvd., Mississauga, Ontario L5R 3W2. In Great Britain,
telephone [phone]. In Australia, call the Fisher-Price Australian Consumer Advisory Service toll-free at 1-800-800-812, or write to: Fisher-Price, Mattel Pty. Limited, 461 Plummer
Street, Port Melbourne,Victoria 3207.
