Please keep this owner's manual for future reference, as it contains important information.
Requires four “D” (LR20) alkaline batteries (not included) for operation.
Age: 3-6 years
This product is intended for indoor use only.
Use ONLY alkaline batteries for longest battery life.
P HYSICAL L EARNING A RCADE S YS TEM

2 3
Learning Adventure
Game Cartridge
with Key Ring
Note: Tighten and loosen all screws with a Phillips screwdriver. Do not over-tighten screws.
Shown Actual Size

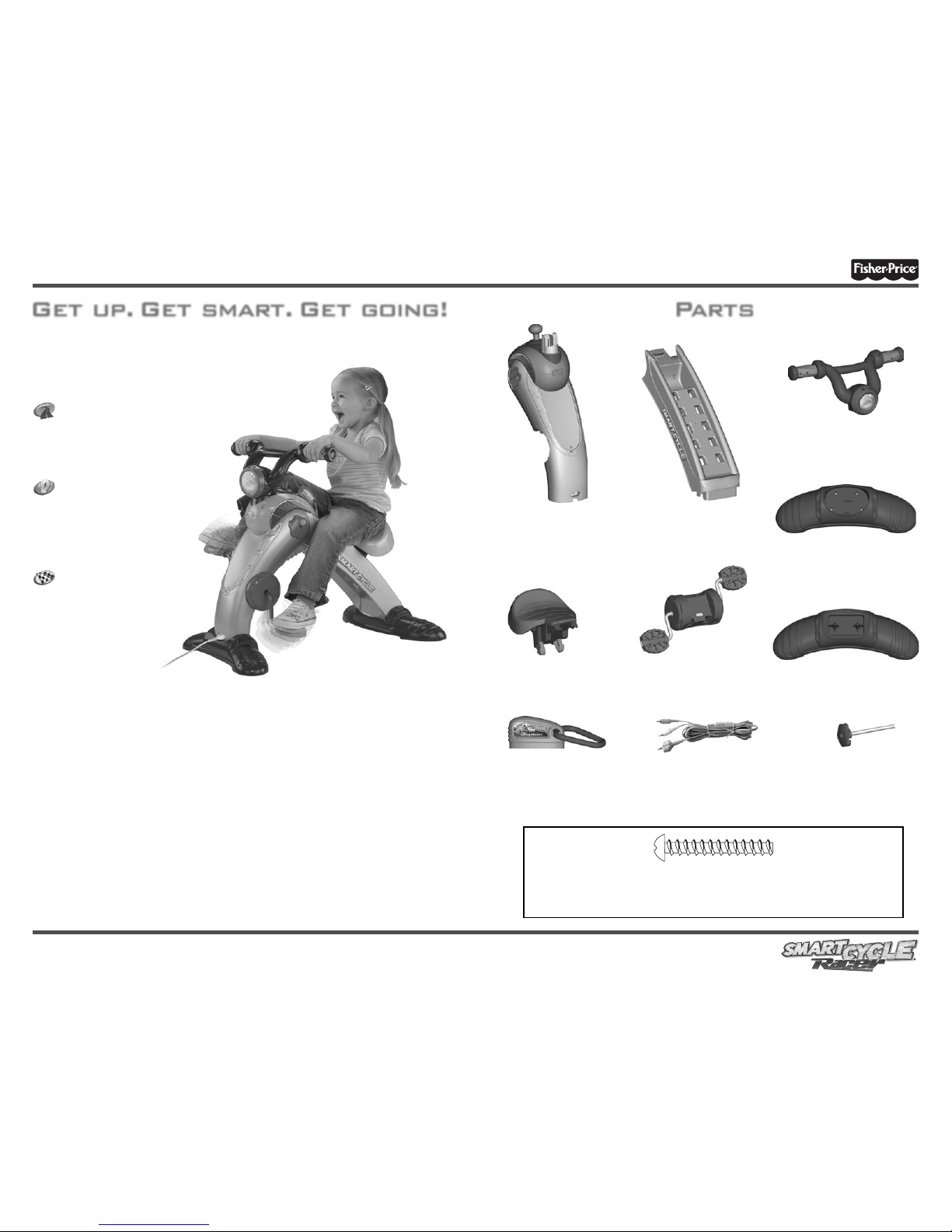

Get up. Get smart. Get going! Parts
Back Base
(Large)
Handlebar
Front Base
(Small)
It’s a stationary bike, a learning center, and an arcade game
system – all rolled into one! Smart Cycle®plugs right into
your TV, ready to take kids on learning adventures like no
other. As they pedal, favorite character friends guide them
through learning discoveries, games, and even exciting races.
Drive
Pedal, steer and learn at your own
pace – visit Math Mountain, Shape Lake,
Number Fields, Letter Creek and other
stops along the way.
Learn
Stop and rest, but don’t stop
learning! Use the joystick to rein-
force important learning skills with
plenty of games and activities – with
different levels for growing kids.
Race
Put the pedal to the metal as you
race with cars on-screen, against
the clock, or with another player!
Adult assembly is required. Tool needed for assembly:
Phillips screwdriver (not included).
Seat Post
Pedal Assembly
Frame Cover (with Bolt)
Seat
Frame
with Console
Safety Tips
• Always sit on the seat.
• Always wear shoes.
• Only one (1) rider at a time.
#8 x 1,25" Screw - 14
Plug-and-Play Cord

4 5

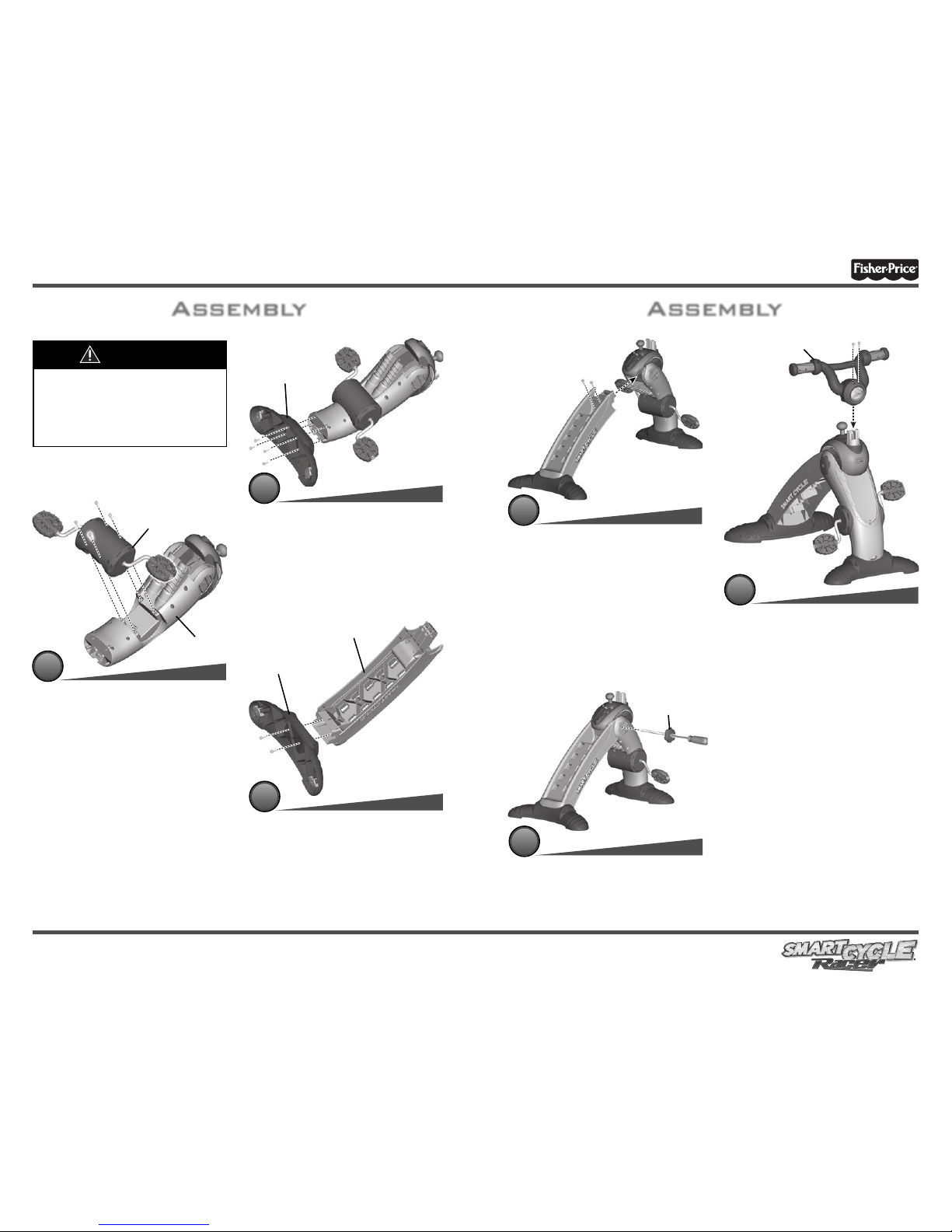

Fit the pedal assembly into the groove in•
the underside of the frame, as shown.
Hint: The pedal assembly is designed to
only fit one way. If it does not seem to fit,
turn it around and try again.
Insert four screws into the pedal assembly.•
Fully tighten the screws.
AssemblyAssembly
1
This product contains
small parts in its
unassembled state. Adult
assembly is required.
CAUTION
Pedal
Assembly
Frame
Front Base
(Small)
2
Fit the front base (small) onto the bottom•
of the frame, as shown.
Hint: The front base is designed to fit onto
the frame one way. If it does not seem to fit,
turn it around and try again.
Insert four screws into the front base•
and tighten.
Seat Post
Rear Base
(Large)
3
Fit the rear base (large) onto the end of the•
seat post, as shown.
Hint: The rear base is designed to fit onto
the seat post one way. If it does not seem to
fit, turn it around and try again.
Insert two screws into the rear base•
and tighten.
4
Frame Cover
(with Bolt)
Insert the frame cover with bolt into the•
hole on the side of the frame assembly.
Fully tighten the bolt.•
5
Handlebar
Fit the handlebar onto the frame,•
as shown.
Hint: The handlebar will only fit one way
onto the console. If it does not seem to fit,
turn it around and try again!
Insert two screws into the handlebar•
and tighten.
Pull up on the handlebar to be sure it•
is secure.
6
Turn both the frame and seat post•
assemblies upright.
Fit the seat post assembly onto the•
frame assembly.
Insert two screws into the seat post•
and tighten.
Hint: You may want to insert the frame
cover with bolt into the frame assembly
before inserting and tightening screws in
the post.

6 7

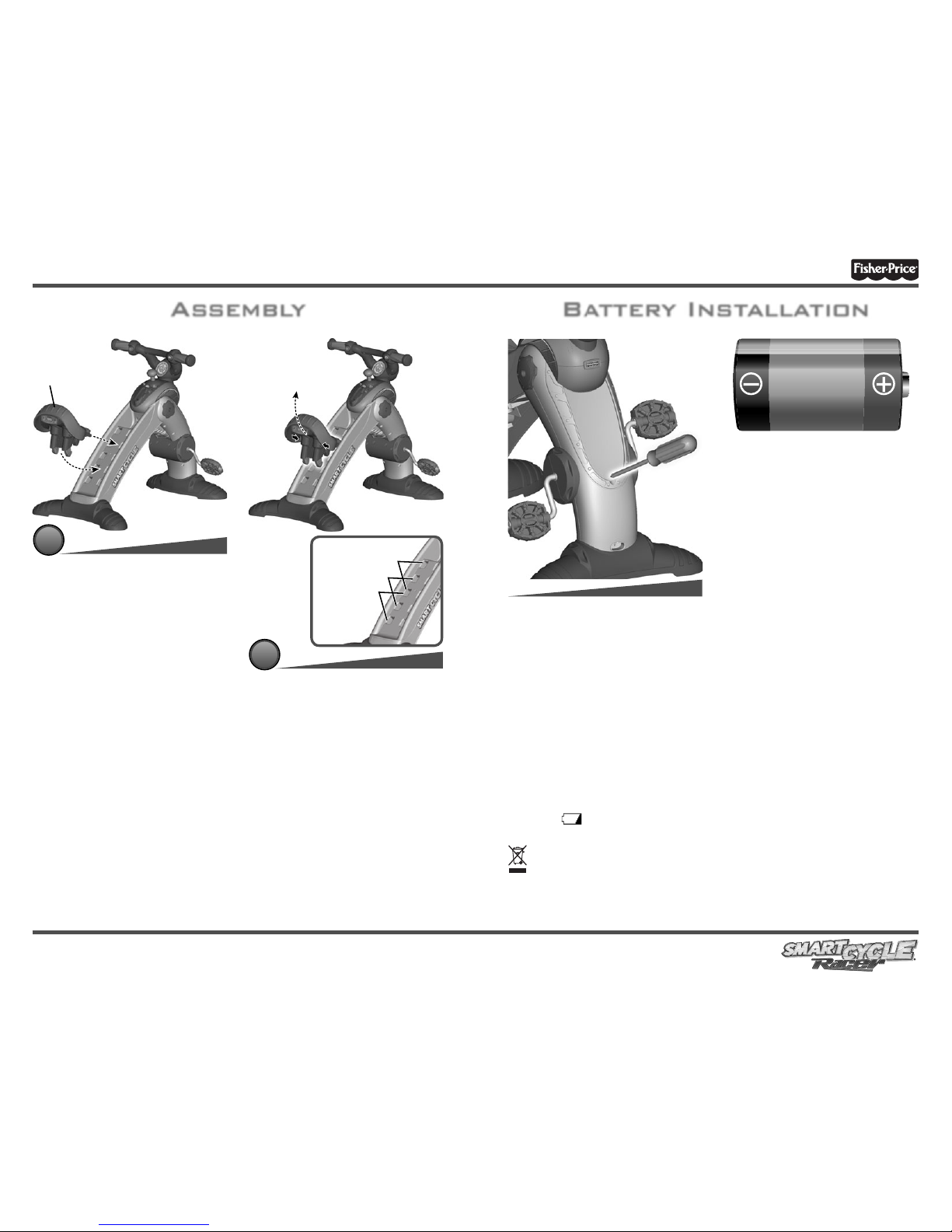

For your child's comfort, the seat can•
be adjusted to any of three seat heights
(upper slots for shorter children and lower
slots for taller children).
To remove the seat, press the tabs•
underneath and lift.
Replace the seat at the desired height and•
push down on the seat to be sure it is
secure in the slots in the seat post.
Assembly
8
Seat
At an angle, fit the upper tabs on the front•
of the seat into the slots on the seat post.
Lower the seat to fit the bottom tabs on•
the seat into the slots on the seat post.
You should hear a "click".
Push down on the seat to be sure it•
is secure.
7
Battery Safety Information
In exceptional circumstances, batteries
may leak fluids that can cause a chemical
burn injury or ruin your toy. To avoid
battery leakage:
• Do not mix old and new batteries or
batteries of different types: alkaline,
standard (carbon-zinc) or rechargeable
(nickel-cadmium).
• Insert batteries as indicated inside the
battery compartment.
• Remove batteries during long periods of
non-use. Always remove exhausted bat-
teries from the toy. Dispose of batteries
safely. Do not dispose of the product in
a fire. The batteries inside may explode
or leak.
• Never short-circuit the battery terminals.
• Use only batteries of the same or
equivalent type, as recommended.
• Do not charge non-rechargeable batteries.
• Remove rechargeable batteries from the
toy before charging.
• If removable, rechargeable batteries are
used, they are only to be charged under
adult supervision.
1,5V x 4
“D” (LR20)
Locate the battery compartment on front•
of the frame. Loosen the screw in the
battery compartment door and remove
the door.
Insert four “D” (LR20)• alkaline batteries.
Hint: We recommend using alkaline
batteries for longer battery life and
proper function.
Replace the battery compartment door•
and tighten the screw.
If this product begins to operate erratically,•
you may need to reset the electronics.
Slide the power switch off and then back on.
When function is erratic or stops,•
or you see a low battery symbol on your
TV screen , it’s time for an adult to
change the batteries!
Protect the environment by not•
disposing of this product with
household waste (2002/96/EC).
Check your local authority for
recycling advice and facilities
(Europe only).
Battery Installation
Seat Height 3
(Shortest)
Seat Height 2
Seat Height 1
(Tallest)

8 9
Power Switch
Slide the switch to
ON or OFF O.
Handlebar
Use for steering on the road or in games.
Horn Button
Press to make
a selection or
hear the horn.
Snap Shot Button
Press to make a selection
or take "pictures" (see
page 11).
Joystick
Use to make
selections on
the menus or
in activities.
Map Button
Press to see a map
of all activities
(see next page). Exit Button
Press to exit the activities.
Travel Journal Button
Press to see the
pictures you took
along your journey.
H
d
l
b
Getting Started
on the Learning Adventure
Insert the game cartridge into the socket•
on top of the cycle console. Push to be
sure it is fully inserted.
Hint: You can easily attach other cartridges
(sold separately and not included) to the
key ring.
Turn your TV or VCR/DVD player•
power ON.
Slide the power switch on the cycle to•
ON .
To find the picture on your TV screen,•
set your TV's or VCR/DVD player's mode
selector to INPUT or VIDEO IN.
Hint: The plug-and-play cord is designed
to easily disconnect if it is pulled. Simply
connect the matching connectors in the
middle of the cord.
I
h
i
d
i
h
k
Connecting Smart Cycle®
to your TV
Important! Your TV or VCR/DVD player
must have audio and video input jacks
(located on the front or back of your TV or
VCR/DVD).
Plug the audio-video pins into the•
matching colored input jacks on your
TV or VCR/DVD player (Yellow for Video
In, White for Audio In).
TV
INPUT
AUDIO IN
LEFT
VIDEO IN
VCR/DVD
OR
White
Yellow
TV
Place the Smart Cycle• ®in front of
your TV.
Insert the plug on the end of the plug and•
play cord into the socket on the front of
the cycle.
Key Ring

10 11
• Use the joystick to choose the type of
vehicle you’d like to “drive.”
• Press either handlebar button to make
your selection.
• Repeat this process to choose the color
of your vehicle, horn sound and a hood
ornament style.
Customize
your
vehicle
Find the objects!
• Pedal the cycle to move down the road.
The faster you pedal the faster you go!
• Use the handlebar to steer.
• Find all the letters, numbers or shapes
shown in the upper left of the screen.
Simply ride over them. Don't ride over
other objects!
Learning
Adventure
A
Taking Snap Shots
• Press the right handlebar button to
take snap shots.
• You can travel down the road and head onto an off-ramp to access activities or simply
press the map button to visit any of the activities around the course.
NOTICE ABOUT EPILEPSY AND SEIZURES PLEASE READ THIS NOTICE BEFORE YOU OR
YOUR CHILD USE ANY VIDEO GAME.
A very small portion of the population has a condition, which may cause a momentary loss of
consciousness when viewing certain kinds of flashing lights or patterns that are commonly
present in our daily environment. This condition may cause seizures while watching some
kinds of television pictures or playing certain video games. Players who have not had any
previous seizures may nonetheless have an undetected epileptic condition.
If you or anyone in your family has experienced symptoms linked to an epileptic condition
(e.g. a seizure or loss of awareness), consult your physician before playing video games.
We recommend that parents observe their children while they play video games. If you or
your child experience any of the following symptoms such as dizziness, altered vision, eye or
muscle twitching, involuntary movements, loss of awareness, disorientation or convulsions,
DISCONTINUE USE IMMEDIATELY and consult your physician.
Additionally, please follow these precautions whenever playing a video game:
• Do not sit or stand too close to the television screen. Play as far back from the screen
as possible.
• Do not play if you are tired or need sleep.
• Always play in a well lit room.
• Be sure to take a 10-15 minute break every hour while playing.
wn the road and head onto an off ramp to access activities or s
Letter Creek
Bonus Activity
The Big Race
Shape Lake
Math Mountain
Customize
Your Vehicle
Number Fields Learning Adventure
Alphabet Barn
C
u
s
y
o
ve
h
The Map

12 13
Catch the letters to spell words!
• Look at the word on the lower left corner
of the screen. This is the word you'll need
to spell. You have 5 frog lives to spell
words correctly in each level of play.
• Watch the letter bugs appear on
the screen.
• Use the joystick to move the frog left
and right. Then, press either handlebar
button to flick out the frog’s tongue and
catch the letter bug.
• When you spell a word, you score points!
Look at your score in the lower right
corner of the screen. If you choose an
incorrect letter you loose a frog life.
• When you spell all words correctly on
one level, move up to the next level. The
words are longer and the bugs fly faster!
• When you’re finished with this activity,
press the exit button to return to
the road. Pedal to the next activity!
Word Frog Lives Score Pedal as fast as you can to the
finish line!
• Use the joystick to choose a 1 Player or
2 Player game. Press either handlebar
button to select the game.
Letter
Creek The Big Race
Pdl f t t th
1 Player
• Pedal down the road as fast as you can
to the finish line. Try to speed past the
other cars. Get to the finish line first and
you win!
Alphabet
Barn
Find the Letters!
• Listen carefully to the letter you need to
find. "Find the upper case G".
• Move the joystick to scroll through
choices. Then press either handlebar
button to choose a letter.
• Select the correct letter and you complete
a word! “G – Goat”
• When you’re finished with this activity,
press the exit button to return to
the road. Pedal to the next activity!
Fin
d
Li
Off Ramps
• Keep traveling down the road and go all
the way around the course or head onto
an off-ramp for other fun games and
activities. Simply bear to the side of the
road as you see one approaching.
Hint: If you miss a ramp, you can pedal in
reverse to back up.

14 15

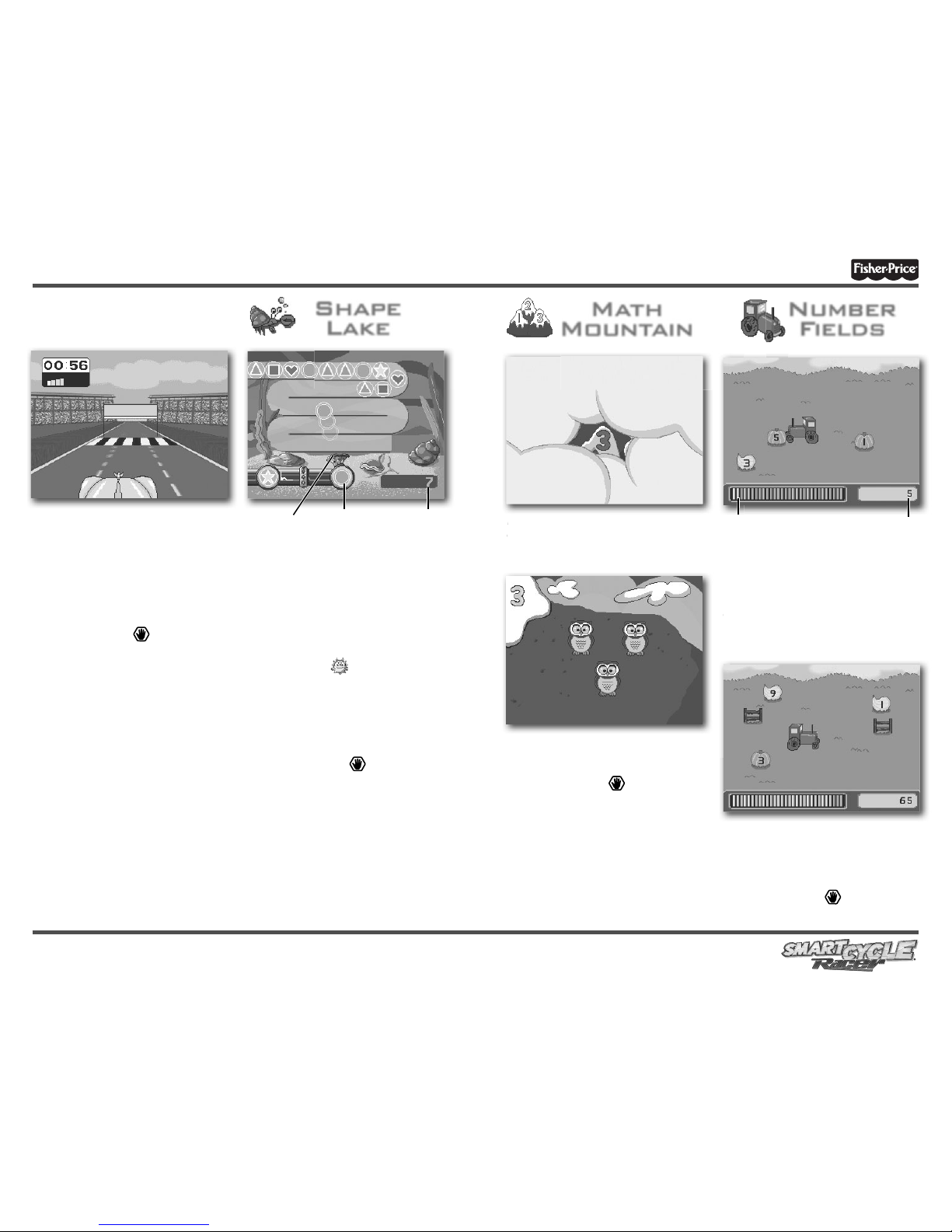

Lots of counting fun!
• Use the joystick to move the clouds over
a number.
L
ots of counti
ng
fun!
•
U
se t
h
e
j
o
y
st
i
c
k
to move t
h
e c
l
ou
d
s over
Math
Mountain Number Fields
Use the tractor to run over numbers in
the field before they disappear!
• Use the joystick to move the tractor
around the field. Run over the numbers
before they disappear.
• When you hit the numbers, you score
points! Try to get as many points as you
can before time runs out.
• When time runs out, you're on to the next
level. Numbers appear and disappear
faster now and there are obstacles to
avoid too. Don't lose points!
• When you’re finished with this activity,
press the exit button to return to the
road. Pedal to the next activity!
Timer Score
•
•
• Hear the number identified and see it
counted out.
• When you’re finished with this activity,
press the exit button to return to
the road. Pedal to the next activity!
2 Player
• Each player takes a turn. Pedal down the
road as fast as you can to the finish line.
Look at your time.
• Now, it's time for Player 2 to beat
your time.
• The player with the fastest time wins.
• When you’re finished with this activity,
press the exit button to return to
the road. Pedal to the next activity!
Match shapes to pop the bubbles!
• Look at the shape inside the nozzle. Use
the joystick to aim the nozzle toward the
matching shape.
• Press either handlebar button to shoot the
shape and "pop" the bubble.
• If you hit the matching shape, you score
points! If you hit the wrong shape, the
bubble floats back to the top.
Hint: The blowfish can be used to hit
any bubble shape.
• Try to pop all the bubbles before they
reach the bottom. When you pop all the
bubbles, move on to the next level. The
bubbles move faster!
• When you’re finished with this activity,
press the exit button to return to
the road. Pedal to the next activity!
Shape
Lake
Nozzle Shape Score

16 17
Problem Cause Solution
No image on the TV TV or VCR is not set
to proper input
Press the channel down button on
the VCR or TV and check for an
INPUT channel below channel 2.
Use the menu system on your TV
or VCR to find INPUT or SOURCE.
Change to INPUT or SOURCE.
Refer to your TV's or VCR’s instruc-
tion manual.
Batteries in the cycle are
weak or dead
Replace all batteries in the
cycle with four, new “D” (LR20)
alkaline batteries.
Battery compartment door is loose Fully tighten the screw in the
battery compartment door.
Plug-and-play cord
is disconnected
Make sure both ends of the plug-
and-play cords are fully connected
to the cycle and your TV or VCR.
Game cartridge is not fully inserted
into slot in cycle
Remove the game cartridge from
the cycle slot. Replace the cartridge
into the slot and push to be sure it
is fully inserted.
Dust has accumulated in the game
cartridge/cycle socket
Gently blow the dust from the game
cartridge and the cycle socket.
Replace the cartridge into the
cycle socket.
Low battery symbol appears
on TV screen
Batteries in the cycle are weak Replace all batteries in the
cycle with four, new “D” (LR20)
alkaline batteries.
Image is stretched or distorted on a
wide screen TV
Wide screen TV aspect ratio
set incorrectly
For best picture, do not use a 16:9
aspect ratio (stretched) wide screen
setting. This product is designed
for a regular screen TV with a 4:3
aspect ratio (display setting). When
viewed on a wide screen TV, you
will see black bars on the sides of
the image. For more information on
changing the aspect ratio, refer to
your TV owner’s manual.
Short battery life NiMH or rechargeable batteries are
being used
Use ONLY alkaline batteries in
this product.
Troubleshooting Guide
Bonus
Activity
• To visit here, you need to visit all of the
activities around the course and complete
the first level of each game.
• Watch the ant parade. The ants march by
carrying letters, numbers or shapes.
• When you’re finished with this activity,
press the exit button to return to
the road. Pedal to the next activity!
• Press the travel journal button . Then
use the joystick and handlebar buttons
to review and select a snap shot.
Travel
Journal
See previous
snap shot
See next
snap shot
• Next, use the joystick and handlebar
buttons to select the stamp tool to
decorate your picture.
• Choose a stamp with the joystick and
handlebar buttons and place it on the
snap shot.
• Select the erase button to clear the
screen and decorate another picture.
Stamp Tool Erase
• Next
,
use the
j
o
y
stick and handlebar
S
tam
p
Tool
Er
as
e

18 19
Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, NY 14052 U.S.A. ©2010 Mattel, Inc.
All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc., unless otherwise indicated.
Consumer Information
Care
• We recommend storing the game cartridge in the socket on the console when not in use.
This can help prevent dust from collecting in the socket (and causing a malfunction).
• Wipe with a clean cloth dampened with a mild soap and water solution. Do not use bleach.
Do not use harsh or abrasive cleaners. Do not immerse.
• This product has no consumer serviceable parts. Do not take this product apart.
• Periodically check this product for wear and damage and replace any cracked part.
ICES-003
This Class B digital apparatus complies with Canadian ICES-003.•
Operation is subject to the following two conditions: (1) this device may not cause•
harmful interference and (2) this device must accept any interference received, including
interference that may cause undesired operation.
NMB-003
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.•
L’utilisation de ce dispositif est autorisée seulement aux conditions suivantes :•
(1) il ne doit pas produire de brouillage et (2) l’utilisateur du dispositif doit être prêt à
accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de
compromettre le fonctionnement du dispositif.
FCC Statement (United States Only)
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
Reorient or relocate the receiving antenna.•
Increase the separation between the equipment and receiver.•
Consult the dealer or an experienced radio/TV technician for help.•
Note: Changes or modifications not expressly approved by the manufacturer responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Consumer Information
CO
N
S
UMER
ASS
I
S
T
A
N
CE
1-800-432-5437 (US & Canada)
1300 135 312 (Australia)
Fisher-Price, Inc., 636 Girard Avenue, East Aurora, NY 14052.
Hearing-impaired consumers: 1-800-382-7470.
Outside the United States:
Canada: Mattel Canada Inc., 6155 Freemont Blvd.,
Mississauga, Ontario L5R 3W2; www.service.mattel.com.
Great Britain: Mattel UK Ltd, Vanwall Business Park,
Maidenhead SL6 4UB. Helpline: 01628 500303.
www.service.mattel.com/uk
Mattel Europa, B.V., Gondel 1, 1186 MJ Amstelveen, Nederland.
Australia: Mattel Australia Pty. Ltd., 658 Church Street,
Locked Bag #870, Richmond, Victoria 3121 Australia.
New Zealand: 16-18 William Pickering Drive,
Albany 1331, Auckland.
