Fisher-Price TRAIL RAIDER R1502 Use and care manual

Please read this manual and save it with
your original sales receipt.
Tools needed for assembly: Phillips Screwdriver, Adjustable
Wrench (both not included) and Assembly Wrenches (included).
Use only with a Power Wheels®Super 6 Volt Rechargeable
Battery with built in thermal fuse and a Power Wheels® Super 6
Volt charger with A-style connector (both included).
Product features may vary
from the picture above.
Owner's Manual
with Assembly Instructions
For Model R1502

2
TABLE OF CONTENTS
A
R1502b-0920
• Your new vehicle requires adult assembly. Please set aside at
least 45 minutes for assembly.
• You must charge your battery for 18 - 30 hours before you use
your vehicle for the first time. We recommend that you start
charging your battery before beginning assembly. Please see
Battery Charging beginning on page 7 for detailed instructions.
• Read this manual carefully for important safety information and
operating instructions before using your vehicle. Keep this manual
for future reference as it contains important information.
• This vehicle is designed for use on: grass, asphalt and other
hard surfaces; on generally level terrain; and by children
3 years of age and older.
• Use this vehicle ONLY outdoors. Most interior flooring can be
damaged by riding this vehicle indoors. Fisher-Price®will not
be responsible for damage to the floor if the vehicle is
used indoors.
• To prevent damaging the motors and gears, teach your child to
stop the vehicle before switching direction. Do not tow anything
behind the vehicle or overload it. Do not exceed the maximum
weight capacity of 65 lbs (29.5 kg).
• If you have any questions about your Power Wheels®vehicle,
please call our toll-free service lines at 1-800-348-0751. Trained
customer service representatives are available to take your call in
English or French. Habla Español? Si usted tiene alguna pregunta
ó necesita asistencia llame gratis 1-800-348-0755 para los
Estados Unidos. Tenemos representantes que hablan español para
atender su llamada.
• For your convenience, Power Wheels®maintains an Authorized
Service Center Network with more than 300 authorized service
centers nationwide. Our authorized service centers will repair
or replace parts under warranty at no extra charge, and can
perform non-warranty repairs for a minimal charge. To find the
authorized service center nearest you, please visit us on-line at
www.powerwheels.com or call 1-800-348-0751.
• To register your vehicle, please visit us on-line at
www.powerwheels.com.
Important Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Parts Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Battery Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Decoration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Battery Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Battery Care and Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Safe Driving Rules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Vehicle Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Problems and Solutions Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
IMPORTANT INFORMATION
2
TABLE OF CONTENTS
R1502b-0920

R1502b-0920
• Prevent Injuries and Deaths
• Direct Adult Supervision Required
• Never Ride at Night.
• Keep Children Within Safe Riding Areas.
These areas must be:
- away from swimming pools and other bodies of water to prevent drownings
- generally level to prevent tipovers
- away from steps, steep inclines, cars, roads and alleys.
• Riding Rules
Make sure children know and follow these rules for safe driving and riding.
- Always sit on the seat.
- Always wear shoes.
- Only 1 (one) rider at a time.
ELECTRICAL HAZARD
3
IMPORTANT INFORMATION
• Battery can fall out and injure a child if vehicle tips over. Always use battery retainer.
• PREVENT FIRE
- Never modify the electrical system. Alterations could cause a re resulting in serious injury
and could also ruin the electrical system.
- Use of the wrong type battery or charger could cause a re or explosion resulting in
serious injury.
- Use of Power Wheels®components in products other than Power Wheels®vehicles could
cause overheating, re or explosion.
• The battery must be handled by adults only. The battery is heavy and contains sulfuric acid
(electrolyte). Dropping the battery could result in serious injury.
• Never allow children to charge the battery. Battery charging must be done by adults only.
A child could be injured by the electricity involved in charging the battery.
• Read the safety instructions on the battery.
• Examine the battery, charger and their connectors for excessive wear or damage each time
you charge the battery. If damage or excessive wear is detected, do not use the charger or the
battery until you have replaced the worn or damaged part.
• HOT motors. Handle carefully.
WARNING
RIDING HAZARD
R1502b-0920
• To prevent electric shock, do not immerse in water; wipe clean with a damp cloth.
DANGER
WARNING

R1502b-0920
4
PARTS
• If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this
product to the store.
• Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded.
• Some parts were placed under the seat for shipment. Press the tab under the back of the seat and lift to access the battery compartment.
• Metal parts have been coated with a lubricant to protect them during shipment. Wipe all metal parts with a paper towel to remove
any excess lubricant.
R1502b-0920
4 Wheels
Cowling
2 Grips 4 Hubcaps
2 Rear Wheel Drivers
Handlebar Neck
Vehicle (with Seat)
Handlebar
Handlebar Cover Assembly
Front
Back
4 Wheel Cap Covers

5
TABLE OF CONTENTS
A
R1502b-0920
Fasteners Shown Actual Size
Note: Tighten and loosen all screws with a Phillips
screwdriver. Do not over-tighten the screws.
5
PARTS
Part Not Shown: Label Sheet
R1502b-0920

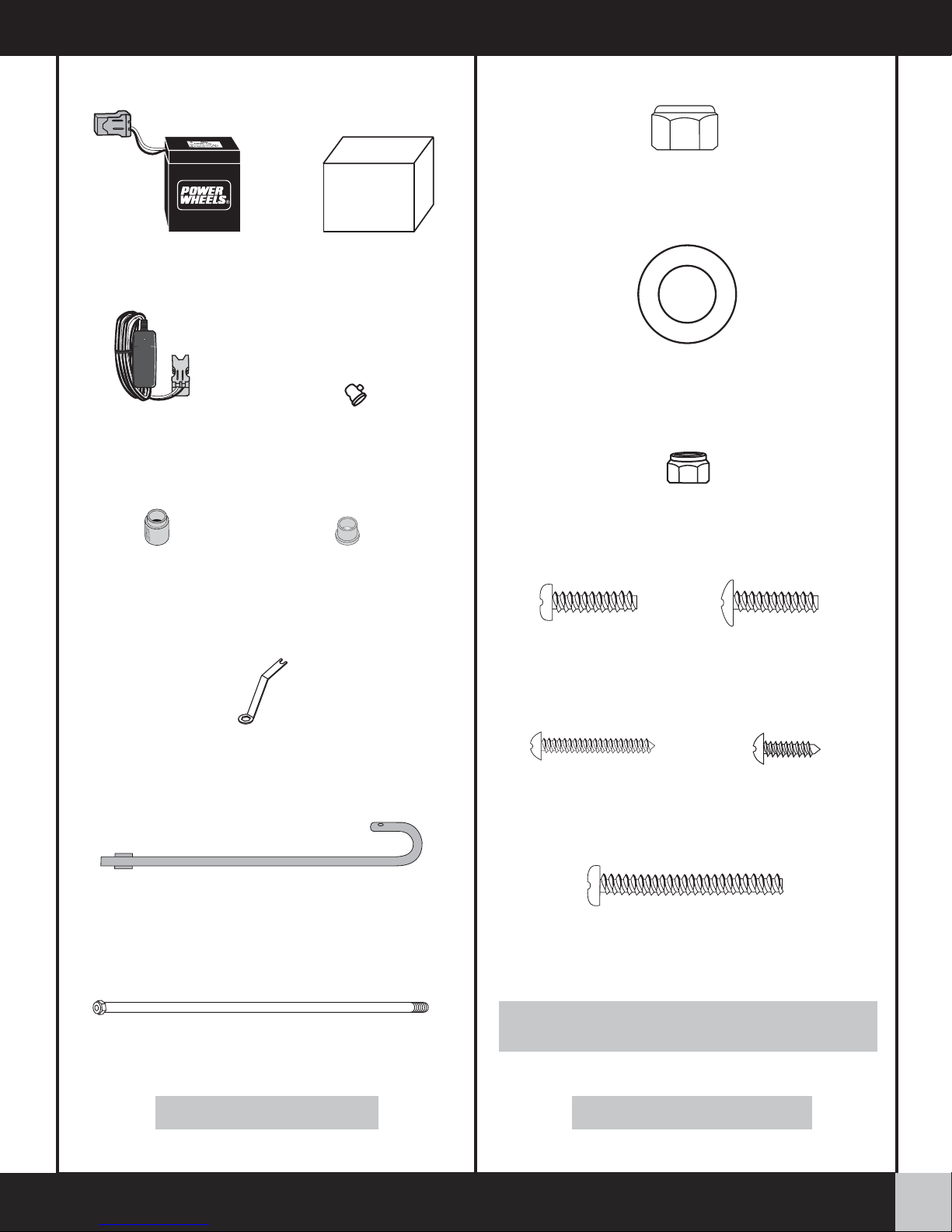

7/16" Washer - 8
Super 6 Volt Battery
Steering Bushing
#6 x 1 /2" Screw - 2
#6 x 1" Screw - 6
#10 x 15/8" Screw - 2
2 Round Bushings
Steering Column
Rear Axle
#10 x 3/4" Screw - 1
#10 Lock Nut - 3
6 Volt Charger
Foam Spacer
3/8" x 16 Lock Nut - 3
Steering Column Cap
2 Assembly Wrenches
#8 x 3/4" Screw - 1

6
TABLE OF CONTENTS
A
R1502b-0920
6
PARTS PICTURE
2
4
8
23
9
14
1 Vehicle
2 Cowling
3 Seat
4 Wheel - 4
5 Hubcap - 4
6 3/8" x 16 Lock Nut - 3
7 Steering Column
8 Handlebar Neck
9 6 Volt Battery
10 6 Volt Charger
11 Rear Wheel Driver - 2
12 Grip - 2
13 Handlebar Cover - Front
14 Handlebar Cover - Back
15 Steering Bushing
16 Handlebar
17 Rear Axle
18 Round Bushing - 2
19 #10 Lock Nut - 3
20 #10 x 15/8" Screw - 2
21 #6 x 1" Screw - 6
22 #6 x 1/2" Screw - 2
23 7/16" Washer - 8
24 #10 x 3/4" Screw - 1
25 Assembly Wrench - 2
26 Foam Spacer
27 Steering Column Cap
10
25
5
1
13
15
11
Note: Some parts are assembled on both sides of the vehicle. This illustration shows assembly on right side only.
17
23
5
6
6
28
28 4
18
23
23
27
7
24
19
20
21
22
21
21
12
16
19
3
19
26
28 Wheel Cap Cover - 4
Parts Not Shown
Label Sheet

R1502b-0920
Important Notes
• Your new battery must be charged for at least 18 hours
before you use it in your vehicle for the first time.
• We recommend that you start charging your battery before
beginning assembly of your new vehicle.
• The battery must be upright while charging.
• The charger is not a toy.
• Do not short circuit the battery.
• You do not need to remove the battery from your vehicle to
recharge it.
• Before charging the battery, examine the battery case for cracks
and other damage which may cause sulfuric acid (electrolyte)
to leak during the charging process. If damage is detected,
do not charge the battery or use it in your vehicle. Battery acid
is very corrosive and can cause severe damage to surfaces
it contacts.
• Do not charge the battery on a surface (such as kitchen counter
tops) which could be damaged by the acid contained inside the
battery. Take precautions to protect the surface on which you
charge your battery.
• Use only a Power Wheels®Super 6 Volt charger with (input
120 VAC, 60 Hz with an output of 6 VDC) to charge your
Power Wheels®6 volt battery.
• Adults Note: Regularly examine the charger for damage to the
cord, plug, housing or other parts that may result in the risk of
fire, electric shock or injury. In the event of any damage, do not
use the charger until the damage has been properly repaired.
Please call 1-800-348-0751.
• If your battery is old and will not accept a charge, do not leave
it in the vehicle. Always remove a dead battery from the vehicle.
About Thermal Fuses
Your Power Wheels®6 volt battery is equipped with a built-in
thermal fuse. The thermal fuse is a self-resetting safety device
which automatically “trips” and shuts down operation of the vehicle
if the vehicle is overloaded or the driving conditions too severe.
Once a fuse has “tripped”, remove your foot from the pedal
and wait approximately 25 seconds before operating the vehicle
again. To avoid repeated automatic shut-downs, do not overload
the vehicle by exceeding the 65 lbs (29.5 kg.) maximum weight
capacity or by towing anything behind the vehicle. Avoid severe
driving conditions, such as driving up slopes or running into
fixed objects, which can cause the wheels to stop spinning while
power is still being supplied to the motors and make sure your
child stops the vehicle before switching speeds or direction.
If a thermal fuse in a battery continually trips under normal
driving conditions, please contact your local Power Wheels®
Authorized Service Center. For the location of the Authorized
Service Center nearest to you, visit us on-line at
www.powerwheels.com, or call 1-800-348-0751.
• Battery can fall out and injure a child if vehicle
tips over. Always use battery retainer.
• PREVENT FIRE
- Never modify the electrical system.
Alterations could cause a re resulting
in serious injury and could also ruin the
electrical system.
- Use of the wrong type battery or charger
could cause a re or explosion resulting in
serious injury.
- Use of Power Wheels®components in
products other than Power Wheels®
vehicles could cause overheating,
re or explosion.
• The battery must be handled by adults
only. The battery is heavy and contains
sulfuric acid (electrolyte). Dropping the
battery could result in serious injury.
• Never allow children to charge the battery.
Battery charging must be done by adults
only. A child could be injured by the elec-
tricity involved in charging the battery.
• Read the safety instructions on the battery.
• Examine the battery, charger and their
connectors for excessive wear or damage
each time you charge the battery. If damage
or excessive wear is detected, do not use
the charger or the battery until you have
replaced the worn or damaged part.
WARNING
Use the charger in dry locations only.
CAUTION
7
BATTERY CHARGING
ELECTRICAL HAZARD
ELECTRICAL HAZARD
R1502b-0920

8
TABLE OF CONTENTS
A
R1502b-0920
8
BATTERY CHARGING
R1502b-0920
• Plug the charger connector into the battery
1
.
• Plug the charger into a standard volt wall outlet
2
.
Notes:
- If power flow to the wall outlet is controlled by a switch,
make sure the switch is “ON”.
- Use the charger only in a wall outlet. Do not plug the charger
into a ceiling outlet.
• Before first-time use, charge the battery for at least 18 hours.
Never charge the battery longer than 30 hours.
• Recharge the battery for at least 14 hours after each use of
your vehicle. Do not charge the battery longer than 30 hours.
• Once the battery is charged, pull firmly on the charger
connector to disconnect it from the battery. Unplug the charger
from the wall outlet. The battery is now ready to be installed in
your vehicle. Please see the Battery Installation section on page
16 for detailed instructions on installing your battery. If your
battery is already installed in your vehicle, simply re-connect
the motor harness connector to the battery.
1
2

R1502b-0920
3

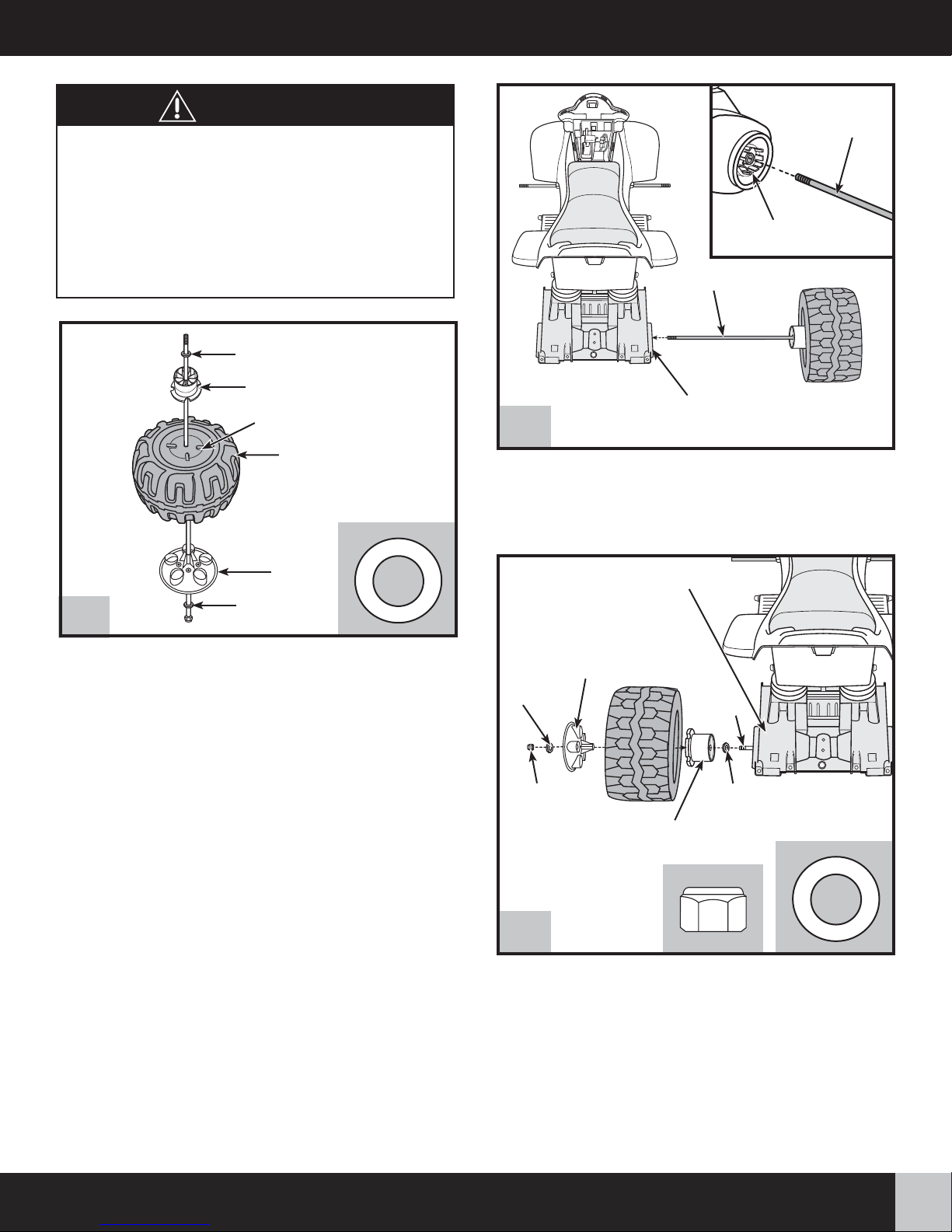

• Slide a 7/16" washer onto the rear axle.
• Slide a hubcap, indented side down, onto the rear axle.
• Slide a wheel onto the rear axle. Make sure the ribs on the
wheel face up.
• Slide a rear wheel driver, ring side down, onto the rear axle.
Fit the grooves on the rear wheel driver onto the ribs on the wheel.
• Slide another 7/16" washer onto the rear axle.
• Position the vehicle upright. Face the back end of the vehicle.
• Slide the rear axle assembly into the hole in the opposite side
of the motor assembly. Make sure the rear wheel driver on the
rear axle assembly fits onto the pins in the motor assembly.
Children can be harmed by small parts,
sharp edges and sharp points in the vehicle's
unassembled state, or by electrical items.
Care should be taken in unpacking and
assembly of the vehicle. Children should
not handle parts, including the battery,
or help in assembly of the vehicle.
WARNING
9
ASSEMBLY
2
R1502b-0920
1
• Slide a 7/16" washer onto the rear axle.
• Slide the rear wheel driver onto the rear axle. Make sure the
rear wheel driver fits onto the pins in the motor assembly.
• Slide a wheel onto the rear axle. Make sure the ribs on the
wheel fit into the grooves on the rear wheel driver.
• Slide a hubcap, indented side out, onto the rear axle.
• Slide a 7/16" washer onto the rear axle.
• Fit a 3/16" -16 lock nut on the end of the rear axle and hand tighten.
Rear Axle Assembly
Rear Axle
Motor Assembly Pins
Motor Assembly
Hubcap
Rib
Wheel
Rear Wheel Driver
7/16" Washer
7/16" Washer
Rear Wheel
Driver
Motor Assembly
7/16" Washer
Hubcap
Rear Axle
7/16"
Washer
Lock Nut

R1502b-0920

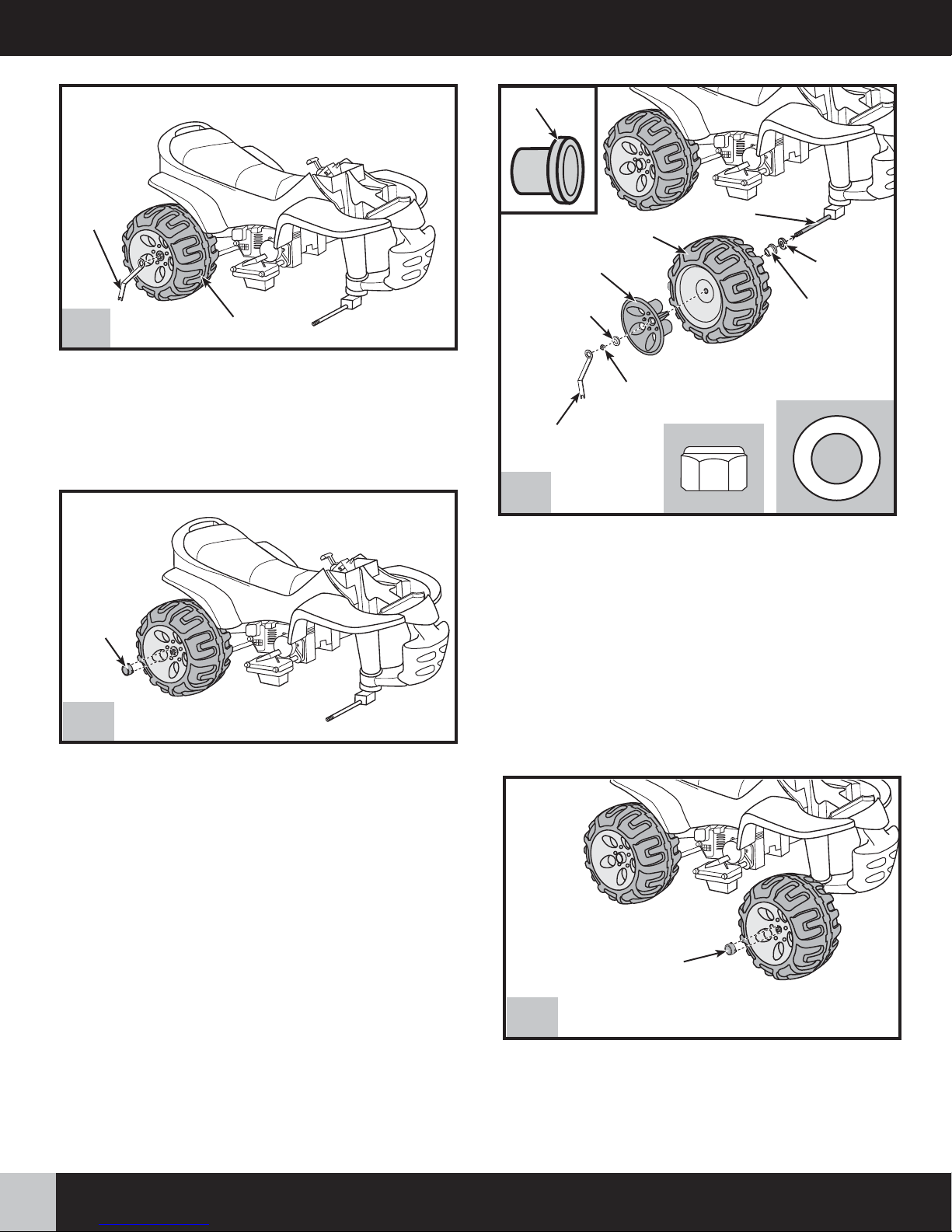

• Remove the protective caps from each front axle and throw
them away.
• Slide a 7/16" washer onto one of the front axles.
• Slide a round bushing, ring end first, onto the front axle.
• Slide a wheel (ribbed side first) onto the front axle.
• Slide a hubcap (indented side out) onto the front axle.
• Slide a 7/16" washer onto the front axle.
• Fit a 3/8" -16 lock nut on the end of the front axle and tighten
with the assembly wrench.
• Repeat this procedure to assemble the remaining 7/16" washers,
round bushing, wheel, hubcap and 3/8" -16 lock nut to the other
front axle.
• Fit a hub cap cover onto each front wheel and push to
"snap" in place.
• Completely tighten the lock nut on the rear wheel assembly
with the assembly wrenches.
Hint: An extra wrench has been provided to hold the other lock
nut in place while tightening the lock nut on the other side.
You may need the help of another adult to hold the vehicle•
while you tighten the lock nut.
• Fit a hub cap cover onto each rear wheel and push to "snap" in place.
4
5
10
ASSEMBLY
6
7
R1502b-0920
Hub Cap Cover
Hub Cap
Cover
Ring End
Assembly
Wrench
Wheel
Round
Bushing
7/16"
Washer
Hubcap
Front Axle
7/16"
Washer
Lock Nut
Rear Wheel
Assembly
Wrench

R1502b-0920
11
10
TM
9
• Press firmly on the front of the cowling to snap the four, front
tabs into the slots in the vehicle. Make sure the side and rear
tabs stay aligned with the slots.
Note: Pull up on the front of the front end of the vehicle while
pressing down on the cowling to make sure the front tabs snap
into the slots.
11
ASSEMBLY
R1502b-0920
• Press the tab under the back of the
seat and lift to remove the seat.
• Make sure the motor harness wires are
positioned in the channel to prevent
them from being pinched between the
cowling and vehicle.
8
• Fit the rectangular opening in the cowling over the
shifter handle.
• Align the front, side and rear tabs on the cowling with the slots
in the vehicle. DO NOT snap the tabs into the slots.
PRESS COWLING HERE
To Snap Front Tabs
PULL VEHICLE BODY
UP HERE
To Snap Front Tabs
• Press firmly on each side of the cowling to snap the four side
tabs into the slots in the vehicle. Make sure the rear tab stays
aligned with the slot.
• Press firmly on the back of the cowling to snap the rear tab
into the slot in the vehicle.
PRESS HERE
To Snap Rear Tab
PRESS HERE
To Snap Side Tabs
Cowling
Shifter Handle
Side Tab
Side Tab
Rear Tab
Front Tabs
Front Tabs
Motor
Harness

R1502b-0920
15
14
13
12

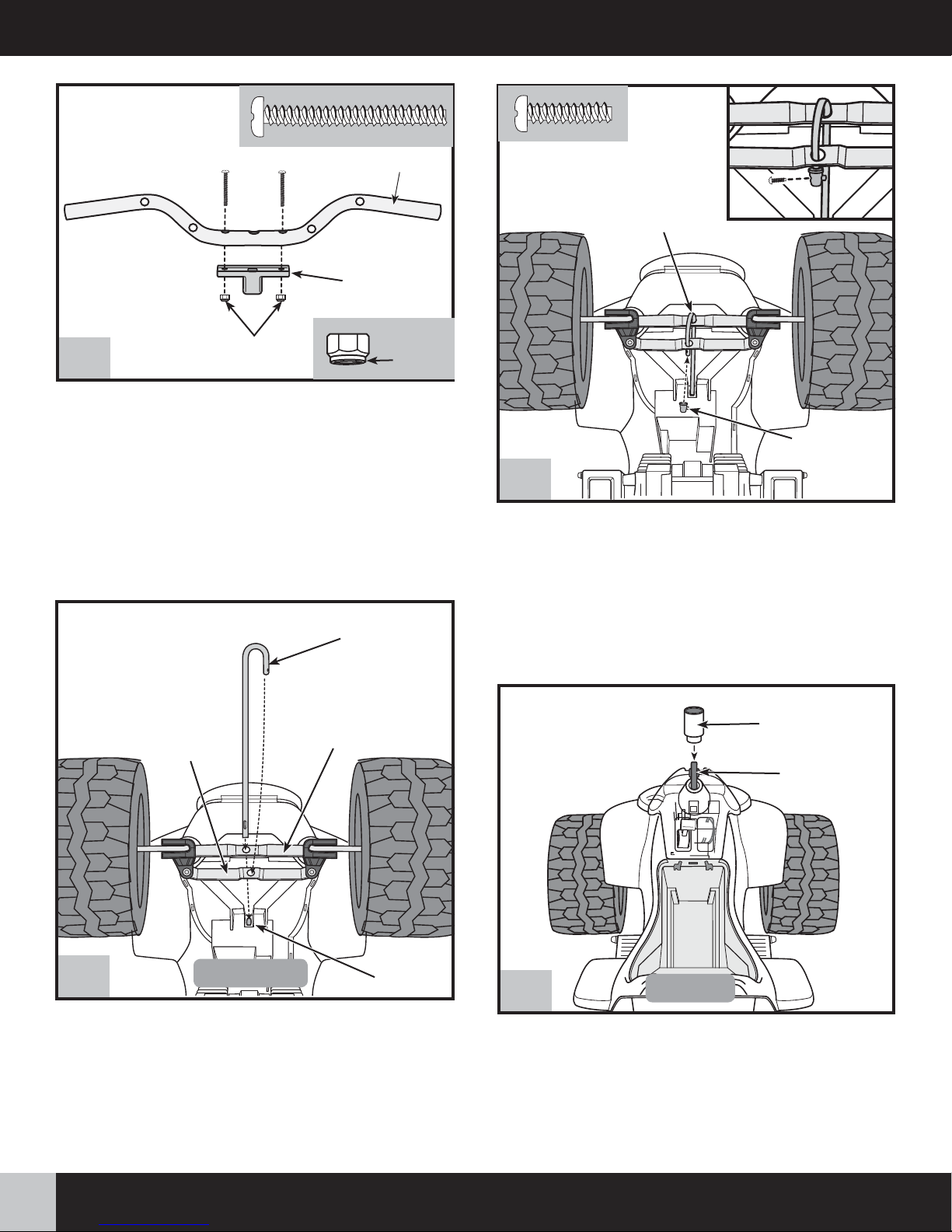

• Slide the steering bushing, narrow side down, onto the
steering column and into the vehicle neck.
• Fit the steering column cap on the curved end of the
steering column.
• While supporting the steering column, insert a #8 x
3/4
" screw
into the large hole in the steering column cap and tighten.
Hint: You may need the help of another adult to support the
other end of the steering column while you insert and tighten
the screw in the steering column cap.
• Lower the front end of the vehicle.
• Position the handlebar upright.
• Fit the handlebar neck to the bottom of the handlebar.
• Insert two #10 x 15/8"screws down through the handlebar and
handlebar neck.
• Fit a #10 lock nut onto the ends of both screws. Make sure the
rounded side of the lock nut is down.
• While holding a lock nut steady with an adjustable wrench
(or pliers), tighten the screw. Repeat this procedure to tighten
the other screw.
• Set the handlebar assembly aside for assembly step 17.
12
ASSEMBLY
R1502b-0920
Rounded
Side
• Lift the front end of the vehicle.
• Slide the straight end of the steering column through the
hole in the upper steering linkage and out through the hole
in the vehicle.
• Insert the curved end of the steering column into the hole in
the lower steering linkage.
Steering
Column
Lower Steering
Linkage
Upper Steering
Linkage
Hole Top View
Handlebar
Neck
Handlebar
Bottom View
#10 Lock Nuts
Steering
Column
Steering
Column
Steering Bushing
Steering
Column Cap

R1502b-0920
Hint: You may want the help of another adult to support the
steering column near the steering linkage while assembling the
handlebar to the vehicle.
• Fit the handlebar assembly onto the end of the steering
column. Make sure the handlebar grip area points towards the
rear of the vehicle.
• Now, fit the back handlebar cover to the front handlebar cover.
• Insert two #6 x 1/2" screws into the two top, center holes in
the back handlebar assembly, as shown. Tighten the screws.
19
13
ASSEMBLY
R1502b-0920
Handlebar
Assembly
16
• Fit the front handlebar cover into the front of the handlebar.
18
17
• Insert the #10 x 3/4” screw through the hole in the end of the
steering column, so that the screw head faces the rear of
the vehicle.
• Fit the #10 lock nut onto the end of the screw. Make sure the
rounded side of the lock nut faces forward.
• While holding the lock nut steady with an adjustable wrench
(or pliers), tighten the screw.
Steering
Column
Handlebar
Front
Handlebar
Cover
Back
Handlebar
Cover
Rear of
Vehicle
#10 Lock
Nut
Rounded
Side
#10 x 3/4" Screw

21
TM
14
ASSEMBLY
R1502b-0920
• Insert six #6 x 1" screws into the handlebar assembly, as shown.
Tighten the screws.

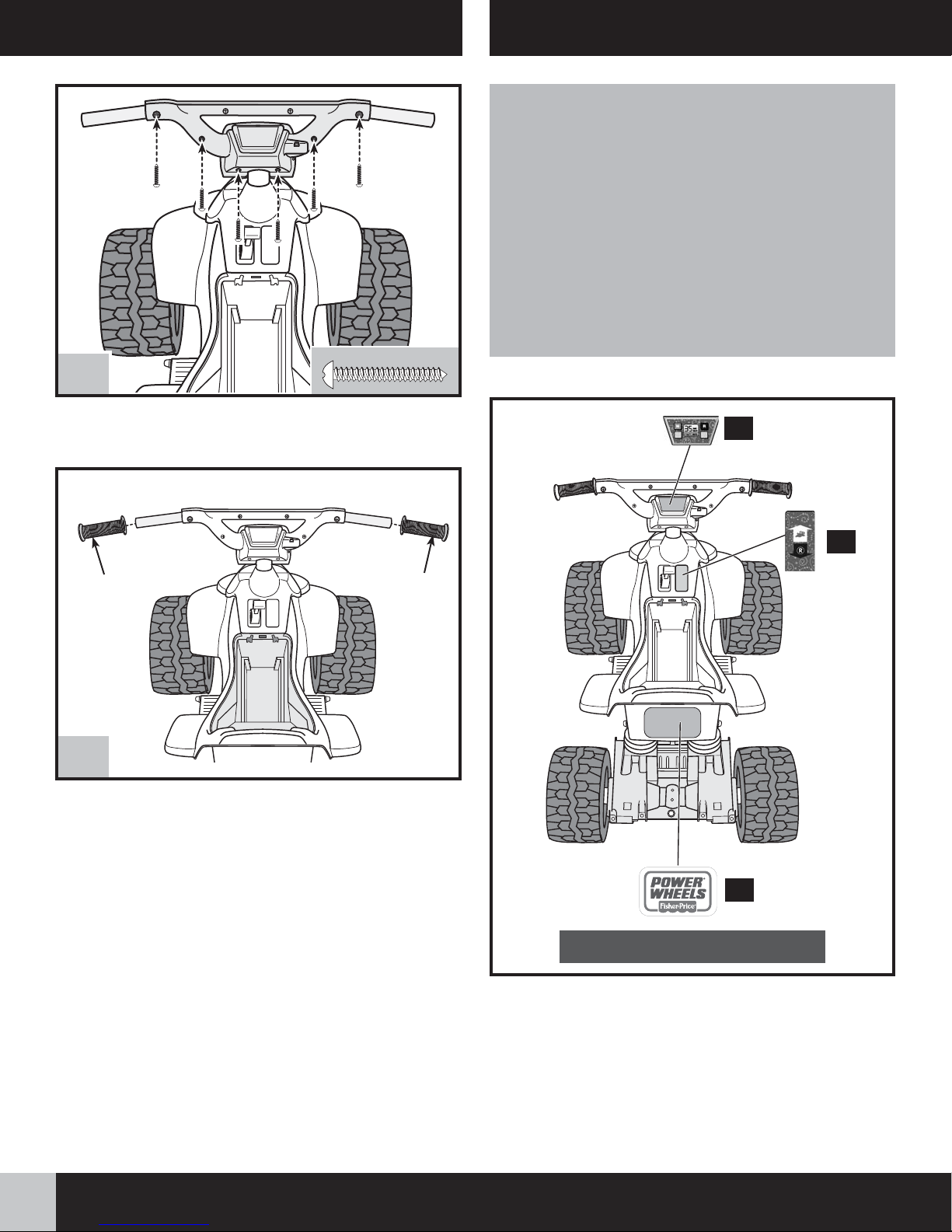

• Fit a grip onto each end of the handlebar. If it is difficult to
slide the grips onto the handlebar, moisten the grips with
warm water first.
20

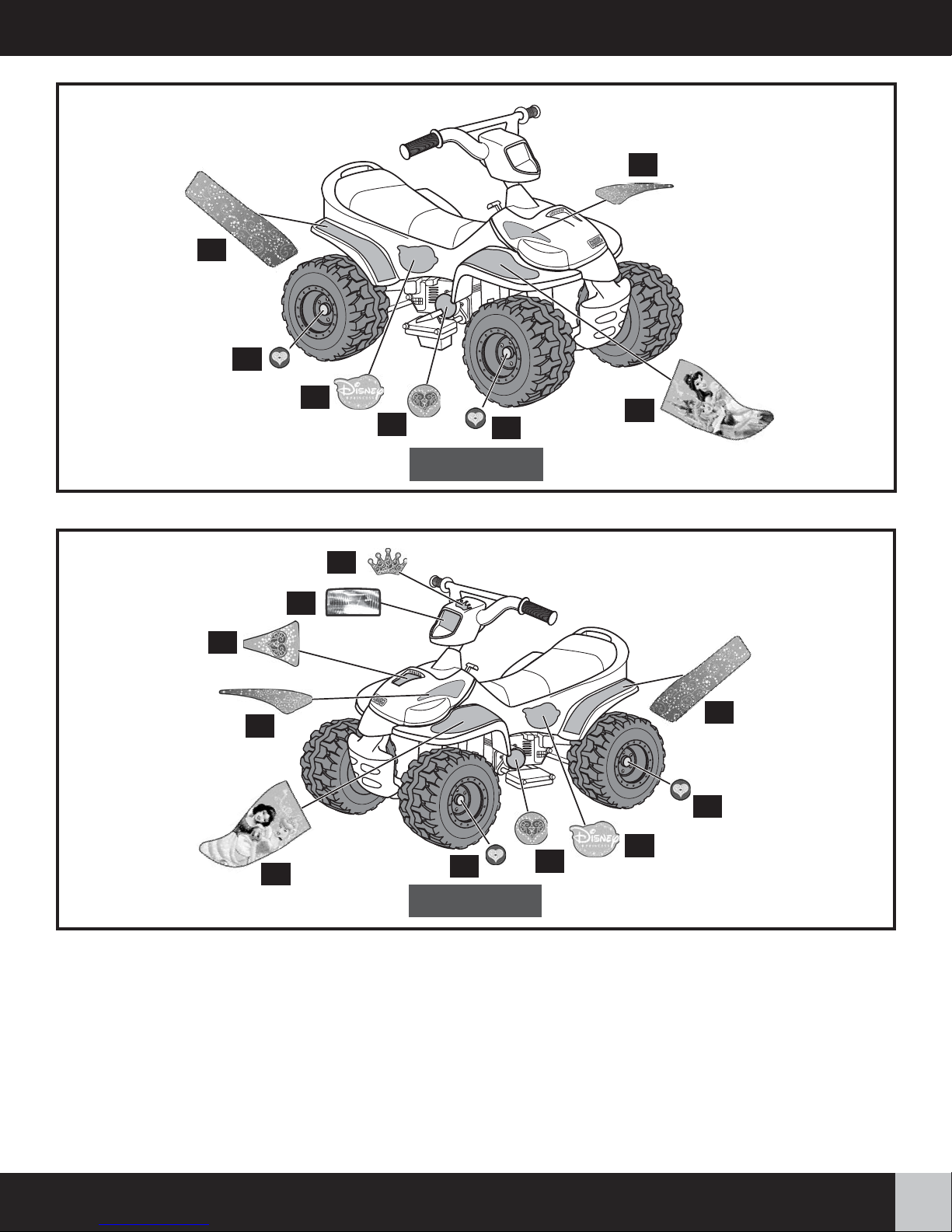

DECORATION
Proper label application will help to keep the labels
looking their best! When applying labels, keep the
following guidelines in mind:
• Wash your hands before applying the labels.
• Before applying the labels, wipe the surface of the vehicle
with a clean, dry cloth to remove any dust or oils.
• Place the labels exactly as shown in the illustrations.
• For best results, avoid repositioning a label once it has
been applied to the vehicle.
• After applying a label, rub the label firmly with a clean,
dry cloth to make sure the label is adhered to your vehicle.
Start at the center of a label, and smooth towards the outer
edges to remove air bubbles.
DASH AND REAR VIEW
15
9
10
Grip
Grip

R1502b-0920
RIGHT SIDE
15
DECORATION
R1502b-0920
LEFT SIDE
11
13
11
8
8
8
8
4
6
3
1
14
7
5
12
2
2

R1502b-0920
IMPORTANT! Use only a Power Wheels®6 volt lead-acid
rechargeable battery. Use of any other battery will damage
your vehicle. Make sure that you charge the battery for at least
18 hours using the enclosed Power Wheels® 6 volt charger
before operating your vehicle for the first time. Charge the
battery for at least 14 hours after each use of the vehicle.
Never charge the battery longer than 30 hours. Failure to
follow these instructions may damage your battery and will
void your warranty.

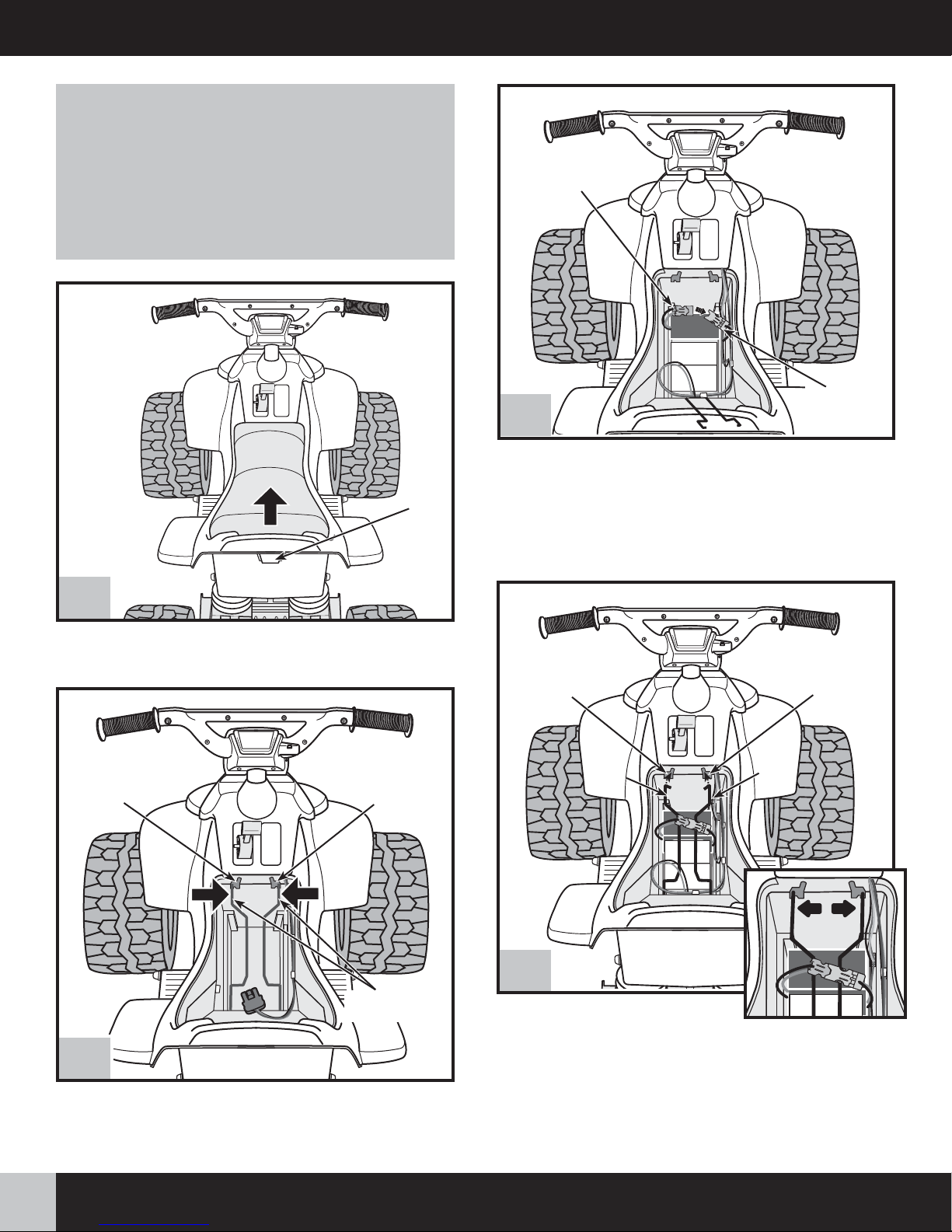

• Squeeze the battery retainer arms together to release them
from the slots in the vehicle.
• Press the battery retainer arms in and over the lock tabs and
lift the battery retainer.
• Lower the battery retainer over
the battery.
• Fit the battery retainer arms down into the slots in the vehicle.
• Press the battery retainer arms out over the lock tabs to snap
and secure the battery retainer arms in the slots.
• Re-assemble the vehicle seat.
• Place the battery upright in the battery compartment.
• Place the foam spacer in the battery compartment, behind
the battery.
• Plug the battery connector and motor harness connector
together. Push firmly to make sure the two connectors are
completely joined.
16
BATTERY INSTALLATION
R1502b-0920
1
• Press the tab under the back of the seat and lift to remove
the seat.
2
3
6V Battery
4
Slot
Slot
Slot
Battery Retainer
Arms
Arm
Arm
Slot
Motor
Harness
Connector
Seat
Tab

R1502b-0920
• Your Power Wheels®battery is a non-spillable sealed lead-acid
battery. It must be recycled or disposed of in an environmentally
sound manner.
• Do not dispose of a lead-acid battery in a fire. The battery may
explode or leak.
• Protect the environment by not disposing of this product with
household waste (2002/96/EC). Check your local authority for
recycling advice and facilities (Europe only).
• Do not dispose of a lead-acid battery in your regular, household
trash. The incineration, landfilling or mixing of sealed lead-acid
batteries with household trash is prohibited by law in
most areas.
• Return an exhausted battery to a federal or state approved
lead-acid battery recycler, such as a Power Wheels®authorized
service center or a local seller of automotive batteries. For the
authorized service center location nearest to you, please visit
us on-line at www.powerwheels.com or call 1-800-348-0751.
Contact your local waste management officials for other
information regarding the environmentally sound collection,
recycling and disposal of lead-acid batteries. If you live in the
State of Florida or the State of Minnesota, it is prohibited by law
for anyone to throw away lead-acid batteries in the municipal
waste stream.
Care
If a battery leak develops, avoid contact with the leaking acid
and place the damaged battery in a plastic bag. See information
below for proper disposal.
If acid comes in contact with skin or eyes, flush with cool water
for at least 15 minutes and call a physician.
If acid is internally ingested, give water, milk of magnesia or
egg whites immediately. Never give emetics or induce vomiting.
Call a physician.
• Charge a new battery for at least 18 hours before first use.
Never charge the battery longer than 30 hours. Overcharging or
undercharging the battery may shorten battery life and decrease
vehicle running time.
• After the first charge, recharge the battery for at least 14 hours
after each use. Never charge the battery longer than 30 hours.
Charge the battery after each use, regardless of how long the
vehicle was used.
• The battery must be upright while charging.
• Do not allow the battery to run down completely before charging.
• Charge the battery before storing the vehicle.
• Charge the battery at least once per month, even if the vehicle
has not been used.
• Leaving the battery in a discharged condition will ruin it.
• Always remove an exhausted battery from the vehicle.
Battery leakage and corrosion can damage the vehicle.
• Do not store the battery on a surface (such as a kitchen counter
top) which could be damaged by the acid contained inside the
battery. Take precautions to protect the surface on which you
store the battery.
• Do not store the battery in temperatures above 75° F or
below -10° F.
• Use only a Power Wheels®6 volt battery. Remember to charge
the new battery for at least 18 hours before first use.
• Prevent the battery from moving freely inside the battery
compartment. Always use the battery retainer to secure the
battery in the battery compartment.
• Examine the battery, charger and their connectors for excessive
wear or damage each time you charge the battery. If damage is
detected, do not use the charger or the battery until you have
replaced the worn or damaged part.
17
BATTERY CARE AND DISPOSAL
R1502b-0920
Disposal

R1502b-0920
Teach Safety Rules to Children
While children can quickly develop the skill necessary to drive
this vehicle, it is important to remember that their judgment skills
are still very immature. Unsupervised driving by children can
lead to serious injury. Before children use this vehicle, an adult
should carefully evaluate the driving area as well as the children’s
skill level and ability to drive this vehicle safely. Children are not
always able to recognize or anticipate hazards, even when they
have been taught about them. There is no acceptable substitute
for direct adult supervision.
Teach appropriate safety rules to your child before allowing
operation of this vehicle. These rules should also be reviewed
with neighborhood children or other playmates who want to
drive this vehicle.
Riding Rules
Make sure children know and follow these rules for safe driving:
1. Always sit on the seat.
2. Always wear shoes.
3. Only 1 (one) rider at a time. A child who is not sitting on the
seat or who is standing on the vehicle could fall off, cause
a tip-over or block the driver’s view. A child could be
seriously injured.
4. Do not allow any child to drive the vehicle in the street or near
moving (motorized) vehicles.
5. Do not allow any child to drive near bodies of water (such as
pools or creeks), obstructions (such as furniture, low tree limbs
or play equipment), or drop-offs (such as stairs or decks).
6. Do not allow any child to drive the vehicle in the dark. A child
could encounter unexpected obstacles and have an accident.
Operate the vehicle only in the daytime or a well-lit area.
7. Do not allow your child to drive on sloped or inclined surfaces.
Restrict your child’s driving to generally level ground ONLY!
8. Do not allow your child to drive down or across a steep slope.
- The vehicle may gain unsafe speed, even if the pedal is
released to stop.
- The vehicle may tilt and tip over.
- The wheels could lose traction, causing the vehicle to slip.
9. Do not allow your child to drive up steep inclines. The motor may
stop and the vehicle could roll backwards at an unsafe speed.
10.Never put anything near any moving parts. Rotating parts such
as motors, gear boxes and wheels can snag fingers, hair, etc.,
causing serious injury. Do not allow operation of the vehicle
when it is on its side or in an upside-down position.
11.Do not operate the vehicle near flammable vapors (gasoline,
paint thinner, acetone, liquid wax, etc.). The vehicle’s electrical
switches, like most electrical switches, emit an internal spark
when first turned on or turned off. The presence of flammable
liquids or vapors could cause an explosion or a fire. Keep all
flammable products in tightly sealed containers and away from
the vehicle.
12.Do not allow a child to operate the vehicle without direct
adult supervision. To prevent unsupervised use of the vehicle,
disconnect the motor harness from the battery when the vehicle
is not in use.
To disconnect the motor harness and battery connector:
- Press the tab under the back of the seat and lift to remove
the seat.
- Pull the motor harness connector from the battery.
- Replace the seat on the vehicle.
RIDING HAZARD
18
SAFE DRIVING RULES
• Prevent Injuries and Deaths
• Direct Adult Supervision Required
• Never Ride at Night.
• Keep Children Within Safe Riding Areas.
These areas must be:
- away from swimming pools and other
bodies of water to prevent drownings
- generally level to prevent tipovers
- away from steps, steep inclines, cars,
roads and alleys.
• Riding Rules
Make sure children know and follow
these rules for safe driving and riding.
- Always sit on the seat.
- Always wear shoes.
- Only 1 (one) riders at a time.
WARNING
R1502b-0920
Use vehicle on generally level ground ONLY!

R1502b-0920
IMPORTANT! Use this vehicle ONLY outdoors. Most interior
floor-ing can be damaged by riding this vehicle indoors.
Fisher-Price®will not be responsible for damage to the floor
if the vehicle is used indoors.
19
VEHICLE OPERATION
R1502b-0920
• Make sure the shifter is in the FORWARD position.
• Press the foot pedal. The vehicle drives forward at a maximum
of 21/2mph.
• Help your child practice steering to learn how far and how
quickly to turn the handlebar when driving forward.
• Your vehicle has a patented, electronic braking system that
automatically stops the vehicle when your child’s foot is lifted
from the pedal.
• Make sure your child is comfortable with steering the vehicle
and automatically knows how to stop.
IMPORTANT! To avoid damaging the motors and gears,
make sure to stop the vehicle before switching from forward
to reverse.
• Move the shifter to the REVERSE position.
• Press the foot pedal. The vehicle backs-up at a maximum
of 21/2mph.
• Help your child practice steering to learn how far and how
quickly to turn the handlebar when driving in reverse.
Hint: Once your child is comfortable operating the vehicle
forward, introduce reverse.
1
2
Shifter
Shifter

R1502b-0920
20
Bumper-to-Bumper*
Limited Warranty
One year limited warranty from the date of
purchase on the Power Wheels®vehicle.
Six month limited warranty on the 6 volt battery.
For the original purchaser, this one year limited warranty
covers the Power Wheels®ride-on vehicle (purchased
from Power Wheels®) against defects in materials and
workmanship. The six month limited warranty applies only
to the 6 volt battery included by Power Wheels®with the
original purchase of the vehicle.
This warranty covers normal use and does not cover
the Power Wheels®vehicle or battery if damaged by
unreasonable use, neglect, accident, abuse, misuse,
improper service or other causes not arising out of defects
in materials or workmanship. Evidence of any attempt at
consumer repair will void this warranty. THIS WARRANTY
DOES NOT COVER, AND IS INTENDED TO EXCLUDE, ANY
LIABILITY ON THE PART OF POWER WHEELS®, WHETHER
UNDER THIS WARRANTY OR IMPLIED BY LAW FOR ANY
INDIRECT OR CONSEQUENTIAL DAMAGES FOR BREACH
OF WARRANTY. SOME STATES DO NOT ALLOW THE
EXCLUSION OR LIMITATION SO THIS LIMITATION MAY
NOT APPLY TO YOU.
Should you need service or assistance with your vehicle
during the warranty period, do not return the vehicle to the
store. Power Wheels®has provided a nationwide network
of authorized service centers. If there is not an authorized
service center in your area, please visit us on-line at
www.powerwheels.com or call Consumer Relations for
information, 1-800-348-0751.
This warranty gives you specific legal rights, and you may
also have other rights which may vary from state to state.
PLEASE SAVE YOUR ORIGINAL SALES RECEIPT.
R1502b-0920
• Check all screws, lock nuts and their protective coverings
regularly and tighten as required. Check plastic parts on
a regular basis for cracks or broken pieces.
• During snowy or rainy weather, the vehicle should be stored
inside or under a protective cover. Remember to charge the
battery at least once per month while your vehicle is not in
regular use.
• Avoid operating the vehicle in wet or snowy conditions, and do
not spray the vehicle with a hose. Do not wash the vehicle with
soap and water. Water or moisture in the motors or electrical
switches can cause them to corrode, and could cause switch
or motor failure.
• Avoid operating the vehicle on sand, loose dirt or gravel. Sand,
loose dirt or gravel in the motors or electrical switches can
cause them to jam, and could cause switch or motor failure.
• The vehicle can be wiped down with a soft, dry cloth. For a shiny
finish, you can wipe plastic parts with a non-wax furniture
polish applied to a soft-cloth. Do not use automotive wax.
Do not use soap and water or spray the vehicle with a hose.
• To ensure that your vehicle stays in good operating order, we
recommend that you periodically have your vehicle checked by
a Power Wheels®authorized service center. For the location of
the authorized service center nearest you, please visit us on-line
at www.powerwheels.com or call 1-800-348-0751
VEHICLE CARE LIMITED WARRANTY
