FLIR identiFINDER R200 User manual

FLIR identiFINDER® R200
Spectroscopic Personal
Radiation Detector
FLIR®__identiFINDER® R200 /en/March 2017

This document is changed in accordance with our Quality Management system. All changes are archived.
Revision identiFINDER® R200 /en/ 2017-1.0, March 2017
Product FLIR® identiFINDER® R200
Language English (en)
Version 1.0
Latest Change Friday, March 10, 2017 -- 1:37:37 PM
identiFINDER® is a registered trademark of FLIR Detection, Inc.
FLIR® is a registered trademark of FLIR Systems, Inc.
All other trademarks belong to their respective holders.
Copyright © 2012–2017 FLIR Detection, Inc.
All rights reserved.
i

Contents
Contents ii
Welcome 1
Chapter 1Welcome 2
Product Excellence 3
1.1 Conventions Used in This Document 5
1.2 Safety Warnings 6
1.3 Before First Use 7
7
7
A Word about Batteries 7
1.4 Description 11
1.5 Unpacking and Identifying Accessories 12
Chapter 2Operating the identiFINDER® R200 14
Scanning an item 15
2.1 The FLIR identiFINDER R200 Display 16
2.1.1 Status Bar 17
2.1.2 Desktop 17
2.1.3 Task Bar 17
Quick Links to commands, menus and specifications 18
Icons and associated functions and commands, defined 19
2.1.4 Toggling between the Dose Rate and Count Rate Screens 22
Status LEDs 23
2.2 FLIR identiFINDER R200 Interface 24
2.2.1 Keys 25
Contents
ii

2.2.2 Basic Commands 25
2.2.3 Menus 28
Device 31
Radiation 37
Key 38
Service 40
Data 42
2.2.4 Passwords 43
2.2.5 Screenshots 44
2.3 Holster 44
2.4 Startup 46
2.5 Shut Down 47
2.6 Resetting Values to Factory Presets 47
Chapter 3Field Operating Guide 49
3.1 Powering On/Off and Checking the Instrument 49
3.2 Observing the Environment 50
3.2.1 Gamma Radiation Survey 50
3.3 Locating a Radiation Source 51
3.4 Identification 52
3.5 Transfer, Connection and Communication with a Computer 55
3.5.1 FLIR identiFINDER R200 Connection Settings 55
Method to transfer to remote server 57
Pairing with Bluetooth Devices (Cell Phones) 57
Bluetooth 58
Device Settings 58
Chapter 4Modes 59
Contents identiFINDER® R200
iii

4.1 Dose Rate 59
The Meter 60
Digital 60
4.1.1 Overload Condition 61
4.2 Finder 62
Finder Background 62
Control Limit 62
4.3 Identification 64
4.4 Automated 66
4.5 Acquiring Spectra from a Remote Platform via USB 67
Chapter 5Alarms 69
5.1 Alarms for RadiationLevels 69
5.2 Sigma Alarms 70
A pellet and a photon 71
The Bottom Line on Sigma 72
Chapter 6Connecting to a Local Computer 73
6.1 Plugging and Unplugging 73
6.2 As a Mass Storage Device 74
6.2.1 FLIR identiFINDER R200 Connection Settings 74
6.3 Preparing the USB Network Connection on a Computer 76
6.4 Using the Network Connection 76
Chapter 7Using the Web Server 77
R200.FLIR (http://172.16.0.1/ ) 77
7.1 The Home Page 77
7.2 Webserver Settings 78
7.2.1 Device 78
Contents
iv

Connect 78
Indicators 79
Records 79
Radiation 80
Entering the Password 80
ID Options 81
Dose Rate 82
Alarm Threshold 82
7.2.2 Service 83
7.2.3 Nuclide List 84
7.3 Data Tab on the Webserver 85
7.3.1 Selecting a Spectra File 86
7.3.2 Viewing the spectra 86
7.3.3 Webserver Alarm List 88
CHAPTER 8Powering the identiFINDER® R200 89
8.1 External Power Sources 89
8.2 Charging the FLIR identiFINDER R200 90
Connect to Wall Outlet via the Adapter 90
Observe the Power Indicator 90
8.2.1 Charging Durations 90
8.3 Battery Power Saving Tips 91
Backlight Brightness and Timeout 91
Communication via Bluetooth 91
Bluetooth Periphery 91
Bluetooth SPP 91
Finder Mode 91
Contents identiFINDER® R200
v

Appendixes 92
A.1 FLIR identiFINDER R200: Specifications 93
A.2 Accessories 98
A.3 Detector Positions 100
A.4 Optimum Illumination of Detector Crystals 101
A.5 Certificates 102
Appendix B 104
104
B1:Field Maintenance 104
B2: Firmware Installation 105
C : Nuclide Library 109
Nuclide Library 109
After Sales Service and Support 122
Contents
vi

Welcome
1 - 1 R200 3/10/2017__1:38 PM

Chapter 1 Welcome
The FLIR identiFINDER®R200, engineered and manufactured by FLIR Detection is a digital, self-contained,
battery-powered instrument that puts the power of gamma spectroscopy in the palm of the hand.
It is part of the FLIR Detection family of instruments designed to provide critical capabilities required in a
wide range of mission circumstances. Such capabilities include:
lsearch for sources of gamma radiation or scan areas contaminated with gamma radionuclides,
lautomatic identification of radionuclides by analysis of gamma ray spectra,
lgamma dose and dose rate measurements.
The FLIR identiFINDER®R200 combines the features of a Personal Radiation Detector (PRD) with the power
of a Radioisotope Identifier (RIID) into one small, convenient and robust package.
Since the design of the FLIR identiFINDER®R200 is especially ruggedized, AND given the com-
ponents require no user-directed maintenance, it will never be required that the end-user open
the instrument, or remove any tamper-proof labeling. Doing so invalidates the warranty, and
could cause irreparable damage to the detector.
R200 3/10/2017__1:38 PM 1–2

Product Excellence
Product Excellence
The FLIR identiFINDER R200 utilizes the same reliable advanced technology that is deployed in the
well-known R400 family of instruments. We offer a family of hand-held products to address the various
applications operators will encounter while ensuring operators will be presented with the same screens,
information, and operation between all our devices.
The FLIR identiFINDER R200 integrates with Microsoft Windows 7 and later.
Web browsers that may be used to connect to the FLIR identiFINDER R200 include Google
Chrome®, Microsoft®Internet Explorer 11*, and Mozilla Firefox®.
*If there are concerns in using Internet Explorer 11 as the browser interface to the FLIR identiFINDER
R200, clear the checkbox for compatibility (in IE 11), as illustrated below.
Figure 1-1 If having concerns in using Internet Explorer 11 - 1) click the "Tools" icon (upper-right portion
of browser - a "cog"icon), 2) from the drop-down menu, select "compatibility Settings", and 3) clear the
check box for "Display intranet sites in Compatibility View".
The FLIR identiFINDER R200 is designed for the survey of objects ranging from small packages to use in
the search for illicit trafficking of radioactive material or for the monitor of medical waste or scrap metal.
It will detect and identify radioactive materials. If the type or quantity of radioactive material exceeds pre-
set alarm levels then this information will be provided to you. In particular, the FLIR identiFINDER R200
will identify threat objects *.
1-3 R200 3/10/2017__1:38 PM

Product Excellence

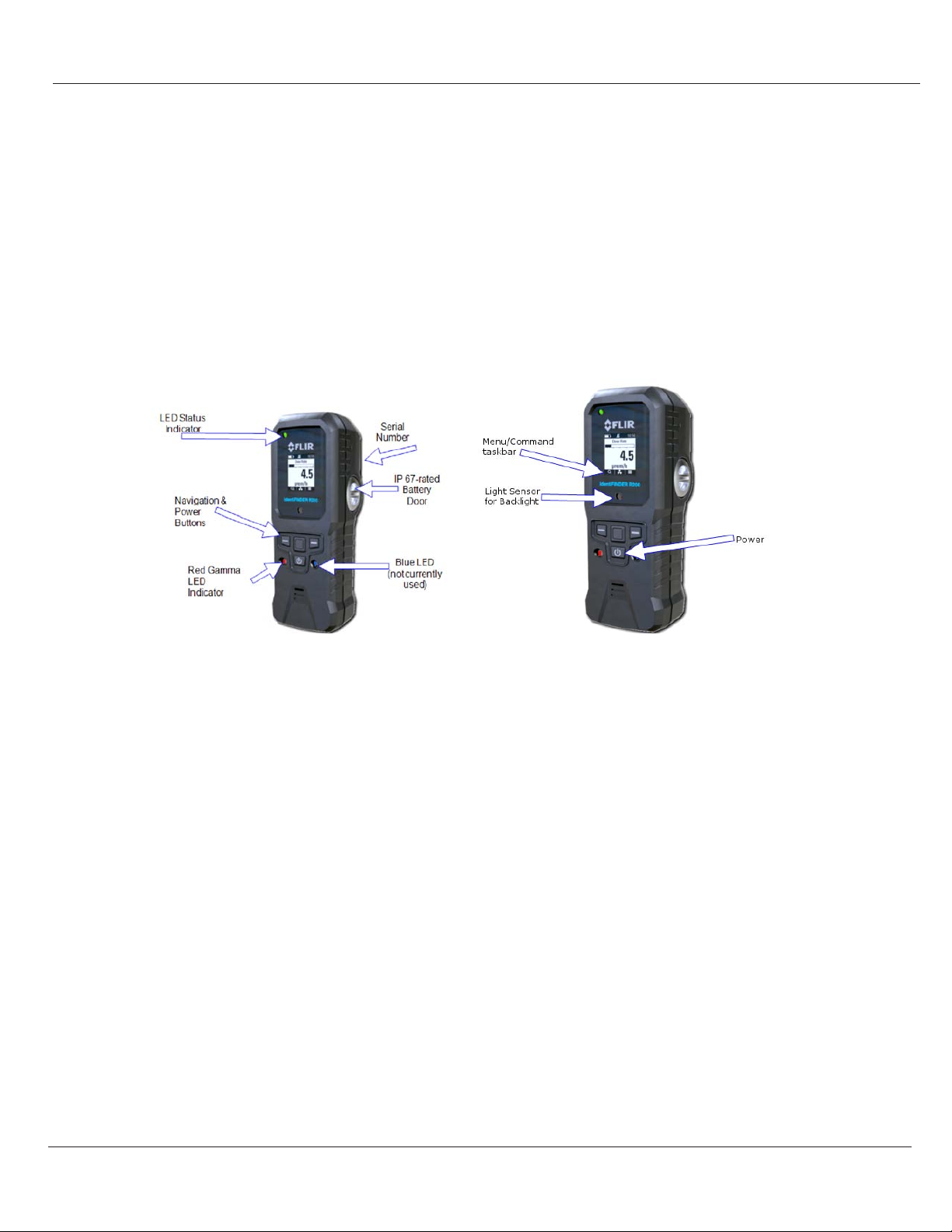

Designed for comfort, ease-of-use and to be readily concealed, the FLIR identiFINDER R200 is housed
in a sturdy and ergonomically pleasing frame.
The FLIR identiFINDER R200, a rugged, pager-sized Spectroscopic Personal Radiation Detector
(SPRD), provides full ANSI N42.32 Personal Radiation Detector (PRD) compliance and features next-
generation solid state detector read-out technology that delivers ANSI N42.48 SPRD compliance with
nuclide identification. The clear user interface and simple data presentation common to all identiFINDER
products allow it to quickly integrate with existing operational protocols and reduce the training burden.
A brief introduction to the FLIR identiFINDER R200...
Athreat object is defined as radioactive material whose signature is consistent with that of material that
could be used for terrorist purposes. Threat materials are usually those used in a nuclear explosive
device or which could be used in Radiological Dispersive Devices (“Dirty” bombs).
The FLIR identiFINDER R200 incorporates advanced physics algorithms that allow any user to make
highly sophisticated scientific measurements. The four-button interface and simple menu structure are
designed so that it can be operated with minimal training.
The high degree of automation allows for successful operation even in distracting and hostile envir-
onments. The instrument is robust and stable even in the most demanding conditions and can be oper-
ated successfully with only a few buttons.
Outstanding features are:
llarge Cesium Iodide(Csl) detector for fast and accurate identification (both spectra and dose rate),
lblack and white display with 144x168 pixels, that is easy to read in all lighting conditions,
llarge database capacity for one thousand spectra or other data,
lwired communication via standard USB interface,
lwireless communication via Bluetooth for reachback,
lweb interface for monitoring and configuration of the instrument without additional PC software,
...and many more. See "Appendix A" on page1 for complete specifications.
R200 3/10/2017__1:38 PM 1–4

1.1 Conventions Used in This Document
1.1 Conventions Used in This Document
This document uses the following conventions to signify various kinds of text:
Ordinary Text
looks like this, sometimes bold or italics , is used for emphasis.
Constant Width
is used for URLs, file names, path names, text you have to enter somewhere.
Information about a process that may be dangerous to yourself, an instrument, or data.
Information for carefully consideration before proceeding.
Additional information you should pay attention to.
A tip suggests commands or procedures for advanced usage. On a first-pass through the manual, skipping
tips may be advisable.
Information related to particular variants of the product.
The path to a command or setting in the FLIR identiFINDER R200 menu hierarchy or the web interface,
respectively, is displayed at the beginning of appropriate sections as shown in the following examples:
If reading this manual as a PDF document, cross references may be clicked, as well as items
in the table of contents, links to Internet sites, and others to immediately view the designated
item.
1-5 R200 3/10/2017__1:38 PM

1.2 Safety Warnings
1.2 Safety Warnings
The FLIR identiFINDER R200 is designed for indoor and outdoor use. When operated in accordance
with the operating instructions, it should not present any hazard to the operator.
The housing is essential to the integrity and safe operation of the instrument. Under no cir-
cumstances should the housing be tampered with, penetrated, or otherwise removed except
for normal access to the external connectors (see chapter 7).
The FLIR identiFINDER R200 is not certified for use in explosive environments.
The power adapter is connected to line power. Normal care in handling such a line power
device should be exercised. In particular this unit should not be connected to line power if it is
wet.
The nature of the application is such that objects being surveyed with the FLIR identiFINDER
R200 could emit radioactive radiation with hazardous intensity.
R200 3/10/2017__1:38 PM 1–6

1.3 Before First Use
1.3 Before First Use
Charge the battery of the FLIR identiFINDER R200 after unpacking and before first use.
Read this manual and become familiar with the FLIR identiFINDER R200.

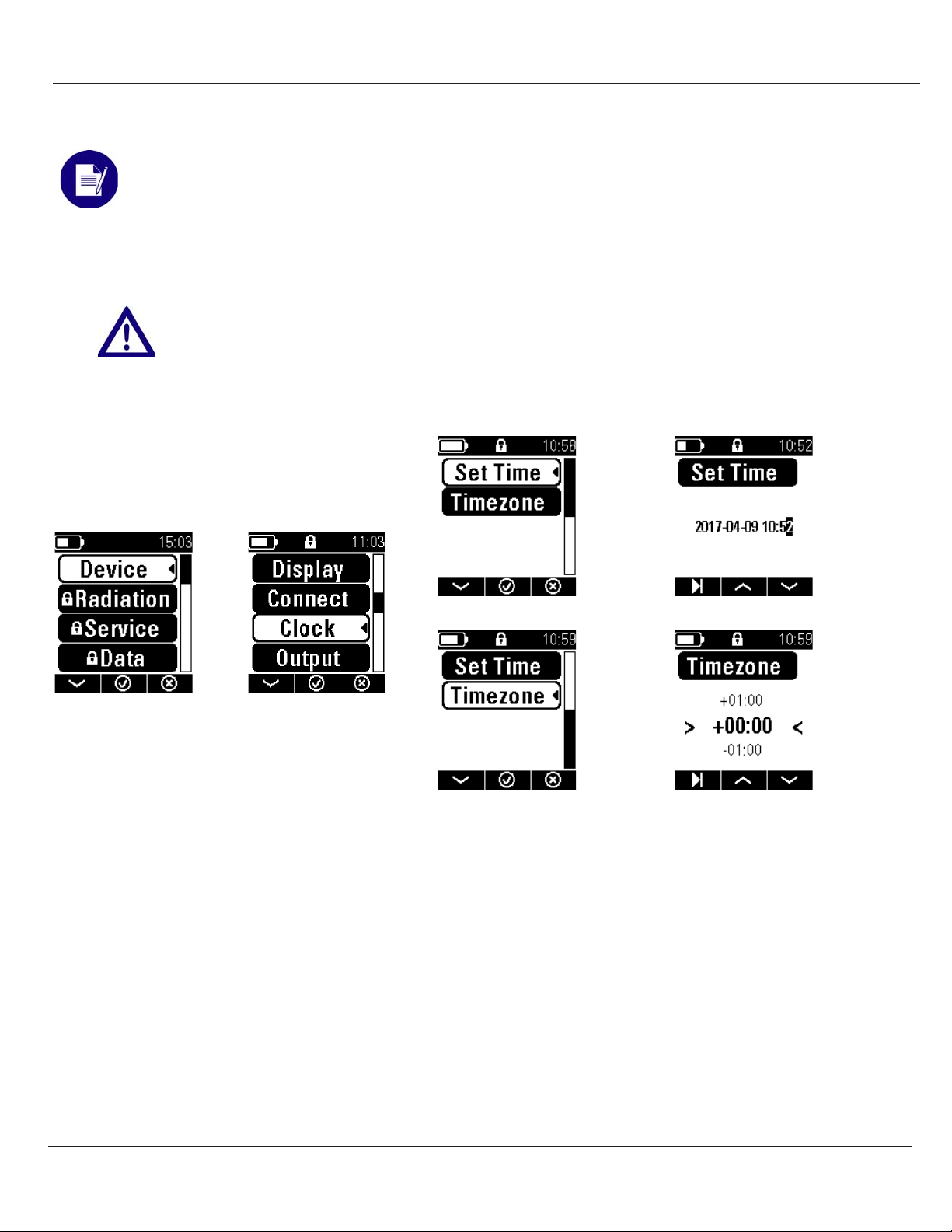

Time and timezone must be properly set in order for the FLIR identiFINDER R200 to operate cor-
rectly. See "Device" on page31for more on setting the clock and timezone.
A Word about Batteries
The FLIR identiFINDER R200 comes equipped with an internal (non-accessible) battery that is the
primary source of energy to power the detector and that requires charging using the USB 2.0 mini-B
cable.
The IP67-rated battery door (accessible through the threaded port, right-side of detector) provides for an
external battery that is used as a backup source of energy should the internal battery drain below a level
that will power the detector.
1-7 R200 3/10/2017__1:38 PM

A Word about Batteries
The backup battery should be maintained in accordance with battery brand recommendations (as a rule
of thumb, change annually to ensure fail safe).
Indication of battery state is provided below —
No Backup:
l6% - 100% primary indicator with gauge 6% to 100% ,
l5% primary indicator blinks (flashes) ,
l1% goes to automatic shutdown screen ,
lclicking checkmark confirms, shuts down the system .
Backup Present:
l6% - 100% primary indicator with gauge 6% to 100% ,
l5% primary indicator blinks (flashes) ,
l(1% - 5%) indicator switches to backup (powered by both, until internal battery discharges) ,
l2.0V+ backup indicator without gauge ,
l<2.0V (~5%) backup indicator flashes ,
l1.95V (~1%) displays automatic shutdown screen,
lclicking checkmark shuts down unit .
In either case, the FLIRidentiFINDER R200 simply powers down if battery drains completely. However,
memory and stored data remain intact and can be retrieved when power is restored.
A Note about IP67 and the Battery Door
The FLIR identiFINDER R200 is rated to IP67. The CR123A battery door needs to be
installed and fully secured to achieve this rating.
To assemble, rotate the battery door clockwise by hand until the seal of the door initially seats against
the housing. Moderate resistance will be encountered when this is achieved.
Then, use a coin or flathead screwdriver and rotate the door clockwise approximately 3/4 of a turn to fully
seal the instrument.
Status Make a record of system status, including Serial Number (S:), ID, Firmware Build, and
available memory (record in writing, or take a screen shot by briefly pressing the
R200 3/10/2017__1:38 PM 1–8

A Word about Batteries
"Power" button + the "Left" button).
Screenshots are saved and may be accessed in "Mass Storage Device" (MSD) mode
and are stored in the "Screens" folder accessible through the
computer/device file browser.
Before making the call, navigate to this screen and either copy the information or per-
form a screen capture by briefly pressing the "Power" + "Left"button and pull up the
image (stored on the Mass Storage Device" to read the information there captured to
the representative.
This information will prove useful in the event that the FLIRdetection service depart-
ment must be contacted to assist with any concerns in the operation of the FLIR
identiFINDER R200.
Chapter two covers the details of the FLIR identiFINDER R200 operations such as the
display, the keys, its holster, the Web Server, and startup/shutdown.
The Field Operating Guide is presented in chapter three where items such as instrument checking, sur-
veys, locating the source and identifying it, and then communicating with a PC, sending the results to a
remote server and then switching the unit off.
Chapters 4 and 5 cover modes and alarms, and chapter 6 provides a complete run-down of the menus.
Chapter 6 covers how to connect to alocal computer, and 7 details the use of a web interface.
Chapter 8 covers information regarding powering the R200 and the appenixes cover specification, cus-
tomer service, warranty information, cleaning and the like.
Check to see that the FLIR identiFINDER R200 is in the mode appropriate
to situational requirements. AutoMode may not provide results consistent
with those desired.
1-9 R200 3/10/2017__1:38 PM

A Word about Batteries
Menu Sequence AutoMode Settings
FLIR identiFINDER R200 Setting AutoMode
When "AutoMode" is set to "On", the follow sequence displays when a nuclide is detected:
Menu Sequence AutoMode Results
FLIR identiFINDER R200 Setting AutoMode
R200 3/10/2017__1:38 PM 1–10

1.4 Description
1.4 Description
The FLIR identiFINDER R200 is, at its core, a compact yet powerful computer with keyboard and LCD
screen and further equipped with dedicated detectors for gamma radiation. All data acquired by the
sensors are recorded, processed and evaluated by a sophisticated software that discriminates innocent
from threatening radiation even when operated by personnel with minimal training.
A general outline of the FLIR identiFINDER R200’s functional elements is given in"Menu Reference" on
page 1while "Map of the FLIR identiFINDER R200 components" below helps to identify and locate the
various components of the instrument.
Figure 1-2 Map of the FLIR identiFINDER R200 components
The FLIR identiFINDER R200 instrument, engineered and manufactured by FLIR Detection, is a digital,
self-contained, battery-powered instrument that provides the power of advanced spectroscopy in the
palm of the hand. It is part of the FLIR Detection family of instruments designed to provide critical cap-
abilities required in a wide range of mission circumstances. Such capabilities include:
lSearch for sources of gamma radiation or scan areas contaminated with gamma radionuclides,
lAutomatic identification of radionuclides by analysis of gamma ray spectra ,
lGamma dose and dose rate measurements.
The FLIR identiFINDER R200 combines the capabilities of a Personal Radiation Detector (PRD) with the
radionuclide identification capabilities of a Radio-Isotope Identification Detector (RIID) into one con-
veniently small package. The FLIR identiFINDER R200 utilizes the same reliable advanced technology
that is deployed in the well-known R400 family of instruments. We offer a family of handheld products to
1-11 R200 3/10/2017__1:38 PM

1.5 Unpacking and Identifying Accessories
address the various applications operators will encounter while ensuring operators will be presented
with the similar screens, information, and operation between all our devices.
1.5 Unpacking and Identifying Accessories
Figure 1-3 The FLIR identiFINDER R200 with accessories.
Included in the package are the power supply with travel converters, holster, the R200 with string lan-
yard, USB wire for connections to external devices (PC), sturdy lanyard with quick disconnect and the
USBthumbdrive containing drivers and the user manual.
Review the parts and components received. In the event that a component cannot be located contact the
appropriate support organization (see "After Sales Service and Support" on page122).
R200 3/10/2017__1:38 PM 1–12

1.5 Unpacking and Identifying Accessories
After unpacking, take note of the serial number printed on the back of the detector. It is sometimes used
to identify the FLIR identiFINDER R200 in a computer network.
After the initial charge of the internal battery, the FLIR identiFINDER R200 is ready for use.
1-13 R200 3/10/2017__1:38 PM
