Flomec QS200 User manual

QS200 Saddle
Insertion Ultrasonic Flowmeter Options
for Large Pipe Sizes
LINE SIZES: 6 in., 8 in., 10 in., 12 in. (Tube, Pipe)
U.S. Design Patent No. D845,804 - Ultrasonic Insert
Product Owner’s Manual EN
920906-01 Rev A10/13/2020

Please save these instructions for future reference. Read carefully before attempting
to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply
with instructions could result in personal injury and/or property damage.
Please refer to back cover for information regarding this product’s warranty and
other important information.
SAVE FOR YOUR RECORDS
Model #: ___________________
Serial #: ___________________
Purch. Date: _______________
If you are missing parts, or experience problems with your installation, contact our
Customer Support Department. We will be happy to assist you.
Call: 888-996-3837 or 316-686-7361
Email: [email protected]

3
SAFETY /
SPECIFICATIONS
ASSEMBLY /
INSTALLATION OPERATIONGETTING STARTED
UNPACKING
Contents:
920913-01 Quick Start Guide (QS200 Saddle) (1) Sleeve
(1) Saddle (sized specifically for your pipe O.D.) (1) Gasket
(2) Band Clamps Hardware
(1) Retention Pin (Quick Release) (1) Sensor
(if ordered)
(1) Sensor Owners Manual
Inspect
• After unpacking the unit, inspect carefully for any damage that may
have occurred during transit. Check for loose, missing or damaged
parts. Shipping damage claims must be filed with carrier.
• See General Safety Instructions, and all Cautions, Warnings, and
Dangers as shown.
To do a complete and successful installation, you must carefully read this manual
and the manual for the sensor.
BEFORE CUTTING A HOLE IN THE PIPE
• Verify you have all the pieces.
• Verify this saddle size is the same as your pipe outside diameter.
• Verify the pipe is not pressurized.
• Verify the desired hole location is more than 10 diameters downstream
and 5 diameters upstream from any obstructions. Valves, pumps,
elbows, reducers are all considered obstructions.
• Note that the finished hole diameter should be between 1-15/16” to 2”.
It should be clean and free of burrs.
• We recommend the hole be made with a hole saw.
• Note the direction of flow. Measuring water only.
Tools and Materials Needed
• Ø1-15/16” to Ø2.0” hole saw and drill
• 7/16” end wrenches
• Tape measure
• Permanent marker
tools.eps
box.eps
magnify_2.eps
warning symbol.eps
measure.eps
plug.eps
oil.eps
megaphone.eps
biohaz.eps
Battery_Caution1.eps
Caution.eps
Crush_Caution1.eps
Electrical_Caution.eps
Face_protection.eps
Fall_Hazard.eps
Fall_protection.eps
GearHand_Hazard.eps
Head_protection.eps
Heavy_Hazard.eps
Hot_surface.eps
Recycle.eps
Resp_protection1.eps
Resp_protection2.eps
Temp_Caution1.eps
body_protection.eps
chemical_Caution.eps
ear_protection1.eps
explosive_caution.eps
eye_protection1.eps
foot_protection.eps
hand_protection.eps
tools.eps
box.eps
magnify_2.eps
warning symbol.eps
measure.eps
plug.eps
oil.eps
megaphone.eps
biohaz.eps
Battery_Caution1.eps
Caution.eps
Crush_Caution1.eps
Electrical_Caution.eps
Face_protection.eps
Fall_Hazard.eps
Fall_protection.eps
GearHand_Hazard.eps
Head_protection.eps
Heavy_Hazard.eps
Hot_surface.eps
Recycle.eps
Resp_protection1.eps
Resp_protection2.eps
Temp_Caution1.eps
body_protection.eps
chemical_Caution.eps
ear_protection1.eps
explosive_caution.eps
eye_protection1.eps
foot_protection.eps
hand_protection.eps
tools.eps
box.eps
magnify_2.eps
warning symbol.eps
measure.eps
plug.eps
oil.eps
megaphone.eps
biohaz.eps
Battery_Caution1.eps
Caution.eps
Crush_Caution1.eps
Electrical_Caution.eps
Face_protection.eps
Fall_Hazard.eps
Fall_protection.eps
GearHand_Hazard.eps
Head_protection.eps
Heavy_Hazard.eps
Hot_surface.eps
Recycle.eps
Resp_protection1.eps
Resp_protection2.eps
Temp_Caution1.eps
body_protection.eps
chemical_Caution.eps
ear_protection1.eps
explosive_caution.eps
eye_protection1.eps
foot_protection.eps
hand_protection.eps
tools.eps
box.eps
magnify_2.eps
warning symbol.eps
measure.eps
plug.eps
oil.eps
megaphone.eps
biohaz.eps
Battery_Caution1.eps
Caution.eps
Crush_Caution1.eps
Electrical_Caution.eps
Face_protection.eps
Fall_Hazard.eps
Fall_protection.eps
GearHand_Hazard.eps
Head_protection.eps
Heavy_Hazard.eps
Hot_surface.eps
Recycle.eps
Resp_protection1.eps
Resp_protection2.eps
Temp_Caution1.eps
body_protection.eps
chemical_Caution.eps
ear_protection1.eps
explosive_caution.eps
eye_protection1.eps
foot_protection.eps
hand_protection.eps
MAINTENANCE /
REPAIR

OPERATION ASSEMBLY /
INSTALLATION GETTING STARTED
4
SAFETY /
SPECIFICATIONS
GENERAL SAFETY INSTRUCTIONS
IMPORTANT: It is your responsibility to:
• Ensure that all equipment operators have access to adequate instructions
concerning safe operating and maintenance procedures.
This product is not approved for use with petroleum products
(diesel fuel, unleaded gasoline, jet fuel, kerosene, etc.),
aromatic hydrocarbons or other incompatible chemicals
This product is not approved for use in hazardous locations.
When applying power, adhere to specifications listed in
appropriate electronics manual.
Disconnect external power before attaching or detaching
input or output wires.
NOTE: Be sure O-rings and seals are kept in good repair.
Compatibility of this product’s material and the process fluid
and/or environment should be considered prior to putting
into service.
Product should never be operated outside its published
specifications for temperature or pressure. See
specifications for your model.
Make sure flow and pressure have been eliminated from
process pipe prior to installing or removing product.
Installation near high electromagnetic fields and high current
fields is not recommended and may result in inaccurate
readings.
Do not allow water to freeze in meter. Ice expansion may
burst the plastic housing.
Do not allow this meter to be used with steam.
Thermal expansion/contraction of plastic pipe can cause
clamps to loosen. Make sure clamps are ALWAYS tight
(Recommended Torque is 75 IN·LB).
MAINTENANCE /
REPAIR

5
GETTING STARTED ASSEMBLY /
INSTALLATION OPERATION
SAFETY /
SPECIFICATIONS
*Nominal ow rate shown. Actual ow is dependent on pipe schedule (wall thickness).
** Maximum water pressure for larger line sizes would be based on the material of the sensor,
adapter, and pipe. Pressure is also derated due to temperature (1.20 psi / °F).
FLOW INSERT/SADDLE SELECTION CHART
Flowmeter
Model Description
Operating
Range
(Min.)
Operating
Range
(Max.)
Maximum
Water
Pressure**
Meter
Material
Gasket
Material
Saddle
Material
Clamp
Material
146080-01 6 in.
(ASME pipe)
.1 ft/sec
(9 GPM)*
15 ft/sec
(1350
GPM)*
150 PSI @
73°F (10 bar
@ 23°C)
N/A Silicone Anodized
Alluminum
Stainless
Steel
146080-02 8 in.
(ASME pipe)
.1 ft/sec
(15 GPM)*
15 ft/sec
(2300
GPM)*
150 PSI @
73°F (10 bar
@ 23°C)
N/A Silicone Anodized
Alluminum
Stainless
Steel
146080-03 10 in.
(ASME pipe)
.1 ft/sec
(24 GPM)*
15 ft/sec
(3650
GPM)*
150 PSI @
73°F (10 bar
@ 23°C)
N/A Silicone Anodized
Alluminum
Stainless
Steel
146080-04 12 in.
(ASME pipe)
.1 ft/sec
(35 GPM)*
15 ft/sec
(5300
GPM)*
150 PSI @
73°F (10 bar
@ 23°C)
N/A Silicone Anodized
Alluminum
Stainless
Steel
146080-05 6 in.
(Tube)
.1 ft/sec
(8 GPM)*
15 ft/sec
(1230
GPM)*
150 PSI @
73°F (10 bar
@ 23°C)
N/A Silicone Anodized
Alluminum
Stainless
Steel
146080-06 8 in.
(Tube)
.1 ft/sec
(15 GPM)*
15 ft/sec
(2200
GPM)*
150 PSI @
73°F (10 bar
@ 23°C)
N/A Silicone Anodized
Alluminum
Stainless
Steel
146080-07 10 in.
(Tube)
.1 ft/sec
(23 GPM)*
15 ft/sec
(3500
GPM)*
150 PSI @
73°F (10 bar
@ 23°C)
N/A Silicone Anodized
Alluminum
Stainless
Steel
146080-08 12 in.
(Tube)
.1 ft/sec
(85 GPM)*
15 ft/sec
(5100
GPM)*
150 PSI @
73°F (10 bar
@ 23°C)
N/A Silicone Anodized
Alluminum
Stainless
Steel
146090-01
6 in.
(ASME pipe)
w/ sensor
.1 ft/sec
(9 GPM)*
15 ft/sec
(1350
GPM)*
150 PSI @
73°F (10 bar
@ 23°C)
Ryton Silicone Anodized
Alluminum
Stainless
Steel
146090-02
8 in.
(ASME pipe)
w/ sensor
.1 ft/sec
(15 GPM)*
15 ft/sec
(2300
GPM)*
150 PSI @
73°F (10 bar
@ 23°C)
Ryton Silicone Anodized
Alluminum
Stainless
Steel
146090-03
10 in.
(ASME pipe)
w/ sensor
.1 ft/sec
(24 GPM)*
15 ft/sec
(3650
GPM)*
150 PSI @
73°F (10 bar
@ 23°C)
Ryton Silicone Anodized
Alluminum
Stainless
Steel
146090-04
12 in.
(ASME pipe)
w/ sensor
.1 ft/sec
(35 GPM)*
15 ft/sec
(5300
GPM)*
150 PSI @
73°F (10 bar
@ 23°C)
Ryton Silicone Anodized
Alluminum
Stainless
Steel
146090-05 6 in. (Tube)
w/ sensor
.1 ft/sec
(8 GPM)*
15 ft/sec
(1230
GPM)*
150 PSI @
73°F (10 bar
@ 23°C)
Ryton Silicone Anodized
Alluminum
Stainless
Steel
146090-06 8 in. (Tube)
w/ sensor
.1 ft/sec
(15 GPM)*
15 ft/sec
(2200
GPM)*
150 PSI @
73°F (10 bar
@ 23°C)
Ryton Silicone Anodized
Alluminum
Stainless
Steel
146090-07 10 in. (Tube)
w/ sensor
.1 ft/sec
(23 GPM)*
15 ft/sec
(3500
GPM)*
150 PSI @
73°F (10 bar
@ 23°C)
Ryton Silicone Anodized
Alluminum
Stainless
Steel
146090-08 12 in. (Tube)
w/ sensor
.1 ft/sec
(85 GPM)*
15 ft/sec
(5100
GPM)*
150 PSI @
73°F (10 bar
@ 23°C)
Ryton Silicone Anodized
Alluminum
Stainless
Steel
MAINTENANCE /
REPAIR

OPERATION ASSEMBLY /
INSTALLATION GETTING STARTED
6
SPECIFICATIONS (CONTINUED)
SAFETY /
SPECIFICATIONS
4.3
3.9
5.3
SADDLE - TOP VIEW
5.3 in.
(13.4 cm)
SADDLE - FRONT VIEW
4.3
3.9
5.3
3.9 in.
(9.9 cm)
4.3 in. (10.9 cm)












 





 






Ø 1.98 in.
(5.0 cm)
1.0 in.(2.5 cm)
Ø 1.20 in. (3.0 cm)
QS200 INSERT
MAINTENANCE /
REPAIR

7
GETTING STARTED OPERATION
SAFETY /
SPECIFICATIONS
ASSEMBLY /
INSTALLATION
INSTALLATION
Step 1 – Drilling hole:
It is recommended that the saddle/sensor not be located on the very top or very
bottom of the pipe. Ideal performance can be achieved with the saddle mounted at
2 to 4 o’clock or 8 to 10 o’clock. Hole should also be drilled perpendicular to the pipe
centerline and tangent to the curvature.

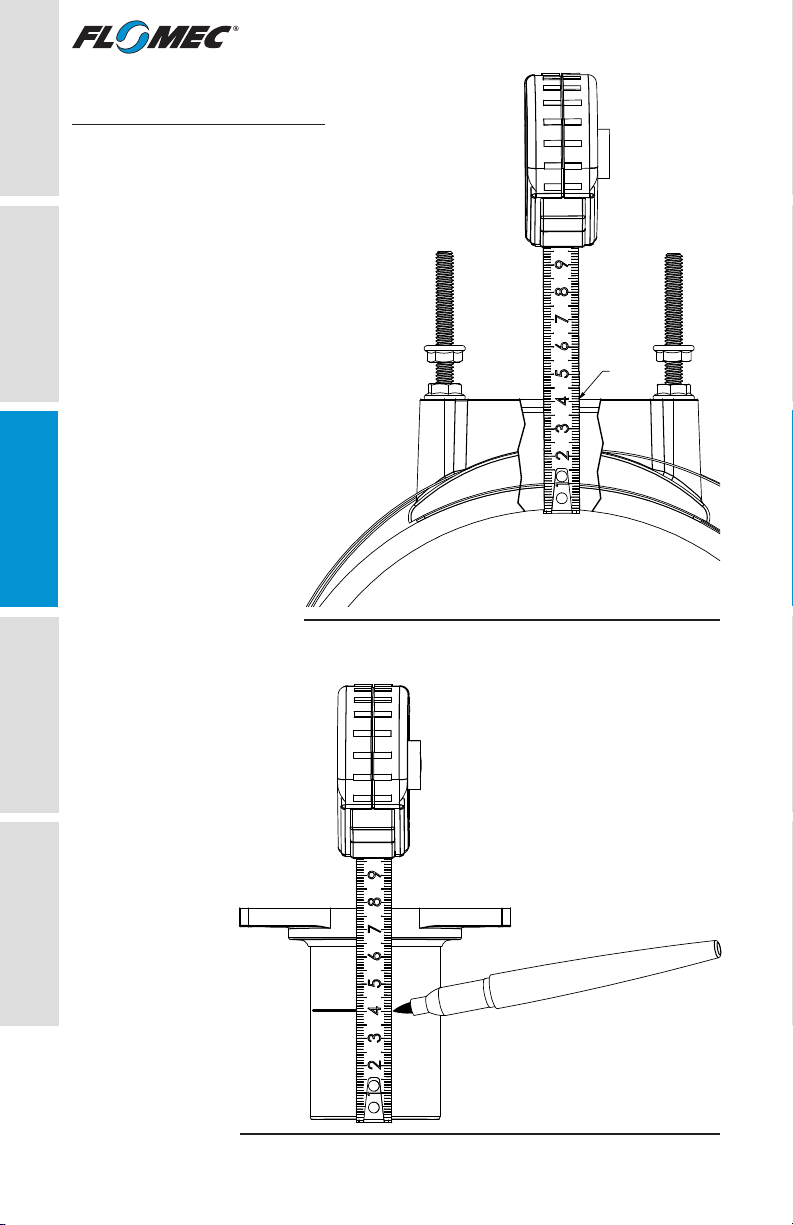

Step 2 – Mounting the saddle:
The saddle will need to be preassembled to insure the fit is proper. Assemble the
hardware as shown in Figure 1. Tighten only the bottom nuts that hold the threaded
studs to the saddle.
3/8" - 1/2"
TIGHTEN WITH
7/16 WRENCH TIGHTEN WITH
7/16 WRENCH
BELOW SADDLE
TO ENGAGE WITH
HOLE IN PIPE
MUST EXTEND
Figure 1
GASKET
TIGHTEN WITH
7/16 WRENCH
Figure 2
Place gasket over hole in
pipe, place pre-assembled
saddle from above over
gasket. Be sure saddle
engages hole properly and
saddle contour matches
pipe’s outside diameter.
Attach 2 each band clamps
as shown in Figure 2 and
tighten with 7/16 inch
wrench. Recommended
Torque is 75 IN·LB.
NOTE: Clamps can loosen
when mounted to plastic
pipe, due to thermal
contraction.
MAINTENANCE /
REPAIR

*
8
SAFETY /
SPECIFICATIONS GETTING STARTEDOPERATION ASSEMBLY /
INSTALLATION
Figure 3
INSTALLATION (CONTINUED)
Step 3 – Mounting the Sleeve:
Remove the top two nuts and pull sleeve from
saddle. Using a tape measure, measure the
distance from the lip of the inside of pipe to the
top of the saddle. Reference the asterisk in
Figure 3.
Transpose this measurement
onto the sleeve as shown
in Figure 4 and mark with a
permanent marker.
Figure 4
MAINTENANCE /
REPAIR

9
GETTING STARTED OPERATION
SAFETY /
SPECIFICATIONS
ASSEMBLY /
INSTALLATION
INSTALLATION (CONTINUED)
Place the marked sleeve back into saddle, engaging the threaded studs to the depth
marked. Twist the bottom nuts upward to bottom of sleeve flange, replace the two nuts
removed earlier and tighten all nuts with 7/16 wrench. See Figure 5.
TIGHTEN DOWNWARD TIGHTEN DOWNWARD
TIGHTEN UPWARD TIGHTEN UPWARD
PERMANENT MARK
Figure 5
Step 4 – Mounting the Sensor:
Note the flow arrows on the side of the sensor, these must point downstream. Insert sensor
into sleeve, press down until hole in sensor matches hole in sleeve. Insert retention pin.
Final sensor depth should match that shown in Figure 6.
.
060
.
030
Figure 6
MAINTENANCE /
REPAIR

10
SAFETY /
SPECIFICATIONS GETTING STARTED
1010
ASSEMBLY /
INSTALLATION
OPERATION
OPERATION
Determining the K-factor:
The K-factor value is needed to convert the sensor’s output pulsed into
volume or rate data. The graphs located on the back of the Quick Start
Guide show K-factor values for many versions of water lines. By knowing
the line you’re using or the inside diameter of the line, you can determine
this value.
The values on the graphs are indicated in Pulses per Gallon. Some
controllers and register equipment want this value in terms of frequency.
When this is the case, divide 60 by the K-factor (see following pages for
these values).
Example: (8-inch Sch40 = 1.838 Pulses per Gallon) 60 / 1.838 = 32.644
Many of K-factor values shown in the graphs were theoretically generated
from actual lab test data. Because of this, these graphs are for reference
only, actual system accuracy should always be verified if possible.
MAINTENANCE /
REPAIR

11
GETTING STARTED OPERATION
SAFETY /
SPECIFICATIONS
ASSEMBLY /
INSTALLATION
MAINTENANCE /
REPAIR
OPERATION (CONTINUED)
K-FACTOR FREQUENCY VALUES
Typical
Irrigation Rainmaster
psi inches inches inches inches pulses/Gal pulses/litre K-Value Value
6" HDPE GEOTHERMAL (SDR 9) 6.625 0.736 5.153 20.813 4.420 1.168 13.575 3702 6" TUBE (STEEL) 7 GA 6.000 0.188 5.624 18.850 3.850 1.017 15.585 4251 6" TUBE (STEEL) 10 GA 6.000 0.135 5.730 18.850 3.722 0.983 16.122 4397 6" TUBE (STEEL) 11 GA 6.000 0.125 5.750 18.850 3.698 0.977 16.225 4425 6" PIPE (ALUM) SCH80 6.625 0.432 5.761 20.813 3.684 0.973 16.287 4442 6" PVC SCH80 167 6.625 0.432 5.761 20.813 3.684 0.973 16.287 4442 6" 125# PVC PIP (SDR 32.5) 125 6.140 0.189 5.762 19.289 3.683 0.973 16.292 4443 6" TUBE (STEEL) 12 GA 6.000 0.105 5.790 18.850 3.649 0.964 16.443 4485 6" TUBE (ALUM) IRRIGATION PIPE 6.000 0.083 5.834 18.850 3.596 0.950 16.687 4551 6" TUBE (STEEL) 14 GA 6.000 0.083 5.834 18.850 3.596 0.950 16.687 4551 6" 100# PVC PIP (SDR 41) 100 6.140 0.150 5.840 19.289 3.588 0.948 16.721 4560 6" TUBE (ALUM) IRRIGATION PIPE 6.000 0.058 5.884 18.850 3.535 0.934 16.973 4629 6" TUBE (ALUM) IRRIGATION PIPE 6.000 0.051 5.898 18.850 3.518 0.929 17.054 4651 6" 80# PVC PIP (SDR 51) 80 6.140 0.121 5.898 19.289 3.518 0.929 17.054 4651 6" 50# PVC PIP (SDR 81) 50 6.140 0.076 5.988 19.289 3.409 0.901 17.599 4800 6" 200# PVC IPS (SDR 21) CL 200 200 6.625 0.316 5.993 20.813 3.403 0.899 17.631 4808 6" LH PVC PIP (SDR 91) 91 6.140 0.070 6.000 19.289 3.395 0.897 17.675 4820 6" HDPE DR 11.5 125 7.119 0.527 6.065 22.365 3.316 0.876 18.094 4935 6" PIPE (ALUM) SCH40 6.625 0.280 6.065 20.813 3.316 0.876 18.094 4935 6" PVC SCH40 106 6.625 0.280 6.065 20.813 3.316 0.876 18.094 4935 6" HDPE DR 15 100 6.873 0.404 6.065 21.592 3.316 0.876 18.094 4935 6" HDPE DR 19 80 6.703 0.319 6.065 21.058 3.316 0.876 18.094 4935 6" 160# PVC IPS (SDR 26) CL 160 160 6.625 0.255 6.115 20.813 3.255 0.860 18.430 5027 6" 125# PVC IPS (SDR 32.5) CL 125 125 6.625 0.204 6.217 20.813 3.132 0.827 19.157 5225 6" PIPE (STEEL) 7 GA 6.625 0.188 6.249 20.813 3.093 0.817 19.397 5290 6" 100# PVC CL 100 100 6.625 0.162 6.301 20.813 3.030 0.801 19.800 5400 6" PIPE (STEEL) 10 GA 6.625 0.135 6.355 20.813 2.965 0.783 20.236 5519 6" PIPE (ALUM) SCH10 6.625 0.134 6.357 20.813 2.963 0.783 20.253 5524 6" PIPE (STEEL) 12 GA 6.625 0.105 6.415 20.813 2.892 0.764 20.744 5658
6" 63# PVC IPS (SDR 63) CL 63 63 6.625 0.104 6.417 20.813 2.890 0.763 20.762 5662
Reference
K-factor
NOMINAL
SIZE MATERIAL CLASSIFICATION PRESSURE OUTSIDE DIA. WALL THICKNESS INSIDE DIA. CIRCUMFERANCE

12
SAFETY /
SPECIFICATIONS GETTING STARTED
ASSEMBLY /
INSTALLATION
OPERATION
MAINTENANCE /
REPAIR
OPERATION (CONTINUED)
K-FACTOR FREQUENCY VALUES
Typical
Irrigation Rainmaster
psi inches inches inches inches pulses/Gal pulses/litre K-Value Value
8" HDPE GEOTHERMAL (SDR 9) 8.625 0.958 6.709 27.096 2.501 0.661 23.988 6542
8" HDPE GEOTHERMAL (SDR 11) 8.625 0.784 7.057 27.096 2.317 0.612 25.897 7063
8" TUBE (STEEL) 7 GA 8.000 0.188 7.624 25.133 2.017 0.533 29.754 8115
8" PIPE SCH80 8.625 0.500 7.625 27.096 2.016 0.533 29.762 8117
8" PVC SCH80 148 8.625 0.500 7.625 27.096 2.016 0.533 29.762 8117
8" 125# PVC PIP (SDR 32.5) 125 8.160 0.251 7.658 25.635 1.999 0.528 30.022 8188
8" TUBE (STEEL) 10 GA 8.000 0.135 7.730 25.133 1.960 0.518 30.606 8347
8" TUBE (STEEL) 11 GA 8.000 0.125 7.750 25.133 1.951 0.515 30.753 8387
8" 100# PVC PIP (SDR 41) 100 8.160 0.199 7.762 25.635 1.943 0.513 30.873 8420
8" TUBE (STEEL) 12 GA 8.000 0.105 7.790 25.133 1.929 0.509 31.111 8485
8" 200# PVC IPS (SDR 21) CL 200 200 8.625 0.410 7.805 27.096 1.921 0.507 31.240 8520
8" TUBE (ALUM) IRRIGATION PIPE 8.000 0.090 7.820 25.133 1.913 0.505 31.369 8555
8" TUBE (STEEL) 14 GA 8.000 0.083 7.834 25.133 1.905 0.503 31.491 8589
8" 80# PVC PIP (SDR 51) 80 8.160 0.160 7.840 25.635 1.902 0.502 31.544 8603
8" TUBE (ALUM) IRRIGATION PIPE 8.000 0.072 7.856 25.133 1.894 0.500 31.685 8642
8" TUBE (ALUM) IRRIGATION PIPE 8.000 0.064 7.872 25.133 1.885 0.498 31.828 8680
8" TUBE (ALUM) IRRIGATION PIPE 8.000 0.051 7.898 25.133 1.871 0.494 32.062 8744
8" 50# PVC PIP (SDR 81) 50 8.160 0.101 7.958 25.635 1.840 0.486 32.616 8895
8" PVC SCH40 93 8.625 0.332 7.961 27.096 1.838 0.486 32.644 8903
8" 160# PVC IPS (SDR 26) CL 160 160 8.625 0.332 7.961 27.096 1.838 0.486 32.644 8903
8" PIPE SCH40 8.625 0.322 7.981 27.096 1.827 0.483 32.833 8955
8" 125# PVC IPS (SDR 32.5) CL 125 125 8.625 0.265 8.095 27.096 1.767 0.467 33.956 9261
8" 100# PVC IPS (SDR 41) CL 100 100 8.625 0.210 8.205 27.096 1.709 0.451 35.114 9577
8" PIPE SCH10 8.625 0.148 8.329 27.096 1.643 0.434 36.517 9959
8" 63# PVC IPS (SDR 64) CL 63 63 8.625 0.135 8.355 27.096 1.629 0.430 36.826 10044
INSIDE DIA. CIRCUMFERANCE
Reference
K-factor
NOMINAL
SIZE MATERIAL CLASSIFICATION PRESSURE OUTSIDE DIA. WALL THICKNESS

13
GETTING STARTED SAFETY /
SPECIFICATIONS
MAINTENANCE /
REPAIR
OPERATION (CONTINUED)
OPERATION
ASSEMBLY /
INSTALLATION
K-FACTOR FREQUENCY VALUES
Typical
Irrigation Rainmaster
psi inches inches inches inches pulses/Gal pulses/litre K-Value Value
10" HDPE GEOTHERMAL (SDR 9) 10.750 1.194 8.362 33.772 1.747 0.461 34.348 9368
10" HDPE GEOTHERMAL (SDR 11) 10.750 0.977 8.796 33.772 1.556 0.411 38.572 10520
10" PIPE SCH80 10.750 0.593 9.564 33.772 1.217 0.321 49.302 13446
10" PVC SCH80 140 10.750 0.593 9.564 33.772 1.217 0.321 49.302 13446
10" 125# PVC PIP (SDR 32.5) 125 10.200 0.314 9.572 32.044 1.213 0.321 49.445 13485
10" TUBE (STEEL) 7 GA 10.000 0.188 9.624 31.416 1.191 0.315 50.397 13745
10" 100# PVC PIP (SDR 41) 100 10.200 0.249 9.702 32.044 1.156 0.305 51.896 14153
10" TUBE (STEEL) 10 GA 10.000 0.135 9.730 31.416 1.144 0.302 52.455 14306
10" TUBE (STEEL) 11 GA 10.000 0.125 9.750 31.416 1.135 0.300 52.863 14417
10" 200# PVC IPS (SDR 21) CL 200 200 10.750 0.500 9.750 33.772 1.135 0.300 52.863 14417
10" TUBE (STEEL) 12 GA 10.000 0.105 9.790 31.416 1.117 0.295 53.697 14645
10" 80# PVC PIP (SDR 51) 80 10.200 0.200 9.800 32.044 1.113 0.294 53.910 14703
10" TUBE (ALUM) IRRIGATION PIPE 10.000 0.094 9.812 31.416 1.108 0.293 54.167 14773
10" TUBE (ALUM) IRRIGATION PIPE 10.000 0.064 9.872 31.416 1.081 0.286 55.492 15134
10" TUBE (ALUM) IRRIGATION PIPE 10.000 0.051 9.898 31.416 1.070 0.283 56.087 15297
10" 160# PVC IPS (SDR 26) CL 160 160 10.750 0.413 9.924 33.772 1.058 0.280 56.694 15462
10" 50# PVC PIP (SDR 81) 50 10.200 0.126 9.948 32.044 1.048 0.277 57.267 15618
10" PVC SCH40 84 10.750 0.365 10.020 33.772 1.016 0.268 59.055 16106
10" PIPE SCH40 10.750 0.365 10.020 33.772 1.016 0.268 59.055 16106
10" 125# PVC IPS (SDR 32.5) CL 125 125 10.750 0.331 10.088 33.772 0.986 0.260 60.851 16596
10" 100# PVC IPS (SDR 41) CL 100 100 10.750 0.262 10.226 33.772 0.925 0.244 64.852 17687
10" 63# PVC IPS (SDR 64) CL 63 63 10.750 0.168 10.414 33.772 0.842 0.223 71.232 19427
10" PIPE SCH10 10.750 0.165 10.420 33.772 0.840 0.222 71.456 19488
INSIDE DIA. CIRCUMFERANCE
Reference
K-factor
NOMINAL
SIZE MATERIAL CLASSIFICATION PRESSURE OUTSIDE DIA. WALL THICKNESS

14
SAFETY /
SPECIFICATIONS GETTING STARTED
ASSEMBLY /
INSTALLATION
OPERATION
MAINTENANCE /
REPAIR
OPERATION (CONTINUED)
K-FACTOR FREQUENCY VALUES
Typical
Irrigation Rainmaster
psi inches inches inches inches pulses/Gal pulses/litre K-Value Value
12" HDPE GEOTHERMAL (SDR 9) 12.750 1.417 9.916 40.055 1.371 0.362 43.765 11936 12" HDPE GEOTHERMAL (SDR 11) 12.750 1.159 10.432 40.055 1.215 0.321 49.390 13470 12" PIPE SCH80 12.750 0.687 11.376 40.055 0.929 0.245 64.574 17611 12" PVC SCH80 137 12.750 0.687 11.376 40.055 0.929 0.245 64.574 17611 12" 125# PVC PIP (SDR 32.5) 125 12.240 0.377 11.486 38.453 0.896 0.237 66.973 18265 12" 200# PVC IPS (SDR 21) CL 200 200 12.750 0.606 11.538 40.055 0.880 0.233 68.170 18592 12" 100# PVC PIP (SDR 41) 100 12.240 0.299 11.642 38.453 0.849 0.224 70.698 19281 12" TUBE (STEEL) 10 GA 12.000 0.135 11.730 37.699 0.822 0.217 72.988 19906 12" TUBE (STEEL) 11 GA 12.000 0.125 11.750 37.699 0.816 0.216 73.529 20054 12" 80# PVC PIP (SDR 51) 80 12.240 0.240 11.760 38.453 0.813 0.215 73.803 20128 12" 160# PVC IPS (SDR 26) CL 160 160 12.750 0.490 11.770 40.055 0.810 0.214 74.079 20204 12" TUBE (STEEL) 12 GA 12.000 0.105 11.790 37.699 0.804 0.212 74.637 20356
12" TUBE (ALUM) IRRIGATION PIPE 12.000 0.094 11.812 37.699 0.797 0.211 75.260 20526 12" TUBE (ALUM) IRRIGATION PIPE 12.000 0.064 11.872 37.699 0.779 0.206 77.014 21004 12" PVC SCH40 79 12.750 0.408 11.934 40.055 0.760 0.201 78.914 21522 12" PIPE SCH40 12.750 0.408 11.934 40.055 0.760 0.201 78.914 21522 12" 50# PVC PIP (SDR 81) 50 12.240 0.151 11.938 38.453 0.759 0.201 79.040 21557 12" 125# PVC IPS (SDR 32.5) CL 125 125 12.750 0.392 11.966 40.055 0.751 0.198 79.932 21800 12" 100# PVC IPS (SDR 41) CL 100 100 12.750 0.311 12.128 40.055 0.702 0.185 85.517 23323 12" 63# PVC IPS (SDR 64) CL 63 63 12.750 0.199 12.352 40.055 0.634 0.167 94.662 25817
12" PIPE SCH10 12.750 0.180 12.390 40.055 0.622 0.164 96.411 26294
INSIDE DIA. CIRCUMFERANCE
Reference
K-factor
NOMINAL
SIZE MATERIAL CLASSIFICATION PRESSURE OUTSIDE DIA. WALL THICKNESS

15
GETTING STARTED SAFETY /
SPECIFICATIONS
1515
ASSEMBLY /
INSTALLATION OPERATION MAINTENANCE /
REPAIR
REPAIR PARTS LIST FOR QS200 SADDLE
Part Number Description
146502-01 Kit, Saddle Gasket
146503-01 Kit, Clamps (6 Inch ASME Pipe)
146503-02 Kit, Clamps (6 Inch Tube)
146503-03 Kit, Clamps (8 Inch ASME Pipe)
146503-04 Kit, Clamps (8 Inch Tube)
146503-05 Kit, Clamps (10 Inch ASME Pipe)
146503-06 Kit, Clamps (10 Inch Tube)
146503-07 Kit, Clamps (12 Inch ASME Pipe)
146503-08 Kit, Clamps (12 Inch Tube)
PARTS & SERVICE
For warranty consideration, parts, or other service information,
please contact your local distributor. If you need further assistance,
contact the GPI Customer Service Department in Wichita, Kansas,
during normal business hours.
A toll free number is provided for your convenience.
1-888-996-3837
To obtain prompt, efficient service, always be prepared with the
following information:
• The model number of your meter.
• The serial number or manufacturing date code of your meter.
• Part descriptions and numbers.
For warranty work, always be prepared with your original sales slip
or other evidence of purchase date.
IMPORTANT: Please contact GPI before returning any parts. It
may be possible to diagnose the trouble and identify needed parts
in a telephone call.

© 2020 Great Plains Industries, Inc., All Rights Reserved.
Great Plains Industries, Inc. / 888-996-3837 / FLOMEC.net
FLOMEC®TWO-YEAR LIMITED WARRANTY
Great Plains Industries, Inc. 5252 E. 36th Street North, Wichita, KS USA 67220-3205,
hereby provides a limited warranty against defects in material and workmanship on all
products manufactured by Great Plains Industries, Inc. This product includes a 2 year
warranty. Manufacturer’s sole obligation under the foregoing warranties will be limited
to either, at Manufacturer’s option, replacing or repairing defective Goods (subject
to limitations hereinafter provided) or refunding the purchase price for such Goods
theretofore paid by the Buyer, and Buyer’s exclusive remedy for breach of any such
warranties will be enforcement of such obligations of Manufacturer. The warranty shall
extend to the purchaser of this product and to any person to whom such product is
transferred during the warranty period.
The warranty period shall begin on the date of manufacture or on the date of
purchase with an original sales receipt. This warranty shall not apply if:
A. the product has been altered or modified outside the warrantor’s duly appointed
representative;
B. the product has been subjected to neglect, misuse, abuse or damage or has been
installed or operated other than in accordance with the manufacturer’s operating
instructions.
To make a claim against this warranty, contact the GPI Customer Service Department at
316-686-7361 or 888-996-3837.
Or by mail at:
Great Plains Industries, Inc.
5252 E. 36th St. North
Wichita, KS, USA 67220-3205
The company will step you through a product troubleshooting process to determine
appropriate corrective actions.
GREAT PLAINS INDUSTRIES, INC., EXCLUDES LIABILITY UNDER THIS WARRANTY
FOR DIRECT, INDIRECT, INCIDENTAL AND CONSEQUENTIAL DAMAGES INCURRED
IN THE USE OR LOSS OF USE OF THE PRODUCT WARRANTED HEREUNDER.
The company herewith expressly disclaims any warranty of merchantability or fitness for
any particular purpose other than for which it was designed.
This warranty gives you specific rights and you may also have
other rights which vary from U.S. state to U.S. state.
Note: In compliance with MAGNUSON MOSS CONSUMER WARRANTY ACT –
Part 702 (governs the resale availability of the warranty terms).
IP68
920906-01 Rev A10/13/2020
