Bringing into use
Q

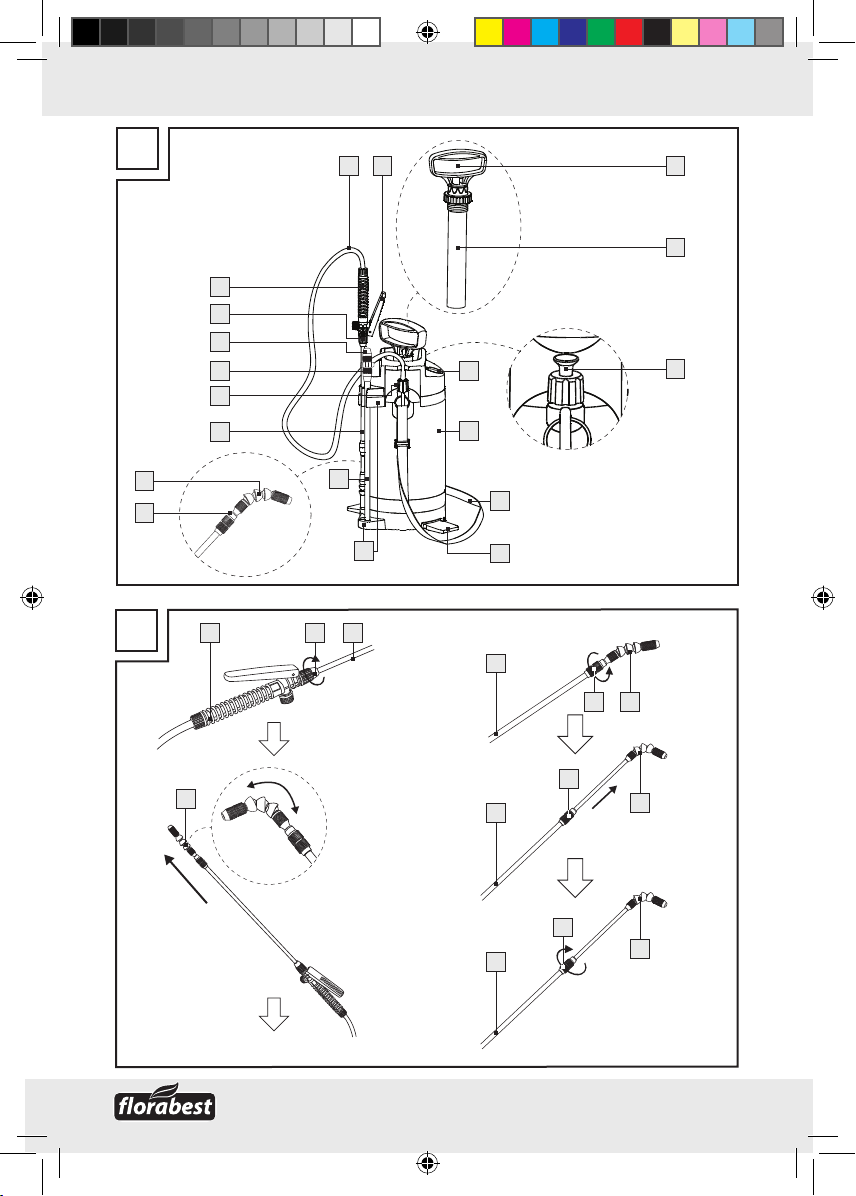

Filling the pressure
sprayer tank (Fig. E)
Note: Before using the product, check to
see that it is in good condition and free of
defects.
j Press the pump handle 1downwards
and turn it anticlockwise.
Note: Before you open the tank, pull
the safety valve 3upwards to release
any residual pressure still present in the
container 5.
j Draw the pump 2out of the container
5.
j Now fill the tank. Ensure that the use of
the pesticide, liquid fertiliser or cleaning
agent is permitted in your country and
that it is compatible with your pressure
sprayer.
Note: Fill the tank with only the
amount of liquid that you actually need
for that particular spraying session (not
more than 5l).
j Place the pump 2back into the con-
tainer 5and turn the pump handle 1
clockwise as far as it will go.
Q

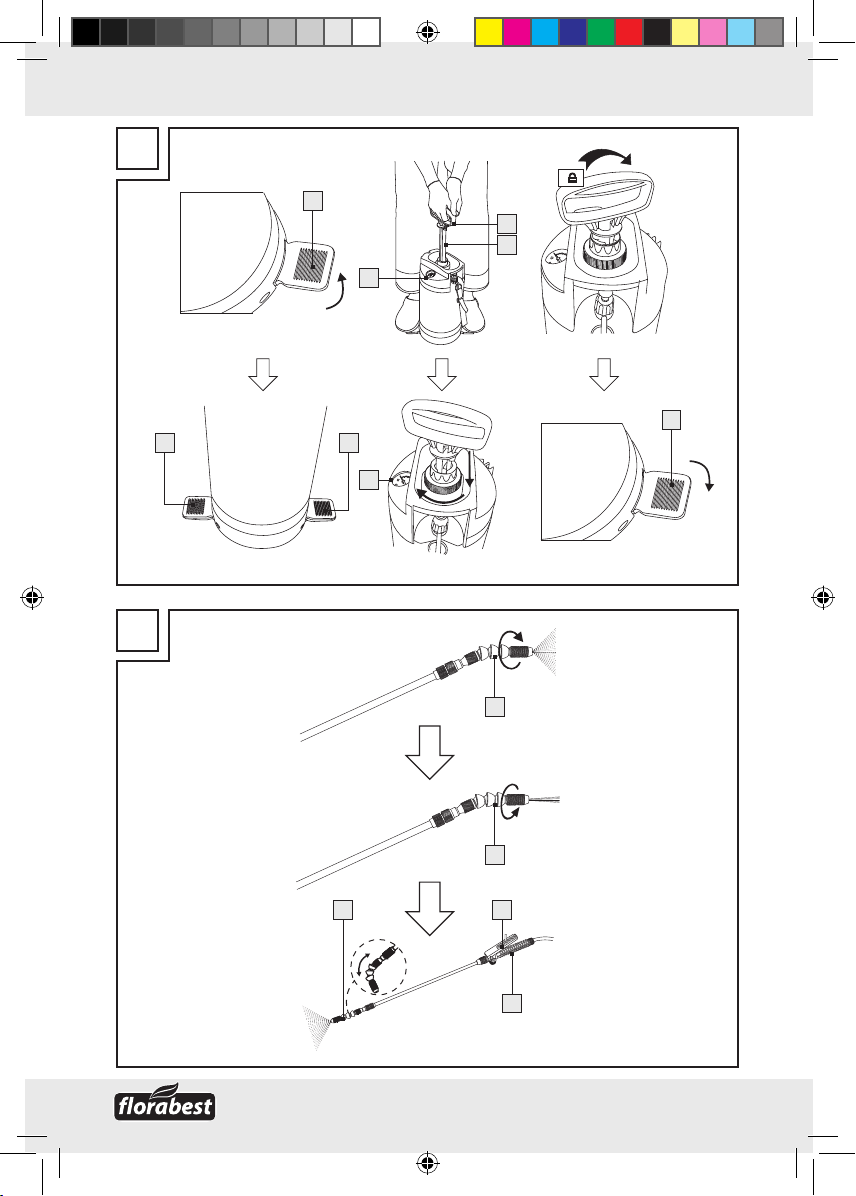

Building up the operating
pressure (Fig. F)
j Fold out the two footplates 7.
j Before you start pumping, place your
feet on the footplates 7to ensure that
the pressure sprayer is held in a stable
position during the pumping process.
j Move the pump handle 1up and down
until the pressure sprayer has been
pumped up to a pressure not exceeding
the maximum permissible operating
pressure of 2.5bar. To ensure this value
is not exceeded, monitor the pressure
gauge 4during the pumping process.
Note: If the pressure of the air in the
container 5exceeds 2.5 bar, the pres-
sure is automatically released through
the safety valve 3.
j Press the pump handle 1downwards
into the recesses.
j Turn the pump handle 1clockwise as
far as it will go. This secures the handle.
j Now take the spray tube 12 out of the
holder.
j Fold in the two footplates 7.
Q
Spraying (Fig. G)
j Hang the pressure sprayer over your
shoulder by the carrying strap 6.
Note: Ensure that the pressure sprayer
is always kept upright. Only when held
in this orientation will the sprayer work
properly.
j Hold the spray tube firmly by the han-
dle 17 and direct the adjustable spray
nozzle 11 e.g. at a plant.
j Set the adjustable spray nozzle 11 to
provide the desired spray cone. To create
a broad spray cone, turn the front part
of the adjustable spray nozzle 11 clock-
wise. To create a concentrated jet, turn
the front part of the adjustable spray
nozzle 11 anticlockwise.
j Press the trigger 19 to start the spraying
process.
j Release the trigger 19 to stop the
spraying process.
Note: When the pressure in the con-
tainer 5is no longer sufficient to spray,
pump the container 5to increase the
pressure again up to but not exceeding
the maximum permissible operating
