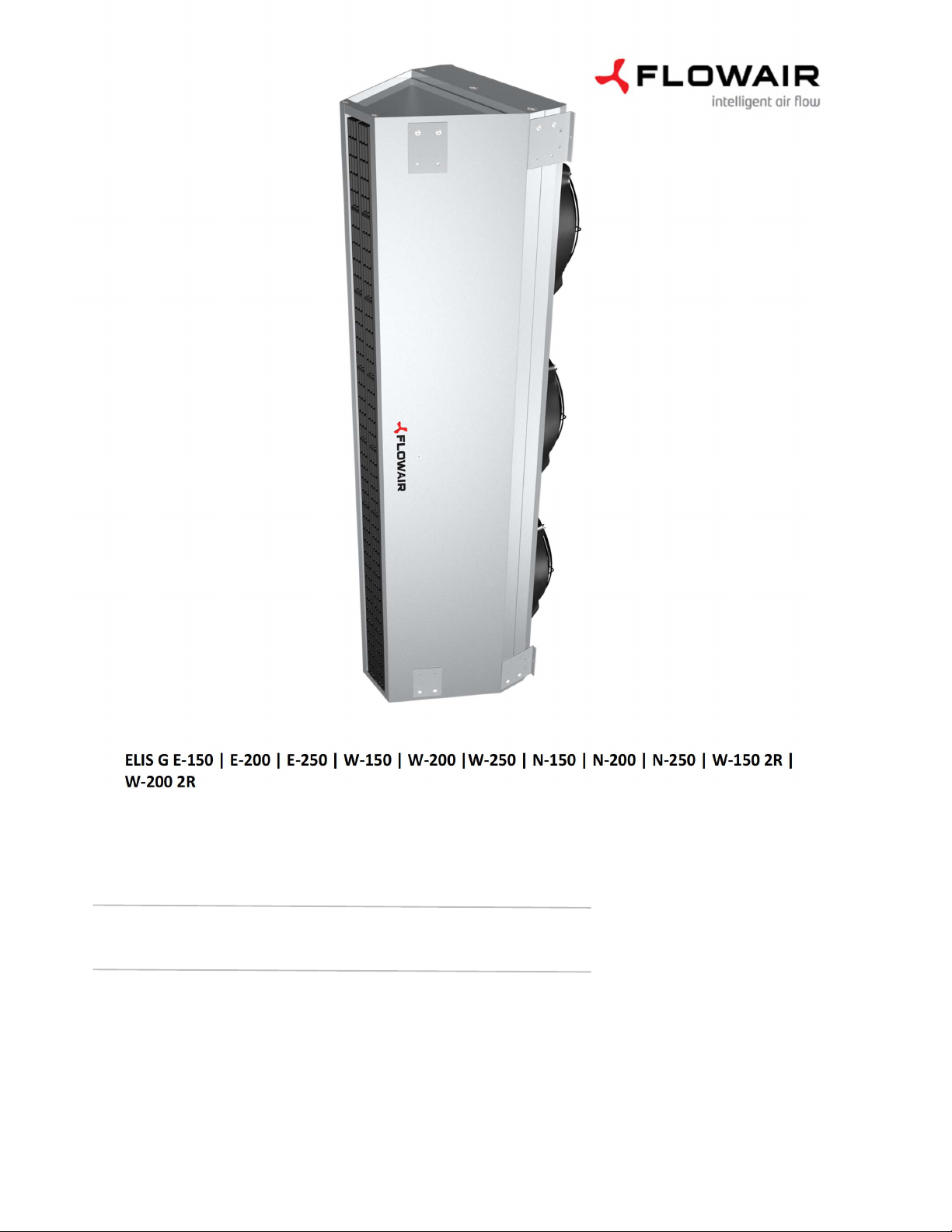

flowair ELIS G E-150 User manual

1
PL KURTYNA POWIETRZNA
DOKUMENTACJA TECHNICZNA
ELIS G E
-
150 | E
-
200 | E
-
250 | W
-
150 | W
-
200 |W
-
250 | N
-
150 | N
-
200 | N
-
250 | W
-
150 2R |
W-200 2R
EN AIR CURTAIN
DOKUMENTACJA TECHNICZNA

2
TECHNICAL DOCUMENTATION: EN
TABLE OF CONTETNS
1. IMPORTANT INFORMATION ..............................................................................................................................................
2. GENERAL INFORMATION ................................................................................................................................................... 4
. CONSTRUCTION ................................................................................................................................................................ 4
4. TECHNICAL DATA ELIS G W ................................................................................................................................................ 5
5. TECHNICAL DATA ELIS G N/E ............................................................................................................................................. 6
6. DIMENSIONS INFORMATION ............................................................................................................................................. 7
7. INSTALATION INFORMATION ............................................................................................................................................ 7
8. MOUNTING - RECOMMENDED DISTANCES INFORMATION ............................................................................................... 8
9. CONNECTION OF ELECTRICAL INSTALALTION .................................................................................................................... 9
10. CONTROL – CONNECTION DIAGRAM ELIS G-E 150; G-E 200 ............................................................................................ 10
11. CONTROL – CONNECTION DIAGRAM ELIS G-E 250 .......................................................................................................... 11
12. CONTROL – CONNECTION DIAGRAM ELIS G-N-150; G-W-150; G-W-150 2R; G-N-200; G-W-200; G-W-200 2R ................ 12
1 . CONTROL – CONNECTION DIAGRAM ELIS G-N-250; G-W-250 ........................................................................................ 1
14. CONTROL – DRV ELIS + T-BOX ........................................................................................................................................ 14
15. CONTROLS - OPTIONAL ELEMENTS ................................................................................................................................. 14
16. ADJUSTMENT OF OUTLET GRILLE.................................................................................................................................... 15
17. CONNECTION OF HYDRAULIC INSTALLATION ................................................................................................................. 15
18. PARAMETERS OF THE HEATING MEDIUM ....................................................................................................................... 16
19. OPERATON ..................................................................................................................................................................... 16
20. CLEANING AND MAINTENANCE ...................................................................................................................................... 16
21. COMPLIANCE WITH WEEE 2009/19/EC ........................................................................................................................... 16
22. DECLARATION OF CONFORMITY .................................................................................................................................... 17
2 . SERVICE AND WARRANTY TERMS ................................................................................................................................... 18
DOKUMENTACJA TECHNICZNA: PL
SPIS TREŚCI
1. WAŻNE INFORMACJE .................................................................................................................................................. 19
2. INFORMACJE OGÓLNE ................................................................................................................................................ 20
. BUDOWA .................................................................................................................................................................... 20
4. DANE TECHNICZNE ELIS G W ........................................................................................................................................ 21
5. DANE TECHNICZNE ELIS G N/E ..................................................................................................................................... 22
6. WYMIARY ................................................................................................................................................................... 2
7. MONTAŻ ..................................................................................................................................................................... 2
8. MONTAŻ – ZALECANE ODLEGŁOŚCI ............................................................................................................................. 24
9. PODŁĄCZENIE INSTALACJI ELEKTRYCZNEJ .................................................................................................................... 25
10. STEROWANIE – SCHEMAT PODŁACZENIA ELIS G-E 150; G-E 200 ................................................................................... 26
11. STEROWANIE - SCHEMAT PODŁĄCZENIA ELIS G-E 250 ................................................................................................. 27
12. STEROWANIE - SCHEMAT PODŁĄCZENIA ELIS G-N-150; G-W-150; G-W-150 2R; G-N-200; G-W-200; G-W-200 2R. ........ 28
1 . STEROWANIE - SCHEMAT PODŁĄCZENIA ELIS G-N-250; G-W-250. ................................................................................ 29
14. STEROWANIE - DRV ELIS + T-BOX ................................................................................................................................. 0
15. ELEMENTY AUTOMATYKI ............................................................................................................................................ 0
16. REGULACJA KRATKI WYLOTOWEJ ................................................................................................................................ 1
17. PODŁĄCZENIE INSTALACJI HYDRAULICZNEJ ................................................................................................................. 1
18. PARAMETRY CZYNNIKA GRZEWCZEGO ........................................................................................................................ 2
19. EKSPLOATACJA ........................................................................................................................................................... 2
20. CZYSZCZENIE I KONSERWACJA .................................................................................................................................... 2
21 ZGODNOŚĆ Z DYREKTYWĄ WEEE 2012/19/UE .............................................................................................................
22. DEKLARACJA ZGODNOŚCI ........................................................................................................................................... 4
2 . KARTA GWARANCYJNA ............................................................................................................................................... 5

3
TECHNICAL DOCUMENTATION: EN
1. IMPORTANT INFORMATION
We have made every effort to make th s manual as easy to understand as poss ble. However, f you have any d ff cult es, problems or
quest ons, please contact FLOWAIR support at: nfo@flowa r.pl
Also v s t our webs te www.flowa r.pl where you w ll f nd mount ng t ps.
In th s manual you w ll f nd mportant safety nformat on and t ps marked as below:
WARNING
• Dangerous pract ces wh ch may
result n ser ous njury or death.
Read all warn ngs before start ng
work.
CAUTION
• unsafe pract ces wh ch, f not
avo ded, may result n damage to
property or m nor njur es.
Before start ng work, read all
caut ons.
ADVICE
• Useful t ps for the user and
nstaller.
IMPORTANT SAFETY INFORMATION:
ADVICE
1. Before nstall ng, connect ng, start ng up, us ng and ma nta n ng the dev ce, please read th s manual completely.
2. After rece v ng the product, check that t has not been damaged dur ng transport. If the product appears to be
damaged, DO NOT START TO MOUNT THE DEVICE; nstead, you must mmed ately report the damage to the
carr er.
3. The dev ce must be mounted n a stable way and n accordance w th the nstruct ons, n a place that can be
eas ly accessed, thus ensur ng the poss b l ty of carry ng out repa rs and rout ne ma ntenance, as well as allow ng
easy and safe d sassembly of the dev ce.
4. The stab l ty and durab l ty of nstallat on of the dev ce depends on the structure of the bu ld ng ( n part cular
walls and ce l ngs). The person perform ng the assembly should take these cond t ons nto account when mount ng
the dev ce.
5. The techn cal documentat on should be kept n a safe place, eas ly access ble to the user and serv ce techn c an.
6. The nameplate s located next the cable glands on the top of the dev ce.
7. Always test the operat on of the dev ce after nstallat on.
8. The dev ce should not be nstalled d rectly under the wall socket
CAUTION
1. The power connect on shall be performed only by an author zed person.
2. The dev ce may start automat cally (when mot on s detected n the sensor area).
3. The dev ce s not equ pped w th a thermostat that controls the room temperature. Do not use the dev ce n
small rooms where there are people who are not able to leave the prem ses alone. Above ment oned does not
apply to rooms w th constant superv s on.
4. The dev ce requ res per od c nspect ons n accordance w th the nstruct ons n th s manual.
5. Do not hang/put pressure on the dev ce.
6. Do not place any objects on the dev ce or hang anyth ng on the connect on stubs.
7. The product should be stored and assembled out of the reach of small ch ldren.
8. The dev ce s ded cated to work ndoors w th a max mum a r dust ness of 0.3 g / m3. The dev ce has elements
made of alum num, copper and galvan zed steel and cannot be used n an corros ve env ronment.
9. Equ pment cannot be used n an env ronment where o l m st s present.
10. Th s equ pment may be used by ch ldren that are at least 8 years old, by persons w th reduced phys cal and
mental ab l t es and persons w th no exper ence and knowledge of the equ pment, on cond t on that the
superv s on or nstruct on regard ng correct use of the equ pment n a safe manner s prov ded and the poss ble
threats are understood. The dev ce cannot be used by ch ldren to play. Unattended ch ldren should not clean or
ma nta n the equ pment.
11. The dev ce n electr c vers on (SLIM E) may g ve off a smell of burn ng dust at f rst start up or f t s start ng
after a long standst ll.
WARNING
1. The
dev ce s powered by dangerous voltage. Always d sconnect the dev ce from the power su
pply before
serv c ng or access ng ts nternal components.
2. Do not nsert your f ngers or any objects ns de the dev ce.
3. Do not cover the dev ce.

4
2. GENERAL INFORMATION
ELIS G a r curta n s a h gh-qual ty dev ce that, by creat ng an a r barr er, reduces heat exchange losses. The dev ce s ded cated ONLY for ndoor
use. The ELIS G a r curta n s ntended for hor zontal nstallat on above a door open ng or vert cal nstallat on w th a door open ng w th a
max mum he ght of 8,0 m.
The a r curta n s ava lable n a cold/amb ent vers on (w thout heat ng), w th electr c heaters or w th a water exchanger:
ELIS G E-150; ELIS G E-200; ELIS G E-250 - a r curta ns w th electr c heaters w th a max mum range of 7,5 m*;
ELIS G W-150; ELIS G W-200; ELIS G W-250 - a r curta ns w th a water heat exchanger w th a max mum range 7,5 m*;
ELIS G W-150 2R; ELIS G W-200 2R; ELIS G W-250 2R - a r curta ns w th a water heat exchanger w th a max mum range 7,5 m*;
ELIS G N-150; ELIS G N-200; ELIS G N-250 - a r curta ns w thout water exchanger max mum range 8,0 m*.
* accord ng to ISO 27327-1
❶ nlet ❷outlet
PIC. 2.1 DIRECTION OF AIR FLOW. PIC. 2.2 AIR STREAM RANGE FOR DIFFERENT FAN STEPS.
ADVICE
1. In bu ld ngs where thermal comfort s requ red, t s recommended to use a heated a r curta n (W or E).
2. Underpressure n the bu ld ng s gn f cantly reduces the eff c ency of the a r barr er, the vent lat on system should be balanced.
3. At a w nd speed of more than 3 m / s, the heated vers on of a r curta n should be used to ncrease user comfort.
. CONSTRUCTION
1.
F
an
2. Heat exchanger (W - water. E – electr c heaters)
3. S de cover
4. Left cover
5. Nozzle
6. R ght cover
PIC. .1 CONSTRUCTION ELIS G N/W/E.

5
4. TECHNICAL DATA ELIS G W
ELIS G W-150 ELIS G W-200 ELIS G W-250
STEP III II I III II I III II I
Power supply [V/Hz] 1N ∼ 230/50
Power consumption [W] 670 480 240 1050 730 370 1400 970 490
Current consumption [A] 3 2,3 1,3 4,5 3,6 1,9 6,0 4,8 2,5
Air volume [m /h]* 6200 4000 2500 9100 5600 3300 12000 7200 4300
Range [m]* 7,5 4,2 2,5 7,5 4,2 2,5 7,5 4,2 2,5
Acoustic pressure level [dB(A)]** - m 67 57 46 69 58 47 70 59 48
Acoustic pressure level [dB(A)]** - 5 m 66 56 45 68 57 46 69 58 47
Acoustic power level [dB(A)]*** 82 72 61 84 73 62 85 74 63
Weight [kg] 47,4 62,0 78,3
Weight of unit filled with water [kg] 49,7 64,3
IP 54
Connection stub [‘’] ¾ external thread connect on
Max. Water pressure [MPa] 1,6
Max. Water temperature [°C] 120
Heating power [kW]**** 7,8-27 8,7-30 15-49,6
Temperature increase (ΔT)[°C]**** 4-13 3-11 4-12
ELIS G W-150 2R ELIS G W-200 2R
STEP III II I III II I
Power supply [V/Hz] 1N ∼ 230/50
Power consumption [W] 670 480 240 1050 730 370
Current consumption [A] 3 2,3 1,3 4,5 3,6 1,9
Air volume [m /h]* 6100 3900 2400 8800 5400 3100
Range [m]* 7,5 4,2 2,5 7,5 4,2 2,5
Acoustic pressure level [dB(A)]** - m 68 58 47 70 59 48
Acoustic pressure level [dB(A)]** - 5 m 67 57 46 69 58 47
Acoustic power level [dB(A)]*** 83 73 62 85 74 63
Weight [kg] 51,8 66,4
Weight of unit filled with water [kg] 56,4 71,0
IP 54
Connection stub [‘’] ¾ external thread connect on
Max. Water pressure [MPa] 1,6
Max. Water temperature [°C] 120
Heating power [kW]**** 16,8 - 60,1 18,6 - 66,7
Temperature increase (ΔT)[°C]**** 8 - 29 8 - 26
* accord ng to ISO 27327-1;
** Acoust c pressure level has been measured n a 1500m
3
space w th a med um sound absorpt on coeff c ent, d rect onal factor: Q=2;
*** Acoust c power level accord ng to ISO 27327-2;
**** Range of heat ng powers and temperatures spec f ed for the parameters: III fan speed, heat ng med um temperature 50/40 ° C nlet temperature 20 ° C - III fan speed, heat ng med um
temperature 90/70 ° C at the dev ce nlet 0 ° C.

6
5. TECHNICAL DATA ELIS G N/E
ELIS G N-150 ELIS G N-200 ELIS G N-250
STEP III II I III II I III II I
Power supply [V/Hz] 1N ∼ 230/50
Power consumption [W] 670 480 240 1050 730 370 1400 970 490
Current consumption [A] 3 2,3 1,3 4,5 3,6 1,9 6,0 4,8 2,5
Air volume [m /h]* 6550 4600 2800 9700 6300 3900 12800 8100 4900
Range [m]* 8 4,5 2,8 8 4,5 2,8 8 4,5 2,8
Acoustic pressure level [dB(A)]** - m 66 56 45 67 57 46 69 59 47
Acoustic pressure level [dB(A)]** - 5 m 65 55 44 66 56 45 68 58 46
Acoustic power level [dB(A)]*** 81 71 60 83 72 61 84 74 62
Weight [kg] 43 58 71,5
IP 54
ELIS G E-150 ELIS G E-200 ELIS G E-250
STEP III II I III II I III II I
Power supply [V/Hz] 3N ∼ 400/50
Power consumption [W] 680 480 245 1050 730 370 1400 970 490
Current consumption [A] 3,0 2,3 1,3 4,5 3,6 1,9 6,0 4,8 2,5
Air volume [m /h]* 6300 4300 2600 9400 5700 3400 12400 7800 4900
Range [m]* 7,5 4,5 2,8 7,5 4,5 2,8 7,5 4,5 2,8
Acoustic pressure level [dB(A)]** - m 66 56 45 67 57 46 69 59 47
Acoustic pressure level [dB(A)]** - 5 m
65
55
44
66
56
45
68
58
46
Acoustic power level [dB(A)]*** 81 71 60 82 72 61 84 74 62
Weight [kg] 47 62,2 77,9
IP fan / IP heating elements 54 / 20
N ∼ 400/50 ( . power step)
Power consumption [kW] 13,5 20,5 24,5
Current consumption [A] 19,5 29,5 36,0
Temperature increase (ΔT) [°C] 7,0 10 16,0 7,0 12,0 18,0 7,5 11 16,5
N ∼ 400/50 (2. power step)
Power consumption [kW] 9,0 13,5 14,0
Current consumption [A] 13,0 19,5 20,5
Temperature increase (ΔT) [°C] 5,0 8,0 11,0 5,0 8,0 12,0 4,0 5,5 9,0
N ∼ 400/50 (1. power step)
Power consumption [kW] 4,5 7,0 10,5
Current consumption [A] 6,5 10,0 15,5
Temperature increase (ΔT) [°C] 3,0 4,0 6,0 3,0 4,0 7,0 3,0 4,0 6,5
* accord ng to z ISO 27327-1;
** Acoust c pressure level has been measured n a 1500m
3
space w th a med um sound absorpt on coeff c ent, d rect onal factor: Q=2;
*** accord ng to ISO 27327-2.

7
6. DIMENSIONS
ELIS: G-N-150; G-W-150; G-W-150 2R; G-E-150
ELIS: G-N-200; G-W-200; G-W-200 2R; G-E-200
ELIS: G-N-250; G-W-250; G-E-250
7. INSTALATION
A r curta ns must be nstalled as close as poss ble to the door open ng and cover:
- the ent re w dth (appl es to hor zontal nstallat on),
- full he ght (appl es to vert cal mount ng).

8
8. MOUNTING - RECOMMENDED DISTANCES
Elis G air curtains are delivered with set of hangers which allow install them horizontally as well as vertically. Installation pins and screws required for
fix unit to the wall/floor/post are not included.
Max size of covered doorway :
• vert cal s ngle s de nstallat on max w dth 8,0 m for EL S G-N, 7,5 m for EL S G-E/W, EL S G-W-2R,
• vert cal double s de nstallat on max w dth 14,0 m for EL S G-N, 13,0 m for EL S G-E/W, EL S G-W-2R,
• hor zontal nstallat on max he ght level 8,0 m for dla EL S G-N, 7,5 m for EL S G-E/W, EL S G-W-2R,
WARNING Screw a r curta n to the wall/floor/post before f rst start up.
EL S G A [mm] B [mm]
N/W/E-150 585 1480
N/W/E-200 585 2000
N/W/E-250 585 2495
PIC. 8.1 HORIZONTAL INSTALATION
The max mum length of the set s 10 m. In case of hor zontal nstallat on use nstallat on plate ❶ and mount un t v a threaded p ns M10 (
not
ncluded). S ngle un t s mounted on 4 nstallat on plates, two un ts on 6 pcs. Installat on plates are used to screw un ts amo
ng themselves as show on
draw ng.
PIC. 8.2 VERTICAL INSTALLATION
Vert cal nstallat on s executed v a ncluded n set nstallat on plates ❶, wh ch should mount un t to the floor. Next a r curta n should be
putted on the f rst one and screwed w th t v a nstallat on plate ❶ and ❷, those nstallat on plates must be anchored to the wall/post
(draw ng). It s also requ red to anchor the dev ce at the h ghest po nt of the nstallat on. In the case of vert cal mount ng, mount ng up to
4 stacked curta ns.

9
9. CONNECTING OF ELECTRICAL INSTALLATION
G-N-150; G-W-150; G-W-150 2R; G-E-150; G-N-200; G-W-200; G-W-200 2R; G-E-200; G-N-250; G-W-250; G-E-250
To supply curta n w th power connect t by connect on box closest to un t s de (or G-W / N / E-250, two electr cal connect ons to the fans are
requ red). Protract cable by glands (PG9 or PG11) and connect w res accord ng to scheme from box cover.
G-E-150; G-E-200; G-E-250
To act vate the curta n fans, the 3N 400V / 50 Hz heat ng elements should be powered by connect ng the cables to the box located between the
fan nozzles (through the PG29 gland). Then connect the start s gnal from the RX man fold to the connectors (L; N through the PG9 gland).
WARNING
1.
The power connect on should be made n accordance w th the techn cal documentat on. The dev ce
nstallat on should always be carr ed out n accordance w th appl cable local safety standards.
2. The cross-sect on and type of the cable and the protect on should be selected by the des gner. Always
make sure that d sconnectors and c rcu t breakers are properly s zed and d sconnect all poles of the power
supply
3. Make sure that the connect on of power supply and controllers to the ELIS G curta n s made n
accordance w th the electr cal spec f cat ons and the nstruct ons ncluded n the connect on d agrams n
the techn cal documentat on.
4. Before connect ng the power supply, check that the ma ns voltage corresponds to the voltage on the
dev ce's type plate.
5. Check the power connect on before connect ng the a r curta n.
6. Start ng the dev ce w thout connect ng the ground ng w re s not allowed.
7. Protect the power cord aga nst pull ng out by clamp ng t n the stuff ng boxes of the fans and the
junct on box.
8. T ghten all connect on cables n the block properly
9. In the event of a hazard due to un ntent onal reset of the thermal sw tch, th s curta n (ELIS G E) should
not be powered by an external connect ng dev ce such as a t me sw tch, or connected to a c rcu t that s
regularly sw tched off and sw tched on dur ng use.
Glands
PG29 + PG9
Power step [kW]
EL S G A B A + B
E-150 4,5 9,0 13,5
E-200 7,0 13,5 20,5
E-250 10,5 14,5 24,5

10
10. CONTROL – CONNECTION DIAGRAM ELIS G-E 150; G-E 200
RX
 RX Power supply: 230 V / 50 Hz (OMY m n. 3x1,5 mm
2
); glands 16 x PG11
 3 - step sw tch w th thermostat TS
(OMY m n. 5x0,5 mm
2
)
•HEAT – heat ng mode
•FAN – room thermostat deact vated
•COOL – cool ng mode
•1;2;3 step of fan
•FAN AUTO, jumper 3-5, fan operat on depends on temperature,
•FAN CONT, jumper 4-5, fan cont nuous operat on
 Door contact DCm (door opened – opened contacts)
(OMY 2x0,5 mm
2
);
 connect on of power supply for EL S G curta n fans (one connector can be connected to one curta n)
(OMY m n. 5x1,0 mm
2
); glands PG7 + PG9
 Power supply junct on box 3x400 V / 50Hz
•EL S G-E-150 (m n. 5x4,0 mm
2
)(overcurrent B25)
•EL S G-E-200 (m n. 5x6,0 mm
2
)(overcurrent B40)
•Control s gnal to junct on box
(OMY m n. 2x0,5 mm
2
);
•glands PG29 + PG9
FK1; FK2; FK - overload protector (6,3 A);
ADVICE
1. To connect the cables from the RX to the curta n, d sassemble the cover of the fan box and then lead the cable through the
free gland.
2. W thout a door sensor, the a r curta n w ll work n relat on to the sett ng from TS thermostat. When work ng w th a door
sensor, the curta n w ll be act vated only when the gate s opened (the contacts of the N; DC connector are open).
3. In order to connect the heat ng elements and the heat ng start s gnal from the RX, d smantle the box cover located between
the nozzles of the fans, and then lead the cables through the glands.
WARNING
1. To one RX can be connected max mum of 3 G-E-150 or G-E-200 curta ns
2. D sconnect all power c rcu ts before access ng term nals.

11
11. CONTROL – CONNECTION DIAGRAM ELIS G-E 250
RX
 RX Power supply: 230 V / 50 Hz (OMY m n. 3x1,5 mm2); glands 16 x PG11
 3 - step sw tch w th thermostat TS
(OMY m n. 5x0,5 mm
2
)
•HEAT – heat ng mode
•FAN – room thermostat deact vated
•COOL – cool ng mode
•1;2;3 step of fan
•FAN AUTO, jumper 3-5, fan operat on depends on temperature,
•FAN CONT, jumper 4-5, fan cont nuous operat on
•
 Door contact DCm (door opened – opened contacts)
(OMY 2x0,5 mm2);
 connect on of power supply for EL S G curta n fans
(OMY m n. 5x1,0 mm2); glands PG7 + PG9
 Power supply junct on box 3x400 V / 50Hz
•EL S G-E-250 (m n. 5x6,0 mm
2
)(overcurrent B40)
•Control s gnal to junct on box
(OMY m n. 2x0,5 mm
2
)
•glands PG29 + PG9
FK1; FK2; FK - overload protector (6,3 A);
ADVICE
1. To connect the cables from the RX to the curta n, d sassemble the cover of the fan box and then lead the cable through
the free gland.
2. W thout a door sensor, the a r curta n w ll work n relat on to the sett ng from TS thermostat. When work ng w th a door
sensor, the curta n w ll be act vated only when the gate s opened (the contacts of the N; DC connector are open).
3. In order to connect the heat ng elements and the heat ng start s gnal from the RX, d smantle the box cover located
between the nozzles of the fans, and then lead the cables through the glands.
WARNING
1. To one RX can be connected max mum of 2 G-E-250 curta ns
2. D sconnect all power c rcu ts before access ng term nals.

12
12. CONTROL – CONNECTION DIAGRAM ELIS G-N-150; G-W-150; G-W-150 2R; G-N-200; G-W-200; G-W-
200 2R.
RX
 RX Power supply: 230 V / 50 Hz (OMY m n. 3x1,5 mm2); glands 16 x PG11
 3 - step sw tch w th thermostat TS
(OMY m n. 5x0,5 mm
2
)
•HEAT – heat ng mode
•FAN – room thermostat deact vated
•COOL – cool ng mode
•1;2;3 step of fan
•FAN AUTO, jumper 3-5, fan operat on depends on temperature,
•FAN CONT, jumper 4-5, fan cont nuous operat on
 Door contact DCm (door opened – opened contacts)
(OMY 2x0,5 mm2);
 connect on of power supply for EL S G curta n fans (one connector can be connected to one curta n)
(OMY m n. 5x1,0 mm2); glands PG7 + PG9
 SRQ/SRQ3d valve power supply (OMY m n. 3x0,75 mm
2
)
FK1; FK2; FK - overload protector (6,3 A);
ADVICE
1. To connect the cables from the RX to the curta n, d sassemble the cover of the fan box and then lead the cable through
the free gland.
2. W thout a door sensor, the a r curta n w ll work n relat on to the sett ng from TS thermostat. When work ng w th a door
sensor, the curta n w ll be act vated only when the gate s opened (the contacts of the N; DC connector are open).
WARNING
1. To one RX can be connected max mum of 3 G-W/N-150 or G-W/N-200 curta ns

13
1 . CONTROL – CONNECTION DIAGRAM ELIS G-N-250; G-W-250
RX
 RX Power supply: 230 V / 50 Hz (OMY m n. 3x1,5 mm2); glands 16 x PG11
 3 - step sw tch w th thermostat TS
(OMY m n. 5x0,5 mm
2
)
•HEAT – heat ng mode
•FAN – room thermostat deact vated
•COOL – cool ng mode
•1;2;3 step of fan
•FAN AUTO, jumper 3-5, fan operat on depends on temperature,
•FAN CONT, jumper 4-5, fan cont nuous operat on
 Door contact DCm (door opened – opened contacts)
(OMY 2x0,5 mm2);
 connect on of power supply for EL S G curta n fans
(OMY m n. 5x1,0 mm2); glands PG7 + PG9
 SRQ/SRQ3d valve power supply (OMY m n. 3x0,75 mm
2
)
FK1; FK2; FK - overload protector (6,3 A);
ADVICE
1. To connect the cables from the RX to the curta n, d sassemble the cover of the fan box and then lead the cable
through the free gland.
2. By default, three fans are connected together, the fourth one should be connected separately to another channel of
the RX d str butor
3. W thout a door sensor, the a r curta n w ll work n relat on to the sett ng from TS thermostat. When work ng w th a
door sensor, the curta n w ll be act vated only when the gate s opened (the contacts of the N; DC connector are
open).
WARNING
1. To one RX can be connected max mum of 2 G-W/N-250 curta ns

14
14. CONTROL - DRV ELIS + T-BOX
In the case of connect ng the DRV ELIS control module w th an T-BOX ntell gent controller to the RX spl tter, t should be done nstead of the
TS controller and use the d agrams ava lable n the documentat on of the RX spl tter. In such a case, connect ng the curta ns to the RX spl tter s
adequate to that presented n chapters 10 to 13.
15. CONTROLS - OPTIONAL ELEMENTS
SRQ d /4”
–
Three
-
way valve /4” with actuator
Protect on degree: IP20
Supply voltage: 230/50 Hz
Max. med um temperature: +93
o
C
Max. Operat ng pressure: 2,1 MPa
Kvs: 6,5 m
3
/h
Installat on: on the supply of the water heat exchanger
Motor runn ng t me: 18 s
A – Return p pe water supply
AB – Valve water supply
B – Exchanger water supply
SRQ2d /4”
–
Two
-
way valve
/4” with actuator
Protect on degree: IP20
Supply voltage: 230/50 Hz
Max. med um temperature: +93oC
Max. Operat ng pressure: 2,1 MPa
Kvs: 6,5 m3/h
Installat on: on the supply of the water heat exchanger
Motor runn ng t me: 18
TS – -step regulator with built-in thermostat
Temperature sett ng range: +10 … +30
o
C
Operat ng temperature range: 0 … +40
o
C
Protect on degree: IP30
Contact load: nduct ve 5 A
Supply voltage: 230 V/50 Hz
FAN AUTO - fan operat on depends on the temperature.
FAN CONT - cont nuous fan operat on
HEAT - heat ng funct on
FAN - deact vate the thermostat for FAN CONT
COOL - reversal of the operat on log c of the thermostat
DCm – mechanical door contact
Operat ng temperature range:
-
10
-
+80
o
C
Protect on degree: IP 66
Connectors: 1xNC 1xNO
Max current:
res st ve – 10 A
nduct ve – 3 A
Max Power load: 300 Vac lub 250 Vdc
T
-
box
–
touch screen
controller
Temperature sett ng range: +5 … +45
o
C
Operat ng temperature range: 0 … +60
o
C
Protect on degree: IP30
Supply voltage: 24 VDC
DRV ELIS
–
control module
Operat ng temperature range:: 0 … +60
o
C
Protect on degree: IP54
Supply voltage: 230 V/50 Hz
DRV ELIS can be connected to ELIS G a r curta n only v a RX spl tter
RX – signal splitter
Operat ng temperature range:: 0 … +40 oC
Protect on degree: IP54
Supply voltage: 230 V/50 Hz
To one RX can be connected max mum of 3 G-N/W/E-150 or G-N/W/E-200 curta ns or max mum
of 2 G-N/W/E-250

15
16. ADJUSTMENT OF OUTLET GRILLE
The dev ce s equ pped adjustable outlet gr lles. The angle should be
set manually w th n +/- 17 °. The a rflow from the outlet gr lle should
be d rected as close as poss ble to the plane of the door open ng
(tak ng nto account the cond t ons preva l ng at the door open ng).
ADVICE
In order to ncrease the effect veness of the a r barr er dur ng w ndy
cond t ons, the curta n ’s a r stream should be d rected outs de the
door to create a more eff c ent a r barr er to external factors.
17. CONNECTION OF HYDRAULIC INSTALLATION
WARNING
1. D sconnect the curta n power supply before connect ng the water system.
2. The connect on should be made w thout stress. It s recommended to use flex ble ducts supply ng the heat ng
med um.
3. Water supply should be connected to the connector marked w th the symbol of red arrow.
4. The nstallat on w th the heat ng med um must be protected aga nst the ncrease of the heat ng med um
pressure above the perm ss ble value (1.6 MPa).
5. Before start ng the dev ce, check the correct connect on of the heat ng med um and the system for leaks.
6. Dur ng assembly of the nstallat on t s absolutely necessary to mmob l ze the exchanger's connector p pes
(counter)
7. After f ll ng the system w th heat ng med um, check the t ghtness of the hydraul c connect ons, nclud ng the
bu lt- n vent.
ADVICE
1. It s recommended to use bleed ng/a r release valves at the h ghest po nt of the nstallat on.
2. In the event that the water from the dev ce s dra ned for a longer per od of t me, the exchanger tubes should
be blown and dr ed w th compressed a r.
3. Installat on should be carr ed out n such a way that n the event of a fa lure t s poss ble to d smantle the dev ce
(use of flex ble hoses s recommended). For th s purpose, use shut
-
off valves next to the dev ce.
(rys. 16.
1
).
ZK - ball valve
ZO - bleed ng valve
ZR - balanc ng valve
ZD - dra nage valve
FS – mesh f lter
KP – flex ble hoses
SRQ3d – 3-way valve w th
ON/OFF actuator
RYS. 16.1. CONNECTION EXAMPLE OF HYDRAULIC COMPONEMTS.

16
18. PARAMETERS OF THE HEATING MEDIUM
The water heat exchanger can be suppl ed w th water or glycol solut ons up to 60% . The heat exchanger tubes are made of copper. The
heat ng med um should not cause corros on of th s mater al. In part cular, the parameters as below should be prov ded.
Parameter Value
pH
7,5
-
9,0
Pollut on
Free of sed ments/part cles
Total hardness [Ca2+,Mg2+]/ [HCO3-] > 0.5
O l and grease <1 mg/l
Oxygen
<0.1mg/l
HCO
ᵌ
60
-
300 mg/l
Ammon a < 1.0 mg/l
Sulph des < 0.05 mg/l
Chlor des, Cl
<100 mg/l
19. OPERATION
WARNING
1. The dev ce must be per od cally checked. These act v t es should be performed ONLY by qual f ed personnel. If
the dev ce malfunct ons, turn t OFF mmed ately and contact FLOWAIR SERVICE SUPPORT.
2. Do not attempt to repa r, move, mod fy, or re nstall the dev ce yourself. Perform ng these act v t es by
unauthor zed personnel may result n electr c shock or f re.
3. Do not use a damaged dev ce. The manufacturer s not respons ble for damages result ng from the use of a
damaged dev ce.
4. The dev ce s ntended for ndoor use at temperatures above 0°C. At temperatures below 0
°
C there s a r sk of
freez ng of the med um.
The manufacturer is not responsible for damage to the heat exchanger resulting from the freezing of the
medium in the exchanger.
ADVICE
1. The heat ng elements are equ pped w th thermal protect ons, wh ch n case of too h gh temperature n the r
surround ngs w ll d sconnect the heat ng. The heat ng can be sw tched on aga n after the temperature has
dropped and manual reset s performed by sw tch ng OFF and ON the heat ng w th external controller.
If the heat ng d sconnects repeatedly, contact a qual f ed serv ce center.
2. In the case of water suppl ed a r curta ns, when the water from the dev ce s dra ned for a longer per od of
t me, the exchanger tubes should be blown w th compressed a r.
20. CLEANING AND MAINTENANCE
ADVICE
Per od cally check (at least tw ce a year) the d rt ness level of the heat exchanger (ELIS G W), electr c heaters
(ELIS G E). Clogg ng a part of the a r ntake causes a decrease n the heat ng power of the dev ce and adversely
affects the operat on of the fan, and n the case of electr c heaters t can cause permanent loss of rated
parameters.
Clean ng the exchanger should be carr ed out n accordance w th the follow ng gu del nes:
 The power supply must be d sconnected dur ng clean ng.
 D smantle the fans and clean the exchanger through the a r nozzles.
 When clean ng the exchanger, be careful not to bend the alum num f ns.
 It s not recommended to use sharp objects for clean ng, due to the poss b l ty of damage to the lamellas.
 Clean ng w th compressed a r s recommended.
 The exchanger cannot be cleaned w th water!
 Clean ng should be carr ed out along the slats, w th the blow ng nozzle perpend cular to exchanger.
21. CONFORMITY WITH WEEE 2012/19/UE
Runn ng a bus ness w thout harm ng the env ronment and observ ng the rules of proper handl ng of waste electr cal and electron c equ pment
s a pr or ty for FLOWAIR.
The symbol of the crossed out wheeled b n placed on the equ pment, packag ng or documents attached means that the product must not be
d sposed of w th other wastes. It s the respons b l ty of the user to hand the used equ pment to a des gnated collect on po nt for proper
process ng. The symbol means that the equ pment was placed on the market after August 13, 2005.
For information regarding recycling of waste  electrical and electronic  equipment, please contact your local distributor.
R E M E M B E R :
Do not d spose of used equ pment together w th other waste! There are f nanc al penalt es for th s. Proper handl ng of used equ pment
prevents potent al negat ve consequences for the env ronment and human health. At the same t me, we save the Earth's natural resources,
reus ng resources obta ned from the process ng of equ pment.

17
Deklaracja zgodności / Declaration Of Conformity
FLOWAIR GŁOGOWSKI I BRZEZIŃSKI SP.J.
ul. Chwaszczyńska 135, 81-571 Gdyn a
tel. [phone],
e-ma l: nfo@flowa r.pl
www.flowa r.com
N n ejszym deklarujemy, ż kurtyny pow etrzne / FLOWAIR hereby confirms that air curtains unit /
• ELIS G: W-150; W-200; W-250; E-150; E-200; E-250; N-150; N-200; N-250;
zostały wyprodukowane zgodn e z wymagan am następujących Dyrektyw Un Europejsk ej /
were produced in accordance to the following Europeans Directives
. 2014/ 0/UE – Kompatyb lnośc elektromagnetycznej / Electromagnetic Compatibility (EMC)
2. 2006/42/WE – Maszynowej / Machinery
3. 2014/ 5/UE – N skonap ęc owe wyroby elektryczne / Low Voltage Electrical Equipment (LVD)
4. 2009/125/WE – Produkty zw ązane z energ ą / Energy-related products (ErP 2015)
oraz zharmon zowanym z tym dyrektywam normam / and harmonized norms ,with above directives
PN-EN 60 5-1:2012
PN-EN 60 5-2- 0:2010
PN-EN 61000-6-2:2019
PN-EN 61000-6- :2007
0raz normam / and w th norms:
ISO 27 27-1:2009
ISO 27 27-2:2014
Gdyn a, 01.07.2020
Product Manager

18
2 . SERVICE AND WARRANTY TERMS
Please contact your dealer in order to get acquitted with the warranty terms and its limitation.
In the case of any rregular t es n the dev ce operat on, please contact the manufacturer’s serv ce department.
The manufacturer bears no responsibility for operating the device in a manner inconsistent with its purpose, by persons not authorised for
this, and for damage resulting from this!
Made in Poland
Made in EU
Manufacturer: FLOWAIR GŁOGOWSKI I BRZEZIŃSKI SP.J.
ul. Chwaszczyńska 135, 81-571 Gdyn a
tel. [phone],
e-ma l: nfo@flowa r.pl
www.flowa r.com

19
DOKUMENTACJA TECHNICZNA: PL
1. WAŻNE INFORMACJE
Dołożyl śmy wszelk ch starań, aby n n ejsza nstrukcja była jak najłatw ejsza do zrozum en a. Jeśl jednak masz jak eś trudnośc , problemy lub
pytan a, skontaktuj s ę ze wsparc em FLOWAIR pod adresem: nfo@flowa r.pl
Odw edź także naszą stronę nternetową www.flowa r.pl na której znajdz esz pełne wskazówk montażowe.
W n n ejszej nstrukcj znajdz esz ważne wskazówk oznaczone jak pon żej:
OSTRZEŻENIE
• N ebezp eczne praktyk , których
za stn en e może skutkować
poważnym urazem lub śm erc ą.
Przed przystąp en em do pracy
należy zapoznać s ę ze
wszystk m ostrzeżen am .
PRZESTROGA
• N ebezp eczne praktyk , których
za stn en e może skutkować
uszkodzen em dóbr lub
n eznacznym obrażen am c ała.
Przed przystąp en em do pracy
należy zapoznać s ę ze
wszystk m przestrogam .
PORADA
• Przydatne wskazówk dla
użytkown ka nstalatora.
WAŻNE INFORMACJE DOTYCZĄCE BEZPIECZEŃSTWA:
PORADA
1. Przed montażem, podłączen em, uruchom en em, użytkowan em konserwacją urządzen a należy zapoznać s ę w
całośc z n n ejszą nstrukcją.
2. Po odebran u produktu należy sprawdz ć, czy n e uległ on uszkodzen u podczas transportu. Jeżel produkt wydaje
s ę być uszkodzony, NIE NALEŻY ROZPOCZYNAĆ INSTALACJI; zam ast tego należy natychm ast zgłos ć uszkodzen e
przewoźn kow .
3. Urządzen e mus być zamontowane w sposób stab lny, trwały zgodny z nstrukcją, w m ejscu, do którego można
uzyskać łatwy dostęp, zapewn ając w ten sposób możl wość przeprowadzan a napraw rutynowych czynnośc
konserwujących, a także umożl w ając łatwy bezp eczny demontaż urządzen a.
4. Stab lność trwałość montażu urządzen a jest zależna od konstrukcj budynku (w szczególnośc śc an stropów).
Wykonujący montaż należy uwzględn ć te uwarunkowan a podczas montażu urządzen a.
5. Dokumentację techn czną należy przechowywać w bezp ecznym m ejscu, łatwo dostępnym dla użytkown ka
serw santa.
6. Tabl czka znam onowa znajduje przy dławn cach kablowych s ę na górnej częśc urządzen a.
7. Po zakończen u nstalacj należy zawsze przetestować dz ałan e urządzen a.
8. Urządzen a n e należy nstalować bezpośredn o pod gn azdem wtyczkowym
PRZESTROGA
1. Podłączen e zas lan a pow nna wykonać wyłączn e odpow edn o uprawn ona osoba.
2. Urządzen e może uruchom ć s ę w sposób automatyczny (po wykryc u ruchu w obszarze czujn ka).
3. Urządzen e n e jest wyposażone w termostat kontrolujący temperaturę w pom eszczen u. N e używaj urządzen a
w małych pom eszczen ach, w których znajdują s ę osoby n e będące zdolne samodz eln e ch opuśc ć. N e dotyczy
pom eszczeń z zapewn onym stałym nadzorem.
4. Urządzen e wymaga okresowych przeglądów, zgodn e z zap sam w n n ejszej nstrukcj .
5. N e wolno zaw eszać s ę na urządzen u.
6. N e wolno um eszczać na urządzen u, an zaw eszać na króćcach przyłączen owych żadnych przedm otów.
7. Produkt należy przechowywać montować w m ejscach n edostępnych dla małych dz ec .
8. Urządzen e dedykowane jest do pracy wewnątrz pom eszczeń o maksymalnym zapylen u pow etrza 0,3 g/m
3
.
Urządzen e pos ada elementy wykonane z alum n um, m edz oraz stal ocynkowanej n e może być stosowane
w środow sku mogącym powodować ch korozję.
9. Urządzen a n e mogą być stosowane w środow sku, gdz e występuje mgła olejowa.
10. N n ejszy sprzęt może być użytkowany przez dz ec w w eku co najmn ej 8 lat przez osoby o obn żonych
możl wośc ach f zycznych, umysłowych osoby o braku dośw adczen a znajomośc sprzętu, jeżel zapewn ony
zostan e nadzór lub nstruktaż odnośn e do użytkowan a sprzętu w bezp eczny sposób, tak aby zw ązane z tym
zagrożen a były zrozum ałe. Urządzen e n e może być używane przez dz ec do zabawy. Dz ec bez nadzoru n e
pow nny wykonywać czyszczen a konserwacj sprzętu.
11. Urządzen e w wersj elektrycznej (ELIS G E) przy p erwszym uruchom en u lub uruchom en u po dług m
przestoju może wydz elać charakterystyczny zapach wypalen a kurzu.
OSTRZEŻENIE
1. Urządzen e jest zas lane nap ęc em elektrycznym n ebezp ecznym dla człow eka. Należy zawsze odłączyć
urządzen e od zas lan a przed rozpoczęc em czynnośc serw sowych lub uzyskan em dostępu do jego podzespołów
wewnętrznych .
2. N e należy wkładać palców an żadnych przedm otów do wnętrza urządzen a.
3. N e wolno przykrywać urządzen a.

20
2. INFORMACJE OGÓLNE
Kurtyna pow etrzna ELIS G jest wysok ej jakośc urządzen em, które poprzez nadmuch pow etrza ogran cza straty zw ązane z wym aną c epła.
Urządzen e dedykowane jest WYŁĄCZNIE do pracy wewnątrz pom eszczeń. Kurtyna ELIS G przeznaczona jest do montażu poz omego nad
otworem drzw owym lub p onowego przy otworze drzw owym o maks. wysokośc 8,0 m.
Kurtyna występuje w wersj z mnej (bez podgrzewu), z grzałkam elektrycznym lub z wym enn k em wodnym:
ELIS G E-150; ELIS G E-200; ELIS G E-250 - kurtyny z grzałkam elektrycznym o maks. zas ęgu 7,5 m*;
ELIS G W-150; ELIS G W-200; ELIS G W-250 - kurtyny z wodnym wym enn k em c epła o maks. zas ęgu 7,5 m*;
ELIS G W-150 2R; ELIS G W-200 2R; ELIS G W-250 2R - kurtyny z wodnym wym enn k em c epła o maks. zas ęgu 7,5 m*;
ELIS G N-150; ELIS G N-200; ELIS G N-250 - kurtyny bez wym enn ka wodnego maks. zas ęgu strum en a 8,0 m*.
*zgodn e z ISO 27327-1
❶wlot ❷wylot
RYS. 2.1 KIERUNEK PRZEPŁYWU POWIETRZA. RYS. 2.2 ZASIĘG POWIETRZA NA POSZCZEGÓLNYCH BIEGACH.
PORADA
1. Dla ob ektów gdz e wymagany jest komfort użytkown ka zalecane jest zastosowan e kurtyny z podgrzewem (W lub E).
2. Podc śn en e w budynku znaczn e obn ża sprawność bar ery pow etrznej, należy zrównoważyć b lans wentylacyjny.
3. Przy prędkośc napływającego do budynku w atru powyżej 3 m/s, należy zastosować wersję z podgrzewem w celu zw ększen a
komfortu użytkown ków.
. BUDOWA
1.
Wentylator
2. Wym enn k c epła (W - wodny. E – grzałk elektryczne)
3. Obudowa bok
4. Pokrywa lewa
5. Dysza
6. Pokrywa prawa
RYS. .1 BUDOWA ELIS G N/W/E.
