Fluke 190-062/AM Operation manual

Scopes built tough
to keep up with you.
ScopeMeter®now takes you into
CAT IV environments.
ScopeMeter®190 Series II

See more.
Fix more.
The Fluke 190 Series II ScopeMeter®oscillo-
scopes, with electrically isolated channels, are
safety rated for industrial applications. These
scopes combine rugged portability with the
high performance of bench oscilloscopes to
take you from troubleshooting microelectronics
all the way into power electronic applica-
tions—and beyond.
Choose from two or four channel models
with a wide range of bandwidth options. Fast
sampling rates up to 2.5GS/s, 400 ps resolu-
tion and deep memory of 10,000 samples per
channel allow high-accuracy capture and
display of waveform details, noise, and other
disturbances.
Perform timing or amplitude related mea-
surements on three phases or three-axis
control systems, or simply compare and con-
trast multiple test points in a circuit under test.
Features like TrendPlot™, ScopeRecord™, and
Connect-and-View™help you quickly diagnose
industrial machinery, automation and process
controls, and power electronics to minimize
repair costs and downtime. These features
make the oscilloscopes easy to use especially
when diagnosing the most difficult problems
like complex waveforms, intermittent events
and signal fluctuations or drift.
New Li-ion battery technology keeps your
scope on the job, all day.
Fluke 190 Series II ScopeMeter test tools
are available with two or four channels,
60MHz to 200 MHz. Choose the model
that’s right for your environment and
budget.
ScopeMeter®portable oscilloscopes
take you into territory standard
bench scopes can’t go: where it’s
harsh, hazardous and dirty—without
sacrificing any capabilities.
2

Built to with-
stand harsh
environments
with the highest
safety ratings
Rated all the way to CAT IV
ScopeMeter test tools are rugged solutions built
for industrial troubleshooting. The new Fluke
190 Series II are double-insulated floating
oscilloscopes safety rated for measurements in
CATIII 1000V/CAT IV 600V environments.
Measure from mV to kV safely
Independent isolated inputs allow you to make
measurements in mixed circuits having different
ground references reducing the risk of acciden-
tal short circuits.
Conventional bench oscilloscopes without
special differential probes and isolation trans-
formers can only reference measurements to
line power earth ground.
With standard probes that cover a wide appli-
cation range from mV to kV, you’re ready for
anything from microelectronics to heavy-duty
higher voltage electrical applications.
IP-51 rated for harsh environments
Rugged and shock-proof, ScopeMeter portable
oscilloscopes are built for dirty, hazardous envi-
ronments. With its sealed case, it can endure
dust, drips, humidity and airborne pollutants.
Every time you reach for ScopeMeter you can
be confident it will work reliably wherever your
work takes you.
Overvoltage
category In brief Examples
CAT IV Three-phase at
utility connection,
any outdoor
conductors
•Refers to the “origin of installation,” that
is, where low-voltage connection is made
to utility power
•Electricity meters, primary overcurrent
protection equipment
•Outside and service entrance, service
drop from pole to building, run between
meter and panel
•Overhead line to detached building,
underground line to well pump
CAT III Three-phase
distribution,
including single-
phase commercial
lighting
•Equipment in fixed installations, such as
switchgear and polyphase motors
•Bus and feeder in industrial plants
•Feeders and short branch circuits,
distribution panel devices
•Lighting systems in larger buildings
•Appliance outlets with short connections
to service entrance
CAT II Single-phase
receptacle
connected loads
•Appliance, portable tools, and other
household and similar loads
•Outlet and long branch circuits
–Outlets at more than 10 meters (30 feet)
from CAT III source
–Outlets at more that 20 meters (60 feet)
from CAT IV source
CAT I Electronic •Protected electronic equipment
•Equipment connected to (source) circuits
in which measures are taken to limit
transient overvoltages to an appropriately
low level
•Any high-voltage, low-energy source
derived from a high-winding resistance
transformer, such as the high-voltage
section of a copier
Table 1. Overvoltage installation categories. IEC 61010 applies to low-voltage
(< 1000 V) test equipment.
3

Multiply your
diagnostic
powers with the
new Fluke 190
Series II Portable
Oscilloscopes
Introducing the scopes with CAT IV rating
The first CAT III 1000 V/CAT IV 600 V rated,
two- and four-channel portable scopes on the
market, the new Fluke 190 Series II brings an
unprecedented combination of performance and
ruggedness into the field.
Take on new challenges in industrial
machinery, automation and process
controls, power conversion electronics
Analyze timing and amplitude relationships of
multiple signals simultaneously, easily compare
and contrast waveform traces spotting irregu-
larities with ease.
•For three-phase power applications like
industrial motors and drives, UPS and
inverters for wind energy, solar, and diesel
locomotive controls for transportation
•For three-axis testing when you need to
measure input, output and control signals
simultaneously
The ultimate in portability
New high-performance batteries take advantage
of Li-ion technology to keep you going strong
for up to seven hours. With the easy-access
battery door you can make battery swaps fast.
USB connectivity makes it easy to
capture and share waveforms
The new Fluke 190 Series II offers two USB
ports, electrically isolated from measurement
input circuits. Easily transfer data to a PC.
Archive and share waveforms with OEMs,
colleagues and support staff. Store waveforms,
screen captures and instrument setups onto USB
memory devices.
Go to www.fluke.com/ScopeMeterSeriesII
Learn more about ScopeMeter applications
with the new Fluke 190 Series II.
4

AC to DC
conversion
Mains
supply
Mechanical
output
Motor (load) Cable interface
DC to AC converter DC lter
and buffer
bus
voltage
L1
T3
L2
T2
L3
Gnd
T1
+Vdc
-Vdc
T3
T2
T1
Input
Safety control
Feedback
Analog/Digital
Output
Condition
Transducers
Measurements’
Process/Display
Power Supply
Analog
Digital
What could you
do with four
channels?
Take multiple measurements
simultaneously to track down the
root cause of your most complex
troubleshooting challenges.
Easily diagnose timing-related issues
with multiple signals
•Real-time inspection of multiple related
signals simultaneously
•Measure a combination of input and output
signals and system safety interlocks and
feedback loops
Find problems in industrial systems
including:
•Circuit voltage/current overloading
•Attenuation/input impedance mismatch
•Signal fluctuation/drift
•Conditioning circuits signal integrity
•Test point verification for critical signals
•Input/output/feedback timing issues
•Induced noise and disturbances
•Random shutdowns/reset
Diagnose VSDs* or power inverters and
converters
•Harmonics, transients and loads in three-
phase power input
•Troubleshoot dc to ac converters for faulty
control circuits or output IGBT gate stages
•Cable interface—test PWM output for reflec-
tions and transients
•Vpwm measurement to measure the effective
voltage on drive outputs
In three-phase systems like variable speed drives, UPS or
back-up generators, use four channels to diagnose power
input, dc to ac converters, or cable interface problems.
For industrial electronics, four channels allow you to
perform three-dimensional testing, measuring input,
output and feedback signals simultaneously.
*Variable Speed Drive
5

Fluke ScopeMeter
test tools work
harder to make
your job easier
See what’s happening with fast real-time
high resolution sampling. ScopeMeter
offers a sample rate of up to 2.5 GS/s
with up to 400 ps resolution.
The built in multimeter provides conve-
nient precision measurements.
Capture high-resolution waveform
details over extended period using
ScopeRecord™mode.
Trend multiple measurements captur-
ing signal intermittent events, signal
drift or fluctuations.

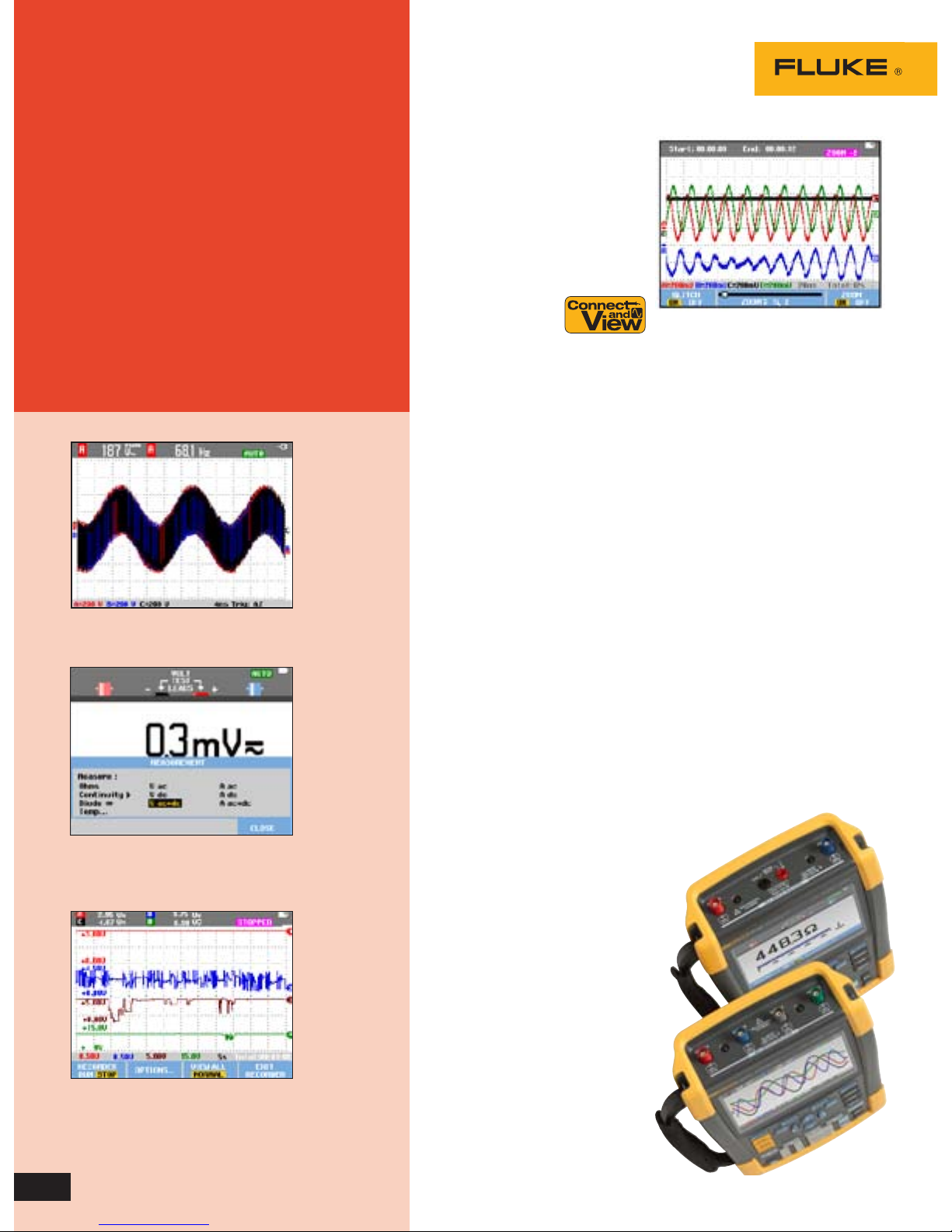

Connect-and-View™captures even the
most complex motor drive signals.
Connect-and-View™
triggering for an instant,
stable display
If you’ve used other scopes,
you know how tricky triggering
can be. If settings are incor-
rect, results can be unstable or
incorrect. Connect-and-View™
automatically sets up correct
triggering by
recognizing signal
patterns. Without
touching a button, you get a
stable, reliable and repeatable
display of virtually any signal
including motor drive and control
signals. It’s especially fast and
convenient when you’re measur-
ing a number of test points in
rapid succession.
Built-in digital multimeter
190 Series II models with
isolated dual input scope and
dedicated digital multime-
ter. Conveniently switch from
waveform analysis to precise
multimeter measurements using
the built in 5000 count digi-
tal multimeter. Measurement
functions include Vdc, Vac,
Vac+dc, resistance, continuity
and diode test. Measure current
and temperature using suitable
shunt, probe or adapter with
wide range of scaling factors.
ScopeRecord™mode for
high resolution waveform
recording up to 48 hours
ScopeRecord™memory stores up
to 30,000 or more data points
per channel, capturing fast inter-
mittents and glitches as short
as 8 ns. (Two sets of multiple-
channel recordings can be
stored for later analysis.)
•Records events like motion
profiles and UPS, power supply
or motor start-up cycles
•With the Stop on Trigger
mode, the ScopeMeter auto-
matically recognizes a power
failure and stores the wave-
form data preceding it
TrendPlot™paperless
recorder—records up to
16 days to help you find
intermittent faults
The toughest faults to find are
those that happen once in a
while. These intermittents can
be caused by bad connections,
dust, dirt, corrosion, or simply
broken wiring or connectors.
Line outages, sags or starting
and stopping of a motor can
also cause a machine to stop.
You may not be around when
it happens, but the Fluke
ScopeMeter will.
•Plot minimum and maximum
peak values and average over
time up to 16 days
•Plot any combination of volt-
ages, amps, temperature,
frequency and phase for all
four inputs, all with time and
date stamp to pinpoint faults
6

Persistence, FFT, mathematics and
pass/fail waveform envelope testing
Look back in time with
automatic capture and dis-
play of last 100 screens
It’s frustrating to see a one-time
anomaly flash and miss it. Fluke
ScopeMeter solves the prob-
lem by letting you look back in
time with a touch of the replay
button.
•In normal use, the instrument
continuously memorizes the
last 100 screens. As each new
screen is acquired, the oldest
is discarded.
•At any moment you can
“freeze” the last 100 screens
and scroll through picture-by-
picture or replay as a “live”
animation
•Use cursors for further analysis
•Advanced triggering lets you
capture up to 100 specific
events (Two sets of 100
captured screens with individ-
ual time stamps can be stored
for later recall or downloaded
to a PC or USB stick.)
Cursors and automatic
waveform measurements
With 30 automatic measure-
ments, cursors, and zoom,
ScopeMeter will perform
automatic power and Vrms
measurements on specific
portion of the waveform within a
specified time span.
Time Stamp
Real-time clock allows you to
find out when a specific event
was recorded.
FlukeView®ScopeMeter
software for documenting,
archiving and analysis
Get more out of your ScopeMeter
with FlukeView®ScopeMeter®
SW90W Software for Windows.
•Documentation—transfer wave-
forms, screens and data to
your PC for printing or import-
ing data into a report
•Add text to ScopeMeter
settings—give operators guid-
ance when recalling settings
•Archive—create a library of
waveforms for easy reference,
waveform comparison, or pass/
fail testing
•Analysis—use cursors, perform
spectrum analysis or export
data to another analysis
program
•Connect to your PC with opti-
cally isolated USB port
Conveniently store and
transfer critical waveform data
using isolated USB ports.
Digital Persistence mode gives analog
scope-like display of complex and
modulated signals.
Frequency Spectrum shows an overview
of frequencies contained in a signal.
Pass/Fail testing of actual signal against
a reference template.
7

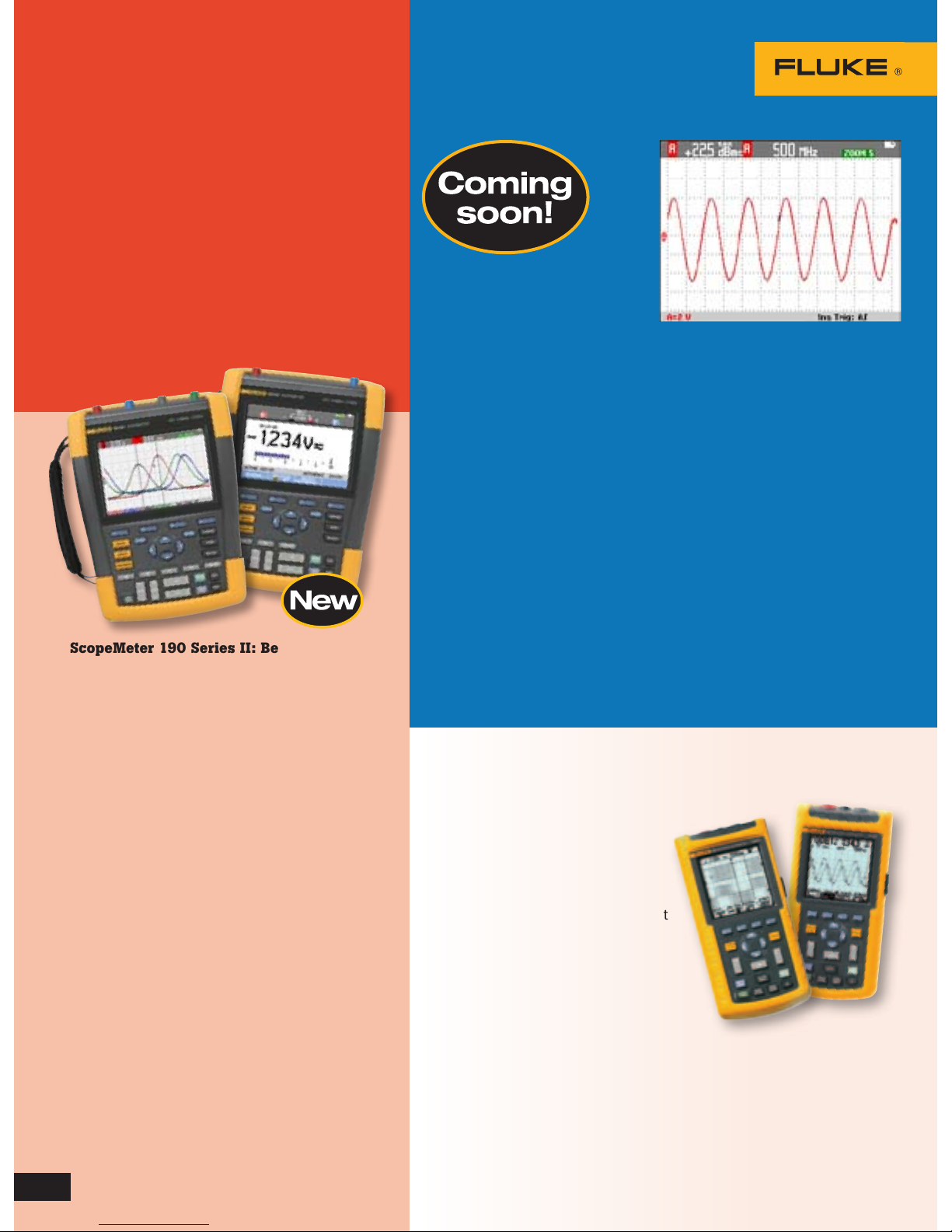

A broad family
of ScopeMeter
models
Choose the model that fits your
applications and budget.
Fluke offers the broadest range
of bandwidths in portable
oscilloscopes—from 20MHz to
200MHz.
ScopeMeter 190 Series II: Be prepared for
anything in a CAT IV world with three-axis
and three-phase testing.
•190-XX4 model with four independent
isolated inputs
•190-XX2 models with two independent
isolated scope inputs and DMM input
•Choose 60 MHz, 100 MHz or 200 MHz
bandwidth
•Fast sample rate: up to 2.5 GS/s with up to
400 ps resolution
•Single shot, pulse width and video triggering
•Deep memory: 10,000 point per trace wave-
form capture
•CAT III 1000 V/CAT IV 600 V, safety rated
•Up to seven hours of operation with high-
performance Li-ion batteries (four hours with
2 channel models)
•Battery door for conveniently swapping out
batteries to extend usage time plus optional
external charger
•Two isolated USB ports, for memory devices
and PC connectivity
•Security slot to lock down instrument using
standard Kensington®lock
•Plus all the standard features of ScopeMeter
including TrendPlot™, Connect-and-View™
triggering and ScopeRecord™
ScopeMeter 120 Series:
Three-in one simplicity for
electrical or electromechanical
troubleshooting.
•It’s an oscilloscope, a multimeter
and a paperless recorder in one
affordable, easy-to-use instrument
•Dual input
•Up to seven hours of battery
operation
•CAT III 600 V safety rated
•Automatic measurements
•Choice of 40MHz or 20 MHz
bandwidth
•Two 5,000 count true-rms digital multimeters
•Includes standard ScopeMeter features like Connect-and-View™
and TrendPlot™recording
•Model 125 offers network bus health and power measurements
for industrial systems testing
Watch for the
new ScopeMeter
190 Series II
500 MHz, 5 GS/s coming soon.
Innovation and advancements
in electronics continue to take
significant leaps. See how the
new 500 MHz ScopeMeter
stays one step ahead of these
advancements.
Visit www.fluke.com/ScopeMeterSeriesII and be
the first to learn how you can put a 500 MHz portable
oscillosope to work for you.
500 MHz, 5 GS/s unprecedented performance
in a hand-held portable oscilloscope.
8

Comprehensive selection guides will be available on the web and in the datasheet
Industry applications
Industrial Industrial Electronics Electronic Field Service
Technologies Electrical Electro-
mechanical
Process Controls Automation Medical Imaging Avionics A/V & Security
Systems
Equipment Switch Gear,
Interlocks,
Motors, Pumps,
Fans, Furnaces,
Presses, Mixers,
Refrigeration
Actuators,
VFD Drives,
Linear Motors,
Pressure-Level-
Flow-Position
Sensors,
Packaging
Equipment
Transducers /
Sensors,Loop
Controllers,
Calibrated
Gauges
PLC´s, Sensors,
Transducers<
Motion
Controllers,
Rotory Encoders,
Scanners,
Readers, Printers
XRay, MRI,
Ultrasound
Imaging
equipment
Flight line
Navigation
Systems,
Communication
systems, Radars,
On board
aircraft control
systems
Retail security
devices,
Surveilance
and monitoring
equipment, RFID
120 Series: Electrical and Electromechanical Troubleshooting
123 •
124 •
Industrial Network Bus Health Troubleshooting
125 • •
190 Series II: Industrial Electronics, Automation, Process Control Testing and Electronic Field Service
190-062 •
190-102 •
190-202 ••••
190-104 •
190-204 ••••
Selection guide
120 Series 190 Series II ScopeMeter
Features 123 124 125 190-062 190-102 190-202 190-104 190-204
Bandwidth (MHz) 20 40 40 60 100 200 100 200
Scope inputs 22222244
Dedicated DMM 222111——
Dual Input Trendplot™••••••— —
Four Input Trendplot™——————• •
ScopeRecord Mode ———•••••
Automatic Capture and
Replay Mode
———•••••
Cursors —•••••••
Zoom ———•••••
Bus Health Test Mode — — •—————
Advanced power
measurements
••••••
EN61010-1 CAT IV
Safety Rating
———600 V 600 V 600 V 600 V 600 V
EN61010-1 CAT III
Safety Rating
600 V 600 V 600 V 1000 V 1000 V 1000 V 1000 V 1000 V
Battery 7 hr NiMH 7 hr NiMH 7 hr NiMH 4 hour Li-ion
(8 hour Opt)
4 hour Li-ion
(8 hour Opt)
4 hour Li-ion
(8 hour Opt)
7 hour Li-ion 7 hour Li-ion
Optical RS-232 •••—————
Isolated USB PC Interface Opt Opt Opt •••••
Isolated USB memory port ———•••••
9

Ordering
information
Fluke 190 Series II 4-channel instruments include a set
of four probes, hanging strap, USB cable with mini-B
connector, double capacity Li-ion battery BP291, battery
charger/power adapter BC190, a FlukeView demo pack-
age and users manuals on CD-ROM. The /S-versions
also include the C290 hard-shell carrying case and the
FlukeView software package. The 2-channel models
come with two probes plus a set of TL175 test leads and
a single capacity battery BP290. SCC kit includes: Hard-
shell carrying case, optically isolated USB interface
cable, and FlukeView®for Windows®software.
Models
Fluke 190-204 Color ScopeMeter, 200 MHz, 4 channels
Fluke 190-204/S Color ScopeMeter, 200 MHz, 4 channels, with SCC-290 kit included
Fluke 190-104 Color ScopeMeter, 100 MHz, 4 channels
Fluke 190-104/S Color ScopeMeter, 100 MHz, 4 channels, with SCC-290 kit included
Fluke 190-202 Color ScopeMeter, 200 MHz, 2 channels plus DMM/Ext.input
Fluke 190-202/S Color ScopeMeter, 200 MHz, 2 channels plus DMM/Ext.input, with
SCC-290 kit included
Fluke 190-102 Color ScopeMeter, 100 MHz, 2 channels plus DMM/Ext.input
Fluke 190-102/S Color ScopeMeter, 100 MHz, 2 channels plus DMM/Ext.input, with
SCC-290 kit included
Fluke 190-062 Color ScopeMeter, 60 MHz, 2 channels plus DMM/Ext.input
Fluke 190-062/S Color ScopeMeter, 60 MHz, 2 channels plus DMM/Ext.input, with
SCC-290 kit included
Fluke 125 Industrial ScopeMeter (40 MHz)
Fluke 125/S Industrial ScopeMeter (40 MHz) + SCC120 kit
Fluke 124 Industrial ScopeMeter (40 MHz)
Fluke 124/S Industrial ScopeMeter (40 MHz) + SCC120 kit
Fluke 123 Industrial ScopeMeter (20 MHz)
Fluke 123/S Industrial ScopeMeter (20 MHz) + SCC120 kit
Optional accessories
Accessories for ScopeMeter 190 Series II
C290 Hard shell protective carrying case for 190 Series II
HH290 Hanging Hook for 190 Series II instruments
SCC290 FlukeView Software (full version) and C290 Carrying Case kit
VPS410-R Voltage Probe set, 10:1, 300 MHz, one set red
VPS410-G Voltage Probe set, 10:1, 300 MHz, one set grey
VPS410-B Voltage Probe set, 10:1, 300 MHz, one set blue
VPS410-V Voltage Probe set, 10:1, 300 MHz, one set green
VPS420-R High voltage probe set 150 MHz, 100:1, CAT III 2000 V
(1000 V to earth)
BC190 Mains adapter/battery charger
EBC290 External battery charger for BP290 and BP291
TL175 TwistGuard™safety designed Test Leads set (1 red, 1 black)
BP290 Li-Ion battery pack, 2400 mAh
BP291 Li-Ion battery pack, 4800 mAh
SW90W FlukeView®ScopeMeter Software for Windows®
Accessories for ScopeMeter 120 Series
SCC120 FlukeView®Software + Cable + Case
PM9080 Optically Isolated RS-232 adapter/cable
OC4USB Optically Isolated USB interface cable
DP120 Differential Voltage Probe
BHT190 Bus Health Test break-out adapter for DB-9, RJ-45 and M12
connection systems
ITP120 Optically Isolated External Trigger Input
SW90W FlukeView®ScopeMeter Software for Windows®
C120 Hard Shell Carrying Case
Fluke Corporation
PO Box 9090, Everett, WA 98206 U.S.A.
Fluke Europe B.V.
PO Box 1186, 5602 BD
Eindhoven, The Netherlands
Fluke. Keeping your world
