FRANCO BELGE ARDENNES 134 13 15 User manual

Description of the appliance
Installation instructions
Operating instructions
Spare parts
Warranty certificate
Document n° 1146-14
25/03/2011
ARDENNES
Wood stove
EN 13240
Model : 134 13 15
Output : 11 kW
Technical manual
to be saved
by the user
for future reference
FRANCO BELGE
Rue Orphée Variscotte
59660 MERVILLE (FRANCE)
Telephone : [phone]
Fax : [phone]
Subject to modifications.
FR NL EN IT ES

2 Technical manual “1146”
“ARDENNES” - model 134 13 15
CONTENTS
Description of the unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 3
Package . . . . . . . . . . . . . . . . . p. 3
Specifications . . . . . . . . . . . . . . p. 3
Appliance description . . . . . . . . . . p. 3
Operating principle. . . . . . . . . . . . p. 3
Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 4
Warning to the user . . . . . . . . . . . p. 4
Location of the unit . . . . . . . . . . . p. 4
Chimney . . . . . . . . . . . . . . . . . p. 5
Mounting the flue collar . . . . . . . . . p. 5
Chimney connector . . . . . . . . . . . p. 5
Mounting the tray . . . . . . . . . . . . p. 6
Pre-utilisation check . . . . . . . . . . . p. 6
Maintenance of the Chimney . . . . . . p. 6
Instructions for user . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 7
Fuel . . . . . . . . . . . . . . . . . . . . p. 7
Lighting . . . . . . . . . . . . . . . . . . p. 7
Operating procedure. . . . . . . . . . . p. 8
De-ashing . . . . . . . . . . . . . . . . p. 8
Maintenance of the Chimney . . . . . . p. 8
Maintenance of the stove . . . . . . . . p. 8
Safety advice . . . . . . . . . . . . . . . p. 8
Trouble shooting . . . . . . . . . . . . . p. 9
Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 10
FRANCO BELGE congratulates you on your choice.
FRANCO BELGE, guarantees the quality of its appliances and is committed to meet its
customers’ needs.
FRANCO BELGE, which can boast a 80-year experience in the industry of heating devices, uses
state-of-the-art technologies
to design and manufacture its whole range of products.
This document contains instructions on how to install your appliance and make full use of its
functions, both for your comfort and safety.

This appliance is meant to burn wood safely
WARNING
Incorrectly installed, this appliance can be dangerous and possibly cause serious accidents.
We recommend that you engage the services of a professional engineer for its installation
and the regular maintenance requirements.
1 Description of the unit
1.1 Package
•1 package : Stove
1.2 Specifications
Model. . . . . . . . . . . . . . . . . . . 134 13 15
Nominal Heat Output. . . . . . . . . kW 11
Hearth dimensions
(combustion chamber)
- Width . . . . . . . . . . . . . . . . mm 520
- Depth . . . . . . . . . . . . . . . . mm 304
- Height. . . . . . . . . . . . . . . . mm 265
Logs dimensions
- Depth maxi . . . . . . . . . . . . . cm 50
Ash pan capacity . . . . . . . . . . litre 5
Weight . . . . . . . . . . . . . . . . . kg 140
Heated volume . . . . . . . . . . . . m3450
Chimney draught required . . . . . . Pa 11
Flue mass gas flow . . . . . . . . . . g/s 13,7
Flue mean gas temperature . . . . . C° 273
Efficiency. . . . . . . . . . . . . . . . % 73,3
Co (13% O2) . . . . . . . . . . . . . . % 0,16
1.3 Appliance description
Wood stove - in conformity with EN 13240
•intermittent-burning heating appliance.
•Detachable flue spigot for rear or top chimney
connection.
•Front loading door fitted with large refractory glass
panel.
•Adjustable air control for controlling the burning rate.
•Large ash-pan.
Long lasting burning cycle : When the appliance is
loaded with à 11,5 kg of dry wood (primary air inlet

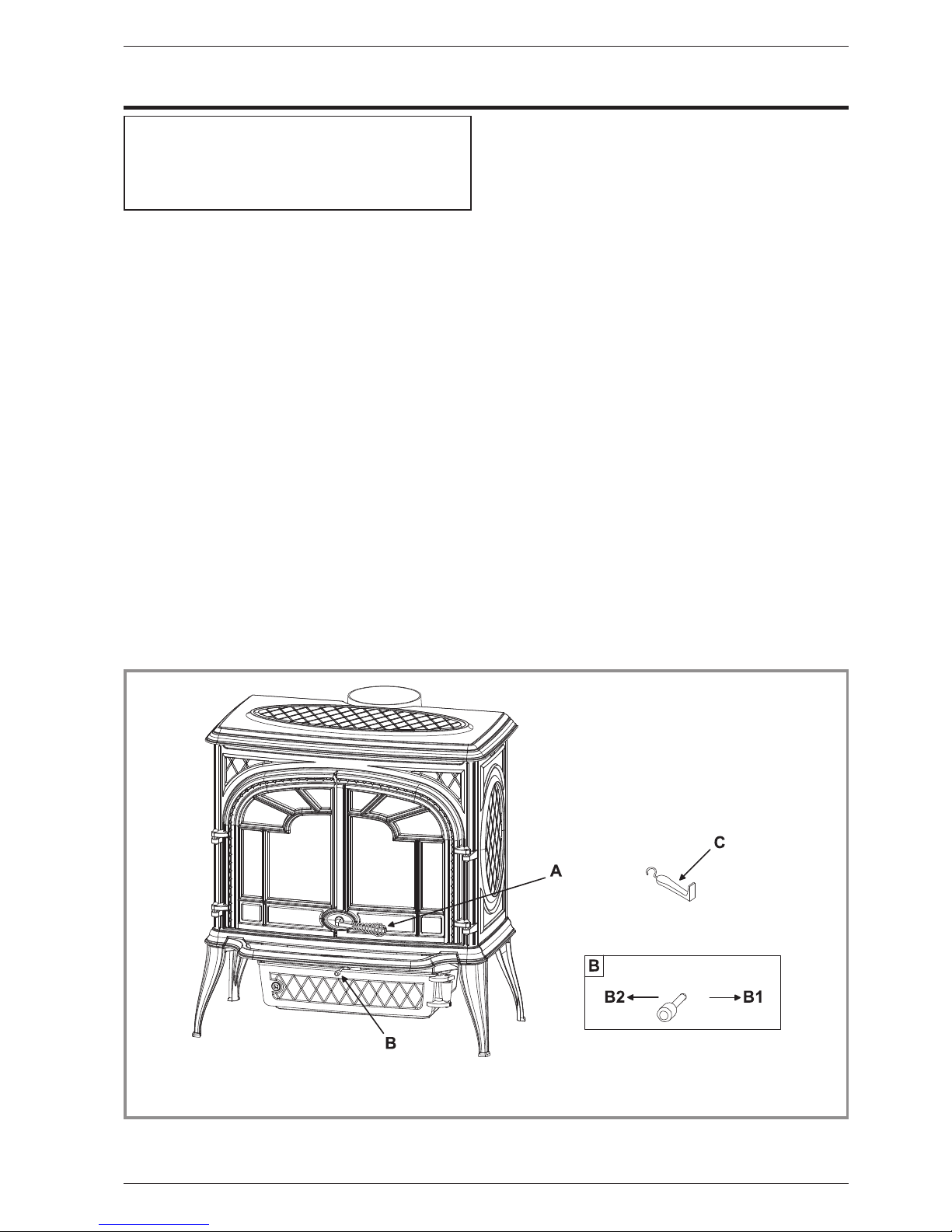

closed, rep. B, fig. 5, page 7) with a 6 Pa draught, it runs
for 11 hours.
1.4 Operating principle
The “ARDENNES” is designed for operating only with
the door closed. Heat is mainly diffused by radiation,
through the window and body of the appliance.
Technical manual “1146” 3
“ARDENNES” - model 134 13 15 Description of the unit
5 2 4
4 3 2
4 1
614
6 5 2
6 8 1
712
Ø 1 3 9
Ø 1 2 5

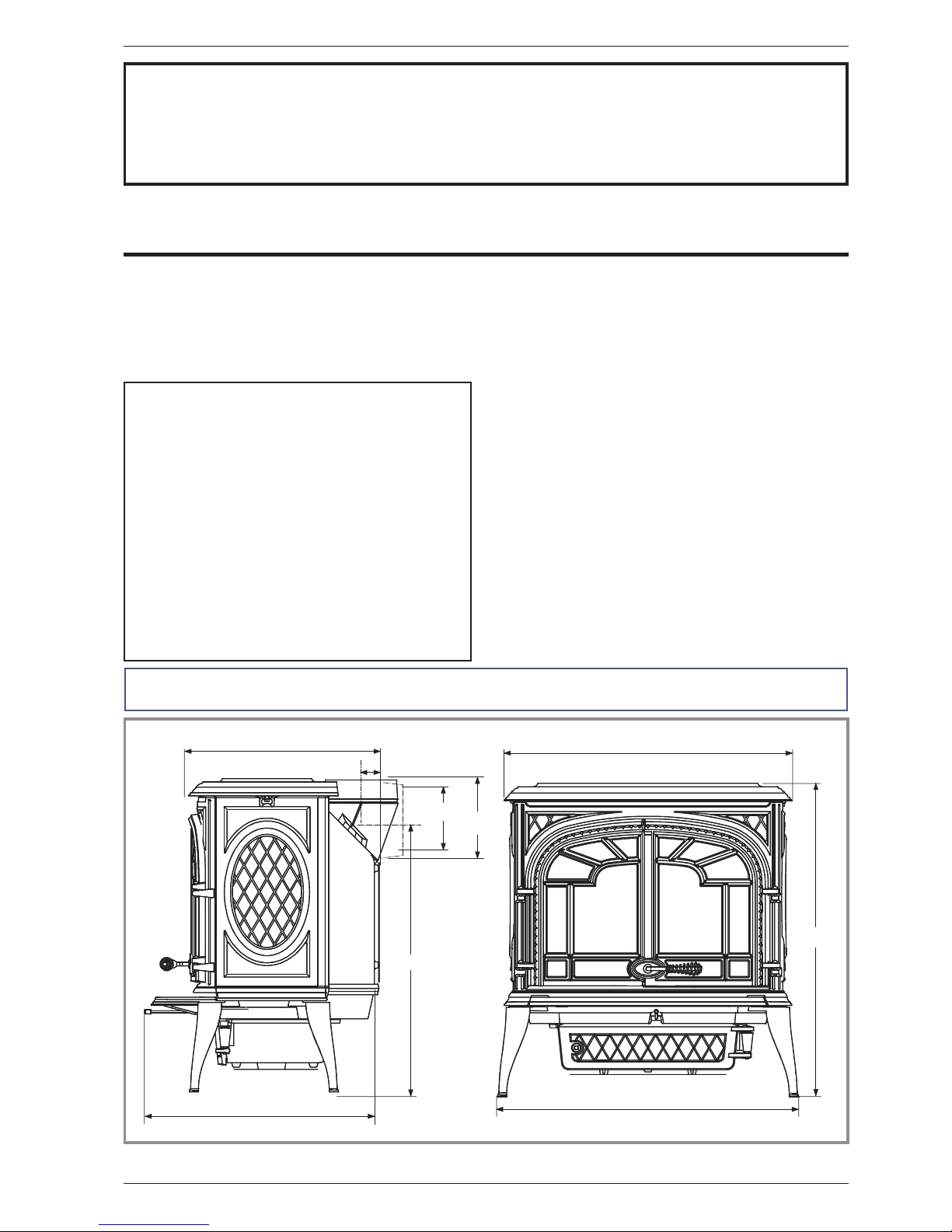

Figure 1 - Dimensions in mm
Note : The indicated performances result from tests carried out in accordance with standard EN 13240 with logs of
35 cm and a draught of 11 Pa, fuel mass of 4,9 kg and air inlet open at 50 %.

2 Installation instructions
2.1 Warning to the user
All the local and national regulations, and in
particular those relating to national and European
standards, must be observed when installing the
appliance.
An incorrectly installed heating appliance can
cause serious accidents (chimney fires, burning of
plastic insulation materials, in partition walls, etc...).
The insulation of both the appliance and the
exhaust gas pipe has to be reinforced and done
according to the Standards and the Building
Regulations for safety reasons. The installation must be
carried out according to the Standards and the Building
Regulations.
Failure to respect the mounting instructions leads to
engage the responsibility of the one doing the
installation.
The manufacturer’s responsibility shall be limited to the
supply of the appliance.
2.2 Location of the unit
Ventilation : For satisfactory appliance operation with
anatural draught, check that sufficient air for
combustion is available in the room. In houses
equipped with one VMC (controlled mechanical
ventilation), this one aspire and renew the ambient air ;
in this case, the residence is under slight low pressure
and a non-sealable external air intake must be
installed in addition to the chimney itself, at least 50 cm²
in section.
Position of the unit : For new installations, select a
central position within the house, to provide a good heat
distribution around the building. The heat distribution
towards the other rooms will be made through the
communicating doors. These rooms must be at low
pressure or fitted with non-adjustable air registers,
placed so that they cannot be obstructed, to
encourage circulation of the hot air.
F l o o r a n d w a l l s :
Make sure there are
not com bustible or
cov ered w ith
combustible material.
Oth erwi se it mus t
necessary to install a
n o n - c o m b u s t i b l e
protection. There must
be a clearance of at
least 150 mm at each
side of the appliance
and at the back of the
app lian ce from a
non-combustible wall.
This distance must be
ext ende d to a
minimum clearance of
400 m m from a ny
combustible materials.
Thi s meas ureme nt
may be reduced to a
minimum gap of 50 mm
when the non-combustible wall is at least 200 mm thick.
There should ideally be a minimum gap of 300 mm at
the right hand side of the stove, this will ensure the best
possible access to the loading door. When using a
single wall flue pipe, there must be a clearance (A) of at
least three times its diameter (B) from any combustible
materials. If the appliance has to be located in an
opening, this distance must be extended to a minimum
clearance (A) of 450 mm from the pipe or the stove body
to any combustible materials.
Hearth : The appliance must stand on a fireproof
hearth.
It is possible to provide a hearth made of non
combusible board/sheet material or tiles at least 12 mm
thick (C).
Constructional hearths should be constructed of solid
non combustible material at least 125 mm thick
(including the thickness of any non combustible floor
under the hearth).
The hearth must protrude at least 300 mm in front of the
stove and 150 mm each side.
Hearths are provided to prevent combustion appliances
setting fire to the building fabric and furnishings and to
limit the risk of people being accidentally burnt.
Therefore, they should be separated from adjacent
combustible materials and should be satisfactorily
delineated from surrounding floor finishes (carpets
etc...) as follows.
Combustible material should not be placed under a
constructional hearth for a solid fuel appliance within a
vertical distance of 250 mm from the upper surface of
the hearth, unless there is an airspace of at least 50 mm
between the combustible material and the underside of
the hearth.
Where a superimposed hearth has been placed onto a
constructional hearth, combustible material placed on
or besid the constructional hearth should not extend
under the superimposed hearth by more than 25 mm or
closer to the appliance than 150 mm.
4 Technical manual “1146”
“ARDENNES” - model 134 13 15 Installation instructions
150 300
1 5 0
B
A
A
C
1 5 0 1 5 0
1 5 0

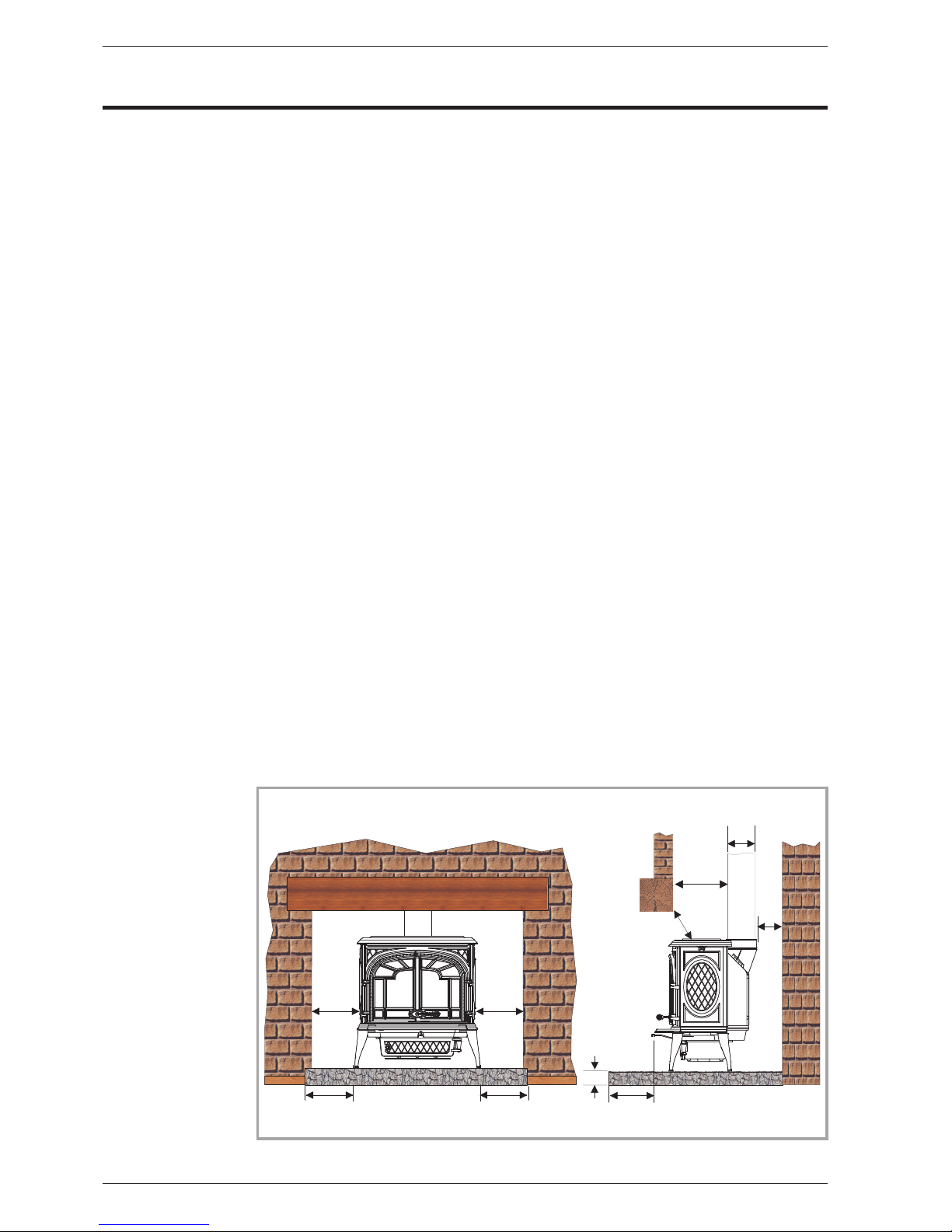

Figure 2 - Minimum clearances

Ens ure th at the he arth ( supe rimpo sed or
constructional) is suitably delineated to discourage
combustible floor finishes from being laid too close to
the appliance, by marking the edges or providing a
change of level.
Position the appliance on the hearth such that
combustible marerial cannot be laid closer to the base
of the appliance than :
(a) At the front, 300 mm if the appliance is an open
fire or stove which an, when opened, be operated as
an open fire, or 225 mm in any other case.
(b) At the back and sides, 150 mm or in accordance with
the recommendations below which relate to distance
from hearth to walls. Please refer to section J of the
Building regulations.
When using a single wall flue pipe, there must be a
clearance (A) of at least 450 mm from any combustible
materials (timber mantel, girder).
2.3 Chimney
Existing flue : The chimney must comply with Current
Building Regulations. If in doubt, consult your Dealer or
local Building Inspector.
-The flue must be in good condition and must provide
sufficient draught (refer to technical details p. 3).
-The flue must be suitable for the installation of fuel
burning appliances, otherwise it must necessary to
install a tubing.
-The flue must be clean. It should be swept to remove
soot and dislodge tar deposits.
-The flue must be well insulated. If the flue inner wall
surfaces are cold, a good thermal draw is impossible
causing condensation problems (tar formation etc...)
to occur.
-The flue must be watertight.
-The flue must not be shared with other appliances.
-The chimney must have a constant cross section.
-When the cross-section of the chimney is too large, it
has difficulties in obtaining a good draught.
-The chimney must be at least 4.5 m (15 ft) high and be
at 40 cm above the ridge of the roof and 8 meters away
from any construction.
-In case of a flat roof or when the roof gradient is lower
than 15°, the stack must be 1,2 m (4 feet) high at least.
-The capping must not restrain the draught.
-If the chimney has any down draught tendency, due to
its position in relation to nearby obstacles, then an
anti-down draught cowl must be installed on the
chimney or the chimney height must be increased.
-If the chimney draught is excessive or irregular, a
draught stabilizer (barometric damper) must be
installed to the connector pipe it must be visible and
accessible.
Chimney to be built / New flue : The chimney must
comply with Current Building Regulations. If in doubt,
consult your Dealer or local Building Inspector.
-The appliance must not support the weight of the flue.
-It must be distant from any combustible material
(walls, cross members).
-It must permit an easy sweeping.
2.4 Mounting the flue collar
The stove is supplied with a connection flue spigot with
an inner diameter of 125 mm and an outer diameter of
139 mm. The same smoke outlet can be used to install a
top or rear flue. All you have to do is remove the
2 screws and turn the adapter 180 degrees (figure 3).
Ensure that the seal is fitted correctly.
2.5 Chimney connector
-The connection to flue must be carried out according
to local building regulations.
-The appliance must be installed as close as possible
to the chimney.
-The connector pipe must be approved for installation
with combustion products (either 24 ga. black painted
or blued steel or 316 grade 20 ga. Stainless steel or
1 mm vitreous enamelled steel).
-Pipe diameter must not be less than the appliance
spigot diameter. If there is no other solution, the
reduction can not be more than one diameter lower
than the flue spigot and be situated as distant as
possible from the flue connection of the appliance.
-The connection can be either vertical or horizontal. For
horizontal connections, avoid right angle bends.
-The join between the connection pipe and the
stovepipe, and the flue, must be leak tight.
-For the premises equipped with a mechanical
controlled ventilation, the airtightness has to prevent
the exhauster drawing out the smokes from the
exhaust gas pipe.
-The connection pipe and any draught stabiliser must
have access for cleaning.
Technical manual “1146” 5
“ARDENNES” - model 134 13 15 Installation instructions
Figure 3 - Mounting the flue collar
A
Figure 4 - Mounting the tray
180°

2.6 Mounting the tray
To avoid damage during transport, the tray has been
stored behind the main door (figure 4).
Centre the tray on tab “A” and lower into place.
2.7 Pre-utilisation check
-Check that the seals of the smoke-line are in good
condition. Check that the door closes correctly. Check
that the glass is not damaged. Check that the smoke
passages are not obstructed by packaging or
removable parts. Check that all removable parts are
correctly installed.
Note : If it acts of a ceramics braid, it is consumable and
thus brought to be changed by the user.
2.8 Maintenance of the Chimney
Very important : In order to avoid any incident
(chimney fire, etc...), maintenance tasks must be
carried out regularly. If the appliance is regularly used,
the chimney should be swept several times per year,
together with the stovepipe connection section.
If the chimney catches fire, you must cut off the flue
draught, close the doors and windows, hatches and
keys, stop up the connection hole with wet cloths
and call the Fire Brigade.
DO NOT OPEN THE DOOR OF THE APPLIANCE
(OR AIR INLET) UNDER ANY CIRCUMSTANCES
6 Technical manual “1146”
“ARDENNES” - model 134 13 15 Installation instructions

3 Instructions for user
The manufacturer will not be responsible for damages
on parts of the appliance due to the use of prohibited
fuel or due to an alteration of the appliance or its
installation. Only use replacement parts supplied
by the manufacturer.
All the local and national regulations, and in
particular those relating to national and European
standards, must be observed when using the
appliance.
Don’t run the stove in mild weather with coal ! Under
certain circumstances (e.g. fog and repeated thaw) the
chimney will not draw sufficiently well and thus be at the
origin of asphyxia.
3.1 Fuel
This appliance is not an incinerator.
Use hard wood logs, which have been cut for at least
two years and stored, under a ventilated shelter.
Use hardwood that have a higher calorific value per cu
metre (Yoke-elm, oak, ash, maple, birch, elm, beech,
etc...). Large logs must be split and cut to an useful
length (Humidity < 20 %), before being stored in a
sheltered and ventilated place.
•Recommended fuel
Firewood : Hornbeam
•Suitable fuel
Firewood : Oak, ash, maple, birch, elm, beech, etc...
•Prohibited fuel
Any form of coal and fuel oil !
“Green wood” ; green or damp wood reduces the
appliance efficiency and soils the glass, the internal
walls and the flue (soot, tar, etc...).
“Recovered wood” ; railway sleepers, telegraph poles,
offcuts of plywood or chip board, pallets, etc... Burning
treated wood quickly clogs the flue ways (soot, tar,
etc...), pollutes the environment (pollution and smell,
etc...) and cause the fire to burn too quickly and
overheat.
FGreen wood and recovered wood can cause a chim-
ney fire.
3.2 Lighting
Figure 5
-Open the air regulation flap (rep. B1).
-Open the main doors.
-Place on the grate on scrunched up paper, some
brushwood and some hardwood of small diameter.
-Set light to the paper and close the glass doors.
-When the wood is well lit partially, load the appliance
without excess and close the main doors (rep. A).
At the first lighting, the fire must be progressively
increased to allow the various parts to expand normally
and to dry up.
When the fire is lit for the first time, the appliance may
give off fumes from the new paint. This is normal but
ensure the room is well ventilated during the first few
hours operation.
Technical manual “1146” 7
“ARDENNES” - model 134 13 15 Instructions for user
Figure 5 - Operating devices
A: Opening/closing the
main door
B: Draught control
(primary air inlet)
B1 = open
B2 = close C: Tool

8 Technical manual “1146”
3.3 Operating procedure
The appliance must function all door properly
closed. The burning rate can be adjusted by the air
control flap (rep. B).
Experience will show you which settings are best for
your situation.
The airwash system works with the air control flap.
When the air control flap is full open the system works at
its strongest efficiency.
The more closed down the control flap is, the less
effective the airwash will be (when shut down
completely, the airwash system can not function).
•Loading the fuel :
-The door should be opened slowly, avoiding a sudden
rush of intake air, so that smoke does not escape into
the room.
-The minimum reloading interval for nominal heat
output is 1.2 hours.
-The logs must be placed on the glowing embers.
-For a briskly burning fire, there should always be at
least two logs in the fire. The fire will burn better if
there are several logs.
-For a slower burning fire (for example, at night), select
larger logs.
-After loading the firebox, close the main doors (rep. A,
page 7).
3.4 De-ashing
-Ashes must be removed regularly.
-Ashes must never be allowed to pile up to the grate.
The grate would not be cool down and could rapidly be
damaged.
-Empty the ashes when the appliance is cold.
-Pick up the ash pan using a tool.
-Empty the ashes carefully with regard to the live
embers.
3.5 Maintenance of the Chimney
Very important : In order to avoid any incident
(chimney fire, etc...), maintenance tasks must be
carried out regularly. If the appliance is regularly used,
the chimney should be swept several times per year,
together with the stovepipe connection section.
If the chimney catches fire, you must cut off the flue
draught, close the doors and windows, hatches and
keys, stop up the connection hole with wet cloths
and call the Fire Brigade.
DO NOT OPEN THE DOOR OF THE APPLIANCE
(OR AIR INLET) UNDER ANY CIRCUMSTANCES
Chimney condition should be checked at least once per
year by a professional engineer.
3.6 Maintenance of the stove
-The appliance must be cleaned regularly, together
with the connecting pipe and the flue pipe.
-Open the door and remove all deposits in the firebox
and clean the removable fire grate.
-Cleaning of the glass door can be done with a soft
cloth dampened with water and vinegar or potassium ;
this must be done when the appliance is cold ; then
rinse with clear water. Do not use abrasive cleaners.
-The “vitroceramic” glass will resists to temperatures of
up to 750 C. Should the glass break due to misuse, it
must be replaced by the manufacturers own product.
-Check that there are no obstructions before relighting
after a long period of disuse.
-The appliance must not be used with a flue serving
several appliances.
-To maintain the grates ventilation free of any
obstruction.
-For enamelled finishes, the stove body can be cleaned
using a soft cloth either dry, or slightly damp with a
very mild detergent.
-The baffle plates should be removed regularly and any
ash or deposits cleaned away. Ashes must not be
allowed to build up.
-The door rope seals should be checked annually and
replaced when required.
NEVER CLEAN ENAMEL SURFACES WHILST THE
STOVE IS HOT.
The cast iron body panels of non-enamelled stoves can
be cleaned with a proprietary stove cleaner or
re-sprayed / touched up using a stove paint. These
products are available from your Franco Belge Dealer.
3.7 Safety advice
This appliance produces heat and may cause severe
burns if touched.
The stove may still be HOT even when the fire has burnt
out.
KEEP CHILDREN AWAY.
“ARDENNES” - model 134 13 15 Instructions for user

Technical manual “1146” 9
3.8 Trouble shooting
Situation Probable causes -Corrective action
Fire difficult to start. Fire goes
out.
Wood green… or too damp -Use hard wood logs, which have been cut for at least
two years and stored, under a ventilated shelter.
Logs are too big -To light the fire, use small, very dry twigs. To maintain
the fire, use split logs.
Poor quality wood -Use hardwood that have a higher calorific value per cu
metre (Yoke-elm, oak, ash, maple, birch, elm, beech,
etc...).
Not enough primary air -Open air control.
-Open the outside fresh air inlet grid.
Insufficient draught þ-Check that the flue is not obstructed, sweep it if
necessary.
-Seek advice from a chimney specialist.
Fire burns too quickly. Too much draught -Ensure that the lighting flap is closed (fig. 5, p. 7).
-Partially close the air control.
Excessive draught þ-Install a draught stabiliser to the connector pipe.
Poor quality wood -Do not continuously burn small wood, sticks, bundles,
carpentry offcuts (plywood, pallets), etc...
Smokes when lighting up. Flue duct is cold -Burn paper and kindling wood to increase heat.
Room is in decompression
(negative pressure) -In houses equipped with mechanical ventilation, partly
open a window until the fire is well established.
Smokes while burning. Insufficient draught þ-Seek advice from a chimney specialist.
-Check that the flue is not obstructed, sweep it if
necessary.
Down draught þ-Install an anti-down draught cowl.
Room is in decompression
(negative pressure)
þ-In houses equipped with mechanical ventilation, an
outside air intake must be installed for the chimney.
Low heat output. Poor quality wood -Use the recommended fuel.
Poor mixing of the convection air -Check the air flow system (air inlet, piping, air outlet).
-Check that the next rooms are equiped with ventilation
grids to help out the hot air circulation.
“ARDENNES” - model 134 13 15 Instructions for user
þ: This sign means that you should ask
for a qualified engineer to do the work.

10 Technical manual “1146”

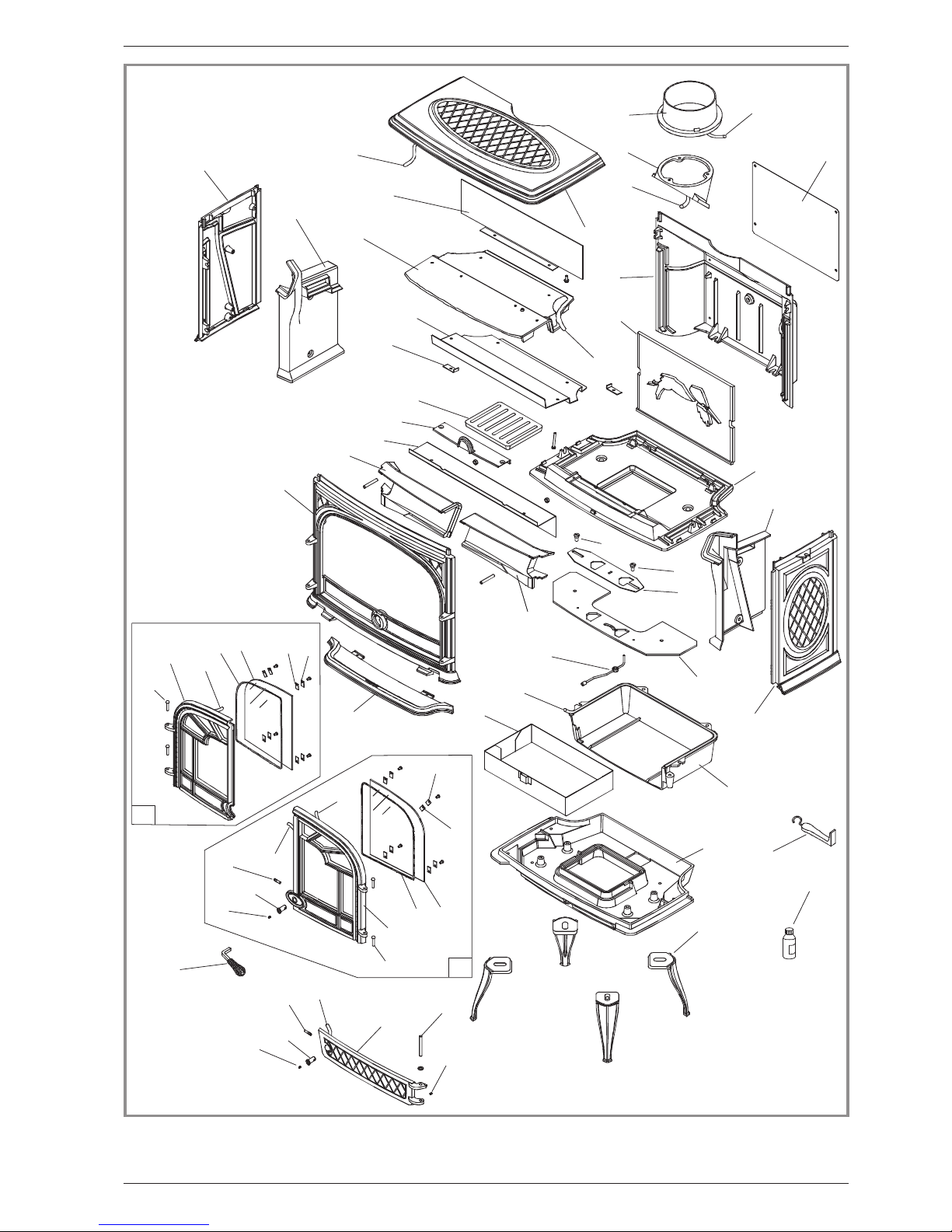

4 Spare parts
When ordering spare parts, specify the stove type and serial number, including the colour index (on the
guarantee or identification plate), the name of the part and the part number.
Example : Wood stove “ARDENNES”, model 134 13 15, the colour index Y, top plate 352165 EF.
“ARDENNES” - model 134 13 15 Spare parts
1 207315 Back panel . . . . . . . . . . . . . . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 01
2 222575 Flue baffle . . . . . . . . . . . . . . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 01
3 236135 Sealing plate . . . . . . . . . . . . . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 01
4 259015 Fixing plate . . . . . . . . . . . . . . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 08
5 259037 Fixing plate . . . . . . . . . . . . . . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 02
6 270414 Air control flap . . . . . . . . . . . . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 01
7 300132 77 Leg . . . . . . . . . . . . . . . . . . . . . . . . . . L . . . . . . . . . . . . . . . . . . . . . . . . . . 04
7 300132 EF Leg . . . . . . . . . . . . . . . . . . . . . . Y . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 04
7 300132 MK Leg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C . . . . . . . . . . . 04
7 300134 RH Leg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . . . . . . . . . . . . . . . . . . 04
7 300132 RJ Leg. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B . . . . . . . . . . . . . . . . . . . . . . 04
7 300132 RP Leg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E. . . . . . . . . . . . . . . 04
7 300132 EP Leg. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . N. . . . . . . . 04
7 300132 ER Leg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Q . . 04
8 300491 EF Base . . . . . . . . . . . . . . . . . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 01
9 301172 77 Ash pan door . . . . . . . . . . . . . . . . . . . . L . . . . . . . . . . . . . . . . . . . . . . . . . . 01
9 301172 EF Ash pan door. . . . . . . . . . . . . . . . . Y . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01
9 301172 MK Ash pan door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C . . . . . . . . . . . 01
9 301172 RH Ash pan door . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . . . . . . . . . . . . . . . . . . 01
9 301172 RJ Ash pan door . . . . . . . . . . . . . . . . . . . . . . . . B . . . . . . . . . . . . . . . . . . . . . . 01
9 301172 RP Ash pan door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E . . . . . . . . . . . . . . . 01
9 301172 EP Ash pan door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . N. . . . . . . . 01
9 301172 ER Ash pan door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Q . . 01
10 303860 77 Flue collar . . . . . . . . . . . . . . . . . . . . . . L . . . . . . . . . . . . . . . . . . . . . . . . . . 01
10 303860 EF Flue collar . . . . . . . . . . . . . . . . . . Y . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01
10 303860 MK Flue collar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C . . . . . . . . . . . 01
10 303860 RH Flue collar. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . . . . . . . . . . . . . . . . . . 01
10 303860 RJ Flue collar . . . . . . . . . . . . . . . . . . . . . . . . . . B . . . . . . . . . . . . . . . . . . . . . . 01
10 303860 RP Flue collar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E. . . . . . . . . . . . . . . 01
10 303860 EP Flue collar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . N. . . . . . . . 01
10 303860 ER Flue collar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Q . . 01
11 305016 EB Firebrick . . . . . . . . . . . . . . . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 01
12 305214 EB Firebrick . . . . . . . . . . . . . . . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 01
13 306285 EF Back wall . . . . . . . . . . . . . . . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 01
14 309233 EB Grate . . . . . . . . . . . . . . . . . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 01
15 310734 77 R. side panel. . . . . . . . . . . . . . . . . . . . . L . . . . . . . . . . . . . . . . . . . . . . . . . . 01
15 310734 EF R. side panel . . . . . . . . . . . . . . . . . Y . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01
15 310734 MK R. side panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C . . . . . . . . . . . 01
15 310734 RH R. side panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . . . . . . . . . . . . . . . . . . 01
15 310734 RJ R. side panel . . . . . . . . . . . . . . . . . . . . . . . . B . . . . . . . . . . . . . . . . . . . . . . 01
15 310734 RP R. side panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E . . . . . . . . . . . . . . . 01
15 310734 EP R. side panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . N. . . . . . . . 01
15 310734 ER R. side panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Q . . 01
16 310830 77 L. side panel . . . . . . . . . . . . . . . . . . . . . L . . . . . . . . . . . . . . . . . . . . . . . . . . 01
16 310830 EF L. side panel . . . . . . . . . . . . . . . . . Y . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01
16 310830 MK L. side panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C . . . . . . . . . . . 01
16 310830 RH L. side panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . . . . . . . . . . . . . . . . . . 01
16 310830 RJ L. side panel. . . . . . . . . . . . . . . . . . . . . . . . . B . . . . . . . . . . . . . . . . . . . . . . 01
16 310830 RP L. side panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . E . . . . . . . . . . . . . . . . . . 01
16 310830 EP L. side panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . N. . . . . . . . 01
16 310830 ER L. side panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Q . . 01
17 315614 EB Air duct . . . . . . . . . . . . . . . . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 01
18 319738 EB Grate support . . . . . . . . . . . . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 01
19 322717 EB Supplementary support . . . . . . . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 01
20 326602 EB Flue baffle . . . . . . . . . . . . . . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 01
21 327905 77 Ash pan guide . . . . . . . . . . . . . . . . . . . . L . . . . . . . . . . . . . . . . . . . . . . . . . . 01
21 327905 EF Ash pan guide . . . . . . . . . . . . . . . . Y . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01
21 327905 MK Ash pan guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C . . . . . . . . . . . 01
N° Code Description . . . . . . . . . . . . . . . . . Y . . L . . B . . P . . E . . C . . N . . . . Q . . Qty
Y= 134 13 15 Y
L= 134 13 15 L
B= 134 13 15 B
P= 134 13 15 P
E= 134 13 15 E
C= 134 13 15 C
N= 134 13 15 N
Q= 134 13 15 Q

Technical manual “1146” 11
“ARDENNES” - model 134 13 15 Spare parts
1
2
3
5
6
7
8
1 0
1 1
1 2
1 3
1 4
1 5
1 6
1 7
1 8
1 9
2 0
2 2
2 3
2 4
2 7
2 8
2 9
3 0
3 9
9
3 4
3 2
3 7
3 6
3 1
4 3
4 3
4 4
4 6
4 7
4 7
4 8
4 8
5 0
5 2
2 1
5 1
5 5
5 5
3 8
3 3
2 5
4 0
4
4 3
4 5
4 6
4 9
4 1
4 2 5 3
2 6
4 0
4 2
4 1
4 5
4 9 4
5 4
Figure 6 - Spare parts view

12 Technical manual “1146”
“ARDENNES” - model 134 13 15 Spare parts
21 327905 RH Ash pan guide . . . . . . . . . . . . . . . . . . . . . . . . . . . P . . . . . . . . . . . . . . . . . . 01
21 327905 RJ Ash pan guide . . . . . . . . . . . . . . . . . . . . . . . . B . . . . . . . . . . . . . . . . . . . . . . 01
21 327905 RP Ash pan guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E . . . . . . . . . . . . . . . 01
21 327905 EP Ash pan guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . N. . . . . . . . 01
21 327905 ER Ash pan guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Q . . 01
22 330022 EB Hearth plate . . . . . . . . . . . . . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 01
23 331001 EF Adapter . . . . . . . . . . . . . . . . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 01
24 331700 EF Support . . . . . . . . . . . . . . . . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 01
25 331800 77 Right main door . . . . . . . . . . . . . . . . . . . L . . . . . . . . . . . . . . . . . . . . . . . . . . 01
25 331800 EF Right main door . . . . . . . . . . . . . . . Y . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01
25 331800 MK Right main door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C . . . . . . . . . . . 01
25 331800 RH Right main door. . . . . . . . . . . . . . . . . . . . . . . . . . . P . . . . . . . . . . . . . . . . . . 01
25 331800 RJ Right main door . . . . . . . . . . . . . . . . . . . . . . . B . . . . . . . . . . . . . . . . . . . . . . 01
25 331800 RP Right main door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E. . . . . . . . . . . . . . . 01
25 331800 EP Right main door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . N. . . . . . . . 01
25 331800 Er Right main door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . q. . . 01
26 331900 77 Left main door . . . . . . . . . . . . . . . . . . . . L . . . . . . . . . . . . . . . . . . . . . . . . . . 01
26 331900 EF Left main door . . . . . . . . . . . . . . . . Y . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01
26 331900 MK Left main door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C . . . . . . . . . . . 01
26 331900 RH Left main door . . . . . . . . . . . . . . . . . . . . . . . . . . . P . . . . . . . . . . . . . . . . . . 01
26 331900 RJ Left main door . . . . . . . . . . . . . . . . . . . . . . . . B . . . . . . . . . . . . . . . . . . . . . . 01
26 331900 RP Left main door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E . . . . . . . . . . . . . . . 01
26 331900 EP Left main door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . N. . . . . . . . 01
26 331900 ER Left main door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Q . . 01
27 332003 EB Air duct . . . . . . . . . . . . . . . . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 01
28 352165 77 Top plate . . . . . . . . . . . . . . . . . . . . . . . L . . . . . . . . . . . . . . . . . . . . . . . . . . 01
28 352165 EF Top plate . . . . . . . . . . . . . . . . . . . Y . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01
28 352165 MK Top plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C . . . . . . . . . . . 01
28 352165 RH Top plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . . . . . . . . . . . . . . . . . . 01
28 352165 RJ Top plate . . . . . . . . . . . . . . . . . . . . . . . . . . B . . . . . . . . . . . . . . . . . . . . . . 01
28 352165 RP Top plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E. . . . . . . . . . . . . . . 01
28 352165 EP Top plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . N. . . . . . . . 01
28 352165 ER Top plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Q . . 01
29 359806 77 Front plate . . . . . . . . . . . . . . . . . . . . . . L . . . . . . . . . . . . . . . . . . . . . . . . . . 01
29 359806 EF Front plate . . . . . . . . . . . . . . . . . . Y . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01
29 359806 MK Front plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C . . . . . . . . . . . 01
29 359806 RH Front plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . . . . . . . . . . . . . . . . . . 01
29 359806 RJ Front plate. . . . . . . . . . . . . . . . . . . . . . . . . . B . . . . . . . . . . . . . . . . . . . . . . 01
29 359806 RP Front plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E . . . . . . . . . . . . . . . 01
29 359806 EP Front plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . N. . . . . . . . 01
29 359806 ER Front plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Q . . 01
30 624045 Ash pan . . . . . . . . . . . . . . . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 01
31 158626 Handle . . . . . . . . . . . . . . . . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 01
32 101063 Axle. . . . . . . . . . . . . . . . . . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 01
33 101062 Axle. . . . . . . . . . . . . . . . . . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 01
34 101057 Axle. . . . . . . . . . . . . . . . . . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 01
36 105006 Gasket. . . . . . . . . . . . Ø 15 . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 2 m
37 134705 Pin . . . . . . . . . . . . . . 6x45 . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 01
38 134711 Pin . . . . . . . . . . . . . . 6x30 . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 01
39 179624 Regulator shaft. . . . . . . . . . . . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 01
40 188829 Refractory glass . . . . 278 X 220 X 4 . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 02
41 181632 Gasket . . . . . . . . . . . . Ø 6 . . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 2 m
42 110404 Hinge pin . . . . . . . . . . 6x30 . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 04
43 189825 Screw . . . . . . . . . . . . M5x6 . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 02
44 808001 ED Hand tool . . . . . . . . . . . . . . . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 01
45 181634 Gasket. . . . . . . . . . . . Ø 15 . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . 1,64 m
46 181633 Gasket. . . . . . . . . . . . Ø 10 . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . 1,33 m
47 181625 Ceramic rope . . . . . . . . Ø 7 . . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . 3,16 m
48 142316 Gasket . . . . . . . . . . . . 7x3. . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 1 m
49 142881 Gasket . . . . . . . . . . . . . . . . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 08
50 269501 Deflector . . . . . . . . . . . . . . . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 01
51 269449 Deflector . . . . . . . . . . . . . . . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 01
52 161039 Touch-up paint . . . . . . . . (P) . . . . . . . . . . . . . . . . . P . . . . . . . . . . . . . . . . . . 01
53 988920 Right complete door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . N. . . . . . . . 01
53 988922 Right complete door . . . . . . . . . . . . . Y . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01
53 988924 Right complete door . . . . . . . . . . . . . . . . . L . . . . . . . . . . . . . . . . . . . . . . . . . . 01
N° Code Description. . . . . . . . . Type . . . . . Y . . L . . B . . P . . E . . C . . N . . . . Q . . Qty
Y= 134 13 15 Y
L= 134 13 15 L
B= 134 13 15 B
P= 134 13 15 P
E= 134 13 15 E
C= 134 13 15 C
N= 134 13 15 N
Q= 134 13 15 Q

Technical manual “1146” 13
“ARDENNES” - model 134 13 15 Spare parts
53 988926 Right complete door . . . . . . . . . . . . . . . . . . . . B . . . . . . . . . . . . . . . . . . . . . . 01
53 988928 Right complete door . . . . . . . . . . . . . . . . . . . . . . . . P . . . . . . . . . . . . . . . . . . 01
53 988930 Right complete door . . . . . . . . . . . . . . . . . . . . . . . . . . . . E . . . . . . . . . . . . . . . 01
53 988932 Right complete door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C . . . . . . . . . . . 01
53 988994 Right complete door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Q . . 01
54 988744 Left complete door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . N. . . . . . . . 01
54 988923 Left complete door . . . . . . . . . . . . . . Y . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01
54 988925 Left complete door. . . . . . . . . . . . . . . . . . L . . . . . . . . . . . . . . . . . . . . . . . . . . 01
54 988927 Left complete door . . . . . . . . . . . . . . . . . . . . . B . . . . . . . . . . . . . . . . . . . . . . 01
54 988929 Left complete door . . . . . . . . . . . . . . . . . . . . . . . . . P . . . . . . . . . . . . . . . . . . 01
54 988931 Left complete door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E. . . . . . . . . . . . . . . 01
54 988933 Left complete door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C . . . . . . . . . . . 01
54 988995 Left complete door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Q . . 01
55 100939 Axle. . . . . . . . . . . . . . . . . . . . . . Y. . . L. . . B . . P . . E . . C . . N . . . . Q . . 02
N° Code Description. . . . . . . . . Type . . . . . Y . . L . . B . . P . . E . . C . . N . . . . Q . . Qty
Y= 134 13 15 Y
L= 134 13 15 L
B= 134 13 15 B
P= 134 13 15 P
E= 134 13 15 E
C= 134 13 15 C
N= 134 13 15 N
Q= 134 13 15 Q
Note

Guarantee certificate
Legal guarantee
The specifications, dimensions and information shown
on our documents are provided for information purposes
only and under no circumstances are binding upon the
vendor.
With the aim of constantly improving our equipment, all
mo d if i cat ion s con sid ere d as ne c ess ary b y our
departments may be made without notice.
The provisions of the present guarantee certificate are
not excluding or limiting the owner of the equipment’s
rights, concerning the legal guarantee regarding faults or
hidden vices which applies in all circumstances, in the
conditions detailed in articles 1641 and following of the
civil code and in the country in which the equipment was
purchased.
Contractual guarantee
Our equipment is guaranteed against faults and hidden
vices subject to the following conditions :
1) Installation and adjustment of the device by a professional
installer.
2) Observance of the instructions provided in our technical
documents and our installation/adjustment instructions.
3) The installation, use and maintenance of the device carried
out in conformity with the applicable standards and
legislation, and with the indications provided in the technical
instructions accompanying the device.
This guarantee covers the replacement, in our factory, of
parts recognised as being defective from the outset by
our “Guarantee Inspection Department”. Carriage and
labour is at the user’s cost. Moreover, if the repair or
replacement of parts covered by the guarantee is found
to be too costly vis-à-vis the price of the appliance, the
decision to replace or repair the appliance will be taken
by the vendor.
Our guarantee is for 2 (two) years for all appliances, with
the exception of closed combustion fireplace and inserts
for which our guarantee is 5 (five) years excluding the
following :
1) Indicator lights, fuses, electrical elements and fans.
2) Parts subject to wear or in contact with high temperatures
namely : soles and burner grills, bottom plates baffles, ash
pans, paintwork and surface treatments for decorative
parts. Also excluded from this guarantee are seals and
windows.
3) Any damage which may result from the use of the appliance
with a fuel other than that stipulated in our instructions.
4) Damage occurring to parts caused by elements outside the
appliance (down draught, storm damage, damp, abnormal
pressure or vacuum, heat shocks, etc...).
5) Damage to electrical parts caused by plugging in and using
the appliance on a mains system, the voltage of which
(measured at the entrance to the appliance) is 10% above
or below the nominal voltage of 220 V.
Exclusion of liability
In the case of a product manufactured at the client’s
request, under no circumstances may we, as a
subcontractor, be considered liable vis-a-vis the client or
third parties for defects arising from the installation or a
design fault with the item in question.
*Name and address of the installer : _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
(Telephone : _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
*Name and address of the customer : _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Date of installation : __ __ / __ __ /__ __ __ __
Model of the appliance : q134 13 15
Color : qYqLqBqPqEqCqNqQ
Serial number : ___ ___ ___ ___ ___ ___
• This certificate has to be completed and kept carefully.
In case of claims, send a copy of this to :
FRANCO BELGE,
Rue Orphée Variscotte, 59660 MERVILLE, FRANCE.
