Freelap Tx Track Pro User manual

Your Tx Track Pro has a 3.7V 5Ah LiPo rechargeable battery.
• Low battery indicator: When the battery is low, the led flashes red.
• Recharging the battery:
- Insert the magnetic USB cable provided into the magnetic USB port.
- It is recommended to make complete charges (charging time: 10h).
- When the battery is fully charged, the device has a battery life of 60h.
- Your Tx Track Pro has an automatic shutdown function (after 12h).
• Weight: 320 g
• Dimensions: 55 x 100 x 180 mm
• Compatibility: FxChip / FxChip BLE
• Transmitter with 3 codes: START / LAP / FINISH
• Detection field: 3 meters on each side
• Accuracy: 2/100 of a second
• Minimum time between 2 transmitters: 0.7 second
• Battery: 3.7V 5Ah LiPo + charging indicator, and automatic switch off function after
12h (charging time: 10 hours)
• Battery life: 60 hours
• Water resistance: IP67
• Operating temperatures: -20°C to +50°C
Further information
Battery and battery life
Technical sheet
Find our FAQ (Frequently Asked Questions), as well as other manuals and user guides,
on our website at: www.freelap.com/support
If you cannot find the answers to your questions, please contact your Freelap dealer.
Find the list of Freelap dealers at: www.freelap.com/freelap-contact
The Tx Track Pro is guaranteed 2 years. If you have any questions or if you need
assistance with your device, please contact your Freelap dealer.
Technical support
After-sales service & warranty
FREELAP SA
Av. D.-Jeanrichard 2A CH-2114 Fleurier – Switzerland
[phone] - www.freelap.com
@freelap
Tx Track Pro
V221223

To make the Freelap system work, you must have a transmitter set on the code FINISH
on your track.
The Tx Track Pro is a versatile transmitter, so you can use several Tx Track Pro on
your track (set as START, LAP or FINISH transmitter).
You can also use it in combination with other Freelap transmitters (eg. : you can use
the Tx Gate Pro transmitter as START transmitter for skiing).
Transmitters must be at least 0.7 second apart.
Your track must contain a maximum of 11 transmitters.
Example for ski / standard system : Example for MTB / system in loop :
To get your LAP times in a loop system,
only 1 transmitter with the code "FINISH"
is enough. To take the start, stay 5s in
the transmitter detection field and start
the race.
About the Tx Track Pro
Tx Track Pro is the versatile transmitter with large detection field of the Freelap system.
The Tx Track Pro can be quickly set as START, LAP, or FINISH transmitter. It emits a
magnetic field automatically detected by your transponder during its passage.
Use of the Tx Track Pro
1. Prerequisites
Tx Track Pro transmitter is a part of the Freelap timing system. To get your timing data,
you must attach the transponder(s) to the athlete(s) and use the MyFreelap app (cf
corresponding user manuals).

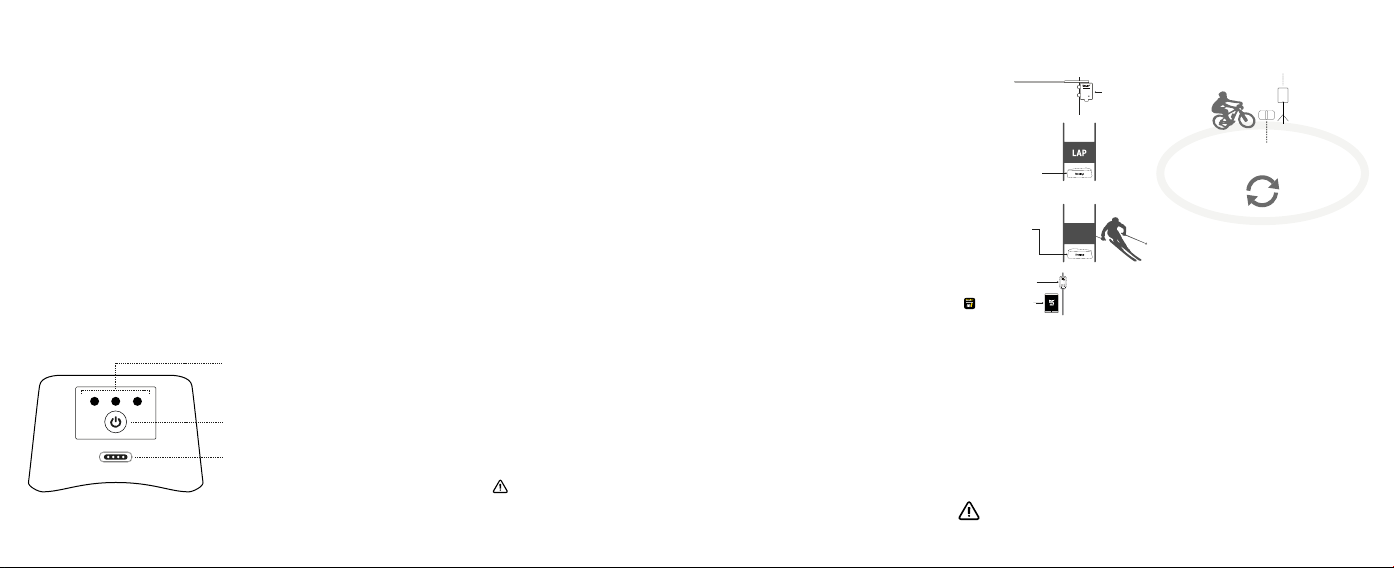

2. Get to know your device
Power button: To Turn on / off the transmitter
and set the desired code (START / LAP / FINISH)
Magnetic USB port: To charge the device
To turn on the transmitter, press the "Power" button for 2 seconds.
The green led lights up to indicate that the transmitter is on.
3. Turn it on
Once the transmitter is on, make short presses on the “Power” button to select the
desired code (START = for start transmitter/ LAP = for intermediate transmitter/ FINISH
= for finish transmitter). Each short press of the “Power” button switches you to the
next code. The LED of the selected code flashes.
4. Set the desired code
• Place the Tx Track Pro on the ground.
The transmitter has a detection field of 3m on each side, it must be placed as follows:
• This transmitter has the shape of an arrow. Place the transmitter on the side of the
track, pointing the front of the arrow toward the track. The direction of the arrow
indicates an imaginary line of passage.
• Place the transmitter at less than 3m of the athlete's passage (so that the transponder
of the athlete crosses the detection field).
• For skiing, it can also be placed under the snow in the middle of the finish area to
increase the detection field (6m).
Placing the transmitter at any other location or position may result in inaccuracies
or non-detection.
5. Place it on the track
6. Associate it with other Freelap transmitters
00:07.71
ID
LastLAP
Ranking
Live•StandardTiming
MIKE
N°
1BA-0000
L1
L2
00:07.88(2)
00:04.5800:04.58
00:07.8800:03.30
00:07.92
2BA-0000
00:07.92(2)
00:07.88
+00.04
60
30
30
7.61
6.55
9.09
607.57
IDLAPSPLIT
(m)
DIST.
(m/s)
SPEED
00:07.83
3BA-0000
00:07.83(2)
-00.09
00:07.71
4BA-0000
00:07.71(2)
-00.12
607.66
607.7800:07.71
ID
DernierLAP Classement
Live•ChronométrageStandard
LEO
N°
1LEO
L1
L2
00:07.88(2)
00:04.58 00:04.58
00:07.88
00:03.30
00:07.88 60
30
30
7.61
6.55
9.09
ID LAP ÉCART SPLIT
(m)
DIST.
(m/s)
VIT.
00:07.92
1LUCA 00:07.92(2) +00.04 60 7.57
00:07.81
2LEO 00:07.81(2) -00.11
00:07.71
3LEO 00:07.71(2) -00.12
60 7.68
60 7.78
00:07.83
2LUCA 00:07.83(2) +00.02 60 7.66
Tx Gate Pro
Tx Track Pro
code FINISH
Tx Track Pro
code LAP
Relay Coach BLE
Mobile device
START
FINISH
TxGate Pro
PWR
Optional
RELAYCOACH
DATA
STATUS
PWR/CHR
EXTPWR
Tx Track Pro
code FINISH
Mobile
device
START / LAP / FINISH LEDs: Indicate that the
transmitter is turned on + on which code it is set.
START LAP FINISH
