Fri-Jado Multi Deck 60 Essential User manual

MULTI DECK HOT MERCHANDISERS WITH IMPROVED AIR TECHNOLOGY
- NOTICE -
This manual is prepared for the use of trained Service Technici-
ans and should not be used by those not properly qualified. If
you have attended a trianing for this product, you may be quali-
fied to perform all the procedures in this manual.
This manual is not intended to be all encompassing. If you have
not attended training for this product, you should read, in its
entirety, the repair procedure you wish to perform to determine
if you have the necessary tools, instruments and skills required
to perform the procedure. Procedures for which you do not have
the necessary tools, instruments and skills should be performed
by a trained technician.
Reproduction or other use of this Manual, without the express
written consent of Fri-Jado, is prohibited.
MULTI DECK 60 ESSENTIAL - 4 LEVEL
MULTI DECK 100 ESSENTIAL - 4 LEVEL
MULTI DECK 60 TRANSPARENT LIGHT BOX
MULTI DECK 100 TRANSPARENT LIGHT BOX
MULTI DECK 120 TRANSPARENT LIGHT BOX
CLASSIC DECK HOT MERCHANDISER
Multi Deck 120 transparentMulti Deck 60 Essential Multi Deck 100 Essential Classis Deck Hot
WWW.FRIJADO.COM Installation Manual Multi Deck 60/100/120 / Classic Deck form 9123789 rev. 07/2015
INSTALLATION MANUAL

EMPTY PAGE
Installation Manual Multi Deck 60/100/120 / Classic Deck form 9123789 rev. 07/2015
Page 2

Page 3
Installation Manual Multi Deck 60/100/120 / Classic Deck form 9123789 rev. 06/2009
Versions
Version Issue date
dd/mm/yy
Remarks
07/2015 01/07/2015 MD 60 and 100 Essential added. Glass front doors added. Various
updates.

Installation Manual Multi Deck 60/100/120 / Classic Deck form 9123789 rev. 07/2015
Page 4
INDEX
Index ............................................................................................................................................ 4
General technical data................................................................................................................ 5
Unpacking ................................................................................................................................... 6
Unpacking MD 60 and Classic Deck ...................................................................................................... 6
Unpacking MD 100 .............................................................................................................................. 10
Unpacking MD 120 .............................................................................................................................. 13
Installation................................................................................................................................. 16
Location................................................................................................................................................ 16
Air grid ................................................................................................................................................. 16
Installation ........................................................................................................................................... 16
Mounting instruction glass door(s)..................................................................................................... 17
General................................................................................................................................................. 19
Casters .................................................................................................................................................. 19
Before first use..................................................................................................................................... 19
Instructions for operators.................................................................................................................... 19
Placing and connecting............................................................................................................. 20
Multi Deck 60 hot ................................................................................................................................ 20
Multi Deck 100 hot .............................................................................................................................. 21
Multi Deck 120 hot .............................................................................................................................. 22
Classic deck 60 hot............................................................................................................................... 23

Installation Manual Multi Deck 60/100/120 / Classic Deck form 9123789 rev. 07/2015 Page 5
GENERAL TECHNICAL DATA
This manual covers the Multi Deck 60, 100 and 120 Hot and the Classic Deck Hot series mer-
chandiser cabinets. The cabinets come in three sizes, 60, 100 and 120 centimeter.
• Multi Deck 60 Hot - Merchandiser 620 mm wide.
• Classic Deck Hot - Merchandiser 620 mm wide.
• Multi Deck 100 Hot – Merchandiser 1000 mm wide.
• Multi Deck 120 Hot – Merchandiser 1240 mm wide.
All of the information, illustrations and specifications contained in this manual are based on
the latest product information available at the time of printing.
Type MD 60
Hot
Classic Deck
Hot
MD 100
Hot
MD 120
Hot
Power (W) 3200 3200 3700 4400
Fuses needed with power con-
nection 230V, 1N ~ 50Hz ( 1 phase
with zero )
1x 16 A 1x 16 A 1x 20 A 1x 20 A
Fuses needed with power connec-
tion 400V, 3N ~ 50Hz ( 3 phases
with zero )
_ _ 3x 16 A 3x 16 A
Fuses needed with power con-
nection 400V, 3 ~ 50Hz ( 3 phases
without zero )
_ _ 3x 16 A 3x 16 A
Standard plug from factory single
pole
16 A 16 A _ _
Standard plug from factory 5-pole
According IEC309 and CEE-form
_ _ 16 A
3P+N+E
16 A
3P+N+E
Net weight (kg) 250 250 310 345
Gross weight (kg) 325 325 390 430
Height (mm) 1912 1912 1912 1912
Width (mm) 620 620 1000 1240
Depth (mm) 948 1035 948 948
Tools
• Standard set of tools.
• Metric wrenches, sockets and hex socket key wrenches.
• Multi-meter and AC current clamp meter.
• Insulation value tester (Megger)
• Temperature tester.
GENERAL TECHNICAL DATA
TECHNICAL DATA

5
screws
Page 6 Installation Manual Multi Deck 60/100/120 / Classic Deck form 9123789 rev. 07/2015
UNPACKING
UNPACKING MD 60 AND CLASSIC DECK
Note: Perform this action safely with two
people

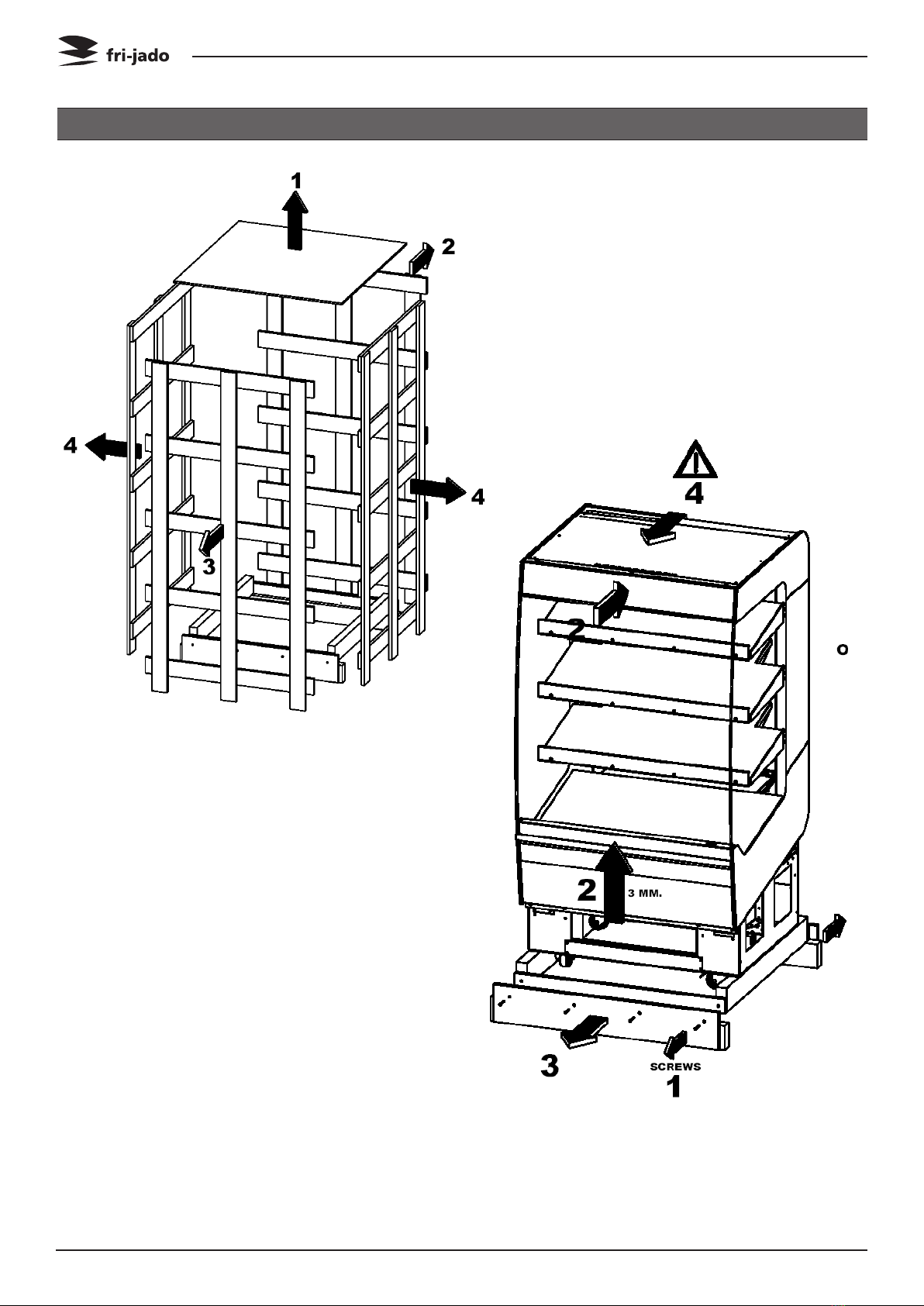

Remove the crate from the unit by taking
of the following parts:
1: top.
2+3: front and back.
4: sides.
Follow the instructions as given in the next
pages.
After the unit is unpacked, you can apply the
bottom plinth as shown in the pictures on the
separate instruction sheet.
Read the instructions before proceeding.
UNPACKING

A
B
C
Page 7
Installation Manual Multi Deck 60/100/120 / Classic Deck form 9123789 rev. 07/2015
UNPACKING
1. Carefully tilt the unit slightly.
2. Remove the board-and-beam assembly.
3. Carefully lower the unit until it rests on
the floor.
Remove the screws from the board on the
front side of the pallet as shown above.
1. Remove the screws from the connecting
beam.
2. Remove the disconnected beam.
Unit after removal of the crate.

EG
D F
Page 8 Installation Manual Multi Deck 60/100/120 / Classic Deck form 9123789 rev. 07/2015
UNPACKING
Carefully let the unit slide onto its wheels. Remove top transport safety beam.
WARNING! Prevent the unit from
rolling away on the casters.
1. Carefully tilt the shelf slightly.
2. Remove the transport beam.
3. Repeat for bottom shelf.

H
Page 9
Installation Manual Multi Deck 60/100/120 / Classic Deck form 9123789 rev. 07/2015
UNPACKING
Remove transport safety shelfs (3x).
1
2
3
Remove protective cover of stainless steel
shelves, bottom and skirts.

Page 10 Installation Manual Multi Deck 60/100/120 / Classic Deck form 9123789 rev. 07/2015
UNPACKING
UNPACKING MD 100
Note: Perform this action safely with two
people
Remove the crate from the unit by taking
of the following parts:
1: top.
2+3: front and back.
4: sides.
Follow the instructions as given in the next
pages.
After the unit is unpacked, you can apply the
bottom plinth as shown in the pictures on the
separate instruction sheet.
Read the instructions before proceeding.
5
screws

A
B
C
Page 11
Installation Manual Multi Deck 60/100/120 / Classic Deck form 9123789 rev. 07/2015
UNPACKING
1. Carefully tilt the unit slightly.
2. Remove the board-and-beam assembly.
3. Carefully lower the unit until it rests on
the floor.
Remove the screws from the board on the
front side of the pallet as shown above.
1. Remove the screws from the connecting
beam.
2. Remove the disconnected beam.
Unit after removal of the crate.

ED
Page 12 Installation Manual Multi Deck 60/100/120 / Classic Deck form 9123789 rev. 07/2015
UNPACKING
Carefully let the unit slide onto its wheels. WARNING! Prevent the unit from
rolling away on the casters.
Remove protective cover of stainless steel
shelves, bottom and skirts.

1
screws
3
2
tilt
Page 13
Installation Manual Multi Deck 60/100/120 / Classic Deck form 9123789 rev. 07/2015
UNPACKING
UNPACKING MD 120
Note: Perform this action safely with two
people
Remove the crate from the unit by taking
of the following parts:
1: top.
2+3: front and back.
4: sides.
Follow the instructions as given in the next
pages.
After the unit is unpacked, you can apply the
bottom plinth as shown in the pictures on the
separate instruction sheet.
Read the instructions before proceeding.

Page 14 Installation Manual Multi Deck 60/100/120 / Classic Deck form 9123789 rev. 07/2015
UNPACKING
The picture above shows the unit after re-
moval of the crate.
Remove the screws from the board on
the right hand side of the pallet as shown
above.
1. Carefully tilt the unit slightly.
2. Remove the beam assembly.
3. Carefully lower the unit until it rests on
the floor.
1. Remove the screws from the board on
the left hand side of the pallet.
2. Carefully tilt the unit slightly.
3. Remove the beam assembly.
4. Carefully lower the unit until it rests on
the floor.
5. Remove the remaining boards.
WARNING! Prevent the unit from
rolling away on the casters.

Page 15
Installation Manual Multi Deck 60/100/120 / Classic Deck form 9123789 rev. 07/2015
UNPACKING
Remove protective cover of stainless steel
shelves, bottom and skirts.

Installation Manual Multi Deck 60/100/120 / Classic Deck form 9123789 rev. 06/2009
Page 16
INSTALLATION OF THE MULTI DECK 60/100/120 & CLASSIC DECK HOT
INSTALLATION
LOCATION
Immediately after unpacking the merchandiser, check for possible shipping damage. If the
merchandiser is found to be damaged, save the packaging material and contact the carrier
within 15 days of delivery. Prior to installation, test the electrical service to assure that it
agrees with the specifications on the machine data plate located on the right side panel near
the controls.
The merchandiser must be installed on a level surface. The installation location must allow
adequate clearances for servicing and proper operation.
AIR GRID
Take care that a free airflow around the on
the top is secured. This is to prevent the elec-
tronic ballast for overheating.
The connecting cable for the unit must be equipped with an approved plug connection. If
use is to be made of a permanent connection, the connecting cable must be connected to a
manual on/off switch that is installed near the unit in a clear visible manner.
INSTALLATION
Install bottom panels
1. Put the brake on the castors.
2. Hang the side panels over the suspension points and slide them forward.
3. Position the front panel on the screws on the front side of the side panels.
4. Fold the front panel forward and hook the top side around the edge of the plate above
it.
Note: After unpacking of the ma-
chine you can find the packed
panels on top of the unit.

Page 17
Installation Manual Multi Deck 60/100/120 / Classic Deck form 9123789 rev. 06/2009
INSTALLATION OF THE MULTI DECK 60/100/120 & CLASSIC DECK HOT
MOUNTING INSTRUCTION GLASS DOOR(S)
Note: The models MD 100 ans 120 have double glass doors. See also next page.

Installation Manual Multi Deck 60/100/120 / Classic Deck form 9123789 rev. 06/2009
Page 18
INSTALLATION OF THE MULTI DECK 60/100/120 & CLASSIC DECK HOT
Part nr. Description
9220078S Front door ass. MD 60
9220085S Front door ass. MD 100
9220086S Front door ass. MD 120
9220077S L or R door ass. MD 100
9220076S L or R door ass. MD 120

Page 19
Installation Manual Multi Deck 60/100/120 / Classic Deck form 9123789 rev. 06/2009
INSTALLATION OF THE MULTI DECK 60/100/120 & CLASSIC DECK HOT
Operate the Multi Deck 60/100/120 Hot and Classic Deck Hot at maximum temperature set-
ting to insure the proper working of the unit.
Operate the Multi Deck 60 Cold and the Classic Deck Cold merchandiser at minimum tempe-
rature setting to insure the proper working of the unit.
BEFORE FIRST USE
Each merchandiser is furnished on 4 casters of 80 mm. The Multi Deck 60 Hot & Cold and
Classic Deck Hot & Cold have 2 rigid casters on the back side and 2 locking swivel casters on
the customer side. The Multi Deck 100/120 Hot is furnished with 2 swivel casters on the back
side and 2 locking swivel casters on the customer side.
CASTERS
The minimum temperature of the environment should be 20°C for the Multi Deck 60/100/120
hot and Classic Deck hot. The maximum temperature of the environment should be 22°C and
the relative humidity should be maximum 65%.
Note: Strong air-currents due to draughty doors, air-conditioninig outlets etc. will be detri-
mental to the proper operation.
Note: The minimum temperature of the hot products that are loaded inside the Multi Deck
must be 85°C.
Note: The maximum load per shelf is 20 kg. The load must be equally distributed over the
shelf.
GENERAL
INSTRUCTIONS FOR OPERATORS
After installation of the Multi Deck, the operator of the unit has to be instructed.
The instruction has to cover the following subjects:
• How to switch the unit on.
• Working of the unit.
• Run through the user manual.
• How to react for information or service calls.

1
Page 20 Installation Manual Multi Deck 60/100/120 / Classic Deck form 9123789 rev. 07/2015
PLACING
Description belonging to the lables on the drawings
Label Description
1 Power cable, length 2,5 meters *
*) length is measured from the point where the cables coms out of the unit
PLACING AND CONNECTING
MULTI DECK 60 HOT
