Frigomat AGG.2014 Series User manual

USE AND MAINTENANCE
MANUAL
-
Series
-
AGG.2014
C 136 04
C137 04
C138 04

1
-
ENGLISH
IMPORTANT
We recommend that you read this manual fully and carefully before using your
appliance.
It is in your interest to pay special attention to the warnings marked as follows:
Failure to comply with this signal causes very serious risks for health, death, and
medium and long term permanent damage.
Failure to comply with this signal can cause very serious risks for heath, death, and
medium and long term permanent damage.
Failure to comply with this signal can cause injuries or damage to the machine.
Comply with these warnings for your machine to work properly and/or to be serviced
correctly.
The machine can perform at best only through compliance with these warnings.
FRGMTOMG2MEB2916000

ENGLISH
-
2
We congratulate you for having chosen to purchase a FRIGOMAT machine.
This manual, supplied together with the machine, must be considered an integral and
essential part and must be delivered to the final user. Before carrying out any operations,
we recommend studying these instructions carefully. Only by reading them carefully can
you obtain the maximum performance from your machine. The following pages carry all of
the indications required to perform installation, operation, adjustments and routine
maintenance correctly. FRIGOMAT S.r.l. reserves the right to carry out the modifications it
deems necessary to improve its product or the technical manual without prior warning,
inserting the variations in the subsequent editions.
Total or partial reproduction, adaptation or translations of this manual without prior written
consent by FRIGOMAT S.r.l is prohibited.
The machine is covered by warranty according to the terms illustrated in the "WARRANTY
CARD" supplied. It must be duly filled in and returned to:
FRIGOMAT s.r.l., via 1° Maggio, 28 26862 GUARDAMIGLIO (LODI) – ITALY
Please write the serial number of your machine in the field below.
Serial number
Dealer's stamp

3
-
ENGLISH
INDEX
1. TRANSPORTATION, HANDLING AND STORAGE ………………………..…….. 4
1.1 Preliminary inspection and storage ………………………………. 4
1.2 Dimensions and weights of packaged machines ……………… 4
1.3 Indications for decommissioning ………………………. 4
2. MARKING AND GRAPHIC SIGNS ………………………………………………… 5
3. GENERAL SAFETY STANDARDS ……………………………………….. 6
4. INSTALLATION …………………………………………7
4.1 Use …………………………………………7
4.2 Working limits …………………………………………7
4.3 Noise ………………………………………………… 7
4.4 Supplied with machine …………………………………………7
4.5 Activation …………………………………………………………. 8
5. SAFETY DEVICES ………………………………………………... 11
6. OPERATION ………………………………………………… 12
6.1 Machine …………………………………………12
6.2 Heater control panel ………………………………………………… 16
6.3 Batch freezer control panel …………………………………………18
6.4 Thermal processing of mixtures …………………………………………21
6.4.1 Automatic cycle 85° …………………………………………22
6.4.2 Semi-automatic …………………………………………23
6.4.3 Chocolate Cycle ……………………………………….. 25
6.4.4 Slow Flame ……………………………………….. 27
6.5 Extraction of boiling mixtures ……………………………….. 29
6.5.1 Transfer into the batch freezing cylinder ………………………. 29
6.5.2 Transfer into separate container ………………………. 31
6.6 Slush and ice cream production …………………………………………32
6.6.1 Automatic cycle ………………………………………………….33
6.6.2 Semi-automatic cycle with consistency control ……………….34
6.6.5 Normal slush ………………………………………………… 36
6.6.6 Coffee slush …………………………………………38
6.7 Extraction …………………………………………40
7. MAINTENANCE ………………………………………... 41
7.1 Routine maintenance …………………………………………41
7.1.1 Heater washing ………………………………………………….41
7.1.2 Batch freezer washing …………………………………………46
7.2 Extraordinary maintenance …………………………………………50
7.2.1 Heater MEB² board programming ………………………….50
7.2.2 Batch freezer OMEGA² board programming ………………………..52
8. INSTRUCTIONS FOR IDENTIFYING FAULTS ……………………………….. 56
8.1 Alarm management heater ………………………………………………….56
8.2 Alarm management batch freezer …………………………………………57
8.3 Heater Troubleshooting ………………………………………………….58
8.4 Batch freezer Troubleshooting ……….……………………………….. 59
9. APPENDIXES ………………………………………... A1
9.1 Technical Data ……………………………………….. A1
9.2 Refrigeration circuit layout …………………………………………A2
9.3 Electrical system ………………………………………………….A3
9.4 Spare parts ………….…………………………………….. A4

ENGLISH
-
4
1. TRANSPORTATION, HANDLING AND STORAGE.
1.1 PRELIMINARY INSPECTION AND STORAGE
The machine is transported at the risk and peril of the customer. If you notice any damage
to the packaging, immediately inform the carrier.
Inform the carrier immediately after opening the package if the machine is damaged even
if a few days after delivery.
It is always preferable to accept goods SUBJECT TO CLEARANCE.
The appliance must be handled with care; it can be damaged by falls and blows even
without exterior damages.
Storage temperature must be between 0° and + 50°C, and humidity between 30 and 95%
with no dew.
Once the appliance has been unpacked, the packaging must be kept in a dry place out of
the reach of children. If stored properly, it can be reused if the machine is moved.
1.2 DIMENSIONS AND WEIGHTS OF PACKAGED MACHINES
MODEL CRATE BOX PALLET
MEASUREMENTS
(CM) WEIGHT N-G (KG) MEASUREMENTS (CM) WEIGHT N-G (KG)
C138
103 x 63 x h. 147 380-420 103 x 63 x h. 142
380-405
C137
103 x 63 x h.147 370-430 103 x 63 x h.142
370-395
C136 95 x 57 x h.147 310-360 95 x 57 x h.142 310-3C136
1.3 INDICATIONS FOR DECOMMISSIONING
The machine contains electrical and/or electronic materials and can
contain fluids and/or oil. If it must be decommissioned or disposed of,
comply with the Standards in force in the Country where it is used.
Even packaging materials (crates or boxes) must be divided by type
and disposed of in compliance with Standards in force in the Country
where it is used when the machine is decommissioned.

5
-
ENGLISH
2. MARKING AND GRAPHIC SIGNS

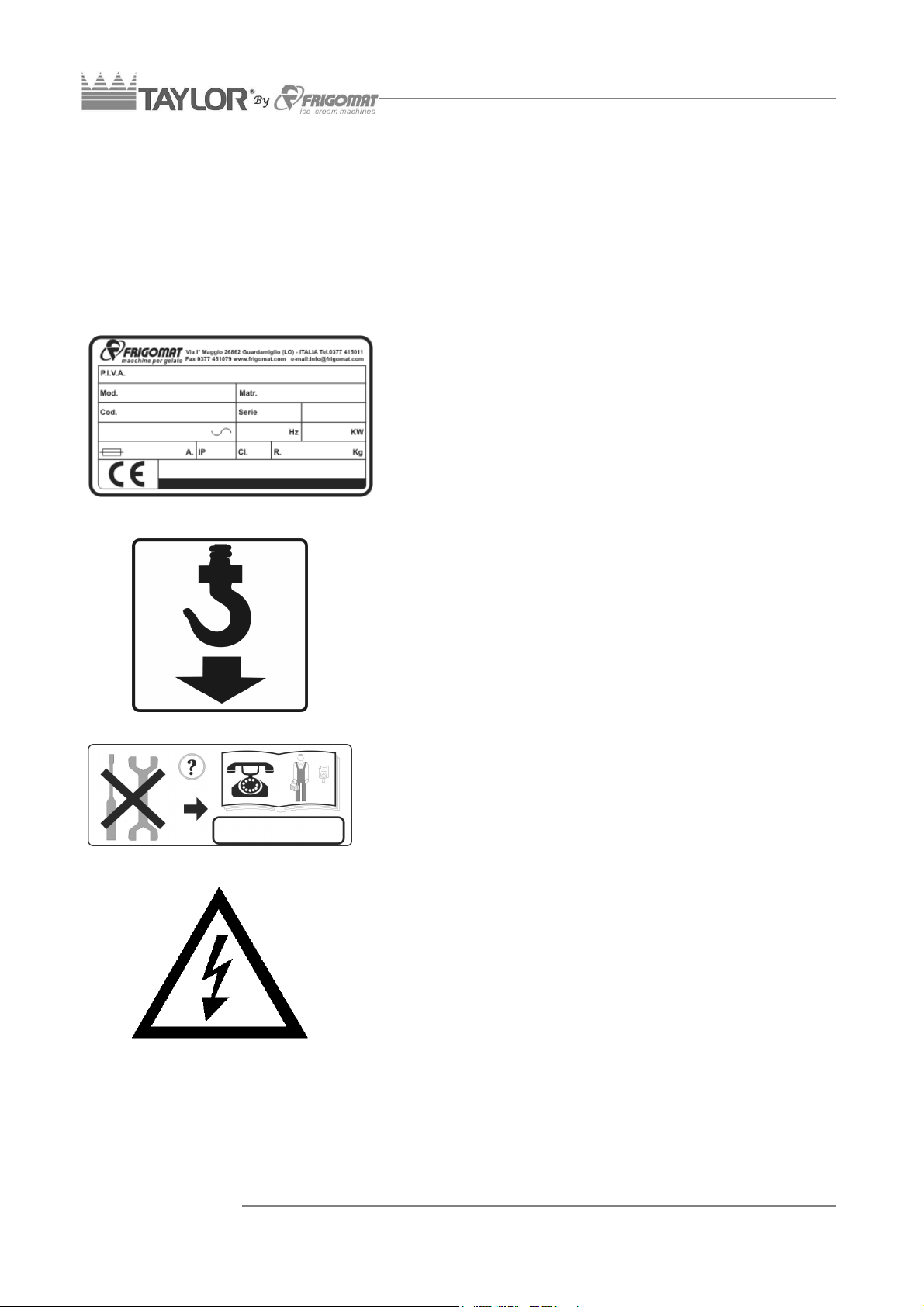

The machine is provided with an identification plate and several pictograms. They must be
known along with the manual to guarantee safe use.
Machine data plate
The adhesive plate applied on the rear enables to
identify the model. It includes the following indications:
Name and address of the manufacturer; machine
model and version; serial number; nominal electrical
features; type and weight of gas used; year of
manufacture.
Indication
Lifting equipment attachment points:
This plate indicates the points where the lifting hooks
must be placed in order to carry out this operation
safely. Use a Phillips screwdriver Unscrew the two
side panels of the machine and position the lifting
equipment in the relevant points, making sure that
they cannot accidentally slip off during lifting
operations.
Attention!
Maintenance reserved for qualified personnel. This
plate applied on the rear panel prohibits extraordinary
maintenance and/or repairs to any one but authorised
personnel, whose address is indicated in the space
provided.
Attention!
High voltage inside; electrocution hazard.
This plate is applied on the cover of the electrical box
and warns the operator that it must not be removed
for any reason whatsoever, thus avoiding the danger
of electrocution which could be fatal. In this case also,
maintenance of internal components is reserved for
qualified personnel.

ENGLISH
-
6
3. GENERAL SAFETY STANDARDS
Strictly comply with the general Safety and Accident-prevention Standards listed hereafter:
- Use of the machine is reserved for personnel in good health, responsible and
appropriately trained regarding allowed use and risks present.
- Use of the machine is reserved for operators who have read, understood and taken
in all that is included in this manual.
- It is forbidden to remove or tamper with the safety systems installed on the
machine.
- While the appliance is operating, it is mandatory to check that dangerous situations
for persons do not occur. Should these conditions transpire, stop the appliance
immediately.
- When you have finished working with the machine, it is mandatory to cut power by
acting on the master switch.
- When unusual noise or anomalous functioning is perceived, it is mandatory to
immediately stop operations in progress and to search for the cause of these
irregularities. If in doubt, avoid improper operations by contacting the
manufacturer's after-sales service.
- Any tampering or modification of the machine automatically entails the immediate
termination of the warranty and relieves the manufacturer of all and any liability for
direct or indirect damage caused.
- It is mandatory to check that the place where the machine is installed is ventilated
and correctly illuminated. The surface where the appliance is installed must be
solid, flat and levelled.
- During loading, unloading and handling operations, it is mandatory to use
equipment with a capacity adequate for the mass (weight) of the machine, using
hoisting devices and accessories with features and state of use suitable for the
purpose.
- Use only FRIGOMAT original spare parts when performing maintenance. The
manufacturer will not be held liable for damage caused by use of non-original spare
parts. Use of non-original spare parts entails automatic termination of the warranty.
- It is mandatory to position the machine far away from equipment which emits
electromagnetic radiation which could cause the circuit boards to malfunction.
- If fire-prevention equipment is necessary use types which are compatible with the
presence of voltage on board.
- It is forbidden to wear long and loose apparel, ties, jewellery, scarves or similar
clothing which could get caught in the moving parts of the machine.
- Hair must be tied back and shirt-sleeves tight.

7
-
ENGLISH
4. INSTALLATION
4.1 USE
Appliance suitable for the thermal processing of food mixtures for ice cream products and
bakery products, for batch freezing of ice cream mixtures and slush production, according
to use allowed by Law.
4.2 WORKING LIMITS
Do not use the machine with inconstant power supplies or +/- 10% beyond the value
indicated on the plate or with the power cable damaged;
Do not use the machine in explosive atmospheres;
Do not wash the machine with high-pressure water jets or with harmful substances;
Never aim the water flow of the shower head towards the side panels.
Do not expose the machine to excessive heat or humidity;
Do not use unbalanced mixtures and/or amounts which do not comply with the
specifications carried on the packs.
Use not expressly indicated in this manual is to be considered improper and therefore
must be strictly avoided.
The manufacturer will not be held liable for direct or indirect harm to persons or animals or
damage to objects caused by improper use of the machine.
4.3 NOISE
SOUND EMISSION LEVEL EXPRESSED IN DECIBELS (measurement method A)
As foreseen by Machinery Directive 89/392 EN 23741 Standard
(A-weighted equivalent continuous sound pressure level)
MODEL LEVEL (A) MODEL LEVEL (A)
C138 < = 68 dB (A) C137 < = 68 dB (A)
C138 < = 68 dB (A)
4.4 SUPPLIED WITH MACHINE
-
- Ice cream extraction spatula
- Complete scrapers
- Centring pin for beater
- Brush
- Gasket extractor
- O-ring kit
- Rubber seal
- FRIGOMAT lubricant
- Use and maintenance manual
- Declaration of conformity
- Warranty certificate
-

ENGLISH
-
8
4.5 ACTIVATION (INTENDED FOR QUALIFIED PERSONNEL)
FRIGOMAT declines all and any liability for damage caused by failure to comply with the
following indications. This lack of compliance causes the warranty to terminate.
Connection of the machine to the water mains must be performed in compliance with
national regulations of the Country where the machine is installed.
To commission the machine, bring it to the place of use, checking what is requested for its
installation:
1. Electrical power supply 3 phases + neutral + earth (5 wires);
2. Cold water mains supply (13° - 20°C);
3. Condensation water drain.
•Make sure the appliance is positioned on a solid, stable, flat and levelled surface.
•Block the machine by acting on the relevant brake lever on the rear wheels.
•Leave at least 10 cm between the machine and the walls or other obstacles.
•Check the exact correspondence between the voltage and power of the mains
compared to the values carried on the data plate applied on the rear panel;
•Connect the machine to the electrical power supply system. Install a omnipolar master
switch upstream the appliance with minimum contact opening of 3 mm of adequate
power, with a fuse and circuit breaker protective system. Use an approved interlocking
plug to allow only the open circuit to connect and disconnect.
•The cable must be well laid, without being rolled-up or overlapped. It must not be
exposed to blows or tampering. It must not be in the vicinity of liquids or water and heat
sources. It must not be damaged in any way. If so, before connecting the machine to
the mains, have it replaced by qualified personnel with another having a 5G4 H07RN-F
(400 V version), 5G6 H07RN-F (220 V / 3 version) cross-section.
•For safety purposes, make sure the earthing system to which the machine plug is
connected is compliant with standards and perfectly efficient.

9
-
ENGLISH
•If needed, carry out an equipotential bonding,
using the screw placed on the rear of the machine
below the frame and marked with the symbol
shown to the left.
•Make sure that the cold water supply line intended
for condensation has pressure values between 1
and 3 BAR and temperature between 13° and
20°C.
•Connect the cold water supply pipe intended for
condensation onto the machine inlet as shown in
the figure. Use a Ø1/2” fitting and place a gate
valve in the operator's reach.
•Connect the condensation water drain pipe onto
the machine outlet as shown in the figure, using a
Ø1/2” fitting.
•Always use new pipes suitable for hot water and
for pressure up to 10 bar both for delivery and
draining. Never use worn or consumed piping. Use
suitable DIN 3017 hose clamps.
•The drain pipe must have an inclination of at least
3 cm for each meter of length.
•After having connected the water inlet and outlet
pipes, with the machine stopped, open the cut-off
cock and make sure that water does not leak from
the drain.
•Turn off the master switch and press the
AUTOMATIC button on the batch freezer control
panel to check the following:
1. Motor rotation direction.
The machine is equipped with a sophisticated
electronic system which is able to automatically
detect if the beater motor rotation direction of
the batch freezer is the correct one (anti-
clockwise).
If the phases are inverted in the plug, after a
few seconds of operating in production mode,
the machine stops and the display shows the
relative alarm message. To connect the phases
properly cut the power and invert the two phase
wires in the plug.

ENGL
ISH
-
10

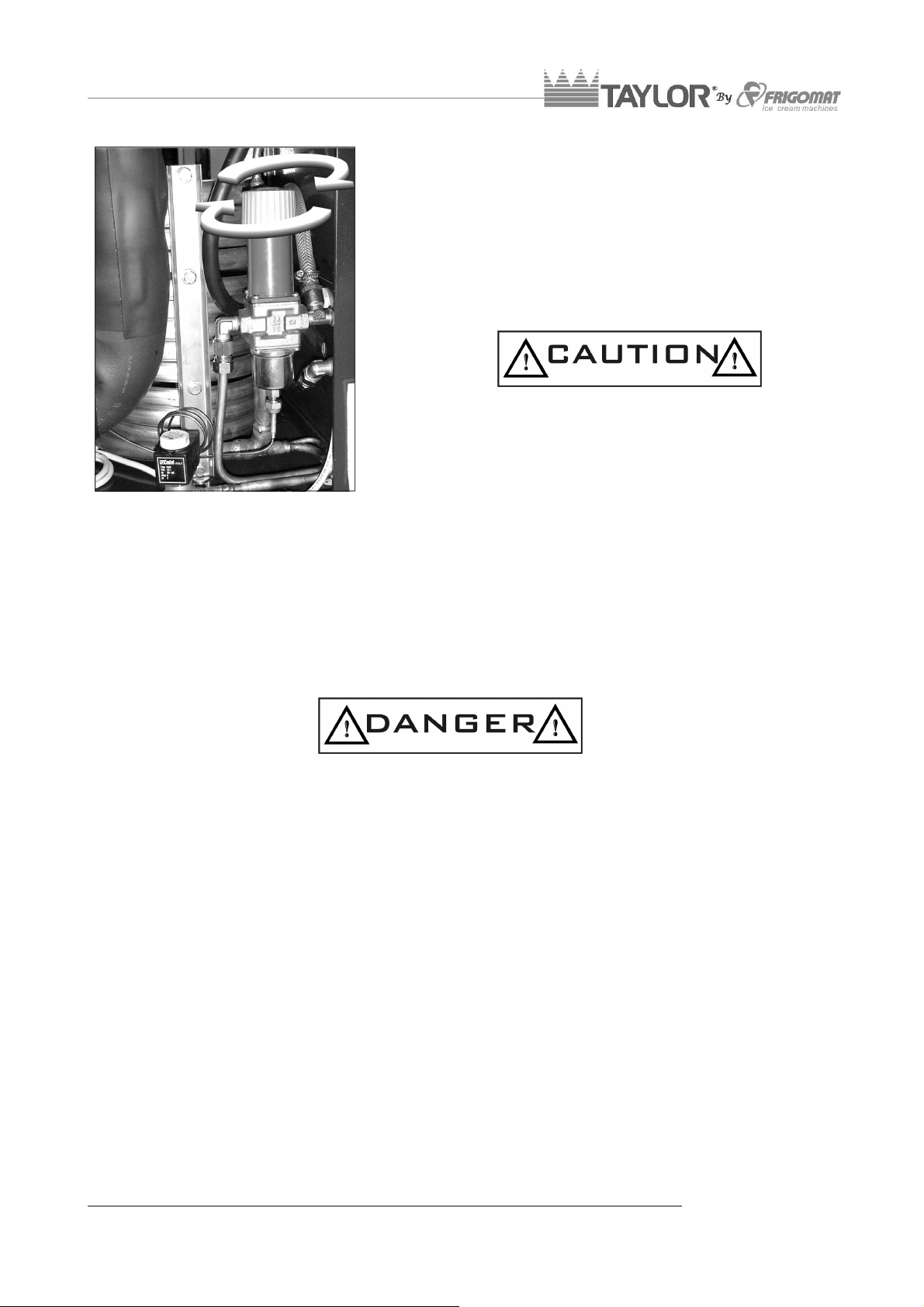

2. Condensation pressure
With the machine in production mode, After a
few seconds condensation water must come
out of the drain pipe at a temperature of about
C136°C. If this is not the case, the pressure
switch valve shown in the figure must be
adjusted.
Three-phase machines are powered with three-
phase + neutral lines: be careful never to
connect the phase lines with neutral.
FRIGOMAT will not be held liable for damage
to the machine deriving from non-compliance
with this rule.
•Press the STOP button to stop the machine .
•Operating temperature should be between 15° and C136°C.
•Humidity should be between 30 and 60%.
FRIGOMAT s.r.l. will not be held liable for personal harm and/or damage to objects
deriving from incorrect installation and/or by failure to comply with work Accident-
prevention Standards. Never intervene on the machine with your hands, neither during
normal operating cycles or during cleaning and maintenance, without first having stopped
the machine by pressing the STOP button and having turned off the master switch. Never
clean the appliance using a high-pressure water jet. Never shut the water cut-off cock
while the machine is running. Be careful never to damage the power cable. If so, have it
replaced.
Machines with water cooling which are left in places at a temperature below or close to
0°C, must first have all the water drained from the condenser.

11
-
ENGLISH
5. SAFETY DEVICES
Limbs shearing-prevention safety device (batch freezer): Implemented by means of a
safety circuit compliant with the European directive, it intervenes when the door is opened
and/or when the safety grid on the hopper is lifted, temporarily switching the machine to
STOP mode.
Limbs shearing-prevention safety device (heater): Implemented by means of a safety
circuit compliant with the European directive, it intervenes when the lid is opened,
temporarily switching the machine to STOP mode.
Motor overheating safety device: Implemented by means of automatic reset thermal
relays; they protect the machine's beater motors from overloads, by signalling the relative
alarm message on the display, emitting an intermittent acoustic signal and enabling to
reset directly from the push button control panel.
Semi-hermetic compressor motor overheating safety device: Implemented by means
of an automatic reset thermal relay; it protects the machine compressor motor operation
from overloads, by signalling the relative alarm message on the display, emitting an
intermittent acoustic signal and enabling to reset directly from the push button control
panel.
Chiller circuit over-pressure safety device: implemented by the approved automatic-
restoration safety pressure switch; it protects the integrity of the chiller circuit from
overpressure.
Heat elements safety device: implemented by means of safety thermostat; it protects the
heat element from overheating, by signalling the relative alarm message on the display,
emitting an intermittent acoustic signal and allowing restore directly from the push button
control panel.
Protection against short circuit of auxiliary utilities: Implemented by fuses which
intervene on the logic unit or auxiliary power supply in the event of short-circuits.
SELV safety circuit: the push button control panel is powered at low voltage by means of
an approved dual-insulation safety transformer, protected against short circuits by fuses.
Bain-marie fluid level safety device: implemented by a conductivity probe inside the tank
which signals alarm on the display and coupled with an intermittent acoustic signal if the
fluid level is insufficient.

ENGLISH
-
12
6. OPERATION
6.1 MACHINE
1. Tank lid
Closes the tank during the processing phases. It can
be easily removed for cleaning.
2. Tap
Allows removing the product from the heater with the
possibility of pouring it straight into the underlying
batch freezing cylinder.
3. Door
Closes the cylinder during the processing phases.
4. Safety grid
Allows the operator to load the product safely. The
cover keeps the mixture from coming into contact with
dust.
5. Door blocking handle
Seals the door with the lever lowered.
6. Water shower head
Equipped with an extractable hose pipe, enables the
operator to wash the machine.
7. Water tap
Opens or closes the shower head water.
8. Heater control panel
Allows to select the work programs for the heater.
9. Batch freezer control panel
Allows to select the work programs for the batch
freezer.
10. Dispenser disk
Used when extracting ice cream and emptying water to
clean the cylinder.
11. Drip drawer
Collects leakage of liquid from the cylinder gland
follower.

13
-
ENGLISH

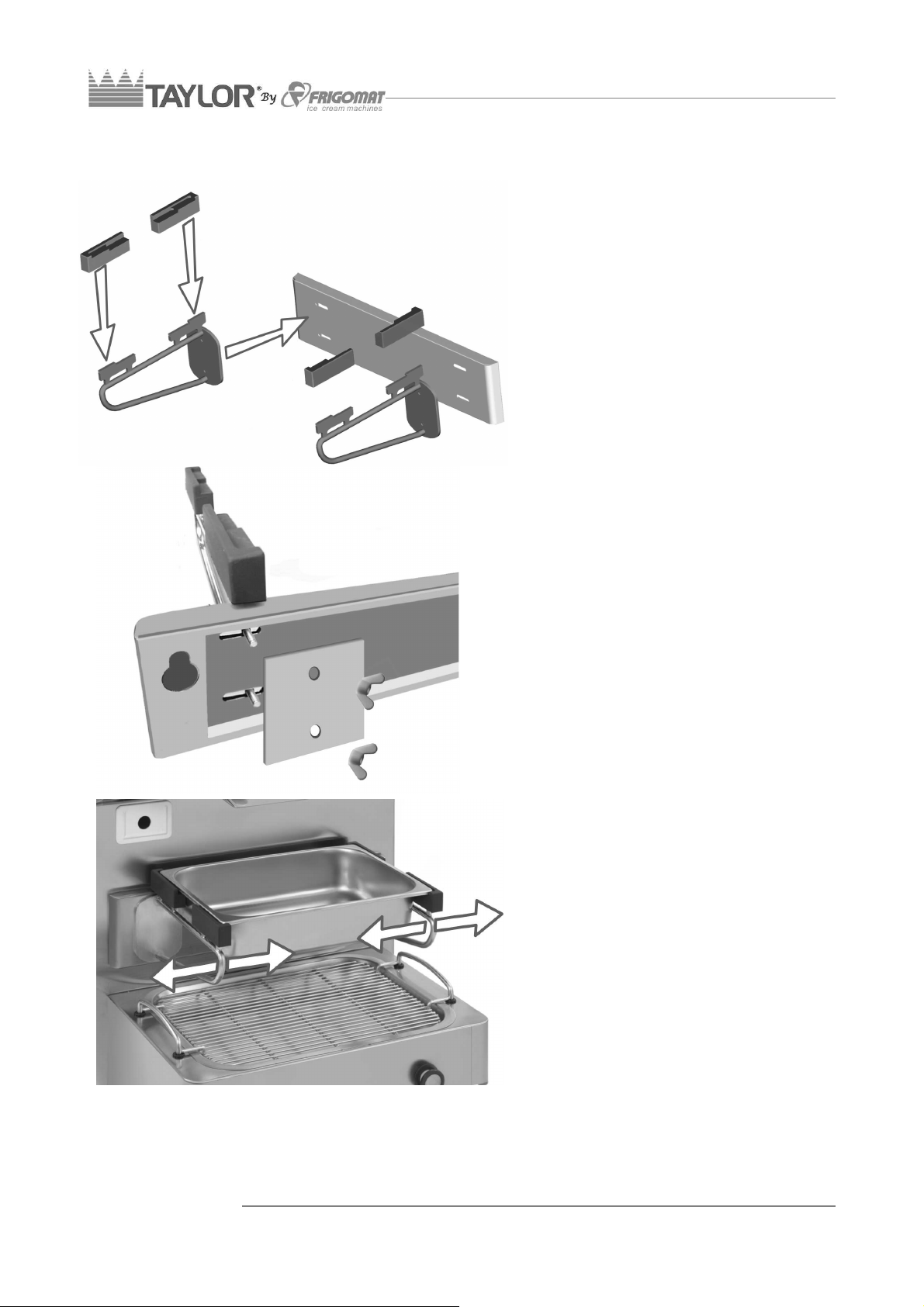

ASSEMBLY AND ADJUSTMENT OF THE TUB SUPPORT (optional)
Assemble the two steel shelves on the
support as described in figure.
Pay attention to the up-down direction
referring to the fixing slots on the back
of the support.
Position the rubber buffers on the
seats as shown in figure.
Position the two sheet steel shims and
tighten the 4 wing nuts without
fastening them.
Position the tub in the corresponding
seat obtained through the rubber
buffers. Adjust the position of the steel
shelves making them slide on the
support.
When the tub is sufficiently held by the
supports, remove the machine support
and fasten the ring nuts on the back.

ENGLISH
-
14
HEATER BEATER ASSEMBLY
BATCH FREEZER BEATER ASSEMBLY
Attach the mobile scrapers to the
steel structure of the beater.
Make sure they are orientated
correctly, perfectly mobile and that
the thrust springs are positioned
correctly in their seats.
Insert the complete beater into the
tank and carefully check that every
part is correctly positioned as
illustrated in the figure.
Insert the metallic springs in the
seats of the scrapers.
Insert the scrapers in the containing
pockets being careful to verify the
assembly is carried out as in figure.
Manually verify that the scraper is
correctly inserted inside the beater
and free to slide in the seat. Verified
at the spring pushes the scraper
with force towards the outside.
Insert the seal gasket placed on the
drive shaft of the beater push it up
to the stop.

15
-
ENGLISH

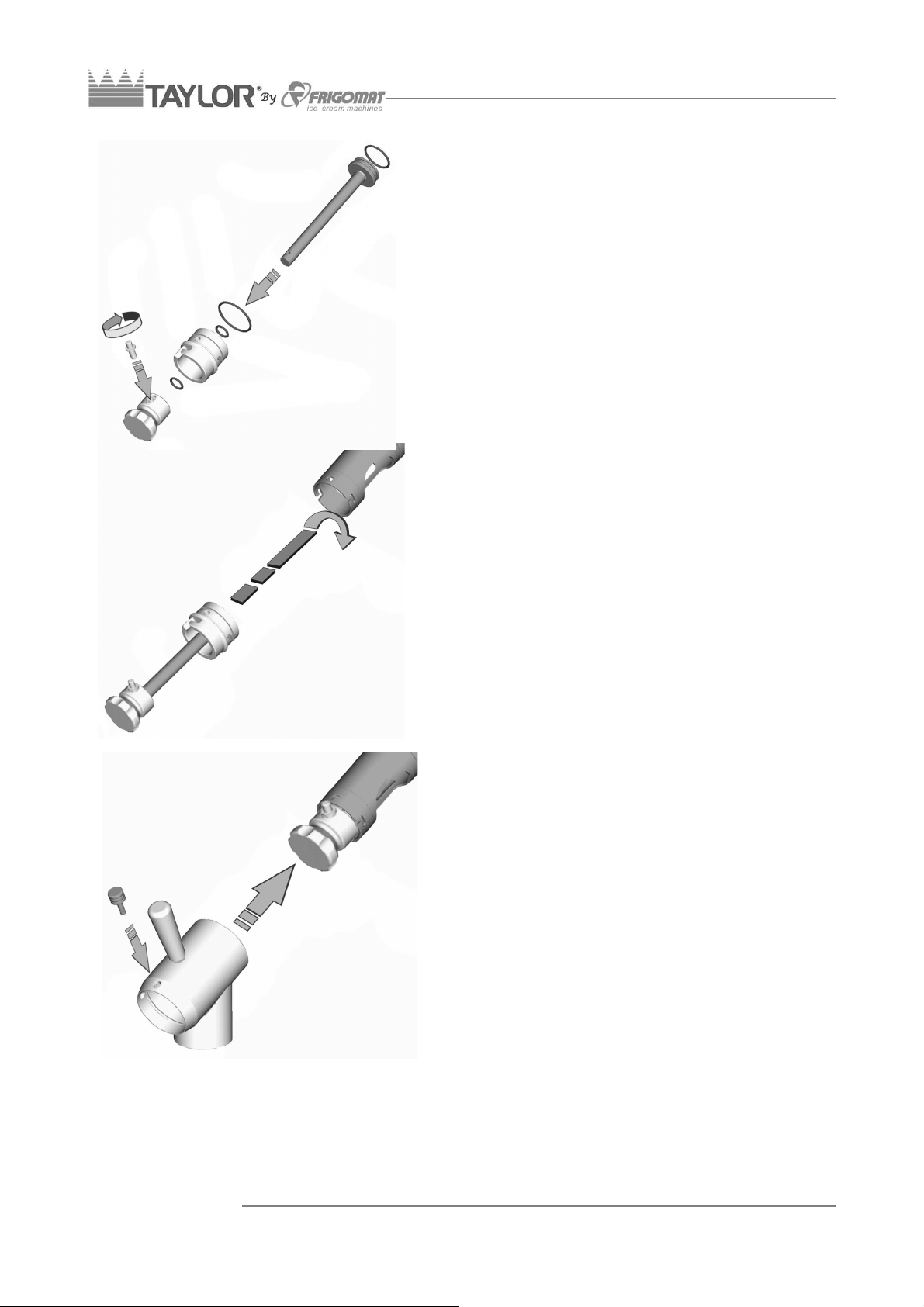

TAP ASSEMBLY
- Insert the O-ring gasket into the plastic
bottom and lubricate it using the Frigomat
lubricant supplied.
- Insert the piston into the bottom as
illustrated in the figure.
- Position the piston knob onto the rod and
tighten the steel pin. Check that the piston
runs easily in the seat (fig. 1).
- Assemble the O-rings or all tap components
and lubricate them using the Frigomat
lubricant supplied.
- Insert the piston in the machine tap duct
and turn the bottom by a few degrees up to
the block position (fig. 2).
- Insert the tap body and turn it to the vertical
position.
- Insert the locking pin (fig. 3).
Fig.1
Fig.2
Fig.3

ENGLISH
-
16

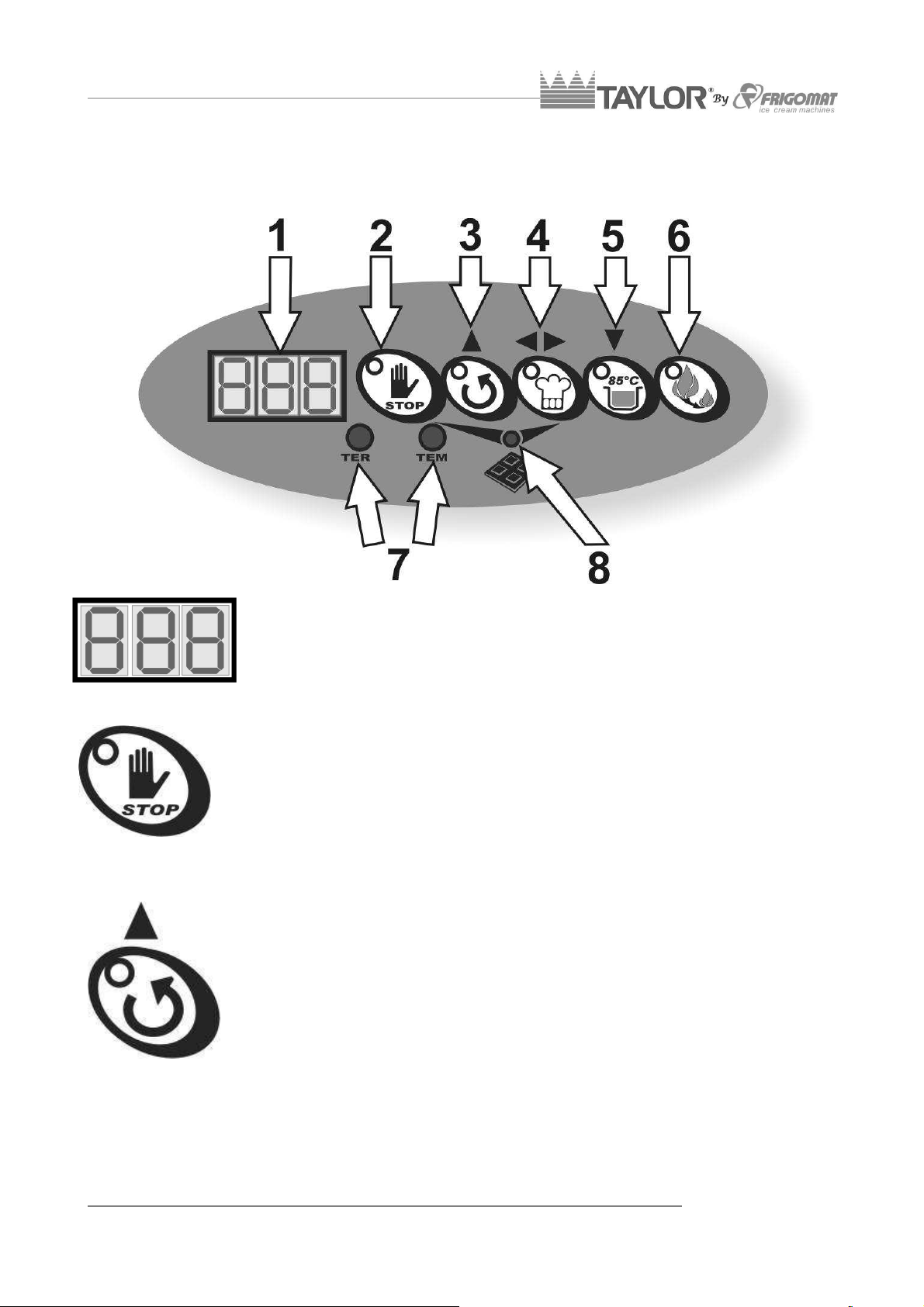

6.2 HEATER CONTROL PANEL
1. DISPLAY
Displays the information relative to work programs and allowed
adjustments.
2. STOP
In whatever operating phase the machine is in, pressing the STOP
key stops the machine and cancels the function in progress.
3. AGITAZIONE (MIXING)/UP (▲)
This button has 2 functions:
1. With the machine at STOP, by pressing the STIRRING key, the
beater motor starts up and the LED turns on.
With the machine at SEMI-AUTOMATIC and AUTOMATIC 85°, by
pressing the STIRRING key, the functioning progress interrupts,
the machine changes to mixing only and the LED turns on.
2. With the machine in programming, by pressing the UP (▲) key it is
possible to increase the value of the selected parameter.

17
-
ENGLISH

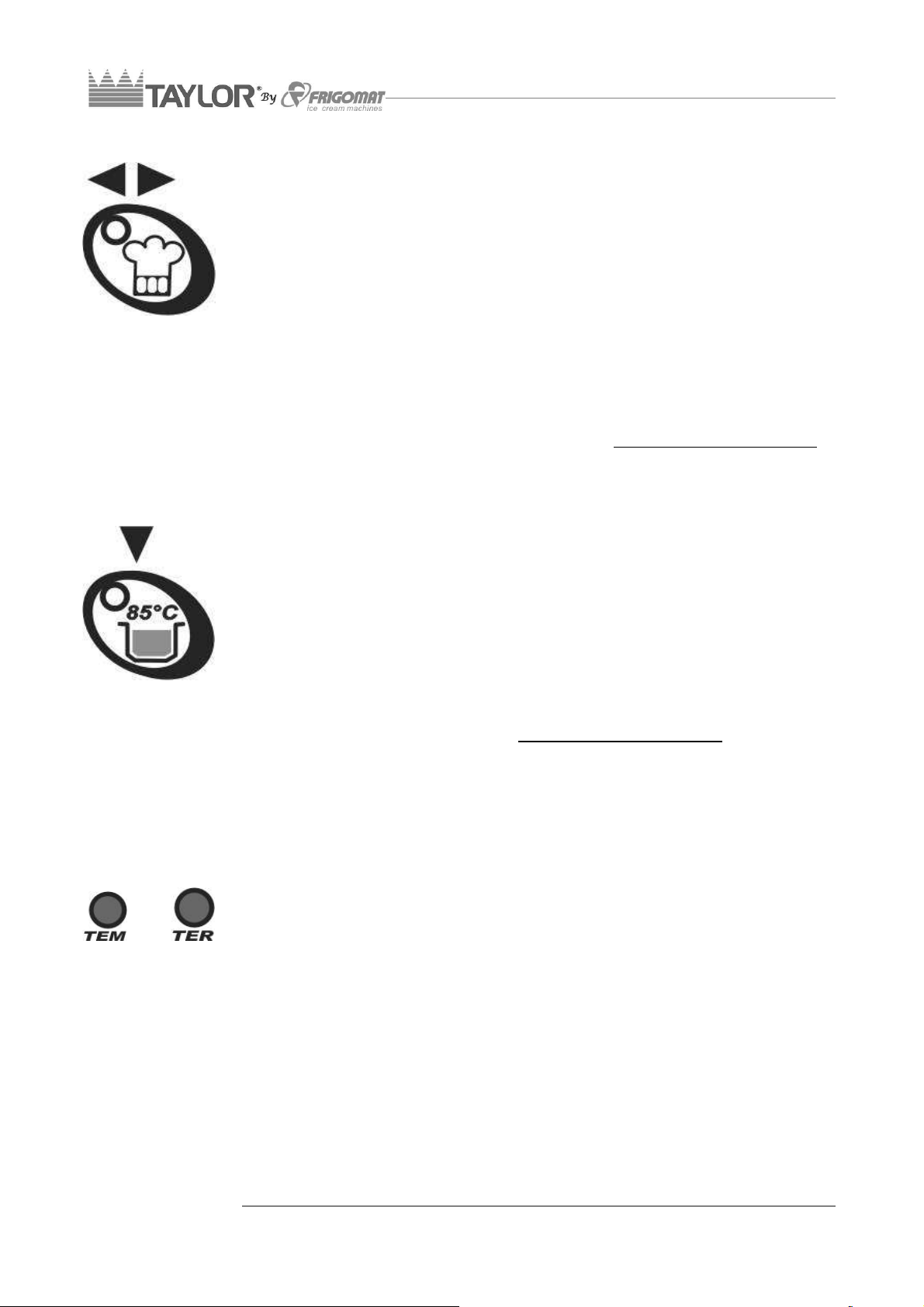

4. SEMI-AUTOMATIC/CONFIRM (◄►)
This button has 4 functions:
1. Whatever the function in progress, the pressing the SEMI-AUTOMATIC
key, access is gained to the programming of the semi-automatic thermal
processing cycle, were it possible to program the maximum temperature
of the product in tank and time for which said temperature will be kept
constant.
2. With the machine in programming, by pressing the CONFIRM (◄►) key
it is possible to confirm the value of the selected parameter.
3. With the machine in SEMI-AUTOMATIC, by keeping the SEMI-
AUTOMATIC pressed for at least 3”, the instantaneous temperature of
the bain-marie fluid is temporarily shown on display.
4. With the machine in SEMI-AUTOMATIC, by keeping the SEMI-
AUTOMATIC pressed for at least 10”, access is gained to the control
mode of the bain-marie fluid programming (only for qualified personnel).
5. AUTOMATIC 85°/ DOWN (▼)
This button has 4 functions:
1. Whatever the function in progress, by pressing the AUTOMATIC 85°
key, the key LED switches on and starts the automatic heating cycle at
85°C with successive maintenance.
2. During programming, by pressing the DOWN (▼) key it is possible to
reduce the value of the selected parameter.
3. With the machine in AUTOMATIC 85°, by keeping the AUTOMATIC 85°
pressed for at least 3”, the instantaneous temperature of the bain-marie
fluid is temporarily shown on display.
4. With the machine in AUTOMATIC 85°, by keeping the AUTOMATIC 85°
pressed for at least 10”, access is gained to the control mode of the
bain-marie fluid programming (only for qualified personnel).
6. SLOW FLAME
In whatever operating phase the machine is in, pressing the SLOW FLAME
key turns on the key's LED and the thermostat control temperature of the
bain-marie system automatically switches from 120°C to 90°C.
7.LED TER - TEM
The LED switches on to signal any system anomalies.
8. CHOCOLATE LED
The LED switches on during execution of the CHOCOLATE cycle to
confirm the heating mode with glycol at low temperature.

ENGLISH
-
18

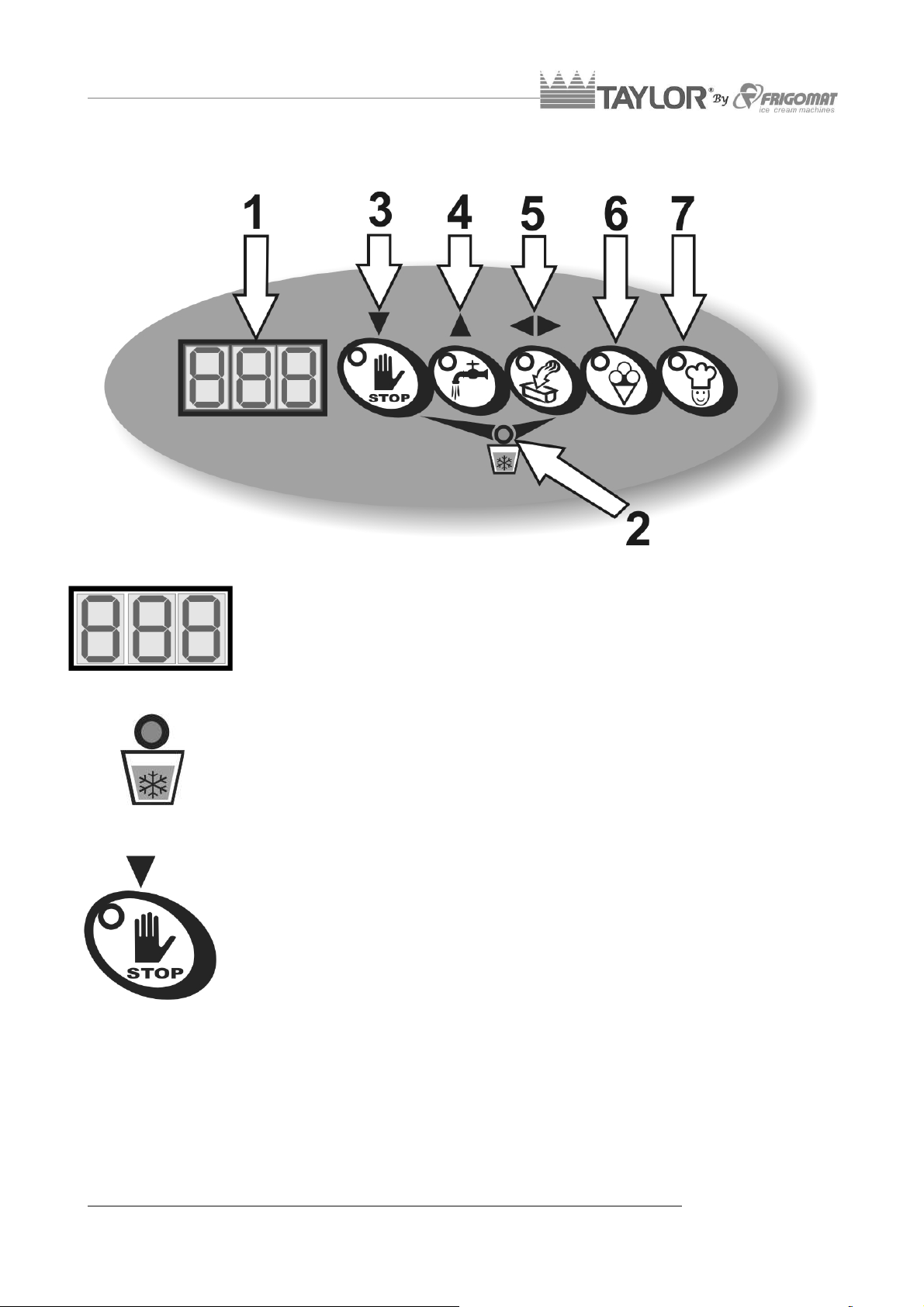

6.3 BATCH FREEZER CONTROL PANEL
1. DISPLAY
Displays the information relative to work programs and allowed
adjustments.
2. SLUSH LED
The LED switches on when a slush production program is selected.
3. STOP/DOWN (▼)
This button has 2 functions:
1. In whatever operating phase the machine is in, pressing the STOP
key stops the machine and cancels the function in progress.
Do not stop the machine when the ice cream is close to its
maximum consistency, neither during the automatic or semi-
automatic cycles. This precaution lengthens the life of the
transmission belts and of the beater motor.
2. With the machine in the SEMI-AUTOMATIC program, by pressing
the DOWN key it is possible to reduce the value of the selected
parameter.

19
-
ENGLISH

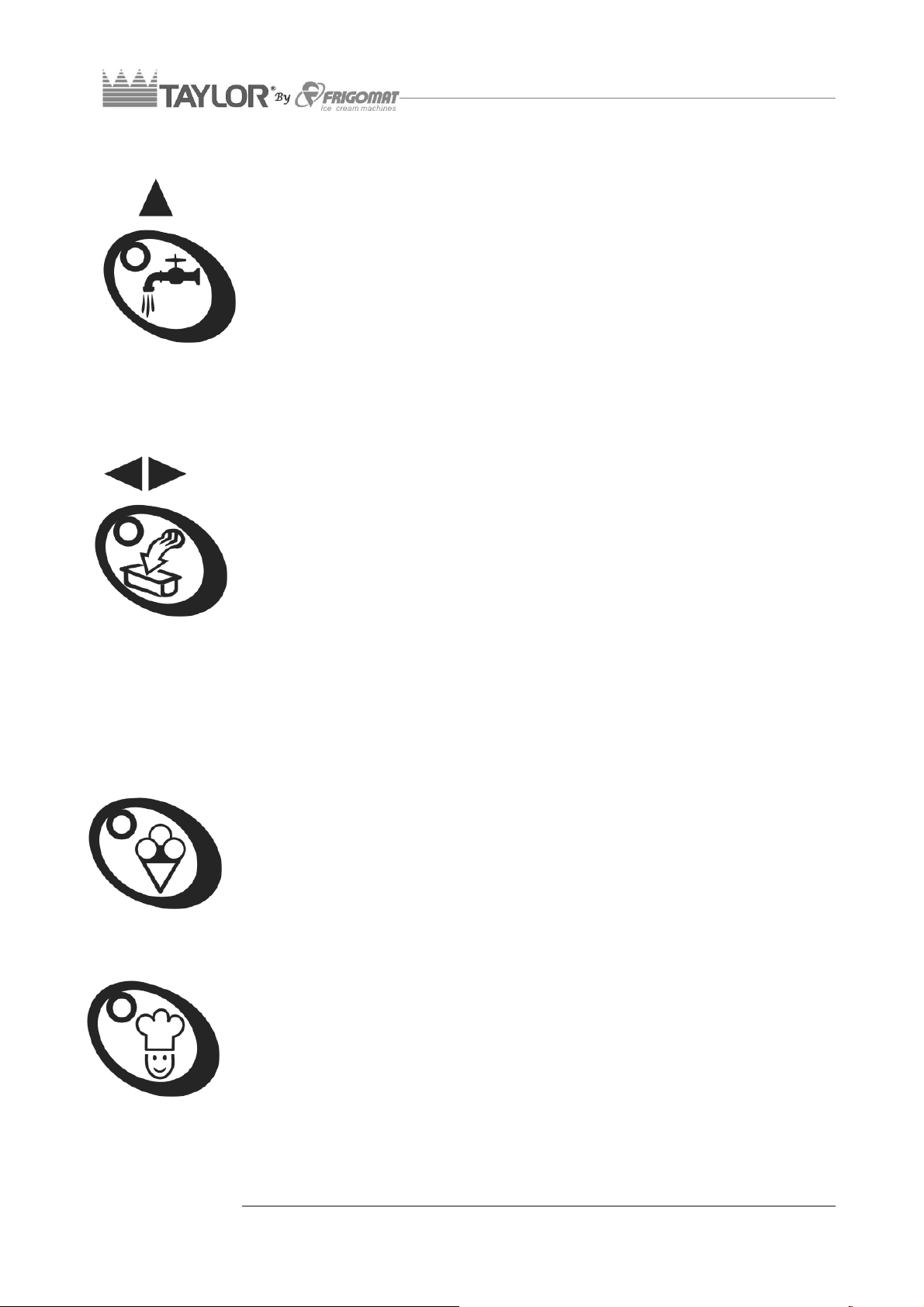

4. MIXING/UP (▲)
This button has 2 functions:
1. With the machine at STOP, pressing the MIXING key only starts
the beater motor at low speed. During any other operative phase,
pressing the MIXING key keeps the beater motor running at low
speed and stops the compressor. Press the STOP key to stop
mixing.
2. With the machine in the SEMI-AUTOMATIC program, by pressing
the UP key it is possible to increase the value of the selected
parameter.
5. EXTRACTION/CONFIRM (◄►)
This button has 2 functions:
1. With the machine at STOP, pressing the EXTRACTION key starts
the beater motor at low speed. After a delay of a few seconds, it
automatically switches into high speed.
During any other operating phase of the machine, pressing the
EXTRACTION key switches the beater motor from low speed to
high speed after a delay of a few seconds and and disables the
compressor.
With the machine in extraction mode, by pressing and holding the
EXTRACTION key again for a few seconds, the compressor is
enabled for 15” and the display shows the message E-C (“cold
extraction” function).
2. With the machine in the SEMI-AUTOMATIC program, by pressing
the CONFIRM key it is possible to confirm the value of the selected
parameter.
6. AUTOMATIC CYCLE
In any operational phase of the machine, by pressing the AUTOMATIC
key the automatic production cycle starts that enables to reach the
best possible compromise between batch freezing time and ice cream
consistency, regardless of the type of mixture used, provided that they
are within the minimum and maximum capacity of the appliance.
7. SEMI-AUTOMATIC CYCLE
In any operational phase of the machine, by pressing the SEMI-
AUTOMATIC key one accesses the semi-automatic production cycle
with consistency control, which enables the operator to manually
select the desired level of ice cream consistency, in relation to the type
of mixture used, , provided that it is within the minimum and maximum
capacity of the appliance.
