Fuji Electric FRENIC5000G11S Series Instruction manual

1
Fuji Electric Co.,Ltd.
INVERTER SIO
Driver
1 System Configuration....................................................................................................... 3
2 External Device Selection ................................................................................................ 8
3 Communication Settings .................................................................................................. 9
4 Setup Items ....................................................................................................................29
5 Cable Diagrams ............................................................................................................. 33
6 Supported Device Addresses......................................................................................... 99
7 Device Code and Address Code.................................................................................. 106
8 Error Messages............................................................................................................ 110

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 2
Introduction
This manual describes how to connect the Display and the External Device (target inverter).
In this manual, the connection procedure is described in the sections identified below:
1System Configuration
This section lists the types of External
Devices and SIO that you can connect.
)"1 System Configuration" (page 3)
2External Device Selection
Select the model (series) of the External
Device and its connection method.
)"2 External Device Selection" (page 8)
3Communication Settings
This section shows setting examples for
communicating between the Display and
the External Device.
)"3 Communication Settings" (page 9)
4Setup Items
This section describes communication
setup items on the Display.
Set the Display's communication settings
in GP Pro-EX or in off-line mode.
)"4 Setup Items" (page 29)
5Cable Diagrams
This section shows cables and adapters
for connecting the Display and the
External Device.
)"5 Cable Diagrams" (page 33)
Operation

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 3
1 System Configuration
The following section shows system configurations for connecting Fuji Electric Co.,Ltd. External Devices and
the Display.
Series Inverter*1
*1 included in the inverter model names varies depending on the capacity, power supply and language.
Link I/F SIO Type Setting
Example
Cable
Diagram
FRENIC5000G11S FRNG11S-Terminal block on
the inverter
RS-422/485
(2 wire)
Setting
Example 1
(page 9)
Cable
Diagram 1
(page 33)
FRENIC5000P11S FRNP11S-Terminal block on
the inverter
RS-422/485
(2 wire)
Setting
Example 1
(page 9)
Cable
Diagram 1
(page 33)
FVR-E11S FVRE11S-RJ-45 connector on
the inverter
RS-422/485
(2 wire)
Setting
Example 2
(page 11)
Cable
Diagram 2
(page 46)
FVR-C11S FVRC11S-Terminal block on
OPC-C11S-RS*2
*2 The model code for the option card shows the card type (either A, B or C) categorized according to capacity.
RS-422/485
(2 wire)
Setting
Example 3
(page 13)
Cable
Diagram 4
(page 73)
FRENIC-MEGA FRNG1-
RJ-45 connector on
the inverter
RS-422/485
(2 wire)
Setting
Example 4
(page 15)
Cable
Diagram 2
(page 46)
Terminal block on
the inverter
RS-422/485
(2 wire)
Setting
Example 5
(page 17)
Cable
Diagram 3
(page 60)
FRENIC-Mini FRNC1-RJ-45 connector on
OPC-C1-RS*3
*3 Communication card for the inverter
RS-422/485
(2 wire)
Setting
Example 6
(page 19)
Cable
Diagram 2
(page 46)
FRENIC-Eco FRNF1-
RJ-45 connector on
the inverter
RS-422/485
(2 wire)
Setting
Example 7
(page 21)
Cable
Diagram 2
(page 46)
Terminal block on
OPC-F1-RS*3
RS-422/485
(2 wire)
Setting
Example 8
(page 23)
Cable
Diagram 3
(page 60)
FRENIC-Multi FRNE1-
RJ-45 connector on
the inverter
RS-422/485
(2 wire)
Setting
Example 9
(page 25)
Cable
Diagram 2
(page 46)
RJ-45 connector on
OPC-E1-RS*3
RS-422/485
(2 wire)
Setting
Example 10
(page 27)
Cable
Diagram 5
(page 86)

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 4

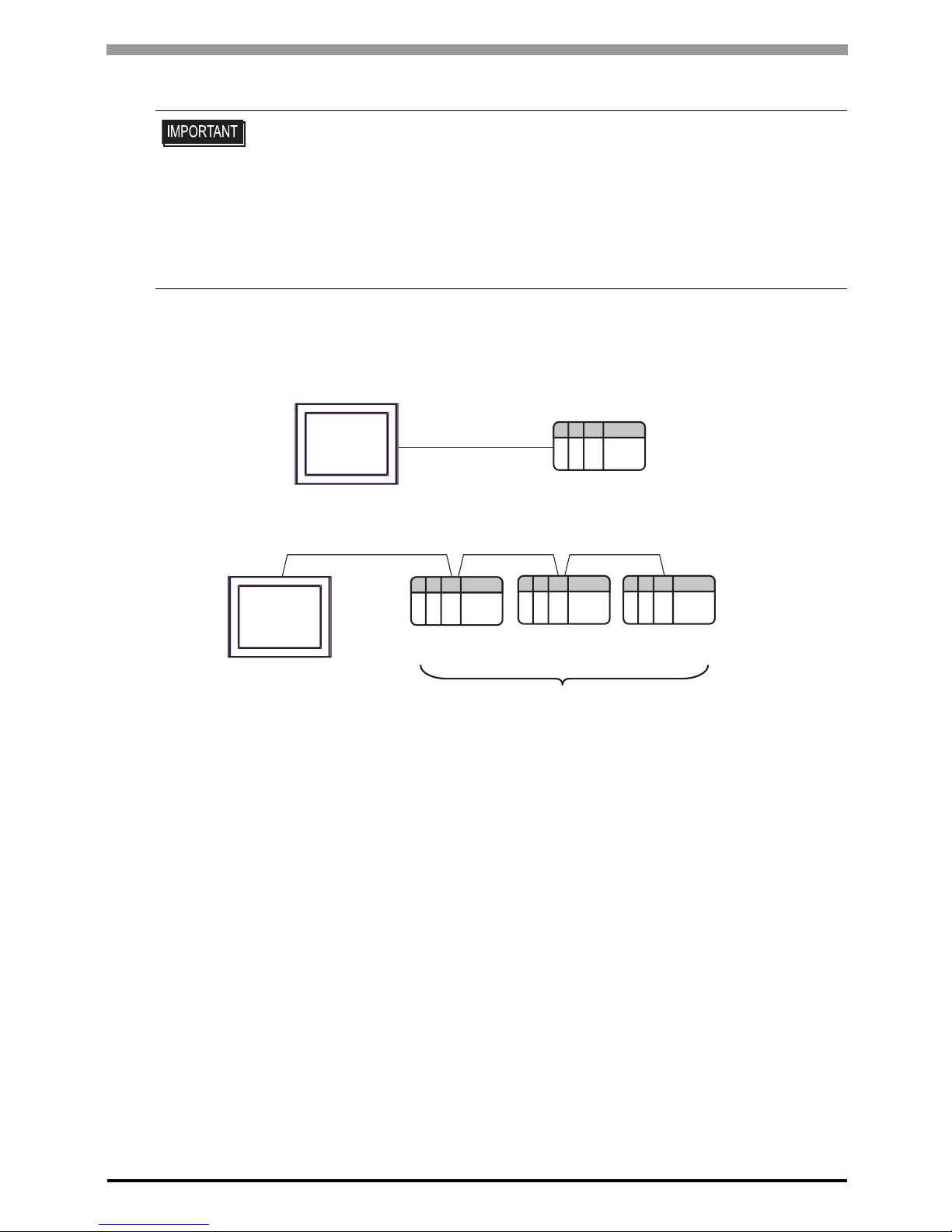

Connection Configuration
• 1:1 Connection
• 1:n Connection
• If a communication error is generated while operating via RS-422/485, there is a possibility
that the stop command will not be recognized via RS-422/485. This is dangerous, so be sure to
perform an emergency stop using the External Device outer signal terminal’s force stop
function.
• If the alarm reset is done while the run command is on via RS-422/485, the External Device
will reboot abruptly. This is dangerous, so be sure to reset the alarm after confirming that the
run command is turned off.
Display
External Device
Display
External
Device
Maximum number of connectable units: 16 units
External
Device
External
Device

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 5
IPC COM Port
When connecting IPC with an External Device, the COM port used depends on the series and SIO type. Please
refer to the IPC manual for details.
Usable port
Series
Usable Port
RS-232C RS-422/485(4 wire) RS-422/485(2 wire)
PS-2000B COM1*1 , COM2,
COM3*1, COM4
*1 The RI/5V can be switched. Use the IPC’s switch to change if necessary.
--
PS-3450A, PS-3451A,
PS3000-BA, PS3001-BD COM1, COM2*1*2 COM2*1*2 COM2*1*2
PS-3650A (T41 model),
PS-3651A (T41 model) COM1*1 --
PS-3650A (T42 model),
PS-3651A (T42 model) COM1*1*2, COM2 COM1*1*2 COM1*1*2
PS-3700A (Pentium®4-M)
PS-3710A
COM1*1, COM2*1,
COM3*2 , COM4
*2 Set up the SIO type with the DIP Switch. Please set up as follows according to SIO type to be used.
COM3*2 COM3*2
PS-3711A COM1*1, COM2*2 COM2*2 COM2*2
PS4000*3
*3 When making communication between an External Device and COM port on the Expansion slot,
only RS-232C is supported. However, ER (DTR/CTS) control cannot be executed because of the
specification of COM port.
For connection with External Device, use user-created cables and disable Pin Nos. 1, 4, 6 and 9.
Please refer to the IPC manual for details of pin layout.
COM1, COM2 - -
PL3000 COM1*1*2, COM2*1,
COM3, COM4 COM1*1*2 COM1*1*2
PE-4000B Atom N270 COM1, COM2 - -
PE-4000B Atom N2600 COM1, COM2 COM3*4 , COM4*4,
COM5*4, COM6*4
*4 Set up the SIO type with the BIOS. Please refer to the IPC manual for details of BIOS.
COM3*4, COM4*4,
COM5*4, COM6*4
PS5000 (Slim Panel Type
Core i3 Model) *5 *6 COM1, COM2*4 COM2*4 COM2*4
PS5000 (Slim Panel Type
Atom Model)
*5 *6
COM1, COM2*7 COM2*7 COM2*7
PS5000 (Enclosed Panel
Type)*8 COM1 - -
PS5000 (Modular Type
PFXPU/PFXPP)*5 *6
PS5000 (Modular Type
PFXPL2B5-6)
COM1*7 COM1*7 COM1*7
PS5000 (Modular Type
PFXPL2B1-4) COM1, COM2*7 COM2*7 COM2*7

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 6
DIP Switch settings (PL3000 / PS3000 Series)
RS-232C
*5 When setting up communication between an External Device and the RS-232C/422/485 interface
module, use the IPC (RS-232C) or PS5000 (RS-422/485) cable diagrams. However, when using
PFXZPBMPR42P2 in a RS-422/485 (4-wire) configuration with no flow control, connect 7.RTS+
and 8.CTS+, and connect 6.RTS- and 9.CTS-.
When using RS-422/485 communication with External Devices, you may need to reduce the
transmission speed and increase the TX Wait time.
*6 To use RS-422/485 communication on the RS-232C/422/485 interface module, the DIP Switch
setting is required. Please refer to "Knowledge Base" (FAQs) on the support site. (http://www.pro-
face.com/trans/en/manual/1001.html)
*7 Set up the SIO type with the DIP Switch. Please refer to the IPC manual for details of DIP Switch.
The BOX Atom has not a switch to set the RS-232C, RS-422/485 mode. Use the BIOS for the
setting.
*8 For the connection with the External Device, on the user-created cable read as if the connector on
the Display-side is a M12 A-coding 8 pin socket. The pin assignment is the same as described in
the cable diagram. For the M12 A-coding connector, use PFXZPSCNM122.
DIP Switch Setting Description
1OFF
*1
*1 When using PS-3450A, PS-3451A, PS3000-BA and PS3001-BD, turn ON the set value.
Reserved (always OFF)
2OFF
SIO type: RS-232C
3OFF
4 OFF Output mode of SD (TXD) data: Always output
5 OFF Terminal resistance (220Ω) insertion to SD (TXD): None
6 OFF Terminal resistance (220Ω) insertion to RD (RXD): None
7 OFF Short-circuit of SDA (TXA) and RDA (RXA): Not available
8 OFF Short-circuit of SDB (TXB) and RDB (RXB): Not available
9OFF
RS (RTS) Auto control mode: Disabled
10 OFF
Settings FAQ ID
PFXZPBMPR42P2, RS422/485 change method FA263858
PFXZPBMPR42P2 termination resistor setting FA263974
PFXZPBMPR44P2, RS422/485 change method FA264087
PFXZPBMPR44P2 termination resistor setting FA264088

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 7
RS-422/485 (4 wire)
RS-422/485 (2 wire)
DIP Switch Setting Description
1 OFF Reserved (always OFF)
2ON
SIO type: RS-422/485
3ON
4 OFF Output mode of SD (TXD) data: Always output
5 OFF Terminal resistance (220Ω) insertion to SD (TXD): None
6 OFF Terminal resistance (220Ω) insertion to RD (RXD): None
7 OFF Short-circuit of SDA (TXA) and RDA (RXA): Not available
8 OFF Short-circuit of SDB (TXB) and RDB (RXB): Not available
9OFF
RS (RTS) Auto control mode: Disabled
10 OFF
DIP Switch Setting Description
1 OFF Reserved (always OFF)
2ON
SIO type: RS-422/485
3ON
4 OFF Output mode of SD (TXD) data: Always output
5 OFF Terminal resistance (220Ω) insertion to SD (TXD): None
6 OFF Terminal resistance (220Ω) insertion to RD (RXD): None
7 ON Short-circuit of SDA (TXA) and RDA (RXA): Available
8 ON Short-circuit of SDB (TXB) and RDB (RXB): Available
9ON
RS (RTS) Auto control mode: Enabled
10 ON

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 8
2 External Device Selection
Select the External Device to be connected to the Display.
Setup Items Setup Description
Number of Devices/PLCs Use an integer from 1 to 4 to enter the number of Devices/PLCs to connect to the
display.
Manufacturer Select the manufacturer of the External Device to connect. Select "Fuji Electric
Co.,Ltd.".
Series
Select the External Device model (series) and the connection method. Select
"INVERTER SIO".
In System configuration, make sure the External Device you are connecting is
supported by "INVERTER SIO".
)"1 System Configuration" (page 3)
Port Select the Display port to be connected to the External Device.
Use System Area Not available in this driver.

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 9
3 Communication Settings
This section provides examples of communication settings recommended by Pro-face for the Display and the
External Device.
3.1 Setting Example 1

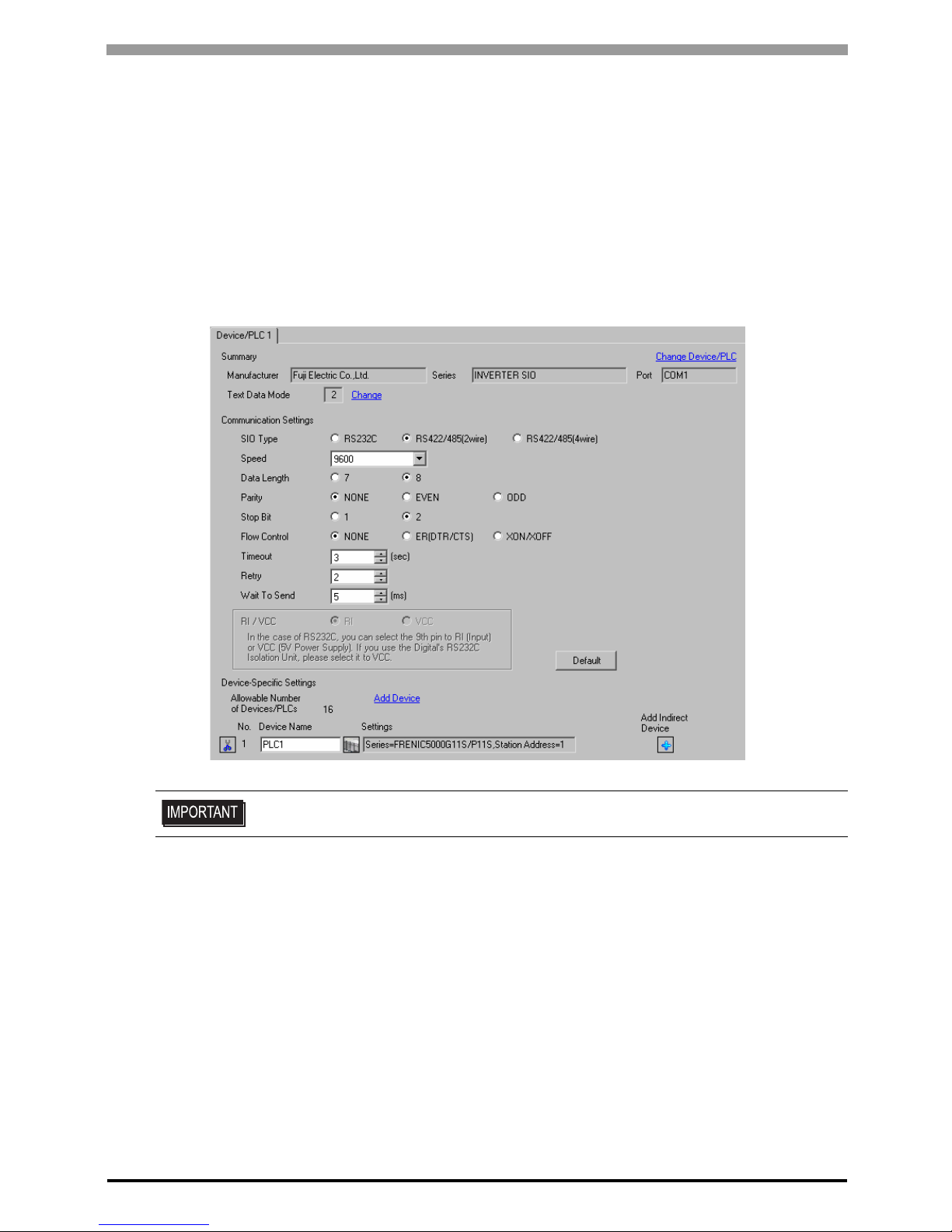

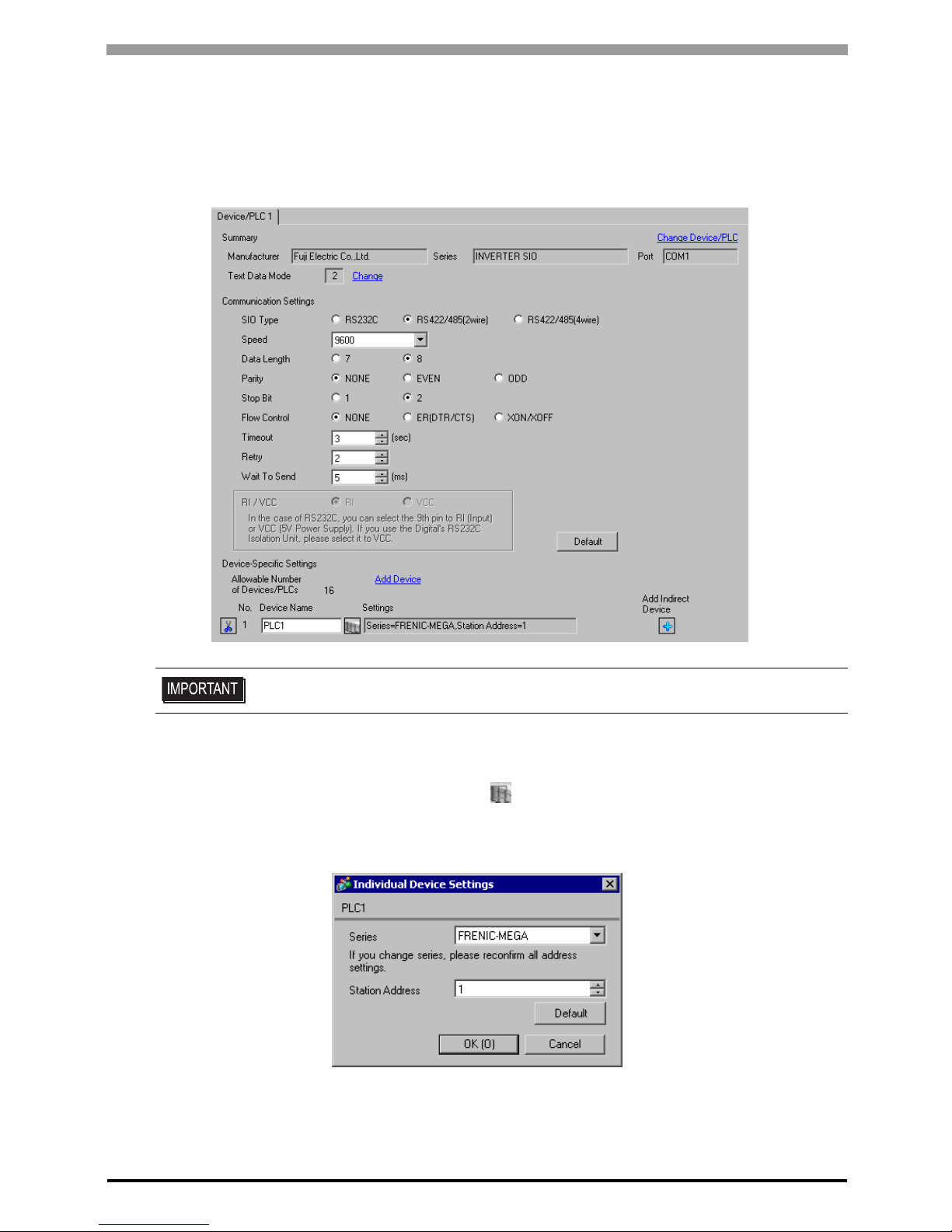

GP-Pro EX Settings
Communication Settings
To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].
• Set Wait To Send to 1(ms) or more.

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 10
Device Setting
To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]
window, select the external device and click [Settings] .
To connect multiple External Devices, from [Device-Specific Settings] in the [Device/PLC] window, click [Add
Device] to add another External Device.
External Device Settings
To configure communication settings, use the PRG, FUNC/DATA, Up, Down, or SHIFT key on the touch panel
located on the front of the External Device. Refer to your External Device manual for details.
1Turn ON the power of the External Device.
2Press the PRG key to move to the program menu.
3Select [1. DATA SET], and press the FUNC/DATA key.
4Press the Up, Down, or SHIFT key to select the function code you want to set.
5Press the FUNC/DATA key.
6Press the Up, Down, or SHIFT key to display the setting value.
7Press the FUNC/DATA key.
8Press the PRG key to move to the operation mode.
9Reboot the External Device.
This completes the External Device settings.
Function Code Setting Setup Description
H31 1 Station address
H34 1 Speed
H35 0 Data length selection
H36 0 Parity bit selection
H37 0 Stop bit selection

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 11
3.2 Setting Example 2

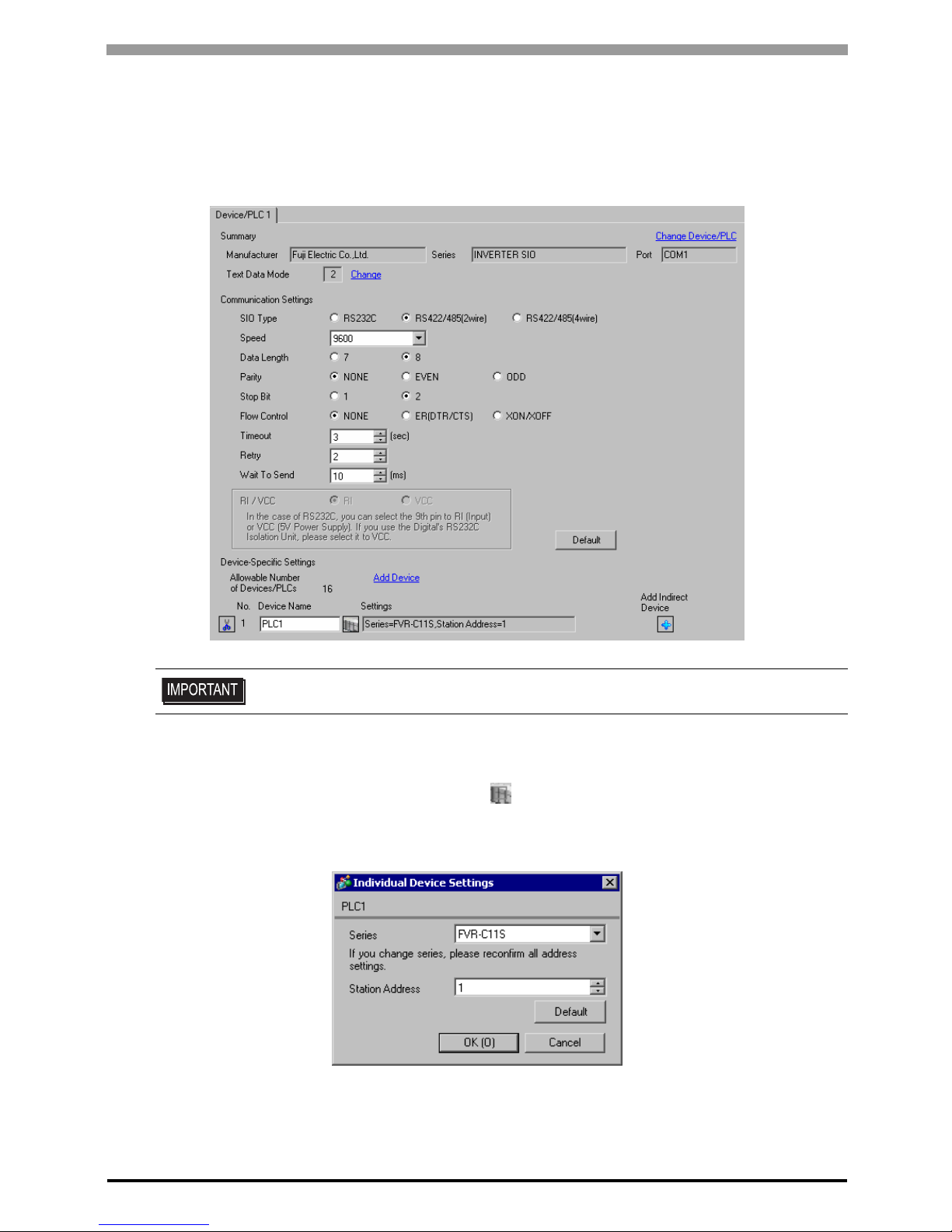

GP-Pro EX Settings
Communication Settings
To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].
Device Setting
To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]
window, select the external device and click [Settings] .
To connect multiple External Devices, from [Device-Specific Settings] in the [Device/PLC] window, click [Add
Device] to add another External Device.
• Set Wait To Send to 10(ms) or more.

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 12
External Device Settings
To configure communication settings, use the FUNC/DATA, Up, Down, or PRG/RESET key on the touch panel
located on the front of the External Device. Refer to your External Device manual for details.
1Turn ON the power of the External Device.
2Press the PRG/RESET key to move to the program mode.
3Press the Up or Down key to display the function code you want to set.
4Press the FUNC/DATA key.
5Press the Up or Down key to display the setting value.
6Press the FUNC/DATA key.
7Press the PRG/RESET key to move to the normal mode.
8Reboot the External Device.
This completes the External Device settings.
Function Code Setting Setup Description
H31 1 Station address
H34 1 Speed
H35 0 Data length selection
H36 0 Parity bit selection
H37 1 Stop bit selection

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 13
3.3 Setting Example 3
GP-Pro EX Settings
Communication Settings
To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].
Device Setting
To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]
window, select the external device and click [Settings] .
To connect multiple External Devices, from [Device-Specific Settings] in the [Device/PLC] window, click [Add
Device] to add another External Device.
• Set Wait To Send to 10(ms) or more.

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 14
External Device Settings
To configure communication settings, use the FUNC/DATA, Up, Down, or PRG/RESET key on the touch panel
located on the front of the External Device. Refer to your External Device manual for details.
1Turn ON the power of the External Device.
2Press the PRG/RESET key to move to the program mode.
3Press the Up or Down key to display the function code [o00].
4Press the FUNC/DATA key.
5Press the Up or Down key to display the setting value.
6Press the FUNC/DATA key.
7Press the Up or Down key to display the function code you want to set.
8Press the Up or Down key to display the setting value.
9Press the FUNC/DATA key.
10 Press the PRG/RESET key to move to the normal mode.
11 Reboot the External Device.
This completes the External Device settings.
Function Code Setting Setup Description
o00 1 Option select (RS-485
Communications)
Function Code Setting Setup Description
o01 1 Station address
o04 1 Speed
o05 0 Data length selection
o06 0 Parity bit selection
o07 0 Stop bit selection

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 15
3.4 Setting Example 4

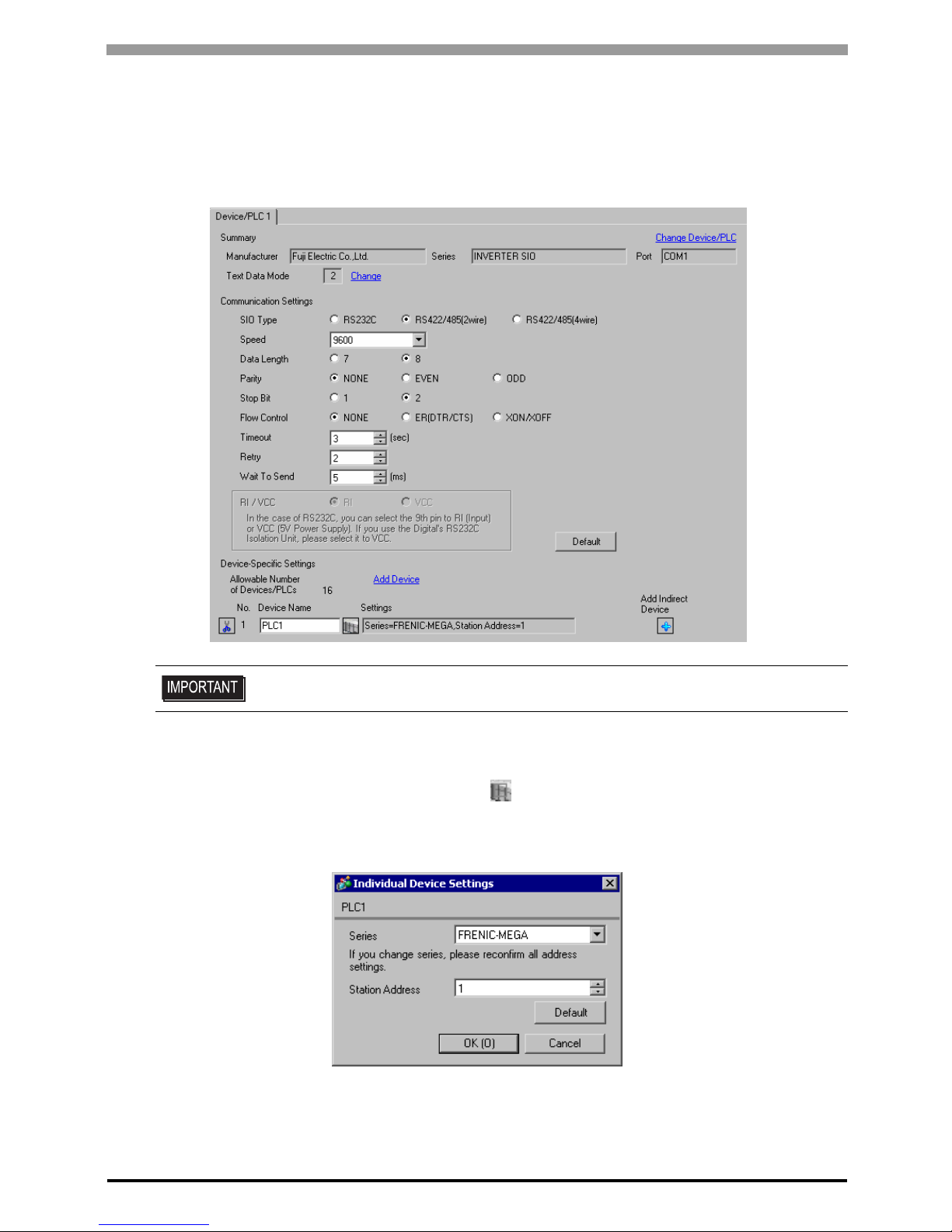

GP-Pro EX Settings
Communication Settings
To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].
Device Setting
To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]
window, select the external device and click [Settings] .
To connect multiple External Devices, from [Device-Specific Settings] in the [Device/PLC] window, click [Add
Device] to add another External Device.
• Set Wait To Send to 5(ms) or more.

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 16
External Device Settings
To configure communication settings, use the FUNC/DATA, Up, Down, or PRG/RESET key on the touch panel
located on the front of the External Device. Refer to your External Device manual for details.
1Turn ON the power of the External Device.
2Press the PRG/RESET key to move to the program mode.
3Press the Up or Down key to display the function code group [1.Y_ _ ].
4Press the FUNC/DATA key.
5Press the Up or Down key to display the function code you want to set.
6Press the FUNC/DATA key.
7Press the Up or Down key to display the setting value.
8Press the FUNC/DATA key.
9Press the PRG/RESET key to move to the operation mode.
10 Reboot the External Device.
This completes the External Device settings.
Function Code Setting Setup Description
Y01 1 Station address
Y04 2 Speed
Y05 0 Data length selection
Y06 0 Parity bit selection
Y07 0 Stop bit selection
Y10 2 Protocol selection

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 17
3.5 Setting Example 5
GP-Pro EX Settings
Communication Settings
To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].
Device Setting
To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]
window, select the external device and click [Settings] .
To connect multiple External Devices, from [Device-Specific Settings] in the [Device/PLC] window, click [Add
Device] to add another External Device.
• Set Wait To Send to 5(ms) or more.

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 18
External Device Settings
To configure communication settings, use the FUNC/DATA, Up, Down, or PRG/RESET key on the touch panel
located on the front of the External Device. Refer to your External Device manual for details.
1Turn ON the power of the External Device.
2Press the PRG/RESET key to move to the program mode.
3Press the Up or Down key to display the function code group [1.Y_ _ ].
4Press the FUNC/DATA key.
5Press the Up or Down key to display the function code you want to set.
6Press the FUNC/DATA key.
7Press the Up or Down key to display the setting value.
8Press the FUNC/DATA key.
9Press the PRG/RESET key to move to the operation mode.
10 Reboot the External Device.
This completes the External Device settings.
Function Code Setting Setup Description
Y11 1 Station address
Y14 2 Speed
Y15 0 Data length selection
Y16 0 Parity bit selection
Y17 0 Stop bit selection
Y20 2 Protocol selection

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 19
3.6 Setting Example 6
GP-Pro EX Settings
Communication Settings
To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].
Device Setting
To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]
window, select the external device and click [Settings] .
To connect multiple External Devices, from [Device-Specific Settings] in the [Device/PLC] window, click [Add
Device] to add another External Device.
• Set Wait To Send to 5(ms) or more.

INVERTER SIO Driver
GP-Pro EX Device/PLC Connection Manual 20
External Device Settings
To configure communication settings, use the FUNC/DATA, Up, Down, or PRG/RESET key on the touch panel
located on the front of the External Device. Refer to your External Device manual for details.
1Turn ON the power of the External Device.
2Press the PRG/RESET key to move to the program mode.
3Press the Up or Down key to display the function code group [1.Y_ _ ].
4Press the FUNC/DATA key.
5Press the Up or Down key to display the function code you want to set.
6Press the FUNC/DATA key.
7Press the Up or Down key to display the setting value.
8Press the FUNC/DATA key.
9Press the PRG/RESET key to move to the operation mode.
10 Reboot the External Device.
This completes the External Device settings.
Function Code Setting Setup Description
Y01 1 Station address
Y04 2 Speed
Y05 0 Data length selection
Y06 0 Parity bit selection
Y07 0 Stop bit selection
Y10 2 Protocol selection
