A
ll brand and product names are trademarks, registered trademarks or service marks of their respective holders.
Installation Manual
NAVIGATIONAL ECHO SOUNDER
Model FE-700
SAFETY INSTRUCTIONS ................................................................................................ i
SYSTEM CONFIGURATION ........................................................................................... ii
EQUIPMENT LISTS........................................................................................................ iii
1. MOUNTING................................................................................................................. 1
1.1 Category of Equipment .........................................................................................................1
1.2 Display Unit...........................................................................................................................1
1.3 Transducer............................................................................................................................4
1.4 Distribution Box.....................................................................................................................6
1.5 Matching Box ........................................................................................................................7
1.6 Digital Depth Indicator FE-720 (option).................................................................................7
1.7 Transducer Switch Box EX-8 (option)...................................................................................9
1.8 Gate Valve GV-50B-6B, GV-200B-8B (option) .....................................................................9
2. WIRING..................................................................................................................... 11
2.1 Wiring..................................................................................................................................11
2.2 Cable Fabrication................................................................................................................13
2.3 Transducer..........................................................................................................................17
2.4 Ground ................................................................................................................................17
2.5 Alarm system connection....................................................................................................17
2.6 Digital Depth Indicator FE-720............................................................................................18
3. CHANGING POWER SPECIFICATIONS................................................................. 19
4. ADJUSTMENTS ....................................................................................................... 21
4.1 Transducer Setting..............................................................................................................21
4.2 Setting the Time..................................................................................................................23
PACKING LISTS ......................................................................................................... A-1
OUTLINE DRAWINGS ................................................................................................ D-1
INTERCONNECTION DIAGRAMS.............................................................................. S-1

The paper used in this manual
is elemental chlorine free.
・FURUNO Authorized Distributor/Dealer
9 52 Ashihara cho,
Nishinomiya, 662 8580, JAPAN
A
:
JAN
2000
.
Printed in Japan
All rights reserved.
U
:
SEP
.
01, 2020
Pub. No.
IME-23660-U
(
TAYA
)
FE-700
0 0 0 8 0 8 9 1 0 1 5

i
SAFETY INSTRUCTIONS
CAUTIONCAUTION
Observe the following compass safe
distances to prevent deviation of a
magnetic compass:
Display
unit
Standard Steering
compass compass
0.55 m 0.35 m
Distribution
Box 1.00 m 0.65 m
Digital depth
indicator (option) 0.50 m 0.40 m
When handling the transducer cable,
keep in mind following points:
- Keep the cable away from oil and fuel.
- Keep the cable away from the place
where it may be damaged during the
installation.
- Do not paint the cable.
- The sheath of the transducer cable is
made of chlorophrene rubber (or vinyl
chloride). Therefore, do not paint the
sheath with organic liquid (such as
toluene) since it may harm the sheath.
Matching Box 0.50 m 0.40 m
Transducer
Switch Box
(option)
1.00 m 0.60 m
Junction Box
(option) 0.30 m 0.30 m
Distribution box
(option) 0.30 m 0.30 m
WARNINGWARNING
Turn off the power at the switchboard
before beginning the installation.
Fire or electrical shock can result if the
power is left on.
Do not install the equipment where it
may get wet from rain or water splash.
Water in the equipment can result in fire,
electrical shock or equipment damage.
Be sure no water leaks in at the trans-
ducer mounting location.
Water leakage can sink the vessel. Also
confirm that the transducer will not loosen
by ship's vibration. The installer of the
equipment is solely responsible for the
proper installation of the equipment.
FURUNO will assume no responsibility
for any damage associated with improper
installation.
Be sure that the power supply is
compatible with the voltage rating of
the equipment.
Connection of an incorrect power supply
can cause fire or equipment damage. The
voltage rating of the equipment appears
on the label above the power connector.
Do not open the equipment unless
totally familiar with electrical circuits
and service manual.
Only qualified personnel should
work inside the equipment.
Mandatory Action
Prohibitive Action
WARNING
Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation which, if not avoided,
can result in minor or moderate injury.
Warning, Caution
The operator and installer must read the applicable safety instructions before attempting to
install or operate the equipment.

ii
SYSTEM CONFIGURATION
DISTRIBUTION
BOX FE-702
DISPLAY UNIT
FE-701
Navigation Device
Personal Computer
: Standard Supply
: Optional Supply
: Local Supply
Alarm Unit AU-12
Matching Box
MB-502 (For 50B-6B)
MB-504 (For 200B-8B)
Contact signal
100/110-115/
200/220-230 VAC
and
DC24 V
Terminal Box DS-802
Navigation Device
JUNCTION BOX
JISF8821-1M0 0-20A3P
JB
IEC 61162-1
EIA-232C
IEC 61162-1
IEC 61162-1
JB
DIGITAL DEPTH INDICATOR
FE-720
JB
JB
JB
TRANSDUCER
50B-6B,
200B-8B
SWITCH BOX
EX-8
DISTRIBUTION
BOX
MB-1200

iii
EQUIPMENT LISTS
Standard Supply
Optional Supply
Name Type Code No. Qty Remarks
Display Unit FE-701 — 1 w/Installation Materials CP02-
06400 (000-015-872) and Ac-
cessories FP02-04800 (000-
015-469)
Distribution Box FE-702 — 1
Matching Box MB-502 000-013-602 1 For 50B-6B
MB-504 000-013-604 1 For 200B-8B
Transducer 50B-6B — 1 w/15 m or 30 m cable
200B-8B — 1 w/15 m, 30 m or 50 m cable
Transducer Tank TTF-5600 000-015-586 1 For 50B-6B, w/Installation
Materials CP02-08801 (001-
106-490)
TTF-2000 000-015-587 1 For 200B-8B, w/Installation
Materials CP02-08802 (001-
106-500)
Spare Parts SP02-04101 001-228-890 1 set For distribution box
Installation Materials CP02-06301 001-228-950 1 set For distribution box
Name Type Code No. Qty Remarks
Transducer Switch
Box
EX-8 000-012-179 1 Flush mount, color specified
000-012-176 Bulkhead mount, color spec-
ified
000-012-183 7.5BG7/2, Flush mount
000-012-182 7.5BG7/2, Bulkhead mount
000-012-180 N.G, Flush mount
000-012-181 N.G, Bulkhead mount
Cable Assy. FM-C6FPS003-020 000-143-821 1 2 m cable w/6P connector,
for EX-8
Junction Box JIS F8821-1MO
0-20A3P
000-804-877 1
Transducer Tank TTF-5001 000-015-877 1 For 50B-6B, w/o falnge
TTF-2001 000-015-878 1 For 200B-8B, w/o flange
TTF-5002 000-015-885 1 For 50B-6B, w/ flange, T25
TTF-2002 000-015-887 1 For 200B-8B, w/ flange, T25
TTF-5600 (T-30) 000-037-903 1 For 50B-6B, w/ flange, T30
TTF-2000 (T-30) 000-036-530 1 For 200B-8B, w/ flange, T30
Bulkhead Kit OP02-78-1 001-229-270 1 2.5GY5/1.5
OP02-78-2 001-229-280 7.5BG7/2
Flush Mount Kit (F) OP02-79-1 001-229-290 1 N3.0
OP02-79-2 001-229-300 2.5GY5/1.5
OP02-79-3 001-229-310 7.5BG7/2
Flush Mount Kit (S) OP02-80 001-229-320 1

EQUIPMENT LISTS
iv
Data Recording
Software for PC
02-522-990 001-229-090 1 For Windows 95/98/NT4.0
Digital Depth Indica-
tor
FE-720 000-029-025 1 set w/Installation Materials
CP02-06700 (000-029-
068)Spare Parts SP65-
00601 (002-889-730)Acces-
sories FP65-00400 (000-
029-067)
Dimmer MF-22L-1-100V 000-069-401 1 100 VAC-120 VAC, Flush
mount type
MF-22L-1-200V 000-069-403 200 VAC-240 VAC, Flush
mount type
MF-22L-2-100V 000-069-402 100 VAC-120 VAC, Bulk
head type
MF-22L-2-200V 000-069-404 200 VAC-240 VAC, Bulk
head type
Terminal Box DS-802 000-029-064 1 set With Installation Materials
CP65-00903 (000-029-064)
EGC Printer PP-505-FE 000-055-892 1 set
Gate Valve GV-50B-6B 000-015-265 1 With Installation Materials
CP02-07601 (002-891-620)
GV-200B-8B 000-015-273 1
Distribution Box MB-1200 000-016-185 1 set For connection of transducer
50B-6B, 200B-8B, instruc-
tions included.
Installation Materials CP02-06430 000-021-731 1 20 m cable for the connec-
tion between the distribution
box and display unit.
Name Type Code No. Qty Remarks

1
1. MOUNTING
1.1 Category of Equipment
Equipment for protected area
• Display Unit
• Distribution Box
• Matching Box
• Transducer Switch Box (option)
• Digital Depth Indicator (option)
Equipment to be submerged
• Transducer
1.2 Display Unit
1.2.1 Mounting consideration
The display unit can be installed on a tabletop, on the overhead, on the bulkhead or
flush mounted in a console or panel.
When selecting a mounting location for the display unit keep the following in mind.
• Keep the display unit out of direct sunlight.
• The temperature and humidity should be moderate and stable.
• Locate the unit away from exhaust pipes and vents.
• The mounting location should be well ventilated.
• Mount the unit where shock and vibration are minimal.
• Keep the unit away from electromagnetic field-generating equipment such as mo-
tors and generators.
• For maintenance and checking purposes, leave sufficient space at the sides and
rear of the unit and leave slack in cables.
NOTICE
Do not apply paint, anti-corrosive sealant
or contact spray to coatingor plastic
parts of the equipment.
Those items contain organic solvents that
can damage coating and plastic parts,
especially plastic connectors.

1. MOUNTING
2
• A magnetic compass will be affected if placed too close to the display unit. Observe
the following compass safe distances to prevent disturbance to the magnetic com-
pass.
Standard compass: 0.55 meters
Steering compass: 0.35 meters
1.2.2 Removing the cover
While pressing the center of the cover with your thumbs as illustrated, pull the cover
towards you to remove it.
1.2.3 Desktop mounting
1. Fix the hanger with four tapping screws (5x20).
2. Screw knob bolts in display unit, set it to hanger, and tighten knob bolts.
Cover
Desktop Overhead

1. MOUNTING
3
3. Attach the dummy covers to the unused holes.

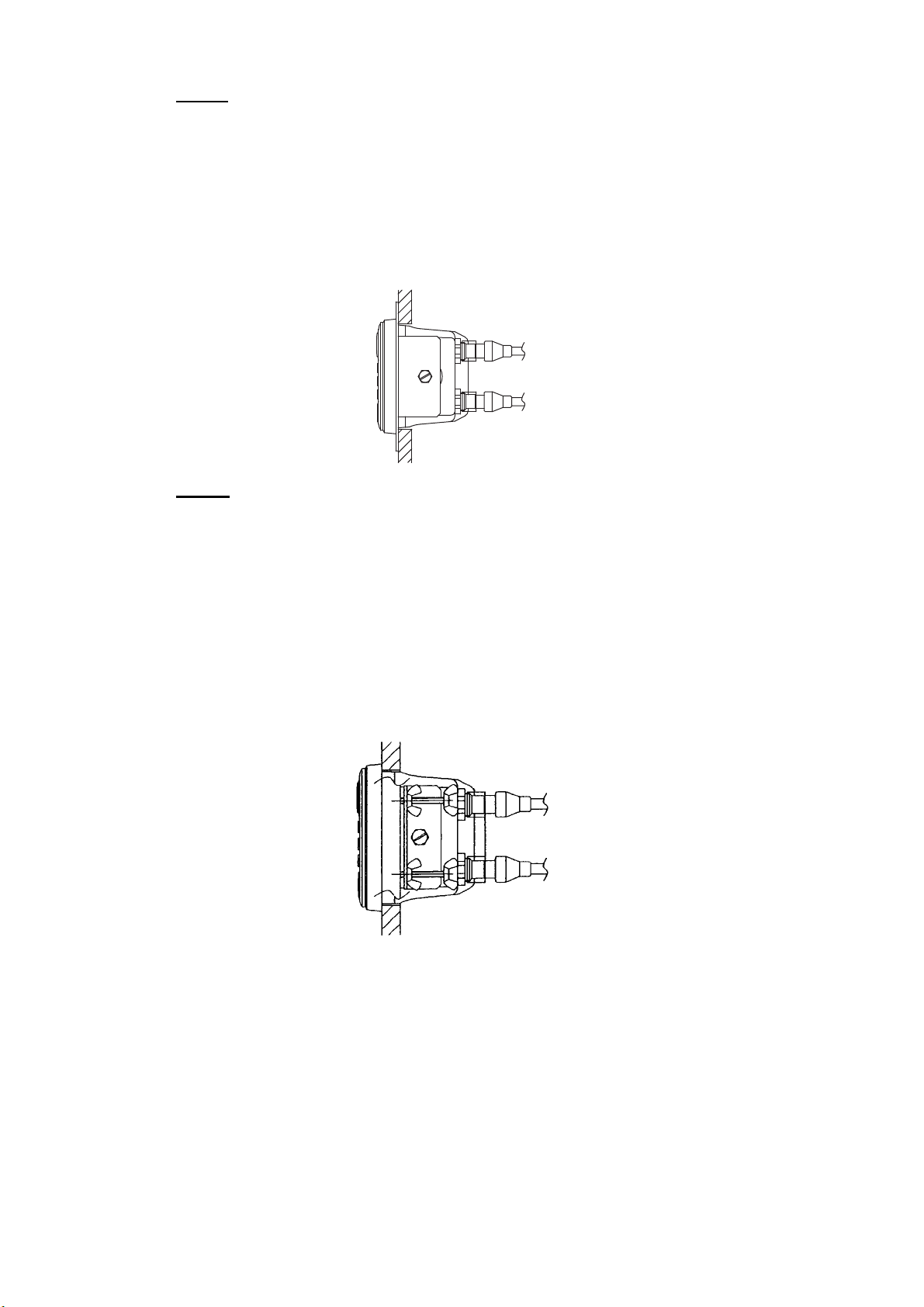

1.2.4 Flush mounting
There are two types of flush mount kits, F type and S type. For details, see the outline
diagrams at the back of this manual.
Dummy cover
5x20 tapping screws

1. MOUNTING
4
F type
1. Prepare a cutout in the mounting location whose dimensions are 210 (W) x 194
(H) mm.
2. Attach the cosmetic panel (02-129-1041-0) to the display unit with four hex bolts
(M6x12) and four spring washers (M6).
3. Fix the display unit to the mounting location with four tapping screws (5x20).
S type
Flush Mount Kit (S): OP02-80 (001-229-320)
1. Prepare a cutout in the mounting location whose dimen-
sions are 194 x 194 mm.
2. Insert the display unit to the cutout.
3. Attach two fixing plates (02-129-1045-0) to the display
unit with four hex bolts (M6x12) and spring four washers
(M6).
4. Screw six wing bolts (M4x30) to wing nuts (M4).
5. Fasten the display unit with six wing bolts and nuts.
1.3 Transducer
The installation of the transducer and the tank should be accomplished by a dockyard
referring to the installation drawings at the back of this manual. An example of trans-
ducer installation method is also shown in paragraph 1.3.2.
Note: Discussions should take place and agreement reached with the dockyard for
sufficient reinforcement and watertightness of the hull to comply with the regulations
concerned.
Flush Mount Kit (F): OP02-79-1 (001-229-290)
OP02-79-2 (001-229-300)
OP02-79-3 (001-229-310)
No. Name Type Code no. Qty Remarks
1Cosmetic
panel
02-129-1041-0 100-279-270 1 OP02-79-1:N3.0
100-279-280 OP02-79-2:2.5GY5/1.5
100-279-290 OP02-79-3:7.5GY7/2
2 Hex bolt M6x12 000-162-897-10 4
3 Spring
washer
M6 000-158-855-10 4
No. Name Type Code no. Qty Remarks
1 Fixing
plate
02-129-1045-0 100-279-300 2
2 Wing bolt M4x30 000-804-799 6
3 Hex bolt M6x12 000-162-897-10 4
4 Spring
washer
M6 000-158-855-10 4
5 Wing nut M4 000-863-306 6

1. MOUNTING
5
1.3.1 Mounting Location
To decide the location of the transducer, the following points should be taken into ac-
count.
• The most important matter is where the transducer is installed. The position should
be free from aeration possibly occurring beneath the hull and also not affected by
engine and propeller noise.
• It is known that air bubble streams start approximately from a quarter length from
the bow, and spreads over the hull bottom approximately to three quarters. Air bub-
ble streams vary in form and intensity according to ship's speed, draught, trim,
shape of bow and hull, as well as sea state.
• In a laden ship, a position somewhere near a quarter of the ship's length from the
stern often gives satisfactory results. As for vessels such as oil tankers whose fore
draught is especially shallow, an after position about three quarters of ship's length
from the stern is often suitable.
• It is recommended to install the transducer on the keel line or between 600 mm and
900 mm from the keel to minimize the effect of aerated water.
• Sitting near obstructions such as the forward propeller, bow thruster, water intake
pipes and speed log sensor should be avoided
• Select a place giving minimum mechanical vibration.
• Do not lay the transducer cable near or in parallel with other electric cables.
1.3.2 Example of Transducer Installation (TTF-5600)
Note: Never fail to remove the transducer and rubber gasket prior to welding the trans-
ducer tank to the hull.
1. Install the transducer tank on the hull. The tank bottom should be flush with the
hull bottom. Feed the transducer cable through the cable gland.
2. Apply sealing tape to the threads of the gland nut for watertightness.
3. Pass the cable thru the gasket, washer and gland nut.
4. Fix the transducer to the tank with the transducer fixing flange.
5. Coat the gland nut with silicone grease.
6. Tighten the gland nut.
7. It is recommended to enclose the transducer cable in a conduit pipe for water-
proofness and electrical shielding as well as for protecting the cable from me-
chanical damage. The conduit pipe should be fixed to the flange on the
transducer tank. The pipe should be of such a length to clear the water level
when the ship is fully loaded. The pipe end should be finished with filling com-
pound. It is recommended to fill the pipe with sand between the transducer and

1. MOUNTING
6
the junction box (or matching box). This will protect the transducer from vibration
and damage.
1.4 Distribution Box
A magnetic compass will be affected if placed too close to the distribution box. Ob-
serve the following compass safe distance to prevent disturbance to the magnetic
compass.
• Standard compass: 1.00 meter
• Steering compass: 0.65 meters
Fasten the distribution box with four tapping screws (6x30) referring to the outline
drawing at the end of this manual.
1 Transducer (50B-6B)
2 Transducer Tank
3 Fixing Flange
4 Gland Nut
5 Washer
6 Rubber Gasket
7 Hex. Bolt (M6x25)
8 Spring Washer (For M6)
*Sea water comes into the area marked
with "*" inside the tank.
4-15
FIXING HOLE
SGP 1 /4"
1
JIS B2221 5 -32
K
115
90
154
59 7
FLUSH FINISH
Ǿ70
190.7+3
HULL PLATE
DOUBLING PLATE
(SHIPPING SUPPLY)
**

1. MOUNTING
7
1.5 Matching Box
The matching box should be selected depending on the transducer type;
• 50B-6B transducer: MB-502
• 200B-8B transducer: MB-504
Fasten the matching box with four Trapping screws (6x20: local supply). Compass
safe distances are as follows; standard compass: 0.50 m, Steering compass: 0.40 m.
1.6 Digital Depth Indicator FE-720 (option)
The indicator can be installed on a tabletop, on the overhead. Refer to outline draw-
ings at the end of this manual for installation instructions. When selecting a mounting
location, keep in mind the following points:
• Locate the unit away from exhaust pipes and vents.
• The mounting location should be well ventilated.
• Mount the unit where shock and vibration are minimal.
• Locate the unit away from equipment which generates electromagnetic fields such
as a motor or generator.
• Allow sufficient maintenance space at the sides and rear of the unit and leave suf-
ficient slack in cables, to facilitate maintenance and servicing.
• Observe the following compass safe distances to prevent deviation of a magnetic
compass. Standard compass: 0.50 m, Steering compass: 0.40 m.
1. Fasten the hanger with four self-tapping screws (5x20).
2. Fasten the digital depth indicator to the hanger with two knobs.
< Flush mounting >
There are two types of flush mount kits, F type and S type. For details, see the outline
diagrams at the back of this manual.
Tabletop Overhead

1. MOUNTING
8
F type
Use the accessories FP65-00401 (See page A-7).
1. Prepare a cutout in the mounting location whose dimensions are 183 (W) x 92 (H)
mm.
2. Attach the cosmetic panel (20-016-1051) to the indicator with two hex bolts
(M6x12) and two spring washers (M6).
3. Fix the indicator to the mounting location with four tapping screws (5x20).
S type
Use the accessories FP65-00402 (See page A-8).
1. Prepare a cutout in the mounting location whose dimensions are 167 (w) x 92 (H)
mm.
2. Insert the indicator to the cutout.
3. Attach two fixing plates (20-007-2401) to the indicator with two hex bolts (M6x12)
and two spring washers (M6).
4. Screw four wing bolts (M4x30) to wing nuts (M4).
5. Fasten the indicator with four wing bolts and nuts.

1. MOUNTING
9
1.7 Transducer Switch Box EX-8 (option)
If two transducers are installed, the transducers switch box is required. Locate the
transducer switch box near the display unit considering length of the interconnection
cable. Select the bright place where the panel of equipment can be watched. Use only
the screws supplied on the terminal inside to make connections. Use of other screws
may cause a short circuit. Compass safe distances are as follows; standard compass:
1.00 m, Steering compass: 0.60 m.

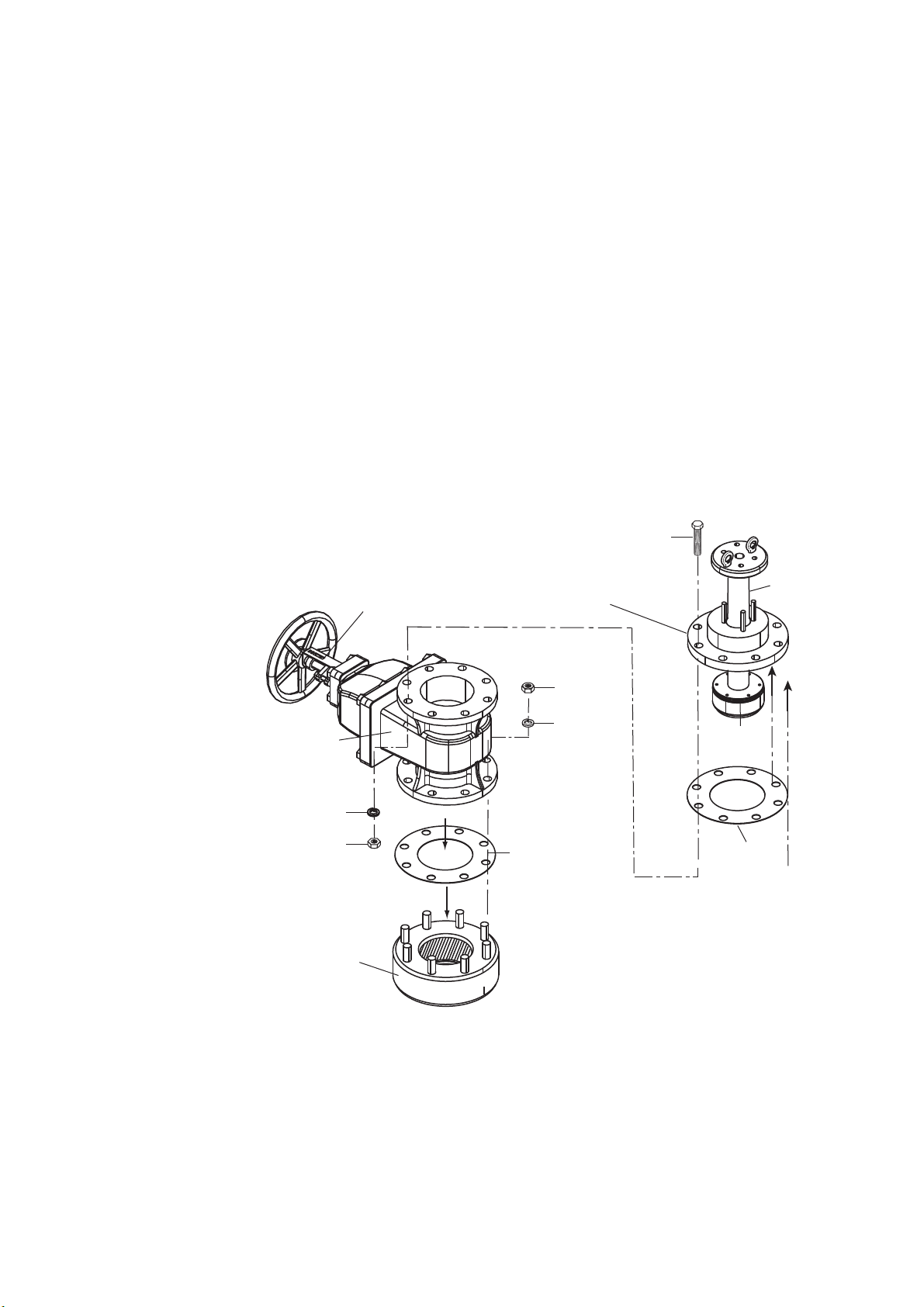

1.8 Gate Valve GV-50B-6B, GV-200B-8B (option)
Assemble the Gate Valve as shown below. Refer to the drawing at the end of this man-
ual.
1. Disassemble the gate valve assembled tentatively: spacer, gasket1, gate valve,
gasket 2, seachest cap and shaft assembly.
When assembling the gate valve, use original washers, bolts and nuts. Keep the
bottom of the seachest cap and the shaft free of dust and be careful not to damage
them.
2. Weld the spacer to the hull bottom.
The hull side of the spacer should be flush with the hull bottom. Be careful not to
damage the side fixed to the gate valve.
3. Clean the side of the spacer to be fixed to the gate valve.
4. Grease (supplied) both sides of the gasket 1 and the inner side of the spacer.
Place the gasket 1 onto the spacer.
5. Clean the flange side of the gate valve, and place it on the gasket 1. The scale
side of the gate valve should be up.
1
SPACER
GASKET1
NUT
WASHER
GATE VALVE
NUT
WASHER
BOLT
GASKET2
SEACHEST CAP SHAFT
O-RING
(P135)
SCALE

1. MOUNTING
10

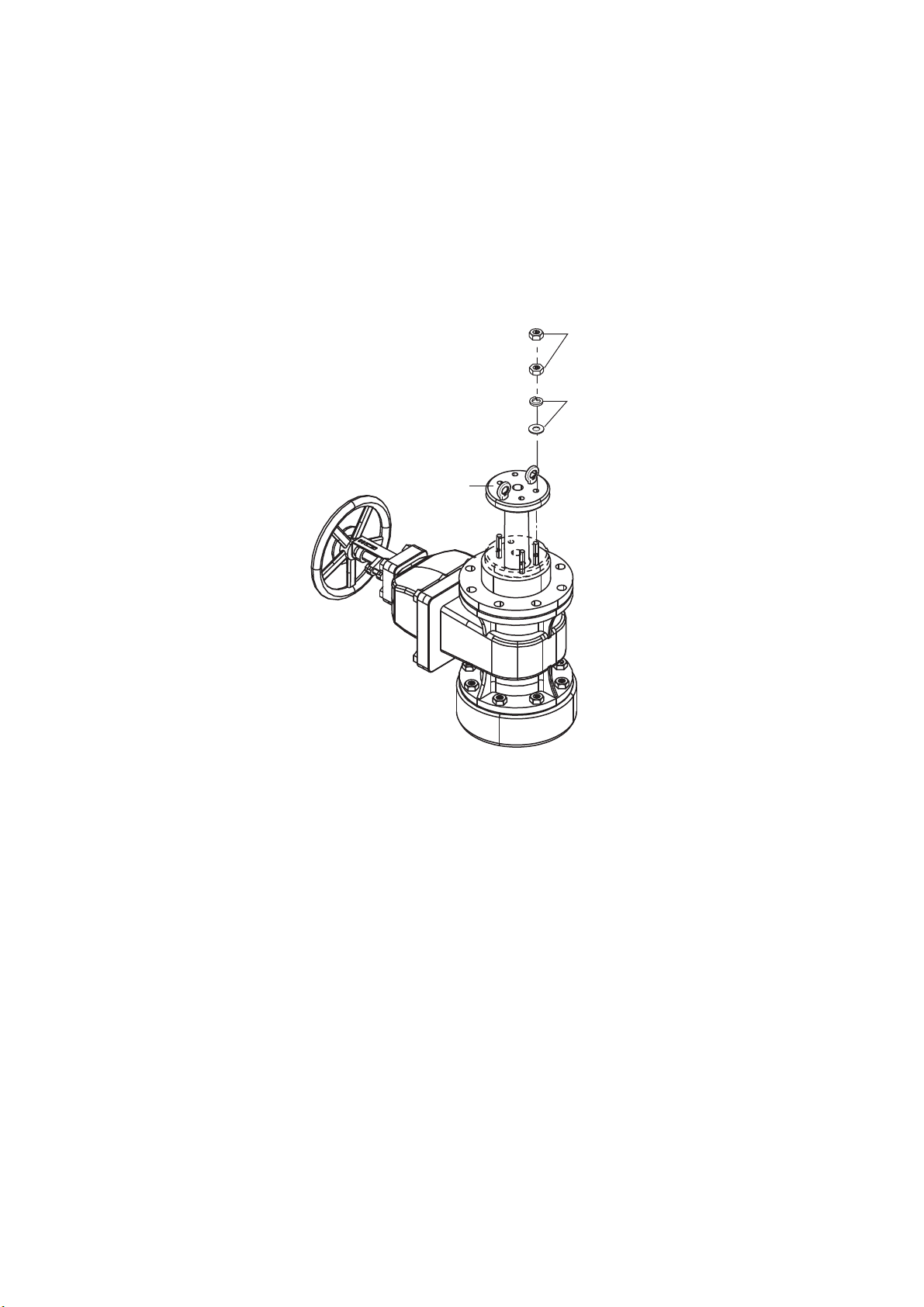

6. Fix stud bolts with washers and bolts loosely.
7. Keep seachest cap and shaft assembly free of dirt and dust.
8. Grease (supplied) both sides of the gasket 2 and place it onto the gate valve.
9. Place seachest cap and shaft assembly onto the gasket 2.
10. Fix the assembly with bolts, nuts and washers loosely.
11. Unscrew nuts from flange 2, and confirm that shaft can be moved up and down
smoothly by hand.
You will feel some resistance because of the O-ring (P135). (See the illustration
on the previous page.)
12. Fasten the gate valve with bolts, nuts and washers above and below.
Note: When installing a transducer, do it before step 7 or after removing the seachest
cap and the shaft assembly.
Flange 2
Nut
Washer

11
2. WIRING

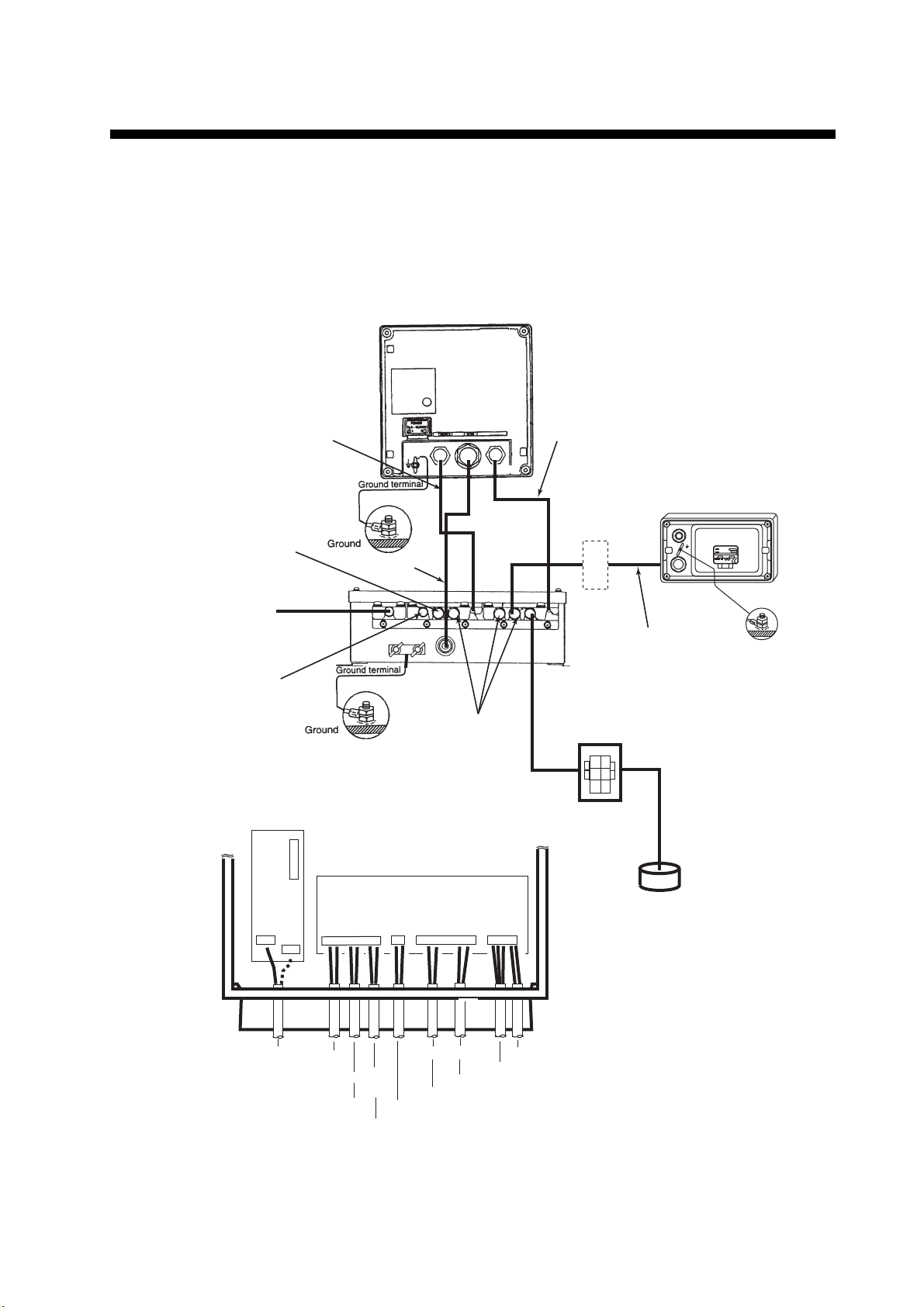

2.1 Wiring
Connect three cable assemblies (supplied) between the display unit and distribution
box. See the interconnection diagram for details.
Ship's
mains
Navigation
Device
(IEC 61162-1)
Alarm system
Personal computer
(EIA-232C)
Ground
Digital depth indicator FE-720 (option)
*1 *1
*2
*1: with power
*2: without power
Display unit FE-701 (rear panel)
Distribution box FE-702
When silencing the alarm beep, connect
to *2 connector.
1a
2a
3a
1T
2T
3T
TB1 TB2
2RNCT-SB
2CX1.5
Transducer
Matching box
1.25 sq
DPYCYS-1.5
2.0 sq
2.0 sq
CONE board 02P6283
12345678910 12345678910
12 12345
TB1 TB2 TB3 TB4
123
123
AC
TB5 DC
TB6
TB7
FE-702 Top view
Cable clamp
Ship's
Main
Terminal
Box
TTYCYS-4
DPYCYS-2.5
MJ-A3SPF0015-100C
MJ-A7SPF0009-020C
02S4169
DPYCYS-2.5
FE-720FE-720
Power
Sours
for FE-701
IEC
61162-1
PC
Alarm
System
TTYCYS-4
TTYCYS-4
TPYCYS-1.5
TTYCYS-4
POWER
DATA XDR
MJ-A10SPF0002-100
FM-C6FPS002-100

2. WIRING
12
When the Transducer Switch Box EX-8 or Distribution Box MB-1200 is used, the in-
terconnections are as follows.
12345678910 1234567891012 12345
TB1 TB2 TB3 TB4
123
123
AC
TB5 DC
TB6
TB7
1 2 3 4 5
TB3
1 2 3
TB1
FORE
1 2 3
TB2
AFT
1a
2a
3a
1T
2T
3T
TB1 TB2
2RNCT-SB
2CX2.5
1a
2a
3a
1T
2T
3T
TB1 TB2
2RNCT-SB
2CX2.5
2.0 sq
Display unit FE-701 (rear panel)
2.0 sq
MJ-A3SPF0015-100C
POWER
DATA XDR
Ship's
mains
Alarm system
Personal computer
(EIA-232C)
DPYCYS-1.5
2.0 sq
Navigation
Device
(IEC 61162-1)
*1
*1
*2
*1: with power
*2: without power
TTYCYS-4
Distribution
box
FE-702 RECORDER
Ground
Digital depth indicator FE-720 (option)
When silencing the alarm beep, connect
to *2 connector.
1.25 sq
Terminal
Box
MJ-A7SPF0009-020C
TRANSDUCER SWITCH BOX *3
EX-8 (option)
Ground
Matching box Matching box
Transducer
FORE
Transducer
AFT
Cable clamp
CONE board 02P6283
FE-702 Top view
Ship's
Main
FE-720FE-720
Power
Source
for FE-701
IEC
61162-1
PC
Alarm
System
TTYCYS-4
TTYCYS-4
TPYCYS-1.5
TTYCYS-4
FM-C6FPS003-020 (for EX-8)
FM-C6FPS004-050 (for MB-1200)
MJ-A10SPF0002-100
*3: Connection of Distribution Box
MB-1200(option)
TB1
1 2 3 4 5
2.0 sq
GND
TB2
DISTRIBUTION BOX
MB-1200
1 2 3 4 5

2. WIRING
13

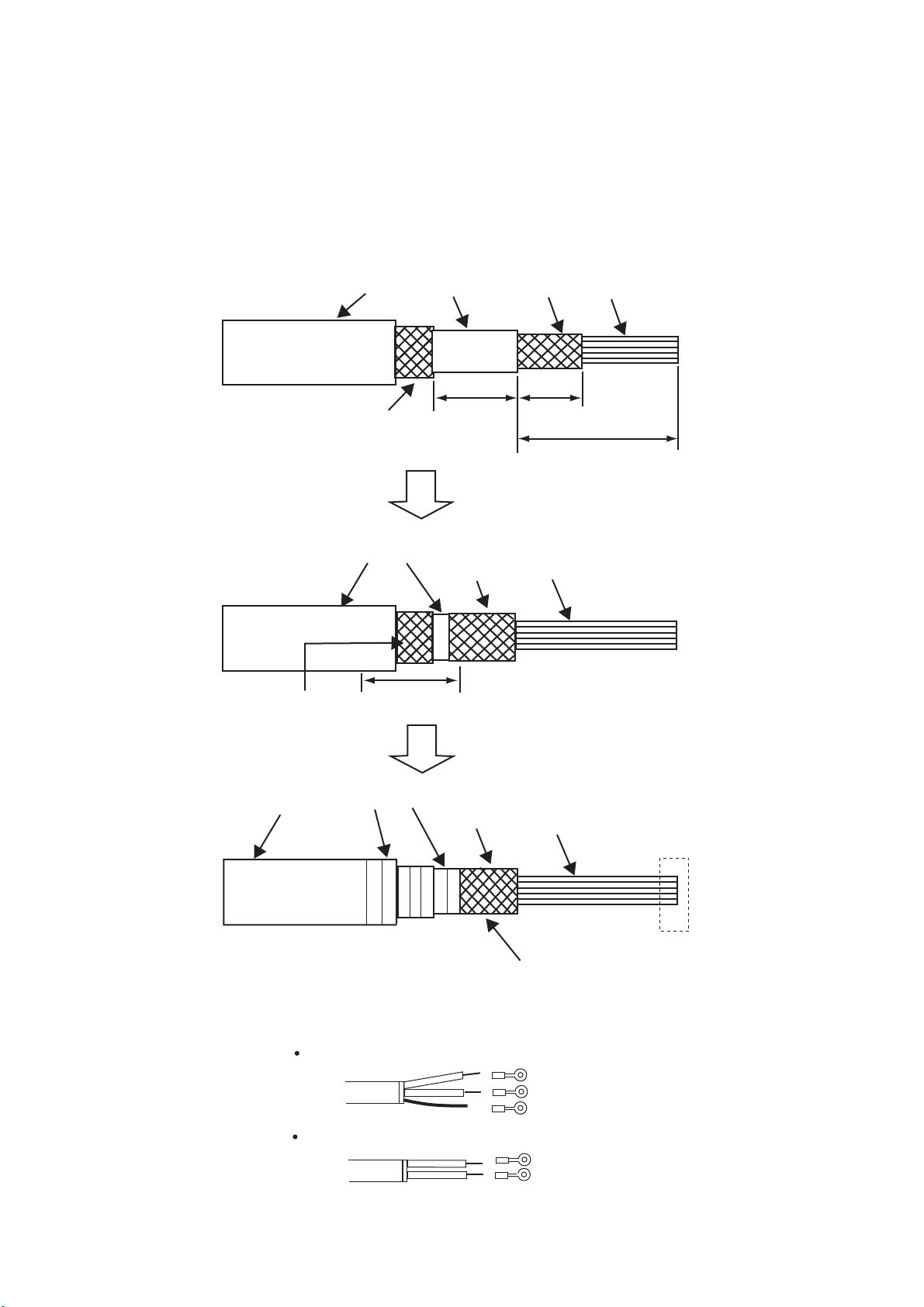

2.2 Cable Fabrication
2.2.1 DPYCYS-2.5, DPYCYS-1.5, MJ-A3SPF0015-100C , FM-
C6FPS0002-100 and TPYCYS-1.5
Fabricate the power and other cables as illustrated below to connect them to the Dis-
tribution box.
Taping
DPYCYS-2.5, DPYCYS-1.5, TPYCYS-1.5
Vinyl Sheath Shield Cores
Armor
Fold back shield over on vinyl sheath.
Vinyl Sheath
Shield Cores
Armor
Vinyl Tape
Vinyl Sheath
Shield Cores
*: See below.
Clamp here.
*: Depending on cables, fabrications are as follows.
Others
Crimp-on lug
FV2-S3.3 Blue
Crimp-on lug
FV1.25-3 Red
50mm 40mm
100mm

2. WIRING
14
Several cables are required to supply at local. In this manual, JIS (Japan Industrial
Standard ) cables are specified. Use equipment cables referring to the figures below.
JIS Cables (Cross section)
Armor
Vinyl sheath
Core
S=1.5 mm
=1.56mm
DPYCYS-1.5 sectional view
Armor
Vinyl sheath
Shield
2
Shield
2
Sheath Sheath
Armor
Vinyl sheath
Shield Sheath
Core
S=2.5 mm
=2.01mm
Core
S=1.5 mm
=1.56mm
2
DPYCYS-2.5 sectional view
TPYCYS-1.5 sectional view
